    1. TinyOS Meets Silicon Jason Hill NEST Retreat Summer 2002

    2. Breaking Out • COTS hardware has brought us this far but… • Next step is custom silicon • Like it or not, our platform progress is tied to hardware/silicon design cycle times • Silicon give us: • Size • Cost • Performance

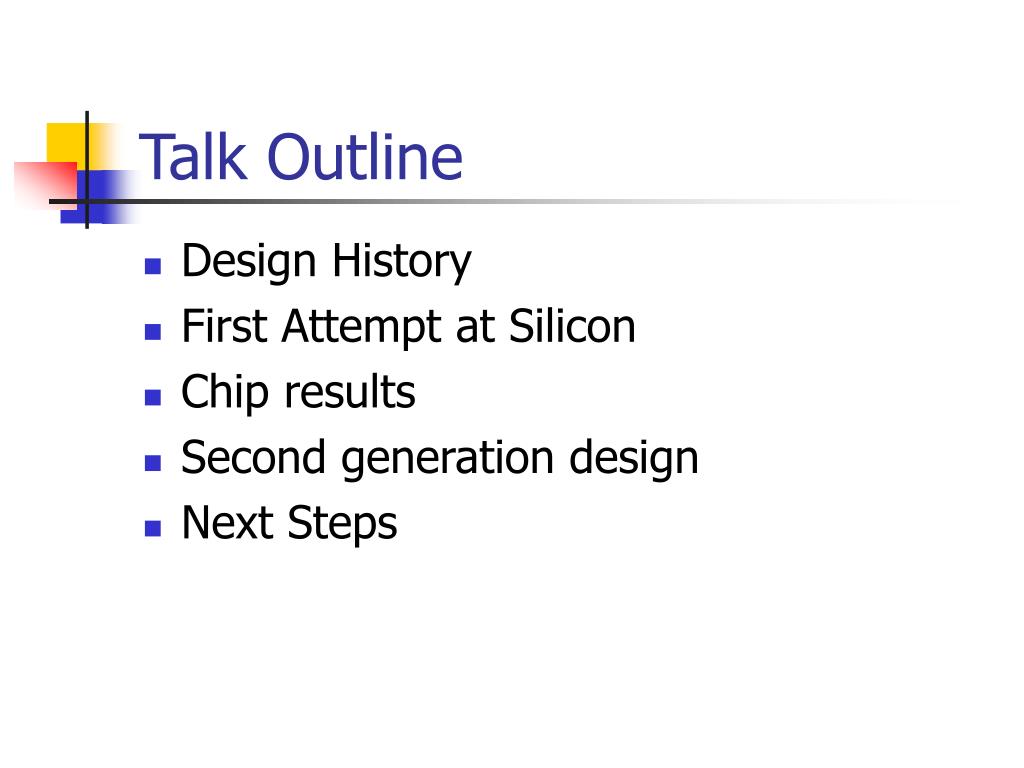

    3. Talk Outline • Design History • First Attempt at Silicon • Chip results • Second generation design • Next Steps

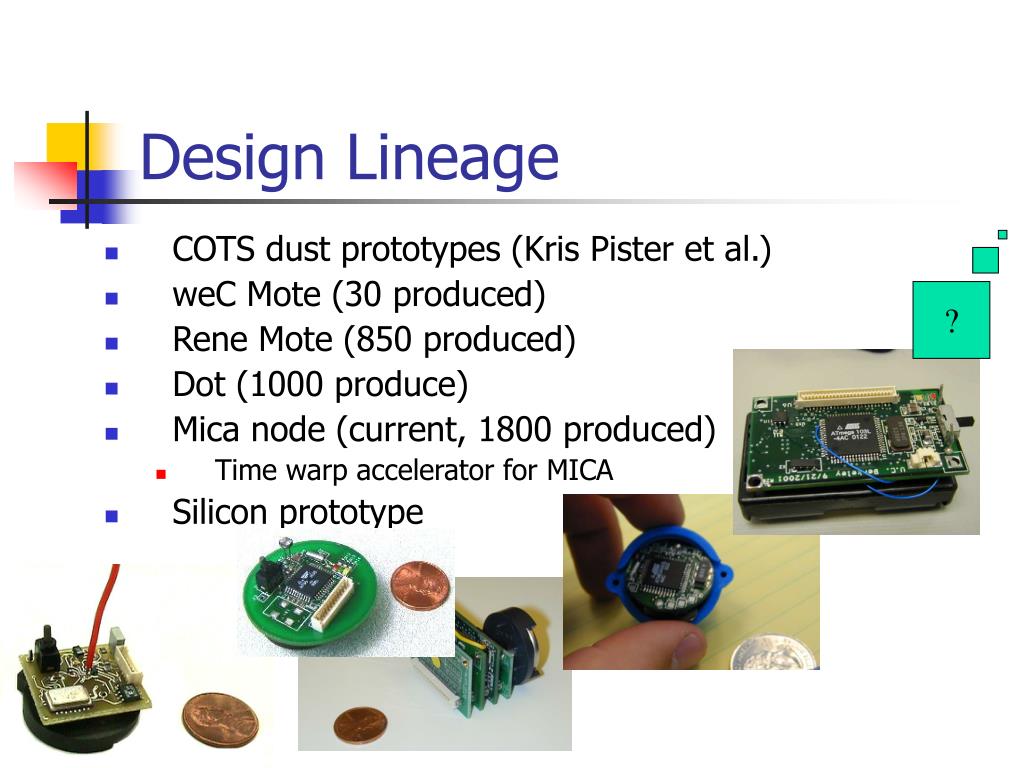

    4. Design Lineage • COTS dust prototypes (Kris Pister et al.) • weC Mote (30 produced) • Rene Mote (850 produced) • Dot (1000 produce) • Mica node (current, 1800 produced) • Time warp accelerator for MICA • Silicon prototype ?

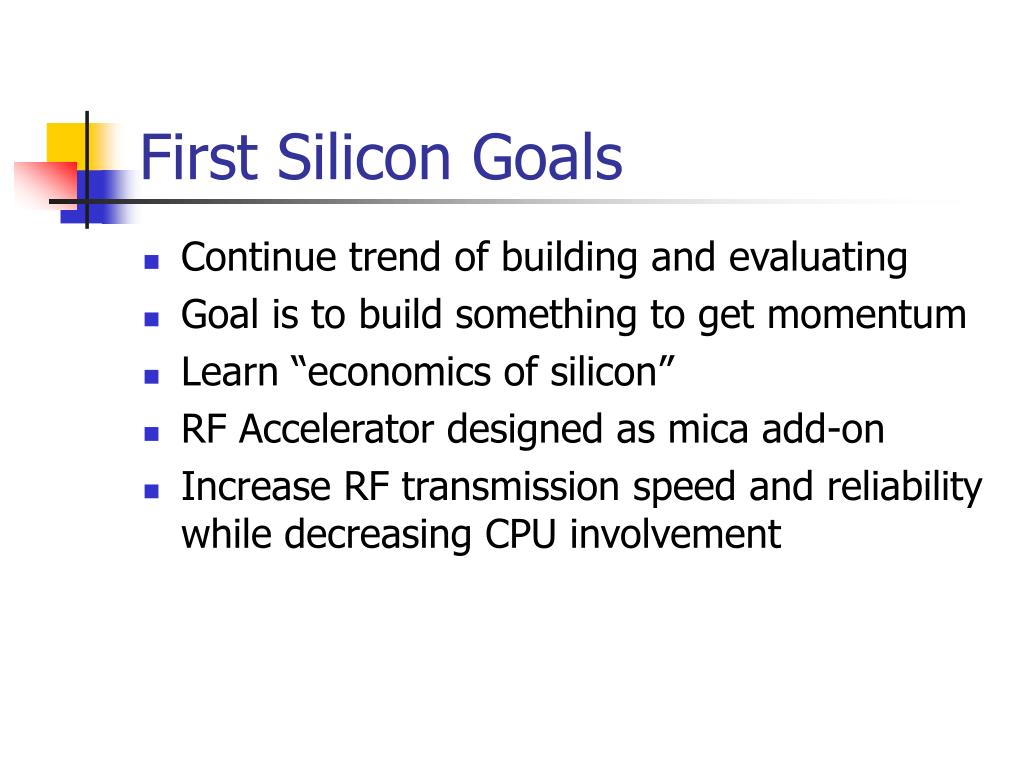

    5. First Silicon Goals • Continue trend of building and evaluating • Goal is to build something to get momentum • Learn “economics of silicon” • RF Accelerator designed as mica add-on • Increase RF transmission speed and reliability while decreasing CPU involvement

    6. Capabilities • RF Communication Support • Start Symbol Detection • Signal clock extraction and continual resynchronization • Transmission and reception buffering to relax CPU real-time constraints • Energy Consumption • 1 Mbps (> 100 uA) • Mote Requires approximately 3mA of CPU.

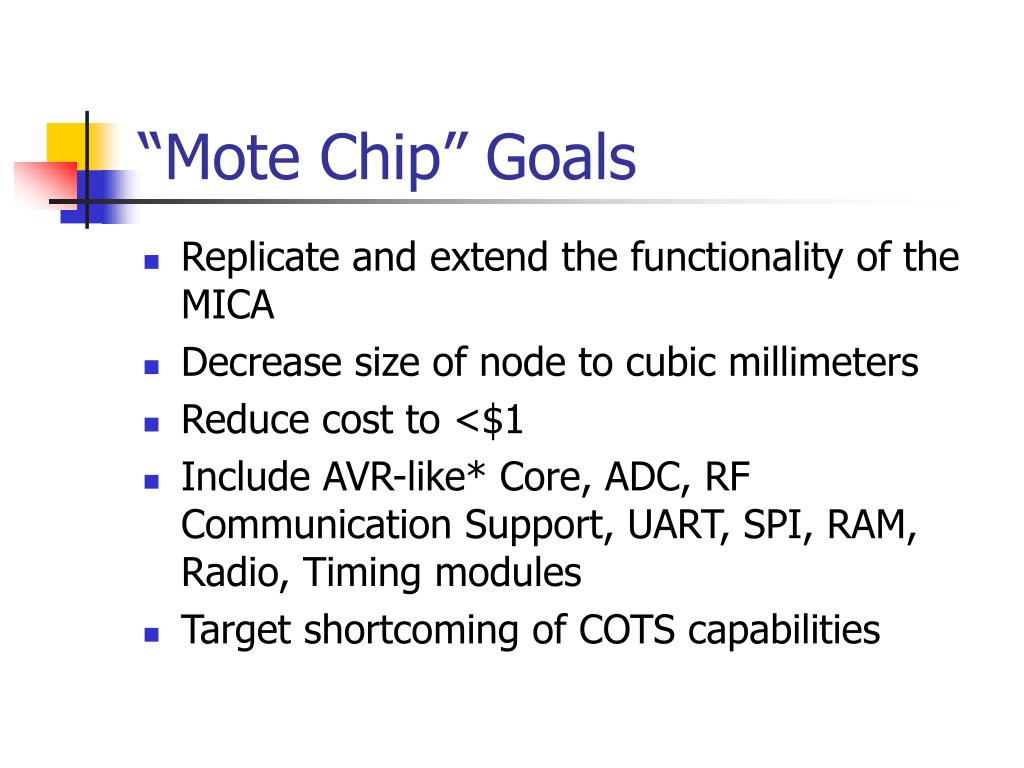

    7. “Mote Chip” Goals • Replicate and extend the functionality of the MICA • Decrease size of node to cubic millimeters • Reduce cost to <$1 • Include AVR-like* Core, ADC, RF Communication Support, UART, SPI, RAM, Radio, Timing modules • Target shortcoming of COTS capabilities

    8. Experimental Platform • Silicon is hard and expensive • Designs must be correct the first time • Simulation is nice but very time consuming • FPGAs provide essential hardware debugging mechanism

    9. Xilinx XCV2000E 2.5 million gates – 10x the size of an AVR core Also has… Ethernet A/V Encoder Compact Flash Internal and External RAM Mode Chip experimental setup

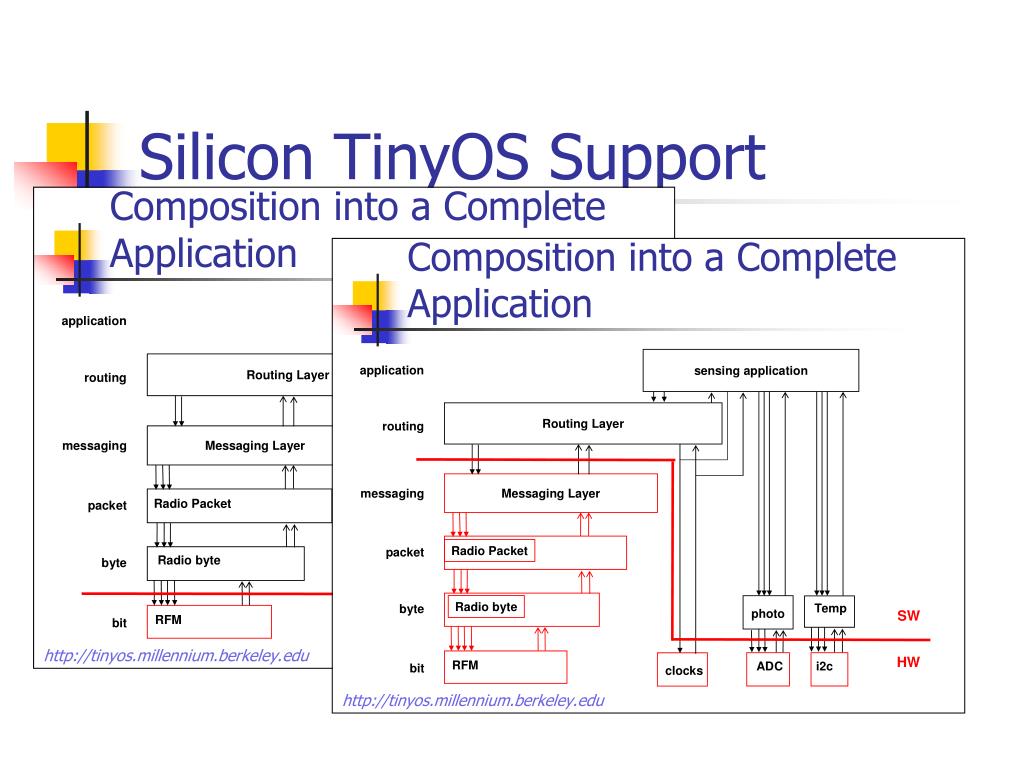

    10. Silicon TinyOS Support

    11. Communication Interface • Hardware provides ‘AM’ interface • Same functionality originally implemented in hardware • Hardware handles • Message send command with TOSMsgPtr • Hardware signals • Message arrival event with TOSMsgPtr • CPU communication overhead dropped from approx. 2MIPS down to 0.

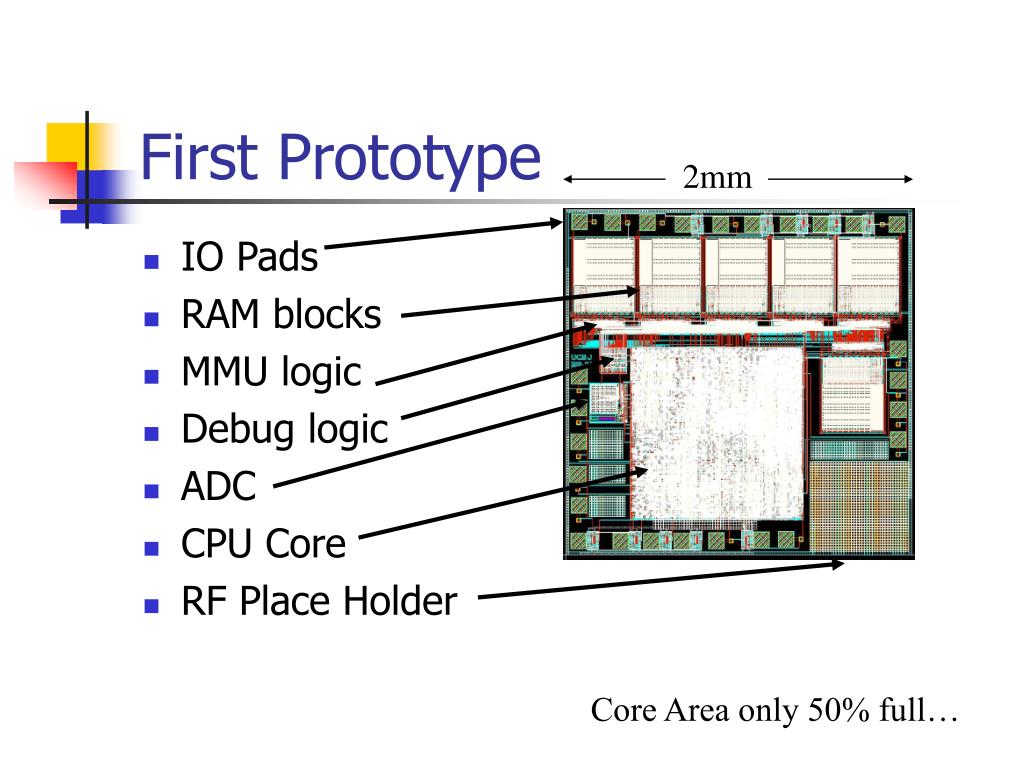

    12. First Prototype 2mm • IO Pads • RAM blocks • MMU logic • Debug logic • ADC • CPU Core • RF Place Holder Core Area only 50% full…

    13. Chip Area Breakdown • 3K RAM = 1.5 mm2 • CPU Core = 1mm2 • RF COMM stack = .5mm2 • RADIO = .25 mm2 • ADC 1/64 mm2 • I/O PADS

    14. Core Area Breakdown

    15. External Components Required • Current Prototype • 2 External clock generators • 1 External radio • Power source • End Goal • 1 External Inductor (RF oscillation) • 1 External Crystal (time keeping) • Power source

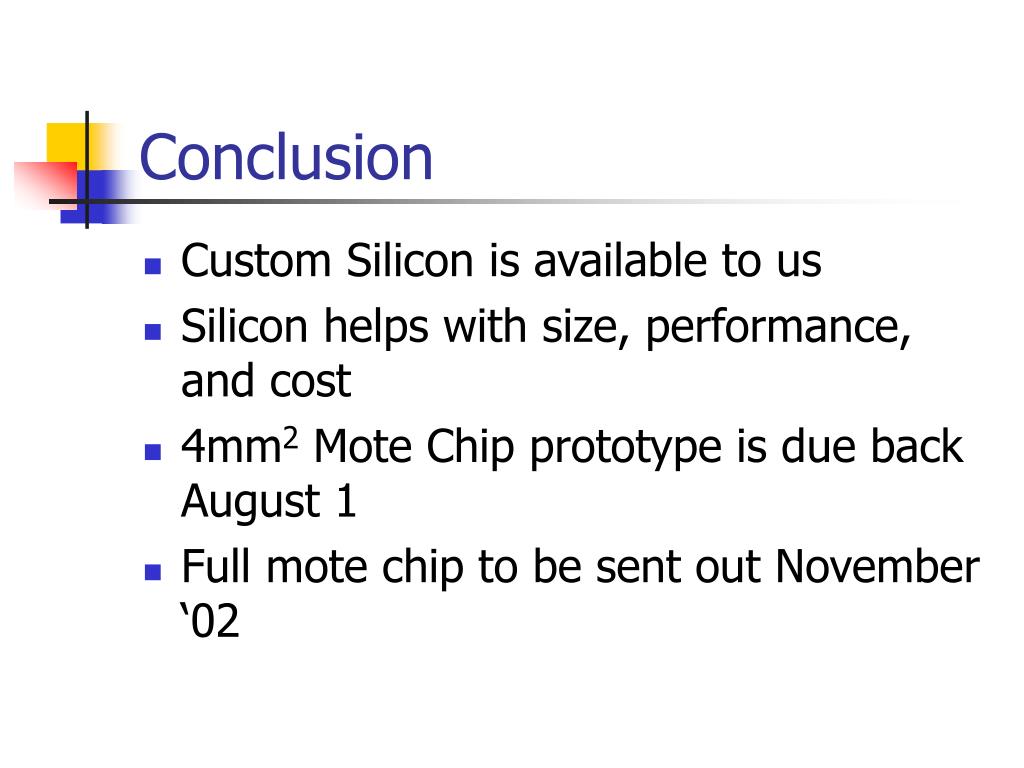

    16. Conclusion • Custom Silicon is available to us • Silicon helps with size, performance, and cost • 4mm2 Mote Chip prototype is due back August 1 • Full mote chip to be sent out November ‘02
