Current status of RCT software. Monika Grothe U Wisconsin – Madison CMS week March 2004. 3 main layers : 1. Extensive body of C code , historically grown during design phase of hardware, our “repository of knowledge” about hardware functionality (main author P. Chumney)
E N D
Current status of RCT software Monika Grothe U Wisconsin – Madison CMS week March 2004 • 3 main layers: 1. Extensive body of C code, historically grown during design phase of hardware, our “repository of knowledge” about hardware functionality (main author P. Chumney) 2.C++ framework, implementation of hardware structure and functionality of a full RCT crate, groundwork for future integration with CMS run-control/CMS DAQ software (main author S. Dasu) 3.User interface code(main author last two MG): • Command line interface for manipulating registers via VME • GUIs to facilitate standardized hardware testing procedure • E-log book to keep track of hardware testing result

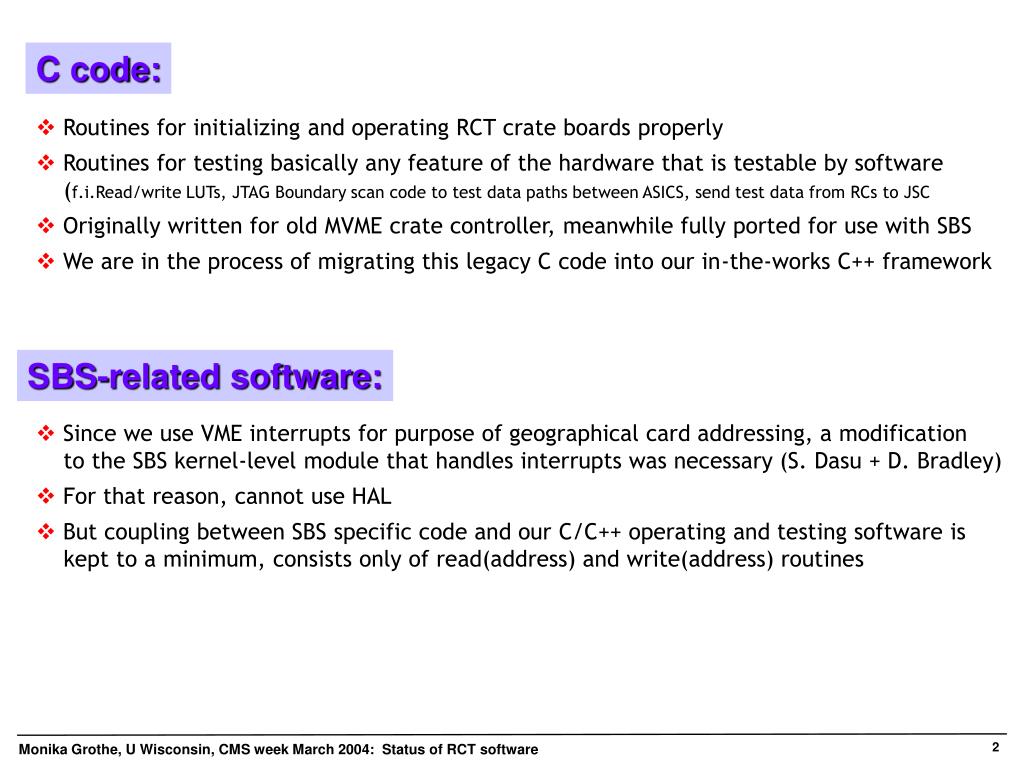

C code: • Routines for initializing and operating RCT crate boards properly • Routines for testing basically any feature of the hardware that is testable by software (f.i.Read/write LUTs, JTAG Boundary scan code to test data paths between ASICS, send test data from RCs to JSC • Originally written for old MVME crate controller, meanwhile fully ported for use with SBS • We are in the process of migrating this legacy C code into our in-the-works C++ framework • Since we use VME interrupts for purpose of geographical card addressing, a modification to the SBS kernel-level module that handles interrupts was necessary (S. Dasu + D. Bradley) • For that reason, cannot use HAL • But coupling between SBS specific code and our C/C++ operating and testing software is kept to a minimum, consists only of read(address) and write(address) routines SBS-related software:
Bit RW Name Description 0 R/W CARD_01 1=RC in Slot 0 or 1, 0= RC in slots 2-6 1 R/W CARD_ODD NOT USED 2 R/W CARD_SHR_LR Enable edge sharing on cables (RC 0 or 1 only) 3 R/W EDC_ERR 0/1=EDC Errors Disabled/Enabled 4 R/W LINK_ERR 0/1=Link Errors Disabled/Enabled 5 R/W R0_UP/DN Changes order of R0 f’s: 0=default, 1=reversed 6 R/W R1_UP/DN Changes order of R1 f’s: 0=default, 1=reversed 7 R/W ZERO_DATA 0/1=Disable/Enable zeroing of data for any error 8 R Card Id Eight bits for Card identification, tied to Vcc, 9 R Card Id Can be strapped to ground. 10 R Card Id Value is complement of serial number of card – to 11 R Card Id Ease visual inspection of straps on SW4 12 R Card Id 13 R Card Id 14 R Card Id 15 R Card Id C++ framework: • Groundwork for future integration with CMS DAQ and run control code • Implementation of full set of functionalities provided on cards by setting VME registers • Includes also code for testing card functionality, which has been interfaced to java GUI RCTCrate.hh has one or more RCTReceiverCard.hh RCTElectronIsolationCard.hh RCTClockControlCard.hh RCTJetSummaryCard.hh which inherit all from RCTCard.hh class RCTReceiverCard : public RCTCard{ public: … // Access functions bool isCard01(); bool isSharingLeftRight(); bool statusOfEDCChecking(); bool statusOfLinkErrorChecking(); unsigned short statusOfRegionReversing(); bool statusOfDataZeroing(); // Action functions bool resetBX0(); bool disableBX0Checking(); bool resetErrors(int channel = 0xFF); bool setAsCard01(); bool setAsNotCard01(); bool enableShareLeftRight(); bool enableEDCChecking(); bool enableLinkErrorChecking(); bool enableRegion0Reversing(); bool enableRegion1Reversing(); bool enableDataZeroing(); bool disableShareLeftRight(); … Receiver Card: Card Position, Error modes, and Card Id, VME register $06

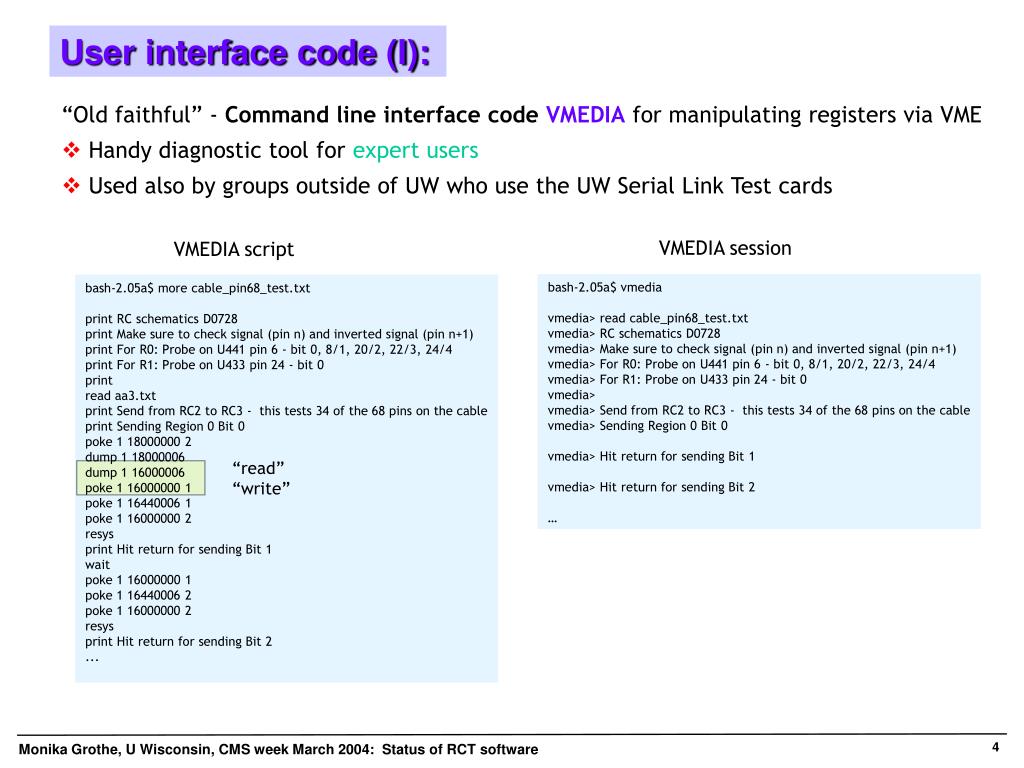

VMEDIA session VMEDIA script bash-2.05a$ vmedia vmedia> read cable_pin68_test.txt vmedia> RC schematics D0728 vmedia> Make sure to check signal (pin n) and inverted signal (pin n+1) vmedia> For R0: Probe on U441 pin 6 - bit 0, 8/1, 20/2, 22/3, 24/4 vmedia> For R1: Probe on U433 pin 24 - bit 0 vmedia> vmedia> Send from RC2 to RC3 - this tests 34 of the 68 pins on the cable vmedia> Sending Region 0 Bit 0 vmedia> Hit return for sending Bit 1 vmedia> Hit return for sending Bit 2 … bash-2.05a$ more cable_pin68_test.txt print RC schematics D0728 print Make sure to check signal (pin n) and inverted signal (pin n+1) print For R0: Probe on U441 pin 6 - bit 0, 8/1, 20/2, 22/3, 24/4 print For R1: Probe on U433 pin 24 - bit 0 print read aa3.txt print Send from RC2 to RC3 - this tests 34 of the 68 pins on the cable print Sending Region 0 Bit 0 poke 1 18000000 2 dump 1 18000006 dump 1 16000006 poke 1 16000000 1 poke 1 16440006 1 poke 1 16000000 2 resys print Hit return for sending Bit 1 wait poke 1 16000000 1 poke 1 16440006 2 poke 1 16000000 2 resys print Hit return for sending Bit 2 ... “read” “write” User interface code (I): • “Old faithful” - Command line interface code VMEDIA for manipulating registers via VME • Handy diagnostic tool for expert users • Used also by groups outside of UW who use the UW Serial Link Test cards

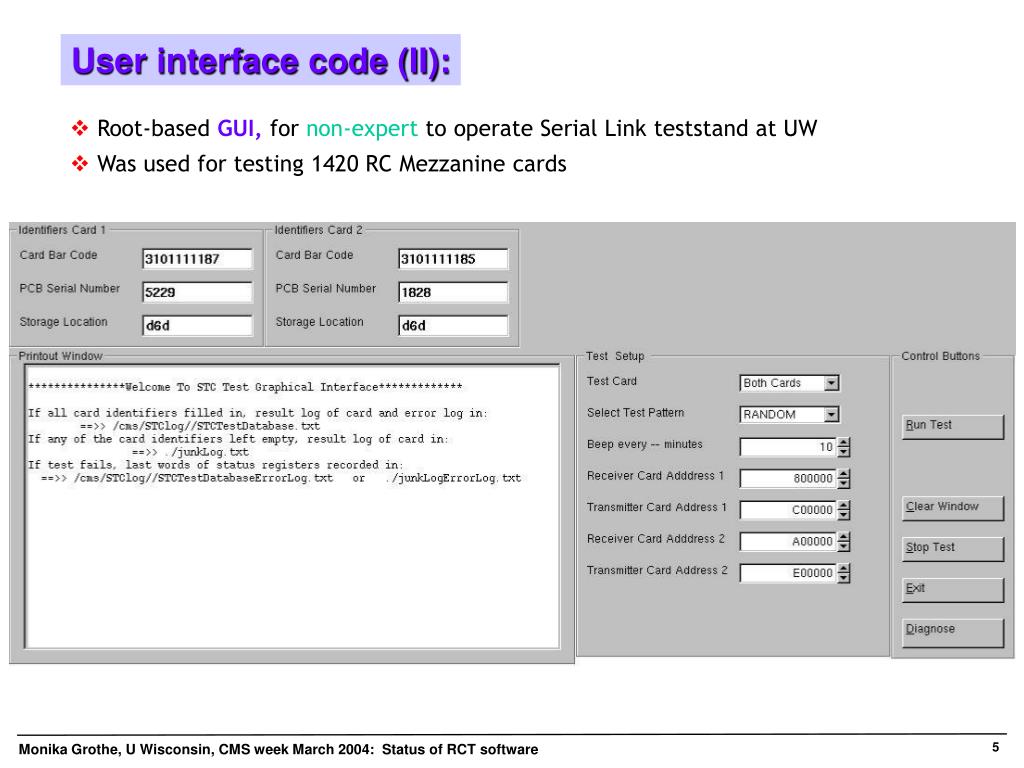

User interface code (II): • Root-based GUI, for non-expert to operate Serial Link teststand at UW • Was used for testing 1420 RC Mezzanine cards

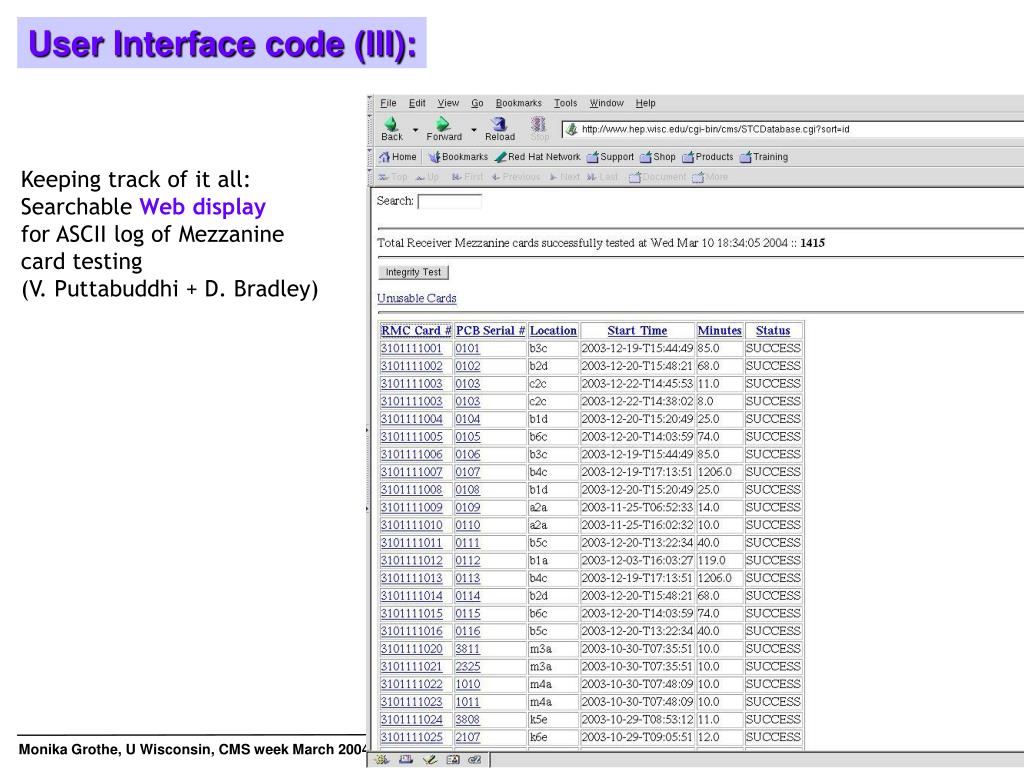

User Interface code (III): Keeping track of it all: Searchable Web display for ASCII log of Mezzanine card testing (V. Puttabuddhi + D. Bradley)
User Interface code (IV): • GUI interface for C++ framework code • Main author MG • Written in java, uses JNI to interface to C++ framework code • Intended for non-expert user, for example student, to carry out standardized tests for board validation and for spotting boards that need further inspection by hardware expert • Will grow as C code migration to C++ framework continues
User Interface code (V): • Keeps ASCII log file per card, identified by its barcode • Keeps card status summary files which can be made accessible via Web and can be made searchable Keeping track of it all: E-log book
Some performance numbers: • “Warm start” taken to mean reset/initialize • “Cold start” taken to mean initializing crate and uploading data into on-board LUTs from file • With C++ framework code, called from java GUI, and full RCT crate: • “Warm start” takes only a few seconds • “Cold start” estimated by loading zeros into the LUTs: • Loading zeros only: ~20 sec per RC card, ~1 sec per EIC and JSC full crate ~2.5 min. • Loading and verifying: ~30 sec per RC, ~1 sec per EIC and JSC full crate ~3.5 min. • The RCT does not do any data acquisition, so integration in XDAQ based DAQ/run control should be relatively easy • Integration with XDAQ only needed for purpose of reset/initialize/configure of RCT crates • As finger exercise set up code to operate our Serial Link teststand from within XDAQ • Will have to integrate with HCAL XDAQ code for slice test later this year • XDAQ will be needed by RCT once we have to operate more than one crate at a time Integration with XDAQ:

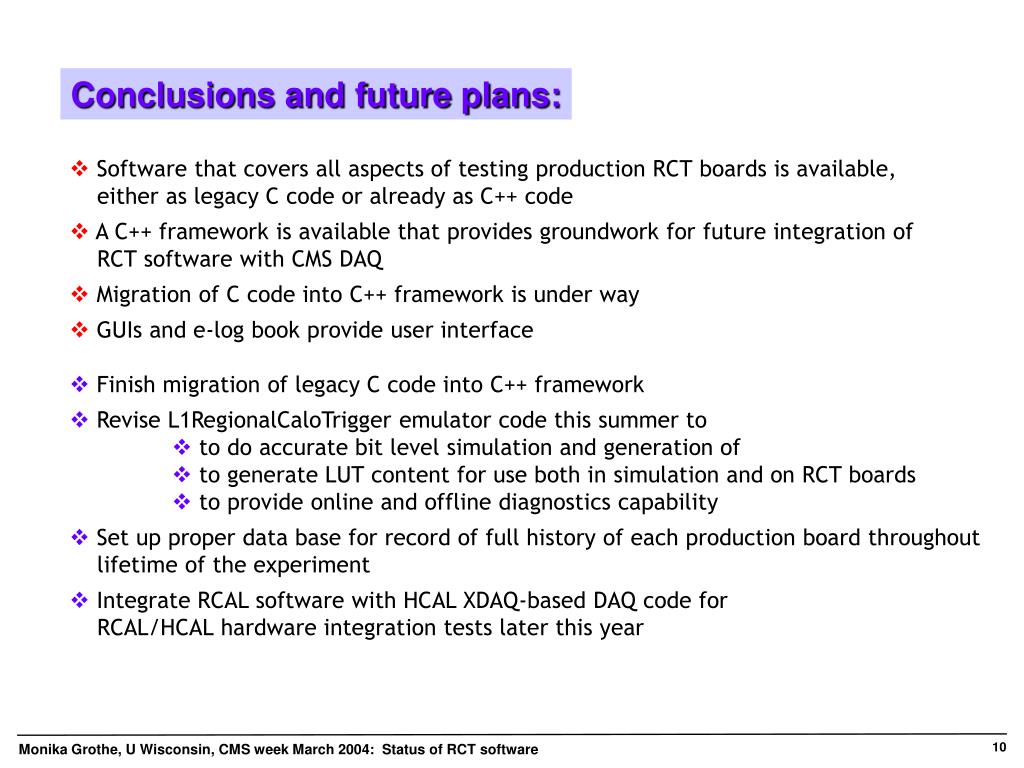

Conclusions and future plans: • Software that covers all aspects of testing production RCT boards is available, either as legacy C code or already as C++ code • A C++ framework is available that provides groundwork for future integration of RCT software with CMS DAQ • Migration of C code into C++ framework is under way • GUIs and e-log book provide user interface • Finish migration of legacy C code into C++ framework • Revise L1RegionalCaloTrigger emulator code this summer to • to do accurate bit level simulation and generation of • to generate LUT content for use both in simulation and on RCT boards • to provide online and offline diagnostics capability • Set up proper data base for record of full history of each production board throughout lifetime of the experiment • Integrate RCAL software with HCAL XDAQ-based DAQ code for RCAL/HCAL hardware integration tests later this year
