linux mame arcade

Linux Mame Arcade

Ryan Whallen and Beth Garrett

EKU,

CEN/CET

outline
OUTLINE
  • We attempted to make a Video Game Emulator, on a Linux system.
  • This had rarely been done before.
  • Thus making Linux have Hundreds of games.

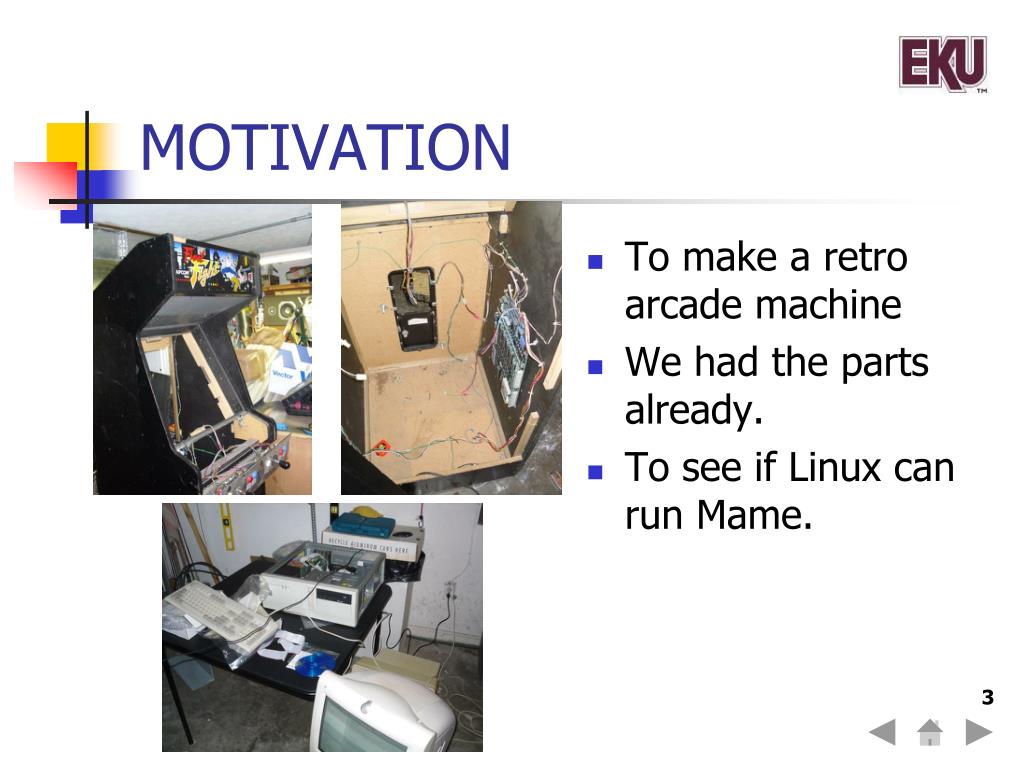

motivation
MOTIVATION
  • To make a retro arcade machine
  • We had the parts already.
  • To see if Linux can run Mame.

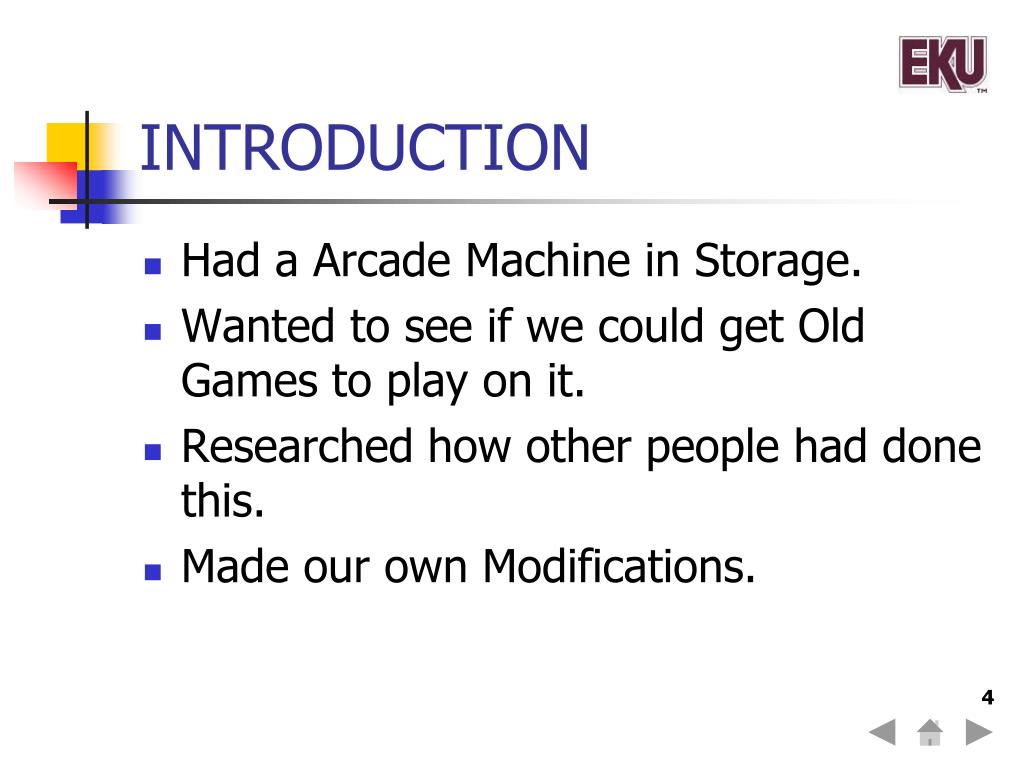

introduction
INTRODUCTION
  • Had a Arcade Machine in Storage.
  • Wanted to see if we could get Old Games to play on it.
  • Researched how other people had done this.
  • Made our own Modifications.

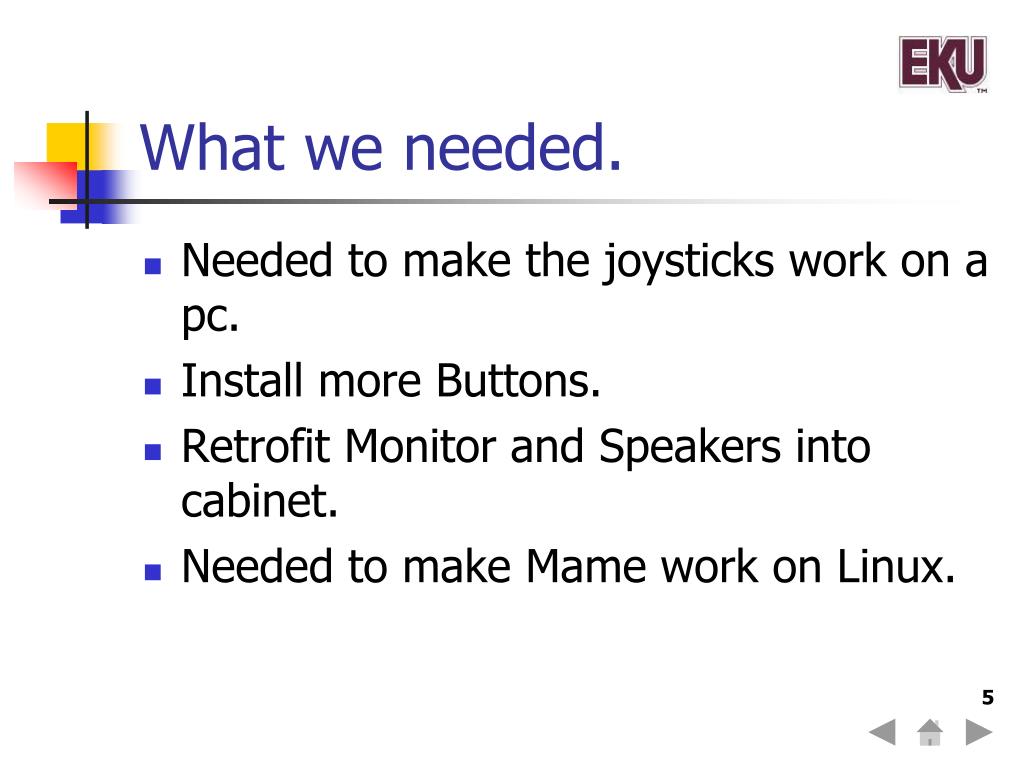

what we needed
What we needed.
  • Needed to make the joysticks work on a pc.
  • Install more Buttons.
  • Retrofit Monitor and Speakers into cabinet.
  • Needed to make Mame work on Linux.
the bridge
The Bridge
  • Every Button had a line to a 40 PIN IDE Cable.

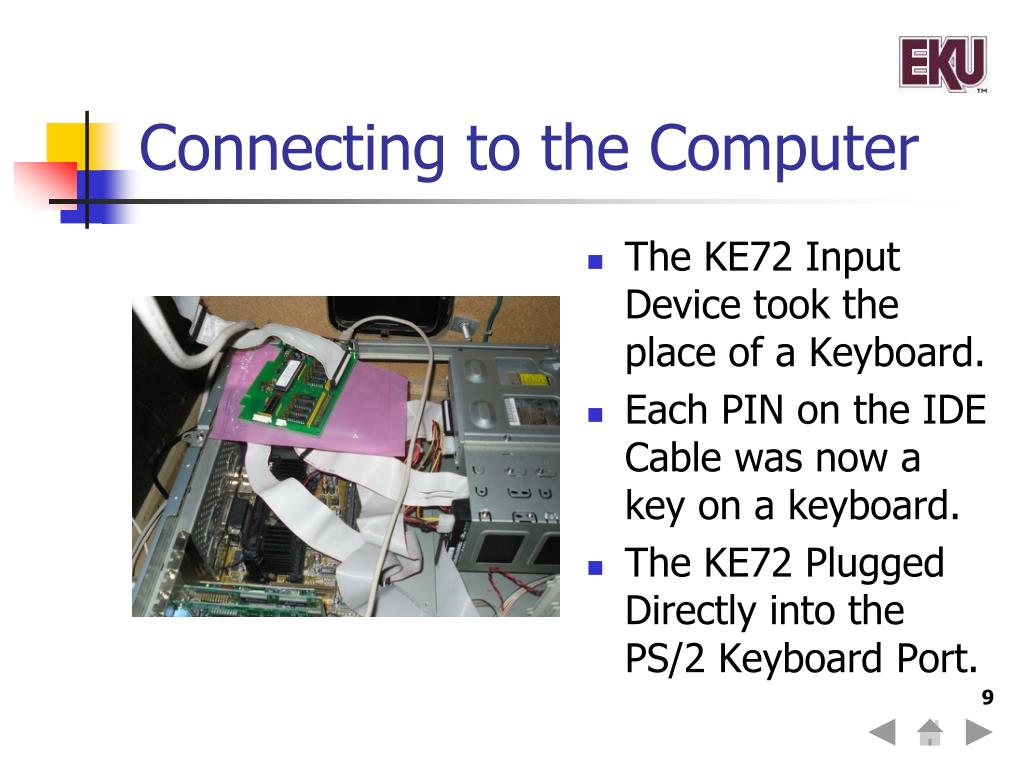

connecting to the computer
Connecting to the Computer
  • The KE72 Input Device took the place of a Keyboard.
  • Each PIN on the IDE Cable was now a key on a keyboard.
  • The KE72 Plugged Directly into the PS/2 Keyboard Port.

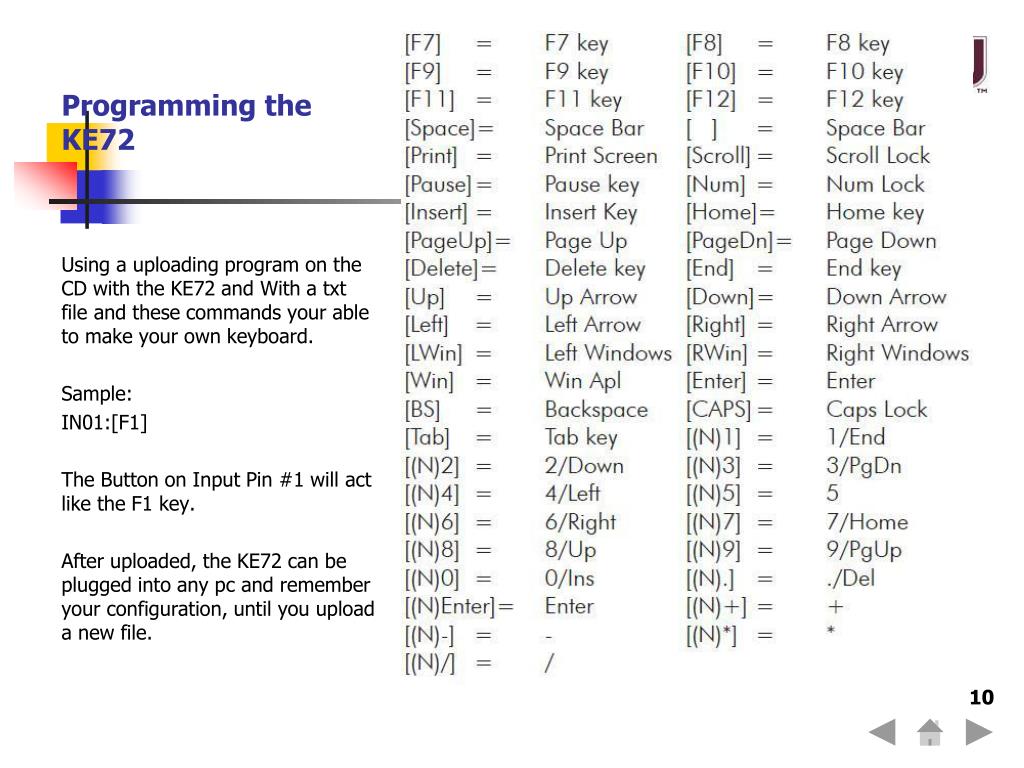

programming the ke72
Programming the KE72

Using a uploading program on the CD with the KE72 and With a txt file and these commands your able to make your own keyboard.

Sample:

IN01:[F1]

The Button on Input Pin #1 will act like the F1 key.

After uploaded, the KE72 can be plugged into any pc and remember your configuration, until you upload a new file.

slide11
What is Mame?
  • MAME stands for Multiple Arcade Machine Emulator
  • It can emulate most arcade hardware ranging from the very old to the moderately new
  • It allows you to access multiple games at one time, which makes it ideal for arcade cabinet projects

11

slide12

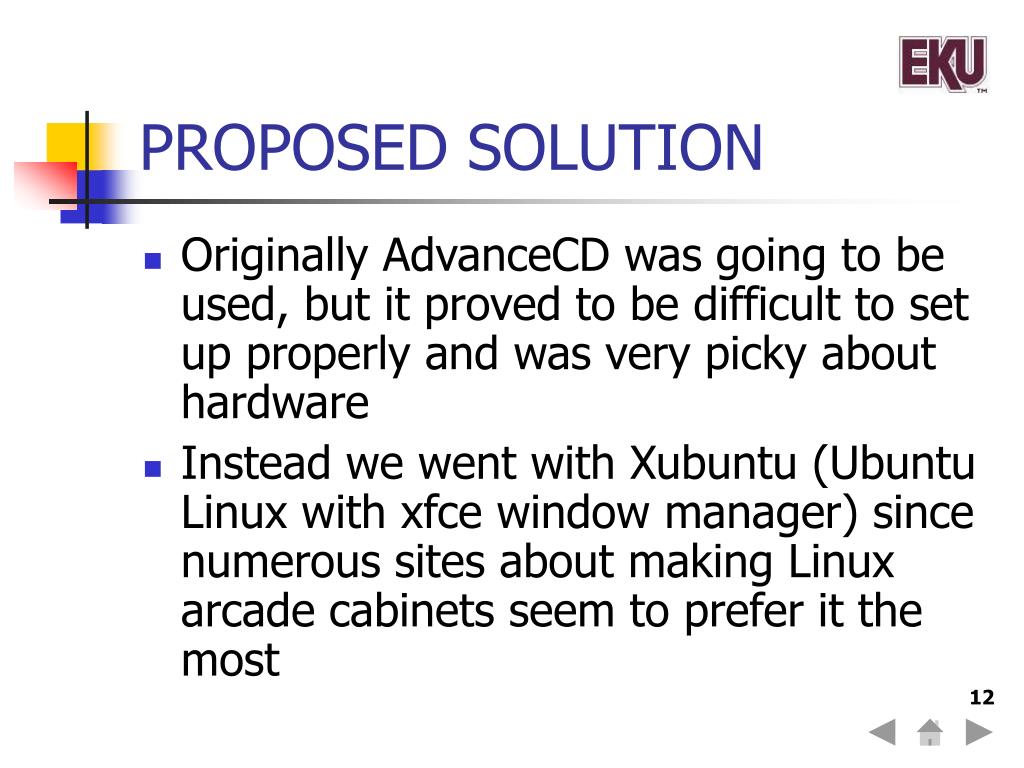

PROPOSED SOLUTION
  • Originally AdvanceCD was going to be used, but it proved to be difficult to set up properly and was very picky about hardware
  • Instead we went with Xubuntu (Ubuntu Linux with xfce window manager) since numerous sites about making Linux arcade cabinets seem to prefer it the most

12

slide13

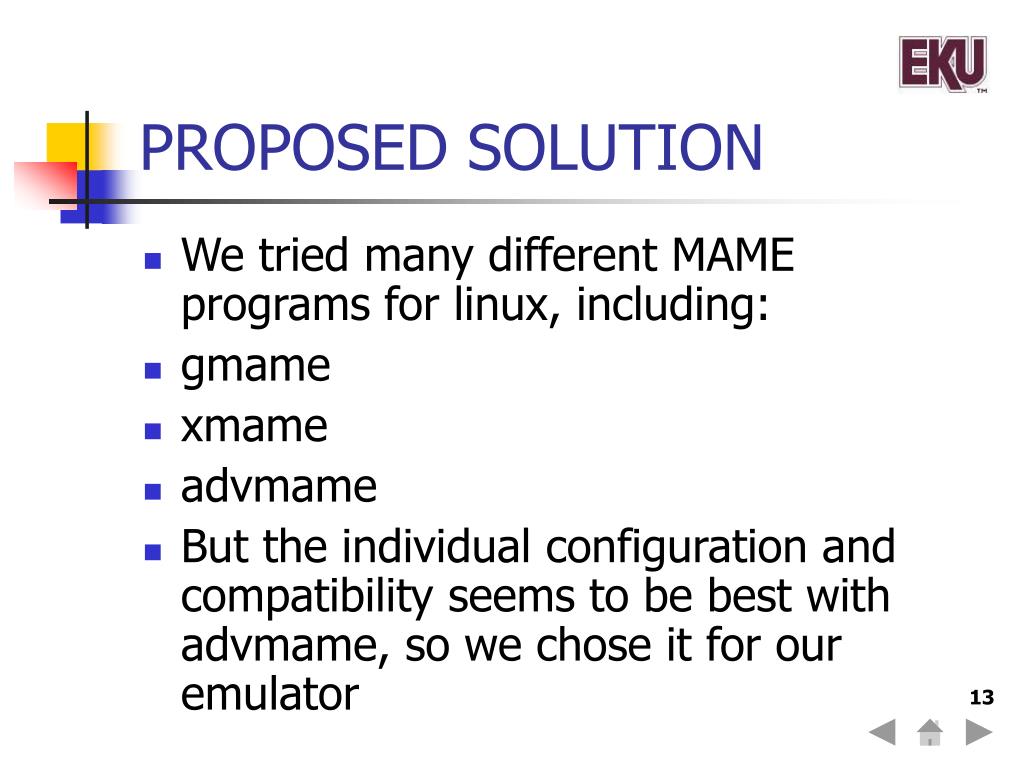

PROPOSED SOLUTION
  • We tried many different MAME programs for linux, including:
  • gmame
  • xmame
  • advmame
  • But the individual configuration and compatibility seems to be best with advmame, so we chose it for our emulator

13

slide14

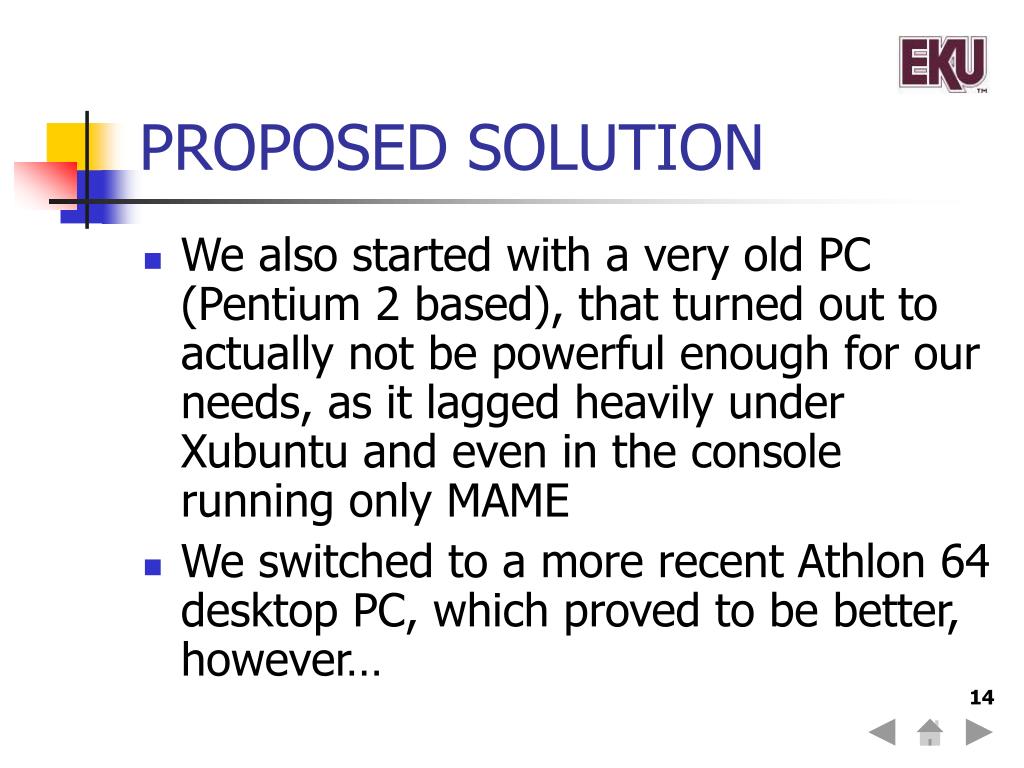

PROPOSED SOLUTION
  • We also started with a very old PC (Pentium 2 based), that turned out to actually not be powerful enough for our needs, as it lagged heavily under Xubuntu and even in the console running only MAME
  • We switched to a more recent Athlon 64 desktop PC, which proved to be better, however…

14

slide15
PROPOSED SOLUTION
  • The Radeon x800 inside the computer was not fully compatible with the things we needed to do to autorun MAME
  • It’s core was not supported by framebuffer drivers, causing MAME to crash
  • We tried an Nvidia card, the card from the old machine, and a different Radeon card, but all had the same issue

15

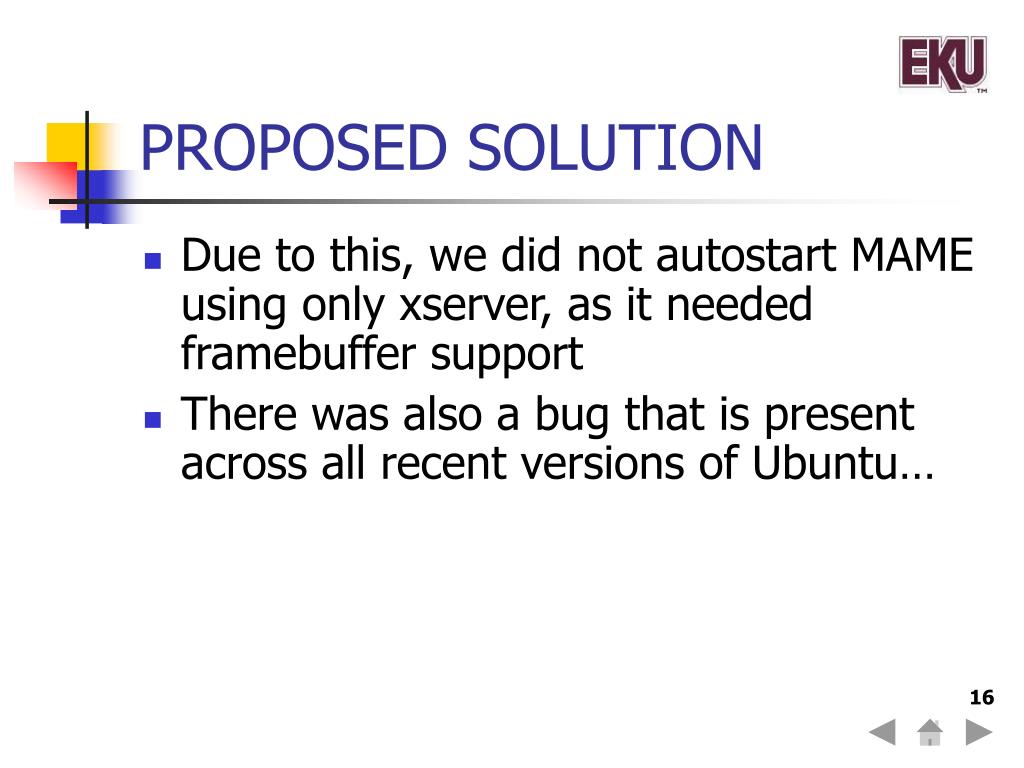

slide16
PROPOSED SOLUTION
  • Due to this, we did not autostart MAME using only xserver, as it needed framebuffer support
  • There was also a bug that is present across all recent versions of Ubuntu…

16

slide17
PROPOSED SOLUTION
  • This bug was in how the tty1, tty2, etc. configuration files were understood by Ubuntu
  • The default script syntax was changed, but if you manually edit the files to mimic it, it ignores your changes and causes errors

17

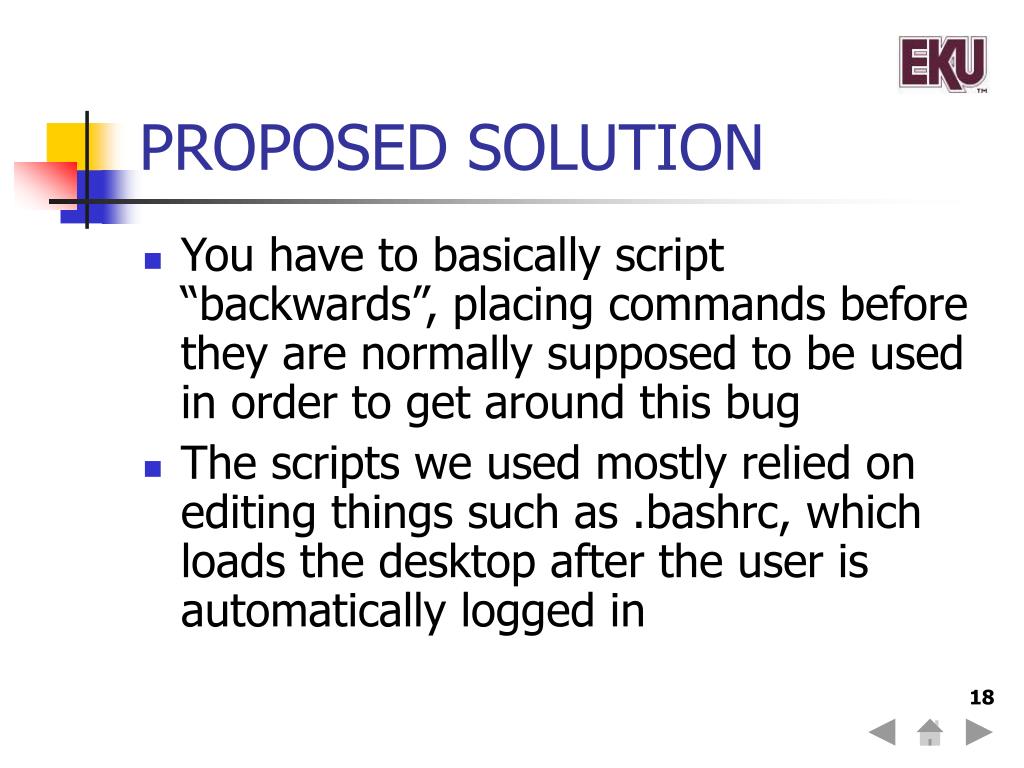

slide18
PROPOSED SOLUTION
  • You have to basically script “backwards”, placing commands before they are normally supposed to be used in order to get around this bug
  • The scripts we used mostly relied on editing things such as .bashrc, which loads the desktop after the user is automatically logged in

18

slide19
PROPOSED SOLUTION
  • The autologin was accomplished using mingetty, and the event.d file for tty1, the first terminal console
  • This was done so the user would not need keyboard access at the arcade cabinet to login, saving time and removing the need to accommodate for a keyboard in the structure of the cabinet

19

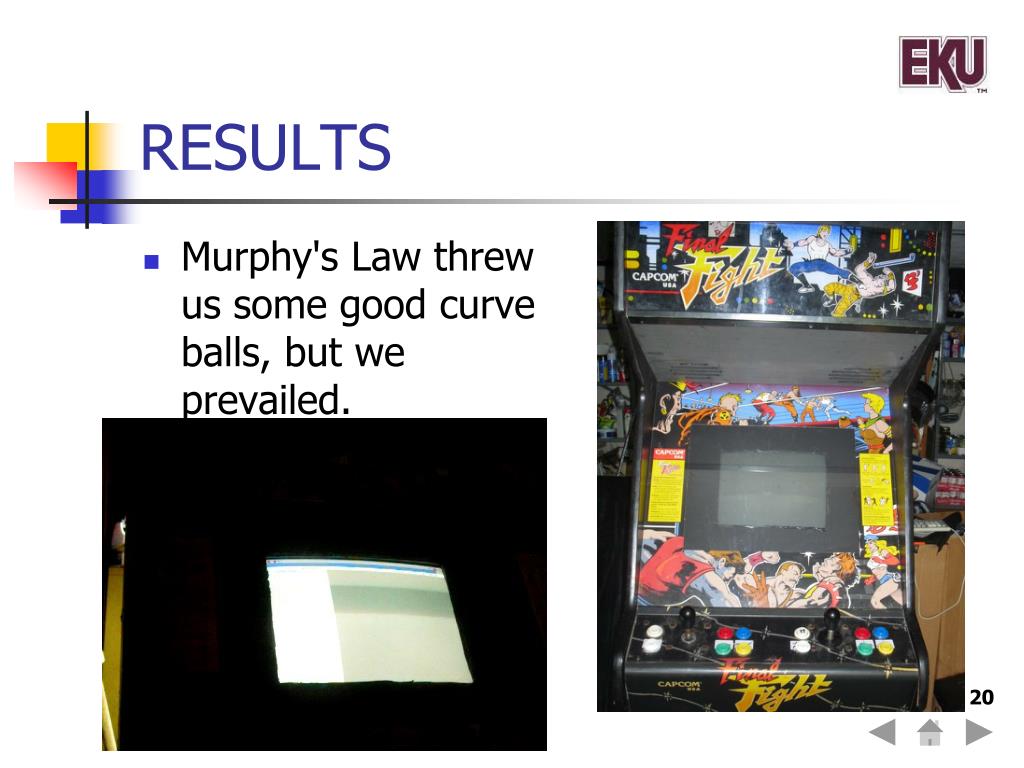

results
RESULTS
  • Murphy's Law threw us some good curve balls, but we prevailed.

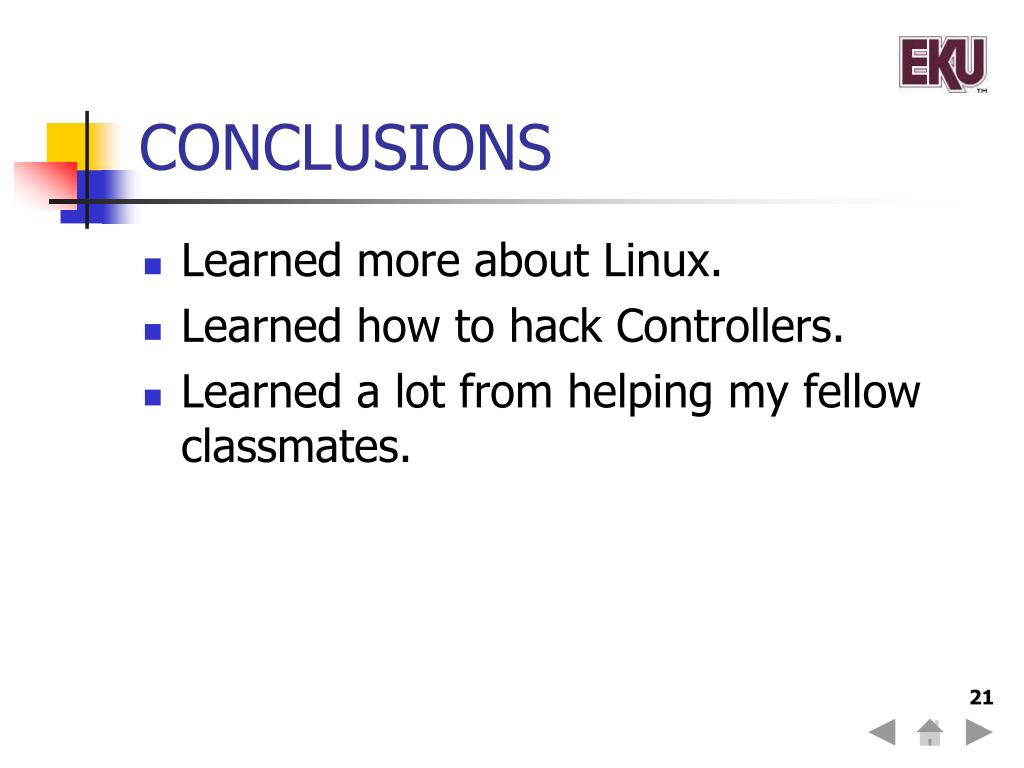

conclusions
CONCLUSIONS
  • Learned more about Linux.
  • Learned how to hack Controllers.
  • Learned a lot from helping my fellow classmates.
future work
FUTURE WORK
  • Playing more with The KE72. (I have two driving simulators in storage.)
  • Making more Arcade Cabinets and then Selling them.
