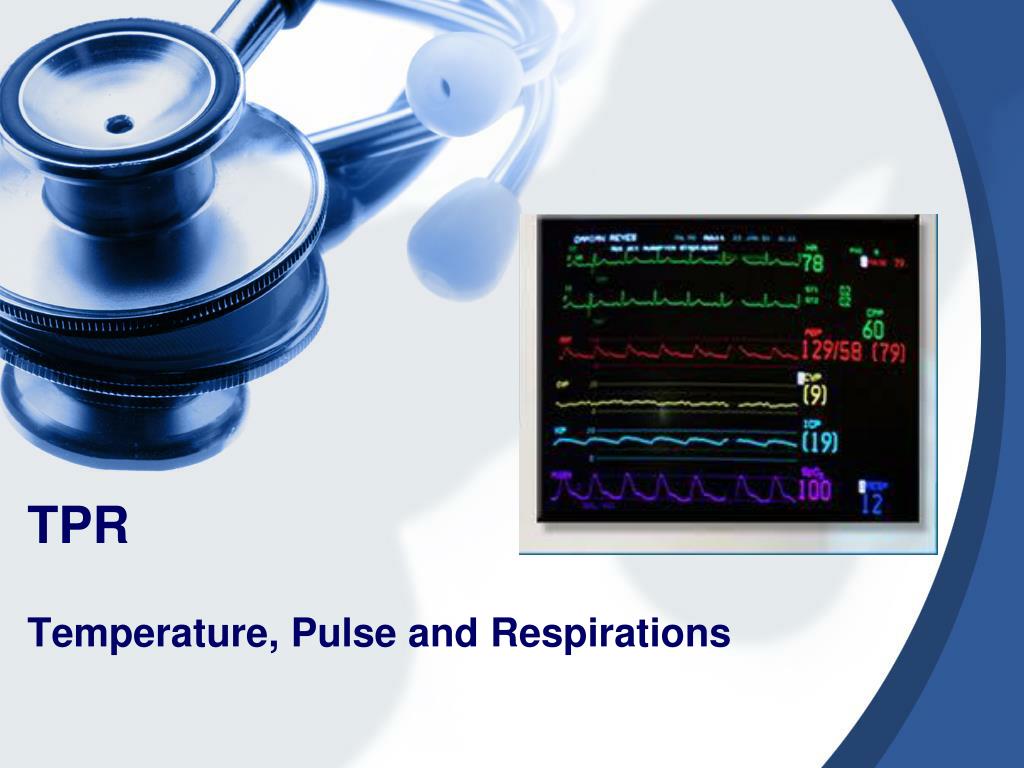

  1. TPR Temperature, Pulse and Respirations

  2. Temperature • Is the measurement of the balance between heat lost and heat produced by the body

  3. Temperature Can be measured by four basic routes • 1. Oral • Mouth- leave in place for 3-5 minutes • 2. Rectal • Rectum- leave in place for 3-5 minutes • 3. Axillary • Axilla or groin- leave in place for 10 minutes • 4. Tympanic • Eardrum- • 5. Temporal • Across forehead-

  4. Types of Thermometers • 1. Electronic/Digital • 2. Glass • 3. Thermoscan for Tympanic measurement • 4.Temporal measurement thermometers

  5. Normal temperature ranges • Oral 97.6 F – 99.6 F • (36.5-37.5 C) • Axillary or Groin 96.6 F – 98.6 F • ( 36- 37 C) • one degree Fahrenheit lower than Oral • Rectal & Temporal98.6 F – 100.6 F • (37-38.1 C) • one degree Fahrenheit higher than Oral

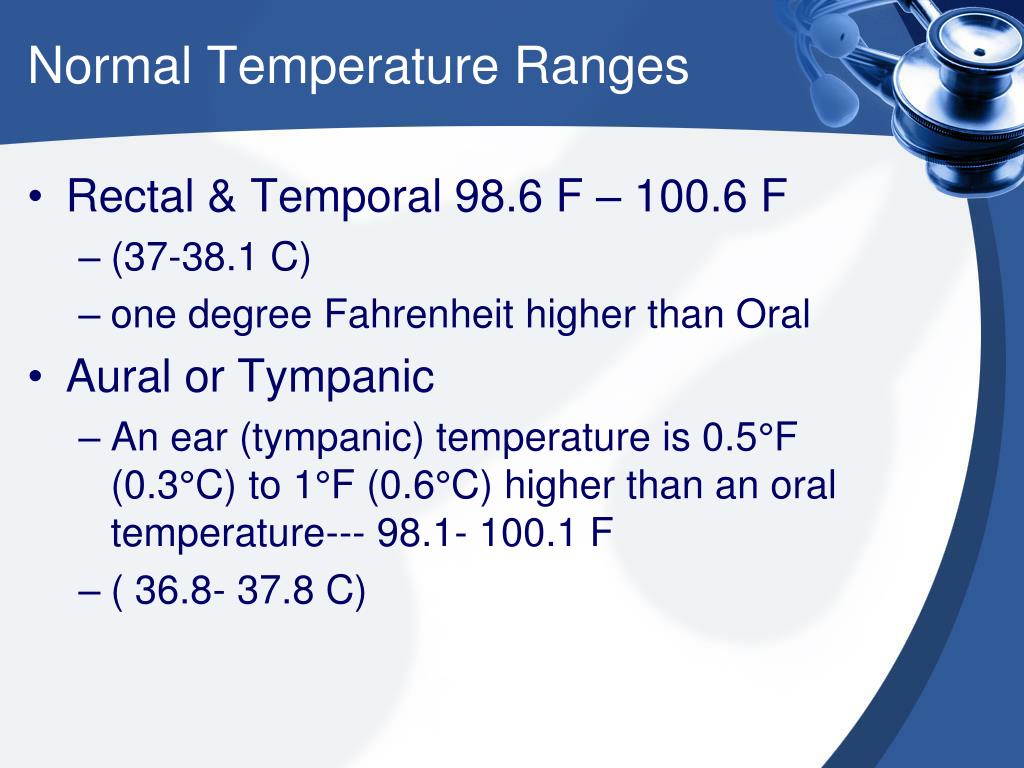

  6. Normal Temperature Ranges • Rectal & Temporal 98.6 F – 100.6 F • (37-38.1 C) • one degree Fahrenheit higher than Oral • Aural or Tympanic • An ear (tympanic) temperature is 0.5°F (0.3°C) to 1°F (0.6°C) higher than an oral temperature--- 98.1- 100.1 F • ( 36.8- 37.8 C)

  7. Need to Know-Temperature Terms • Hypothermia • Below 95F ( 35C) • Death at 93F (33.9) • Fever • Elevated above 101 (38.3) • Pyrexia= febrile= fever present • Afebrile= normal temp or no fever present • Hyperthermia • Temp exceeds 104 F (40C) • Convulsions & death at 106 F ( 41.1 C)

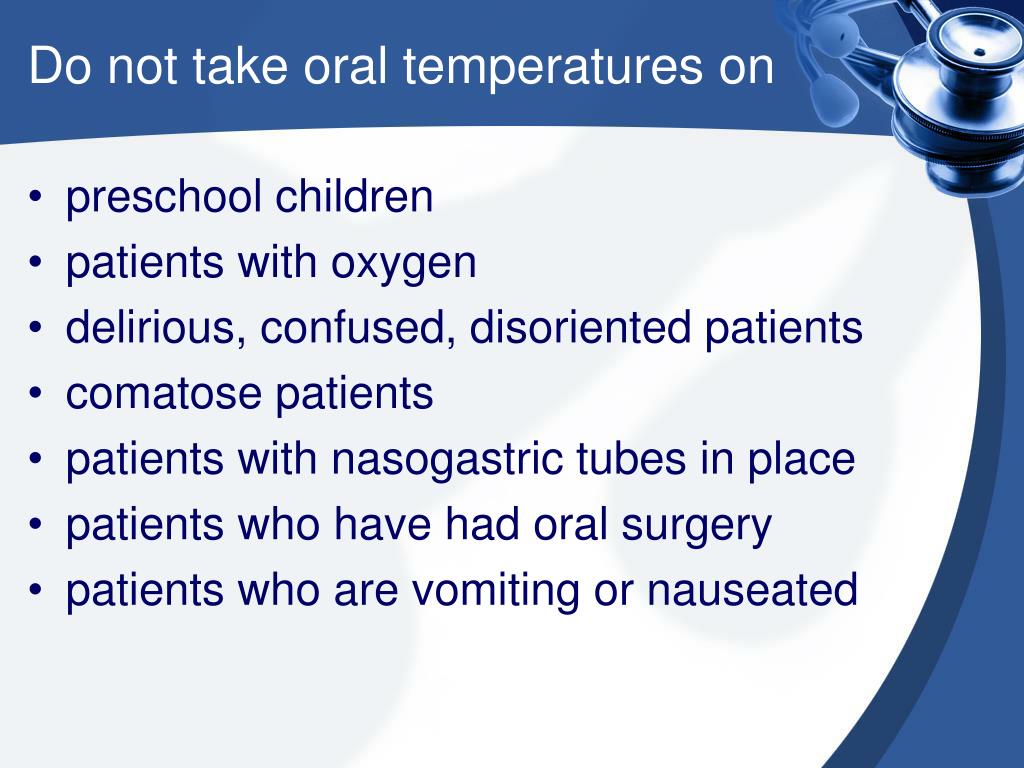

  8. Do not take oral temperatures on • preschool children • patients with oxygen • delirious, confused, disoriented patients • comatose patients • patients with nasogastric tubes in place • patients who have had oral surgery • patients who are vomiting or nauseated

  9. Do not take rectal temperatures on • infants or children unless a core temperature is needed • patients who have had rectal surgery • combative patients

  10. Abnormal temperatures • Fever, febrile, hyperthermia all indicate someone who has an elevated temperature (>100 Fahrenheit). • Highfever would include anything over 103 degrees Fahrenheit. • Moderatefever would include anything 100 – 103 degrees Fahrenheit. • Hypothermia (<96F)is subnormal temperature. This can be equally problematic for a person

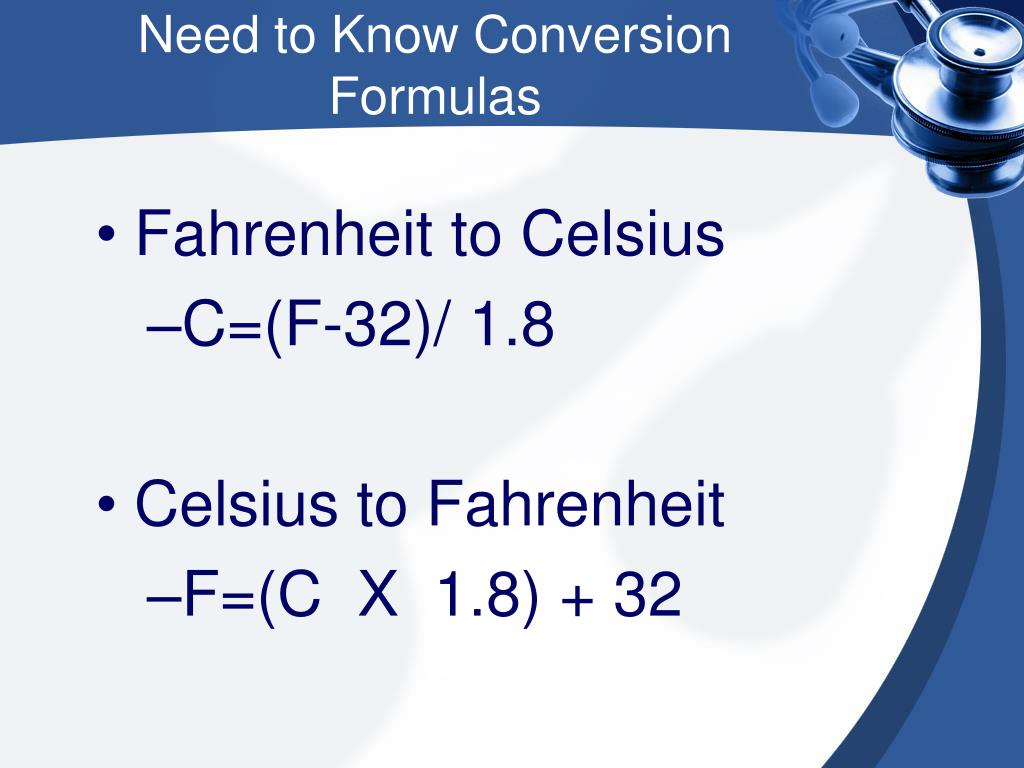

  11. Need to Know Conversion Formulas • Fahrenheit to Celsius • C=(F-32)/ 1.8 • Celsius to Fahrenheit • F=(C X 1.8) + 32

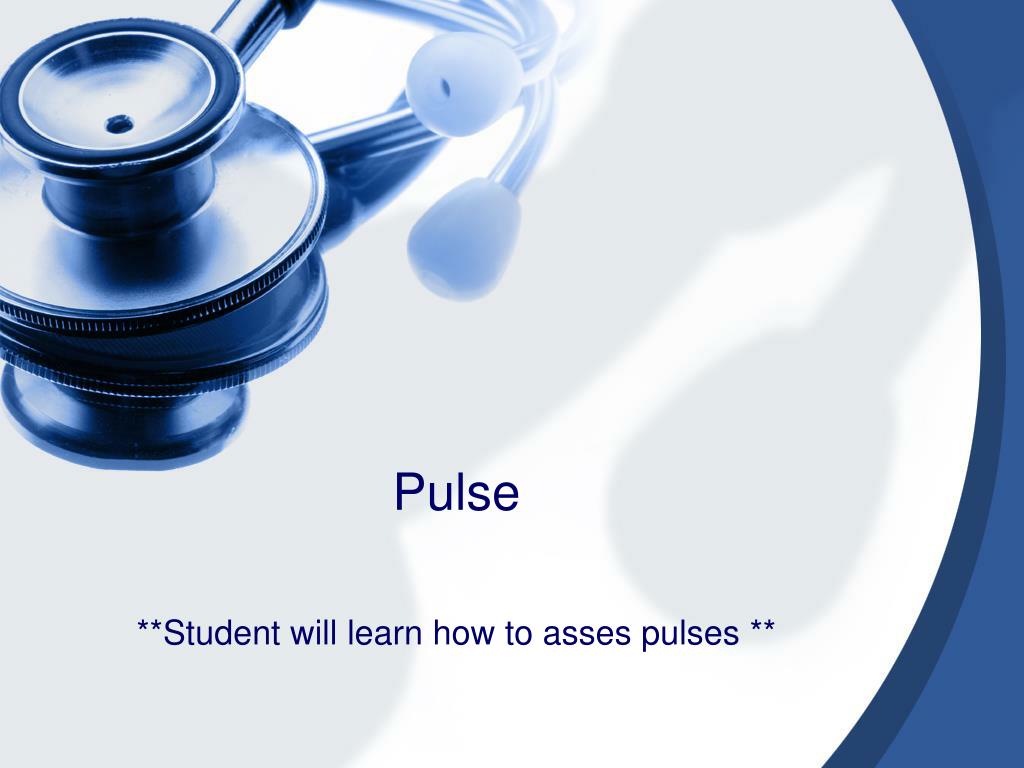

  12. Pulse **Student will learn how to asses pulses **

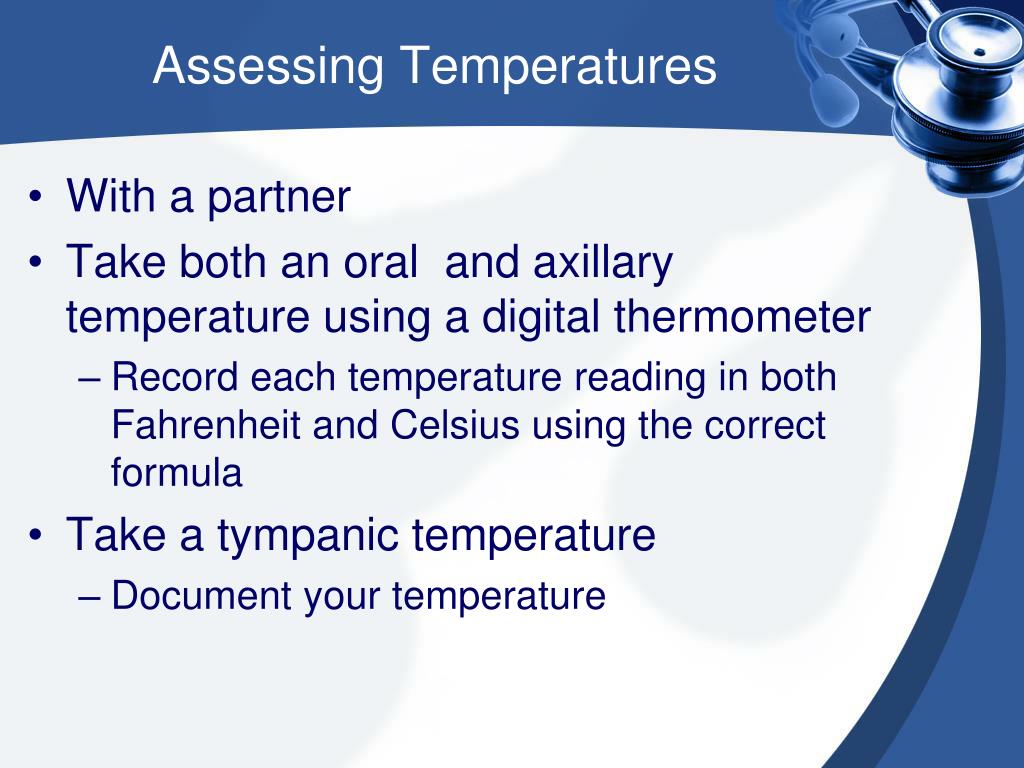

  13. Assessing Temperatures • With a partner • Take both an oral and axillary temperature using a digital thermometer • Record each temperature reading in both Fahrenheit and Celsius using the correct formula • Take a tympanic temperature • Document your temperature

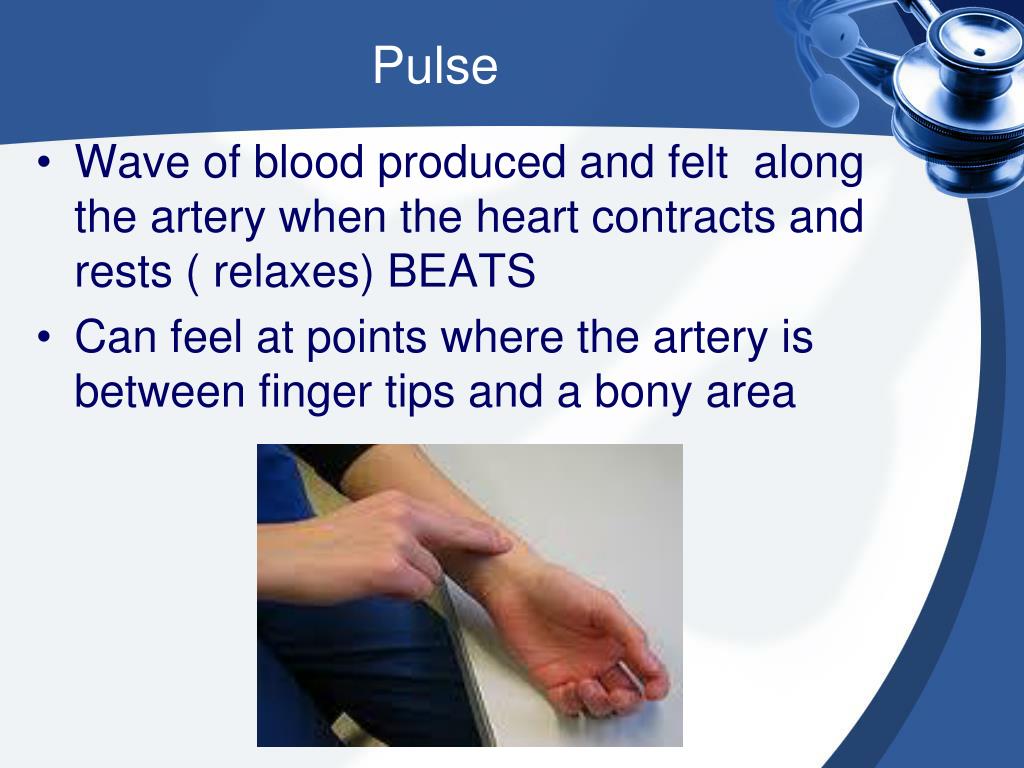

  14. Pulse • Wave of blood produced and felt along the artery when the heart contracts and rests ( relaxes) BEATS • Can feel at points where the artery is between finger tips and a bony area

  15. Need to Know Pulse Terms • Rate • Number of bests/per minute • Rhythm • Regularity of the pulse • Volume • Refers to the strength of the pulse • Apical pulse • Pulse take at the apex of the heart with a stethoscope

  16. Pulse Points- NEED TO KNOW • Temporal --either side of forehead 2. Carotid- at neck- either side of trachea 3. Apical- at apex of heart 4. Brachial-inner aspect of antecubital space 5. Radial- inner aspect of the wrist 6. Femoral- inner aspect of the upper thigh where it meets trunk-- groin 7. Popliteal- behind the knee 8. Dorsal Pedis-at the top of the foot arch

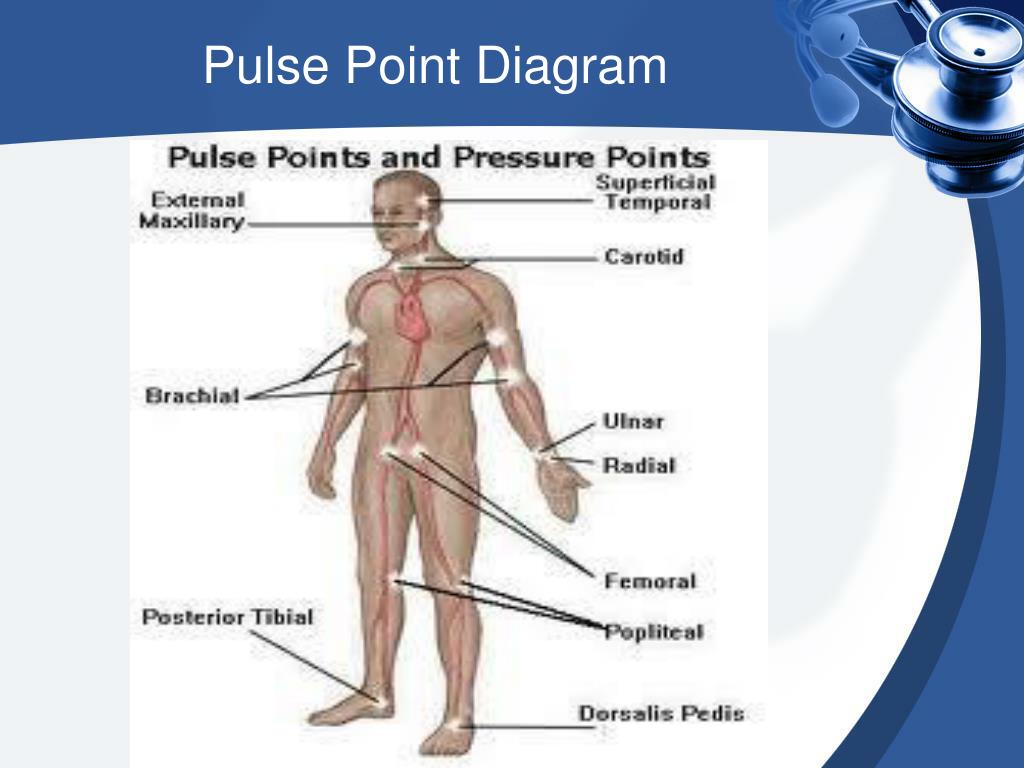

  17. Pulse Point Diagram

  18. Measuring Pulses • Measured by index, middle, and ring fingers over pulse point. • Do not take with the thumb, since it has a pulse of its own. • Count for 30 seconds and multiply by 2, or count for 60 seconds

  19. Pulse Ranges • Normal = • Adults ----- 60 -100 beats/minute • Children 7 year & older --- 65-80 /minute • Children 1- 7 years--------- 80-110/ minute • Infants –birth – 1 year-------100-160/minute • > than 100 = tachycardia • < than 60 = bradycardia

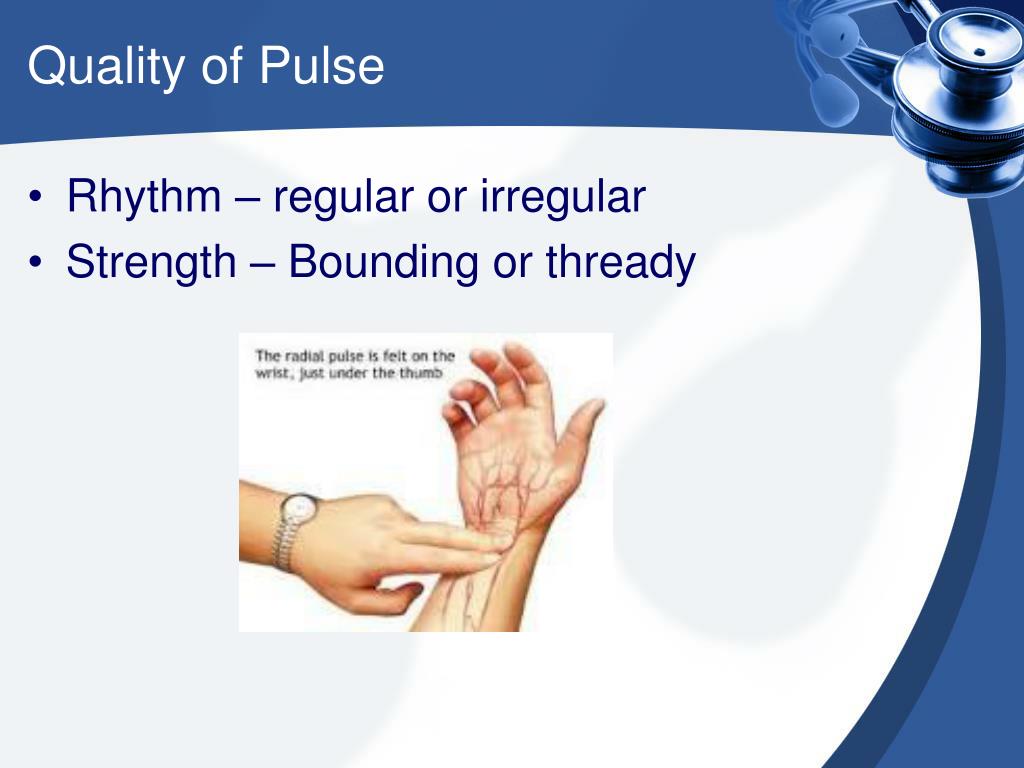

  20. Quality of Pulse • Rhythm – regular or irregular • Strength – Bounding or thready

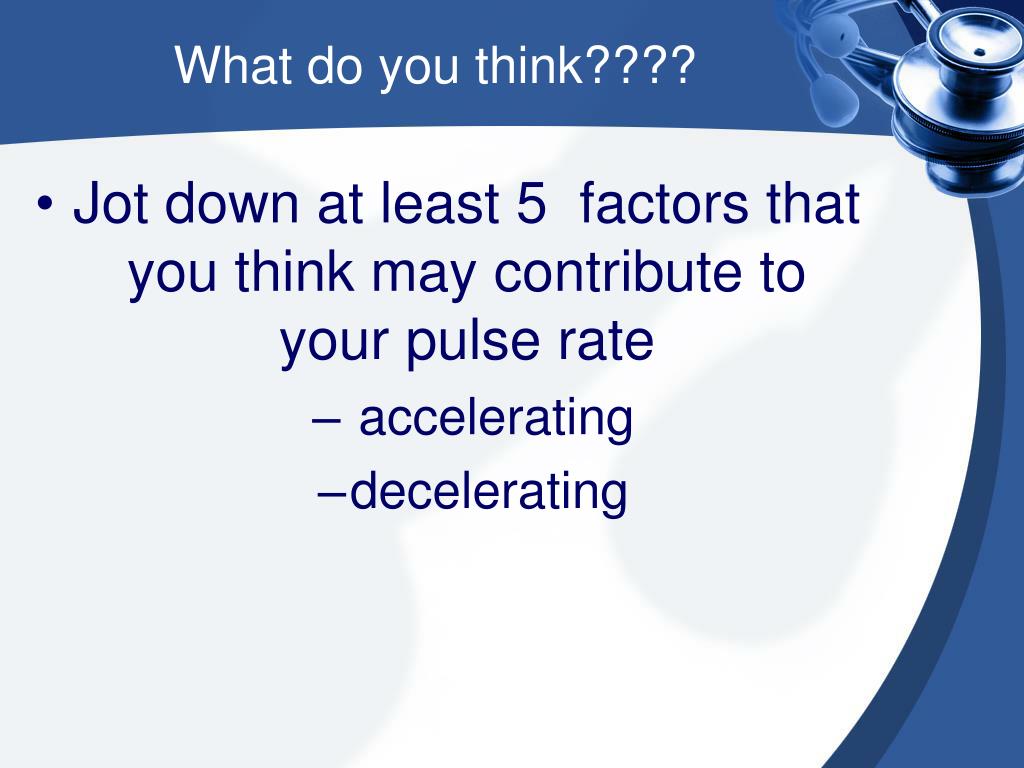

  21. What do you think???? • Jot down at least 5 factors that you think may contribute to your pulse rate • accelerating • decelerating

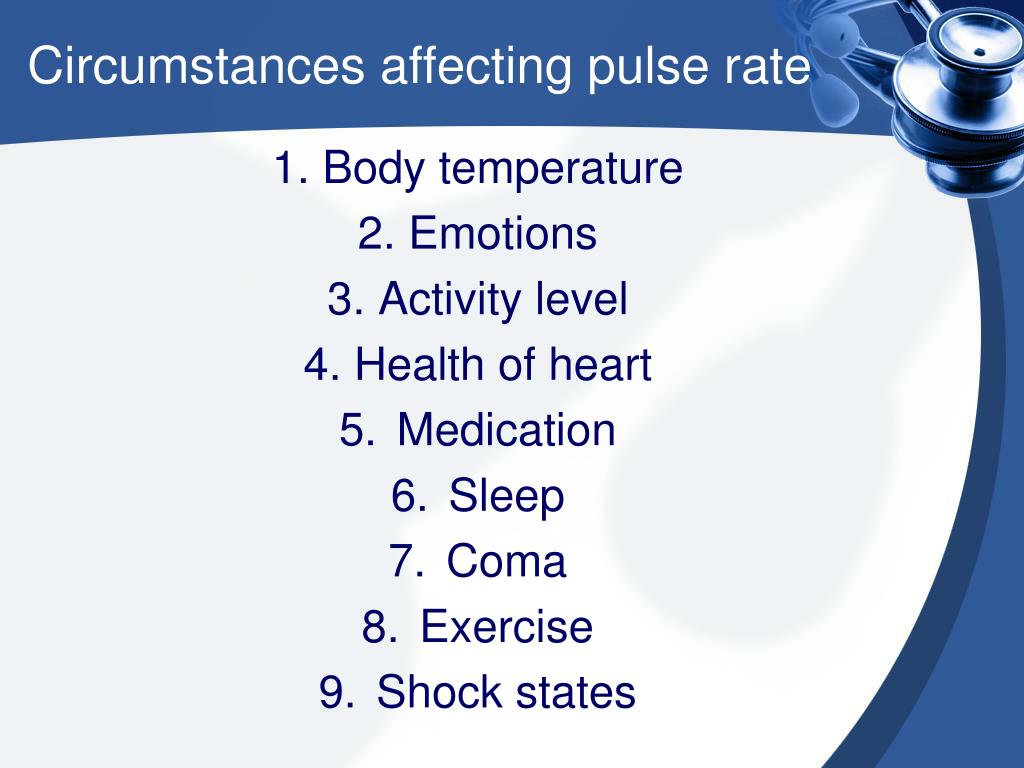

  22. Circumstances affecting pulse rate 1. Body temperature 2. Emotions 3. Activity level 4. Health of heart • Medication • Sleep • Coma • Exercise • Shock states

  23. Assessing Pulses • Pick a partner • Assess the following pulses for one full minute • Record – rate, rhythm, volume of the pulse • Temporal • Carotid • Apical • Brachial • Radial • Popliteal • Dorsalispedis Repeat all pulses after your partner has done 25 jumping jacks

  24. Respirations

  25. Respirations • Process of taking in O2 and expelling CO2 • one respiration consists of • One inspiration • One expiration Please note the following when mearusing each and every respiration: • Rate • Character • Rhythm

  26. Respirations • Each breath includes inspiration and expiration. • Measure by observing chest rise and fall. • Measured in breaths per minute.

  27. Respirations • Rate • number of breaths/ minute • Character • Depth and quality of respirations • Deep-shallow-difficult-stertorous-moist • Rhythm • Regularity of respirations

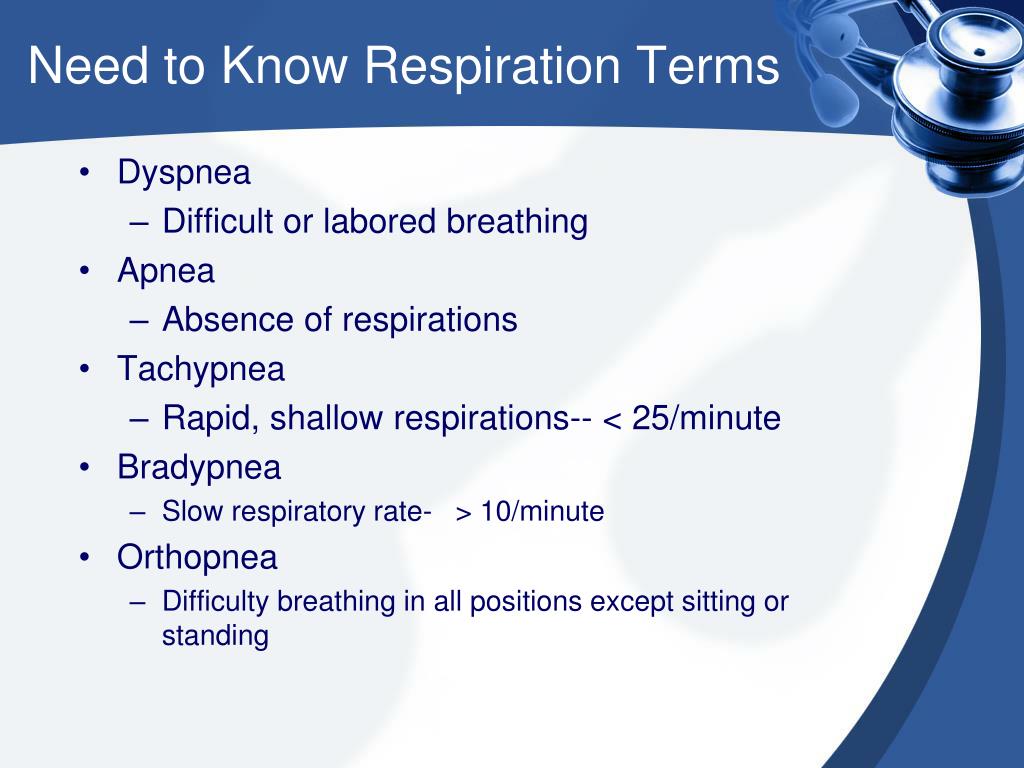

  28. Need to Know Respiration Terms • Dyspnea • Difficult or labored breathing • Apnea • Absence of respirations • Tachypnea • Rapid, shallow respirations-- < 25/minute • Bradypnea • Slow respiratory rate- > 10/minute • Orthopnea • Difficulty breathing in all positions except sitting or standing

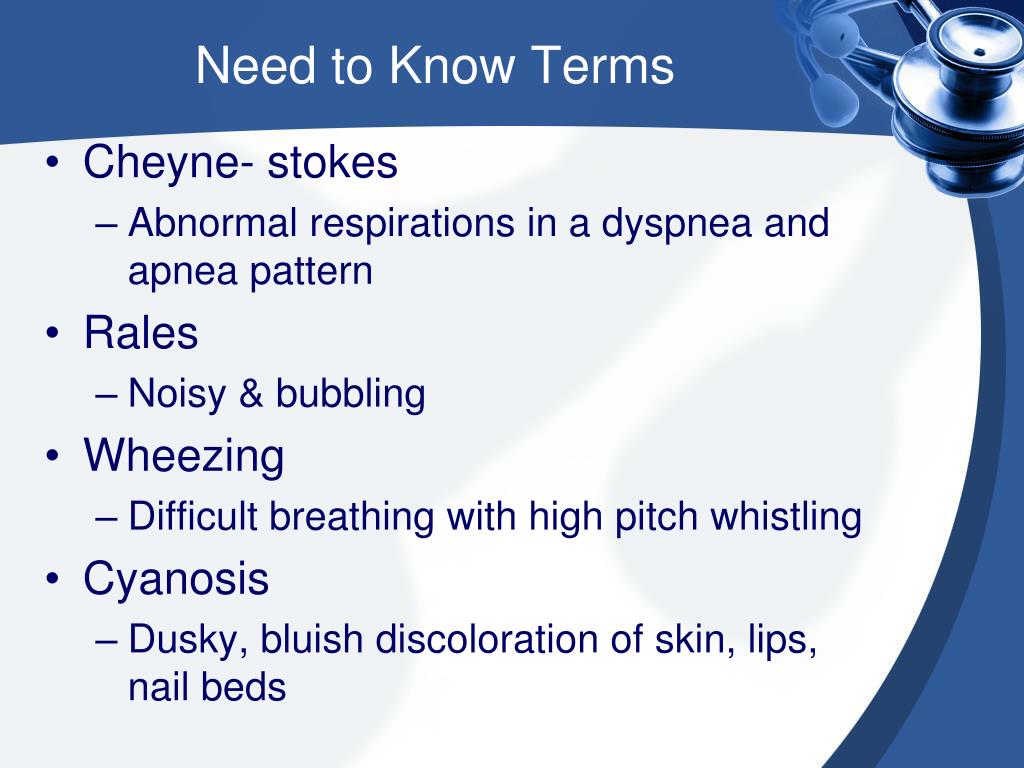

  29. Need to Know Terms • Cheyne- stokes • Abnormal respirations in a dyspnea and apnea pattern • Rales • Noisy & bubbling • Wheezing • Difficult breathing with high pitch whistling • Cyanosis • Dusky, bluish discoloration of skin, lips, nail beds

  30. Ranges in Respirations • Normal = adults12-24 breaths per minute • Children-16-30/ minute • Infants- 30-50/ minute • > than 24 = tachypnea – if breathing in great depth then called hyperpnea • < than 12 = bradypnea • Assess rate, character and rhythm always!!!

  31. Quality of breathing 1. Depth 2. Clarity of breath sounds 3. Pain with breathing 4. Difficulty breathing – use of accessory muscles

  32. Assessing Respirations • Assess the radial pulse rate of the patient for one minute • After the pulse rate have been counted– leave your hand in the pulse position • Count the number of respirations- chest rise and fall for one minute • Each complete cycle is ONE respiration

  33. Pulse Oximetry • Pulse oximetry is a procedure used to measure the oxygen level (or oxygen saturation) in the blood. It is considered to be a noninvasive, painless, general indicator of oxygen delivery to the peripheral tissues (such as the finger, earlobe, or nose).

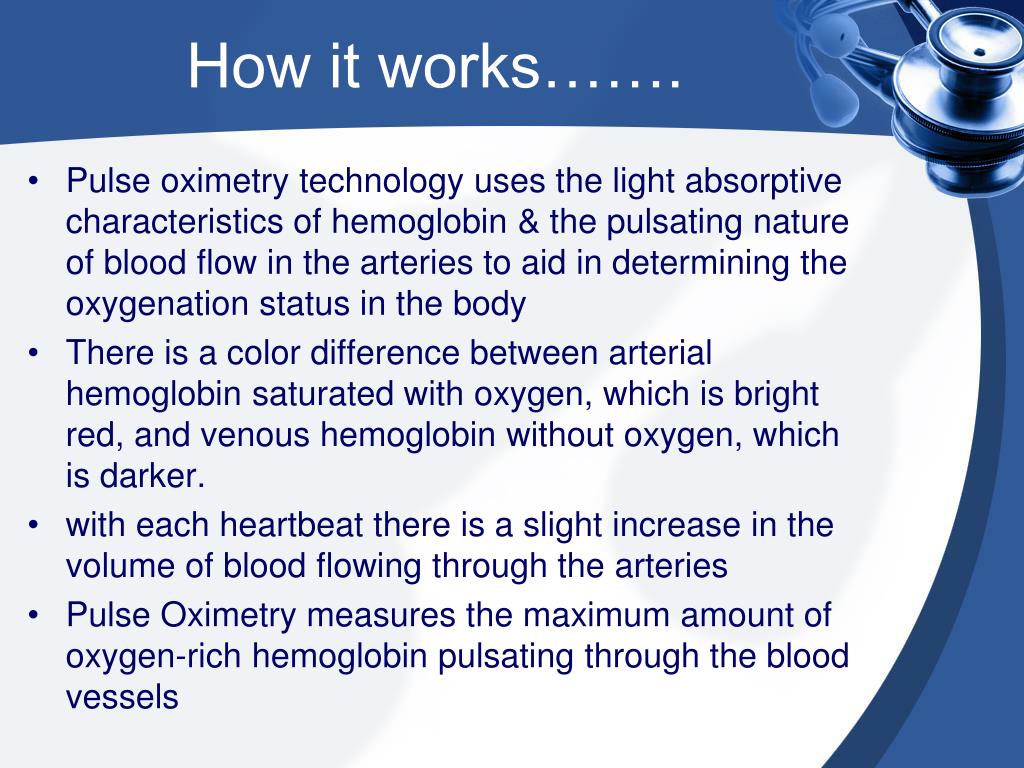

  34. How it works……. • Pulse oximetry technology uses the light absorptive characteristics of hemoglobin &the pulsating nature of blood flow in the arteries to aid in determining the oxygenation status in the body • There is a color difference between arterial hemoglobin saturated with oxygen, which is bright red, and venous hemoglobin without oxygen, which is darker. • with each heartbeat there is a slight increase in the volume of blood flowing through the arteries • Pulse Oximetry measures the maximum amount of oxygen-rich hemoglobin pulsating through the blood vessels

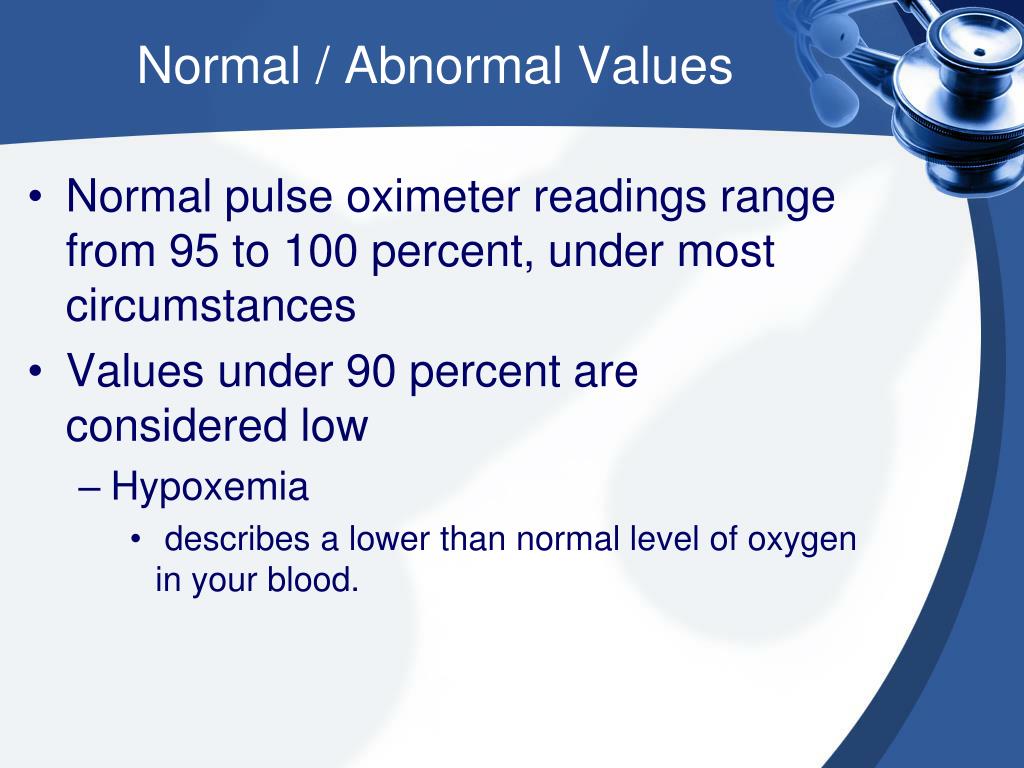

  35. Normal / Abnormal Values • Normal pulse oximeter readings range from 95 to 100 percent, under most circumstances • Values under 90 percent are considered low • Hypoxemia • describes a lower than normal level of oxygen in your blood.

  36. Pain Assessment • Pain is subjective • Pain is also multidimensional, so the clinician must consider multiple aspects (sensory, affective, cognitive) of the pain experience. • the nature of the assessment varies with multiple factors so no single approach is appropriate for all patients or settings.

  37. Pain Assessment • Onset & duration • Location • Quality-what does it feel like? • Intensity- give a numeric reading • Alleviating or exacerbating factors

  38. Common Assessment Tools • Wong Baker Scale • Numeric Scales
