ac circuits 90523

AC CIRCUITS90523

NCEA Level 3

Physics

ac circuits
AC CIRCUITS
  • RMS Values

- Mains electricity

- Power

- Root mean square

  • AC in capacitance

- Intro

- Reactance

- Phase relationship for capacitance

  • AC in inductance

- Intro

- Reactance

- Phase relationship for reactance

  • Addition of alternating voltages

- AC in an RC circuit

- AC in an RL circuit

  • Resonance
  • Exercise 9 (AC Circuits):

Page 150 - 151

Page 152 - 153

Page 154 - 155

Page 156 - 160

Page 161 - 165

Page 166 - 173

slide3

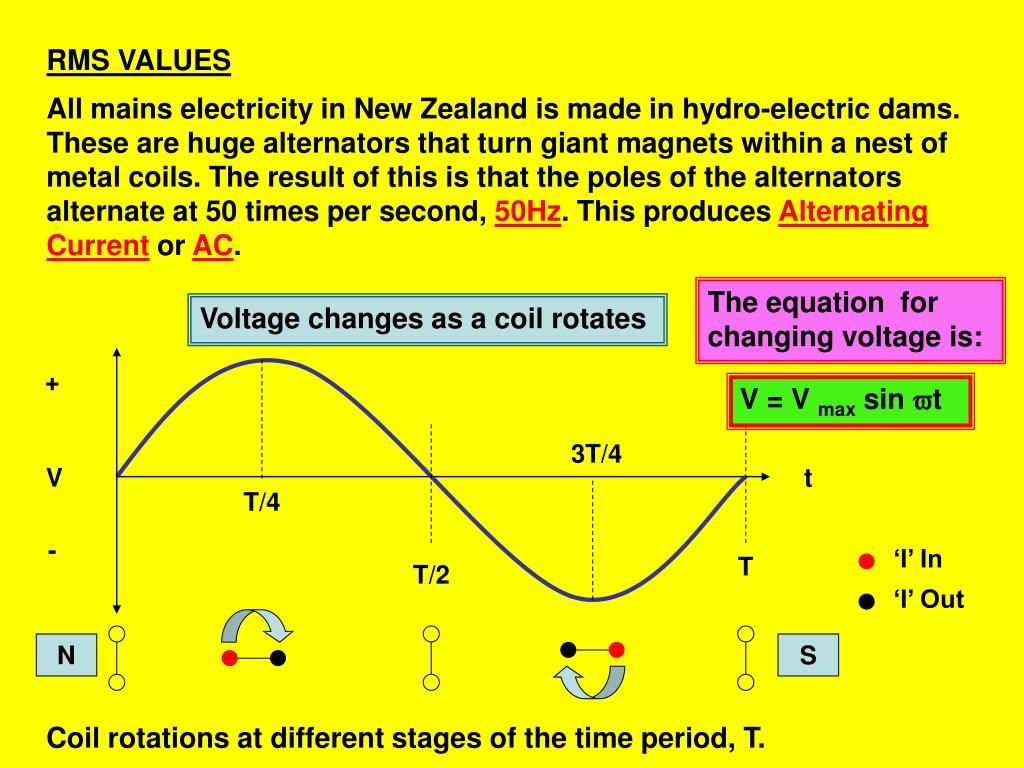

RMS VALUES

All mains electricity in New Zealand is made in hydro-electric dams. These are huge alternators that turn giant magnets within a nest of metal coils. The result of this is that the poles of the alternators alternate at 50 times per second, 50Hz. This produces Alternating Current or AC.

The equation for changing voltage is:

Voltage changes as a coil rotates

+

V = V max sin t

3T/4

V

t

T/4

-

‘I’ In

T

T/2

‘I’ Out

N

S

Coil rotations at different stages of the time period, T.

slide4

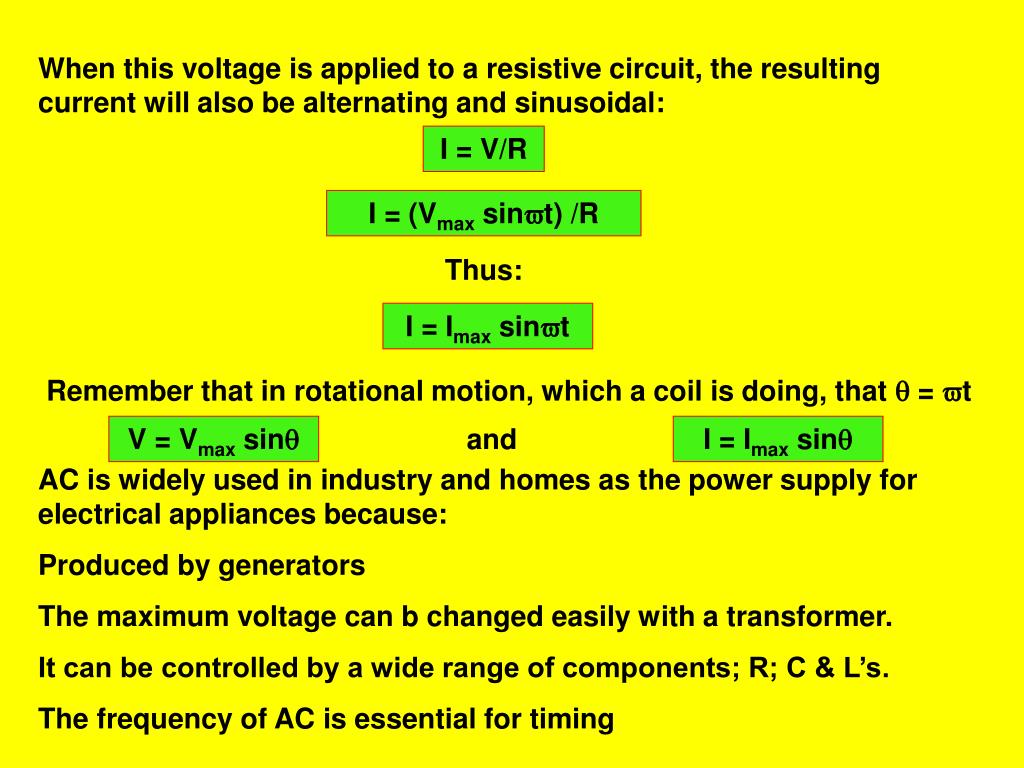

When this voltage is applied to a resistive circuit, the resulting current will also be alternating and sinusoidal:

I = V/R

I = (Vmax sint) /R

Thus:

I = Imax sint

Remember that in rotational motion, which a coil is doing, that  = t

V = Vmax sin

and

I = Imax sin

AC is widely used in industry and homes as the power supply for electrical appliances because:

Produced by generators

The maximum voltage can b changed easily with a transformer.

It can be controlled by a wide range of components; R; C & L’s.

The frequency of AC is essential for timing

slide5

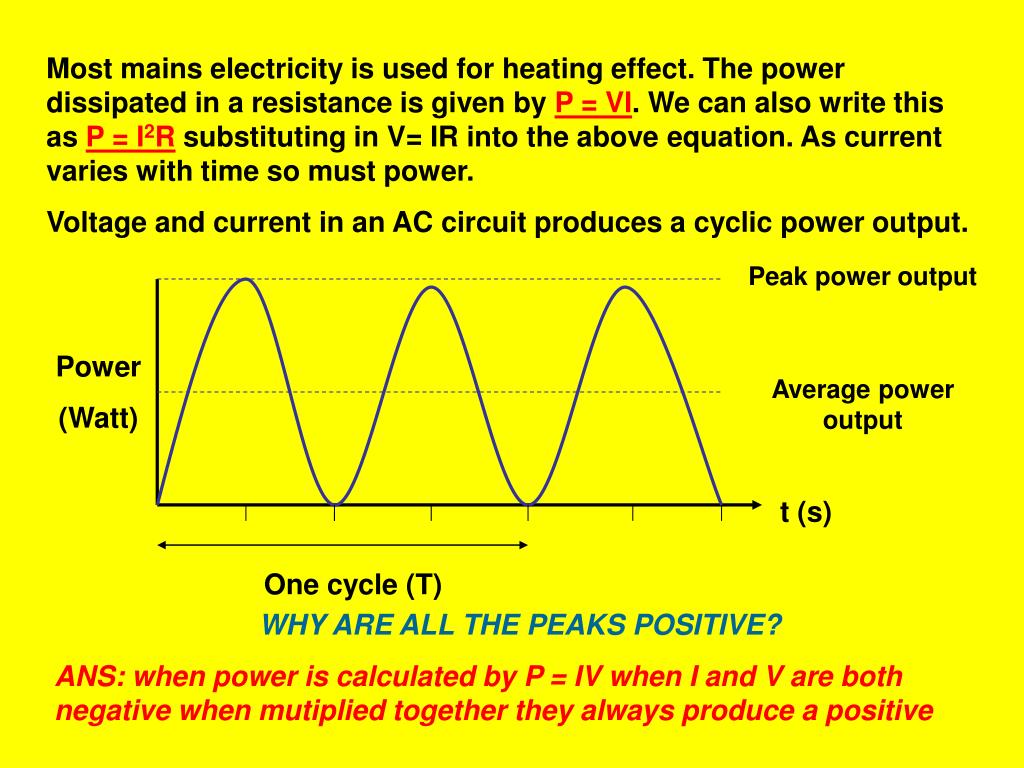

Most mains electricity is used for heating effect. The power dissipated in a resistance is given by P = VI. We can also write this as P = I2R substituting in V= IR into the above equation. As current varies with time so must power.

Voltage and current in an AC circuit produces a cyclic power output.

Peak power output

Power

(Watt)

Average power output

t (s)

One cycle (T)

WHY ARE ALL THE PEAKS POSITIVE?

ANS: when power is calculated by P = IV when I and V are both negative when mutiplied together they always produce a positive

slide6

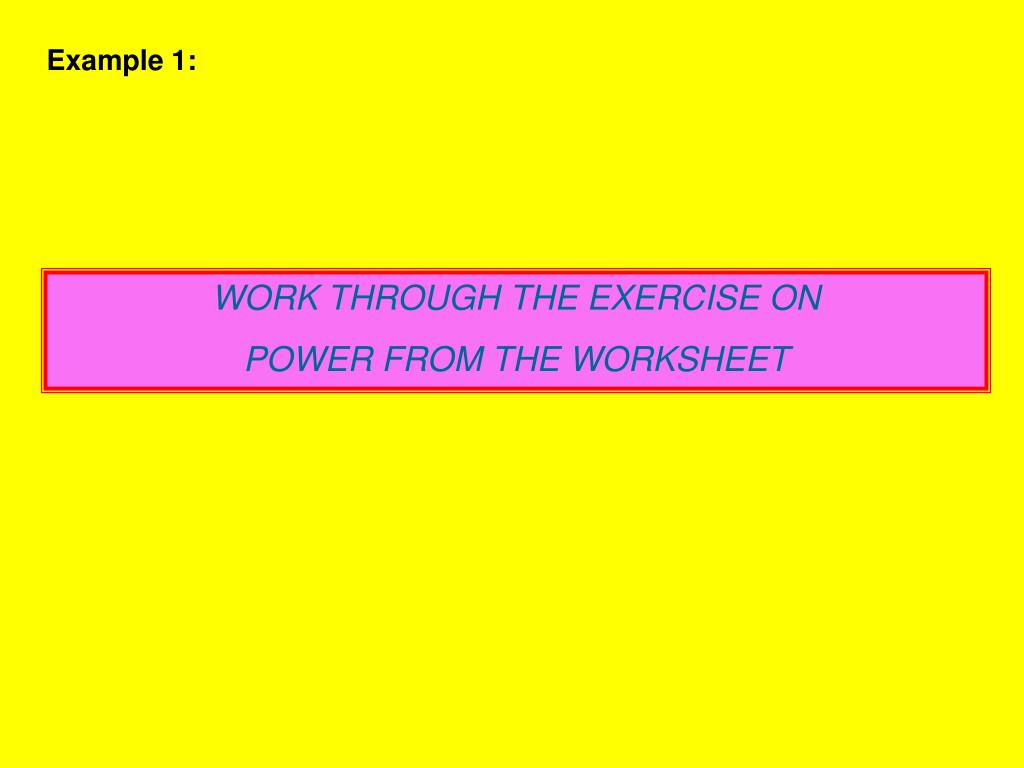

Example 1:

WORK THROUGH THE EXERCISE ON

POWER FROM THE WORKSHEET

slide7

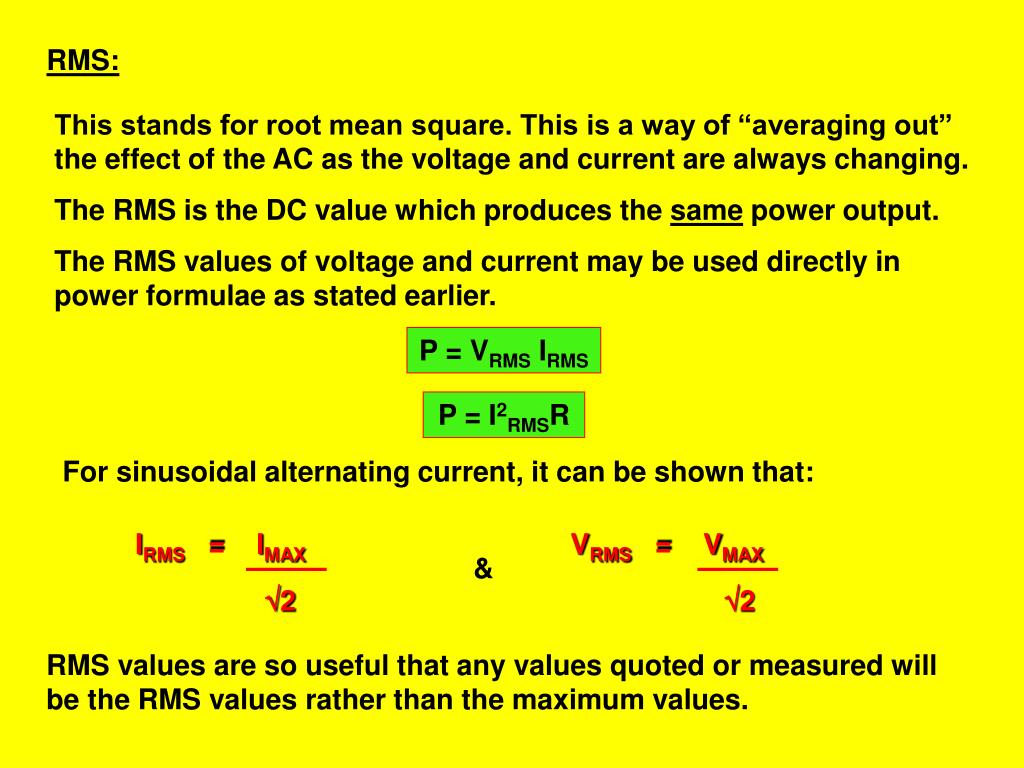

RMS:

This stands for root mean square. This is a way of “averaging out” the effect of the AC as the voltage and current are always changing.

The RMS is the DC value which produces the same power output.

The RMS values of voltage and current may be used directly in power formulae as stated earlier.

P = VRMS IRMS

P = I2RMSR

For sinusoidal alternating current, it can be shown that:

IRMS = IMAX

VRMS = VMAX

&

2

2

RMS values are so useful that any values quoted or measured will be the RMS values rather than the maximum values.

slide8

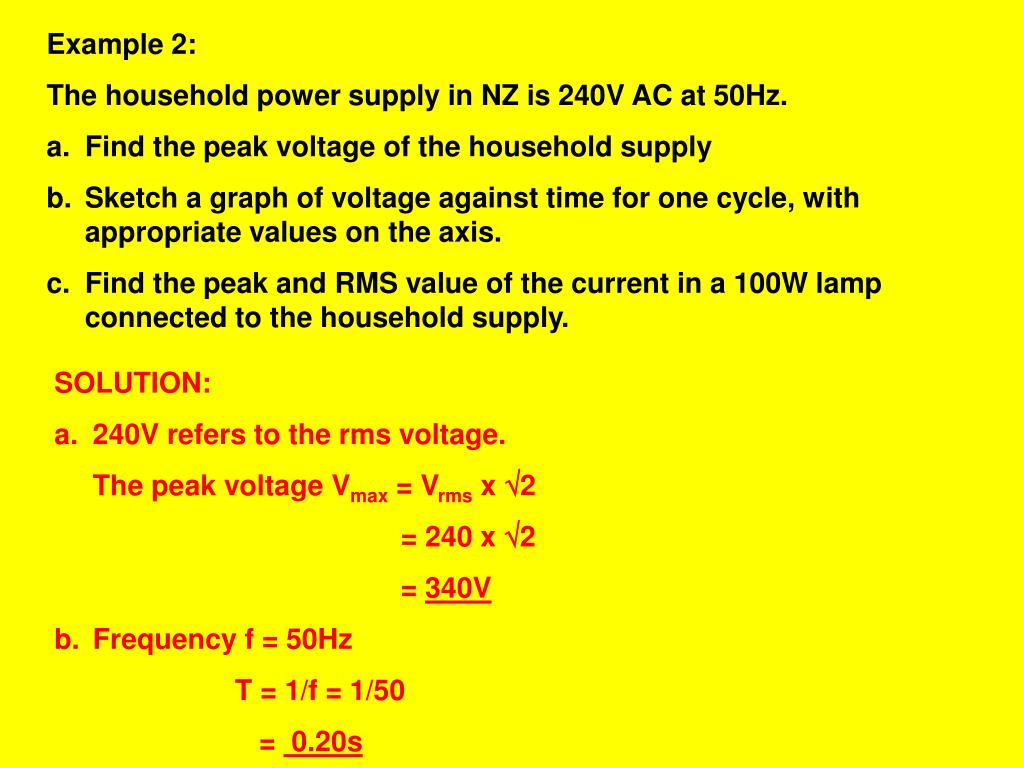

Example 2:

  • The household power supply in NZ is 240V AC at 50Hz.
  • Find the peak voltage of the household supply
  • Sketch a graph of voltage against time for one cycle, with appropriate values on the axis.
  • Find the peak and RMS value of the current in a 100W lamp connected to the household supply.
  • SOLUTION:
  • 240V refers to the rms voltage.
  • The peak voltage Vmax = Vrms x 2
  • = 240 x 2
  • = 340V
  • Frequency f = 50Hz
  • T = 1/f = 1/50
  • = 0.20s
slide9

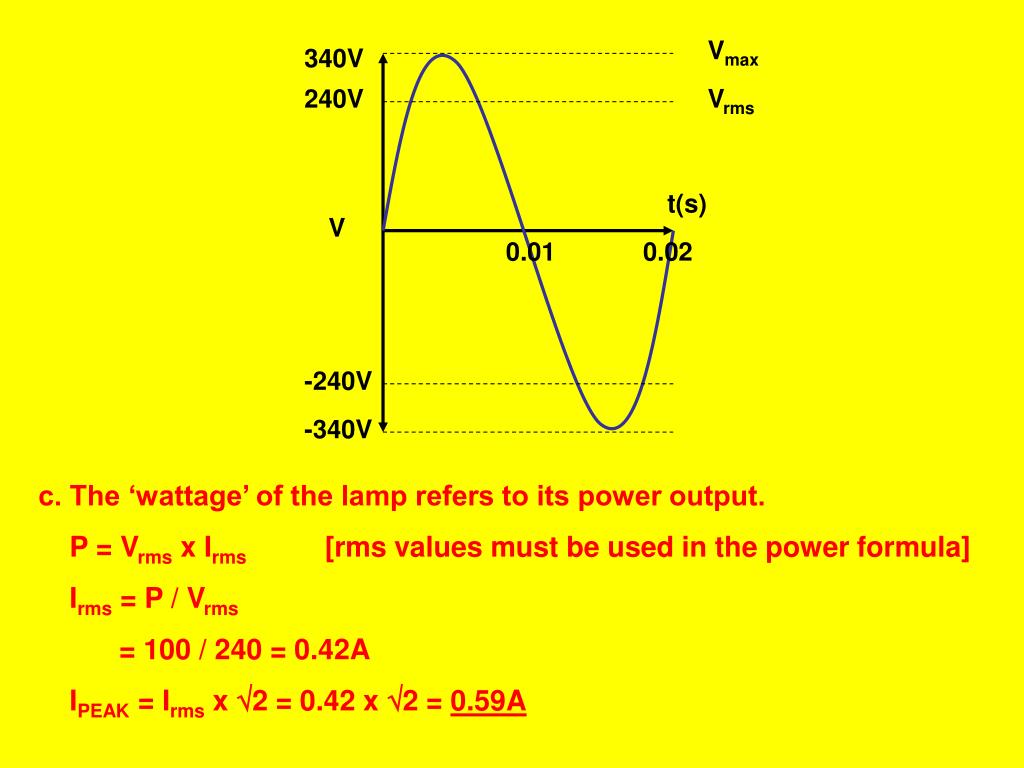

Vmax

340V

240V

Vrms

t(s)

V

0.01

0.02

-240V

-340V

c. The ‘wattage’ of the lamp refers to its power output.

P = Vrms x Irms [rms values must be used in the power formula]

Irms = P / Vrms

= 100 / 240 = 0.42A

IPEAK = Irms x 2 = 0.42 x 2 = 0.59A

slide10

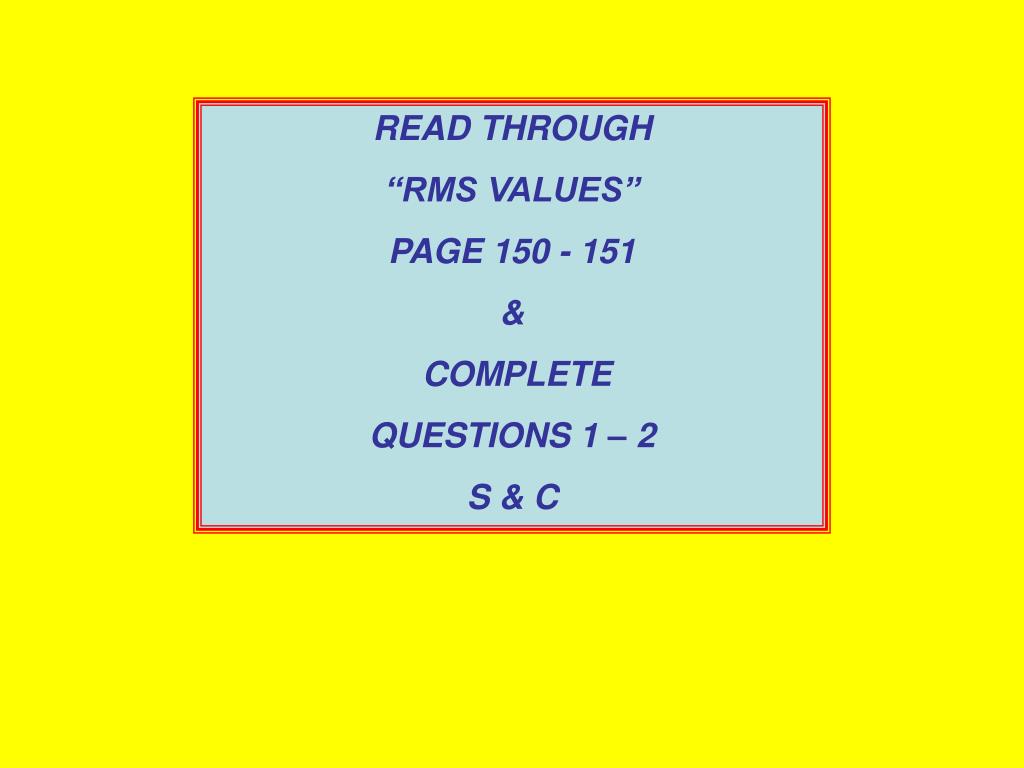

READ THROUGH

“RMS VALUES”

PAGE 150 - 151

&

COMPLETE

QUESTIONS 1 – 2

S & C

slide11

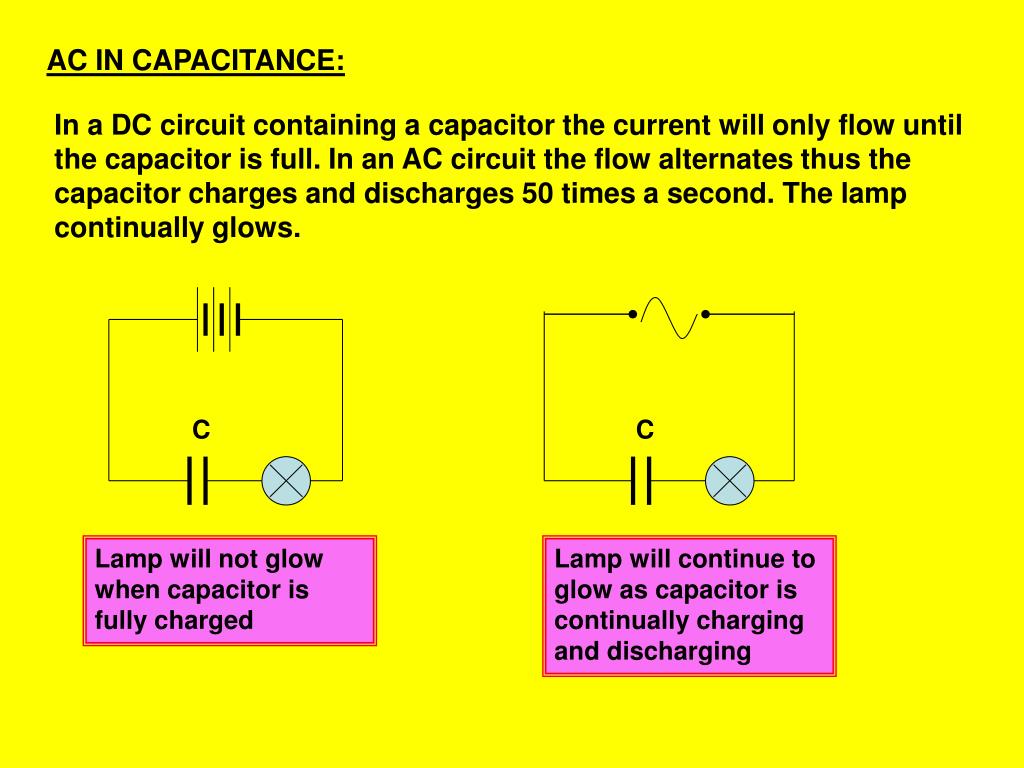

AC IN CAPACITANCE:

In a DC circuit containing a capacitor the current will only flow until the capacitor is full. In an AC circuit the flow alternates thus the capacitor charges and discharges 50 times a second. The lamp continually glows.

C

C

Lamp will not glow when capacitor is fully charged

Lamp will continue to glow as capacitor is continually charging and discharging

slide12

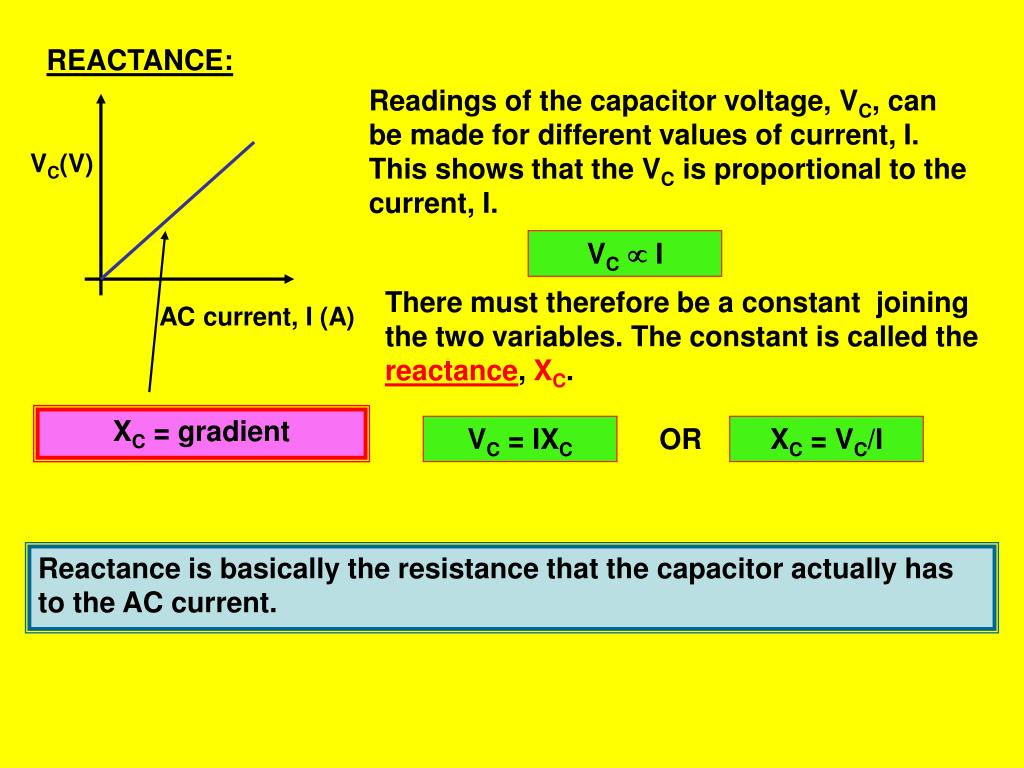

REACTANCE:

Readings of the capacitor voltage, VC, can be made for different values of current, I. This shows that the VC is proportional to the current, I.

VC(V)

VC I

There must therefore be a constant joining the two variables. The constant is called the reactance, XC.

AC current, I (A)

XC = gradient

VC= IXC

OR

XC= VC/I

Reactance is basically the resistance that the capacitor actually has to the AC current.

slide13

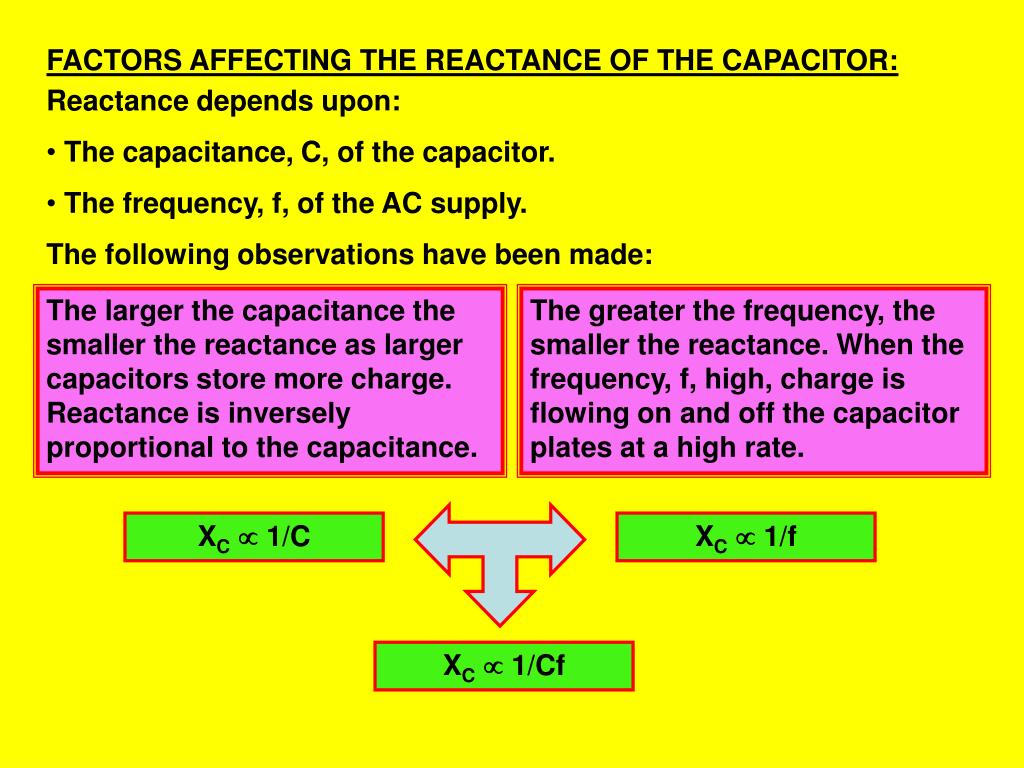

FACTORS AFFECTING THE REACTANCE OF THE CAPACITOR:

  • Reactance depends upon:
  • The capacitance, C, of the capacitor.
  • The frequency, f, of the AC supply.
  • The following observations have been made:

The larger the capacitance the smaller the reactance as larger capacitors store more charge. Reactance is inversely proportional to the capacitance.

The greater the frequency, the smaller the reactance. When the frequency, f, high, charge is flowing on and off the capacitor plates at a high rate.

XC 1/C

XC 1/f

XC 1/Cf

slide14

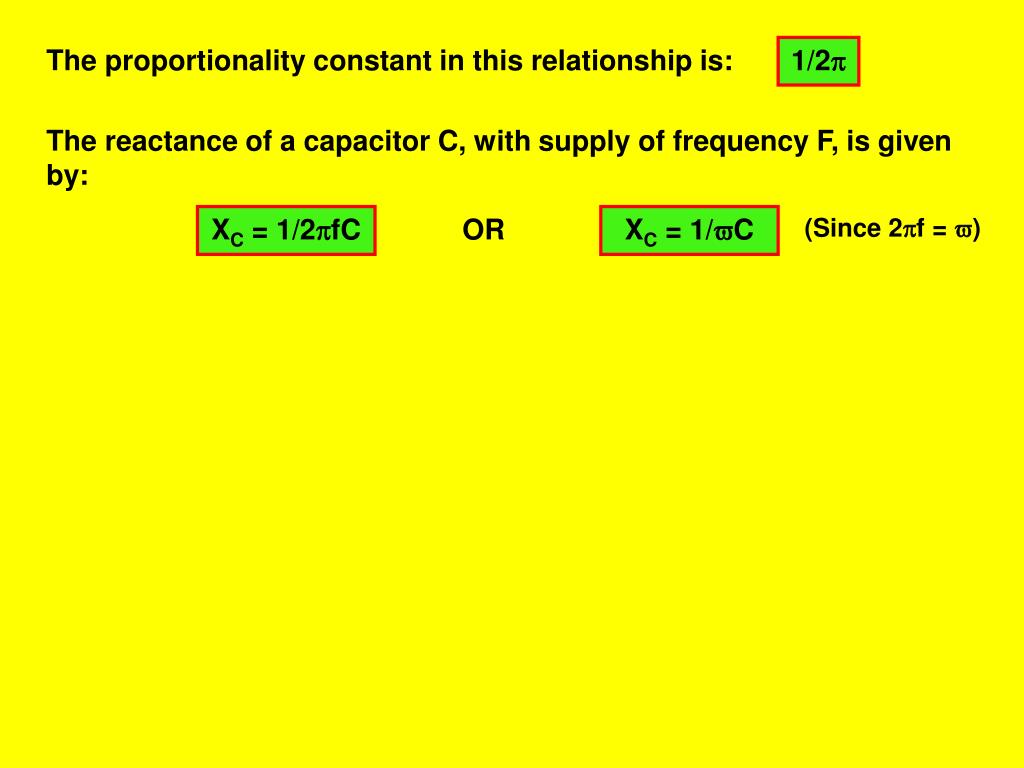

The proportionality constant in this relationship is:

1/2

The reactance of a capacitor C, with supply of frequency F, is given by:

XC = 1/2fC

OR

XC = 1/C

(Since 2f = )

slide15

Example 3:

  • A 100F capacitor is connected to a 12Vrms 50Hz AC supply.
  • Calculate:
  • The reactance of the capacitor at the frequency.
  • The rms current in the circuit.
  • SOLUTION:
  • XC = 1/2fC
  • = 1 / (2 x 50 x 100x10-6)
  • = 32Ω
  • Irms = Vrms / XC
  • = 12 / 31.8310
  • = 0.38A
slide16

PHASE RELATIONSHIP FOR CAPACITANCE:

VS

In a DC circuit the voltages across the components connected in series with a supply add up to the supply voltage.

VS = VC + VR

In AC containing ‘C’ and ‘R’ this does not apply. Why?

ANS: the two voltages are out of phase

C

R

VC

VR

+Vnax

t (s)

0

Vnax

T/4

T/2

3T/4

T

-Vnax

VOLTAGE vs TIME GRAPH

PHASOR DIAGRAM

slide17

VR

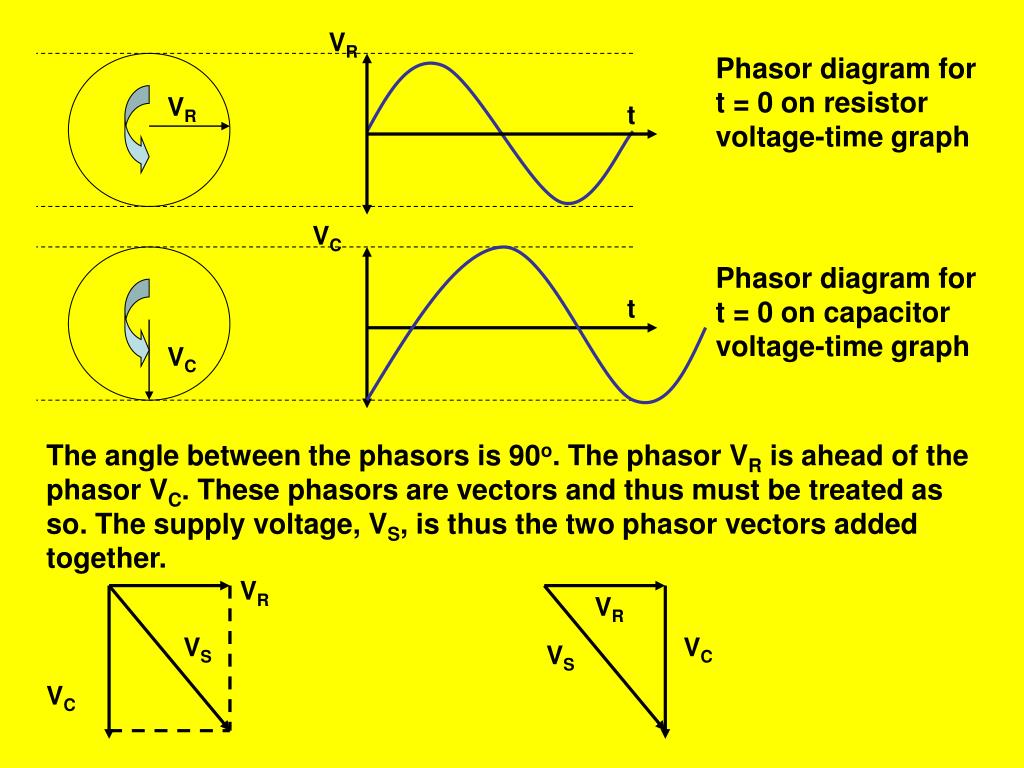

Phasor diagram for t = 0 on resistor voltage-time graph

VR

t

VC

Phasor diagram for t = 0 on capacitor voltage-time graph

t

VC

The angle between the phasors is 90o. The phasor VR is ahead of the phasor VC. These phasors are vectors and thus must be treated as so. The supply voltage, VS, is thus the two phasor vectors added together.

VR

VR

VS

VC

VS

VC

slide18

Example 4:

  • In the circuit opposite, VR was measured as 6.0V and VC was measured as 8.0V.
  • Calculate the supply voltage.
  • Calculate the phase difference between the supply voltage and the resistor voltage.

VS

SOLUTION:

a. VS = 6.0 + 8.0

= 6.02 + 8.02

= 10V

b.  = tan-1 (8.0/6.0)

= 53o

C

6.0V

R

VS

VC

VR

8.0V

C = 100F

R = 25Ω

slide19

Example 5:

  • A 5.0Ω and 500F capacitor are connected in series with a 50Hz AC supply. The voltage across the resistor is measured as 2.0V (rms) and across the capacitor as 2.5V (rms).
  • Find:
  • The rms current in the circuit.
  • The supply voltage, VS.
  • The phase difference between the supply voltage and the current.

VS

50Hz

C = 500F

R=5.0Ω

VC

2V

slide20

SOLUTION:

a. Current, I, is calculated from the voltage across the resistor, VR.

I = V/R

= 2.0/5.0

= 0.40A

b. VS2 = VC2 + VR2

= (2.52 + 2.02)

= 3.2V

c. As the resistor voltage is in phase with the current,  is the phase difference.

 = tan-1 (2.5/2.0)

= 51O

VR = 2.0V

VC = 2.5V

VS

slide21

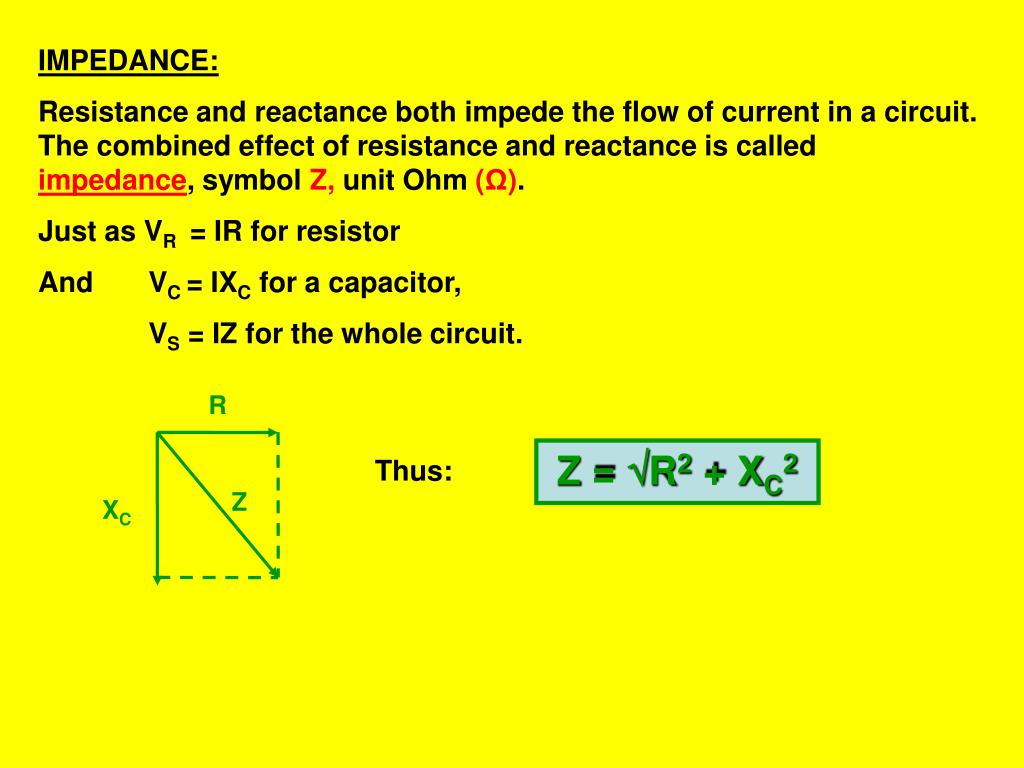

IMPEDANCE:

Resistance and reactance both impede the flow of current in a circuit. The combined effect of resistance and reactance is called impedance, symbol Z, unit Ohm (Ω).

Just as VR = IR for resistor

And VC = IXC for a capacitor,

VS = IZ for the whole circuit.

R

Z = R2 + XC2

Thus:

Z

XC

slide22

Example 6:

  • In an experiment a 10V, 50Hz AC supply was connected in turn to:
  • A resistor
  • A capacitor
  • Both the resistor and capacitor together in series.
  • In each case the current was measured, with the results as shown

10V

50Hz

10V

50Hz

10V

50Hz

C

0.50A

0.25A

C

A

A

A

R

R

  • Find:
  • The resistance of R.
  • The reactance of capacitor, C.
  • The capacitance of C.

d. The impedance of the circuit containing both R & C.

e. The current in the circuit containing both R & C.

slide23

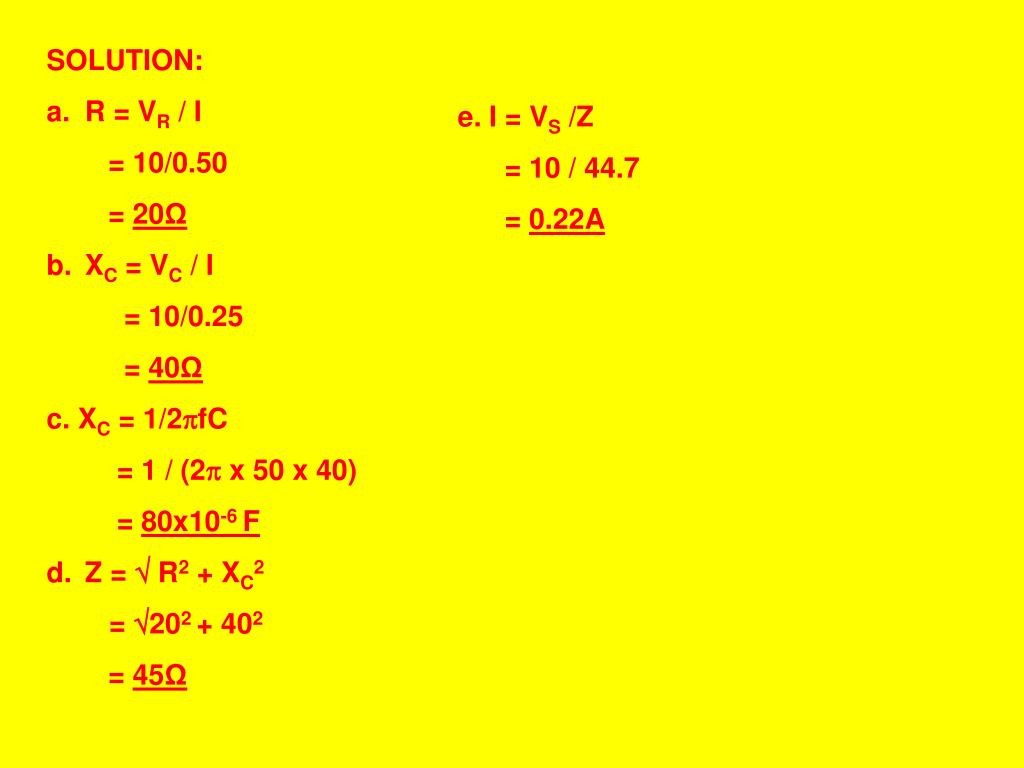

SOLUTION:

  • R = VR / I
  • = 10/0.50
  • = 20Ω
  • XC = VC / I
  • = 10/0.25
  • = 40Ω
  • c. XC = 1/2fC
  • = 1 / (2 x 50 x 40)
  • = 80x10-6 F
  • Z =  R2 + XC2
  • = 202 + 402
  • = 45Ω

e. I = VS /Z

= 10 / 44.7

= 0.22A

slide24

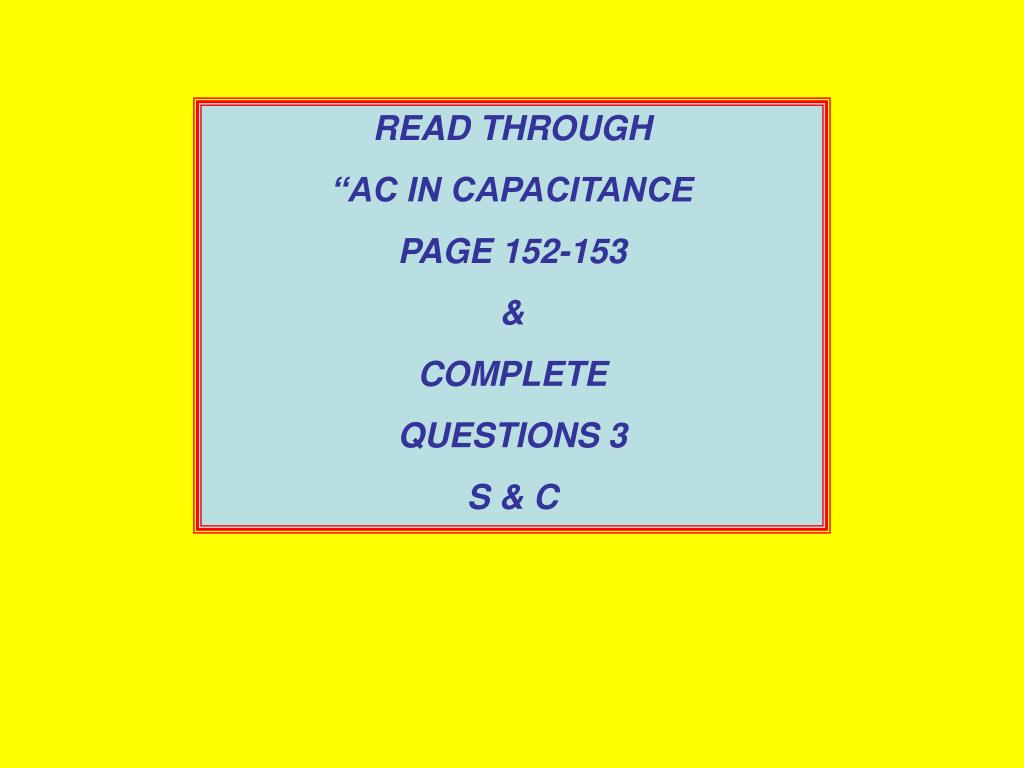

READ THROUGH

“AC IN CAPACITANCE

PAGE 152-153

&

COMPLETE

QUESTIONS 3

S & C

slide25

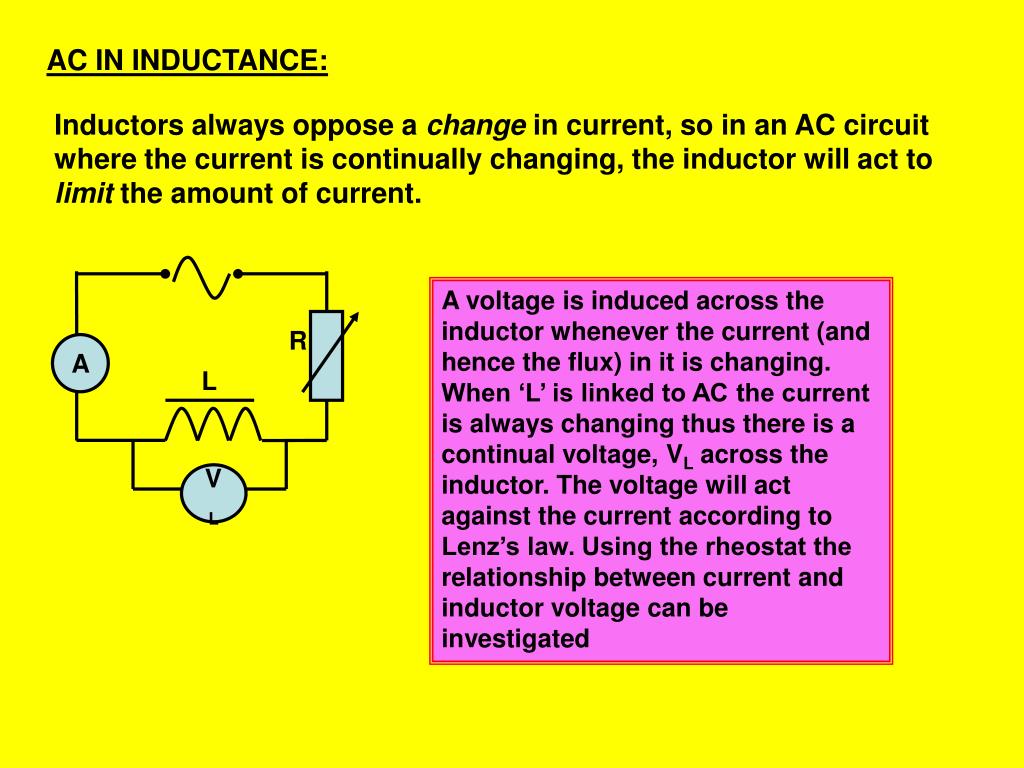

AC IN INDUCTANCE:

Inductors always oppose a change in current, so in an AC circuit where the current is continually changing, the inductor will act to limit the amount of current.

A voltage is induced across the inductor whenever the current (and hence the flux) in it is changing. When ‘L’ is linked to AC the current is always changing thus there is a continual voltage, VL across the inductor. The voltage will act against the current according to Lenz’s law. Using the rheostat the relationship between current and inductor voltage can be investigated

R

A

L

VL

slide26

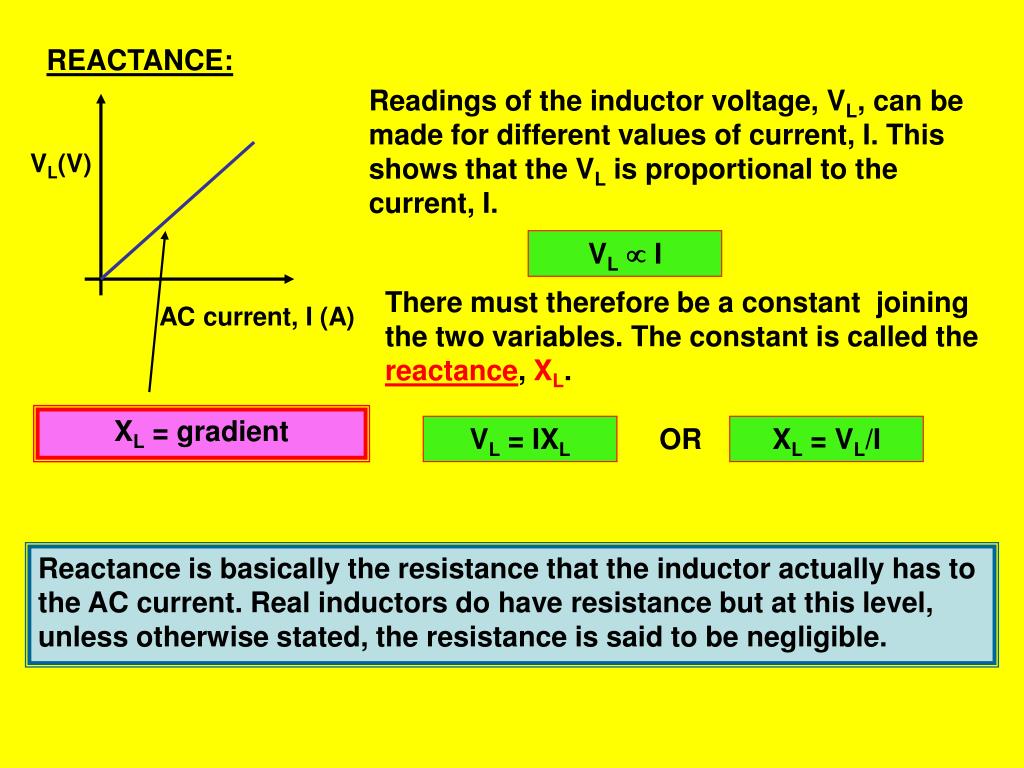

REACTANCE:

Readings of the inductor voltage, VL, can be made for different values of current, I. This shows that the VL is proportional to the current, I.

VL(V)

VL I

There must therefore be a constant joining the two variables. The constant is called the reactance, XL.

AC current, I (A)

XL = gradient

VL= IXL

OR

XL= VL/I

Reactance is basically the resistance that the inductor actually has to the AC current. Real inductors do have resistance but at this level, unless otherwise stated, the resistance is said to be negligible.

slide27

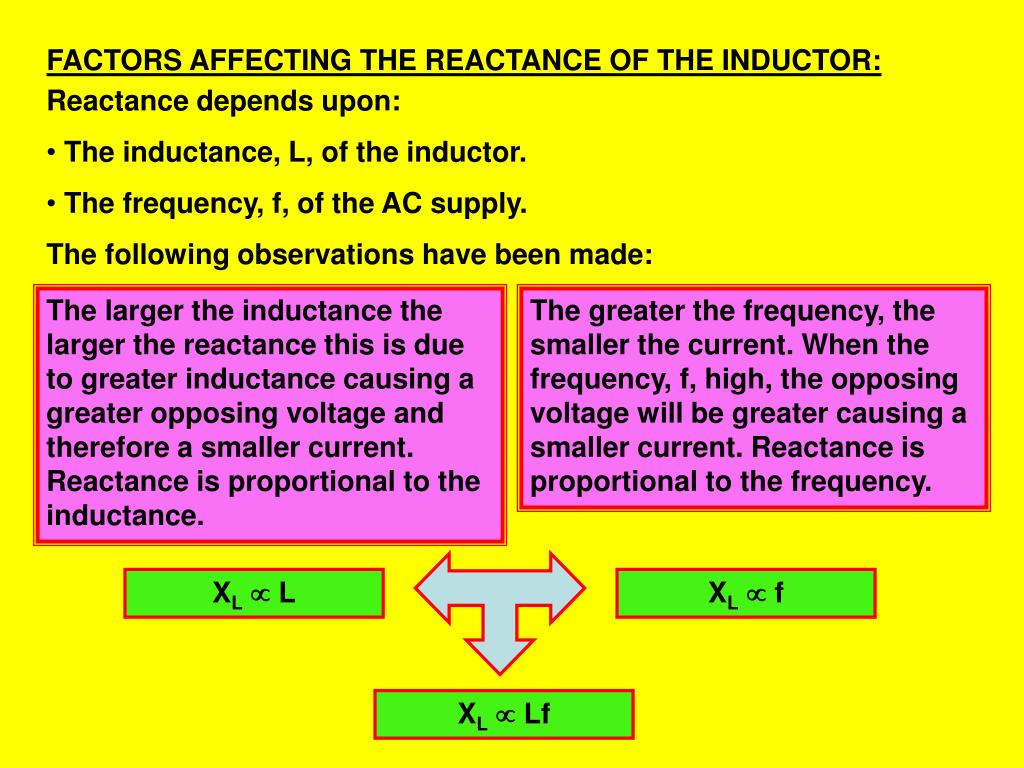

FACTORS AFFECTING THE REACTANCE OF THE INDUCTOR:

  • Reactance depends upon:
  • The inductance, L, of the inductor.
  • The frequency, f, of the AC supply.
  • The following observations have been made:

The larger the inductance the larger the reactance this is due to greater inductance causing a greater opposing voltage and therefore a smaller current. Reactance is proportional to the inductance.

The greater the frequency, the smaller the current. When the frequency, f, high, the opposing voltage will be greater causing a smaller current. Reactance is proportional to the frequency.

XL L

XL f

XL Lf

slide28

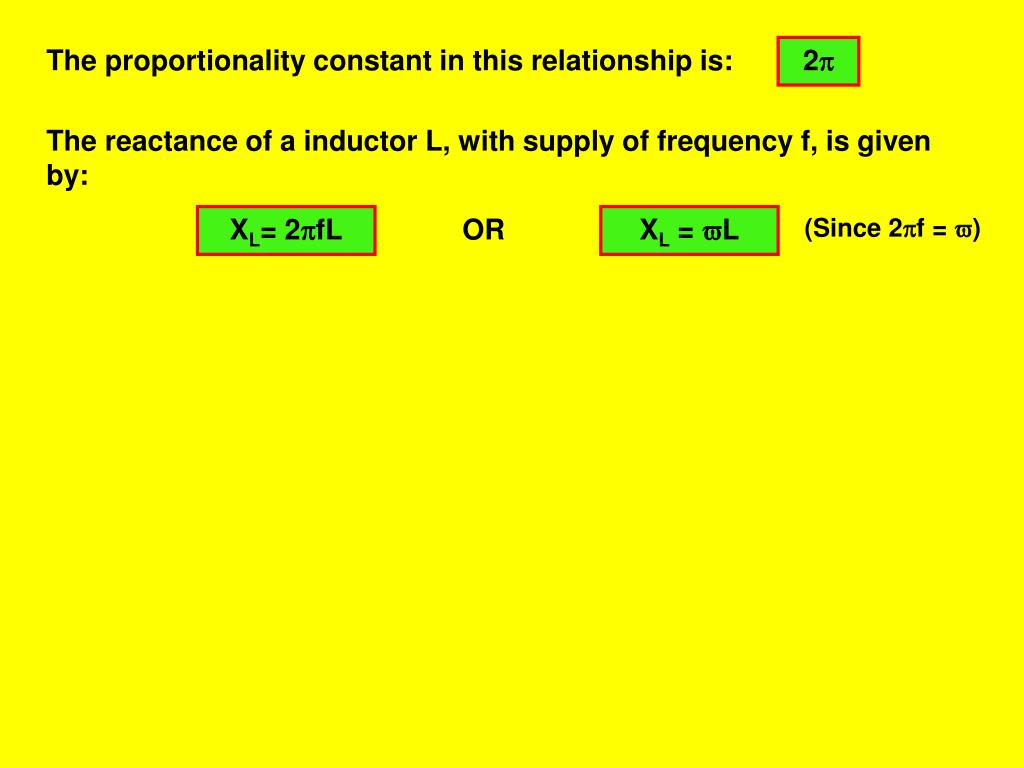

The proportionality constant in this relationship is:

2

The reactance of a inductor L, with supply of frequency f, is given by:

XL= 2fL

OR

XL = L

(Since 2f = )

slide29

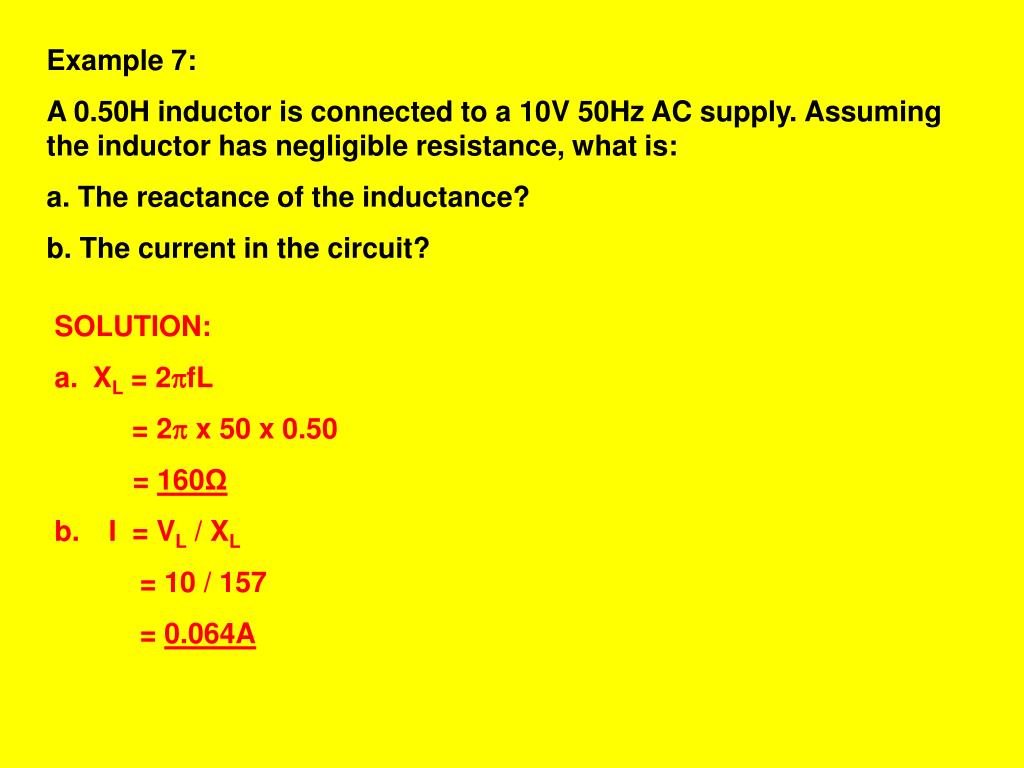

Example 7:

A 0.50H inductor is connected to a 10V 50Hz AC supply. Assuming the inductor has negligible resistance, what is:

a. The reactance of the inductance?

b. The current in the circuit?

  • SOLUTION:
  • XL = 2fL
  • = 2 x 50 x 0.50
  • = 160Ω
  • I = VL / XL
  • = 10 / 157
  • = 0.064A
slide30

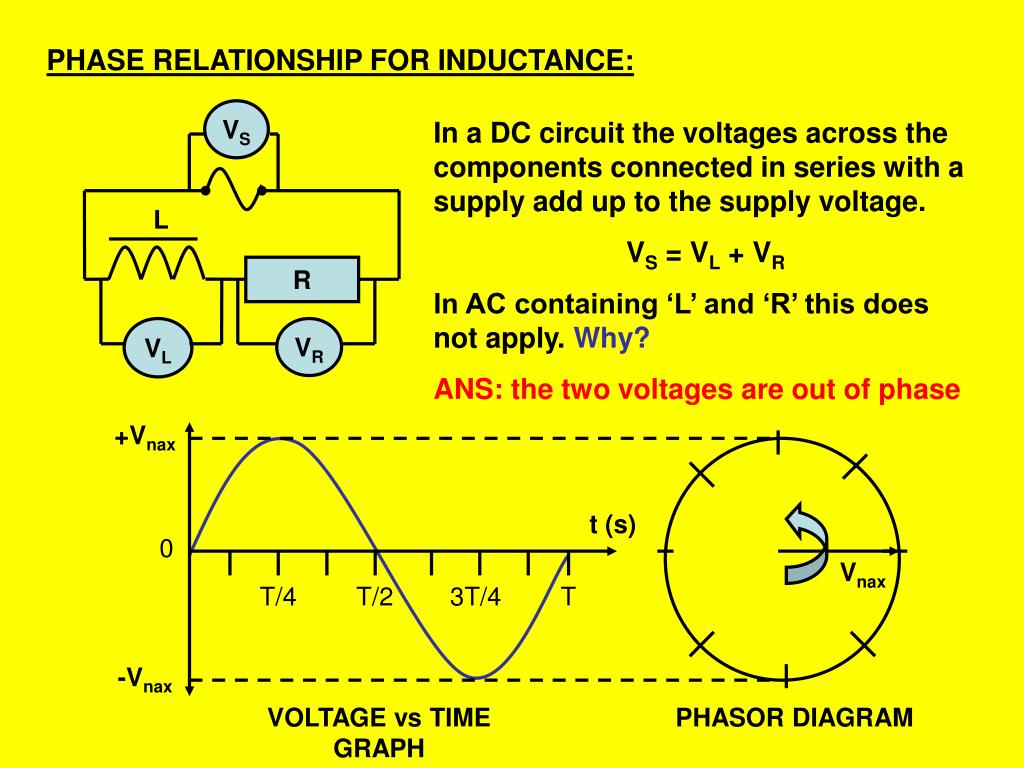

PHASE RELATIONSHIP FOR INDUCTANCE:

VS

In a DC circuit the voltages across the components connected in series with a supply add up to the supply voltage.

VS = VL + VR

In AC containing ‘L’ and ‘R’ this does not apply. Why?

ANS: the two voltages are out of phase

L

R

VL

VR

+Vnax

t (s)

0

Vnax

T/4

T/2

3T/4

T

-Vnax

VOLTAGE vs TIME GRAPH

PHASOR DIAGRAM

slide31

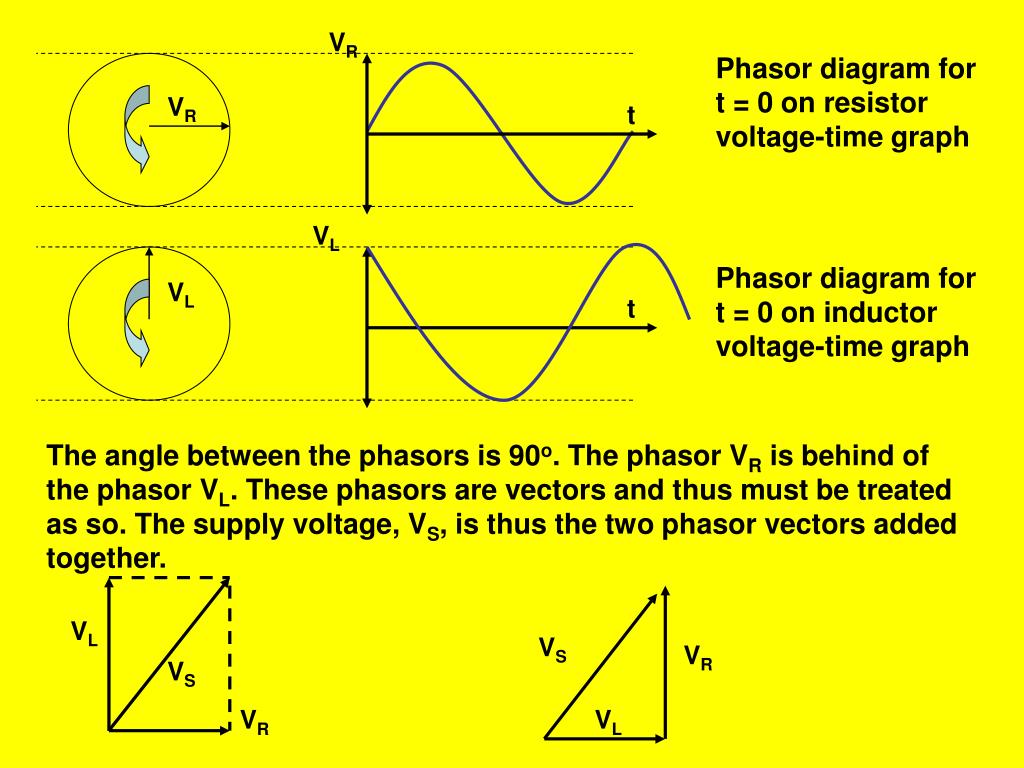

VR

Phasor diagram for t = 0 on resistor voltage-time graph

VR

t

VL

Phasor diagram for t = 0 on inductor voltage-time graph

VL

t

The angle between the phasors is 90o. The phasor VR is behind of the phasor VL. These phasors are vectors and thus must be treated as so. The supply voltage, VS, is thus the two phasor vectors added together.

VL

VS

VR

VS

VR

VL

slide32

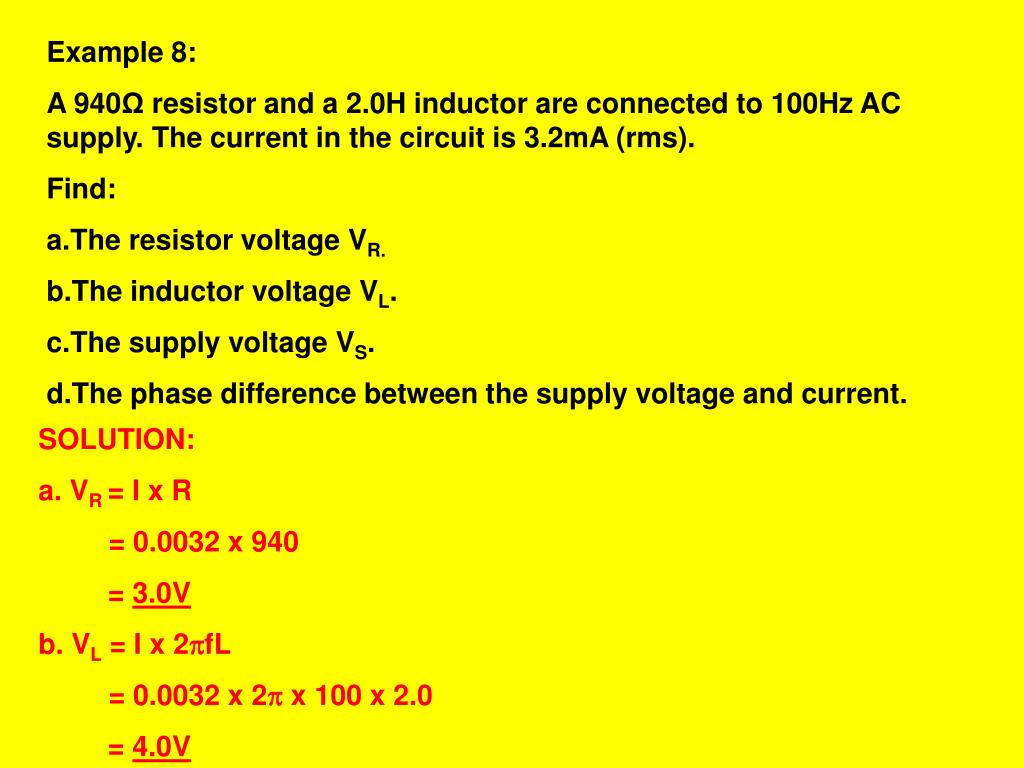

Example 8:

  • A 940Ω resistor and a 2.0H inductor are connected to 100Hz AC supply. The current in the circuit is 3.2mA (rms).
  • Find:
  • The resistor voltage VR.
  • The inductor voltage VL.
  • The supply voltage VS.
  • The phase difference between the supply voltage and current.

SOLUTION:

a. VR = I x R

= 0.0032 x 940

= 3.0V

b. VL = I x 2fL

= 0.0032 x 2 x 100 x 2.0

= 4.0V

slide33

c. VS2= VL2 + VR2

= 42 + 32

= 25

= 5.0V

d. The current is in phase with the resistor voltage, and so  is the phase difference:

 = tan-1 (4.0/3.0)

= 53O

The supply voltage leads the current by 53O.

VS

VL = 4.0V

VR = 3.0V

slide34

IMPEDANCE:

Resistance and reactance both impede the flow of current in a circuit. The combined effect of resistance and reactance is called impedance, symbol Z, unit Ohm (Ω).

Just as VR = IR for resistor

And VL = IXL for a inductor,

VS = IZ for the whole circuit.

Z = R2 + XL2

Thus:

XL

Z

R

slide35

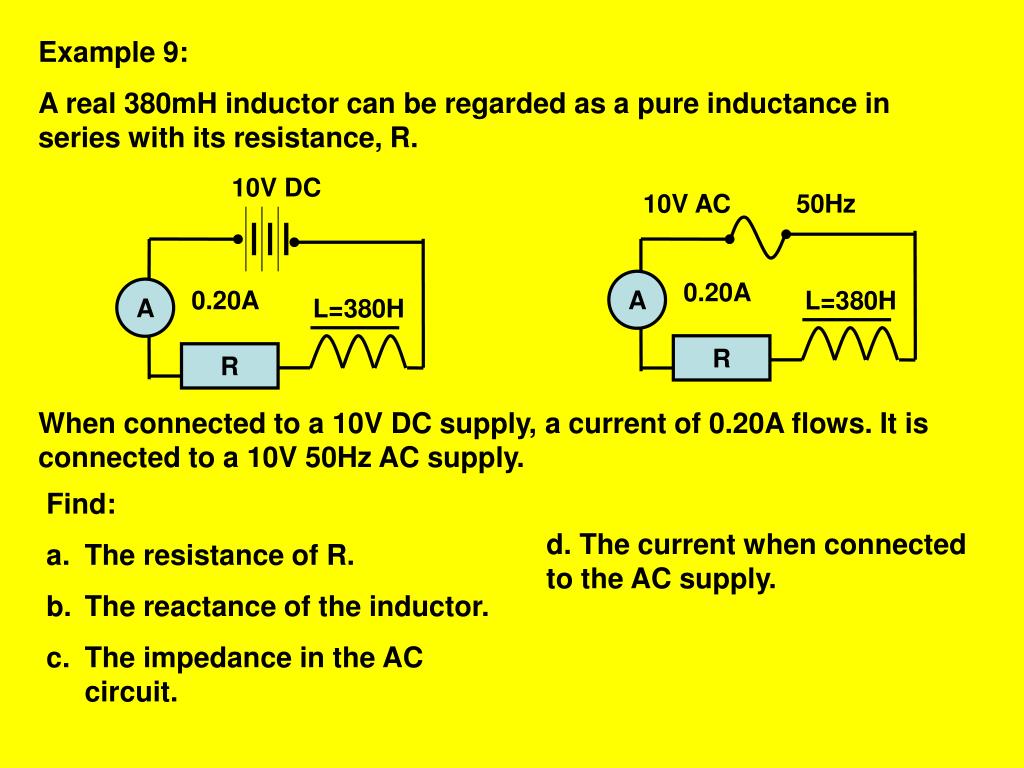

Example 9:

A real 380mH inductor can be regarded as a pure inductance in series with its resistance, R.

10V DC

10V AC

50Hz

A

0.20A

A

0.20A

L=380H

L=380H

R

R

When connected to a 10V DC supply, a current of 0.20A flows. It is connected to a 10V 50Hz AC supply.

  • Find:
  • The resistance of R.
  • The reactance of the inductor.
  • The impedance in the AC circuit.

d. The current when connected to the AC supply.

slide36

SOLUTION:

  • R = VDC / IDC
  • = 10/0.20
  • = 50Ω
  • XL = 2fL
  • = 2 x 50 x 380x10-3
  • = 120Ω
  • c. Z =  R2 + XL2
  • = 502 + 119.3812
  • = 130Ω
  • I = VS / Z
  • = 10 / 129.428
  • = 0.077A

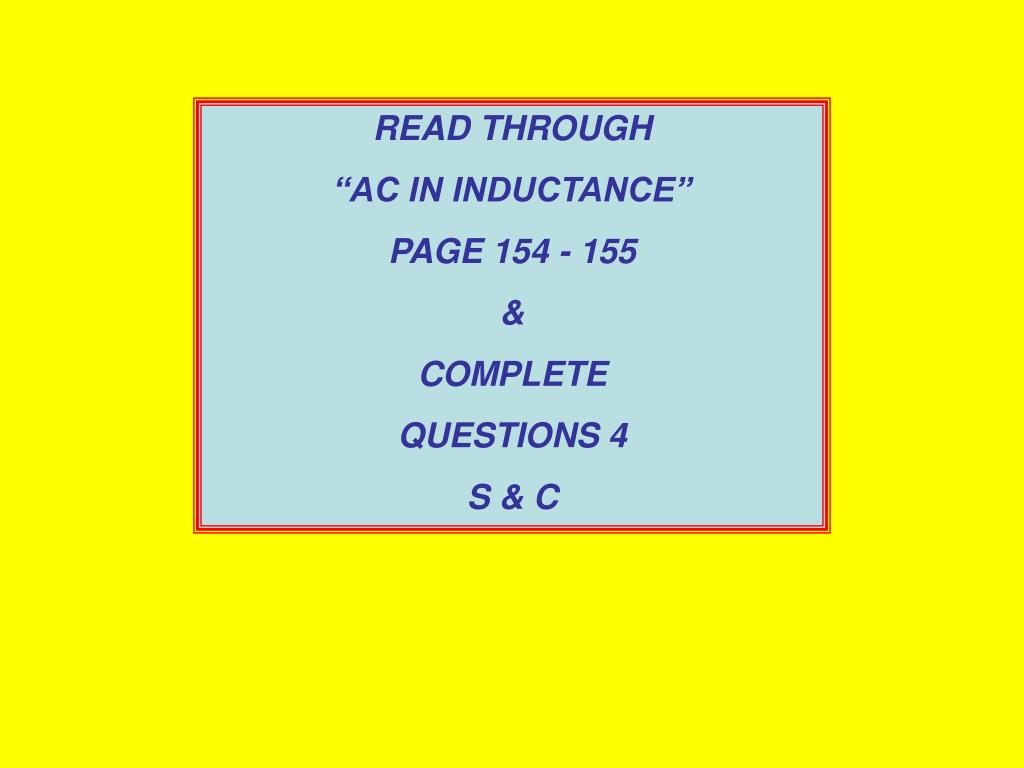

slide37

READ THROUGH

“AC IN INDUCTANCE”

PAGE 154 - 155

&

COMPLETE

QUESTIONS 4

S & C

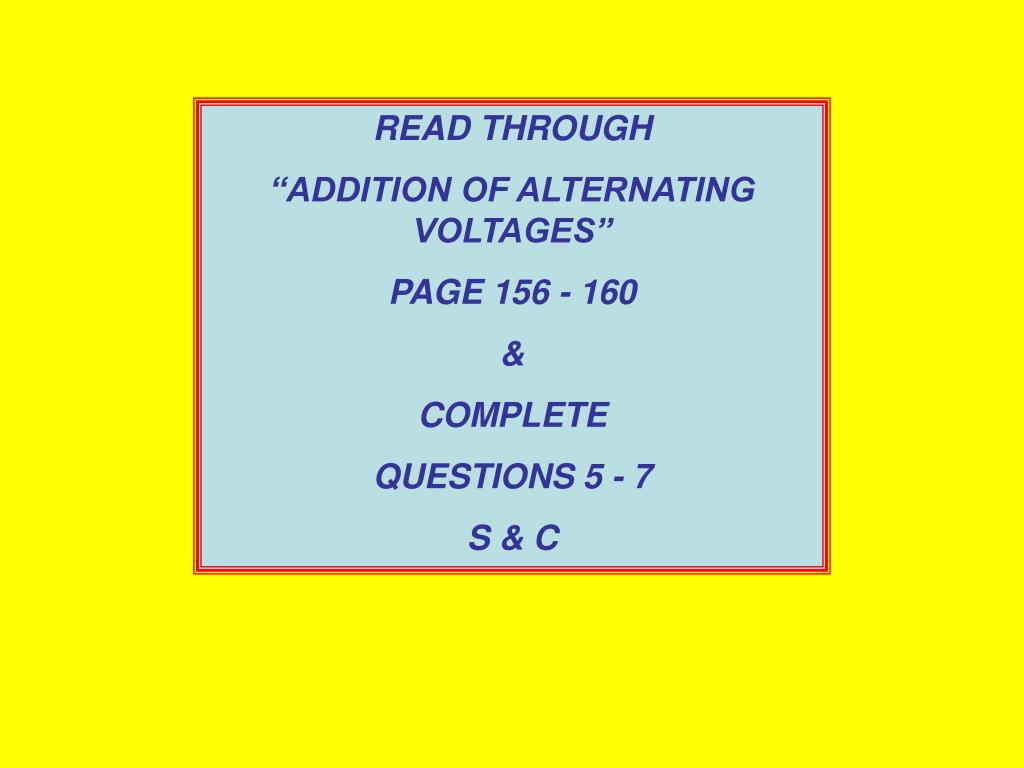

slide38

READ THROUGH

“ADDITION OF ALTERNATING VOLTAGES”

PAGE 156 - 160

&

COMPLETE

QUESTIONS 5 - 7

S & C

slide39

RESONANCE:

LCR SERIES CIRCUIT:

When a capacitor, inductor and resistor are connected in series to an AC supply they form a very useful circuit with some important properties. The voltages and impedance in an LCR circuit will vary considerably as the frequency is changed.

The voltage across any of the components in the circuit will depend on the reactance/resistance of the component.

VR = IR R is constant & in phase with I

VC = IXC XC = 1 /2fC, 90o behind I

VL = IXL XL = 2fL, 90o ahead I

Although the resistance remains constant in the circuit the reactance’s depend upon the frequency.

In order to show how the reactance s vary is to consider a phasor type diagram for the impedance of the circuit.

slide40

VARIABLE FREQUENCY AC

XL = 2fL

R

Constant voltage

A

R

Phasor diagram of resistance and reactance’s

XC = 1/2fC

L

C

An LCR circuit

In the above phasor diagram the total reactance is the difference between the inductor reactance and the capacitor reactance.

XT = XC - XL

If the frequency of the supply is increased, the inductor reactance will increase but the capacitor reactance will decrease, as inversely proportional to the f.

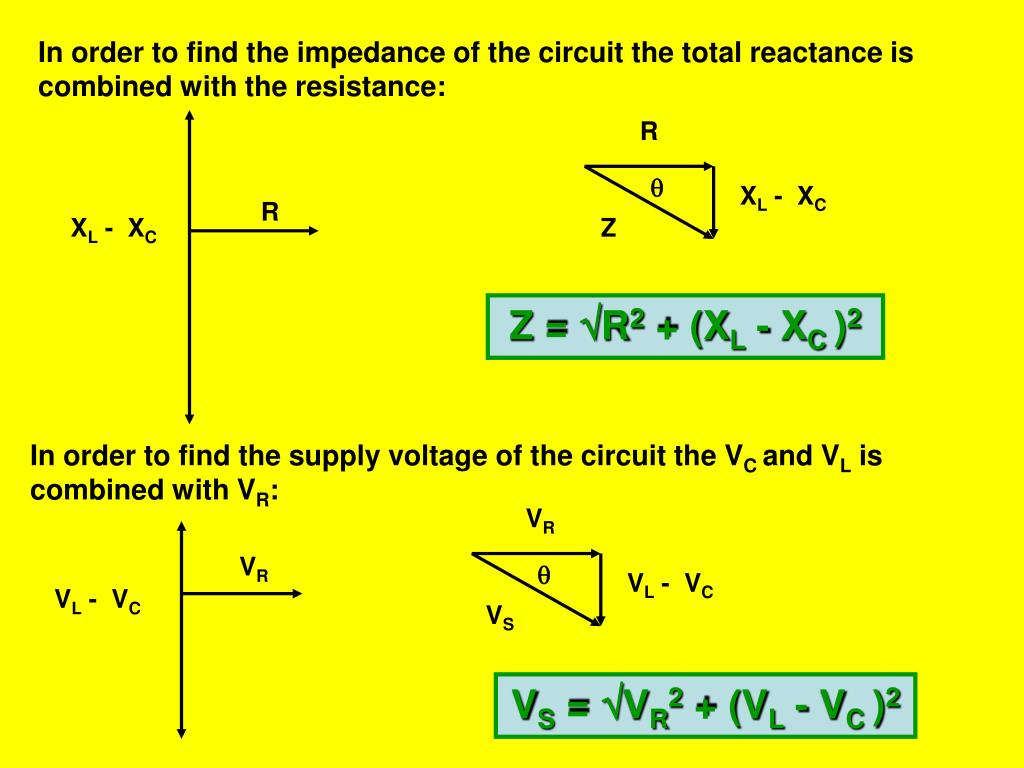

slide41

In order to find the impedance of the circuit the total reactance is combined with the resistance:

R

XL - XC

R

XL - XC

Z

Z = R2 + (XL - XC)2

In order to find the supply voltage of the circuit the VC and VL is combined with VR:

VR

VR

VL - VC

VL - VC

VS

VS = VR2 + (VL - VC)2

slide42

Example 10:

  • For the circuit shown, the frequency of the supply was set to 50Hz.
  • Calculate:
  • The total reactance in the circuit.
  • The impedance of the circuit.
  • The phase difference between the supply voltage and the current.

VARIABLE FREQUENCY AC

Constant voltage

A

R

L=40mH

130 turns

C=100F

12Ω

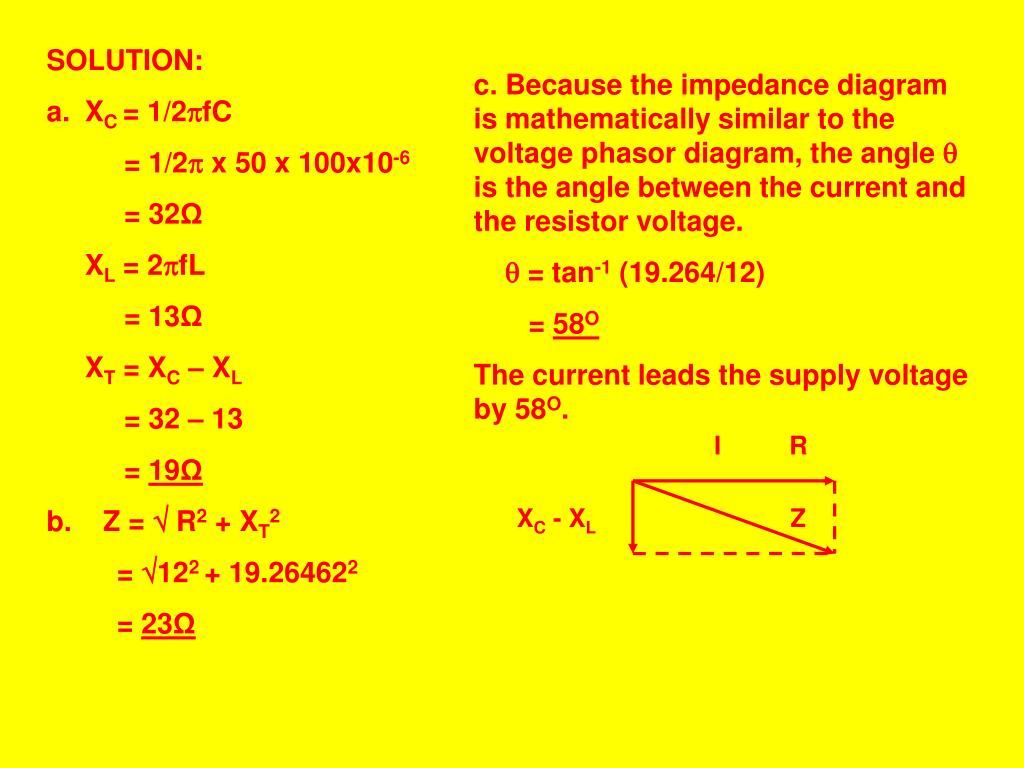

slide43

SOLUTION:

  • XC = 1/2fC
  • = 1/2 x 50 x 100x10-6
  • = 32Ω
  • XL = 2fL
  • = 13Ω
  • XT = XC – XL
  • = 32 – 13
  • = 19Ω
  • b. Z =  R2 + XT2
  • = 122 + 19.264622
  • = 23Ω

c. Because the impedance diagram is mathematically similar to the voltage phasor diagram, the angle  is the angle between the current and the resistor voltage.

 = tan-1 (19.264/12)

= 58O

The current leads the supply voltage by 58O.

I

R

XC - XL

Z

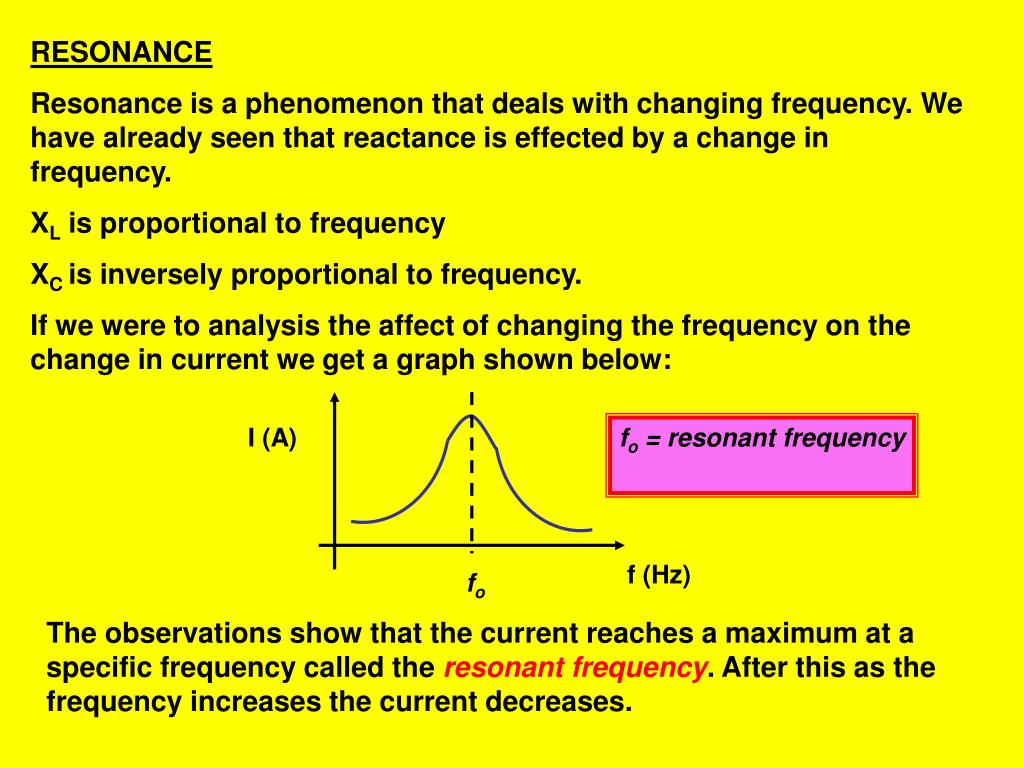

slide44

RESONANCE

Resonance is a phenomenon that deals with changing frequency. We have already seen that reactance is effected by a change in frequency.

XL is proportional to frequency

XC is inversely proportional to frequency.

If we were to analysis the affect of changing the frequency on the change in current we get a graph shown below:

I (A)

fo = resonant frequency

f (Hz)

fo

The observations show that the current reaches a maximum at a specific frequency called the resonant frequency. After this as the frequency increases the current decreases.

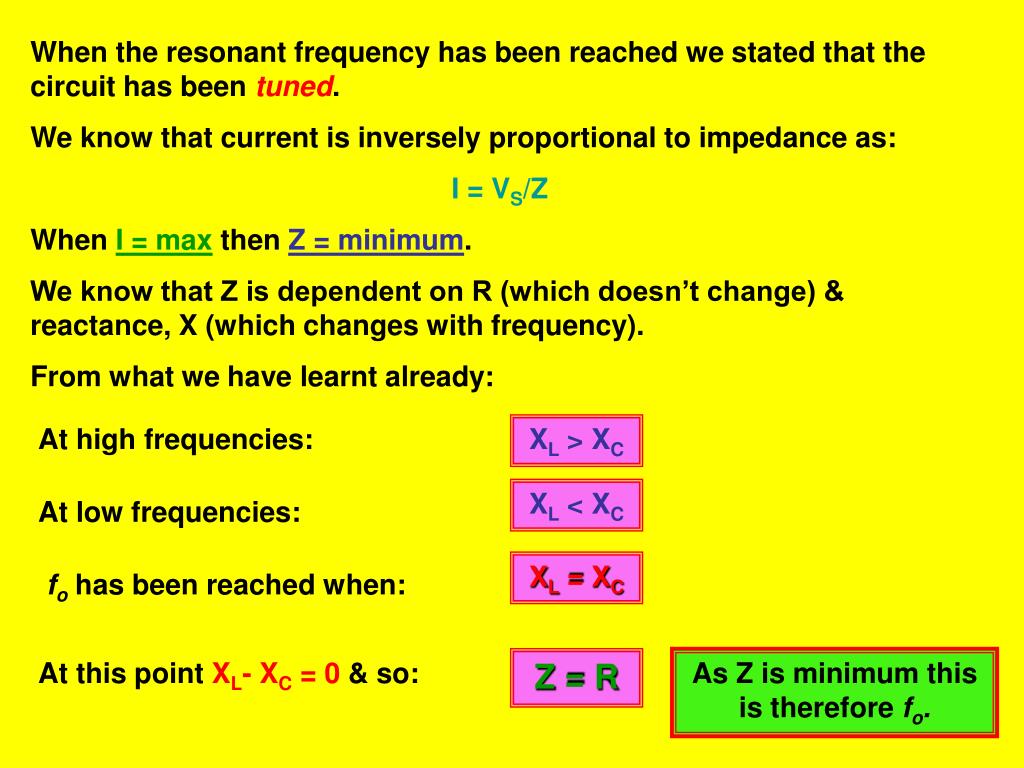

slide45

When the resonant frequency has been reached we stated that the circuit has been tuned.

We know that current is inversely proportional to impedance as:

I = VS/Z

When I = max then Z = minimum.

We know that Z is dependent on R (which doesn’t change) & reactance, X (which changes with frequency).

From what we have learnt already:

At high frequencies:

XL > XC

XL < XC

At low frequencies:

XL = XC

fohas been reached when:

At this point XL- XC = 0 & so:

Z = R

As Z is minimum this is therefore fo.

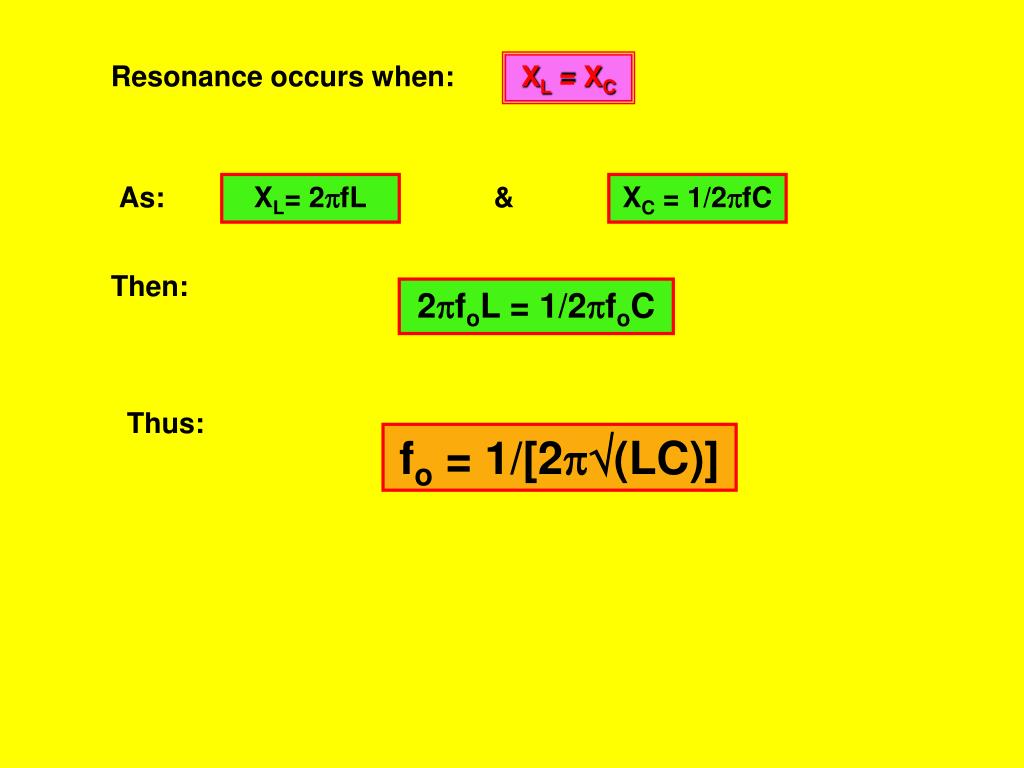

slide46

Resonance occurs when:

XL = XC

As:

XL= 2fL

&

XC = 1/2fC

Then:

2foL = 1/2foC

Thus:

fo = 1/[2(LC)]

slide47

Example 11:

A 120Ω resistor, a 2.00H inductor and a 4.50F capacitor are connected in series to a 15V variable frequency AC supply.

Calculate the resonant frequency:

VARIABLE FREQUENCY AC

VAC = 15V

R

SOLUTION:

At resonance: XL = XC

fo = 1/2LC

fo = 1/[2(2.00 x 4.50x10-6)]

= 53.1Hz

C=4.50F

120Ω

L = 2.00H

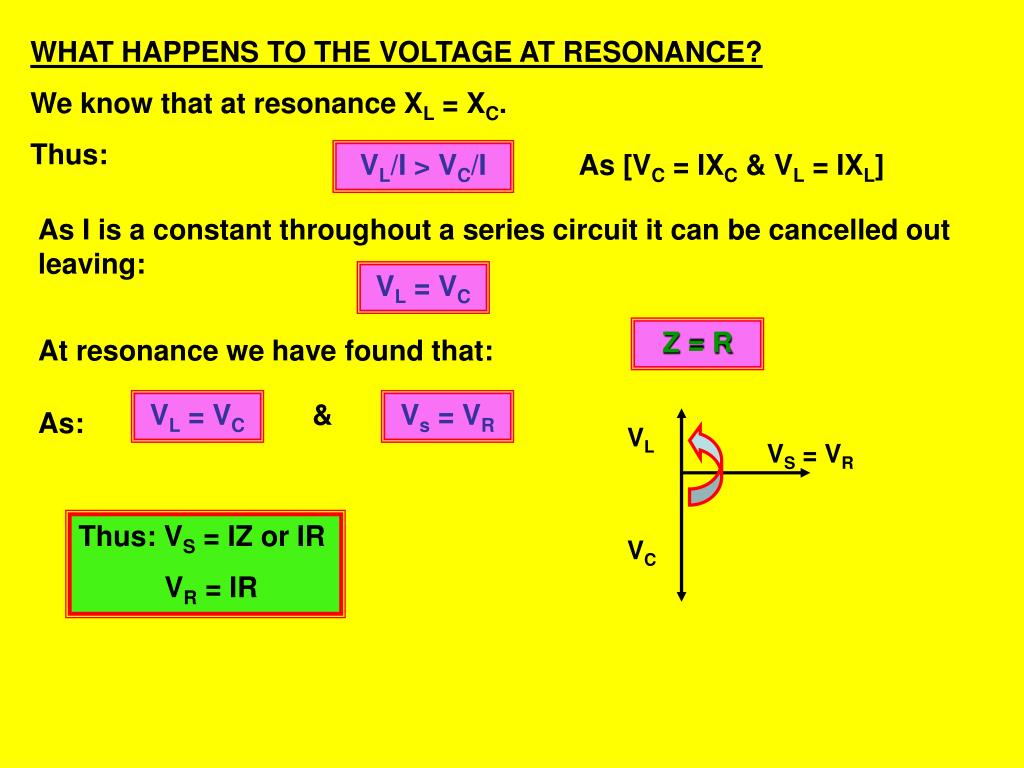

slide48

WHAT HAPPENS TO THE VOLTAGE AT RESONANCE?

We know that at resonance XL = XC.

Thus:

VL/I > VC/I

As [VC = IXC & VL = IXL]

As I is a constant throughout a series circuit it can be cancelled out leaving:

VL = VC

Z = R

At resonance we have found that:

VL = VC

&

Vs = VR

As:

VL

VS = VR

Thus: VS = IZ or IR

VR = IR

VC

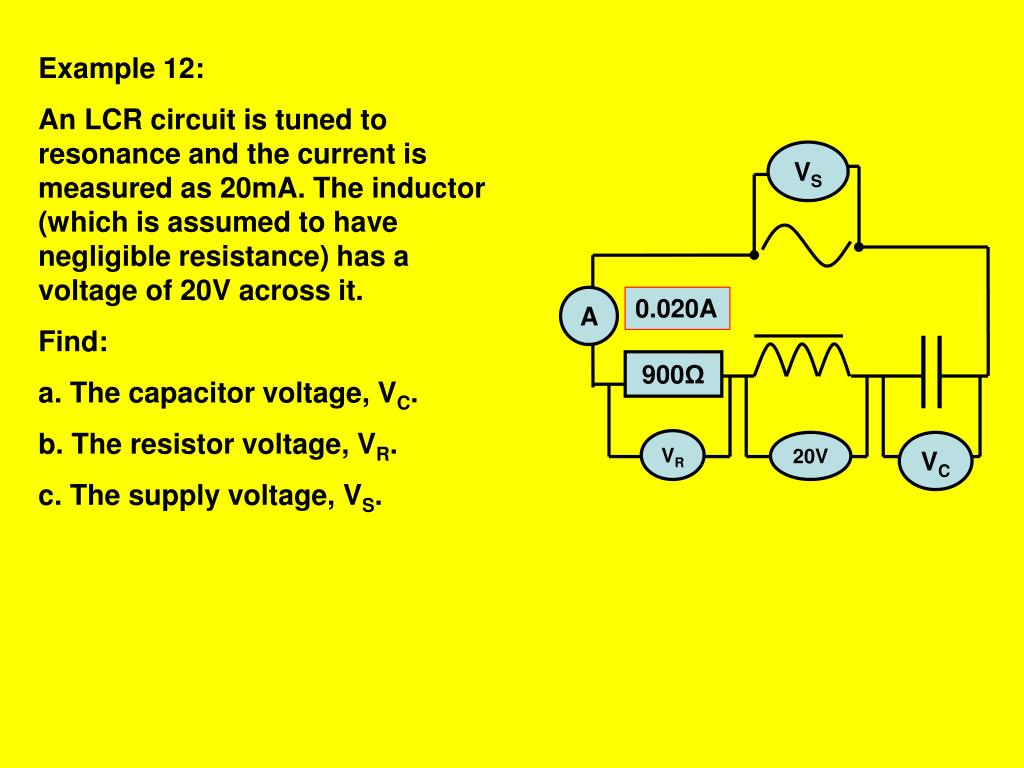

slide49

Example 12:

  • An LCR circuit is tuned to resonance and the current is measured as 20mA. The inductor (which is assumed to have negligible resistance) has a voltage of 20V across it.
  • Find:
  • The capacitor voltage, VC.
  • The resistor voltage, VR.
  • The supply voltage, VS.

VS

A

0.020A

900Ω

VR

20V

VC

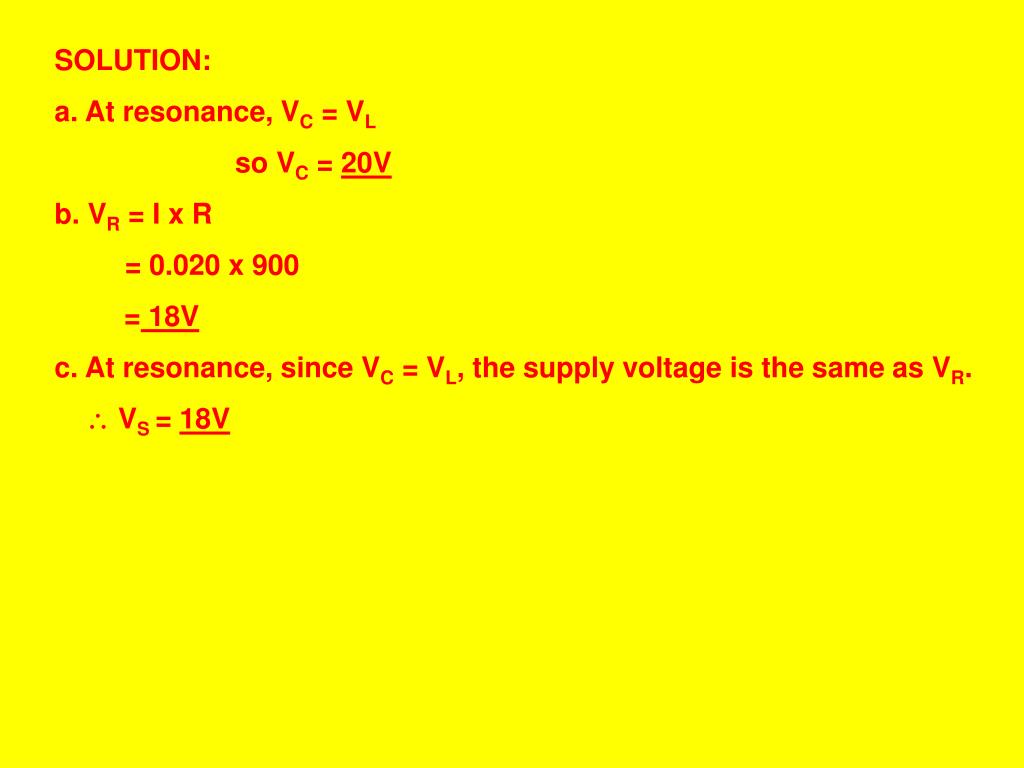

slide50

SOLUTION:

a. At resonance, VC = VL

so VC = 20V

b. VR = I x R

= 0.020 x 900

= 18V

c. At resonance, since VC = VL, the supply voltage is the same as VR.

 VS = 18V

slide51

READ THROUGH

“RESONANCE & APPLICATIONS”

PAGE 161 - 165

&

COMPLETE

QUESTIONS 8

EXTENSION

“DC POWER SUPPLIES”

PAGE 164 - 165

S & C

slide52

COMPLETE EXERCISE 9

“AC CIRCUITS”

PAGE 166 - 173

S & C
