  1. VersaWeigh Customer Training Operator July 8, 2008

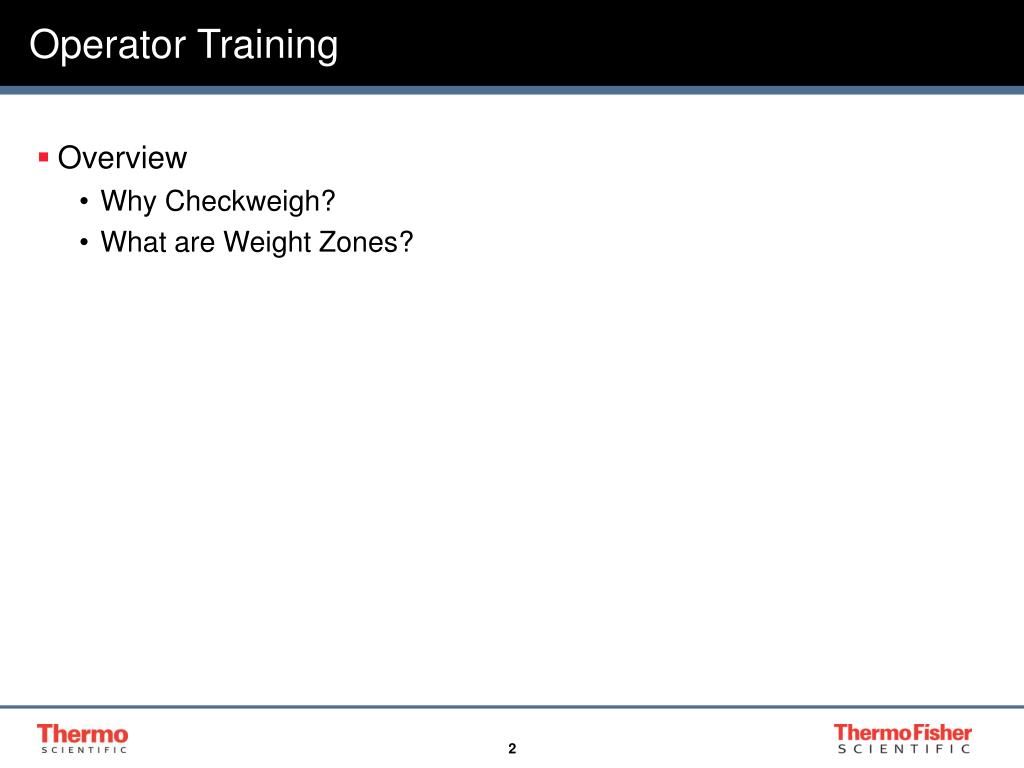

  2. Operator Training • Overview • Why Checkweigh? • What are Weight Zones?

  3. What are Weight Zones? Second Under Cutpoint Reference Weight Second Over Cutpoint On Weight Zone 3 First Under Cutpoint First Over Cutpoint Under Weight Zones 1 and 2 Over Weight Zones 4 and 5

  4. Operator Training • Overview • Why Checkweigh? • What are Weight Zones? • Basic Mechanical Operation and Parts

  5. Basic Mechanical Operation and Parts Packages Approach the Checkweigher Triggered by the photocell, packages are weighed individually. Under and/or overweight packages are rejected.

  6. Operator Training • Overview • Why Checkweigh? • What are Weight Zones? • Basic Mechanical Operation and Parts • Do’s and Do Not’s of Checkweighing • Do keep the weightable area clean • Do not hit weightable with high pressure water or air • Do not apply side force to weightable • Do adjust system for smooth product transfers into/through and off of system • Do verify package weights are correct when ever starting a production run • Starting and Stopping Motors

  7. Starting and Stopping Motors Press the Motor Start/Stop Button

  8. Operator Training • Overview • Why Checkweigh? • What are Weight Zones? • Basic Mechanical Operation and Parts • Do’s and Do Not’s of Checkweighing • Starting and Stopping Motors • Overview of Weight Display Screen

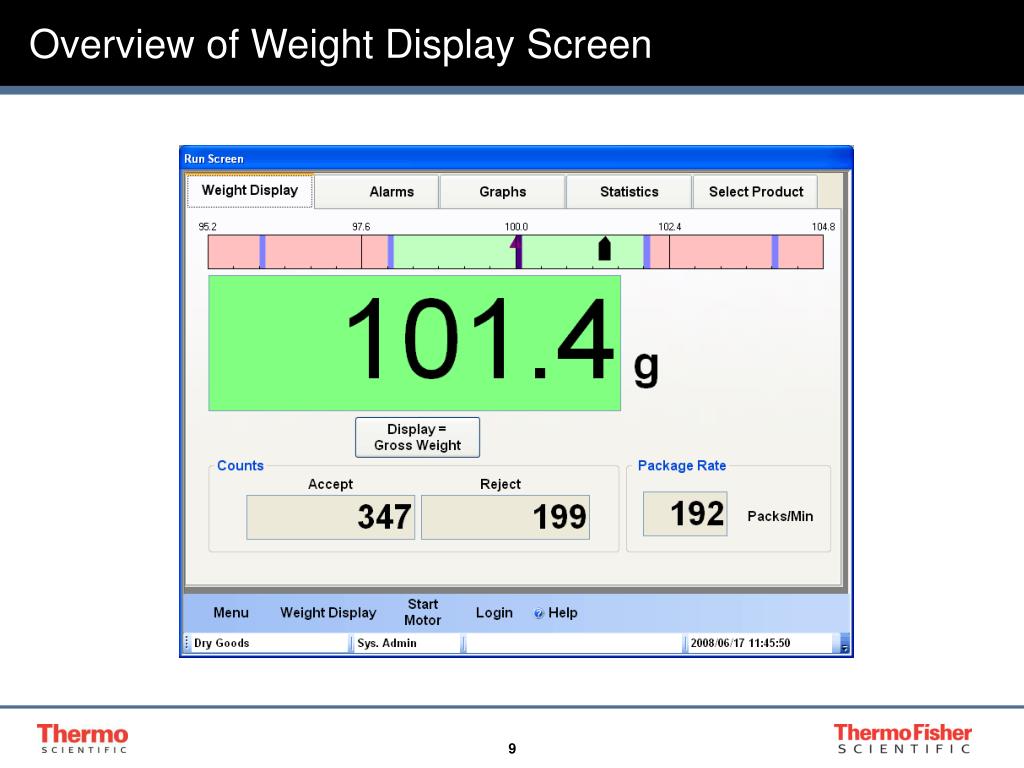

  9. Overview of Weight Display Screen

  10. Operator Training • Product Programming • Operator Access / Logging In

  11. Operator Access / Logging In Press Login

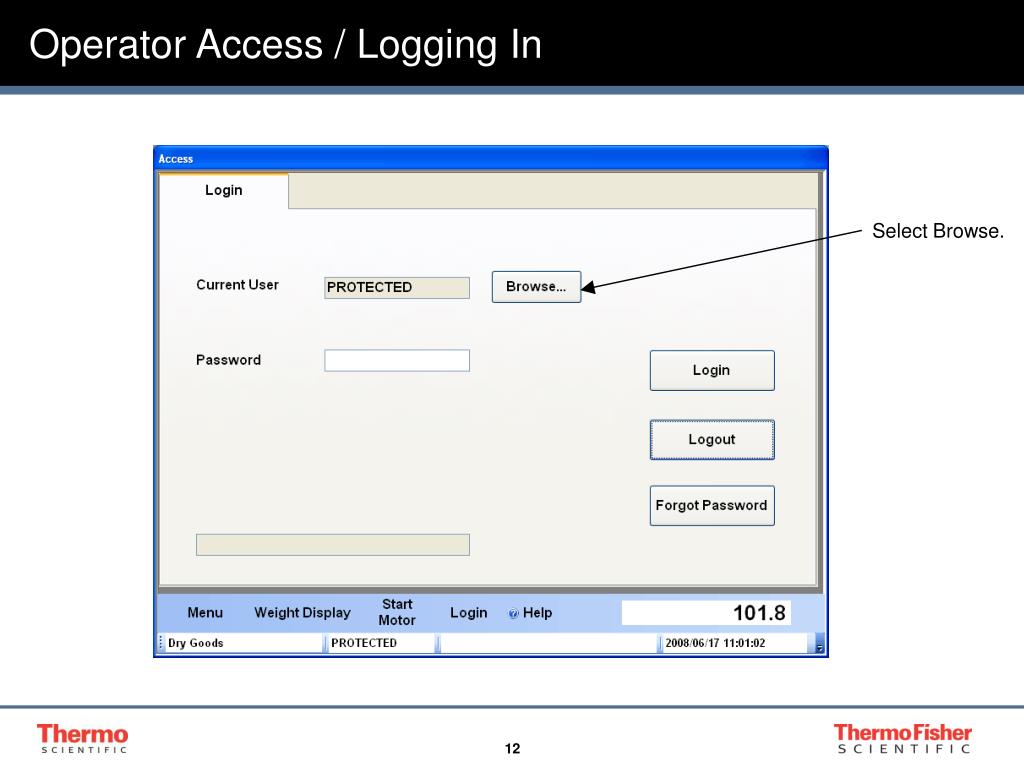

  12. Operator Access / Logging In Select Browse.

  13. Operator Access / Logging In Select the User Then “Done”.

  14. Operator Access / Logging In Enter the Password (If applicable) Press the “Login” Button

  15. Operator Access

  16. Operator Training • Product Programming • Operator Access / Logging In • Selecting the Running Product

  17. Selecting the Running Product Press the “Select Product” Tab

  18. Selecting the Running Product Select the “Browse” Button

  19. Selecting the Running Product Select the Desired Product Press the “Done” Button

  20. Selecting the Running Product Press the “Run Product” Button

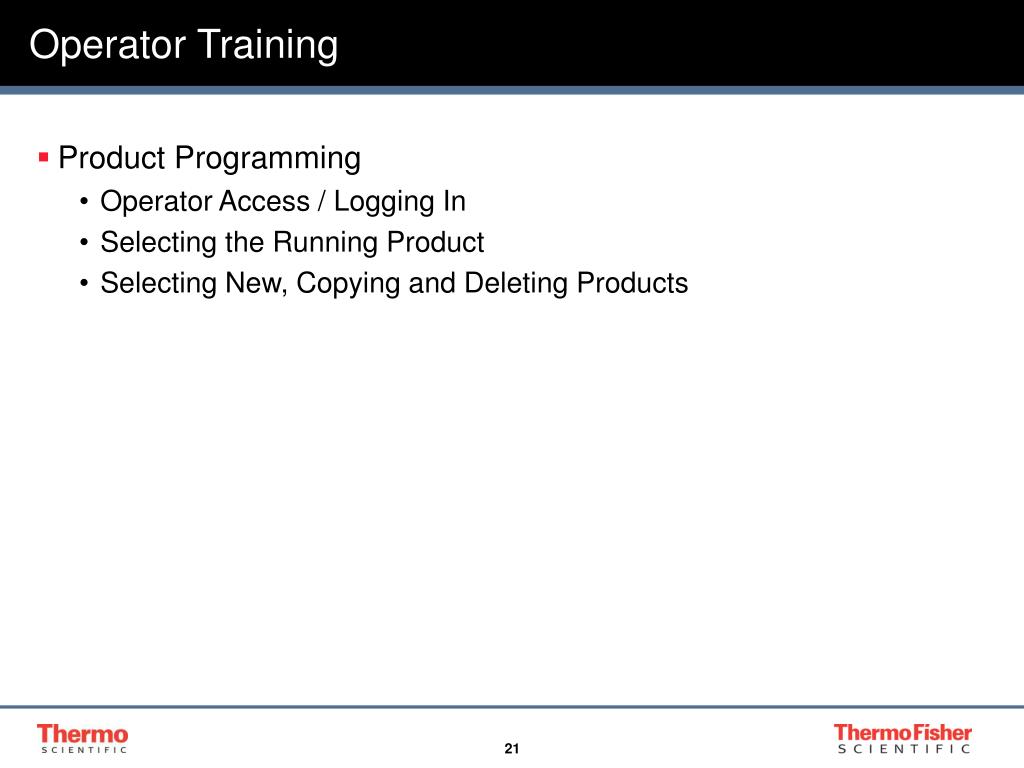

  21. Operator Training • Product Programming • Operator Access / Logging In • Selecting the Running Product • Selecting New, Copying and Deleting Products

  22. Selecting New, Copying and Deleting Products

  23. Operator Training • Product Programming • Operator Access / Logging In • Selecting the Running Product • Selecting New, Copying and Deleting Products • Viewing / Clearing Statistics

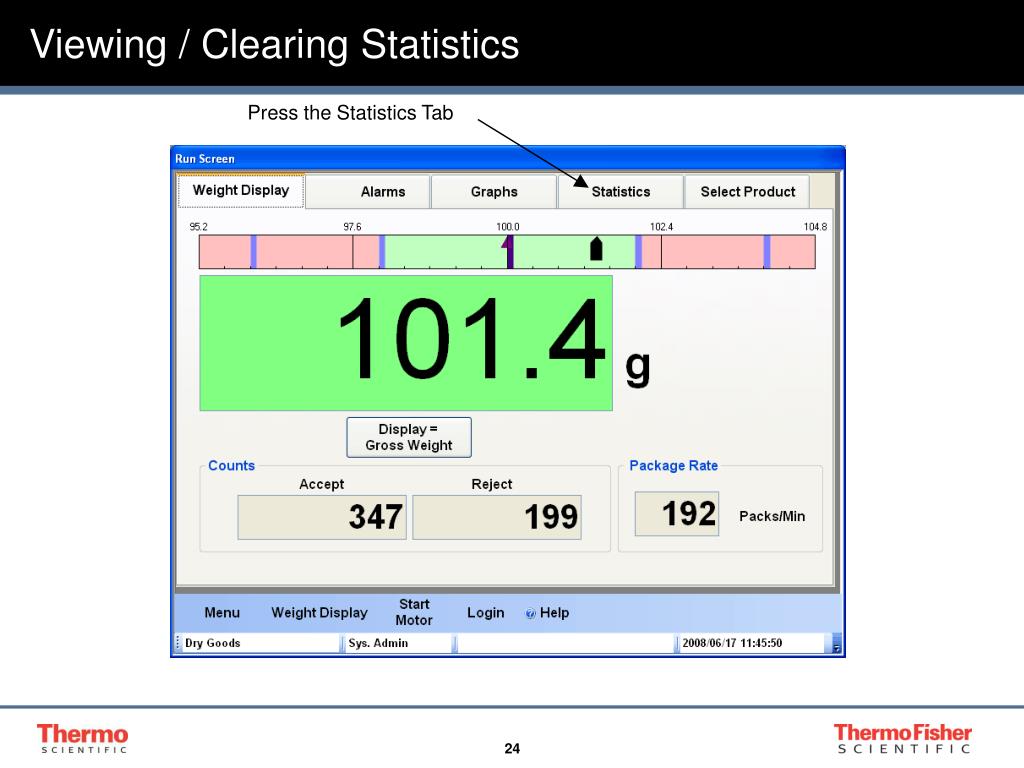

  24. Viewing / Clearing Statistics Press the Statistics Tab

  25. Viewing / Clearing Statistics Press to Save & Clear Stats Press to Select Long or Short Term Stats

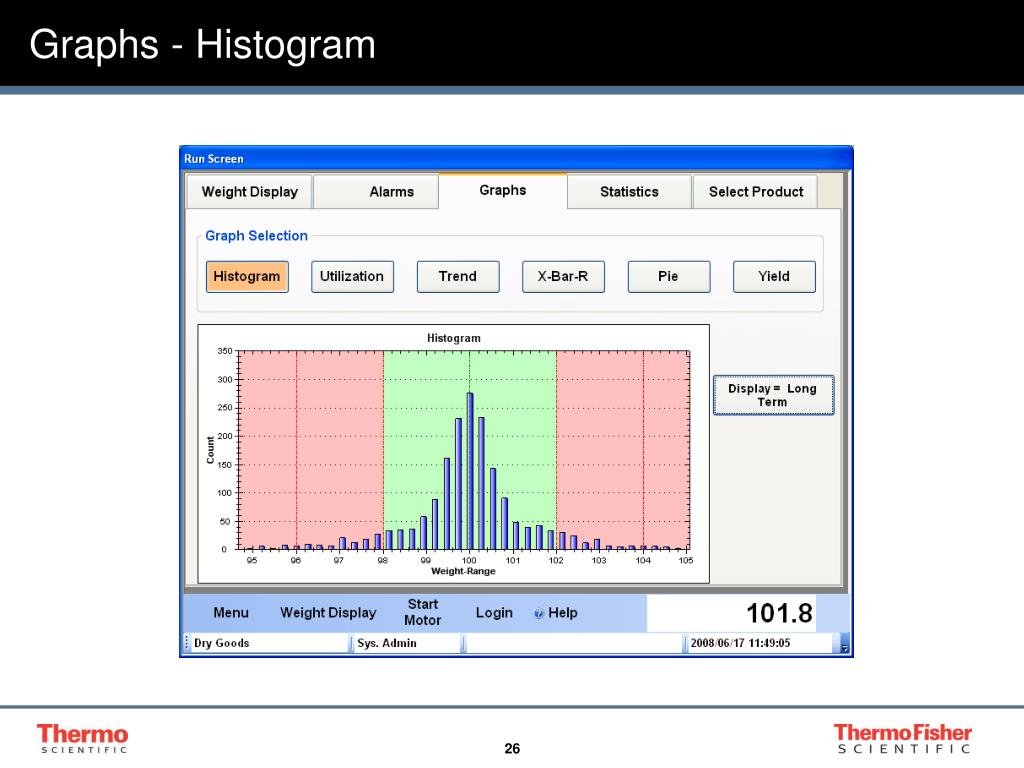

  26. Graphs - Histogram

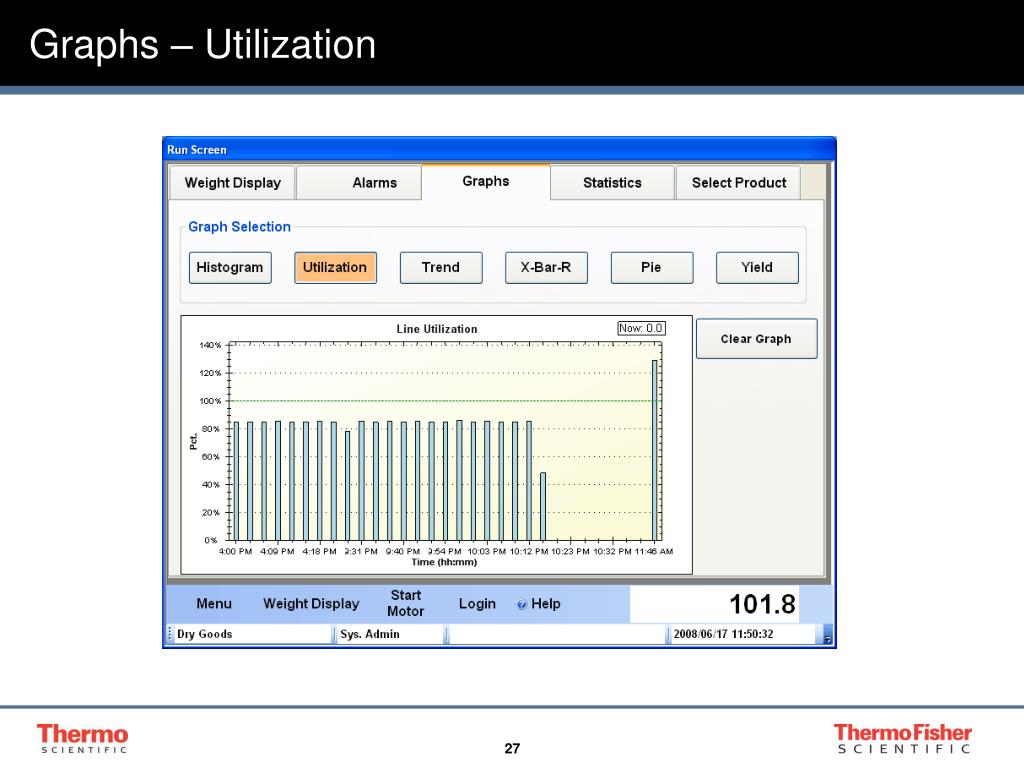

  27. Graphs – Utilization

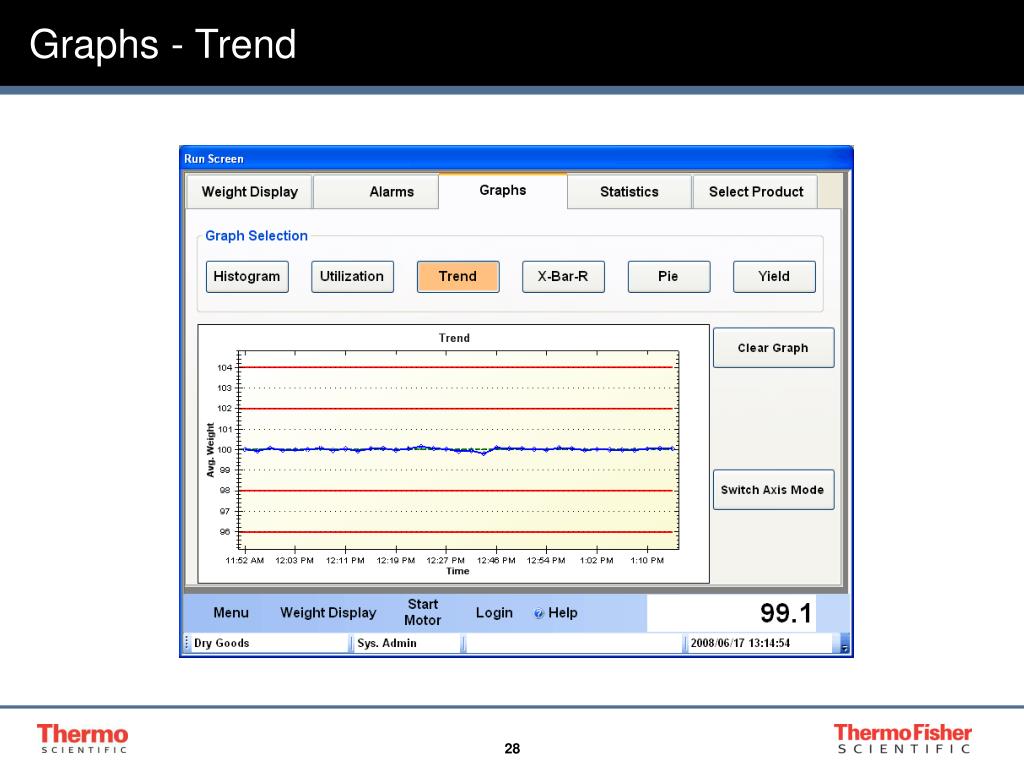

  28. Graphs - Trend

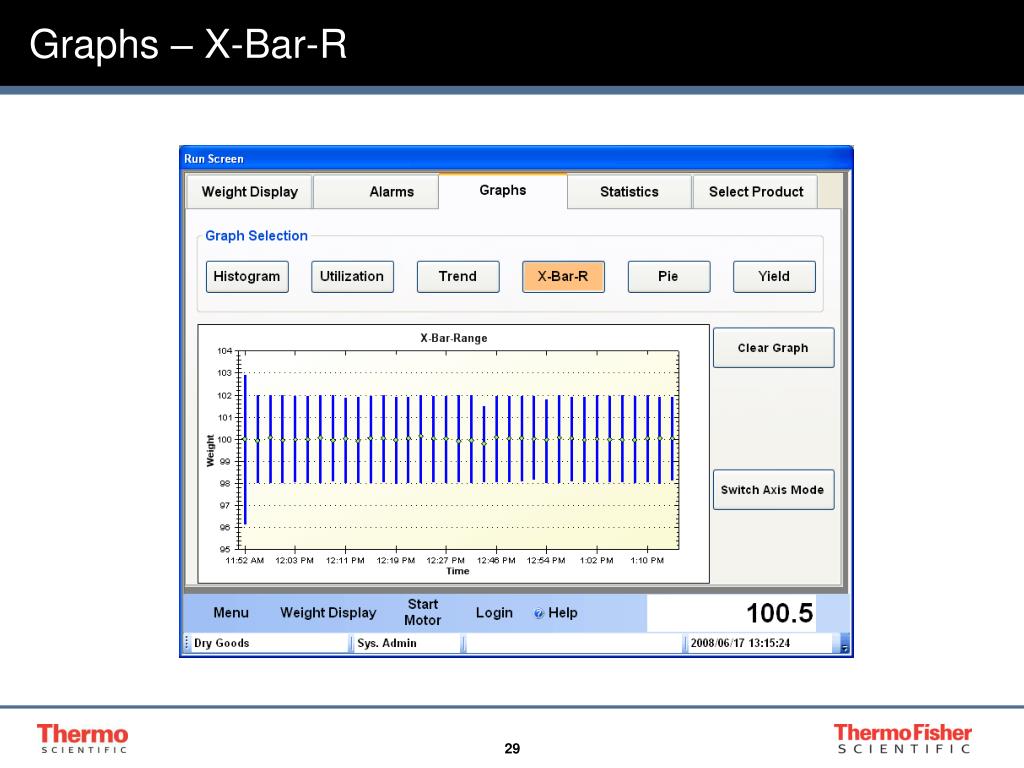

  29. Graphs – X-Bar-R

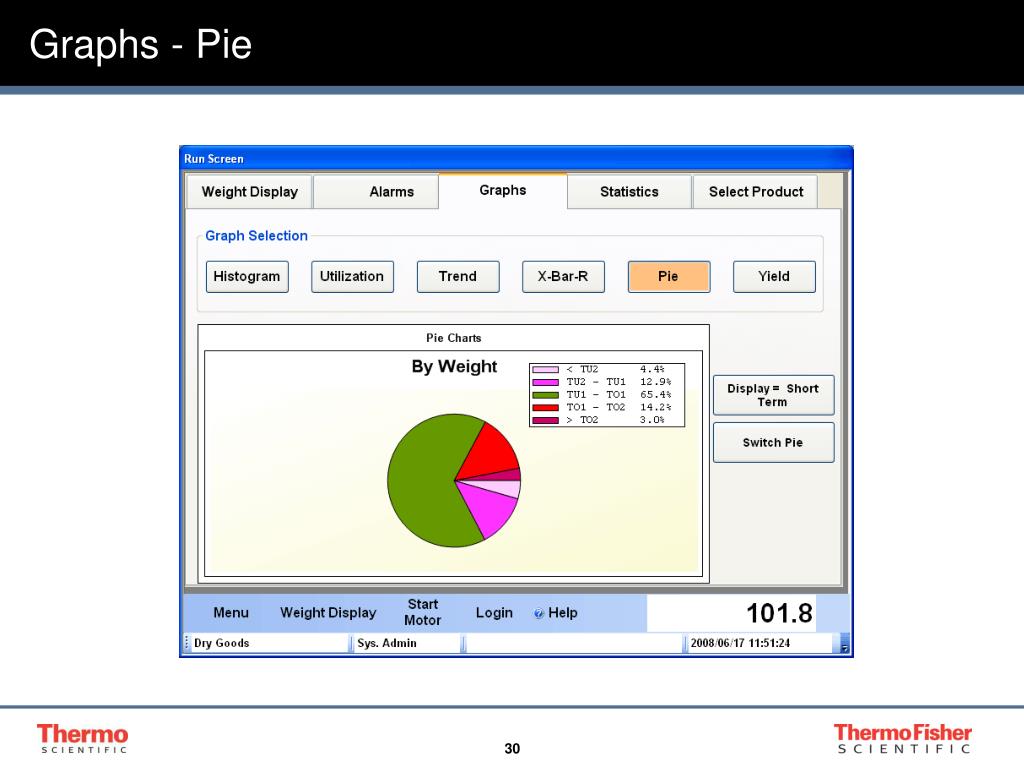

  30. Graphs - Pie

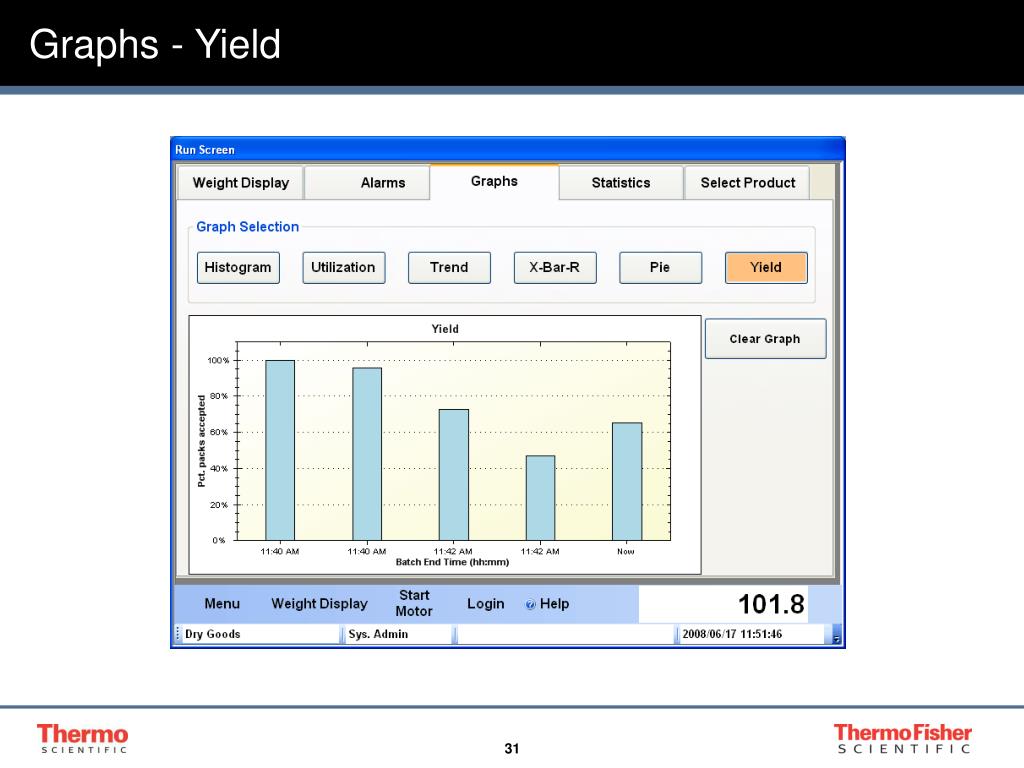

  31. Graphs - Yield

  32. Operator Training • Product Programming • Operator Access / Logging In • Selecting the Running Product • Selecting New, Copying and Deleting Products • Viewing / Clearing Statistics • Editing Product Parameters

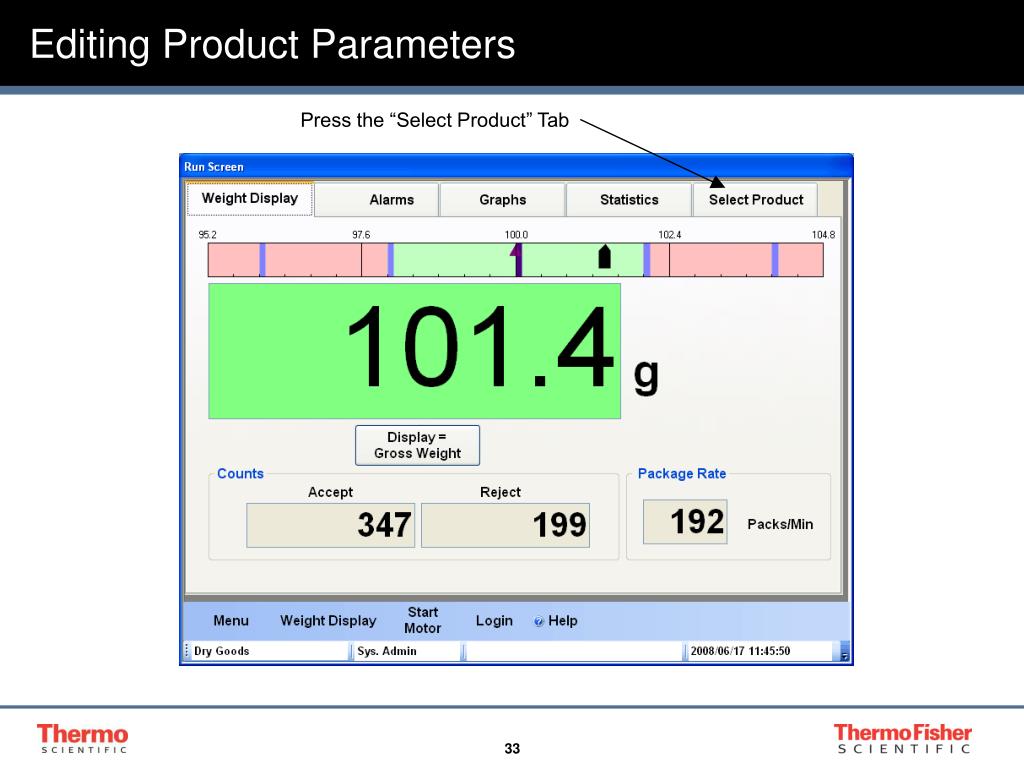

  33. Editing Product Parameters Press the “Select Product” Tab

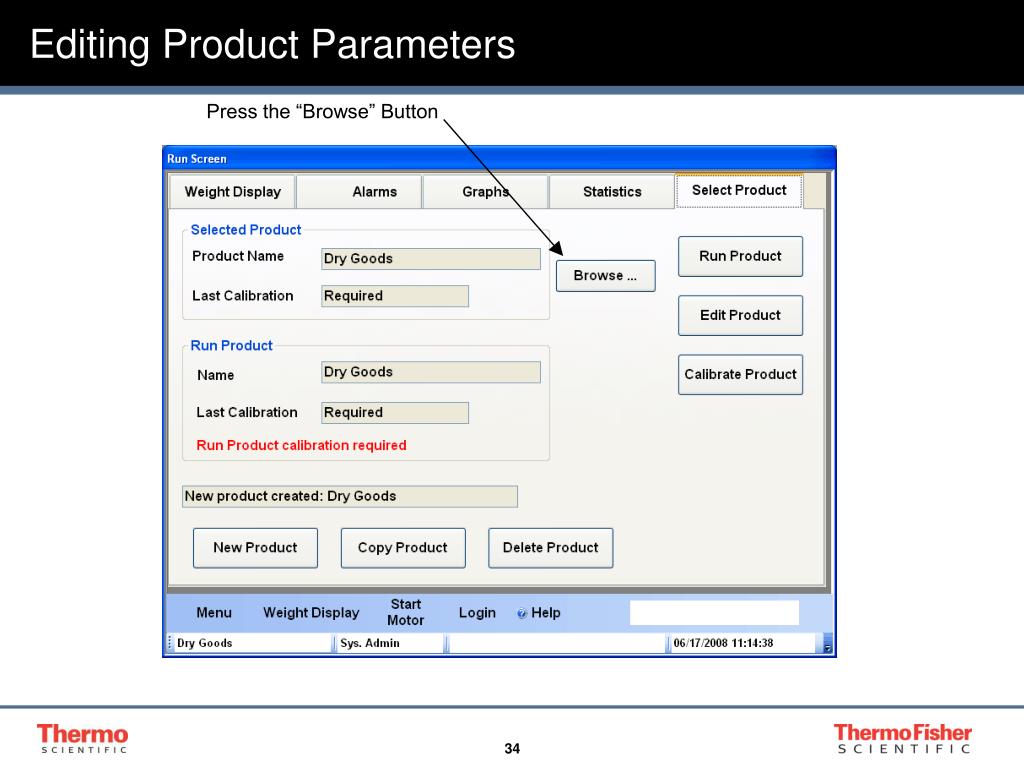

  34. Editing Product Parameters Press the “Browse” Button

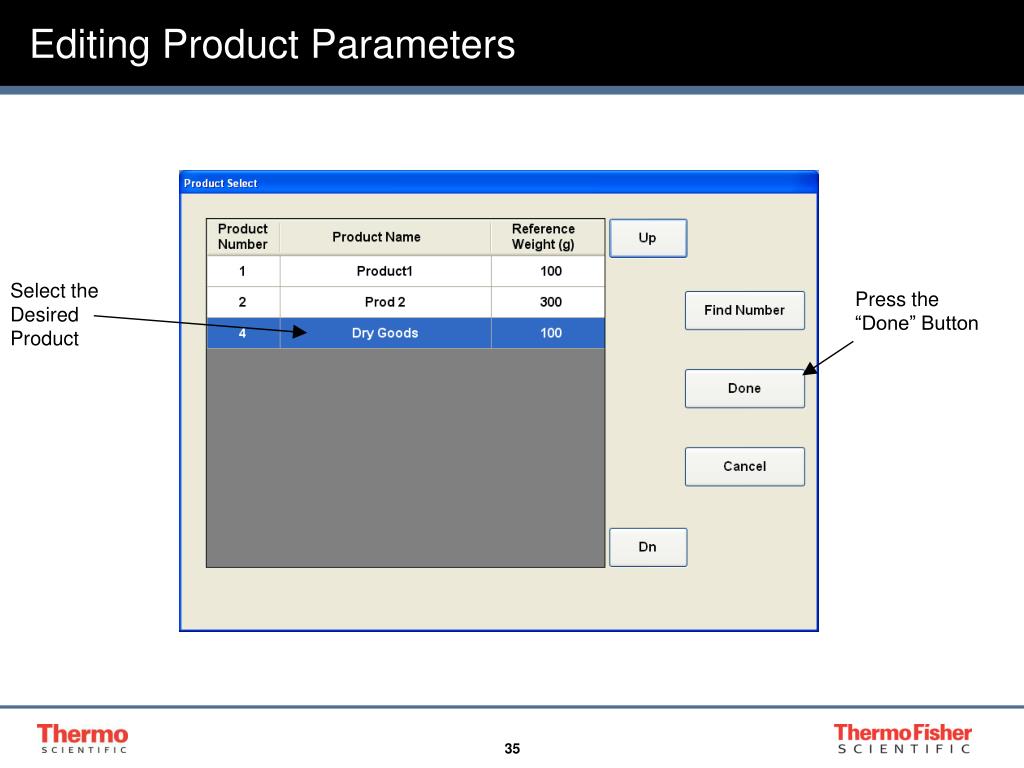

  35. Editing Product Parameters Select the Desired Product Press the “Done” Button

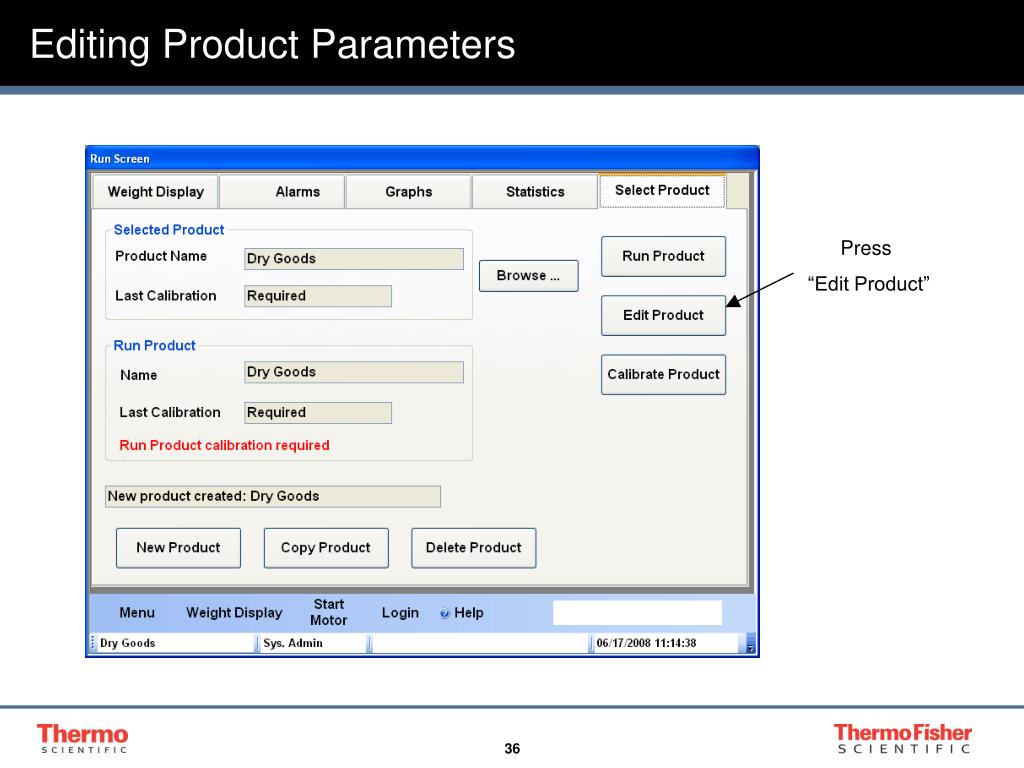

  36. Editing Product Parameters Press “Edit Product”

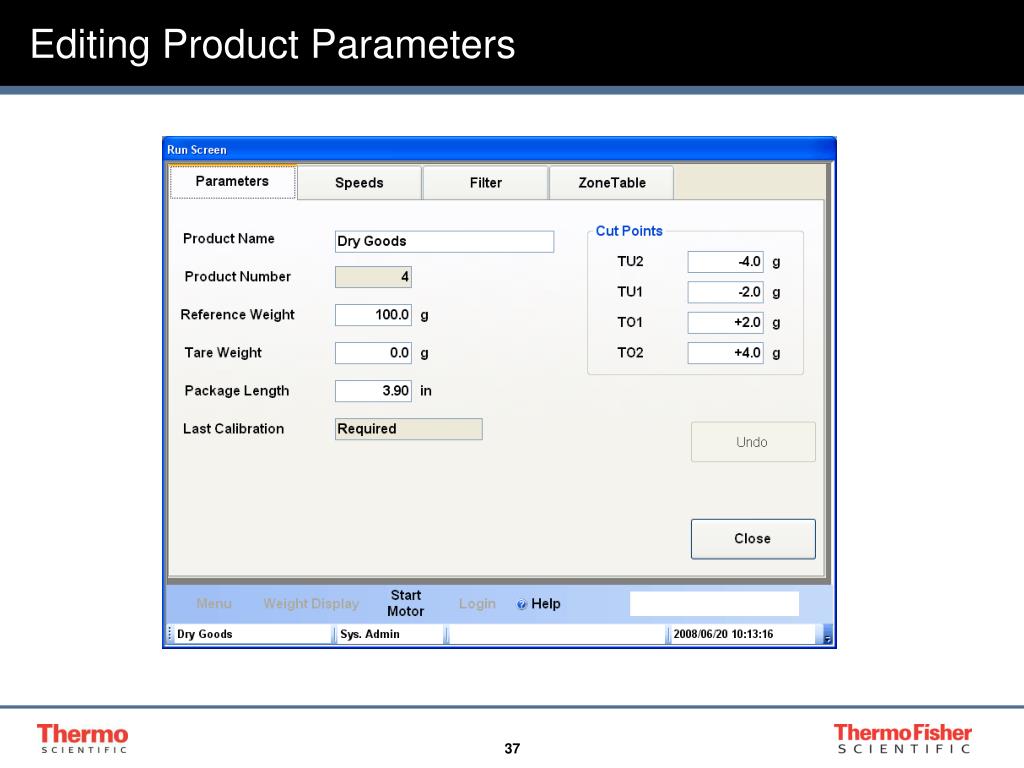

  37. Editing Product Parameters

  38. Operator Training • Product Programming • Operator Access / Logging In • Selecting the Running Product • Selecting New, Copying and Deleting Products • Viewing / Clearing Statistics • Editing Product Parameters • Editing Speeds

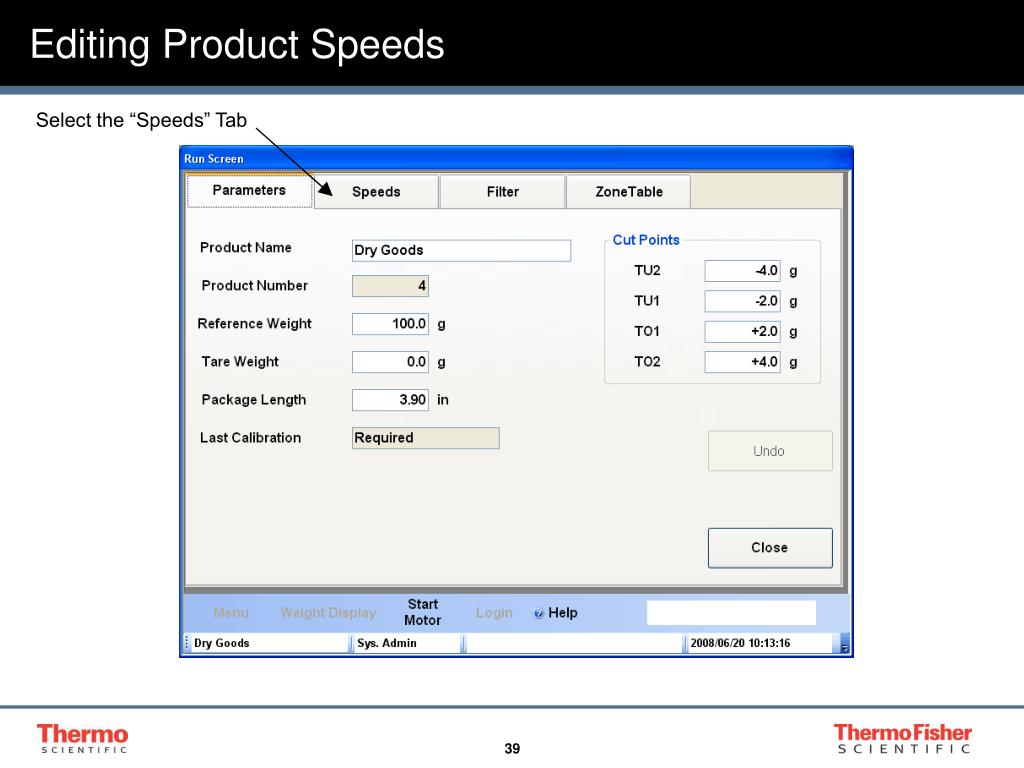

  39. Editing Product Speeds Select the “Speeds” Tab

  40. Editing Product Filter

  41. Operator Training • Product Programming • Operator Access / Logging In • Selecting the Running Product • Selecting New, Copying and Deleting Products • Viewing / Clearing Statistics • Editing Product Parameters • Editing Zone and Diverter Configuration

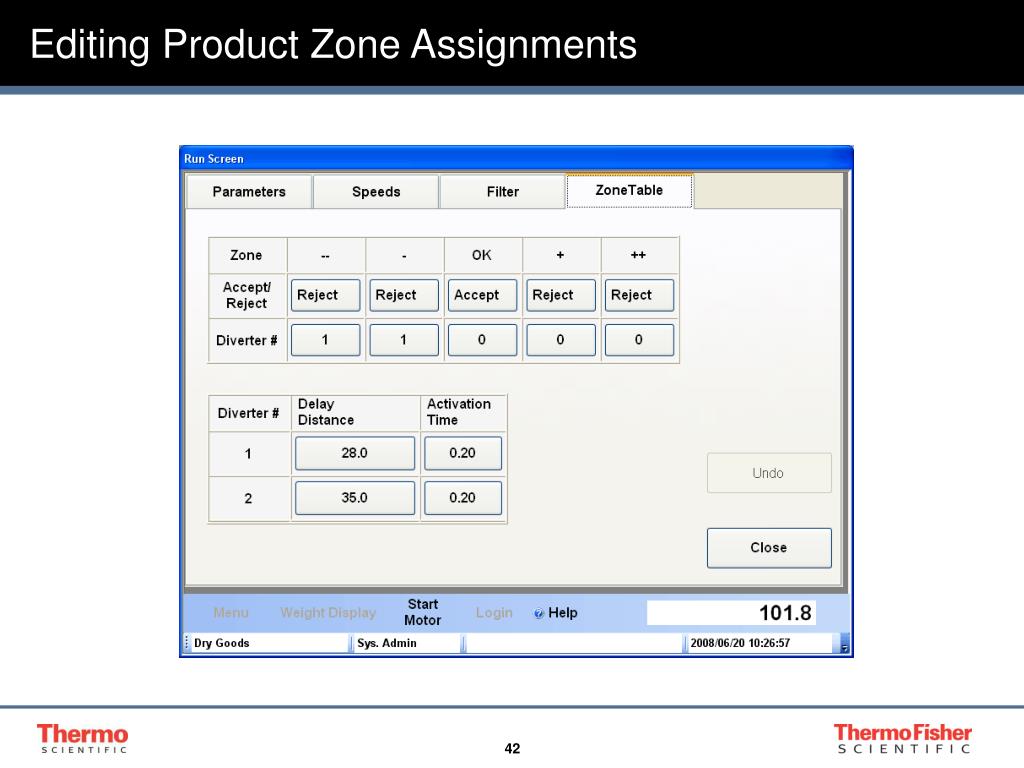

  42. Editing Product Zone Assignments

  43. Operator Training • Product Programming • Operator Access / Logging In • Selecting the Running Product • Selecting New, Copying and Deleting Products • Viewing / Clearing Statistics • Editing Product Parameters • Changing Weight Display to Deviation or Gross

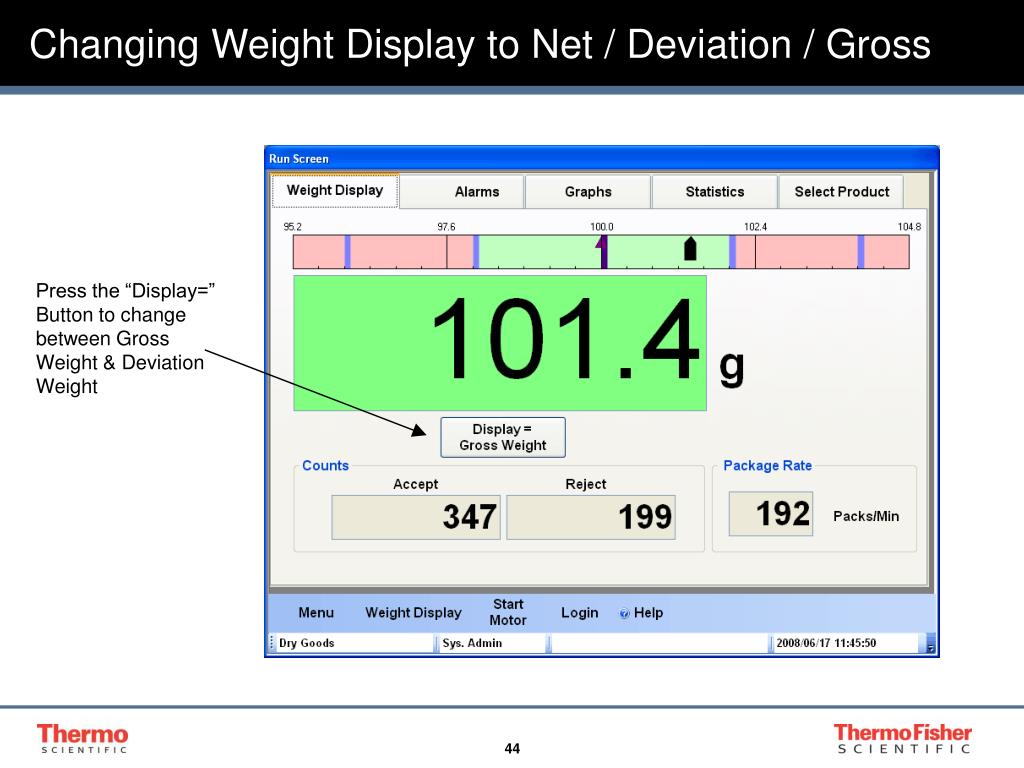

  44. Changing Weight Display to Net / Deviation / Gross Press the “Display=” Button to change between Gross Weight & Deviation Weight

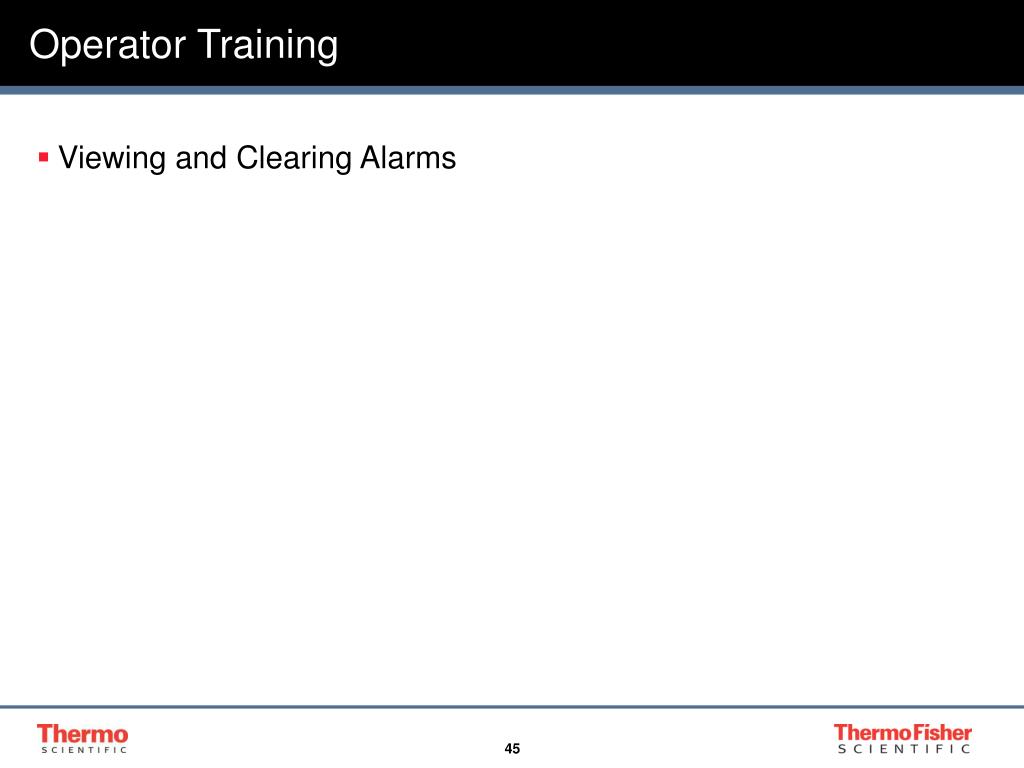

  45. Operator Training • Viewing and Clearing Alarms

  46. Viewing and Clearing Alarms Select the “Alarms” Tab

  47. Viewing and Clearing Alarms Press the “Clear Alarms” Button

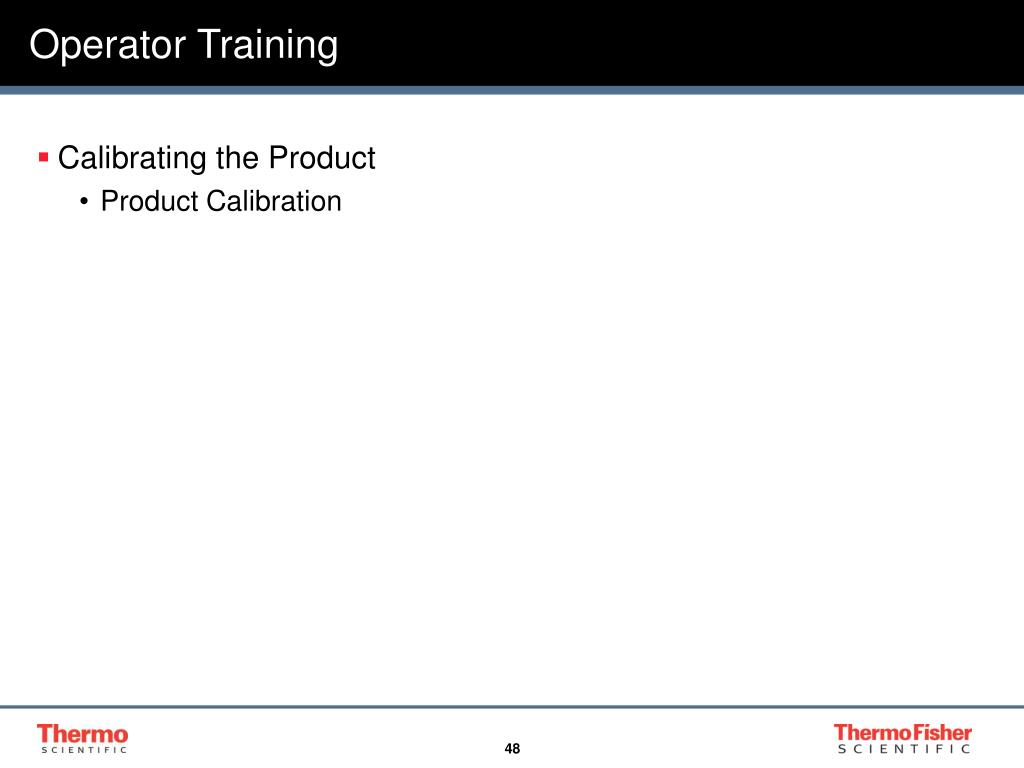

  48. Operator Training • Calibrating the Product • Product Calibration

  49. Product Calibration Select the “Select Product” Tab

  50. Editing Product Parameters Press “Calibrate Product”
