Subtractive Manufacturing - What You Need to Know?

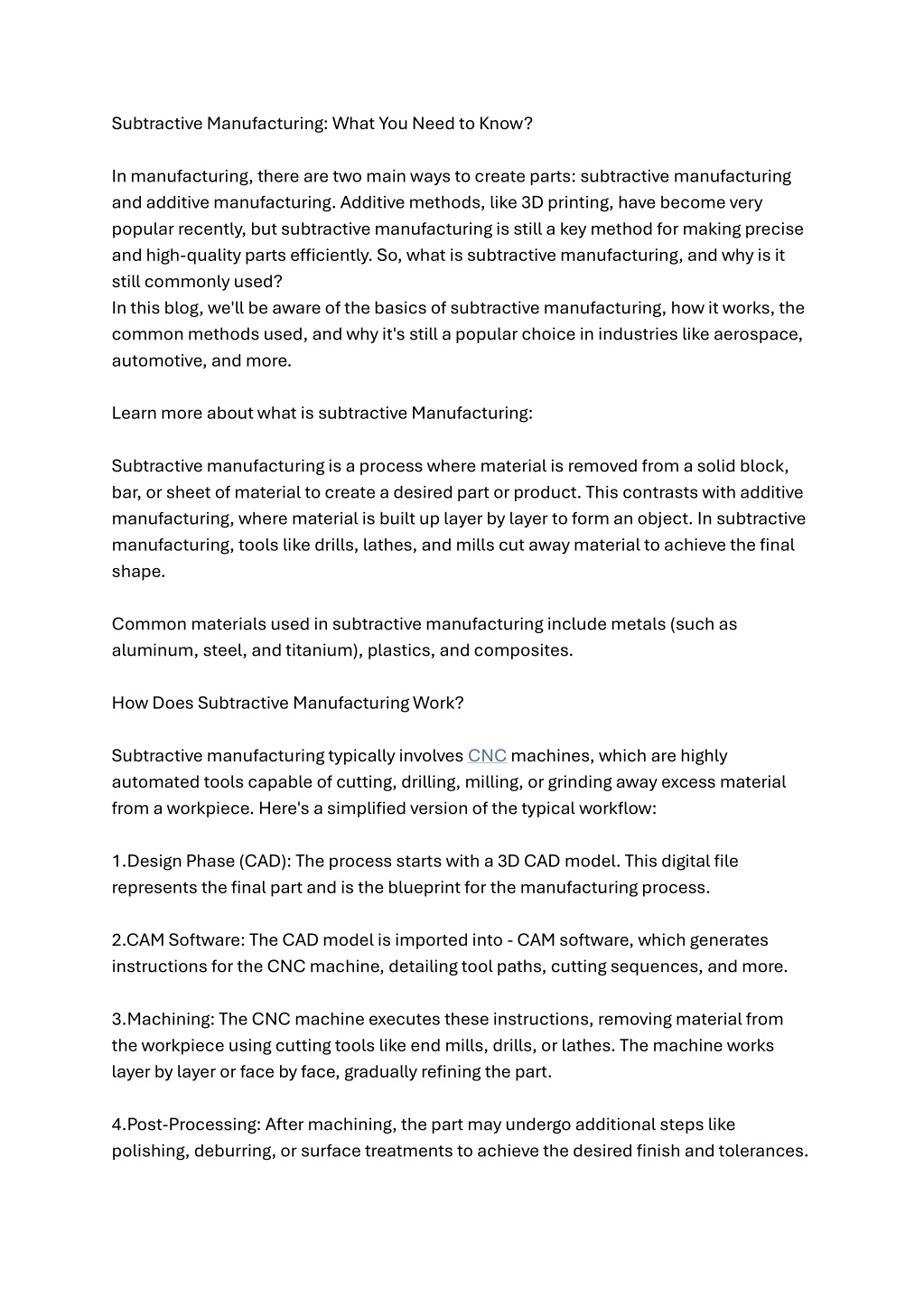

1. Subtractive Manufacturing: What You Need to Know? In manufacturing, there are two main ways to create parts: subtractive manufacturing and additive manufacturing. Additive methods, like 3D printing, have become very popular recently, but subtractive manufacturing is still a key method for making precise and high-quality parts efficiently. So, what is subtractive manufacturing, and why is it still commonly used? In this blog, we'll be aware of the basics of subtractive manufacturing, how it works, the common methods used, and why it's still a popular choice in industries like aerospace, automotive, and more. Learn more about what is subtractive Manufacturing: Subtractive manufacturing is a process where material is removed from a solid block, bar, or sheet of material to create a desired part or product. This contrasts with additive manufacturing, where material is built up layer by layer to form an object. In subtractive manufacturing, tools like drills, lathes, and mills cut away material to achieve the final shape. Common materials used in subtractive manufacturing include metals (such as aluminum, steel, and titanium), plastics, and composites. How Does Subtractive Manufacturing Work? Subtractive manufacturing typically involves CNC machines, which are highly automated tools capable of cutting, drilling, milling, or grinding away excess material from a workpiece. Here's a simplified version of the typical workflow: 1.Design Phase (CAD): The process starts with a 3D CAD model. This digital file represents the final part and is the blueprint for the manufacturing process. 2.CAM Software: The CAD model is imported into - CAM software, which generates instructions for the CNC machine, detailing tool paths, cutting sequences, and more. 3.Machining: The CNC machine executes these instructions, removing material from the workpiece using cutting tools like end mills, drills, or lathes. The machine works layer by layer or face by face, gradually refining the part. 4.Post-Processing: After machining, the part may undergo additional steps like polishing, deburring, or surface treatments to achieve the desired finish and tolerances.

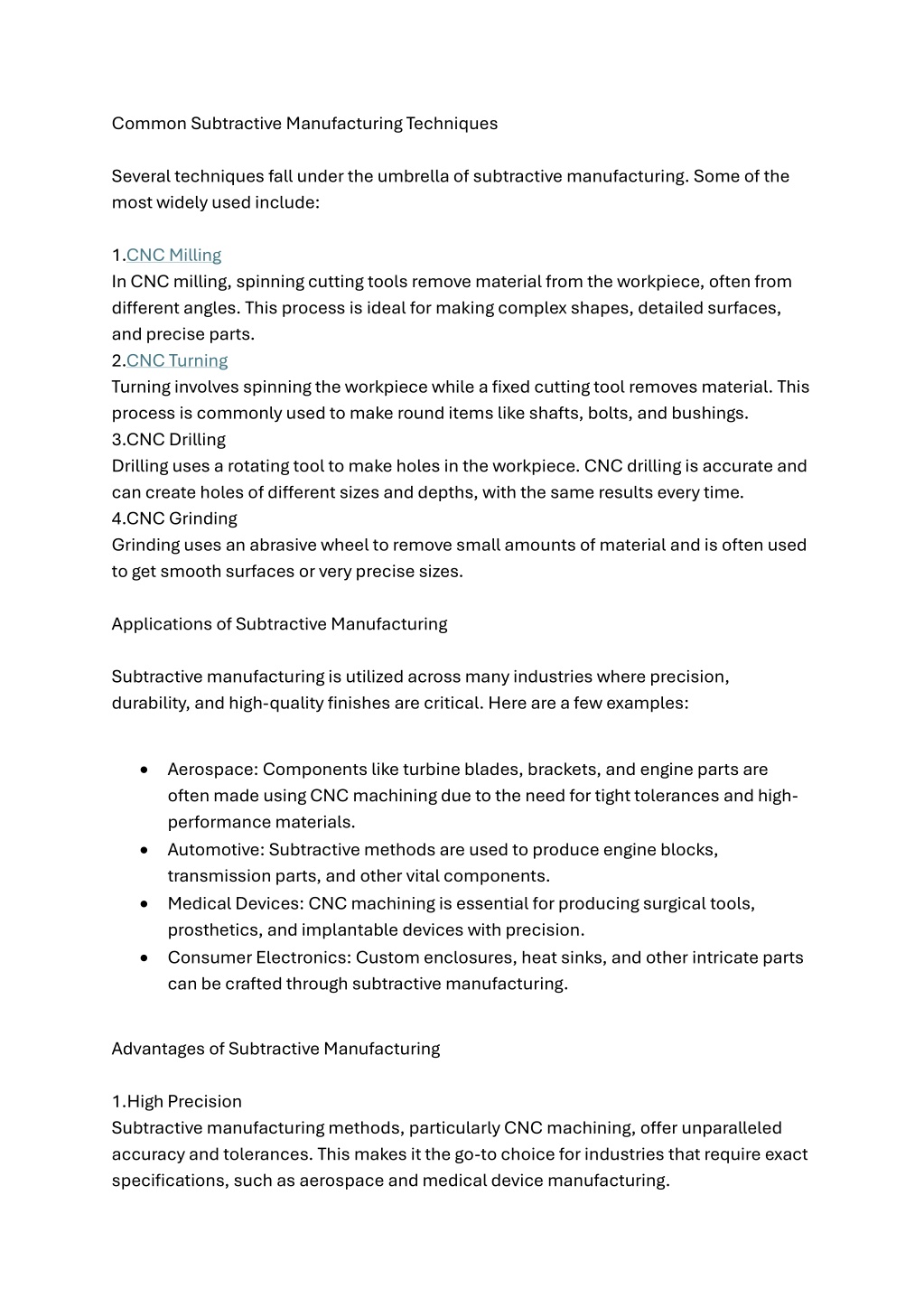

2. Common Subtractive Manufacturing Techniques Several techniques fall under the umbrella of subtractive manufacturing. Some of the most widely used include: 1.CNC Milling In CNC milling, spinning cutting tools remove material from the workpiece, often from different angles. This process is ideal for making complex shapes, detailed surfaces, and precise parts. 2.CNC Turning Turning involves spinning the workpiece while a fixed cutting tool removes material. This process is commonly used to make round items like shafts, bolts, and bushings. 3.CNC Drilling Drilling uses a rotating tool to make holes in the workpiece. CNC drilling is accurate and can create holes of different sizes and depths, with the same results every time. 4.CNC Grinding Grinding uses an abrasive wheel to remove small amounts of material and is often used to get smooth surfaces or very precise sizes. Applications of Subtractive Manufacturing Subtractive manufacturing is utilized across many industries where precision, durability, and high-quality finishes are critical. Here are a few examples: •Aerospace: Components like turbine blades, brackets, and engine parts are often made using CNC machining due to the need for tight tolerances and high- performance materials. •Automotive: Subtractive methods are used to produce engine blocks, transmission parts, and other vital components. •Medical Devices: CNC machining is essential for producing surgical tools, prosthetics, and implantable devices with precision. •Consumer Electronics: Custom enclosures, heat sinks, and other intricate parts can be crafted through subtractive manufacturing. Advantages of Subtractive Manufacturing 1.High Precision Subtractive manufacturing methods, particularly CNC machining, offer unparalleled accuracy and tolerances. This makes it the go-to choice for industries that require exact specifications, such as aerospace and medical device manufacturing.

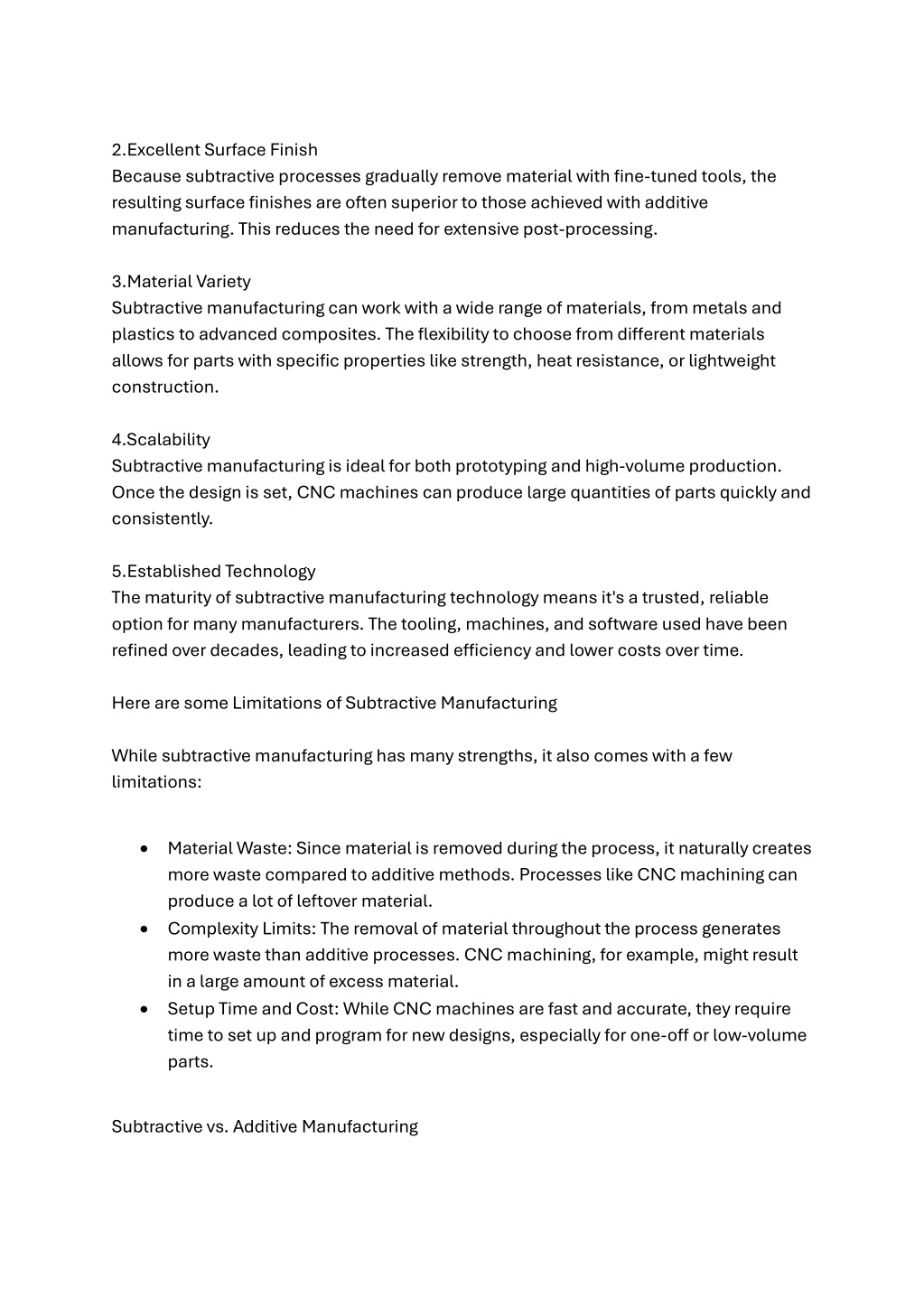

3. 2.Excellent Surface Finish Because subtractive processes gradually remove material with fine-tuned tools, the resulting surface finishes are often superior to those achieved with additive manufacturing. This reduces the need for extensive post-processing. 3.Material Variety Subtractive manufacturing can work with a wide range of materials, from metals and plastics to advanced composites. The flexibility to choose from different materials allows for parts with specific properties like strength, heat resistance, or lightweight construction. 4.Scalability Subtractive manufacturing is ideal for both prototyping and high-volume production. Once the design is set, CNC machines can produce large quantities of parts quickly and consistently. 5.Established Technology The maturity of subtractive manufacturing technology means it's a trusted, reliable option for many manufacturers. The tooling, machines, and software used have been refined over decades, leading to increased efficiency and lower costs over time. Here are some Limitations of Subtractive Manufacturing While subtractive manufacturing has many strengths, it also comes with a few limitations: •Material Waste: Since material is removed during the process, it naturally creates more waste compared to additive methods. Processes like CNC machining can produce a lot of leftover material. •Complexity Limits: The removal of material throughout the process generates more waste than additive processes. CNC machining, for example, might result in a large amount of excess material. •Setup Time and Cost: While CNC machines are fast and accurate, they require time to set up and program for new designs, especially for one-off or low-volume parts. Subtractive vs. Additive Manufacturing

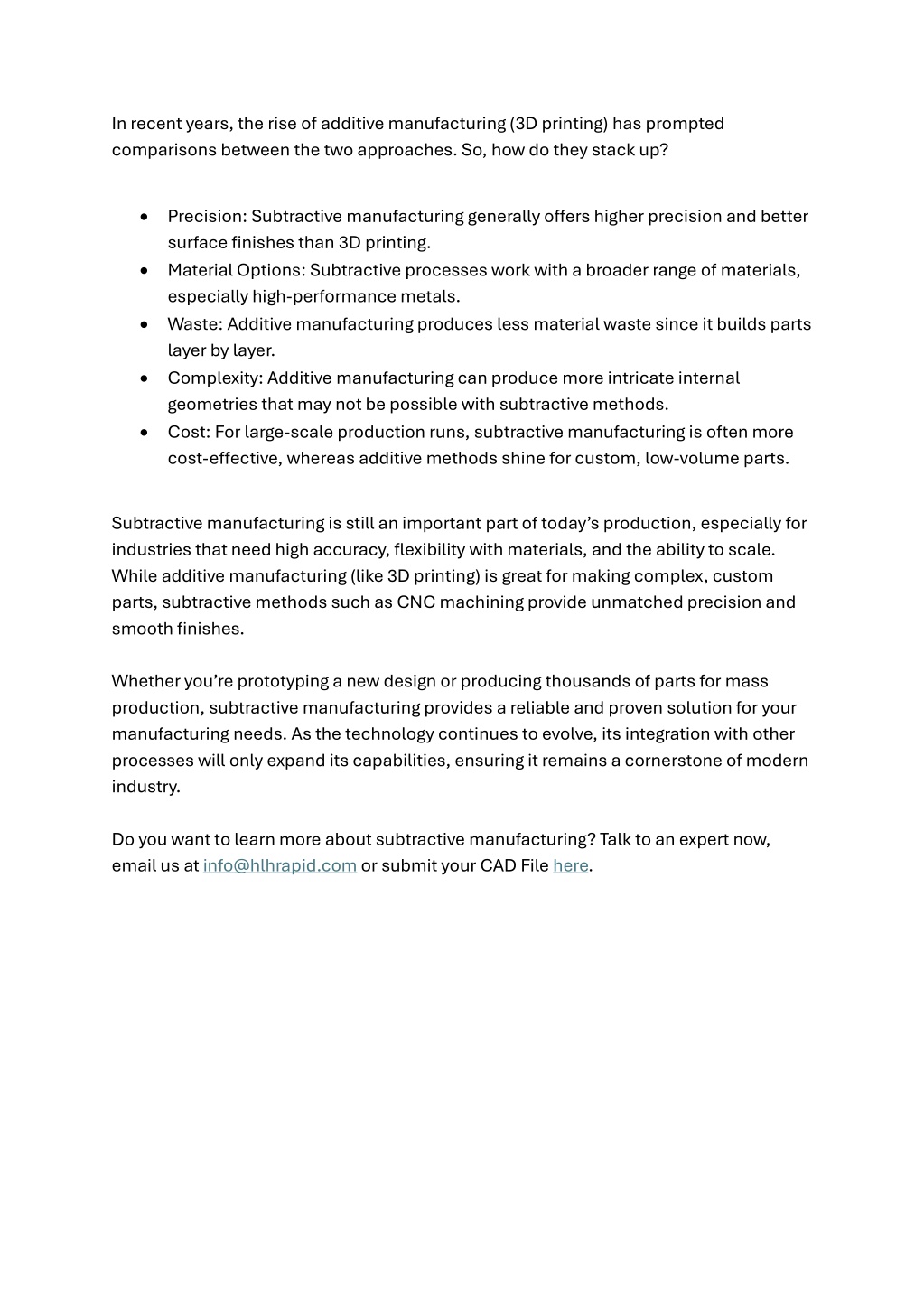

4. In recent years, the rise of additive manufacturing (3D printing) has prompted comparisons between the two approaches. So, how do they stack up? •Precision: Subtractive manufacturing generally offers higher precision and better surface finishes than 3D printing. •Material Options: Subtractive processes work with a broader range of materials, especially high-performance metals. •Waste: Additive manufacturing produces less material waste since it builds parts layer by layer. •Complexity: Additive manufacturing can produce more intricate internal geometries that may not be possible with subtractive methods. •Cost: For large-scale production runs, subtractive manufacturing is often more cost-effective, whereas additive methods shine for custom, low-volume parts. Subtractive manufacturing is still an important part of today’s production, especially for industries that need high accuracy, flexibility with materials, and the ability to scale. While additive manufacturing (like 3D printing) is great for making complex, custom parts, subtractive methods such as CNC machining provide unmatched precision and smooth finishes. Whether you’re prototyping a new design or producing thousands of parts for mass production, subtractive manufacturing provides a reliable and proven solution for your manufacturing needs. As the technology continues to evolve, its integration with other processes will only expand its capabilities, ensuring it remains a cornerstone of modern industry. Do you want to learn more about subtractive manufacturing? Talk to an expert now, email us at info@hlhrapid.com or submit your CAD File here.
