  1. Re-Inventing DuctSox Installation 3x1 Suspension System Pat. Pending

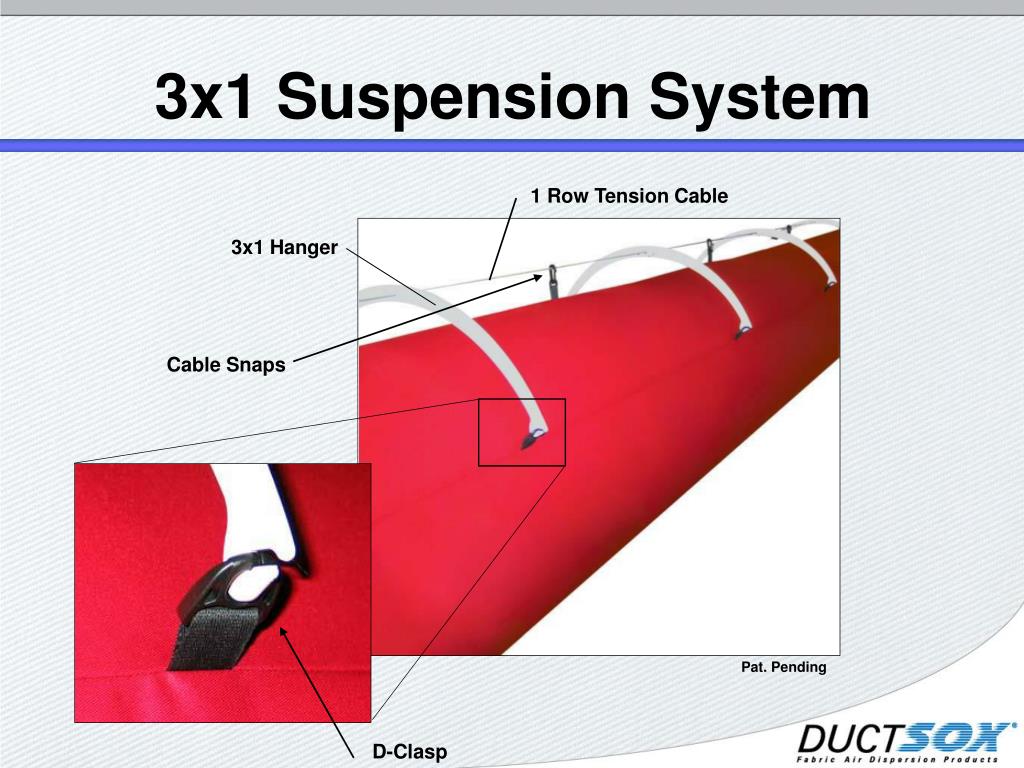

  2. 3x1 Suspension System 1 Row Tension Cable 3x1 Hanger Cable Snaps Pat. Pending D-Clasp

  3. 3x1 Suspension System 36” • Hanger Spacing: 36” • Cable Snaps Centered Between 18”

  4. 3x1 Benefits • Aesthetics • Inflated Look • Stylish Components • Performance • Less Inflation Pop • Easy Installation • Single Cable • Less Knee Brackets

  5. Deflated vs. Inflated Inflated Deflated

  6. 3x1 Component Options • Standard • Grey & Solid • Color • Powder Coated Finish • Chrome (3x cost) • Style • Holes, Slotted Style Solid (std) Holes Slotted Color Gray (std) Black Charcoal White Custom

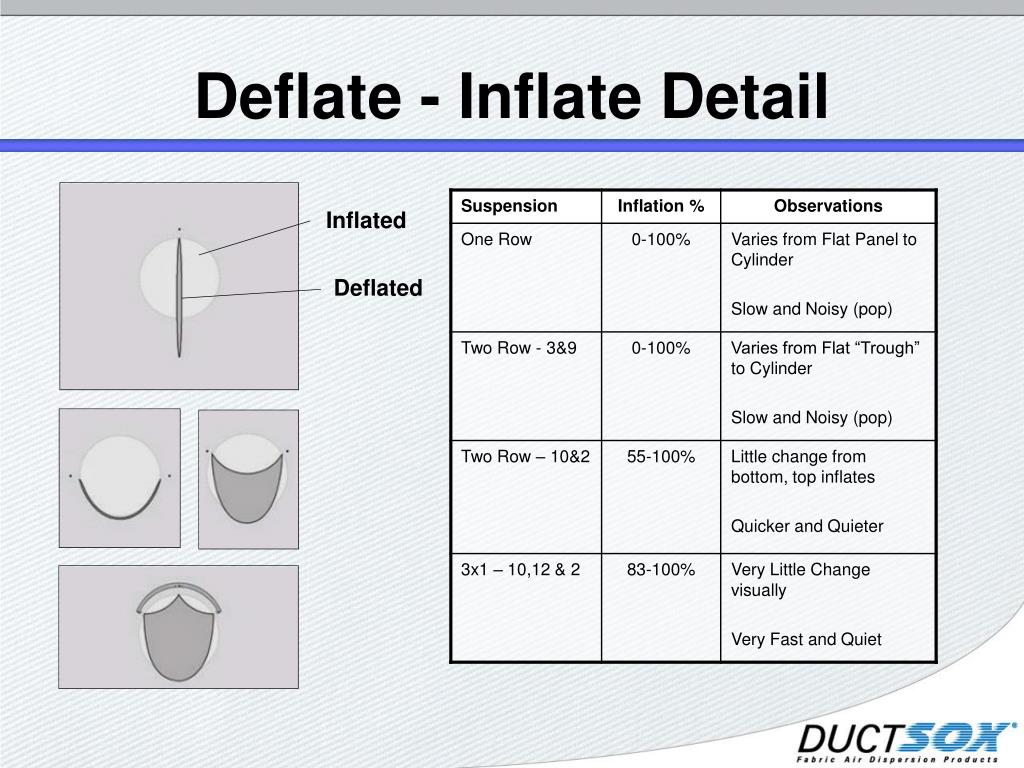

  7. Deflate - Inflate Detail Inflated Deflated

  8. 3x1 Installation • Install 1 Row Tension Cable • Install DuctSox by connect 12 o’clock cable clips first • Connect 3x1 Hanger to DuctSox, positioned over cable • Back Clip • Front Clip • Secure hanger to Cable • Secure DuctSox Position • Inlet DuctBelt and Anchors • Clamp Last Cable Snap with Cable Clamp C A B

  9. D-Clasp Connection • D-Clasp Connect to Hangers Only One Way. • Position D-Clasp Outside of Hanger • Slide Top Edge Into Slot in End of Hanger. • Tip D-Clasp Downward Into Place Securely Pat. Pending

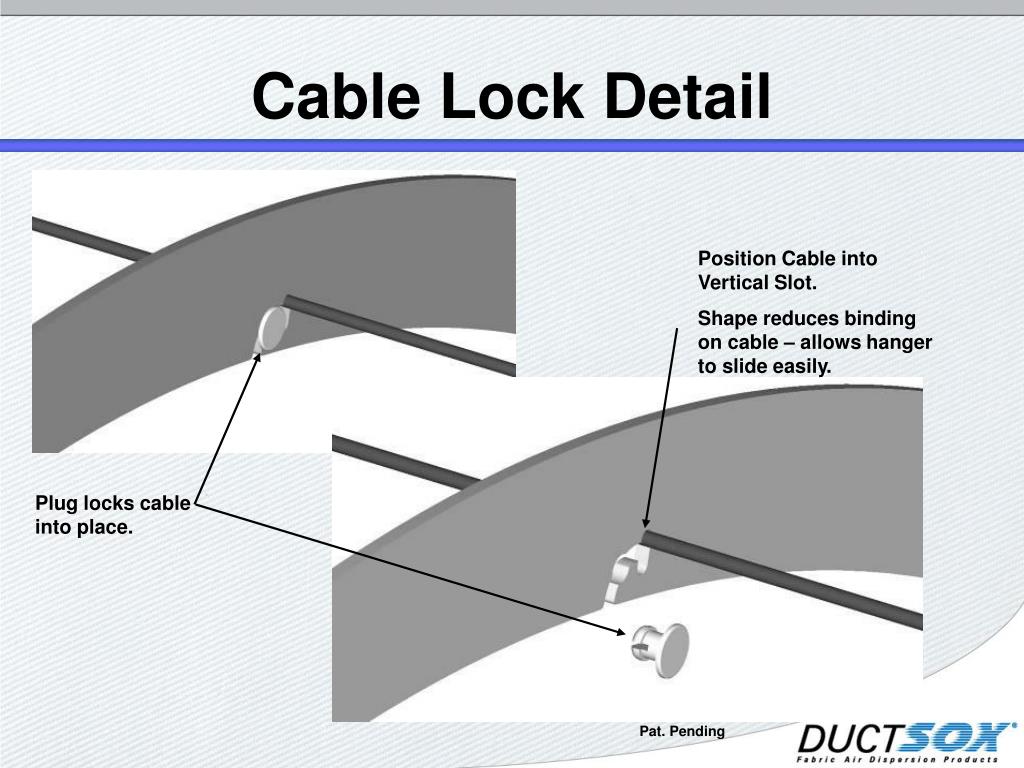

  10. Cable Lock Detail Position Cable into Vertical Slot. Shape reduces binding on cable – allows hanger to slide easily. Plug locks cable into place. Pat. Pending

  11. Cost Analysis

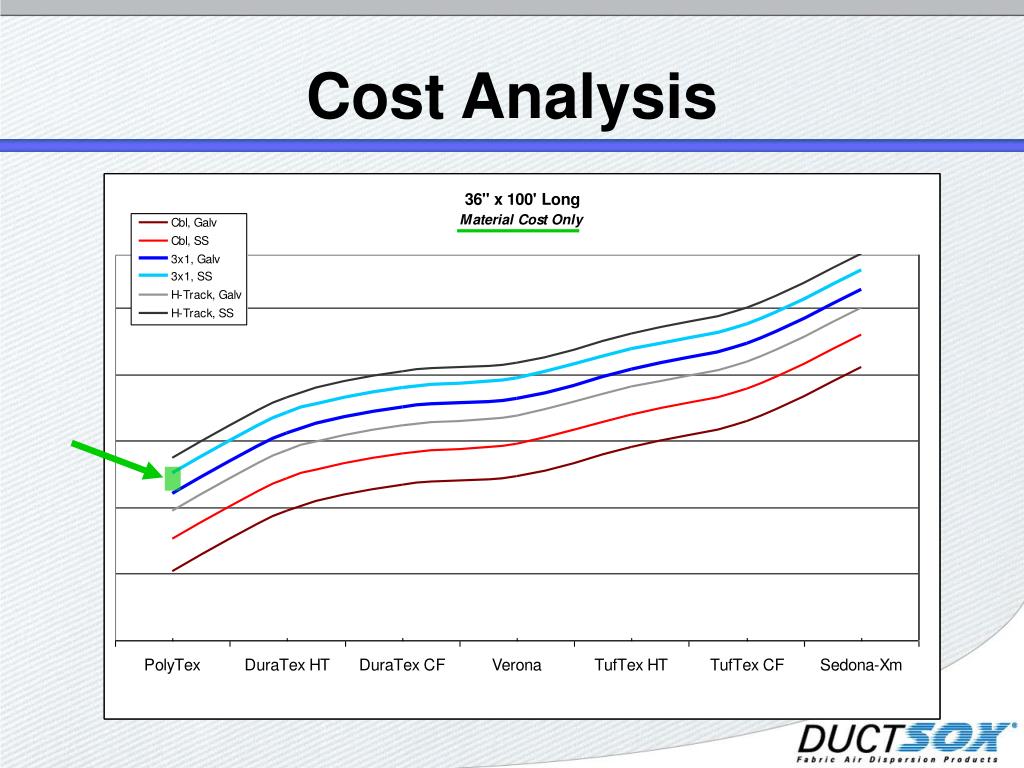

  12. Cost Analysis

  13. Cost Analysis • Est. Installation Times: • H-Track: 14.5 Hrs • 2 Row Cable: 8.5 Hrs • 3x1 Cable: 5.4 Hrs • 3x1 w/ Xm: Compared To: • 2 Row H-Track: -18.8% • 2 Row Cable: +13.1% !! Excluding Knee Brackets

  14. Bracket Comparison Supports Supports Double Row 3x1 System 8 4 10 4 12 2

  15. 3x1 Suspension System Re-Inventing DuctSox Installation • Better Aesthetics • Smooth Inflation • Easy Installation
