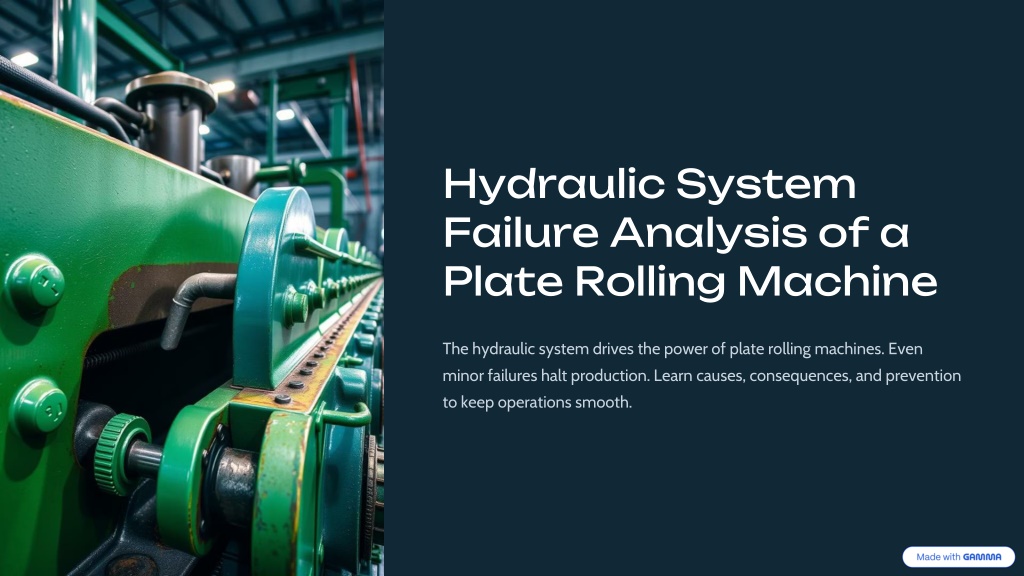

  1. Hydraulic System Failure Analysis of a Plate Rolling Machine The hydraulic system drives the power of plate rolling machines. Even minor failures halt production. Learn causes, consequences, and prevention to keep operations smooth.

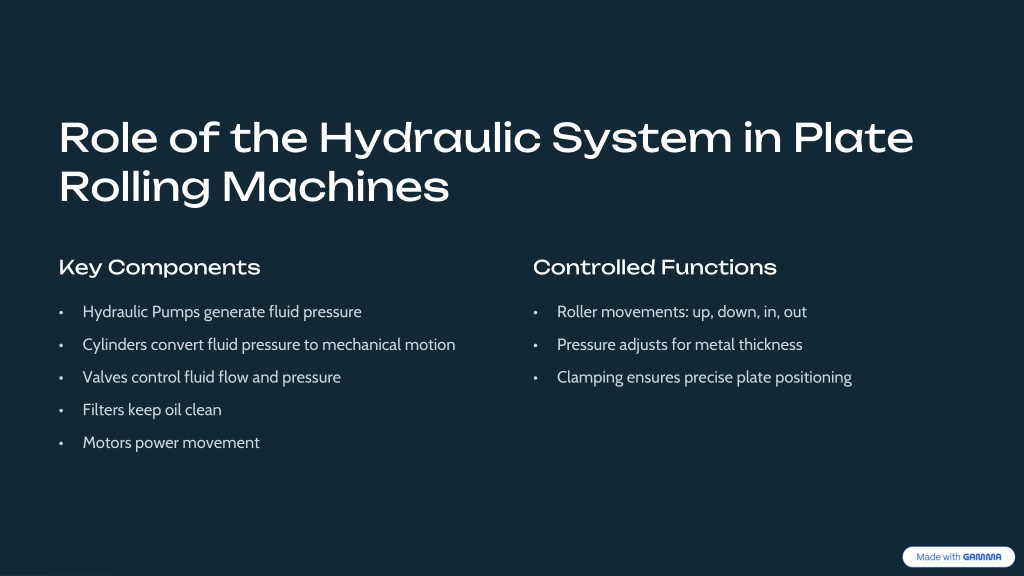

  2. Role of the Hydraulic System in Plate Rolling Machines Key Components Controlled Functions • Hydraulic Pumps generate fluid pressure • Roller movements: up, down, in, out • Cylinders convert fluid pressure to mechanical motion • Pressure adjusts for metal thickness • Valves control fluid flow and pressure • Clamping ensures precise plate positioning • Filters keep oil clean • Motors power movement

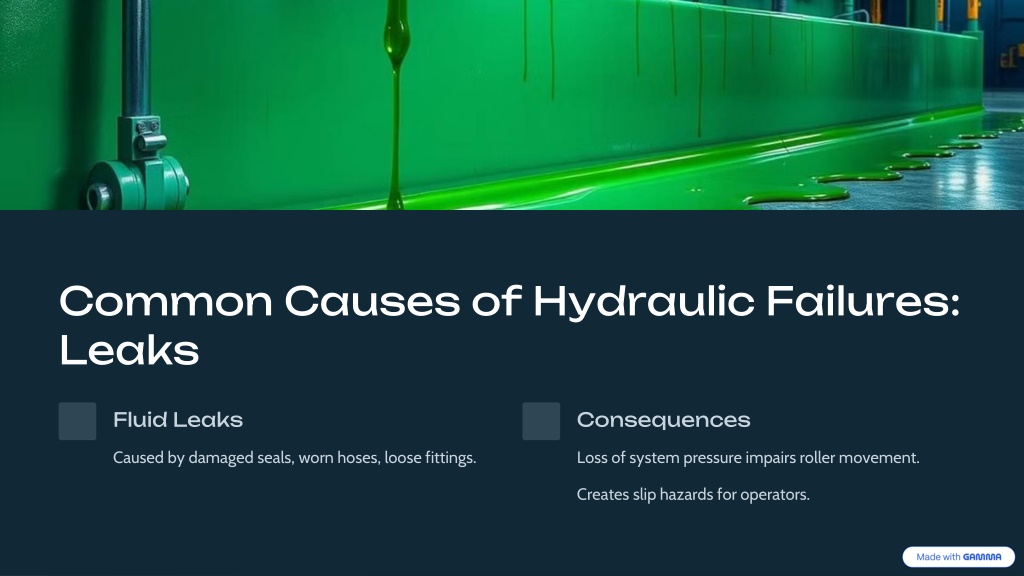

  3. Common Causes of Hydraulic Failures: Leaks Fluid Leaks Consequences Caused by damaged seals, worn hoses, loose fittings. Loss of system pressure impairs roller movement. Creates slip hazards for operators.

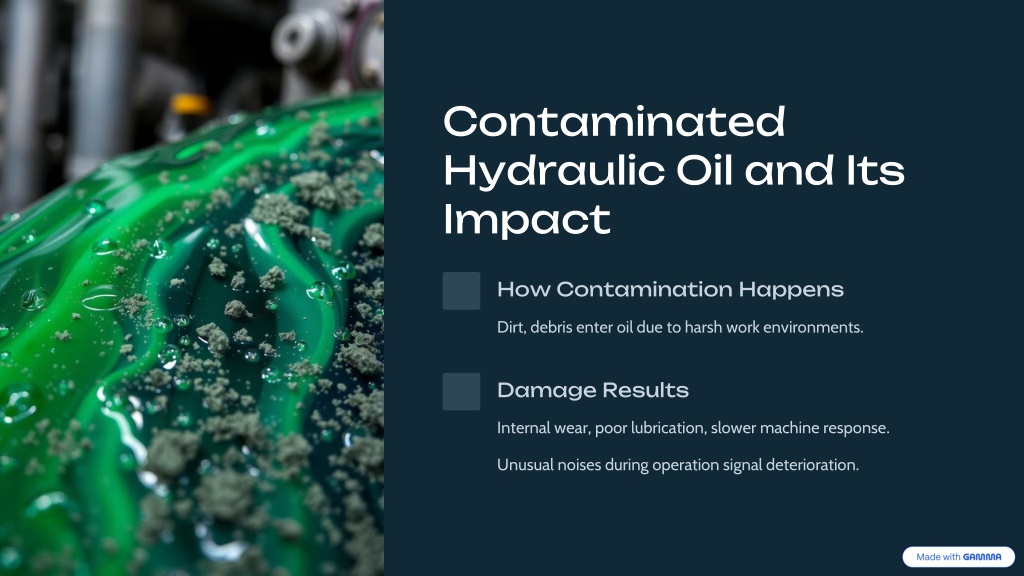

  4. Contaminated Hydraulic Oil and Its Impact How Contamination Happens Dirt, debris enter oil due to harsh work environments. Damage Results Internal wear, poor lubrication, slower machine response. Unusual noises during operation signal deterioration.

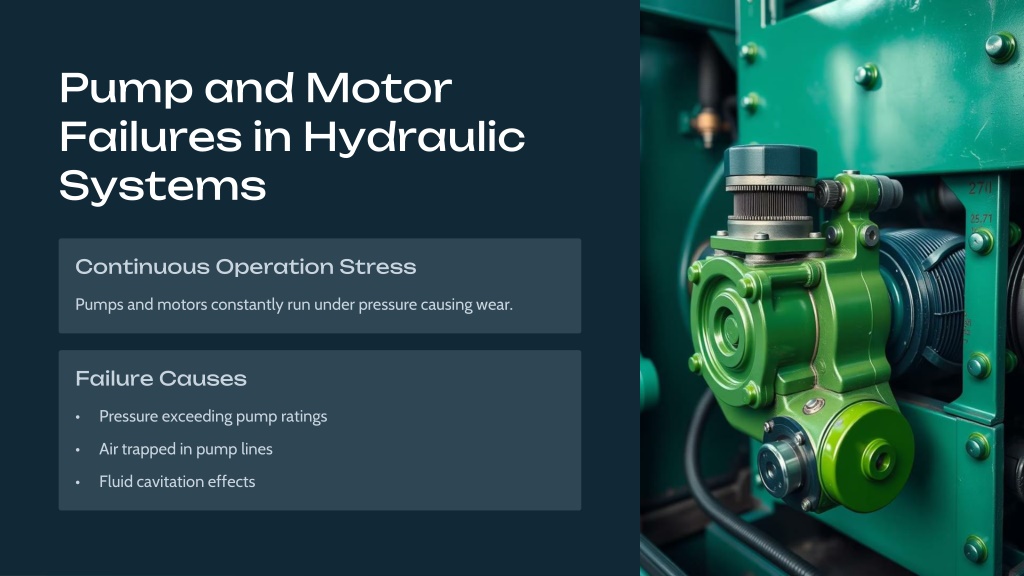

  5. Pump and Motor Failures in Hydraulic Systems Continuous Operation Stress Pumps and motors constantly run under pressure causing wear. Failure Causes • Pressure exceeding pump ratings • Air trapped in pump lines • Fluid cavitation effects

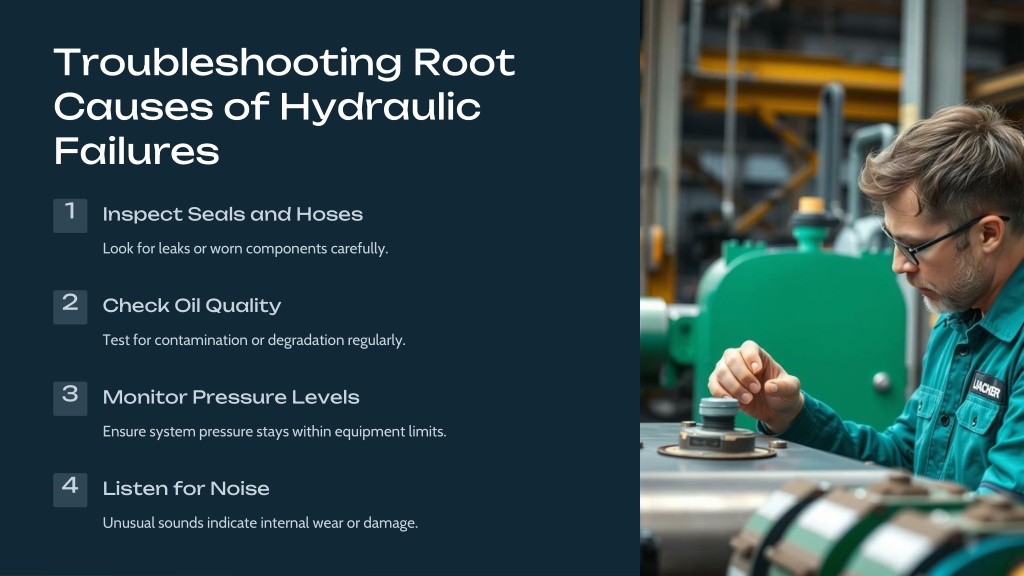

  6. Troubleshooting Root Causes of Hydraulic Failures 1 Inspect Seals and Hoses Look for leaks or worn components carefully. 2 Check Oil Quality Test for contamination or degradation regularly. 3 Monitor Pressure Levels Ensure system pressure stays within equipment limits. 4 Listen for Noise Unusual sounds indicate internal wear or damage.

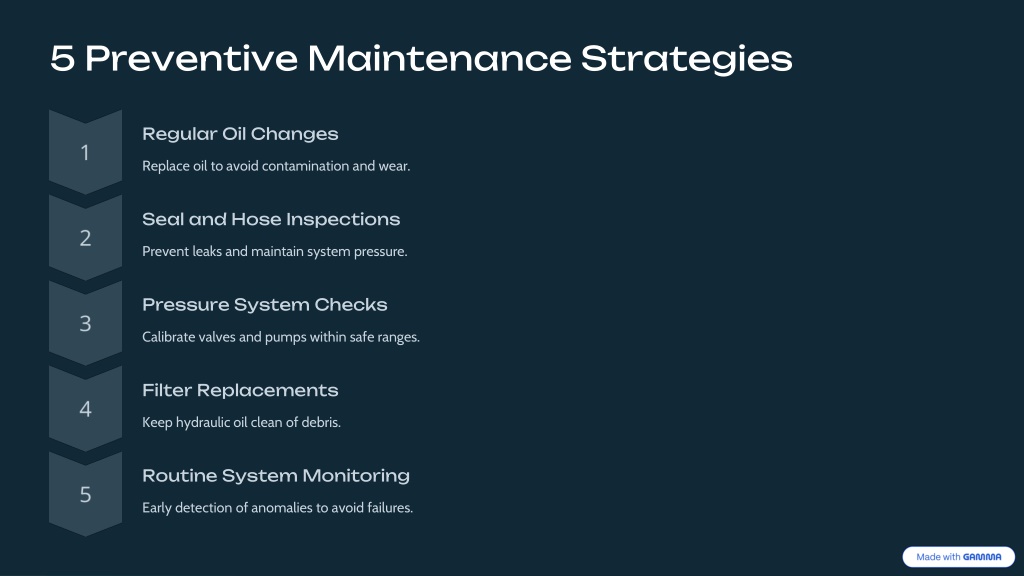

  7. 5 Preventive Maintenance Strategies Regular Oil Changes Replace oil to avoid contamination and wear. Seal and Hose Inspections Prevent leaks and maintain system pressure. Pressure System Checks Calibrate valves and pumps within safe ranges. Filter Replacements Keep hydraulic oil clean of debris. Routine System Monitoring Early detection of anomalies to avoid failures.

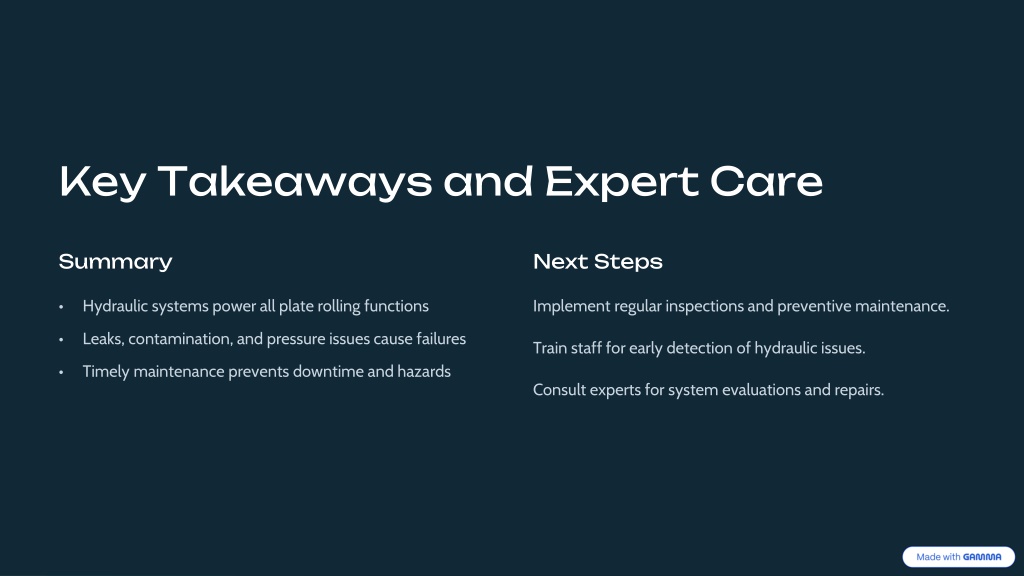

  8. Key Takeaways and Expert Care Summary Next Steps • Hydraulic systems power all plate rolling functions Implement regular inspections and preventive maintenance. • Leaks, contamination, and pressure issues cause failures Train staff for early detection of hydraulic issues. • Timely maintenance prevents downtime and hazards Consult experts for system evaluations and repairs.
