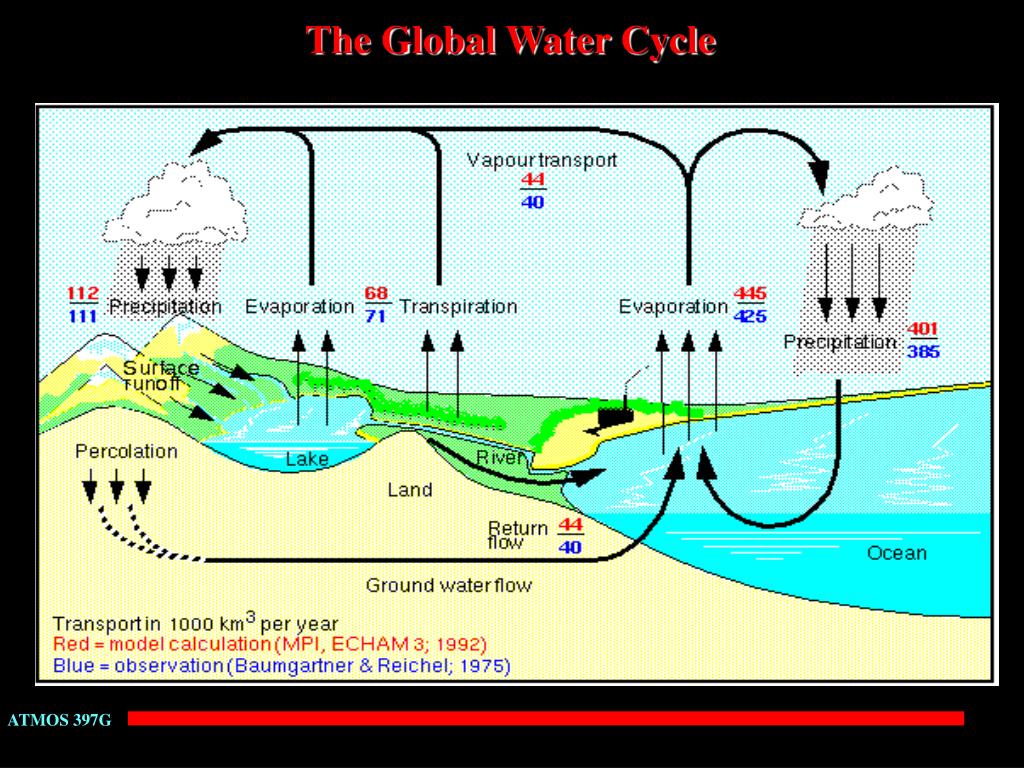

The global water cycle
Download
1 / 6

The Global Water Cycle - PowerPoint PPT Presentation


  • 162 Views
  • Uploaded on

The Global Water Cycle. Main Processes involved in the Water Cycle. Condensation: process in which water molecules in the atmosphere change from a gas phase to a liquid phase Precipitation: process in which water falls on earth’s surface in the form of rain, snow, hail, and sleet

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'The Global Water Cycle' - hieu


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript

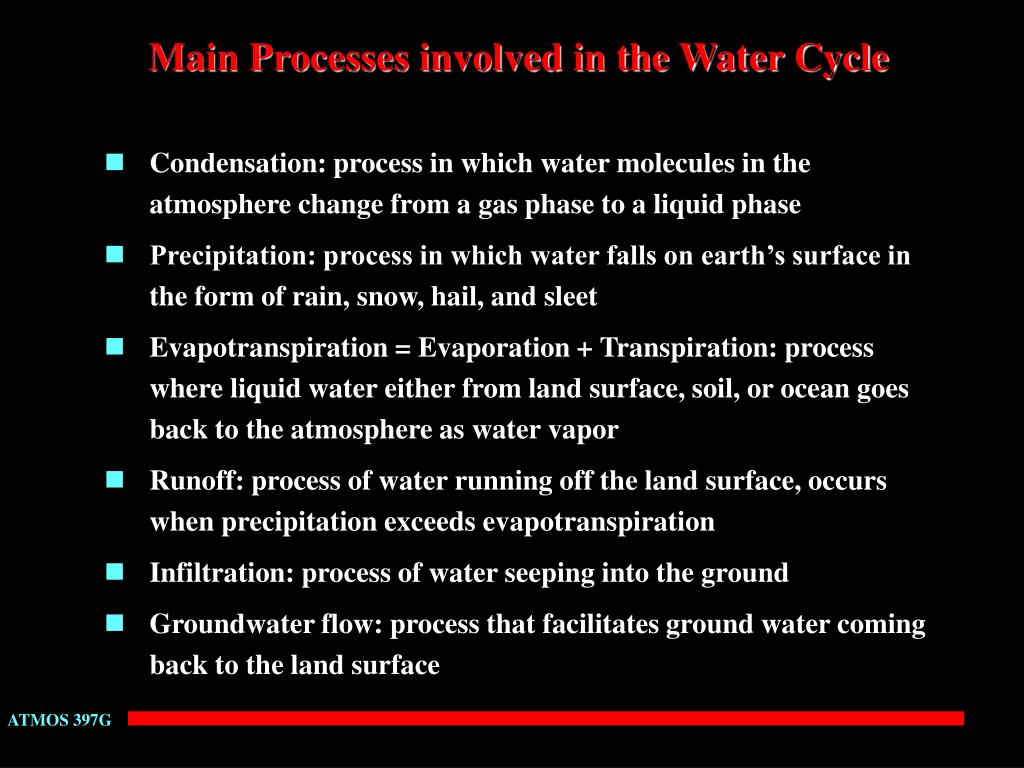

Main processes involved in the water cycle
Main Processes involved in the Water Cycle

  • Condensation: process in which water molecules in the atmosphere change from a gas phase to a liquid phase

  • Precipitation: process in which water falls on earth’s surface in the form of rain, snow, hail, and sleet

  • Evapotranspiration = Evaporation + Transpiration: process where liquid water either from land surface, soil, or ocean goes back to the atmosphere as water vapor

  • Runoff: process of water running off the land surface, occurs when precipitation exceeds evapotranspiration

  • Infiltration: process of water seeping into the ground

  • Groundwater flow: process that facilitates ground water coming back to the land surface


Reservoirs of available water liquid equivalent on earth
Reservoirs of Available Water (liquid equivalent) on Earth

Reservoir Volume (106 km3) Percent of Total Residence Time

Oceans 1350 97.3 103 — 104 yr

Glaciers 29 2.1 101 — 103 yr

Aquifers 8 0.6 2 wks — 104 yr

Lakes 0.1 0.01 10 yr

Soil Moisture 0.1 0.01 52 days

Atmosphere 0.013 (~0.3 cm rainfall) 0.001 10 days

Rivers 0.002 0.0002 2 wks

Biosphere 0.001 0.0001 6 days

Based on Graedel, T. E., and P. J. Crutzen, 1993: Atmospheric Change. An Earth System Perspective. W. H. Freeman and Company. 446 pp.


Water cycle and vegetation
Water Cycle and Vegetation

  • Actual evapotranspiration (AET) is the amount of water delivered to the air from evaporation and transpiration (water use).

  • Potential Evapotranspiration (PET) is the maximum evapotranspiration that is expected to occur under the climatic conditions of a particular site, assuming that water is always present in the soil and plant cover is 100% (water demand)

    • Tropical rainforests: AET = PET

    • Deserts: AET < < PET

  • AET is a useful predictor of net primary productivity

  • Annual variability in AET greatest for ecosystem with low AET

  • Transpiration of land plants important factor in determining the movement of water in the water cycle and the Earth’s climate


Regional differences in the water cycle
Regional Differences in the Water Cycle

  • Evaporation decreases from the tropics to the poles

  • Tropics a source of water vapor in the atmosphere resulting in high salinity in tropical oceans

  • Relative balance of precipitation and evaporation differs strongly between region on land

    • Precipitation > evaporation in tropical rainforests  runoff

    • Precipitation = evaporation in deserts  no runoff

  • Sources of water contributing to precipitation differ in different regions

    • Rainfall in maritime and monsoonal climates derived from evaporation from the sea

    • Rainfall in Amazon basin derived from evapotranspiration and long-distance atmospheric-transport


Total precipitable water vapor derived from the goes 8 and goes 10 sounders
Total Precipitable Water Vapor Derived From The GOES-8 And GOES-10 Sounders

  • Precipitable water is the amount of liquid water, in millimeters, if all the atmospheric water vapor in the column is condensed.

  • This information is particularly valuable for the short-term forecasting of fog, thunderstorms and precipitation. Its accuracy is +/-10%.
