northwest louisiana autonomous robotics competition nwla arc

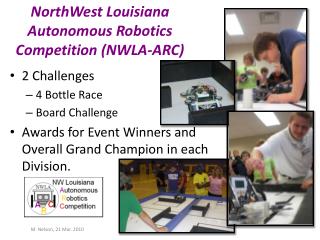

NorthWest Louisiana Autonomous Robotics Competition (NWLA-ARC)
  • 2 Challenges
    • 4 Bottle Race
    • Board Challenge
  • Awards for Event Winners and Overall Grand Champion in each Division.

M. Nelson, 21 Mar. 2010

general rules
General Rules
  • All work to be accomplished by students.
  • Students may change hardware / software between events
    • A team can have a different robot for each event or make changes to a single robot.

M. Nelson, 21 Mar. 2010

nwla arc 4 bottle race 2010
NWLA-ARC 4-Bottle Race 2010
  • Start behind front edge of tape as shown.
  • Timers start on “go.”
  • Timers stop when front of bot crosses finish line. (Each bot timed separately)
  • No deduction for striking bottles.
  • Crossing Foul Line and contacting the other bot results in a “no time” run (DQ).
  • Best time from 2 runs wins.

Start /

Finish

Line

M. Nelson, 21 Mar. 2010

slide4

NWLA-ARC Board Challenge 2010

Holding

Area 3

“Tee”

Holding

Area 2

Holding

Area 1

Holding

Area 4

NXT

Balls

“Tee”

Up

Large

Drums

Large

Drums

Small

Drums

Up

The Ramp

Base

(Start)

Small

Drums

  • 2 Scored Runs Per Team
  • 3 Minute Time Limit Per Run
  • Highest score from 2 runs wins.

M. Nelson, 21 Mar. 2010

board challenge scoring
Board Challenge Scoring

Best individual run score from 2 timed runs (3:00 min. each)

Total Score of 2 runs for tie breaker

M. Nelson, 21 Mar. 2010

board challenge rules
Board Challenge Rules
  • Start with 2 wheels in Base. (apparatus can hang over line)
  • Bots can return to base (autonomously) for adjustments at no cost. (Any part of the bot over the line – no tethers)
  • PVC parts under bot control can be manipulated while the bot is in base.
    • Bot can push/pull PVC parts back to base and operator can move them to place them back under bot control as it leaves base
  • If Bot is touched it must return to Base. (4 point deduction per occurrence)
  • Black line is “in bounds”. (score points if object is on the line)
    • All of the barrel must be on the line, not just part touching. If any of the barrel is outside the black line, the barrel is NOT in.

M. Nelson, 21 Mar. 2010

combined scoring grand champions
Combined Scoring(Grand Champions)
  • 4- Bottle Race: Points awarded for final finish position:
    • 1st Place: 20 points
    • 2nd Place: 18 points
    • 3rd Place: 16 points
  • Board Challenge: Points awarded equal best run score for each team.
    • (see Board Challenge Scoring chart)

Total Score = 4-Bottle Race Points + Board Challenge Points

M. Nelson, 21 Mar. 2010

4 bottle race course layout
4-Bottle Race Course Layout

12 ft.

6 ft.

1 Liter Water Bottles (Full)

Center (Foul) Line

Blue Painter’s Tape (3/4”)

Bottles centered on 12” x 12” floor tiles as shown.

M. Nelson, 21 Mar. 2010

slide9

Board Challenge Field of Play

1’

1’

1’

1’

1’

1’

1’

1’

Holding

Area 3

“Tee”

Holding

Area 2

1’

Holding

Area 1

Holding

Area 4

NXT

Balls

“Tee”

Up

1’

Large

Drums*

Small

Drums

4’

Up

1’

The Ramp

Base

(Start)

Plywood Base – Painted White

(sand / fill large bumps / holes)

Small

Drums

1’

8’

Board Materials List:

(1) ~5/8” - Plywood Base (4’ x 8’)

(2) 93” - 2x4 Studs

(2) 48” - 2x4 Studs

(1) ¾” x ¾” x 5½“ Cleat

(1) ¾” x ¾” x 4¾“ Cleat

2 x 4 Lumber

~3/4” Painted Lines (Flat Black)

*Large Drums are laid on their sides.

M. Nelson, 21 Mar. 2010

slide10

Board Challenge Part Placement

1’

1’

1’

1’

1’

1’

1’

1’

Holding

Area 3

“Tee”

5¼”

Holding

Area 2

1’

Holding

5¼”

Area 1

Holding

Area 4

6”

“Tee”

NXT

Balls

6”

5¼”

5¼”

Large

Drums*

5¼”

Small

Drums

4’

10½”

1’

3½”

Base

(Start)

Small

Drums

10½”

3½”

1’

3½”

4”

4”

4”

8’

Black lines centered between walls.

*Large Drums are laid on their sides.

M. Nelson, 21 Mar. 2010

board challenge holding areas 1 and 2 detail
Board Challenge Holding Areas 1 and 2 Detail

1’

¾” x ¾” Cleats

Holding

Area 2

7“

5-½“

Holding

5-½“

5“

Area 1

Cleat – ¾” x ¾” x (length) of lumber ripped from standard 1 x 4 stock.

M. Nelson, 21 Mar. 2010

slide12

Board Challenge

Ramp Detail / Construction

Ramps should be level with the tops of the platforms.

Transitions to be sanded / filled as needed.

Holding

Area 4

Top View

Up

24”

Right

Left

Up

The Ramp

Wall Board

48”

Side View

(Left)

Side View

(Right)

3”

Front View

2x4 Studs

Cleat

Ramp Materials List:

(8) 8½” 2x4 Studs

(4) 20½“ 2x4 Studs

(2) 12” x 24” 3/16” Wall Board

(2) 12” x 12” 3/16” Wall Board

(3) ~ ¾” x ¾” x 12” Cleats

M. Nelson, 21 Mar. 2010

board challenge components
Board ChallengeComponents

* Lightly sand / round edges to limit hang-ups on board surface.

May be rounded

Small Drum (7)

½” PVC Cap

Large

Drum (5)

¾” PVC

2”

1-1/8”

All Parts

Schedule 40 PVC

1-1/8 ”

¾”

Ball / Pedestal (2)

½” PVC

1”

“Tee” (2)

(PVC Tee w/pipe in each end)

½” PVC

7/8”

M. Nelson, 21 Mar. 2010
