  1. Welcome To Quadrant

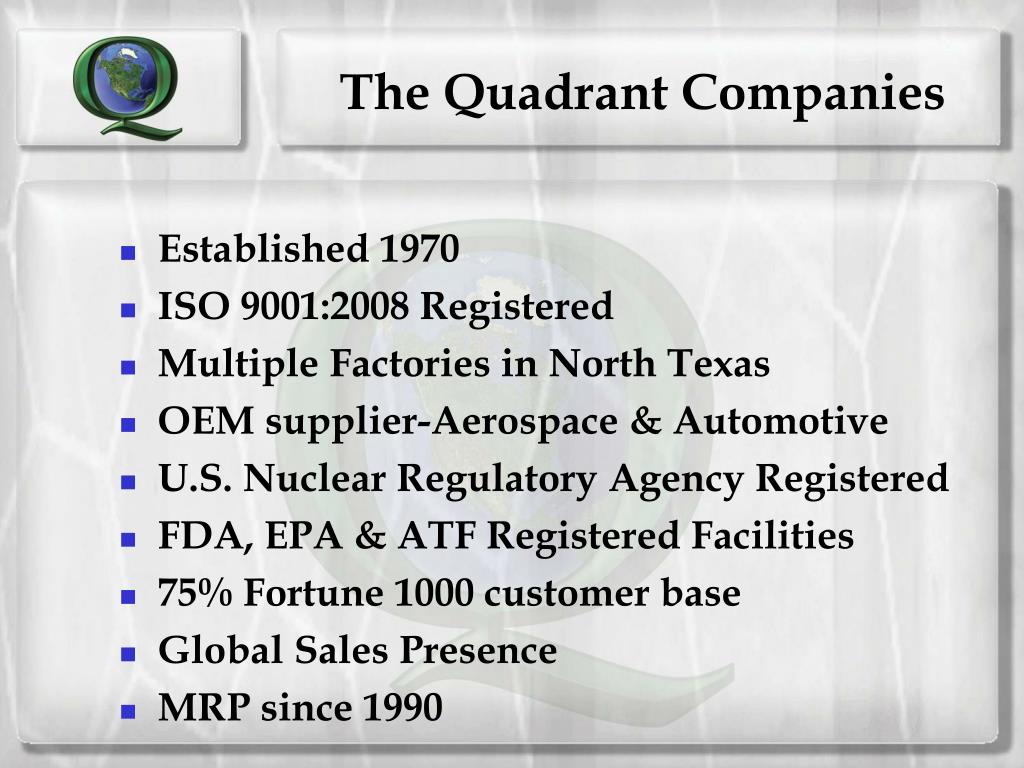

  2. The Quadrant Companies • Established 1970 • ISO 9001:2008 Registered • Multiple Factories in North Texas • OEM supplier-Aerospace & Automotive • U.S. Nuclear Regulatory Agency Registered • FDA, EPA & ATF Registered Facilities • 75% Fortune 1000 customer base • Global Sales Presence • MRP since 1990

  3. ISO 9001 Certified

  4. Robert Jamieson President Heather Keenan Office Manager Britt Roman Plant Manager Daryl Pena Quality & Process Manager+ ISO 9001 Navin Pydugadu Product Mgr. Foam Bud McCormick National Ac. Mgr. Joey Lister Sr. Chemist Foam Zach Zadle Shipping Foam QUT Management Key Employees

  5. Quadrant ChemicalProducts • Epoxy • Polyurethane • Silicones • Fire Retardants • Cleaners-Degreasers • Metal Prep • Paint Removers • OTC/Personal Care • Adhesives • Sealants • Automotive Care • Industrial Coatings • Aerospace • Automotive Refinish • Foam Insulation • Structural Foam

  6. QuadrantSupply Chain • Air Products • BASF • Bayer • Dow • Hexion • Huntsman • Oxid • Perstorp • Lanxxas

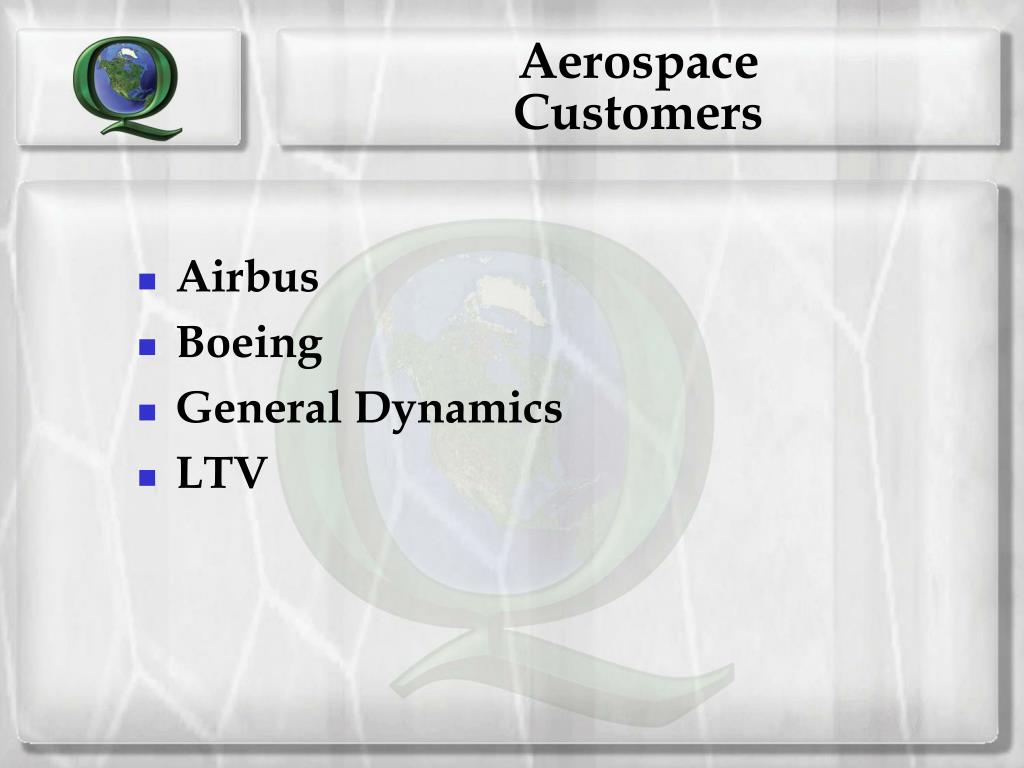

  7. AerospaceCustomers • Airbus • Boeing • General Dynamics • LTV

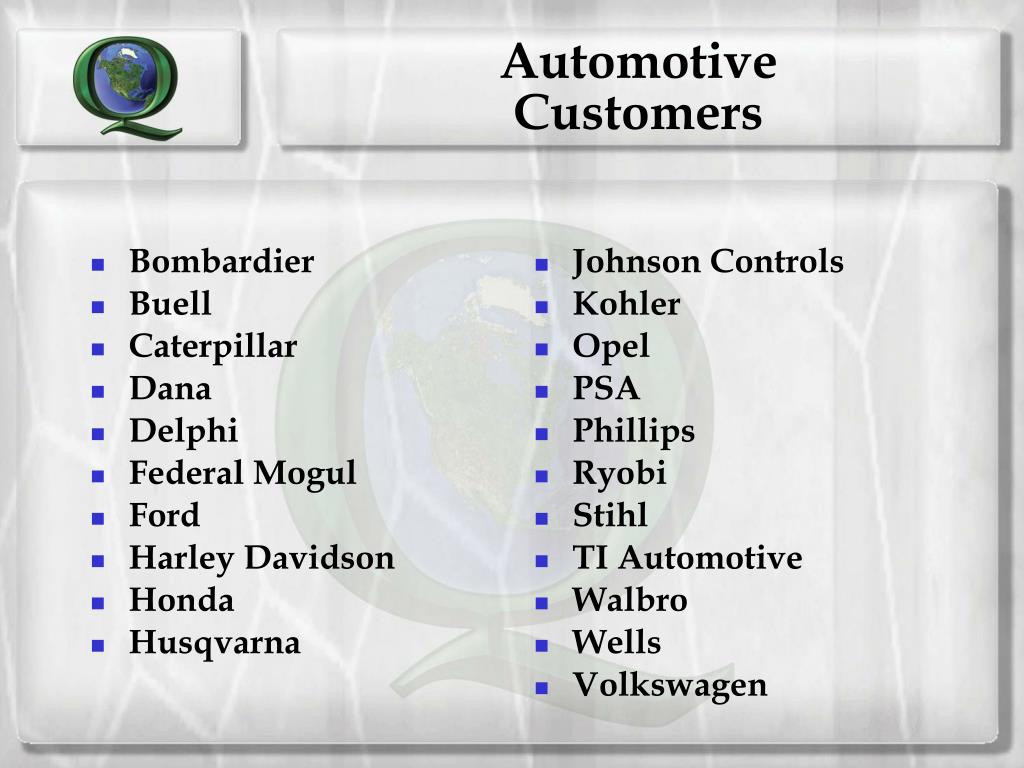

  8. AutomotiveCustomers • Johnson Controls • Kohler • Opel • PSA • Phillips • Ryobi • Stihl • TI Automotive • Walbro • Wells • Volkswagen • Bombardier • Buell • Caterpillar • Dana • Delphi • Federal Mogul • Ford • Harley Davidson • Honda • Husqvarna

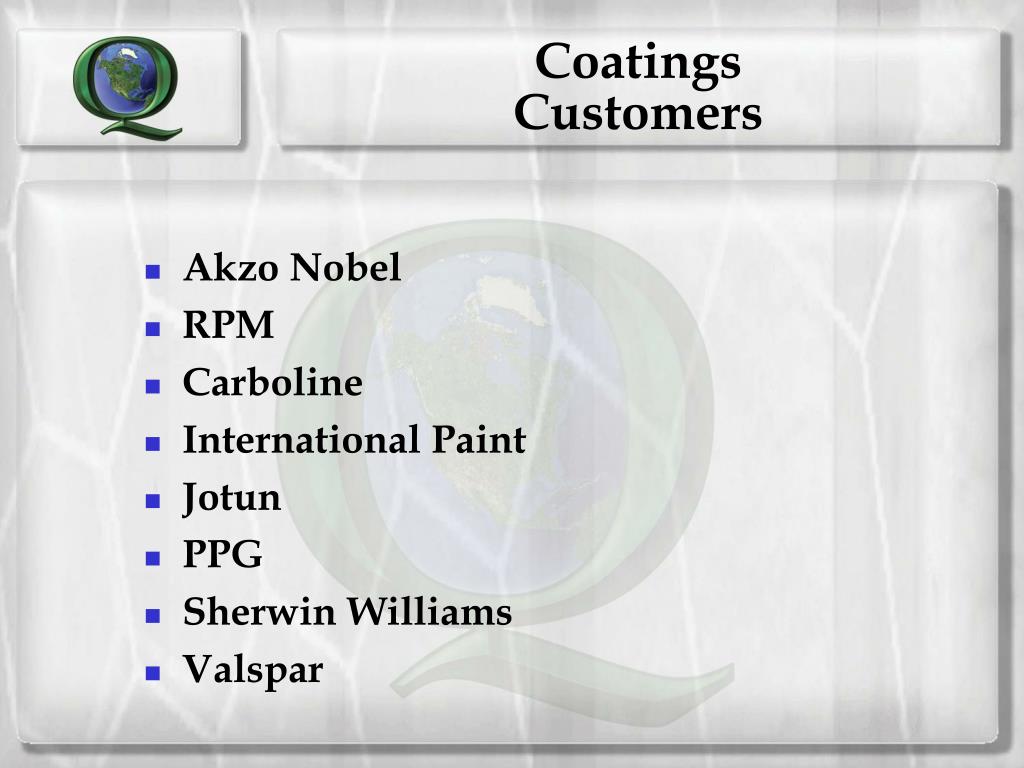

  9. CoatingsCustomers • Akzo Nobel • RPM • Carboline • International Paint • Jotun • PPG • Sherwin Williams • Valspar

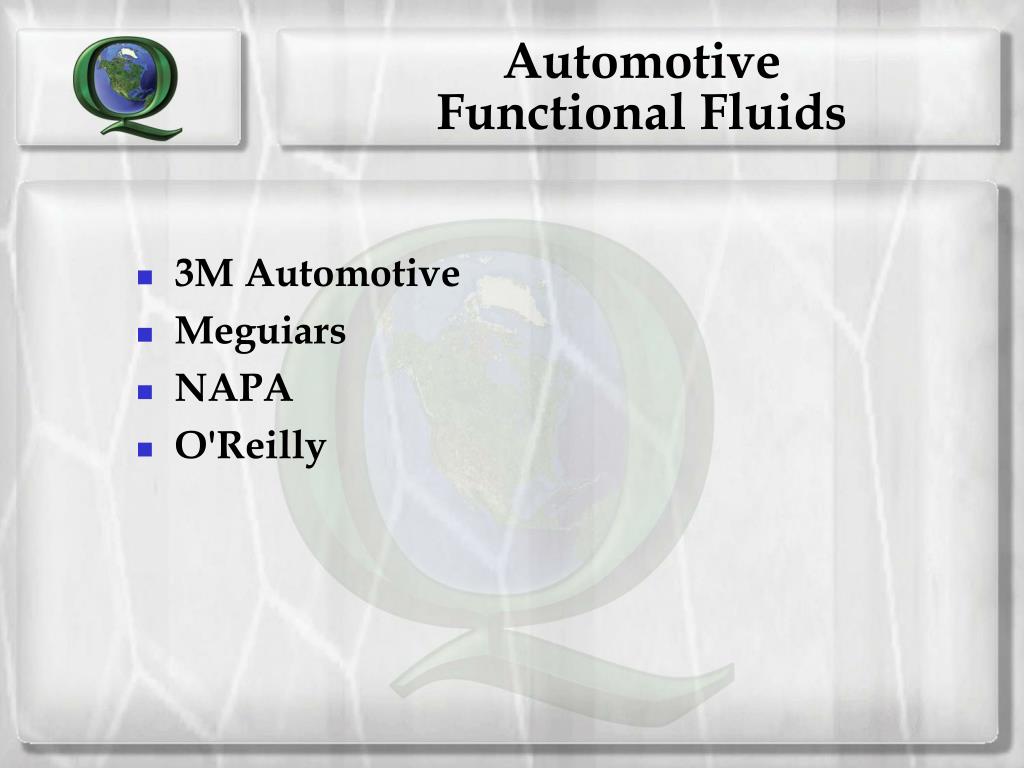

  10. AutomotiveFunctional Fluids • 3M Automotive • Meguiars • NAPA • O'Reilly

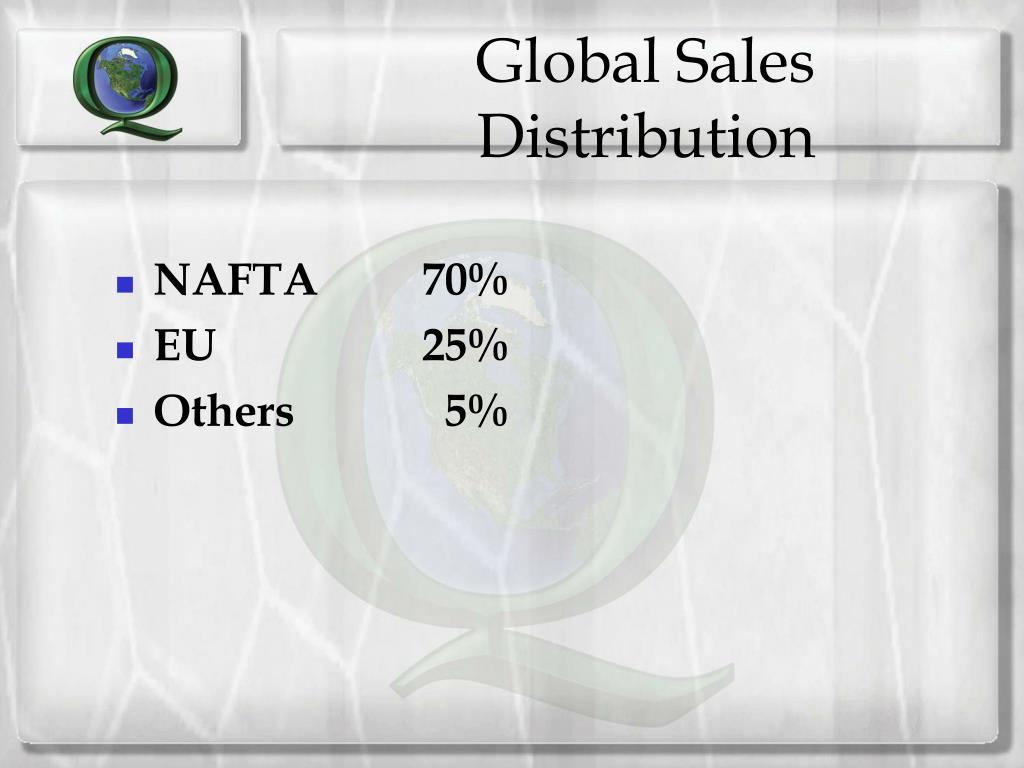

  11. Global Sales Distribution • NAFTA 70% • EU 25% • Others 5%

  12. Quadrant Chemical • Organizational Chart • Process Equipment • Products

  13. Organizational Chart

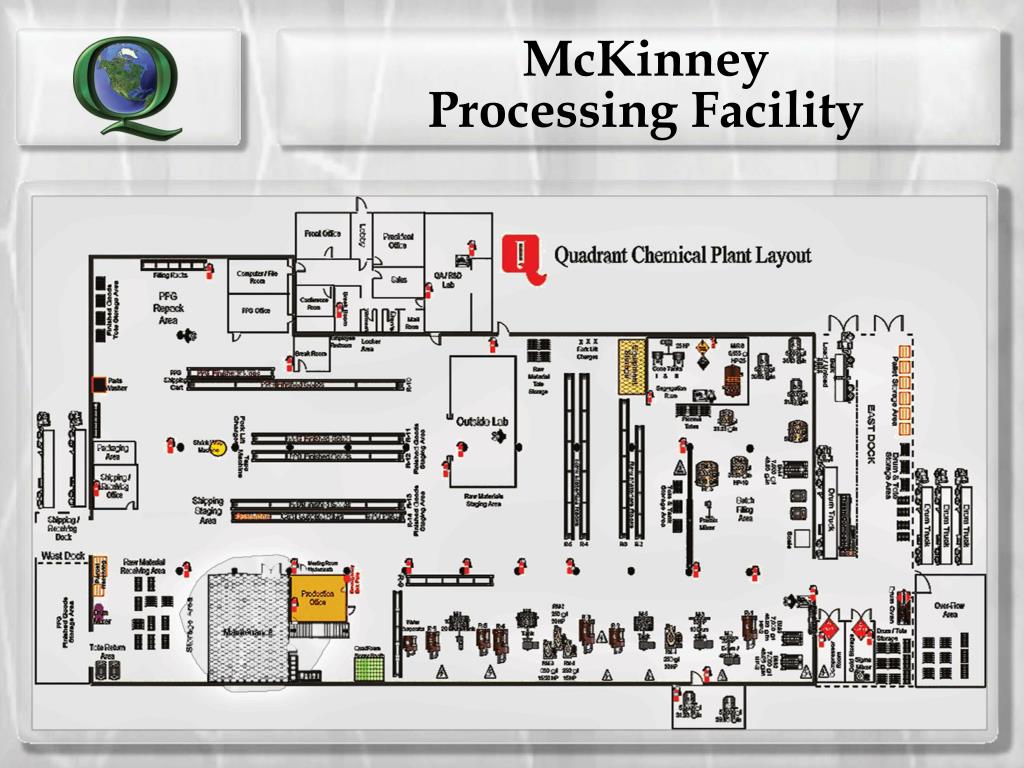

  14. McKinneyProcessing Facility

  15. ProductionFlow Thru • 200+ Raw Material Suppliers • 1,000+ Raw Material Part Numbers • 350+ Finished Goods SKU • 500+ packed SKU • 500+Customers

  16. McKinney Process Equipment • 7 reactors • 10 blend-dispersion units • 4 adhesive units • 2x 8500 gal open cell foam unit • 2x 5000 gal closed cell foam unit • 2 x1000 gal specialty foam unit

  17. Garland ProcessEquipment • 2x 6500 gal blend units • 3x 5000 gal blend units • 2x 1000 gal blend units • 10x<1000 gal blend units • 4 semi automatic filling line • 1 rotary filling line

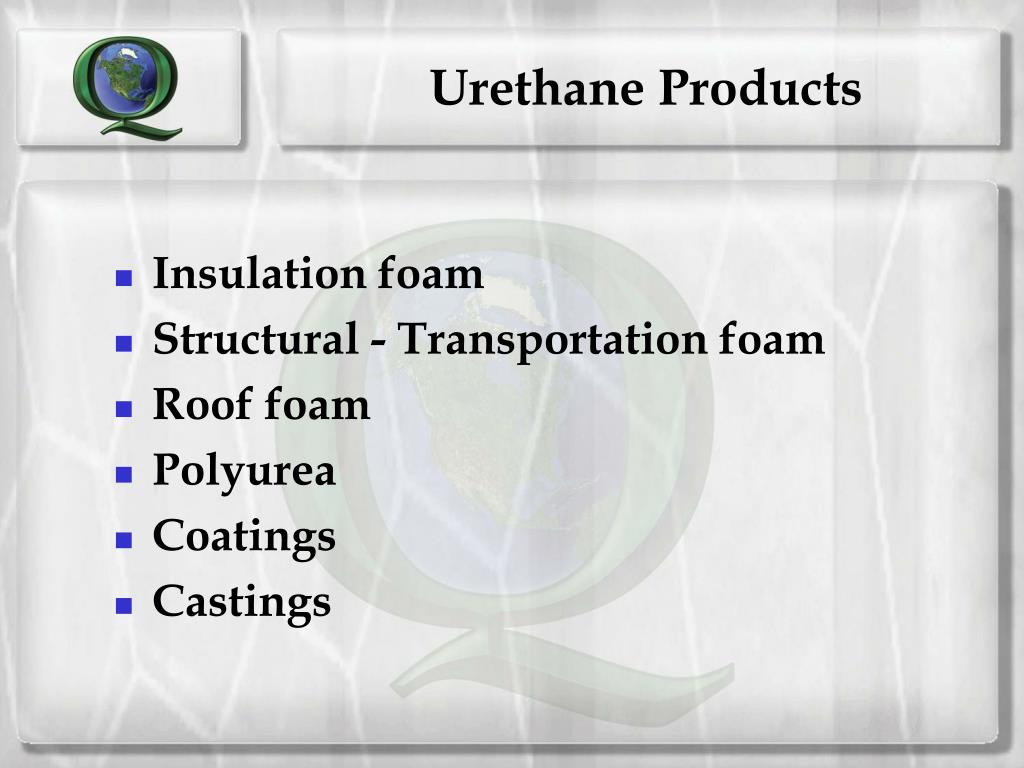

  18. Urethane Products • Insulation foam • Structural - Transportation foam • Roof foam • Polyurea • Coatings • Castings

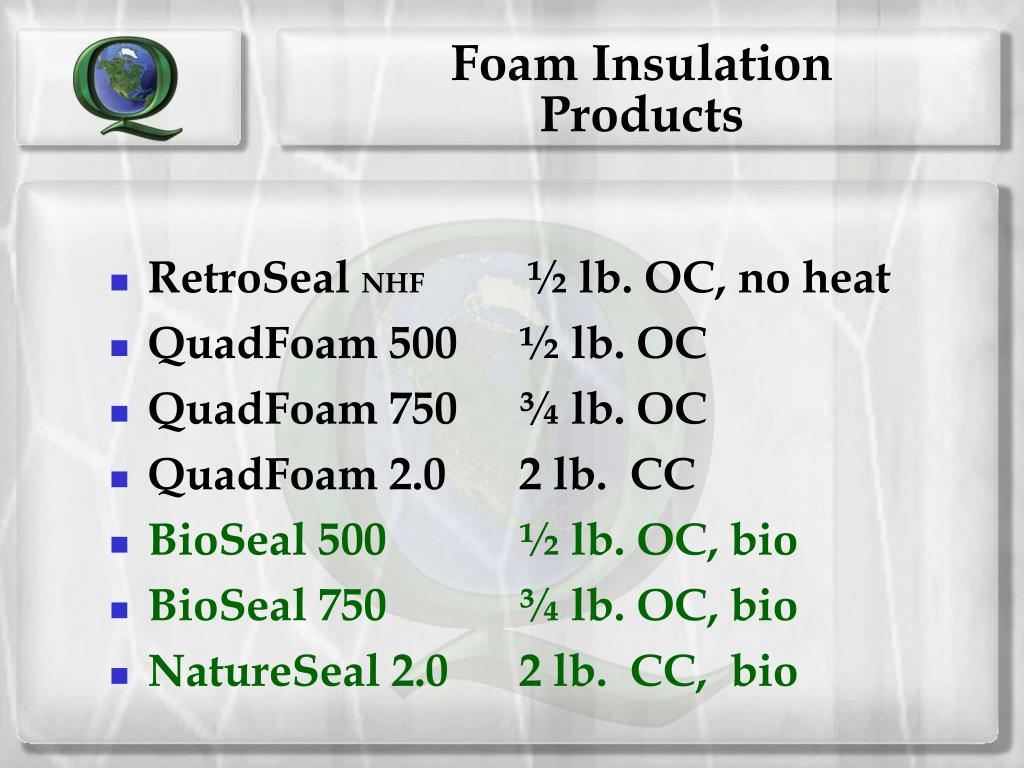

  19. Foam InsulationProducts • RetroSeal NHF ½ lb. OC, no heat • QuadFoam 500 ½ lb. OC • QuadFoam 750 ¾ lb. OC • QuadFoam 2.0 2 lb. CC • BioSeal 500 ½ lb. OC, bio • BioSeal 750 ¾ lb. OC, bio • NatureSeal 2.0 2 lb. CC, bio

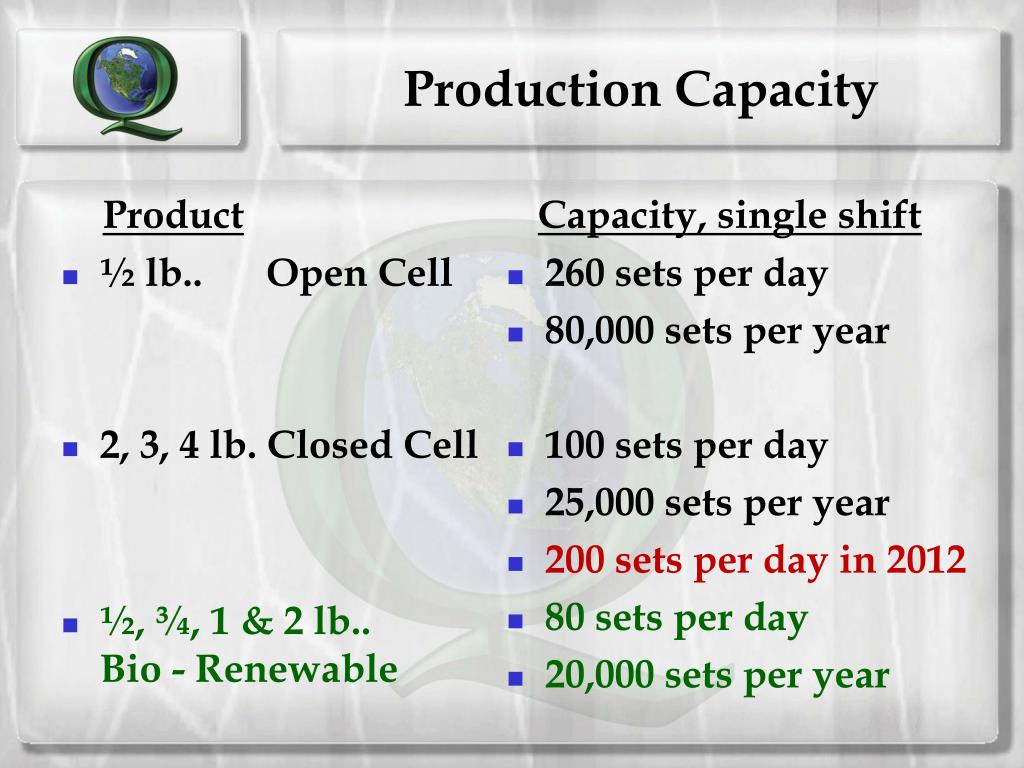

  20. Production Capacity Product Capacity, single shift 260 sets per day 80,000 sets per year 100 sets per day 25,000 sets per year 200 sets per day in 2012 80 sets per day 20,000 sets per year • ½ lb.. Open Cell • 2, 3, 4 lb. Closed Cell • ½, ¾, 1 & 2 lb.. Bio - Renewable

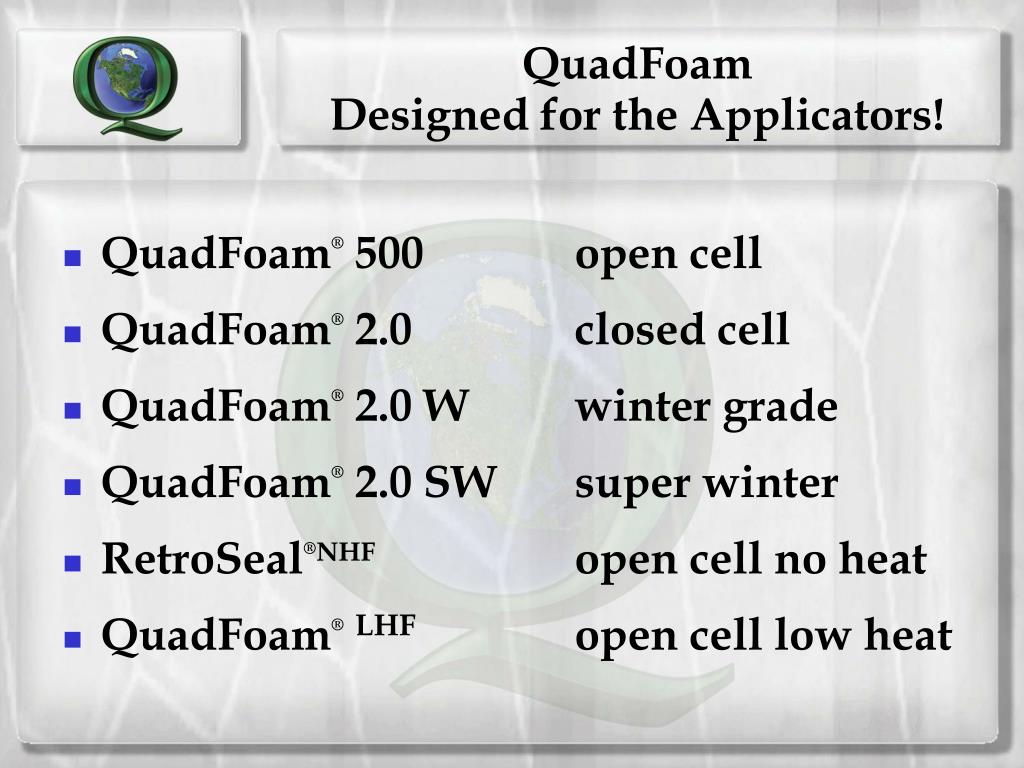

  21. QuadFoamDesigned for the Applicators! • QuadFoam® 500 open cell • QuadFoam® 2.0 closed cell • QuadFoam® 2.0 W winter grade • QuadFoam® 2.0 SW super winter • RetroSeal®NHFopen cell no heat • QuadFoam®LHF open cell low heat

  22. QuadFoamKey Attributes (Heated Foams) • Low Odor, Great for Retro Fit, 24 hr re-occupy • Open Cell yield per Applicators- 18,000+ bft • Closed Cell yield per Applicators- > 5000bft @ 60’f, 4300+@ 8’f • Excellent Adhesion to Substrate, even Cold Temps no pre-heats • Reduced Misting & Overspray • Dry Fall Technology • Flat & Smooth finish = Reduced Coating in Attics & Crawl spaces • Less trimming • Reduced Tip Clogging, less down time, less time on the Jobsite • 10-20% reduced material costs, easier & faster spraying

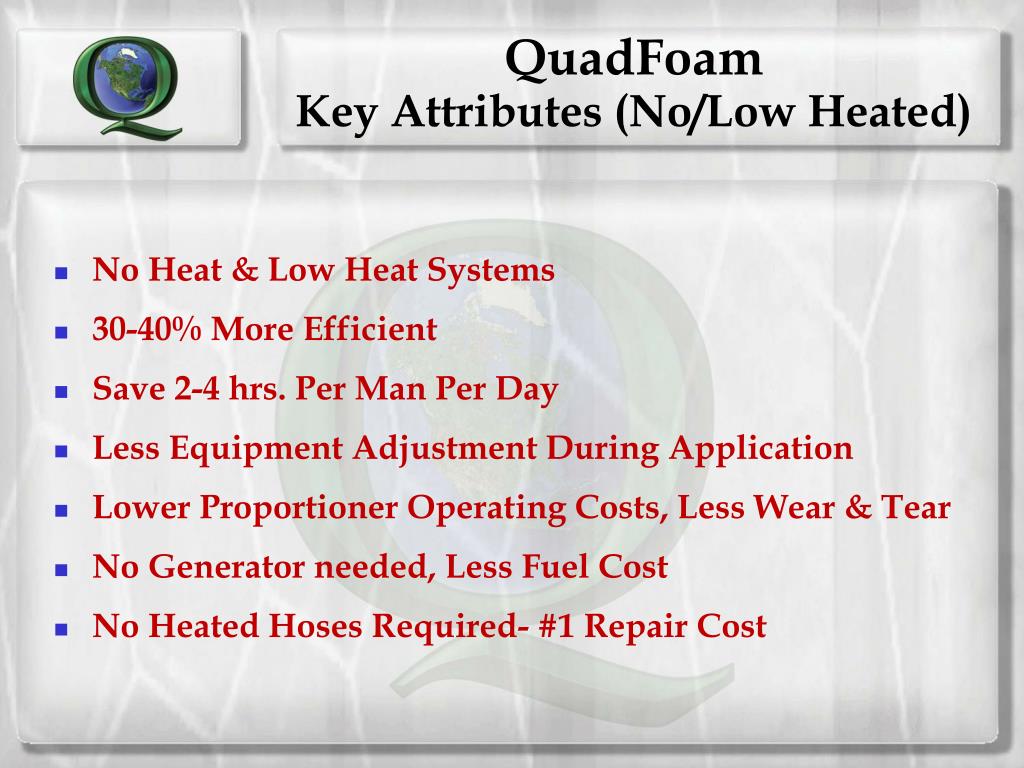

  23. QuadFoamKey Attributes (No/Low Heated) • No Heat & Low Heat Systems • 30-40% More Efficient • Save 2-4 hrs. Per Man Per Day • Less Equipment Adjustment During Application • Lower Proportioner Operating Costs, Less Wear & Tear • No Generator needed, Less Fuel Cost • No Heated Hoses Required- #1 Repair Cost

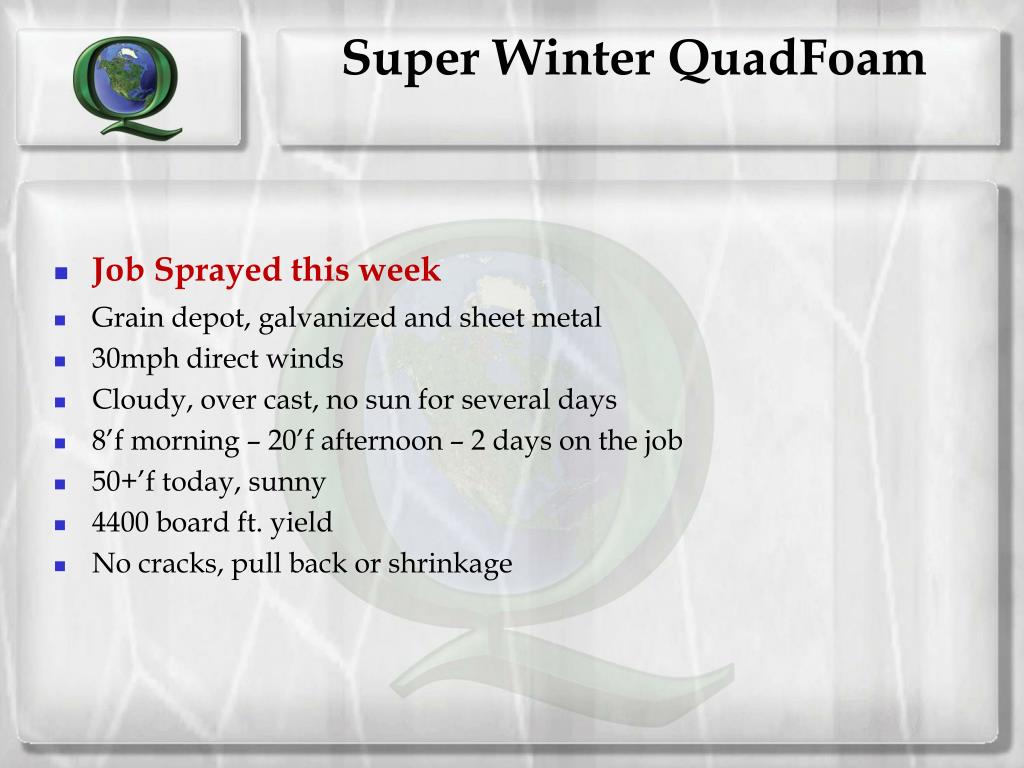

  24. Super Winter QuadFoam • Job Sprayed this week • Grain depot, galvanized and sheet metal • 30mph direct winds • Cloudy, over cast, no sun for several days • 8’f morning – 20’f afternoon – 2 days on the job • 50+’f today, sunny • 4400 board ft. yield • No cracks, pull back or shrinkage

  25. Testing • RetroSeal®NHF R value = 3.75 in • QuadFoam® 500 R value = 3.85 in • QuadFoam® 2.0 R value = 7.4 in • QuadFoam® 2.0 MV = .92 perms in • QuadFoam® 2.0 Air & Vapor Barrier

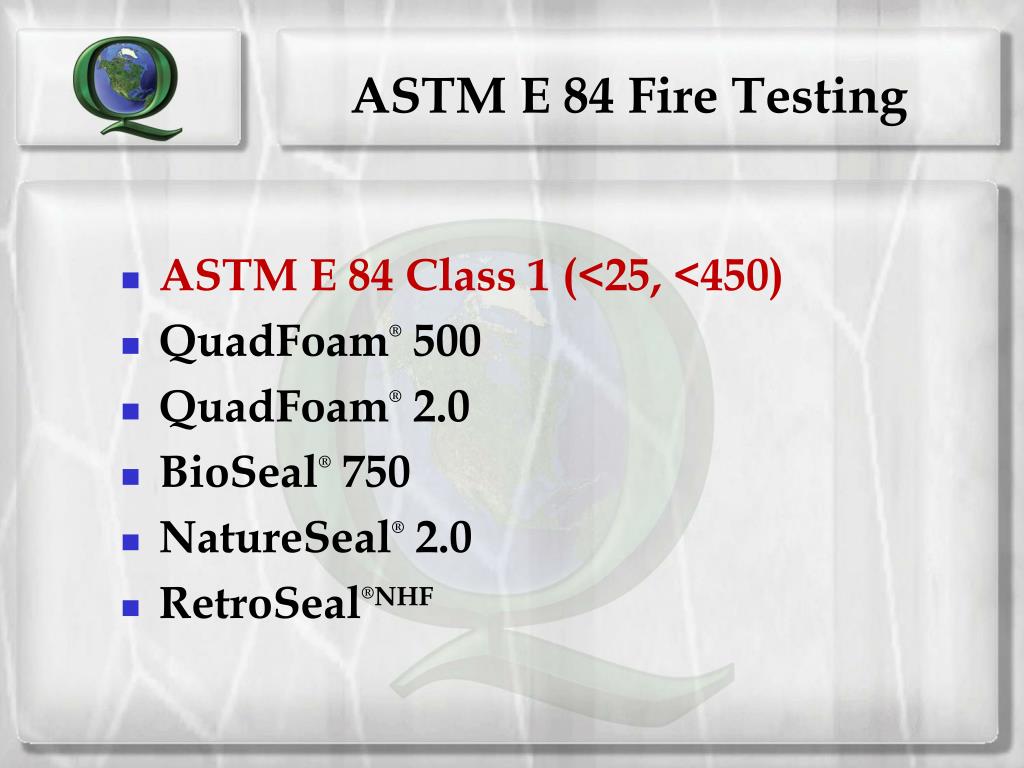

  26. ASTM E 84 Fire Testing • ASTM E 84 Class 1 (<25, <450) • QuadFoam® 500 • QuadFoam® 2.0 • BioSeal® 750 • NatureSeal® 2.0 • RetroSeal®NHF

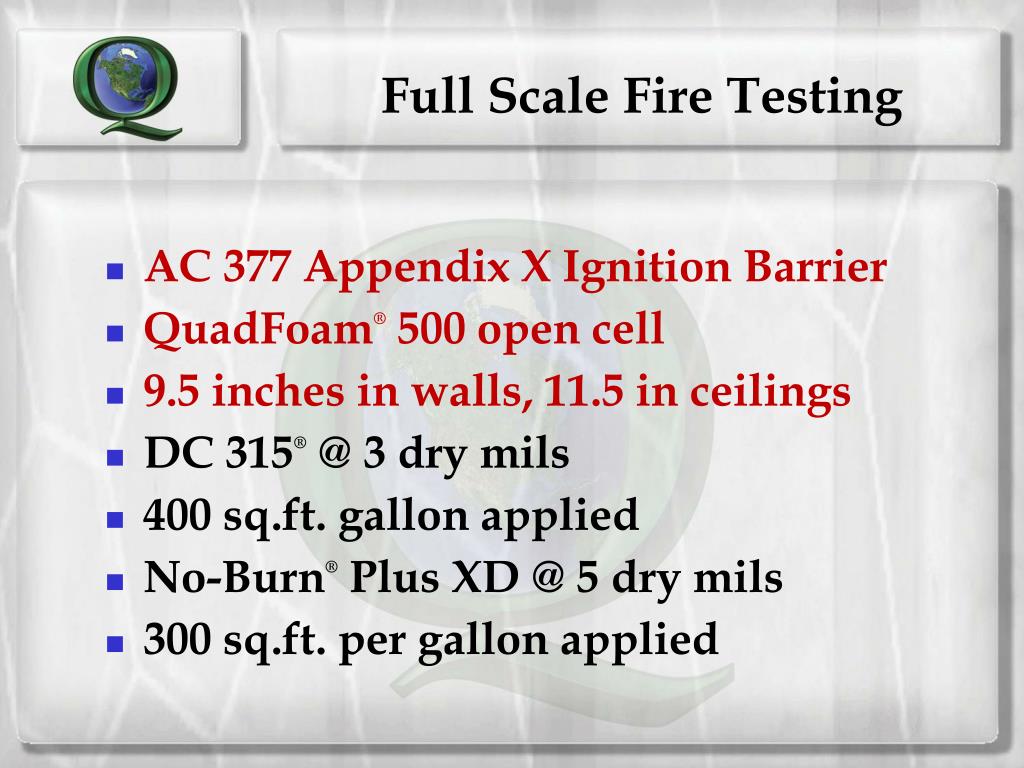

  27. Full Scale Fire Testing • AC 377 Appendix X Ignition Barrier • QuadFoam® 500 open cell • 9.5 inches in walls, 11.5 in ceilings • DC 315® @ 3 dry mils • 400 sq.ft. gallon applied • No-Burn® Plus XD @ 5 dry mils • 300 sq.ft. per gallon applied

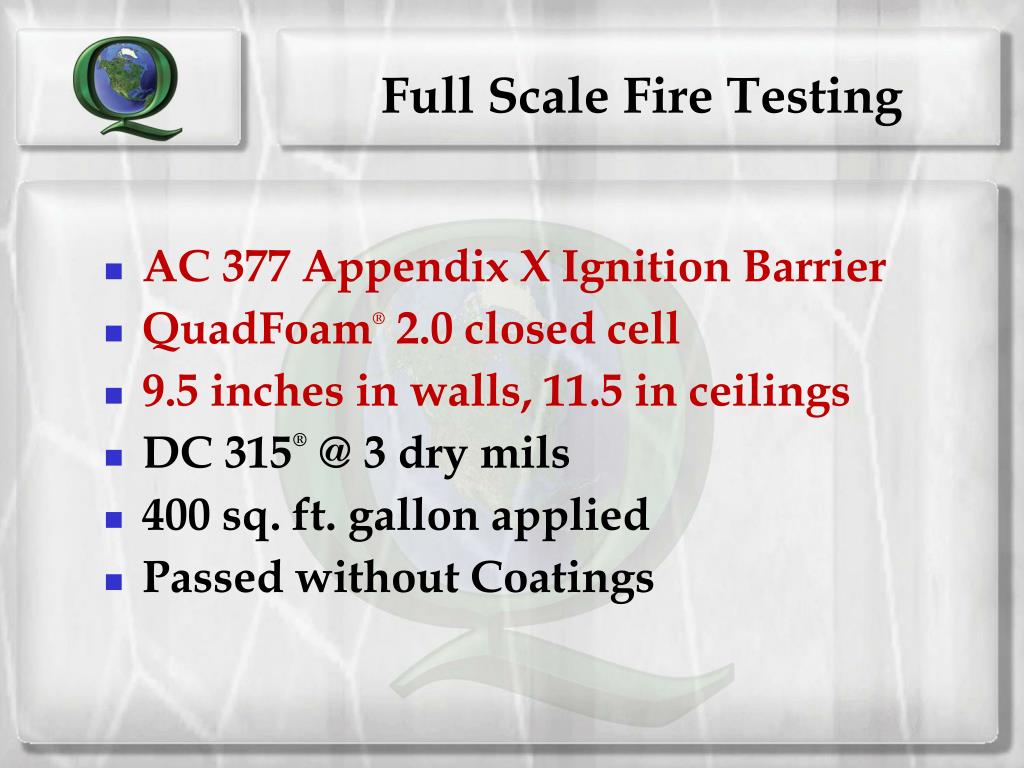

  28. Full Scale Fire Testing • AC 377 Appendix X Ignition Barrier • QuadFoam® 2.0 closed cell • 9.5 inches in walls, 11.5 in ceilings • DC 315® @ 3 dry mils • 400 sq. ft. gallon applied • Passed without Coatings

  29. Full Scale Fire Testing • AC 377 Appendix X Thermal Barrier • QuadFoam® 500 open cell • QuadFoam®2.0 closed cell • 9.5 inches in walls, 11.5 in ceilings • DC315® and No-Burn® @ 18-20 dry mils • December 13 Burn Date

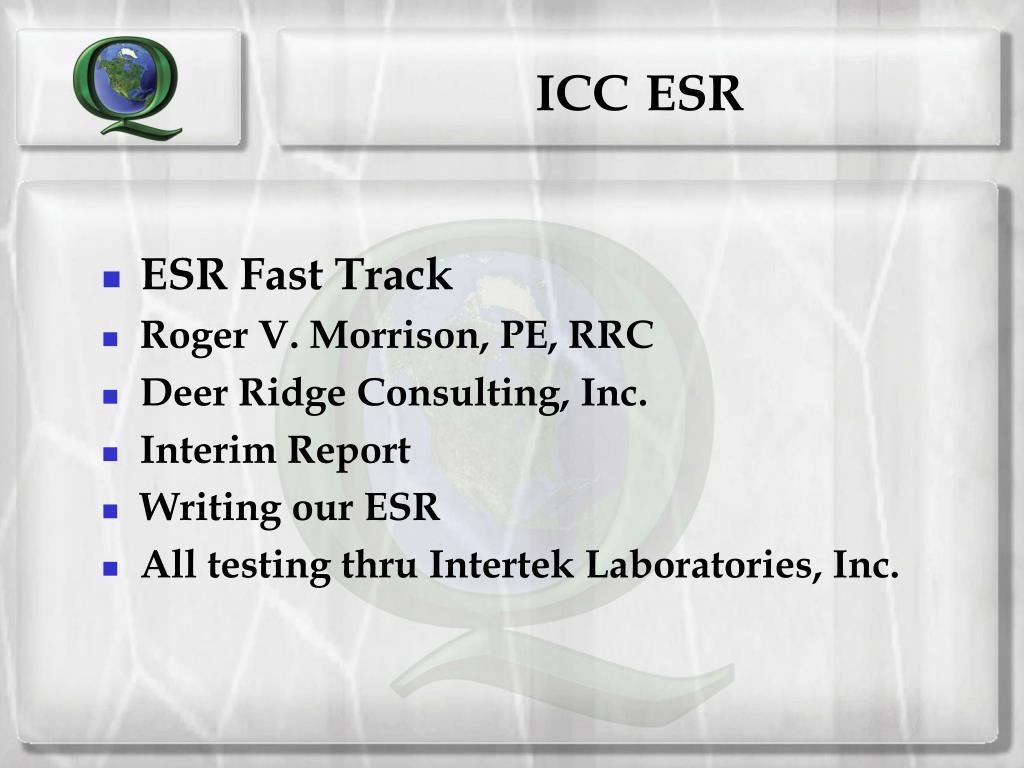

  30. ICCESR • ESR Fast Track • Roger V. Morrison, PE, RRC • Deer Ridge Consulting, Inc. • Interim Report • Writing our ESR • All testing thru Intertek Laboratories, Inc.

  31. Thank You
