  1. DESIGN II for Windows WinSim Inc. Advanced Engineering Software

  2. History of DESIGN II • First developed in 1969 and marketed by ChemShare until 1995 • In 1995 WinSim purchased rights to continue developing and marketing Design II • Proven product with over 30 years of successful service to the chemical processing industry

  3. DESIGN II Features • Designed for Windows XP, 2000, NT, ME, 98 • User friendly point & click graphical interface • Data results transfer to Microsoft Excel (2000, 97, 95) • Cut and Paste between other Windows applications • Instant usability • Low Cost

  4. Complete Simulation Modeling • All major unit operations • Generous thermo options • Up to 9,999 units and streams with 1000 components per simulation • Multiple Sheet Capability for large simulations • Create complete PFDs • Extensive component database

  5. EASY AS 1 - 2 - 3 • Draw the flowsheet • Specify the operating conditions and feed compositions • Execute the simulation • Examine the results

  6. Markets Served • Refining • Petrochemical • Gas Processing • Pipelines • Refrigeration • Engineering & Construction • Chemical • Consulting

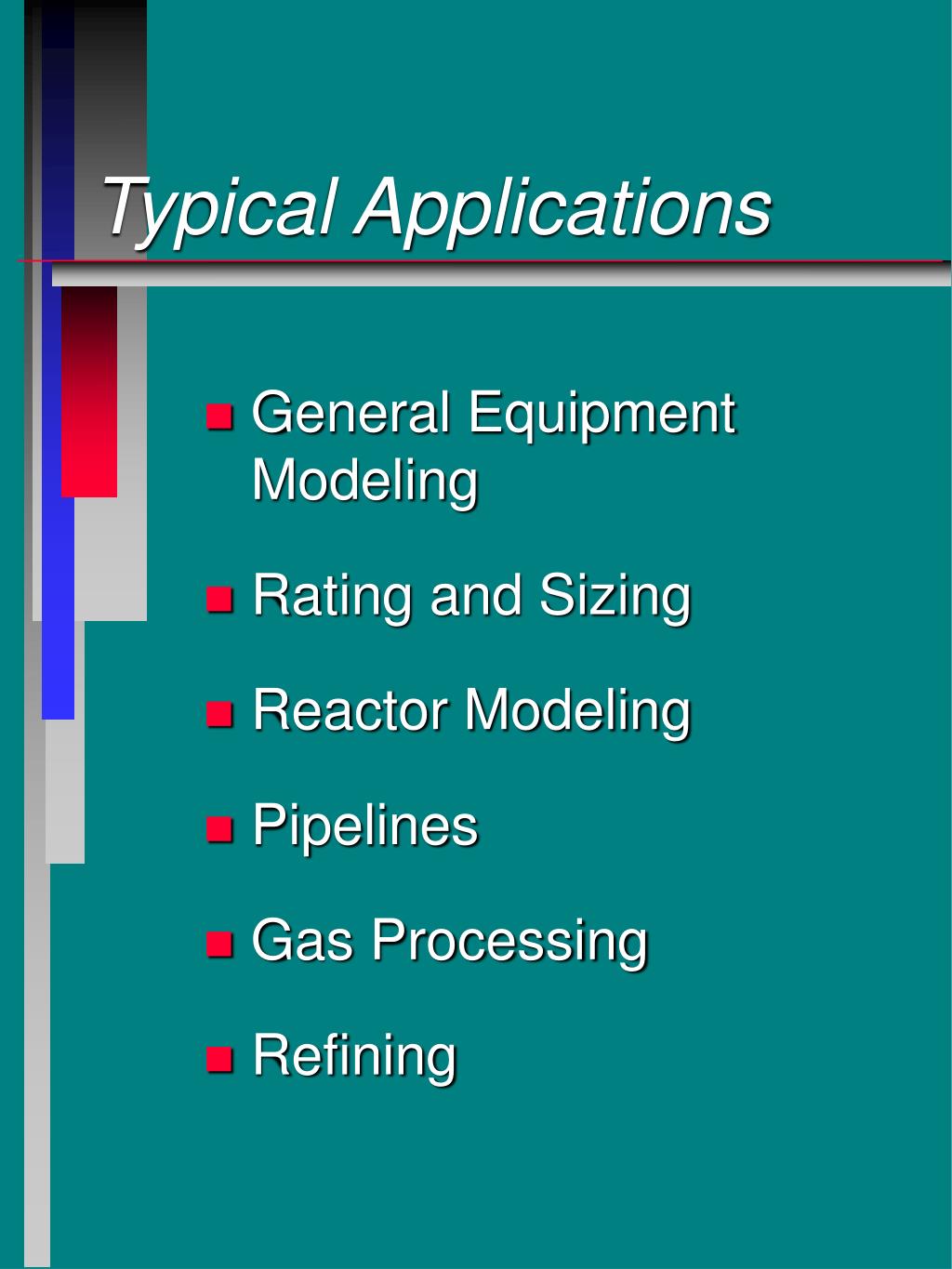

  7. Typical Applications • General Equipment Modeling • Rating and Sizing • Reactor Modeling • Pipelines • Gas Processing • Refining

  8. General EquipmentModeling • Dividers / Mixers • Flash / Multiple Flash • Multiple Phase Flash • Fired Heaters • Pumps • Compressors & Expanders • Controller (Set or Vary) • Stream Manipulator

  9. Rating & Sizing • Shell and Tube Heat Exchanger Rating (single and two phase) • Plate-Fin Exchanger Rating • Air Cooler Rating • Separator Sizing (Flash, Valve) • Line Pressure Drop • Line Sizing • Flow Meter • Depressurizing (relief valves) • Column Tray Sizing

  10. Reactor Modeling • CSTR (Continuous Stirred Tank Reactor) • Equilibrium Reactor (Gibbs free energy) • Plug Flow Reactor • Hydrotreater • Stoichiometric • CO Shift • Methanation • Primary & Secondary Reformer • Ammonia & Methanol Synthesis

  11. Pipeline Applications • Line sizing and hydraulic calculations • Heat transfer to surroundings • Flow meters • Slug flow analysis • Two phase flow modeling • Hydrate prediction • Simulate complete pipeline systems from wellhead to production plant

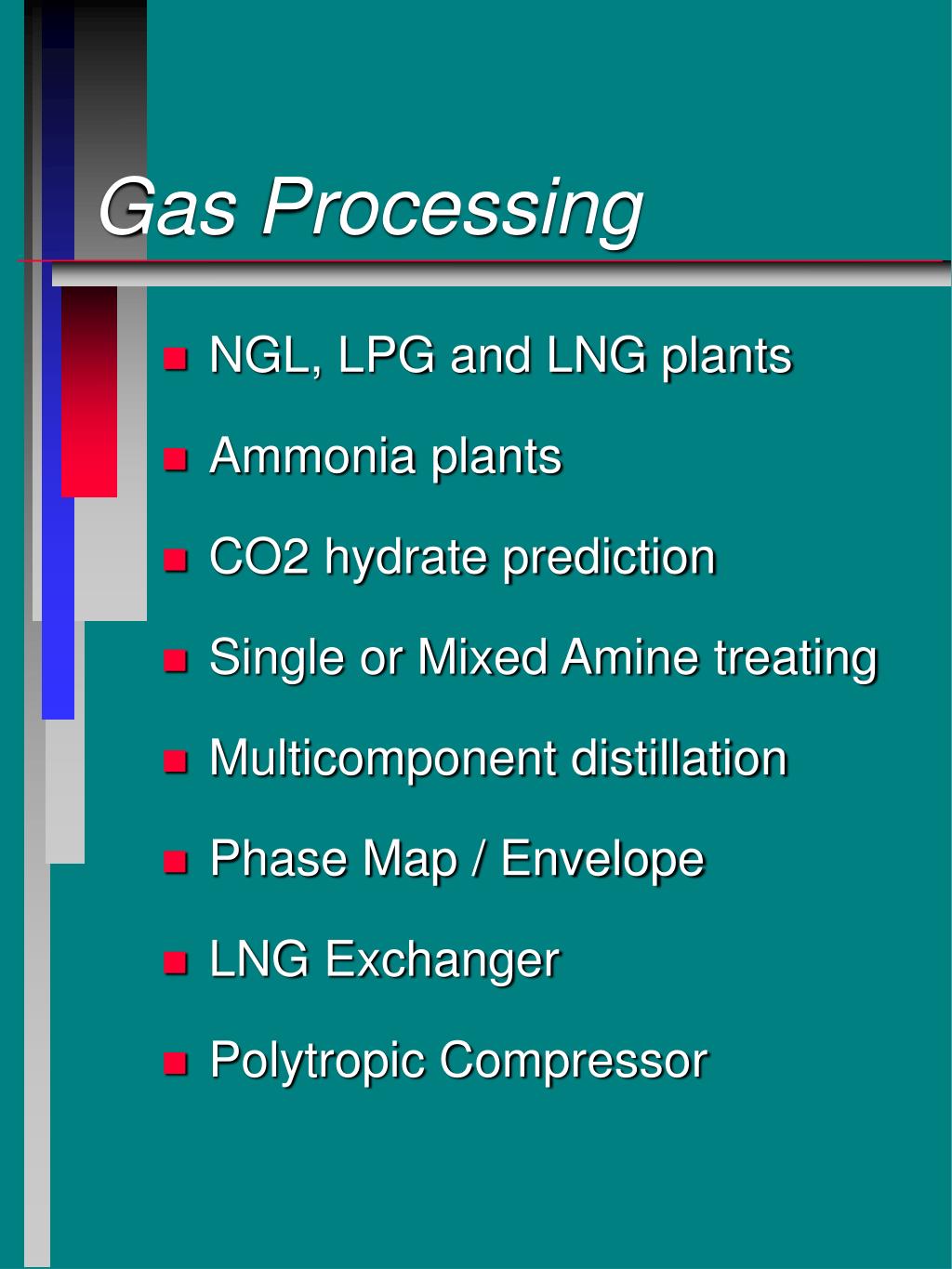

  12. Gas Processing • NGL, LPG and LNG plants • Ammonia plants • CO2 hydrate prediction • Single or Mixed Amine treating • Multicomponent distillation • Phase Map / Envelope • LNG Exchanger • Polytropic Compressor

  13. Distillation Columns • Component Splitter • Shortcut Fractionator • Absorber • Stripper • Fractionator • Crude (Refine) • Batch Distillation • Mixed Amine Rate-based Absorber / Regenerator

  14. Refining Applications • Fast, rigorous refinery distillation modeling • Integrated calculation of column and side strippers (no recycle stream guesses) • Complete tray-by-tray calculations • Multiple feeds, sidedraws, and pumparound streams • Energy and material balances

  15. DESIGN II Advanced Features • Inline Fortran - incorporate unique equations, equipment modules and properties information • Flowsheet Optimization - vary design parameters to maximize or minimize the objective function • ChemTran - separate program that provides the ability to define, regress and predict all necessary thermophysical properties • Case Studies - run several simulation cases at once to assess the sensitivity of a flowsheet to changes in variables

  16. Visual Basic Interface • DESIGN II simulator kernel can be called from any Visual Basic, Visual C++ program • Can even be used by VBA in Microsoft Excel (sample spreadsheet included) • Can be used to build a custom program for your company for engineering, sales and or marketing staffs

  17. Technical Support • Highly qualified professionals for product and application support • Complete training available • Help line available during normal business hours • Complete Users Guide in on-line help menu • Continued product development based on customer input

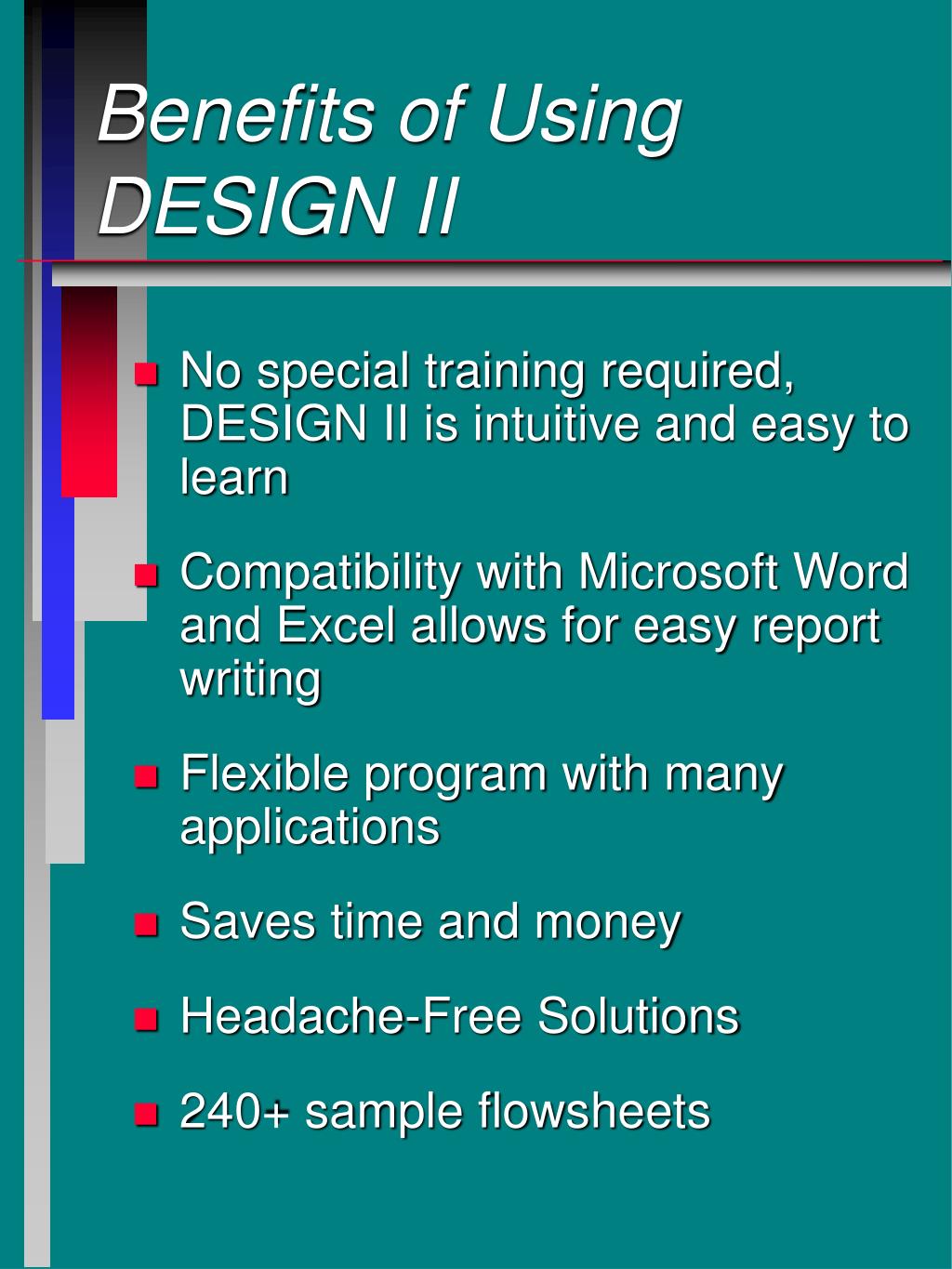

  18. Benefits of Using DESIGN II • No special training required, DESIGN II is intuitive and easy to learn • Compatibility with Microsoft Word and Excel allows for easy report writing • Flexible program with many applications • Saves time and money • Headache-Free Solutions • 240+ sample flowsheets

  19. WinSim’s Market Position • Small Company • Low Overhead – Reasonable Prices • Focused entirely on marketing and developing DESIGN II • Proven Product, Proven Reliability

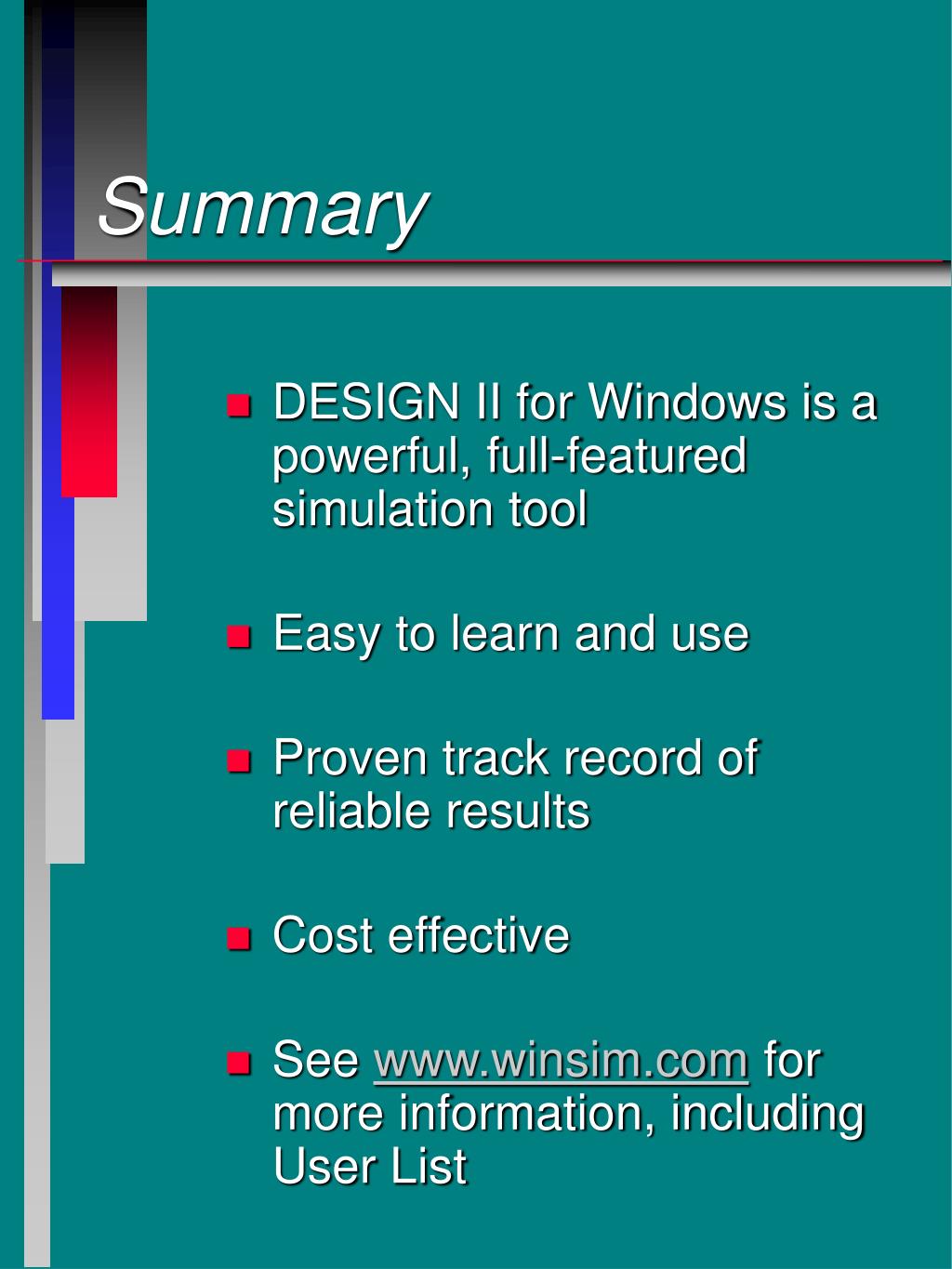

  20. Summary • DESIGN II for Windows is a powerful, full-featured simulation tool • Easy to learn and use • Proven track record of reliable results • Cost effective • See www.winsim.com for more information, including User List
