Presentation Transcript
urinary system

Urinary System

An overview

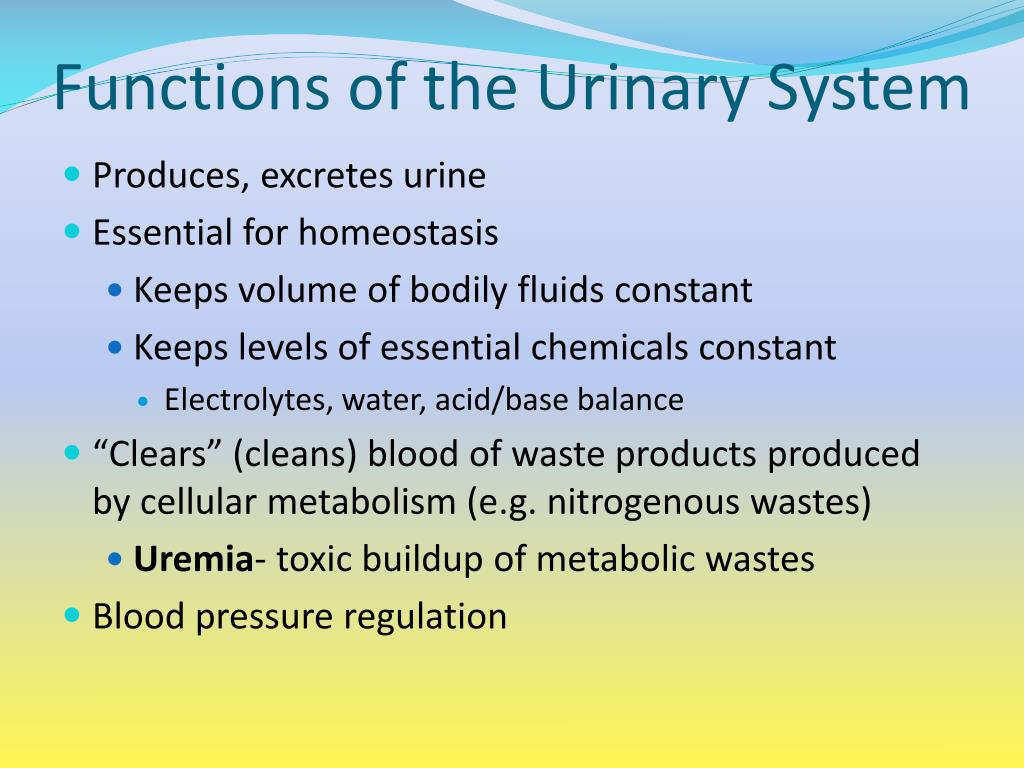

functions of the urinary system1
Functions of the Urinary System
  • Produces, excretes urine
  • Essential for homeostasis
    • Keeps volume of bodily fluids constant
    • Keeps levels of essential chemicals constant
      • Electrolytes, water, acid/base balance
  • “Clears” (cleans) blood of waste products produced by cellular metabolism (e.g. nitrogenous wastes)
    • Uremia- toxic buildup of metabolic wastes
  • Blood pressure regulation
major structures of the urinary system

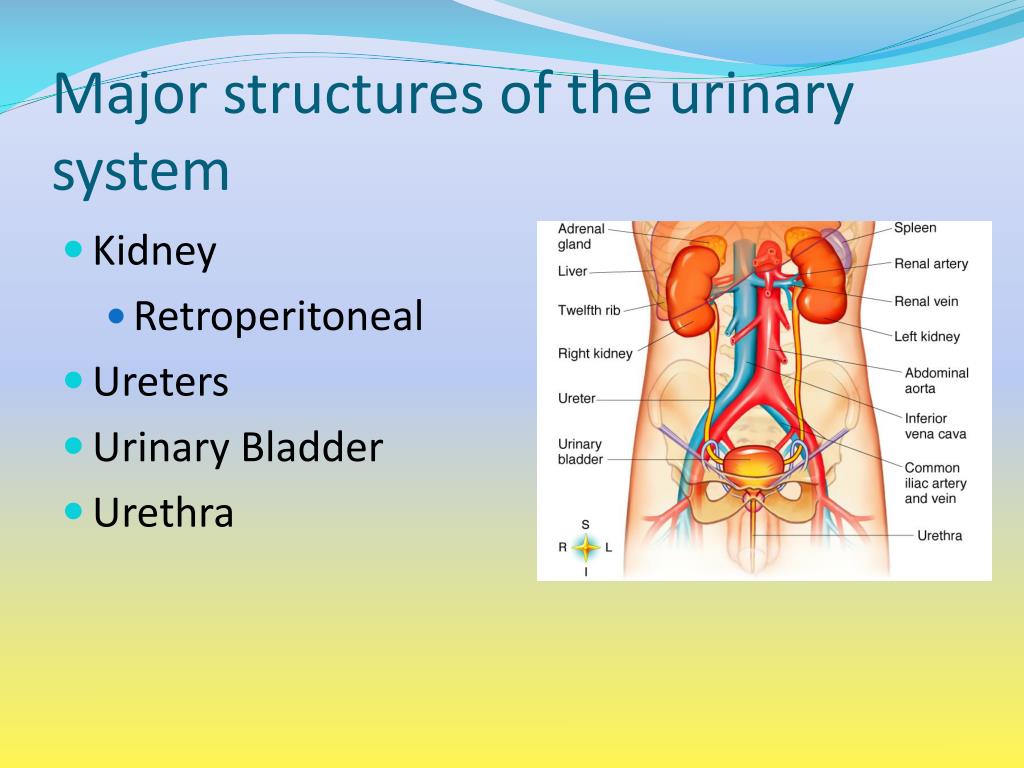

Major structures of the urinary system
  • Kidney
    • Retroperitoneal
  • Ureters
  • Urinary Bladder
  • Urethra
urinary bladder
Urinary Bladder
  • Accumulates, stores urine
  • Stretchable epithelium, w/ smooth muscle (detrusor)
  • Internal urinary sphincter
    • Involuntary, circular muscle
    • Keeps ureter closed
  • Can hold up to 1 liter of urine
  • Stretch receptors signal need to void (micturate) when 20% of bladder capacity reached
  • Single, muscular tube
  • Controlled by external urethral sphincter
    • Voluntary
  • Longer in males
  • More prone to infection in females
  • Urination = micturition
  • Innervated by reflex arc; voluntary control gained as one ages
  • Incontinence – loss of voluntary control
  • Anuria – lack of urine production
  • Urinary retention – failure to expel urine
  • Oliguria – decreased urine production
  • Polyuria – excessive urine production
the kidney
The Kidney
  • Renal cortex – Outer “bark”
  • Renal medulla – Inner
  • Renal pyramids
    • Triangular divisions
  • Renal columns –
    • Extension of cortex
    • Divide pyramids
  • Renal papilla
    • Narrow, innermost point of a pyramid
  • Renal pelvis
    • Expanded end of upper end of ureter
  • Calyx
    • Division of renal pelvis
functional unit nephron

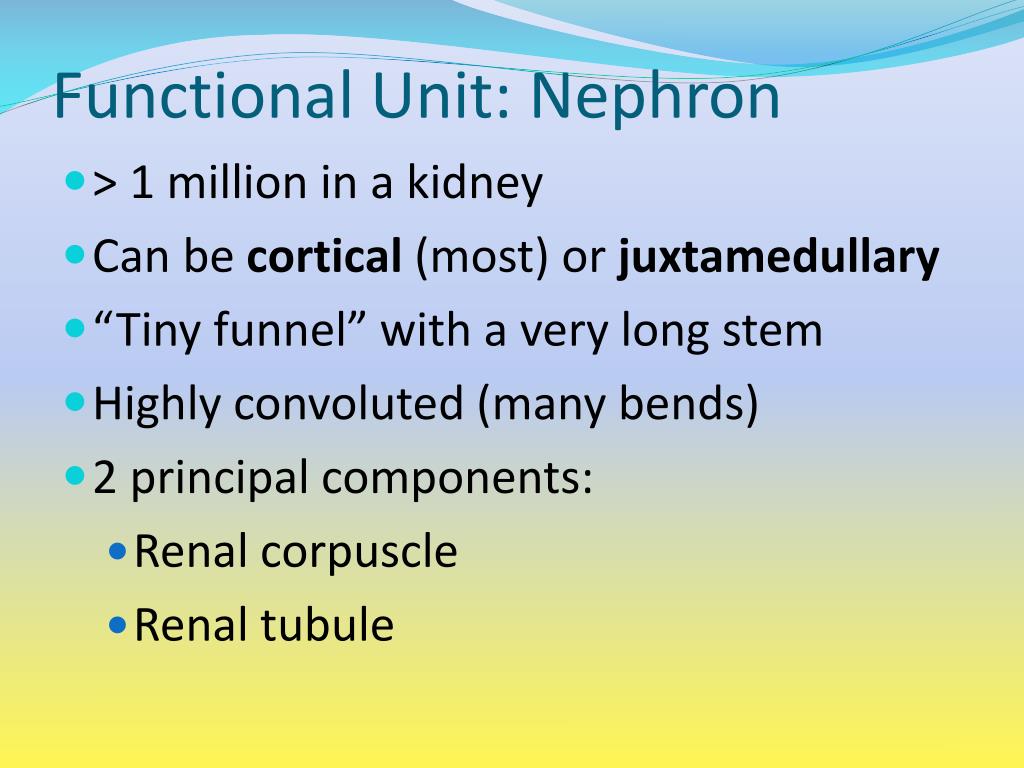

Functional Unit: Nephron
  • > 1 million in a kidney
  • Can be cortical (most) or juxtamedullary
  • “Tiny funnel” with a very long stem
  • Highly convoluted (many bends)
  • 2 principal components:
    • Renal corpuscle
    • Renal tubule
renal corpuscle components
Renal corpuscle components
  • Bowman’s capsule
    • Cup/sac-like-shaped top of a nephron
  • Glomerulus
    • Ball of capillaries, lined with podocytes
    • Found in Bowman’s capsule
    • Afferent, efferent arterioles
renal tubule
Renal Tubule
  • Composed of:
    • Proximal convoluted tubule (PCT)
    • Loop of Henle (longer in Juxtamedullary)
    • Distal convoluted tubule (DCT)
    • Collecting tubule

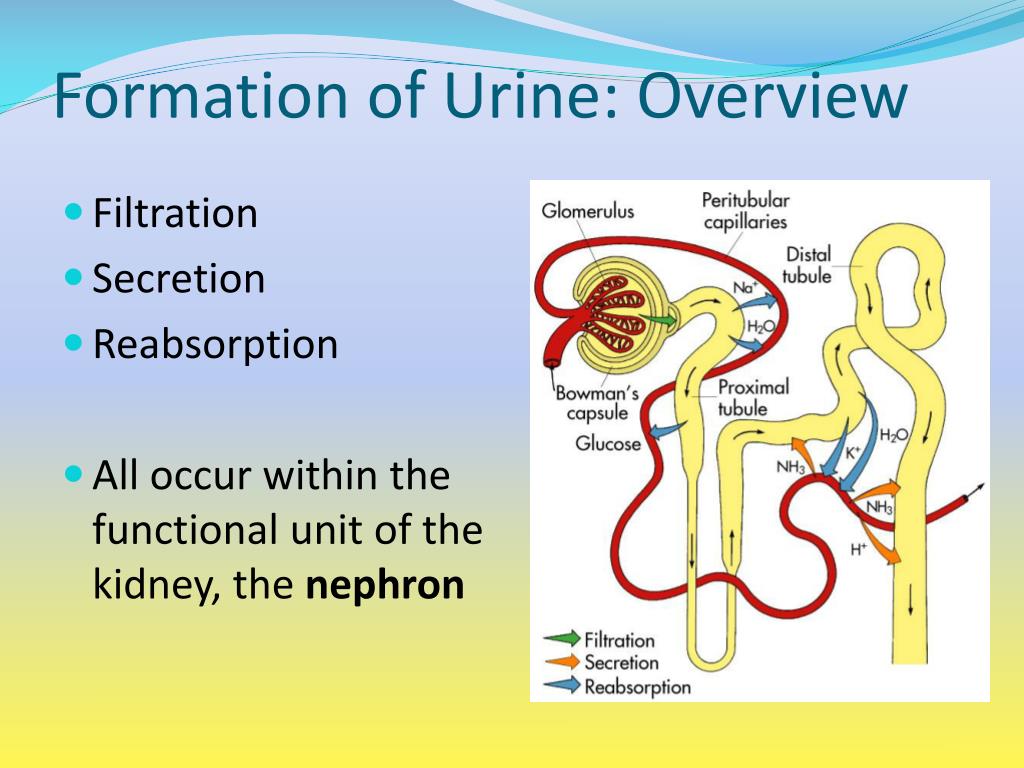

formation of urine overview
Formation of Urine: Overview
  • Filtration
  • Secretion
  • Reabsorption
  • All occur within the functional unit of the kidney, the nephron
  • Of water, dissolved substances out of blood into Bowman’s capsule
  • Occurs in “renal corpuscles”
    • Contains larger afferent, smaller efferent arterioles
      • Creates high pressure in glomerulus
      • Filters blood across fenestrated capillaries, lined w/ podocytes
      • Hold in proteins, cells
      • Lose water, ions = ultrafiltration
glomerular filtration rate
Glomerular Filtration Rate
  • 120 ml/minute = 180 liters/day!
  • Must maintain a minimum blood pressure for kidneys to filter
    • Hemorrhage, etc., can cause kidney function (and urine output) to cease
180 l of urine a day
180 L of urine a day?
  • No…
  • Luckily, most of the fluid that leaves blood during filtration returns to the blood during reabsorption…
  • Movement of substances out of renal tubules into the blood (into peritubular capillaries)
    • Water
    • Glucose
    • Other nutrients
    • Sodium, other ions
    • Begins in proximal convoluted tubule, continues in loop of Henle, distal convoluted tubule, and collecting tubule
  • Reabsorb ~178 L/day (97-98% of water)


  • Active transport
    • Active transport of sodium ions from tubule into interstitial fluid
  • Passive Transport
    • Creates high concentration of sodium, which diffuses into bloodstream
    • Sodium (Na+) in blood attracts negative ions (Cl-, (PO4)3-), which diffuse into blood
another mechanism
Another Mechanism?

Osmosis! (Flow of water from High to Low)

  • Attracted to blood due to ion flow

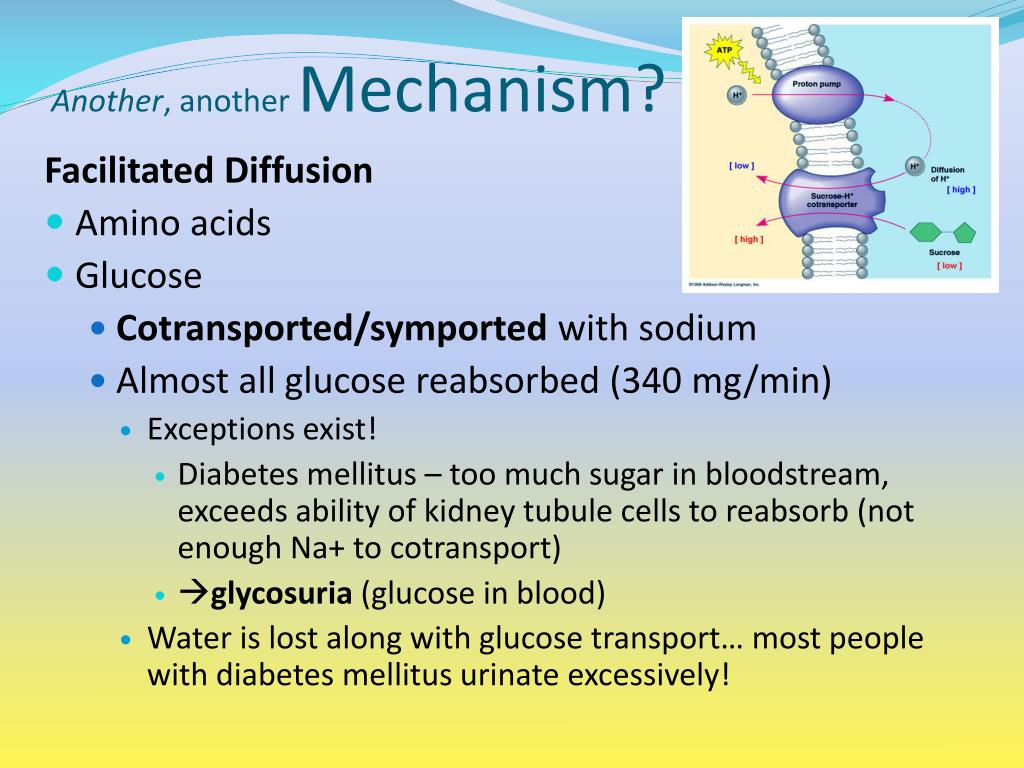

another another mechanism
Another, another Mechanism?

Facilitated Diffusion

  • Amino acids
  • Glucose
    • Cotransported/symported with sodium
    • Almost all glucose reabsorbed (340 mg/min)
      • Exceptions exist!
        • Diabetes mellitus – too much sugar in bloodstream, exceeds ability of kidney tubule cells to reabsorb (not enough Na+ to cotransport)
        • glycosuria (glucose in blood)
      • Water is lost along with glucose transport… most people with diabetes mellitus urinate excessively!

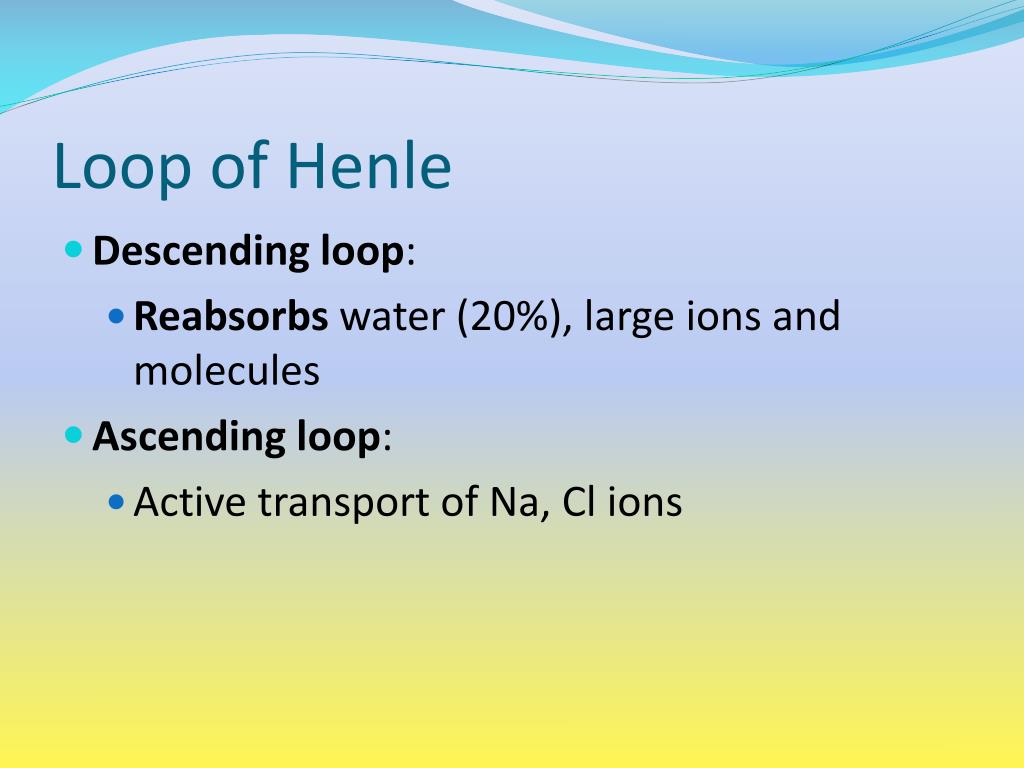

loop of henle
Loop of Henle
  • Descending loop:
    • Reabsorbs water (20%), large ions and molecules
  • Ascending loop:
    • Active transport of Na, Cl ions
water reabsorption
Water reabsorption
  • 90% passive thru osmosis in PCT, descending Loop of Henle, DCT
  • 10% occurs in last parts of DCT, collecting ducts
  • Substances move into urine in distal, collecting tubules from blood in capillaries around tubules
  • “Reabsorption in reverse”
  • Urea, H+, K+ ions, ammonia, drugs
  • (Bold = active transport; non-bold = diffusion)
  • Regulated by hormones
    • Antidiuretic hormone (ADH) – increases water reabsorption from collecting duct into bloodstream
    • Angiotensin II – constricts efferent, systemic arterioles – alters filtration rate, increases pressures
    • Aldosterone – Produced by adrenal cortex; retains sodium, excretes potassium – raises blood pressure by incr. water absorption in DCT, Collecting duct
  • Affected by other substances
    • Diuretic (causes great outflow of urine)
      • Caffeine –decreases Na+ absorption, causing diuresis
      • Lasix – works on Loop of Henle, producing massive diuresis
