Session 1 – Introduction to Information Security

1. Session 1 – Introduction to Information Security ITEC 4100, Fall 2007, D Chan

2. Security Objectives • Confidentiality (includes privacy) • Integrity • Availability ITEC 4100, Fall 2007, D Chan

3. Security Processes • Identification • Authentication • Authorization • Logging • Monitoring ITEC 4100, Fall 2007, D Chan

4. Common Security Measures • Password • Two-factor authentication • Biometrics • Access control lists for granting authorization to information • Locks • Encryption • Anti-virus • Usage and rejection reports ITEC 4100, Fall 2007, D Chan

5. Passwords • Should not be shared • Should be changed by user • Should be changed frequently and upon compromise (suspected unauthorized disclosure) ITEC 4100, Fall 2007, D Chan

6. Passwords • Long, at least 8 characters • Alphanumeric • Hashed (one-way scrambling) • System should allow only a few attempts before locking out account ITEC 4100, Fall 2007, D Chan

7. Passwords • An 8-letter password is 676 times stronger than a 6-letter password. • A 6-character alphanumeric password is 6 times stronger than a 6-letter password. • Strength should depend on user’s privilege and locality of system. ITEC 4100, Fall 2007, D Chan

8. Two-factor Authentication • Used to compensate for the inherent weaknesses of passwords, i.e., guessing and hacking. • Uses what the user has and what the user knows. • Examples are to use a token with a dynamic password and ATM. ITEC 4100, Fall 2007, D Chan

9. Biometrics • Can include fingerprint, hand geometry, voice etc. • Held back by privacy concerns. • Not recognised legally in place of signature ITEC 4100, Fall 2007, D Chan

10. Operating System Security • Use a standard checklist for configuration • Implement vendor updates • Use scanning software to detect vulnerabilities before implementation and periodically ITEC 4100, Fall 2007, D Chan

11. Firewall • Can be hardware based only, e.g., a router. • Can be a server with sophisticated software, more granular and reliable than a router, provides better logs. • Can use artificial intelligence to check for patterns. ITEC 4100, Fall 2007, D Chan

12. Firewall • Every organization that hosts a web site should have a firewall to protect its internal network from hackers • The firewall would block traffic that is definitely unacceptable. ITEC 4100, Fall 2007, D Chan

13. Firewall • A typical firewall uses rules to determine whether traffic is acceptable, e.g., port scanning is not allowed by some organizations. • A data packet typically consists of a source Internet Protocol (IP) address, a port and a destination Internet Protocol address. ITEC 4100, Fall 2007, D Chan

14. Firewall • A port is a logical connection point in a network device including a computer. • It is used to standardize Internet traffic, e.g., web browsing uses port 80, e-commerce uses port 443. ITEC 4100, Fall 2007, D Chan

15. Virus Protection • Companies around the world spend about US $20 billion a year to clean up viruses • All critical servers are protected • All internet email is scanned • Automated identification of workstations that do not have up-to-date signature files • Organizations should block common virus file types to be proactive ITEC 4100, Fall 2007, D Chan

16. Virtual Private Network • To secure remote access to company systems by staff or contractors. • Should require two-factor authentication. • Encrypted traffic, bypasses firewall, secure tunnel should end at another firewall with traffic decrypted. ITEC 4100, Fall 2007, D Chan

17. Intrusion Detection System • Installed at critical points of a network to inspect incoming and outgoing traffic for anomalies and malicious messages. • Alerts systems administrators to take pre-emptive or corrective actions. ITEC 4100, Fall 2007, D Chan

18. Intrusion Prevention System • Combines firewall and intrusion detection technologies. • Rejects highly questionable or unacceptable traffic. • More effective than firewalls but may have false positive. ITEC 4100, Fall 2007, D Chan

19. Encryption • Uses mathematics to scramble data. • Uses a key and an algorithm . Commercial algorithms are public knowledge. • Symmetric key. • Asymmetric keys (private/public key pair). ITEC 4100, Fall 2007, D Chan

20. Symmetric Key Encryption • The same key is used to decrypt and encrypt • Simple to encrypt and decrypt • Large number of keys required for one-on-one secret communication • Number of keys for N people is N(N-1)/2 • Need to secure the key ITEC 4100, Fall 2007, D Chan

21. Asymmetric Encryption • A pair of key is generated by a user, a private key and a corresponding public key. • The public key can be disclosed. The private key is secured. • People can use the public key to encrypt material. ITEC 4100, Fall 2007, D Chan

22. Asymmetric Encryption • The corresponding private key is needed to decrypt. • The 2 keys cannot be reengineered, i.e., you cannot use the public key to derive the private key. • Longer keys than symmetric and therefore a longer process to encrypt and decrypt. ITEC 4100, Fall 2007, D Chan

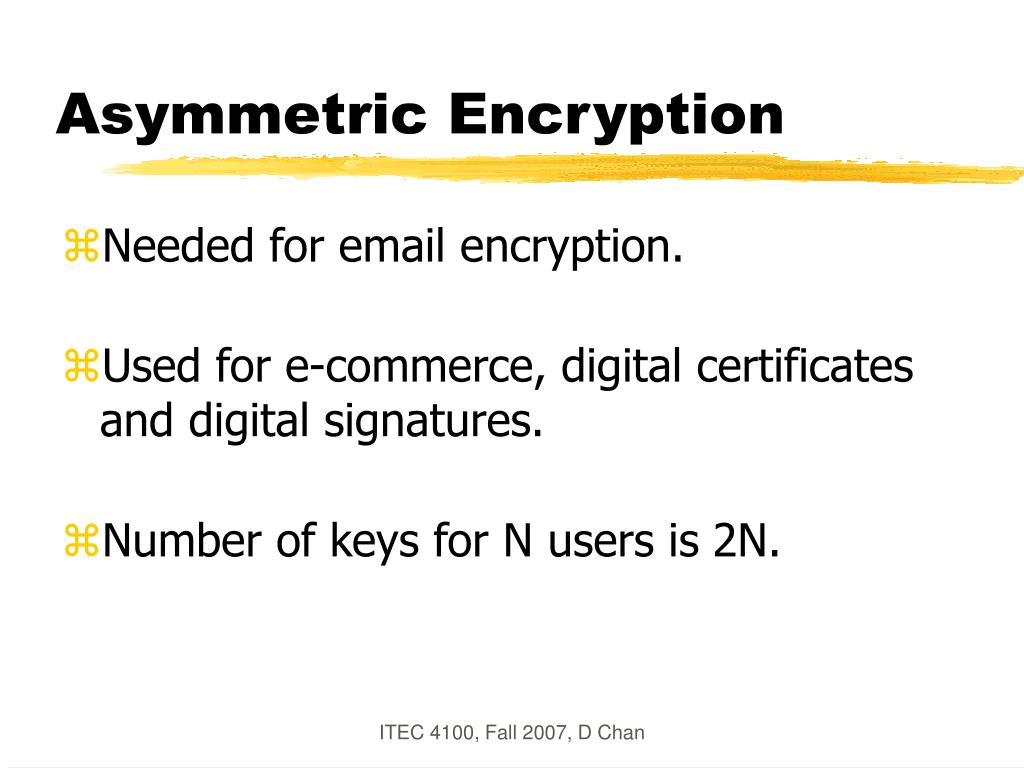

23. Asymmetric Encryption • Needed for email encryption. • Used for e-commerce, digital certificates and digital signatures. • Number of keys for N users is 2N. ITEC 4100, Fall 2007, D Chan

24. Digital Signature • A digital signature is an electronic signature that can be used to authenticate the identity of the sender of a message or the signer of a document, and to ensure that the original content of the message or document that has been sent is unchanged. ITEC 4100, Fall 2007, D Chan

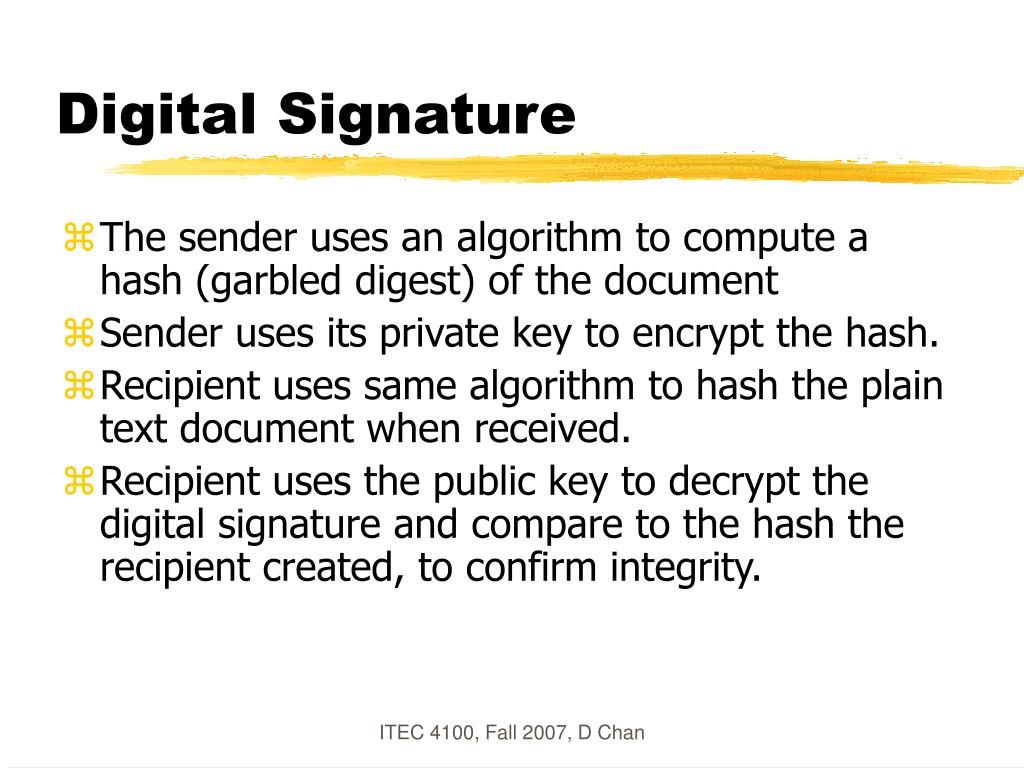

25. Digital Signature • The sender uses an algorithm to compute a hash (garbled digest) of the document • Sender uses its private key to encrypt the hash. • Recipient uses same algorithm to hash the plain text document when received. • Recipient uses the public key to decrypt the digital signature and compare to the hash the recipient created, to confirm integrity. ITEC 4100, Fall 2007, D Chan

26. Digital Certificate • An electronic business card that establishes your credentials when doing business or other transactions on the Web. • It is issued and digitally signed by a certification authority. It contains your name, a serial number, expiration dates, the certificate authority’s name and public key, and your public key. • People can use the certificate authority’s public key to verify the signature. ITEC 4100, Fall 2007, D Chan

27. Certificate Authority • An organization that issues digital certificates to companies and individuals • An organization can issue digital certificates to its own customers or employees to authenticate local transactions • The certificate authority will do due diligence to confirm the existence and authenticity of the party before issuing a certificate. ITEC 4100, Fall 2007, D Chan

28. E-commerce Encryption • Uses both symmetric keys and asymmetric keys • Enforced by the merchant • Merchant sends its certificate and public key to the browser ITEC 4100, Fall 2007, D Chan

29. E-commerce Encryption • Browser generates a symmetric key • Browser encrypts the symmetric key with the merchant’s public key • Browser authenticates the digital certificate • Encrypted symmetric key is sent to merchant ITEC 4100, Fall 2007, D Chan

30. E-commerce Encryption • Merchant decrypts the symmetric key with its private key • The symmetric key is used for all subsequent transfer of information between the 2 parties until the user logs off. ITEC 4100, Fall 2007, D Chan

31. Email Encryption • Sender uses the recipient’s public key to encrypt the message • Sender signs the message with own private key • Recipient uses own private key to decrypt message • Recipient uses sender’s public key to authenticate the digital signature ITEC 4100, Fall 2007, D Chan

32. Conclusion • Security is increasingly important because of e-commerce. • Security is the responsibility of every employee. • Organizations should designate a chief information security officer to coordinate. ITEC 4100, Fall 2007, D Chan
