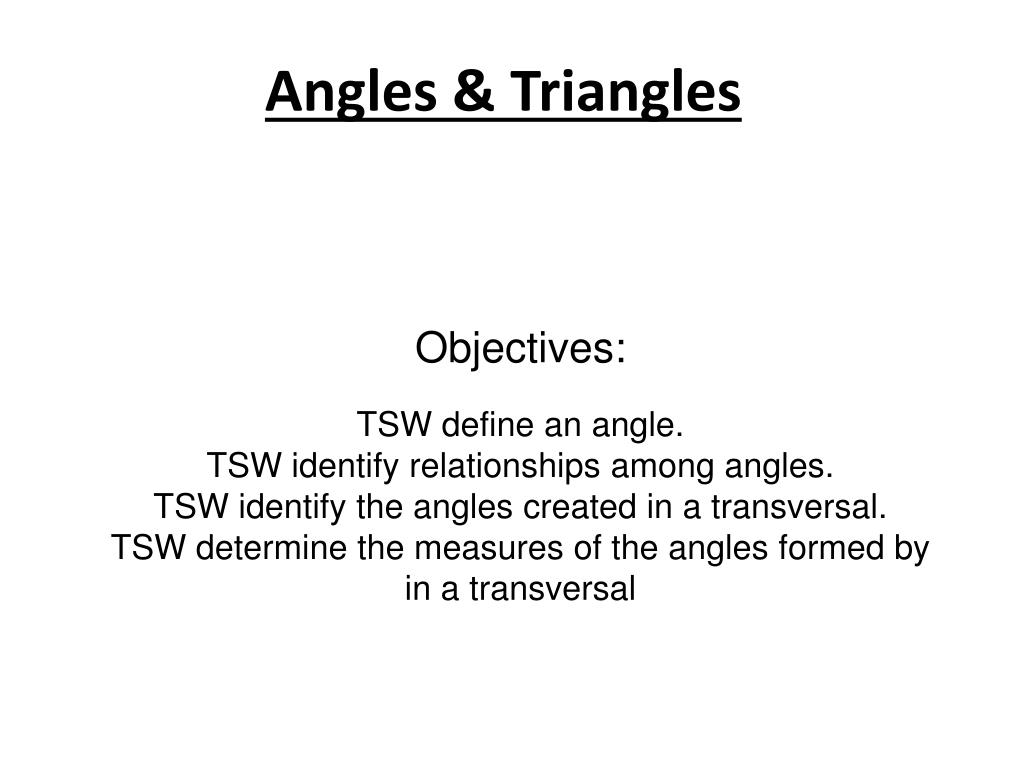

  1. Angles & Triangles Objectives: TSW define an angle. TSW identify relationships among angles. TSW identify the angles created in a transversal. TSW determine the measures of the angles formed by in a transversal

  2. The point about which an angle is measured is called the angle's vertex • If two angles have the same vertex and share the same side between, then the angles are called adjacent angles.

  3. Measuring Angles • Align the baseline of the protractor with one side of the angle and move the protractor left or right as necessary to place the angle vertex under the origin at the center of the baseline.

  4. Complementary & Supplementary • Complementary – the sum of the measures of two angles is 90º • Supplementary – the sum of the measures of two angles is 180º

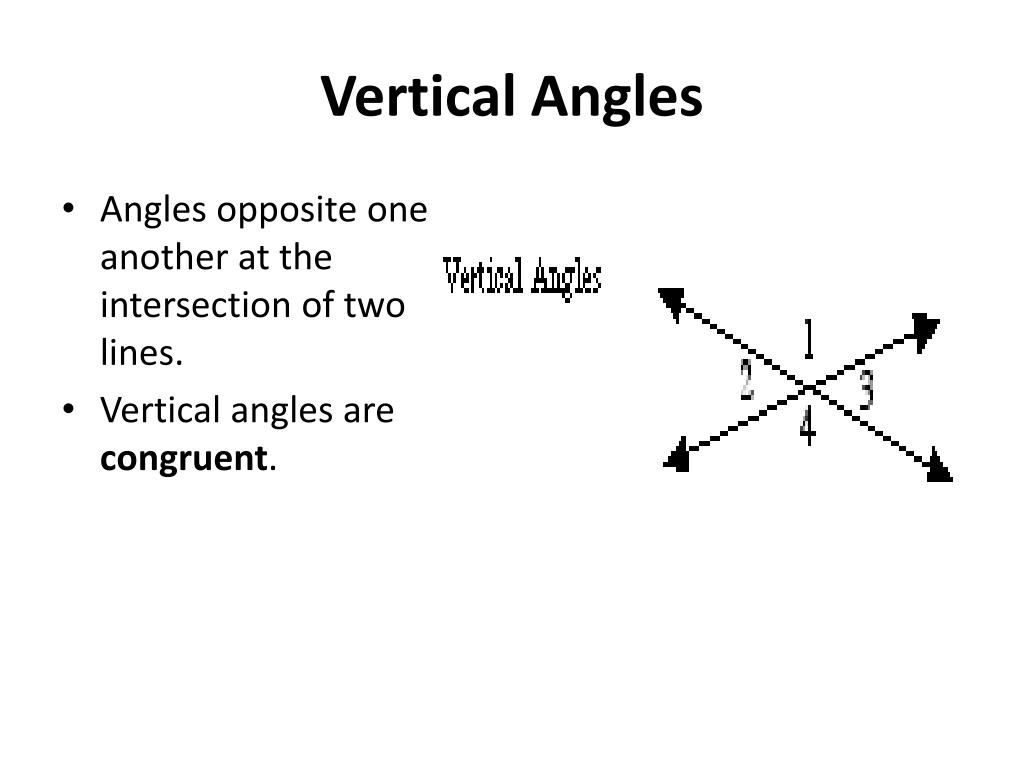

  5. Vertical Angles • Angles opposite one another at the intersection of two lines. • Vertical angles are congruent.

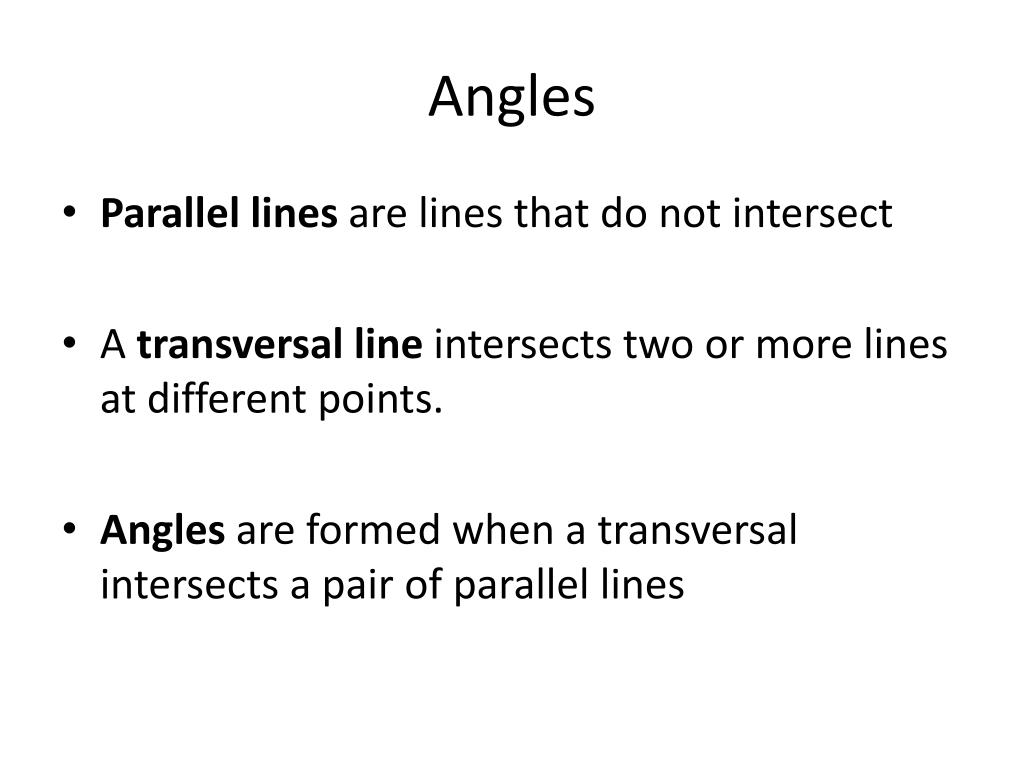

  6. Angles • Parallel lines are lines that do not intersect • A transversal line intersects two or more lines at different points. • Angles are formed when a transversal intersects a pair of parallel lines

  7. 1 2 a 3 4 5 6 b 8 7 c • Line A and B are parallel : Line C is a transversal. • Angles 3,4,5, and 6 are interior angles because they are between the parallel lines. • Angles 3 and 6 are alternate interior angles, as well as angles 4 and 5.

  8. Exterior angles are angles on the outer sides of two lines cut by a transversal. (Ex. Angles 1, 2, 7, and 8) • An alternate exterior angle is a pair of angles on the outer sides of two lines cut by a transversal, but on opposite sides of a transversal (Ex. Angles 1 and 8, angles 2 and 7)

  9. Corresponding angles are angles that are in the same relative position compared to the two different parallel lines. Ex: 2 and 6, 4 and 8, 1 and 5, 3 and 7. • The measure of corresponding angles and alternate interior angles are equal. • Adjacent angles combine to form a straight line measuring 180º. • Adjacent angles are called supplementary angles. Ex: 1 and 2, 1 and 7

  10. Identify each pair of angles as corresponding, alternate interior, alternate exterior.

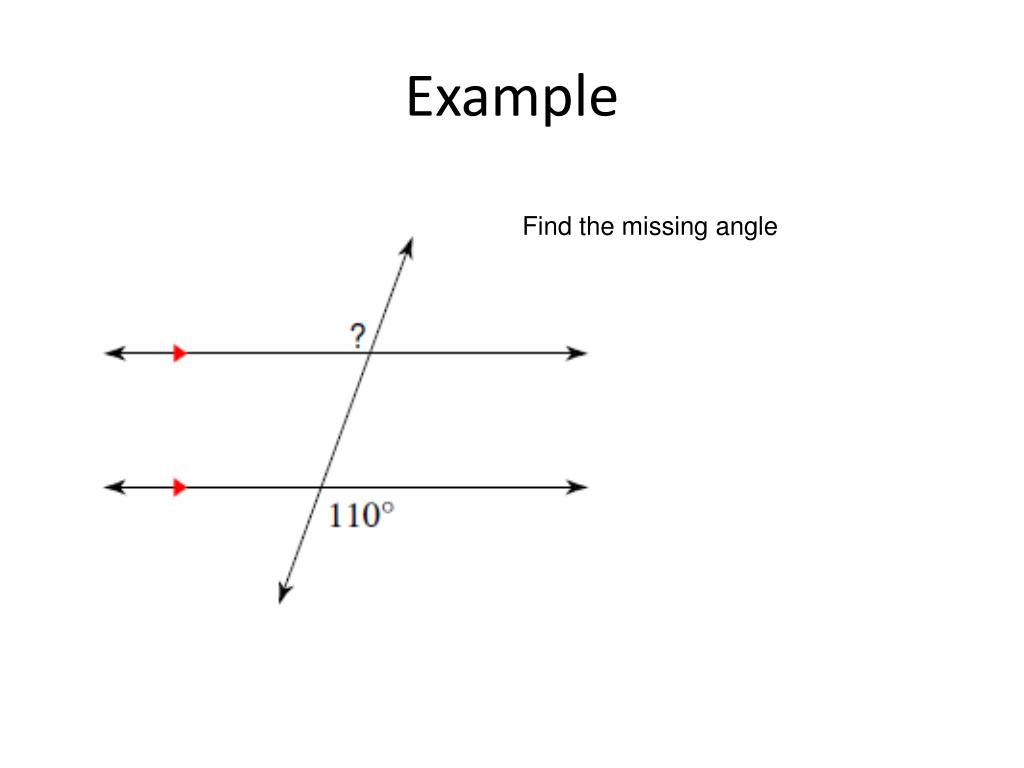

  11. Example Find the missing angle

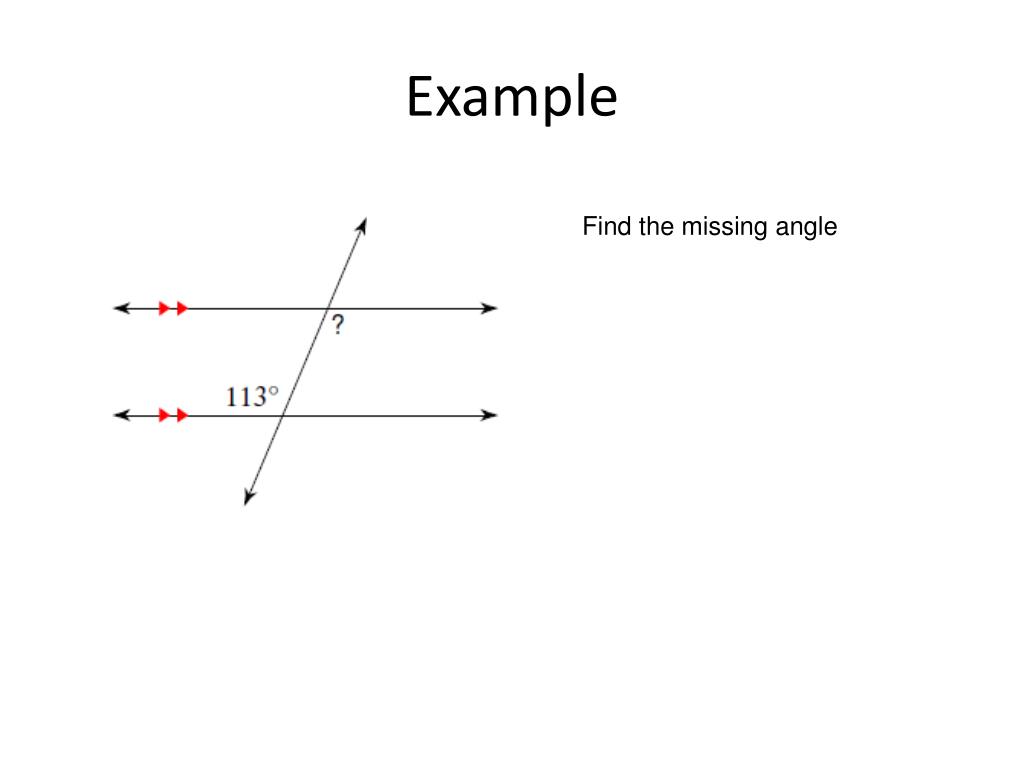

  12. Example Find the missing angle

  13. Example Find the missing angle

  14. Example Find the value of x

  15. Example Find the value of x

  16. Example Find the value of x

  17. Example • Find x and y. x 75º 5y Solution: X + 5y= 180º Supplementary angles 75º + 5y = 180º Substituted 5y = 105º sub. 75 from both sides y=21º divided both sides by 5

  18. Transversal Practice • http://teacherweb.com/TX/tagmagnet/OpokuMath/Geometry-Pre-AP-M3-Worksheets.pdf • http://www.kutasoftware.com/FreeWorksheets/GeoWorksheets/3-Parallel%20Lines%20and%20Transversals.pdf • http://central.spps.org/uploads/13_parallel_lines_and_transversals_problems_2.pdf

  19. Objectives • TSW define a triangle. • TSW categorize the different types of triangles. • TSW identify relationships among triangles.

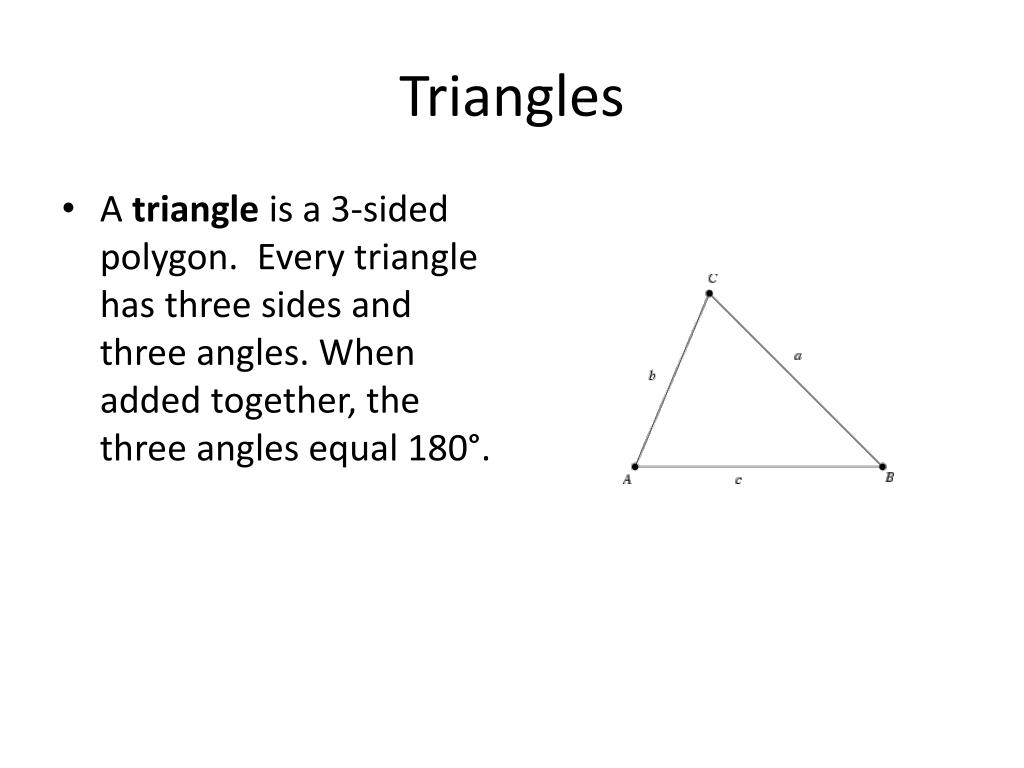

  20. Triangles • A triangle is a 3-sided polygon. Every triangle has three sides and three angles. When added together, the three angles equal 180°.

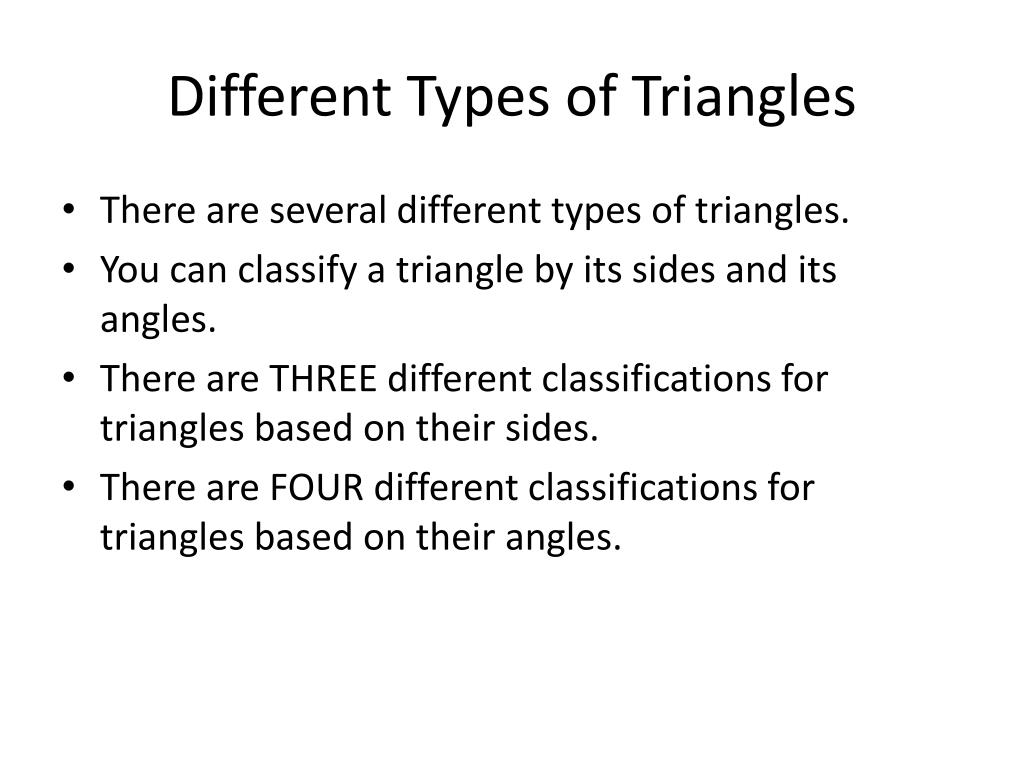

  21. Different Types of Triangles • There are several different types of triangles. • You can classify a triangle by its sides and its angles. • There are THREE different classifications for triangles based on their sides. • There are FOUR different classifications for triangles based on their angles.

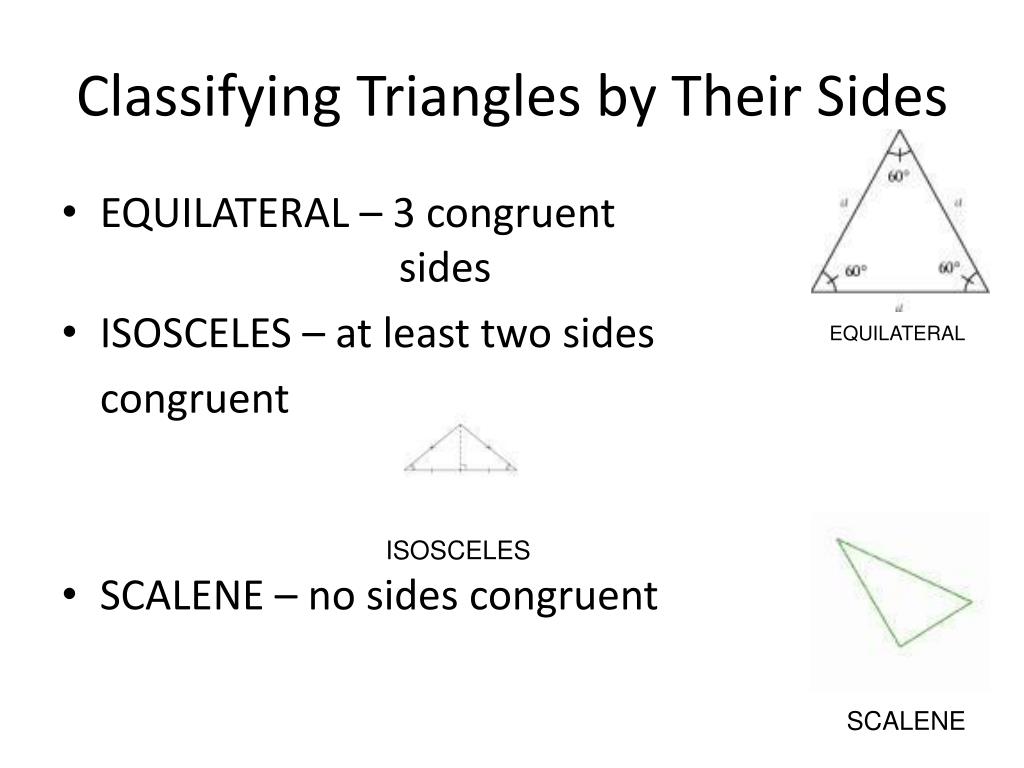

  22. Classifying Triangles by Their Sides • EQUILATERAL – 3 congruent sides • ISOSCELES – at least two sides congruent • SCALENE – no sides congruent EQUILATERAL ISOSCELES SCALENE

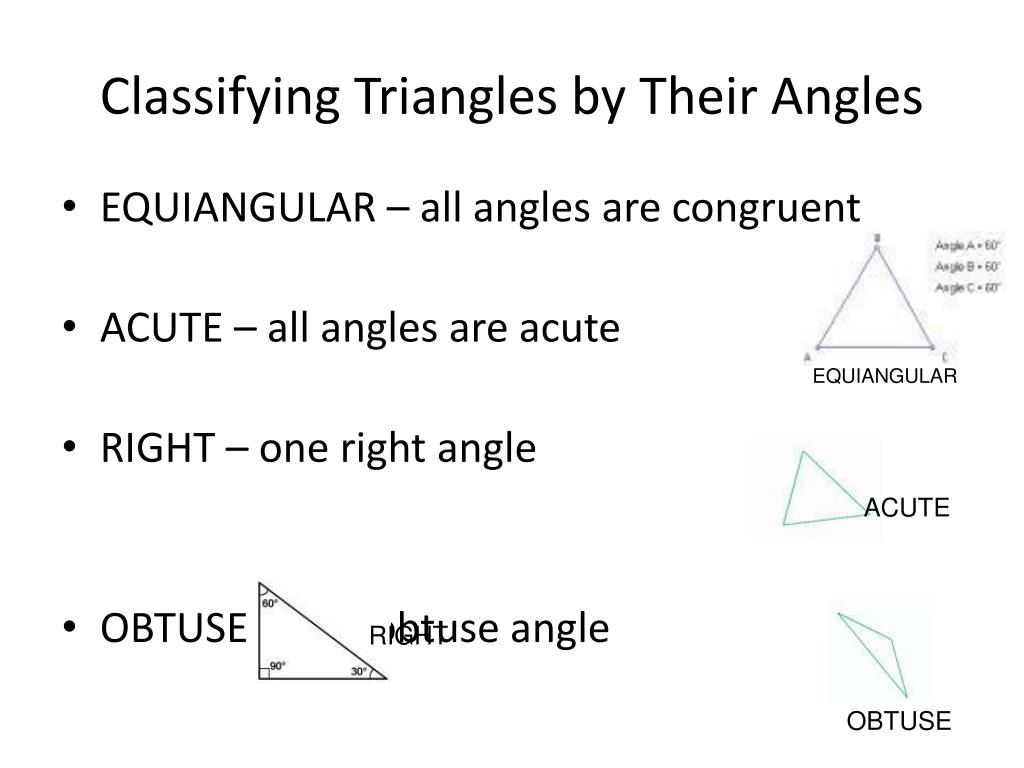

  23. Classifying Triangles by Their Angles • EQUIANGULAR – all angles are congruent • ACUTE – all angles are acute • RIGHT – one right angle • OBTUSE – one obtuse angle EQUIANGULAR ACUTE RIGHT OBTUSE

  24. Congruent Triangles • Congruent triangles are triangles whose corresponding angles and sides are congruent.  • They are exactly the same size and shape.

  25. The Hypotenuse • The hypotenuse of a right triangle is the triangle's longest side, i.e., the side opposite the right angle.

  26. Question 1 • If a triangle has three unequal sides it is a ______ triangle. • A) Scalene • B) Obtuse • C) Isosceles

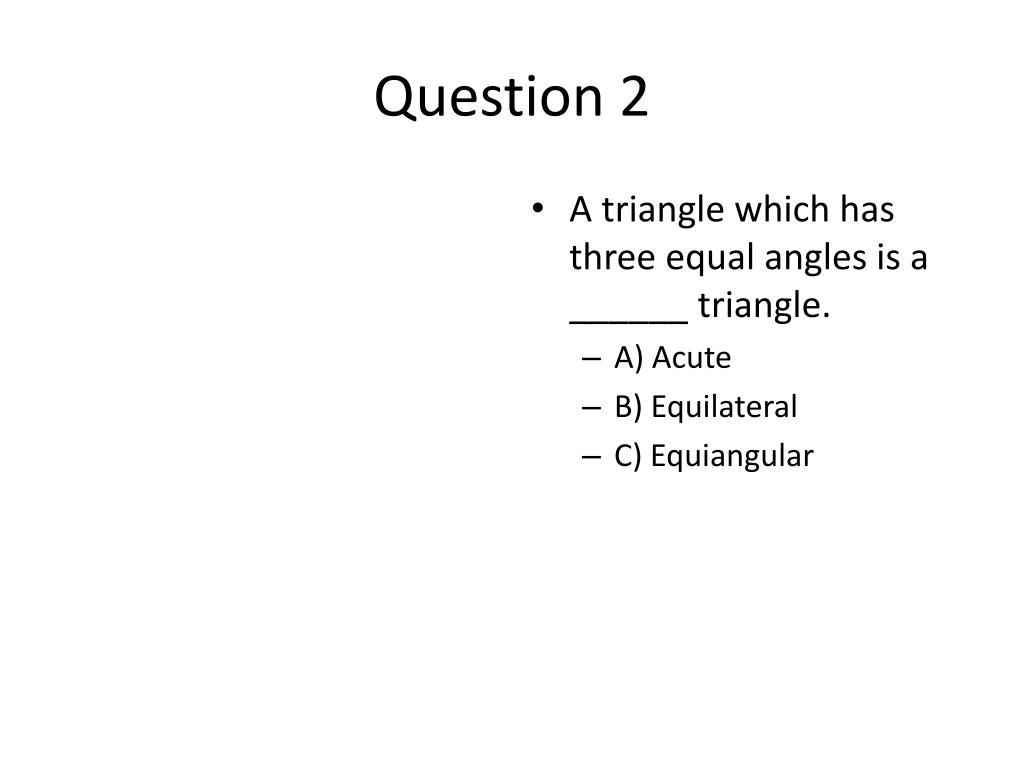

  27. Question 2 • A triangle which has three equal angles is a ______ triangle. • A) Acute • B) Equilateral • C) Equiangular

  28. Question 3 • A triangle with (at least) two equal sides is a ______ triangle. • A) Scalene • B) Isosceles • C) Congruent

  29. Question 4 • Two triangles that are equal are called ______ triangles • A) Acute • B) Obtuse • C) Congruent

  30. Question 5 • A triangle with all three sides of equal length is a ______ triangle. • A) Equilateral • B) Right • C) Equiangular

  31. Question 6 • A triangle with an angle of 90° is a ______ triangle. • A) Acute • B) Right • C) Congruent

  32. Question 7 • A triangle in which all three angles are less than 90° is a ______ triangle. • A) Right • B) Acute • C) Scalene

  33. Question 8 • A triangle in which one of the angles is greater than 90° is a ______ triangle. • A) Obtuse • B) Isosceles • C) Acute

  34. Question 9 • What is the Hypotenuse of a right triangle? • A) The smallest angle. • B) The side opposite the right angle. • C) The right angle.

  35. Answers • 1. A) Equilateral • 2. C) Equiangular • 3. B) Isosceles • 4. C) Congruent • 5. A) Equilateral • 6. B) Right • 7. B) Acute • 8. A) Obtuse • 9. B) The side opposite the right angle.

  36. Objectives • TSW identify Pythagoras and his contributions to math. • TSW identify the parts of a right triangle. • TSW apply the Pythagorean Theorem in order to determine the missing side of a right triangle. • TSW use the Pythagorean Theorem to solve contextual problems • TSW apply the Pythagorean Theorem to determine the distance between two points on a coordinate plane.

  37. Pythagorean Theorem • Pythagoras was a Greek philosopher that was known as “the father of numbers.” • He is best known for the Pythagorean Theorem.

  38. The Right Triangle hypotenuse leg leg Right angle

  39. hypotenuse leg a leg b

  40. hypotenuse leg b leg a

  41. leg a leg b hypotenuse

  42. leg a leg b hypotenuse

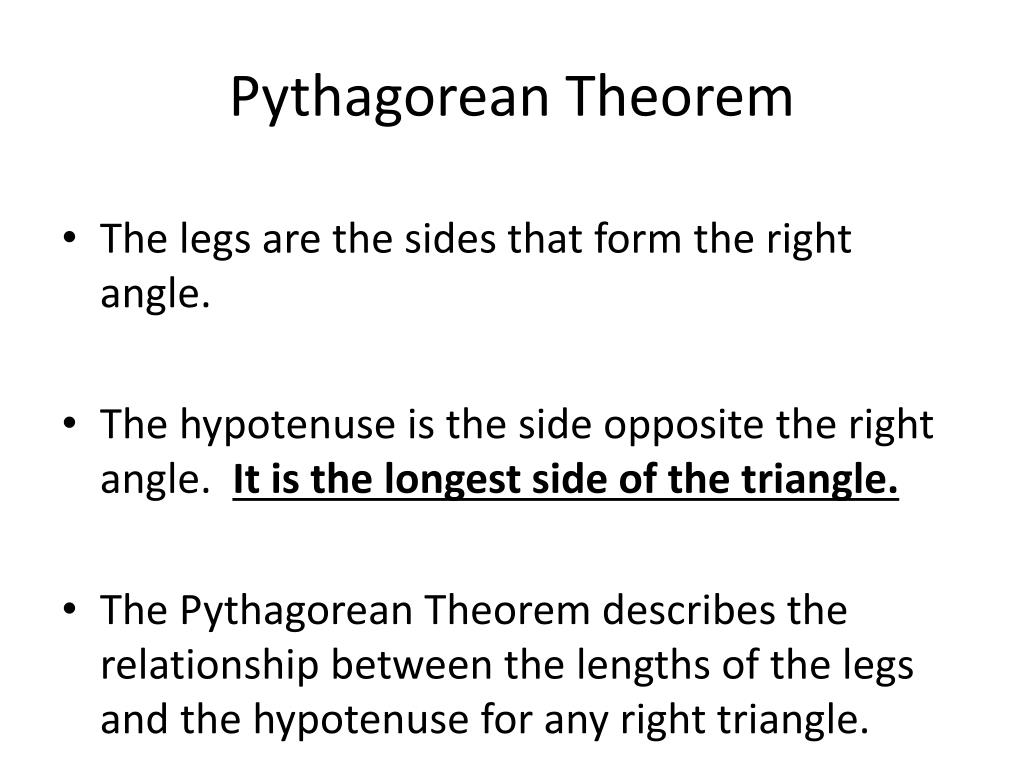

  43. Pythagorean Theorem • The legs are the sides that form the right angle. • The hypotenuse is the side opposite the right angle. It is the longest side of the triangle. • The Pythagorean Theorem describes the relationship between the lengths of the legs and the hypotenuse for any right triangle.

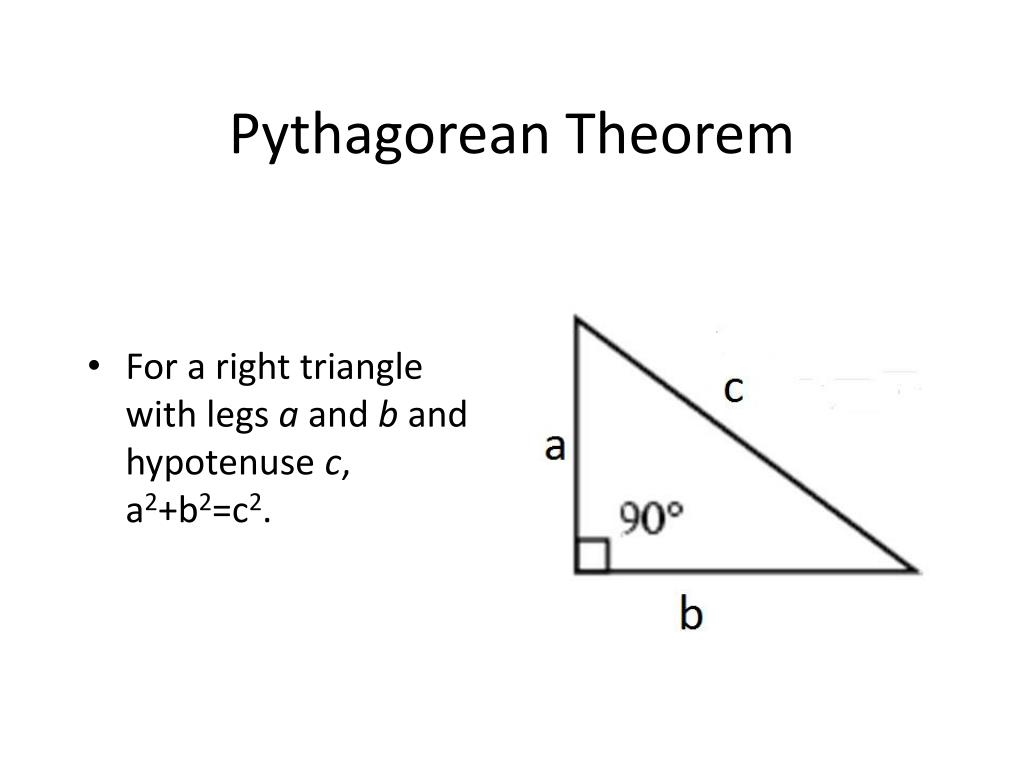

  44. Pythagorean Theorem • For a right triangle with legs a and b and hypotenuse c, a2+b2=c2.

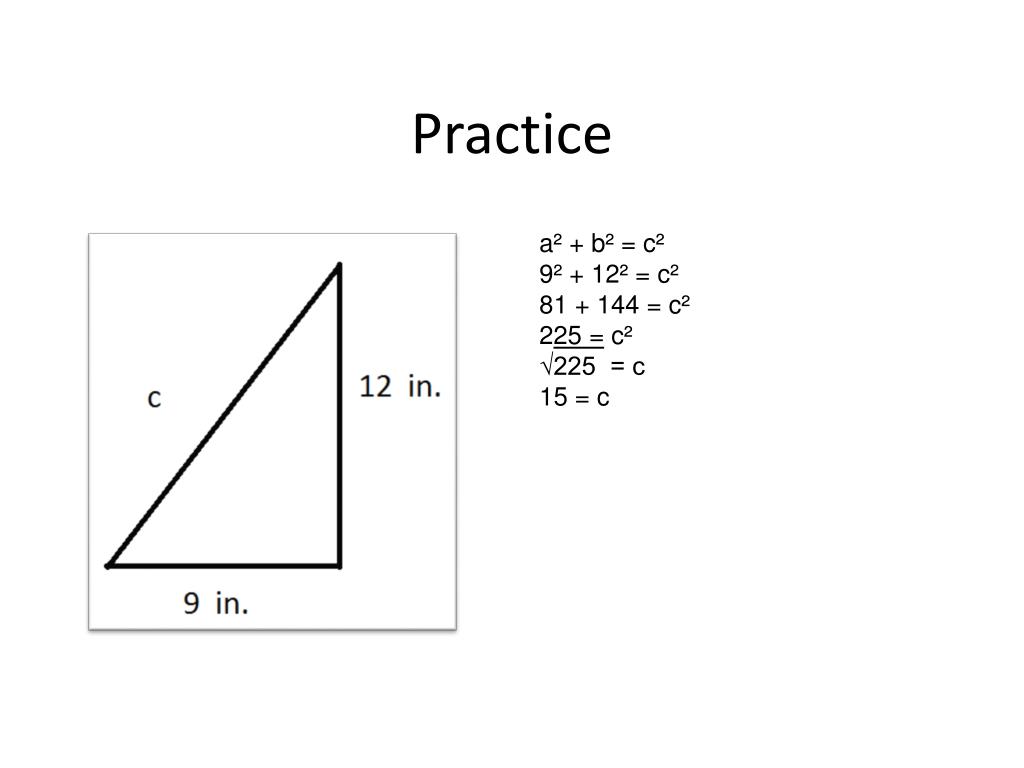

  45. Practice a² + b² = c² 9² + 12² = c² 81 + 144 = c² 225 = c² √225 = c 15 = c

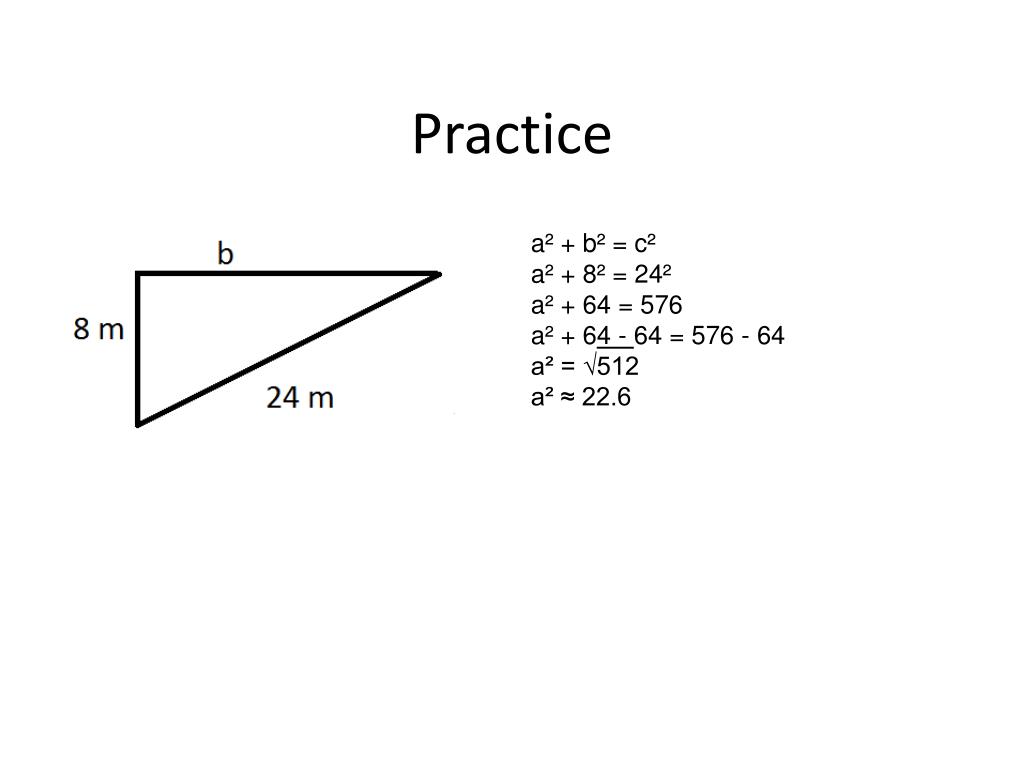

  46. Practice a² + b² = c² a² + 8² = 24² a² + 64 = 576 a² + 64 - 64 = 576 - 64 a² = √512 a² ≈ 22.6

  47. Converse of the Pythagorean Theorem • If you reverse the parts of the Pythagorean Theorem, you have formed its converse. The converse of the Pythagorean Theorem is also true. • If the sides of a triangle have lengths a, b, and c units such that a² + b² = c², then the triangle is a right triangle.

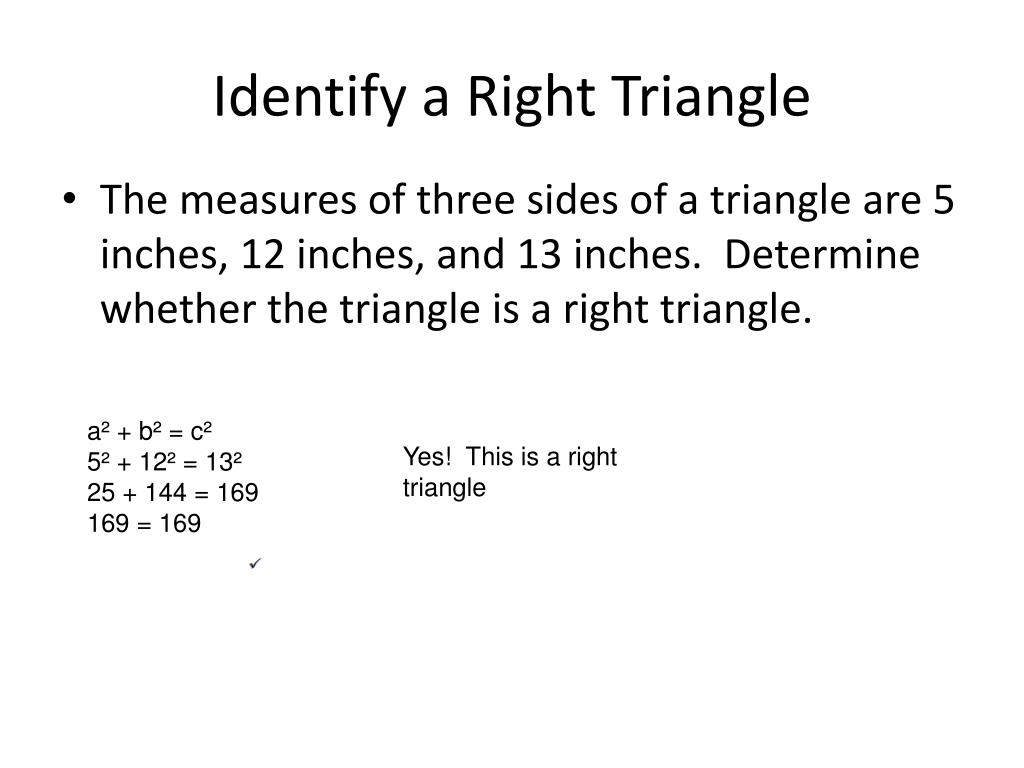

  48. Identify a Right Triangle • The measures of three sides of a triangle are 5 inches, 12 inches, and 13 inches. Determine whether the triangle is a right triangle. a² + b² = c² 5² + 12² = 13² 25 + 144 = 169 169 = 169 Yes! This is a right triangle

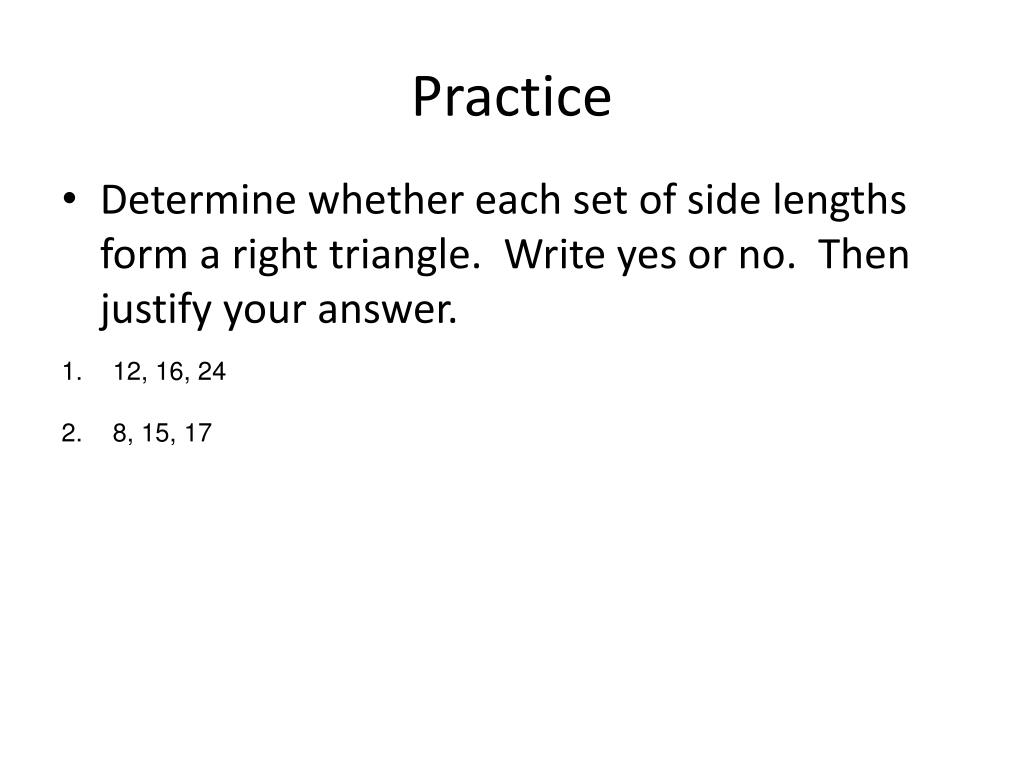

  49. Practice • Determine whether each set of side lengths form a right triangle. Write yes or no. Then justify your answer. • 12, 16, 24 • 8, 15, 17

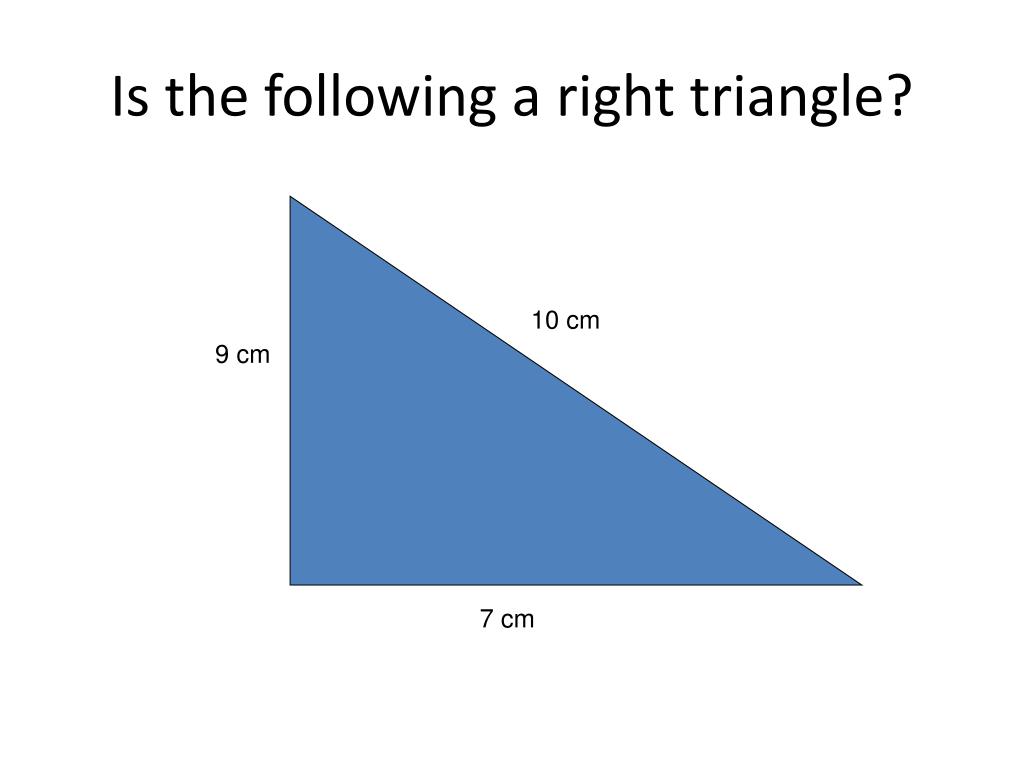

  50. Is the following a right triangle? 10 cm 9 cm 7 cm
