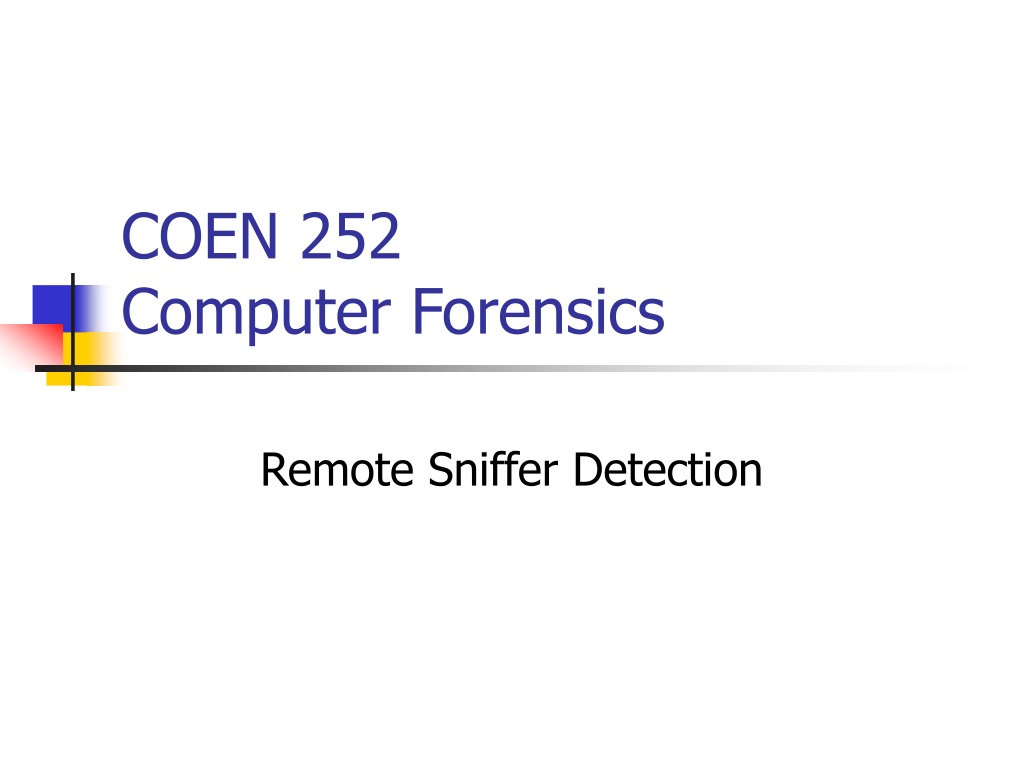

  1. COEN 252 Computer Forensics Remote Sniffer Detection

  2. Sniffer Detection • On the Host • Look for capture files (typically big and growing). • Look for a promiscuous card. • Look for unauthorized connections or processes. Rootkits can prevent sniffers from being detected. • On the Net • Traffic analysis • Traffic injection (probing) Much harder.

  3. Network based Sniffer Detection • Promiscuous mode detection • DNS tests. • Network latency tests. • Trapping

  4. Network based Sniffer Detection • NIC hardware addresses • NIC sets up different filters • Broadcast: receive all broadcast addresses (with MAC ff:ff:ff:ff:ff:ff) • Multicast based on multicast address • All multicasts • Promiscuous: receive all packets.

  5. Promiscuous mode detection • Each Network Interface Card (NIC) has a unique Medium Access Control (MAC) address. • Card in non-promiscuous mode only catches packets with that MAC address.

  6. MAC Promiscuous Mode Detection • Send an echo request to the right IP address but with wrong MAC address. • Only a NIC in promiscuous mode will pick up something with a wrong MAC address. • The “Echo Request” package is passed up the stack to the IP layer. • IP layer answers it.

  7. MAC detection

  8. ARP Detection • Send an arp request with false MAC and correct IP address. • Only promiscuous NIC will pick up package. • Kernel sends ARP reply.

  9. Software Filtering Based Detection • Different OS implement filters differently. • We can try: • Fake broadcasting messages: • FF:FF:FF:FF:FF:FF:FF:FE (Br47): • Last bit missing • FF:FF:00:00:00:00:00:00 (BR16) • Only first 16 bits are the same as for broadcast. • FF:00:00:00:00:00:00:00 (BR8) • F0:00:00:00:00:00:00:00 (BR4)

  10. Software Filtering Based Detection • Different OS implement filters differently. • We can try: • Fake multicasting messages: • 01:00:00:00:00:00:00:00 (Gr) • Only group-bit set. • 01:00:5E:00:00:00:00:00 (M0) • Multicast address zero is usually not used • 01:00:5E:00:00:00:00:01 (M1)(assigned to all) • Multicast address one should be received by all in the test system • 01:00:5E:00:00:00:00:02 (M2)(assigned to different set of nodes) • Multicast address two should not be received by systems in the test group. • 01:00:5E:00:00:00:00:03 (M3)(not registered)

  11. Software Filtering Based Detection Response to various ARP requests. Normal mode: left column, promiscuous mode: right column O legal response, X illegal response, -- no response

  12. Software Filtering Based Detection • ARP requests to fake MAC addresses can determine promiscuous cards in an OS dependent manner. Trabelsi, Rahmani, Kaouech, Frikha: Malicious Sniffing Systems Detection Platform, SAINT ’04.

  13. DNS Detection Technique • Password sniffers (or sniffers not in stealth mode) generate network traffic. • Sniffers use reverse DNS lookup • Because they think they found a password and want to know the system. • Because they want to provide the user with the name of the machines.

  14. DNS Detection Technique

  15. Load Detection Technique • Sniffers are hard on the machine resources. • Sniffer degrades performance when there is a lot of network load. • Hence, generate lots of network load and measure timing.

  16. Load Detection Technique

  17. Round Trip Time Measuring Technique • Experiments show: • Round Trip Times show OS dependent differences of 10% - 40% between normal mode and promiscuous mode. • Allows reliable detection. • Using ICMP messages is less network load dependent.

  18. Bait Technique • Create telnet for a fake telnet server. • With lots of logins + passwords. • Sniffer takes bait. • Telnet attempts to non-existing server. • Works like a honey-pot.
