Presentation Transcript
topics in machine learning

Topics in Machine Learning

4th lecture:

Perceptron

Topics in Machine Learning

definition

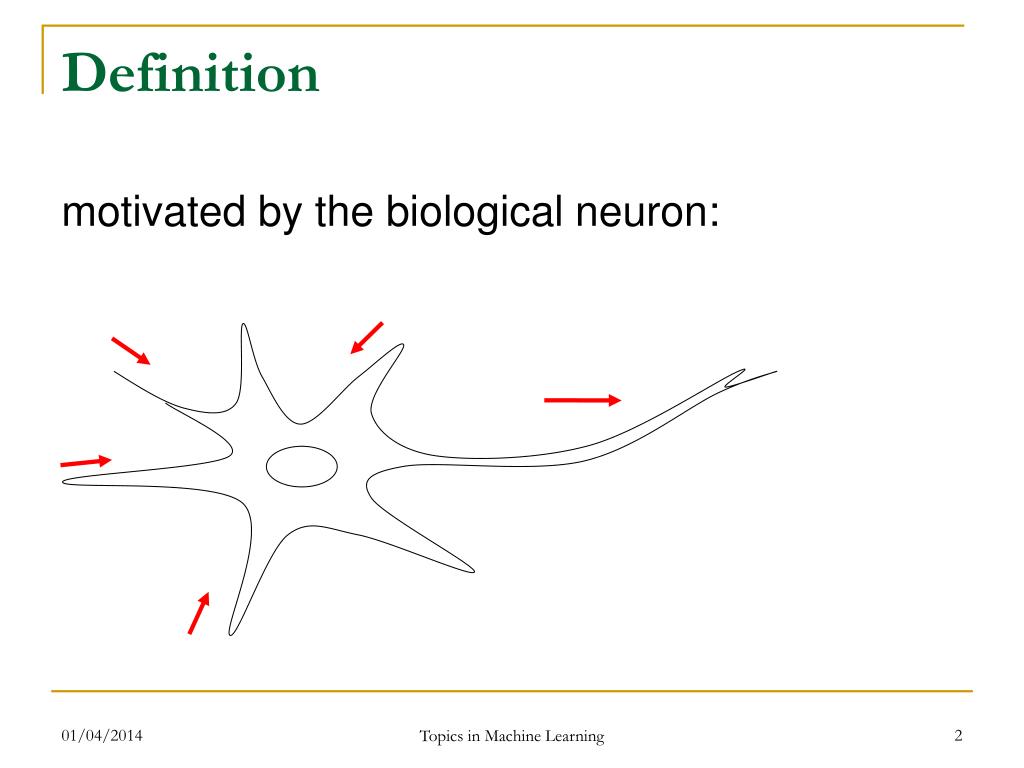

Definition

motivated by the biological neuron:

Topics in Machine Learning

definition3

x1

x2

x3

xn

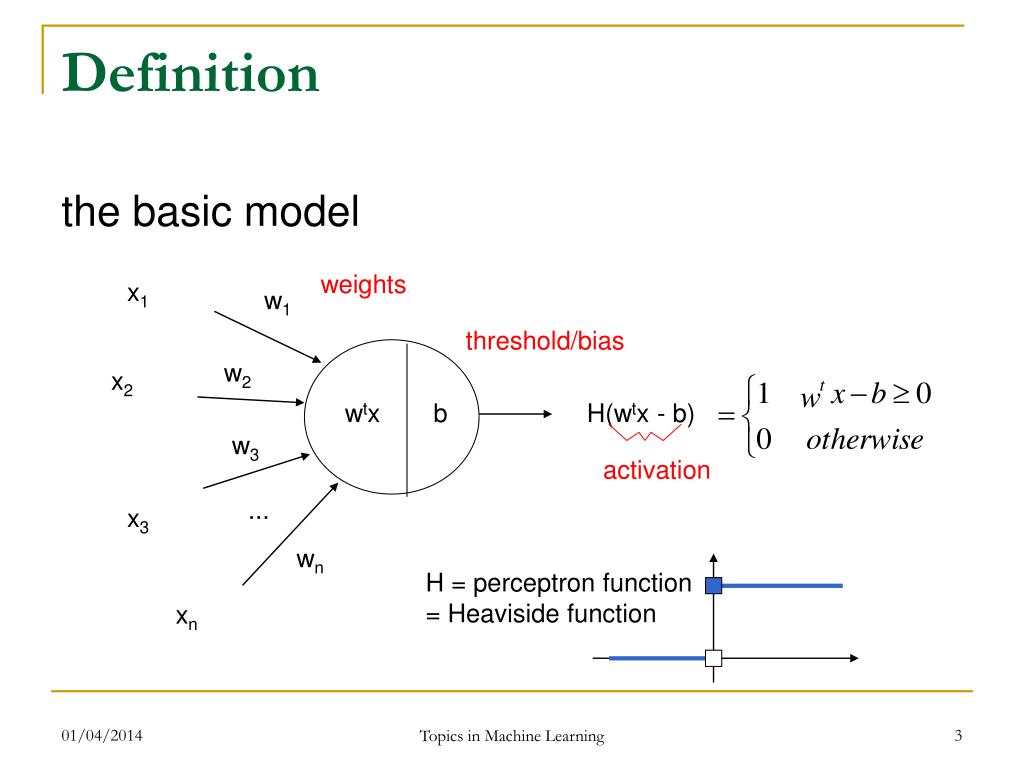

Definition

the basic model

weights

w1

threshold/bias

w2

wtx

b

H(wtx - b)

w3

activation

...

wn

H = perceptron function = Heaviside function

Topics in Machine Learning

definition4
Definition

geometry: linear separation boundary

w

b/w1

b/w2

Topics in Machine Learning

slide5

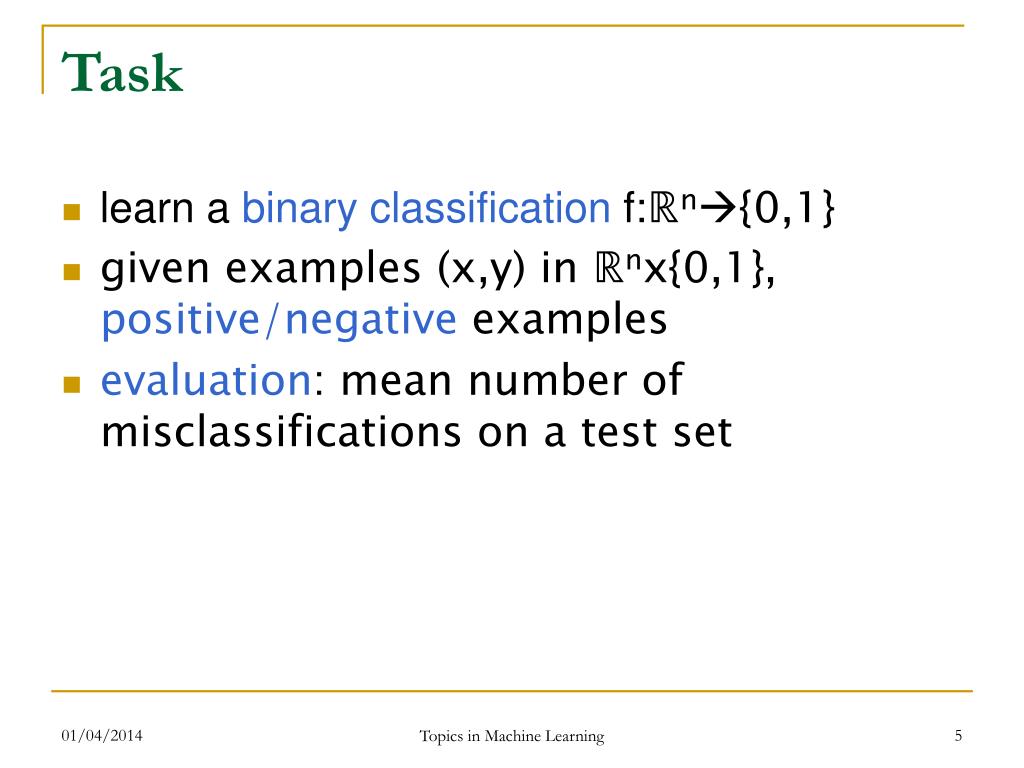

Task
  • learn a binary classification f:ℝn{0,1}
  • given examples (x,y) in ℝnx{0,1}, positive/negative examples
  • evaluation: mean number of misclassifications on a test set

Topics in Machine Learning

some basics

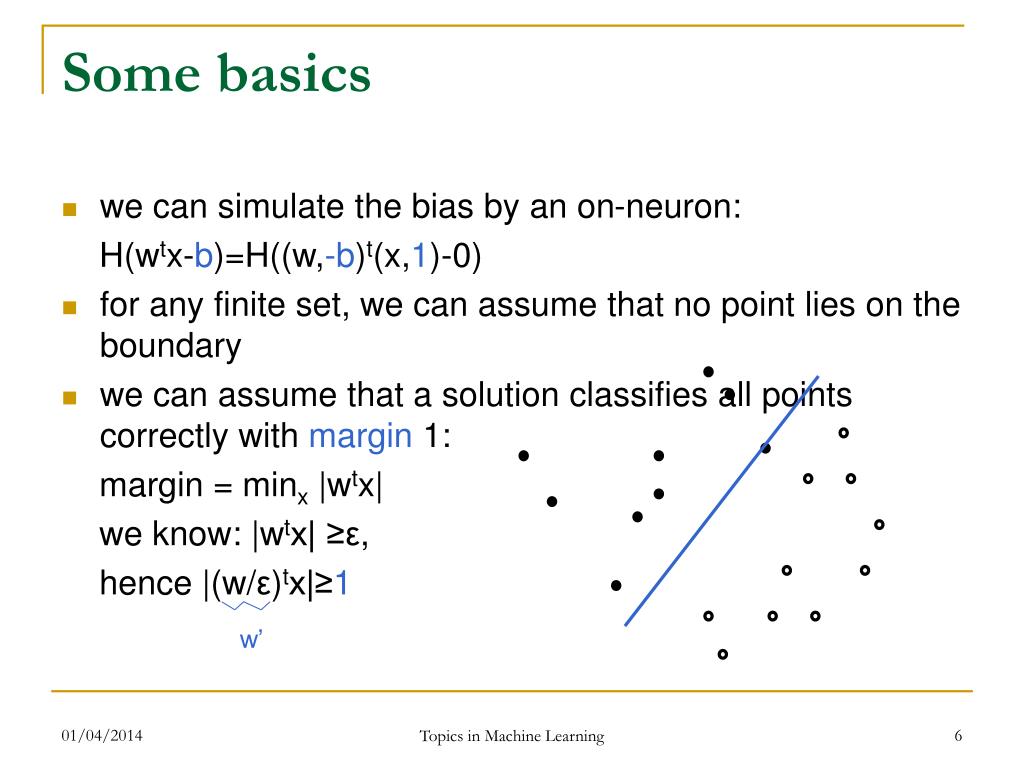

Some basics
  • we can simulate the bias by an on-neuron:

H(wtx-b)=H((w,-b)t(x,1)-0)

  • for any finite set, we can assume that no point lies on the boundary
  • we can assume that a solution classifies all points correctly with margin 1:

margin = minx |wtx|

we know: |wtx| ≥ε,

hence |(w/ε)tx|≥1

w’

Topics in Machine Learning

perceptron learning algorithm
Perceptron learning algorithm

Rosenblatt, 1962

  • simulate the bias as on-neuron
  • define the error signal

init w;

repeat while some x with δ(w,x)≠0 exists:

w := w + δ(w,x)∙x;

example  blackboard

Hebbian learning

Topics in Machine Learning

general
General

Hebbian learning: ( Psychology, D.O.Hebb)

increase the connection strength for similar signals and decrease the strength for dissimilar signals

weight adaptation for the perceptron learning rule for misclassified examples:

w := w + δ(w,x)∙x;

Topics in Machine Learning

perceptron convergence theorem

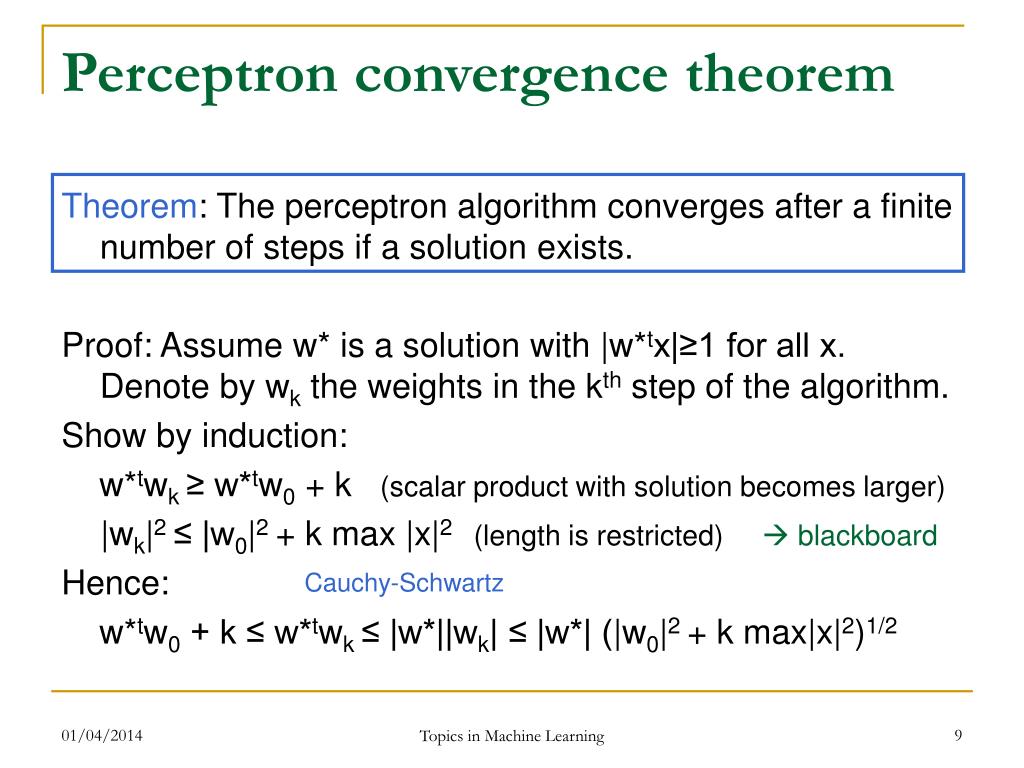

Perceptron convergence theorem

Theorem: The perceptron algorithm converges after a finite number of steps if a solution exists.

Proof: Assume w* is a solution with |w*tx|≥1 for all x. Denote by wk the weights in the kth step of the algorithm.

Show by induction:

w*twk ≥ w*tw0 + k (scalar product with solution becomes larger)

|wk|2 ≤ |w0|2 + k max |x|2 (length is restricted)  blackboard

Hence:

w*tw0 + k ≤ w*twk ≤ |w*||wk| ≤ |w*| (|w0|2 + k max|x|2)1/2

Cauchy-Schwartz

Topics in Machine Learning

perceptron convergence theorem10
Perceptron convergence theorem

This yields two graphs:

w*tw0 + k

|w*| (|w0|2 + k max|x|2)1/2

algorithm converged

k

Topics in Machine Learning

perceptron theory

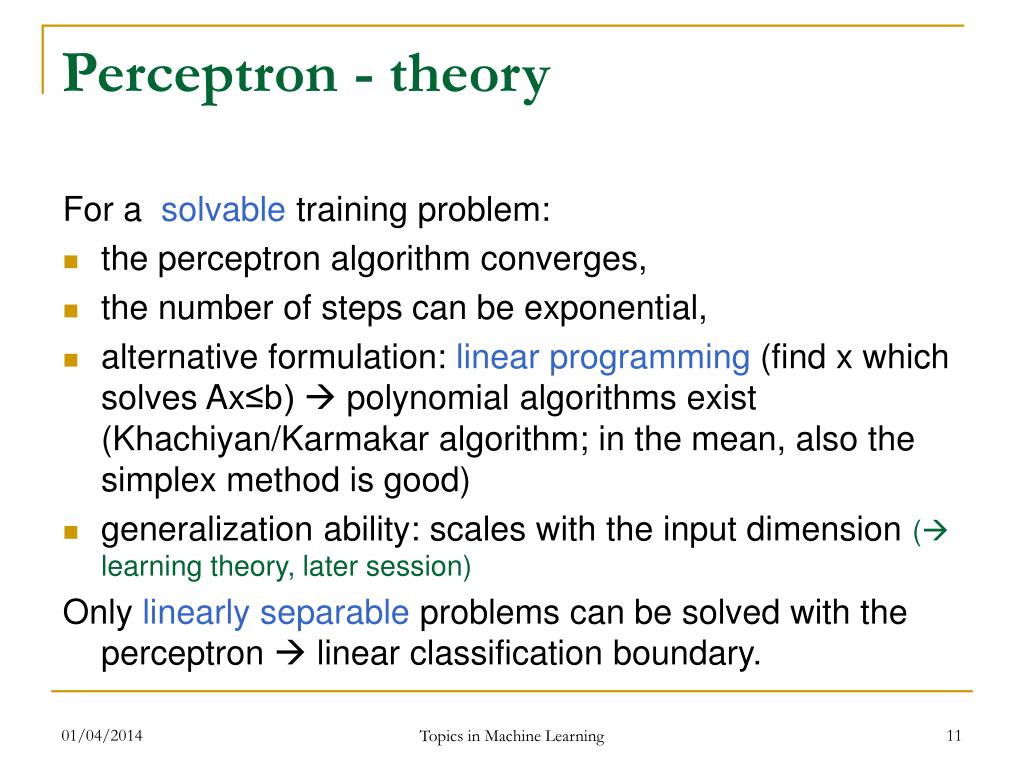

Perceptron - theory

For a solvable training problem:

  • the perceptron algorithm converges,
  • the number of steps can be exponential,
  • alternative formulation: linear programming (find x which solves Ax≤b)  polynomial algorithms exist (Khachiyan/Karmakar algorithm; in the mean, also the simplex method is good)
  • generalization ability: scales with the input dimension ( learning theory, later session)

Only linearly separable problems can be solved with the perceptron  linear classification boundary.

Topics in Machine Learning

perceptron theory12

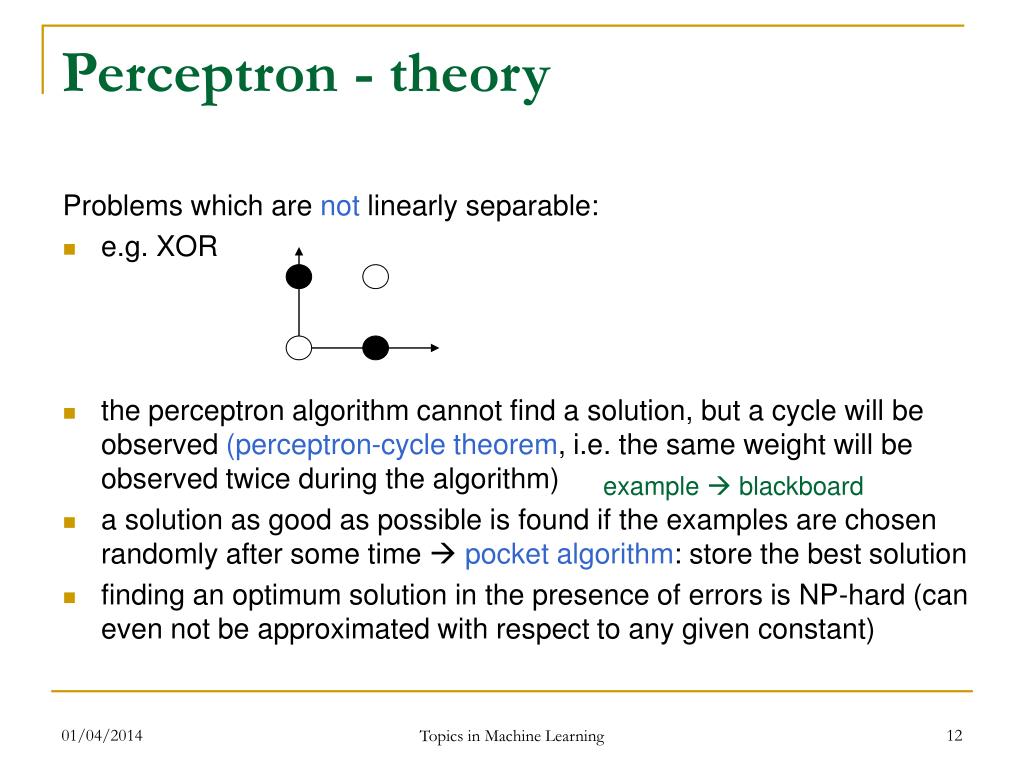

Perceptron - theory

Problems which are not linearly separable:

  • e.g. XOR
  • the perceptron algorithm cannot find a solution, but a cycle will be observed (perceptron-cycle theorem, i.e. the same weight will be observed twice during the algorithm)
  • a solution as good as possible is found if the examples are chosen randomly after some time pocket algorithm: store the best solution
  • finding an optimum solution in the presence of errors is NP-hard (can even not be approximated with respect to any given constant)

example  blackboard

Topics in Machine Learning

perceptron history

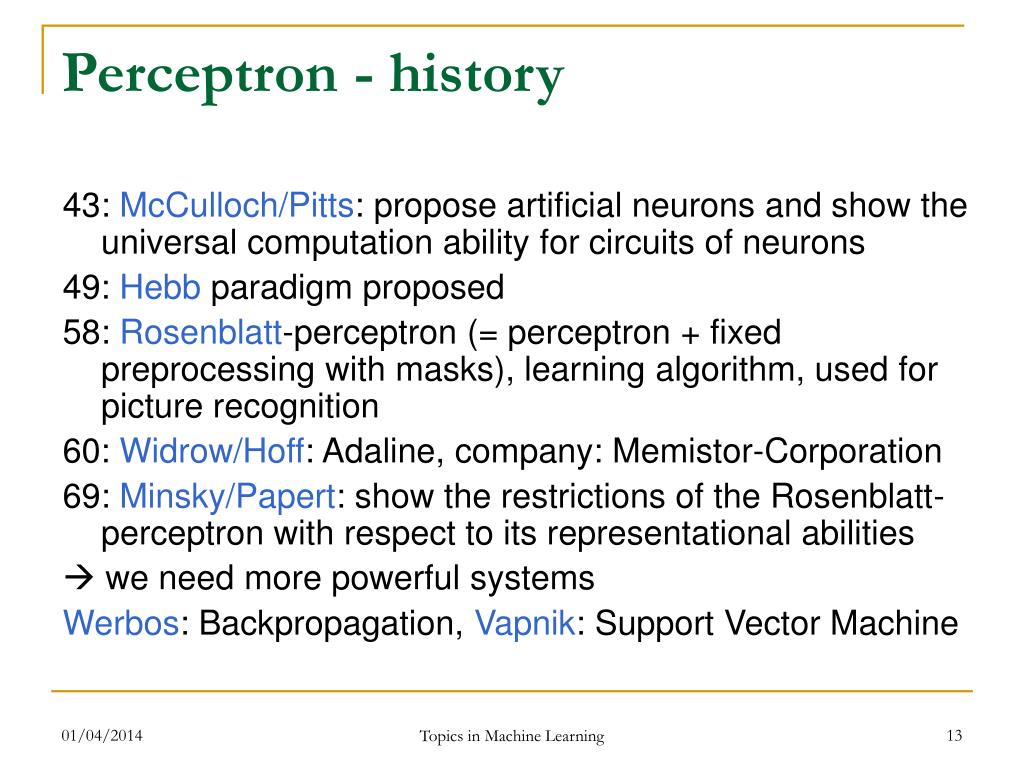

Perceptron - history

43: McCulloch/Pitts: propose artificial neurons and show the universal computation ability for circuits of neurons

49: Hebb paradigm proposed

58: Rosenblatt-perceptron (= perceptron + fixed preprocessing with masks), learning algorithm, used for picture recognition

60: Widrow/Hoff: Adaline, company: Memistor-Corporation

69: Minsky/Papert: show the restrictions of the Rosenblatt-perceptron with respect to its representational abilities

 we need more powerful systems

Werbos: Backpropagation, Vapnik: Support Vector Machine
