Presentation Transcript

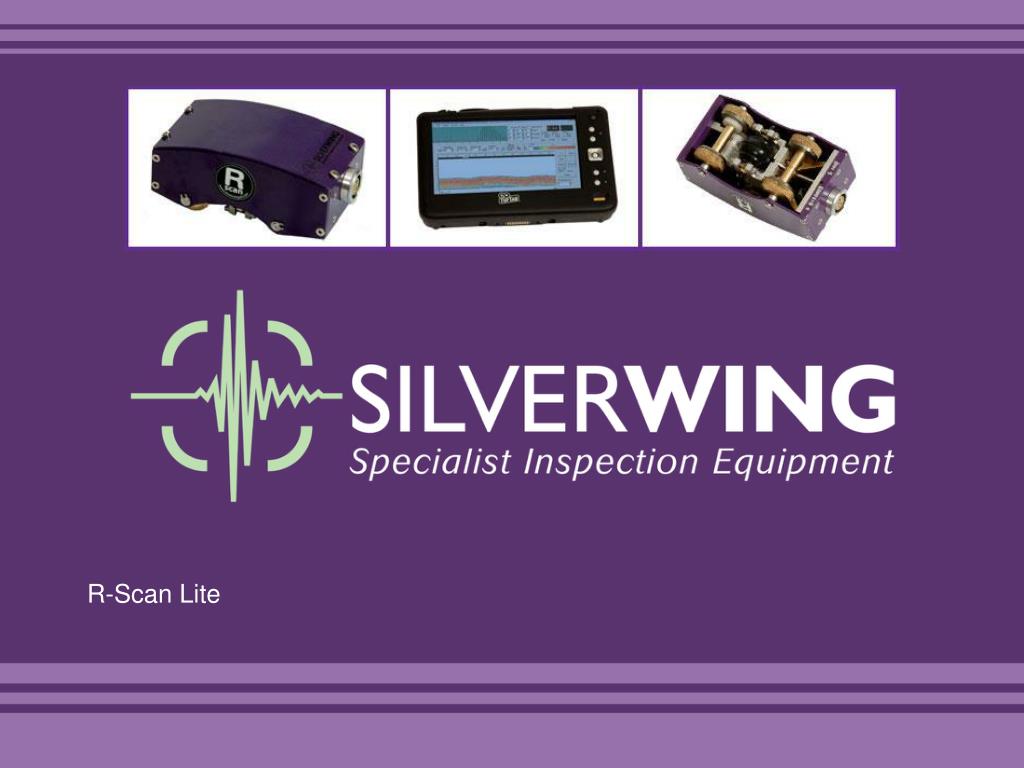

  1. R-Scan Lite

  2. R-Scan Lite Portable Dry-Coupled B-Scan Imaging System

  3. R-Scan Lite • Hand-held dry coupled B-Scan system: • Cost effective • Simple to set up and use • Highly portable • Scan flat plate or pipe-work

  4. R-Scan Lite • Designed for ease of use in the petro-chemical environment

  5. R-Scan Lite • Dry coupled hand held scanner • Suitable for flat plate or pipe down to 50mm diameter

  6. R-Scan lite • Miniaturised 5mhz dry coupled wheel probe • Single axis optical encoder with magnetic contact-wheels

  7. R-Scan Lite • Lightweight 12v UT module • Integral battery • USB 2.0 port for PC connection • Carry case & shoulder strap

  8. R-Scan Lite • Supplied with a 10 inch screen netbook

  9. R-Scan Lite • UT and encoder data is combined in software to present • Thickness measurement • A-scan display • B-scan display

  10. R-Scan Lite • Simplified setup and data collection tools

  11. R-Scan Lite • UT parameters and gate controls are clearly laid out

  12. R-Scan Lite • Powerful data review, reporting and printing tools are built into the software……..

  13. R-Scan Lite • Replay entire scan with active A-scan and B-scan display • Full replay control - rewind, pause, fast forward

  14. R-Scan Lite • Full Printing options • Customisable B-scan colour palette • Export A-scan & B-scans as digital image files: • Export thickness data as .CSV files

  15. R-Scan Lite • Fully featured portable Dry-Coupled B-scan imaging system • Cost effective • Simple to set up and operate • Powerful analysis and reporting tools • Versatile hand-held UT scanner for plate or pipe

  16. www.silverwinguk.com Silverwing NOT OPERATOR DEPENDENT TECHNOLOGY DRIVEN
