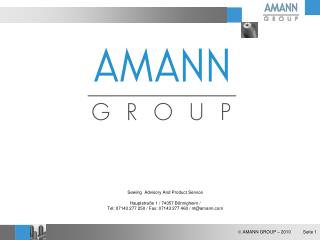

slide1

SewingAdvisory AndProduct Service

Hauptstraße 1 / 74357 Bönnigheim /

Tel: 07143 277 250 / Fax: 07143 277 460 / nt@amann.com

 AMANN GROUP – 2010 Seite 1

slide2
The Advantage of Core Spun Thread compared toSpun Threadregarding the quality of the finished garment

AMANN GROUP 2010

construction of sewing thread
Construction of sewing thread

Spun thread

Core spun thread

Cut fibers

Cut fibers = Spun

Continous filament = core

PES

PES/PES

AMANN GROUP 2010

slide4

The difference of core spun thread Spun thread

Advantages of core spun threads

e.g. Saba C

Advantages of spun threads

  • Smaller diameter than spun threads while having same breaking strength
  • More meters on spool
  • Optimized elongation behavior and less shrinkage (washing, drying)
  • Higher abrasion resistance
  • Less knots and thick places
  • Universal
  • Lower buying price
  • For thick ticket numbers: Used for special effects on decorative stitching

AMANN GROUP 2010

breaking strength
Breaking strength:

Construction of sewing thread

Comparison of core spun threads – spun threads

AMANN GROUP 2010

abrasion resistance based on martindale abrasion testing din 53863 t3
Abrasion resistance (based on Martindale abrasion testing / DIN 53863-T3):

Construction of sewing thread

Comparison of different thread constructions

AMANN GROUP 2010

slide7

The difference of core spun thread Spun thread

ADVANTAGEof core spun threads (e.g. Saba C) compared to spun threads

  • Smaller diameter than spun threads while having same breaking strength
  • smaller needle size can be used – therefore less danger of material damages, especially in knitwear
  • More meters on spool
  • Higher efficiency because of less changes of bobbin

Meters on normal standard bobbins:

Spun thread 120 - app. 70 m

Core spun thread 120, e.g. SabaC 120 – app. 82 m

Core spun thread 150, e.g. SabaC 150 – app. 113 m

AMANN GROUP 2010

slide8

The difference of core spun thread Spun thread

ADVANTAGE

of core spun threads (e.g. Saba C) compared to spun threads

  • Optimized elongation behavior and less shrinkage (washing, drying)
  • Less problems with seam puckering in very fine and delicate fabrics
  • Higher abrasion resistance
  • Less problems with damaged seams in case of washing procedures of Jeans or “gone” seams on very exposed seams
  • Higher efficiency because core spun threads (SabaC) can stand the strain of high speed sewing machines without thread breakages

AMANN GROUP 2010

slide9

The difference of core spun thread Spun thread

ADVANTAGE

of core spun threads (e.g. Saba C) compared to spun threads

  • Less knots and thick places in the sewing thread
  • Less problems with thread breakages
  • Each thread breakage means
  • less efficiency (average time loss for each thread breakage: 1 min)
  • suffering quality (there should be no seam beginning in decorative seams)
  • Less problems with needle breakages
  • Each needle breakage means
  • less efficiency (average time loss for each needle breakage: 5 min)
  • Damages in material: In case of a needle breakage the machines are still sewing with the needle already broken – means there will be wholes in the fabric – could mean – the half finished garment goes into waist

AMANN GROUP 2010

slide10

The difference of core spun thread Spun thread

  • Universal usage of the Saba – Product – Range (Ticket No. 30 to 150)
  • Application on all fast running high speed sewing machines, multidirectional sewing units, automated sewing machines (e.g.buttonhole machines) – and all types of garments (sports wear, lingery, ladies wear, men´s wear, home textiles…..)

AMANN GROUP 2010

slide11

Herzlichen Dank für Ihr Interesse!

Merci beaucoup pour votre intérêt!

Thanks you very much for being interested!

Grazie mille per il Suo interesse!

Muito obrigado pelo seu interesse!

Спасибо за внимание

akujem Vám za pozornos !

Muchas gracias por su interés!

Ilginize tesekkuer ederim !

AMANN GROUP 2010
