cosc 4730

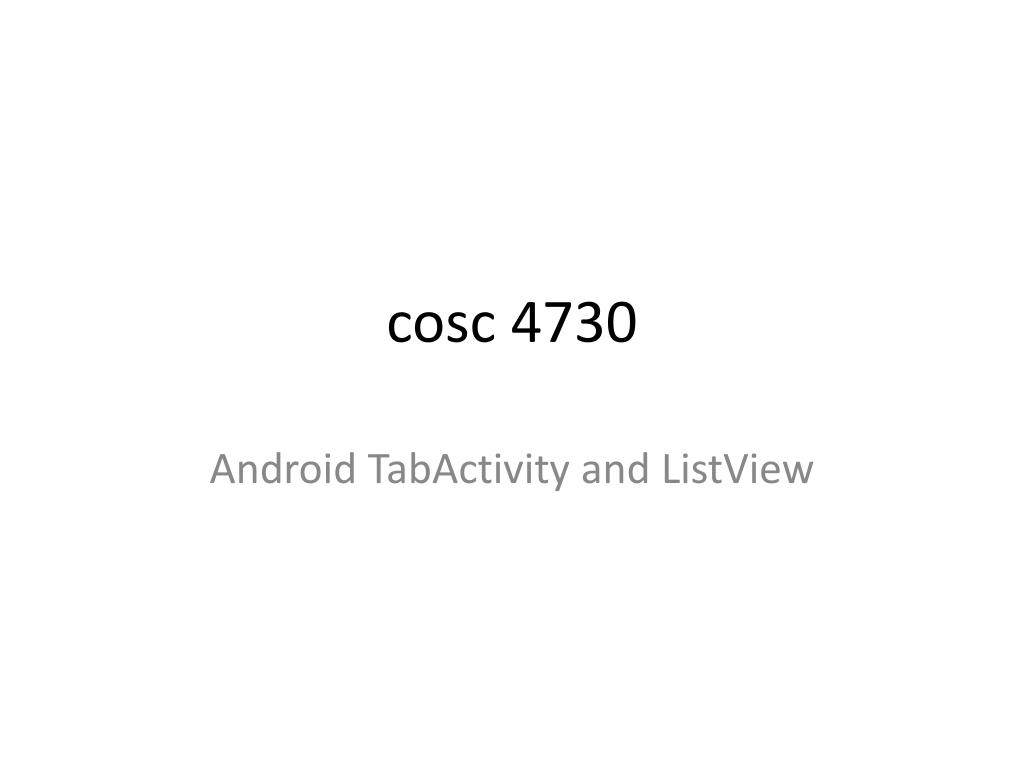

cosc 4730

Android TabActivity and ListView

  • A TabActivity allows for multiple “tabs”.
    • Each Tab is it’s own activity and the “root” activity creates each tab and calls each activity (via an intent). An activity is called, when it’s tab is clicked.
    • Below is a Tab Activity, which then calls 3 activities

Activity Tab3

Activity Tab1

Activity Tab2

tab activity code
Tab Activity Code.

Resources res = getResources(); // Resource object to get Drawables

TabHosttabHost = getTabHost(); // The activity TabHost

TabHost.TabSpecspec; // ResusableTabSpec for each tab

Intent intent; // Reusable Intent for each tab

// Create an Intent to launch an Activity for the tab (to be reused)

intent = new Intent().setClass(this, tab1.class);

// Initialize a TabSpec for each tab and add it to the TabHost

spec = tabHost.newTabSpec("artists").setIndicator("Tab1")

//,res.getDrawable(R.drawable.ic_tab1)) //this is optional, if you want a picture.


tabHost.addTab(spec); //place the “tab” in the tabHost.

//add more tabs

tabHost.setCurrentTab(0); //set first tab to display.

//You can also create “global” variables here as well.

  • NOTE, you need to have each activity in the androidManifest.xml file as well.
activity as the tab

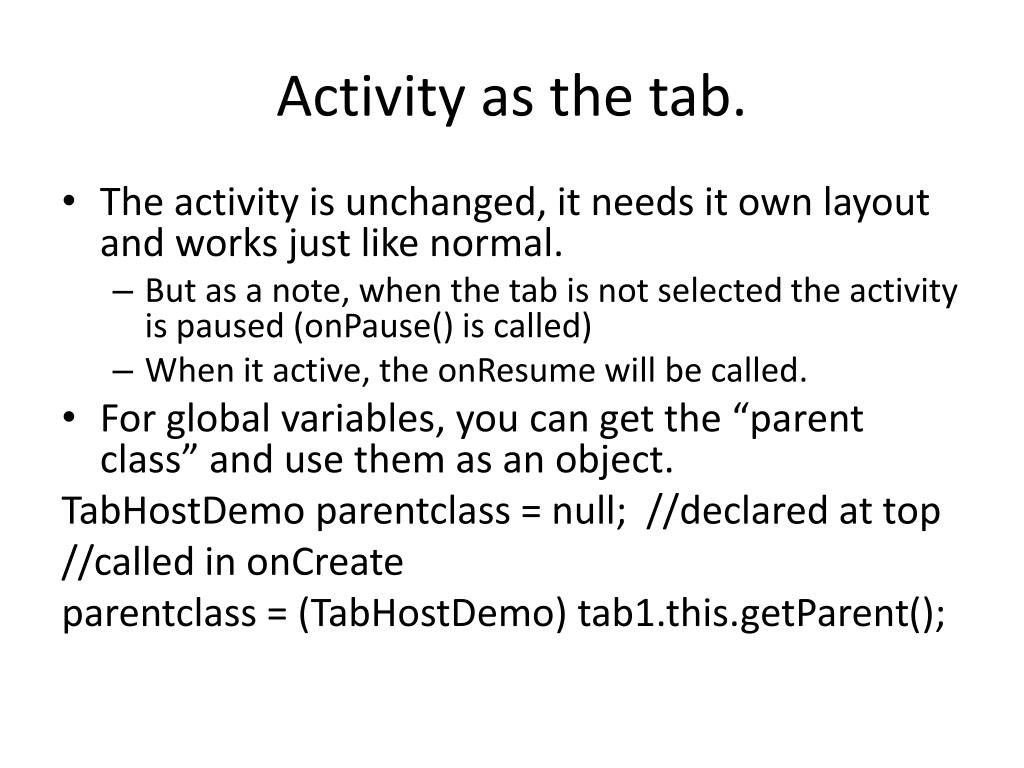

Activity as the tab.
  • The activity is unchanged, it needs it own layout and works just like normal.
    • But as a note, when the tab is not selected the activity is paused (onPause() is called)
    • When it active, the onResume will be called.
  • For global variables, you can get the “parent class” and use them as an object.

TabHostDemoparentclass = null; //declared at top

//called in onCreate

parentclass = (TabHostDemo) tab1.this.getParent();

passing information between tabs

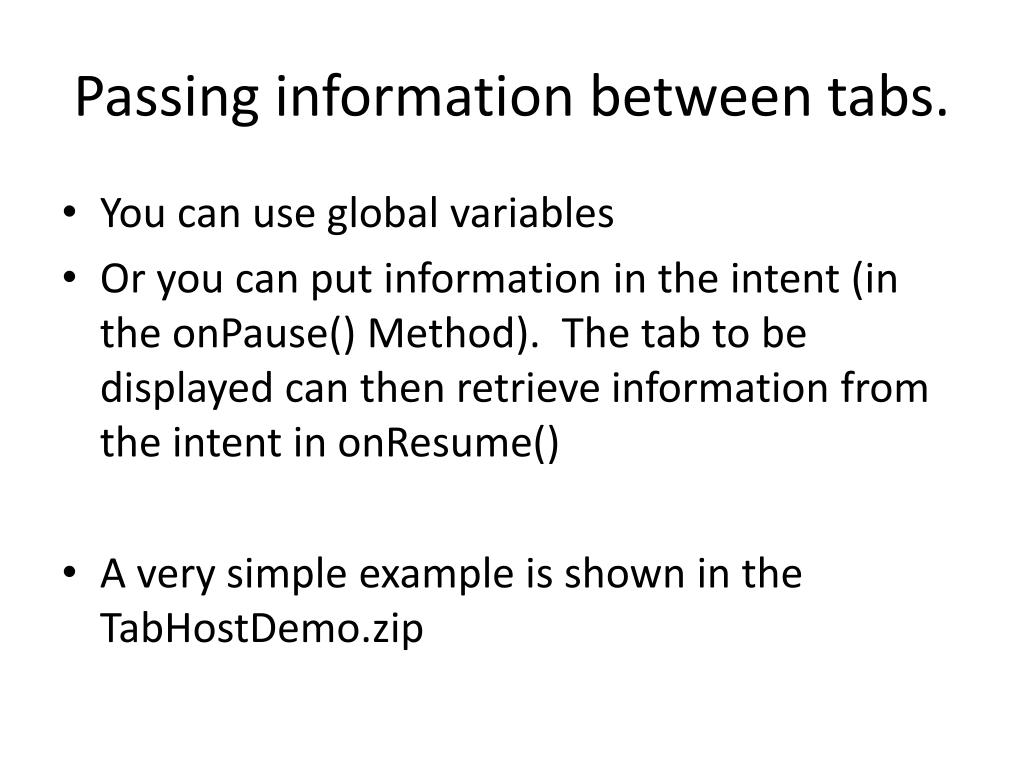

Passing information between tabs.
  • You can use global variables
  • Or you can put information in the intent (in the onPause() Method). The tab to be displayed can then retrieve information from the intent in onResume()
  • A very simple example is shown in the
listview and spinner

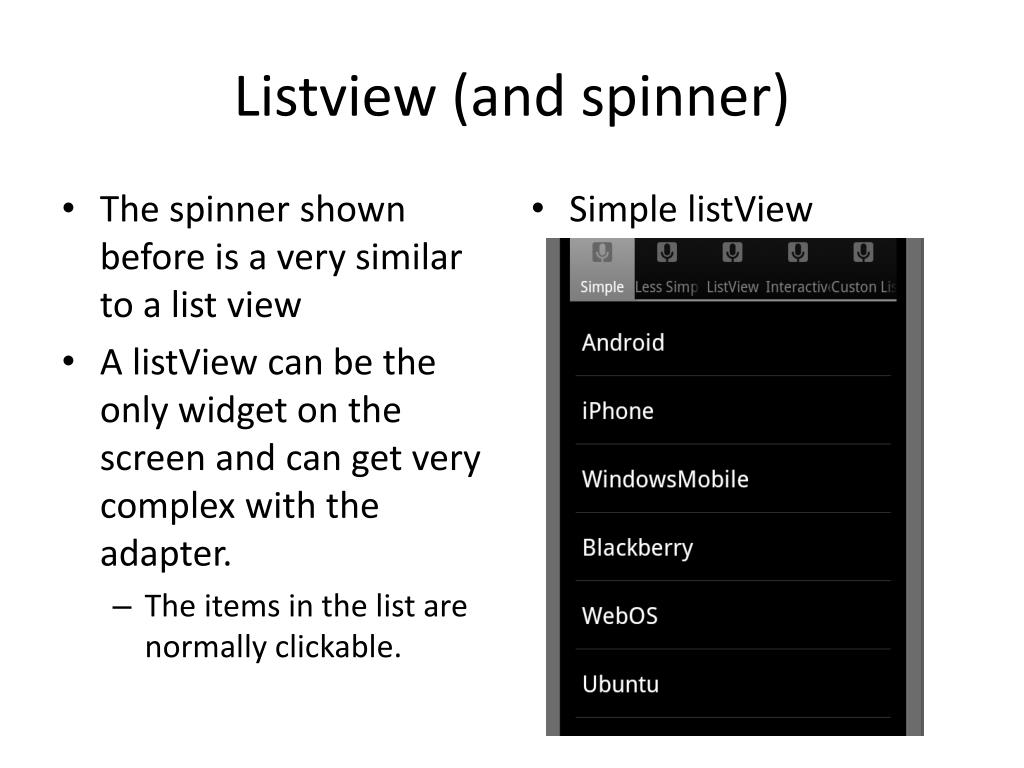

Listview (and spinner)
  • The spinner shown before is a very similar to a list view
  • A listView can be the only widget on the screen and can get very complex with the adapter.
    • The items in the list are normally clickable.
  • Simple listView
listview continued

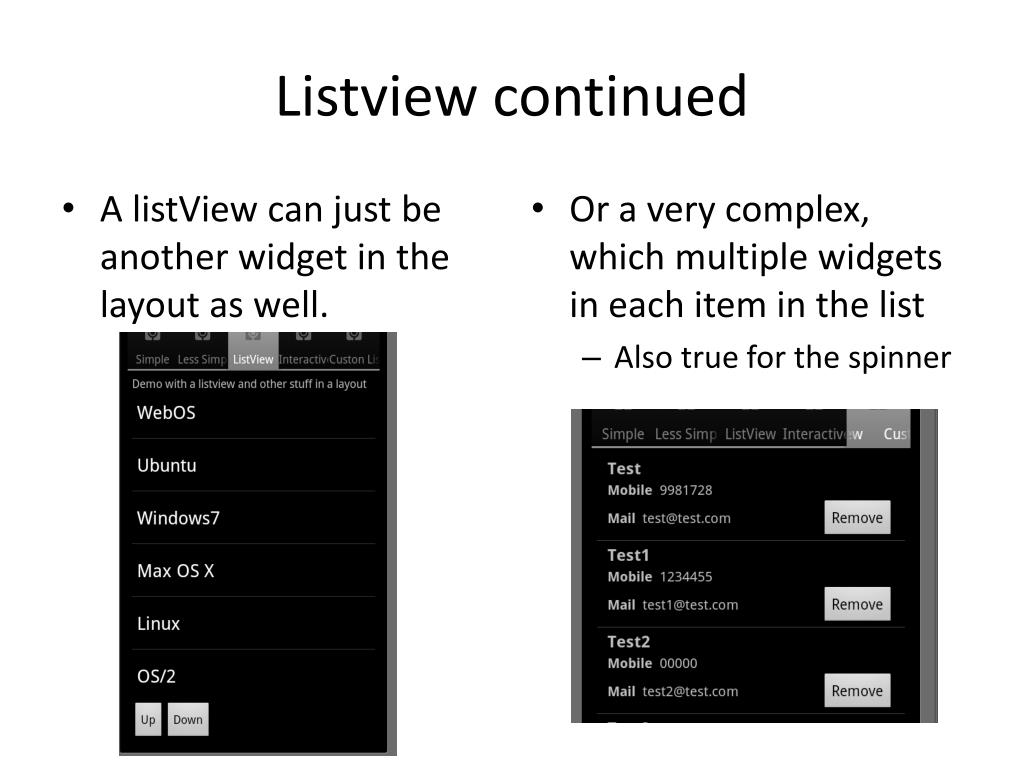

Listview continued
  • A listView can just be another widget in the layout as well.
  • Or a very complex, which multiple widgets in each item in the list
    • Also true for the spinner
simple listview

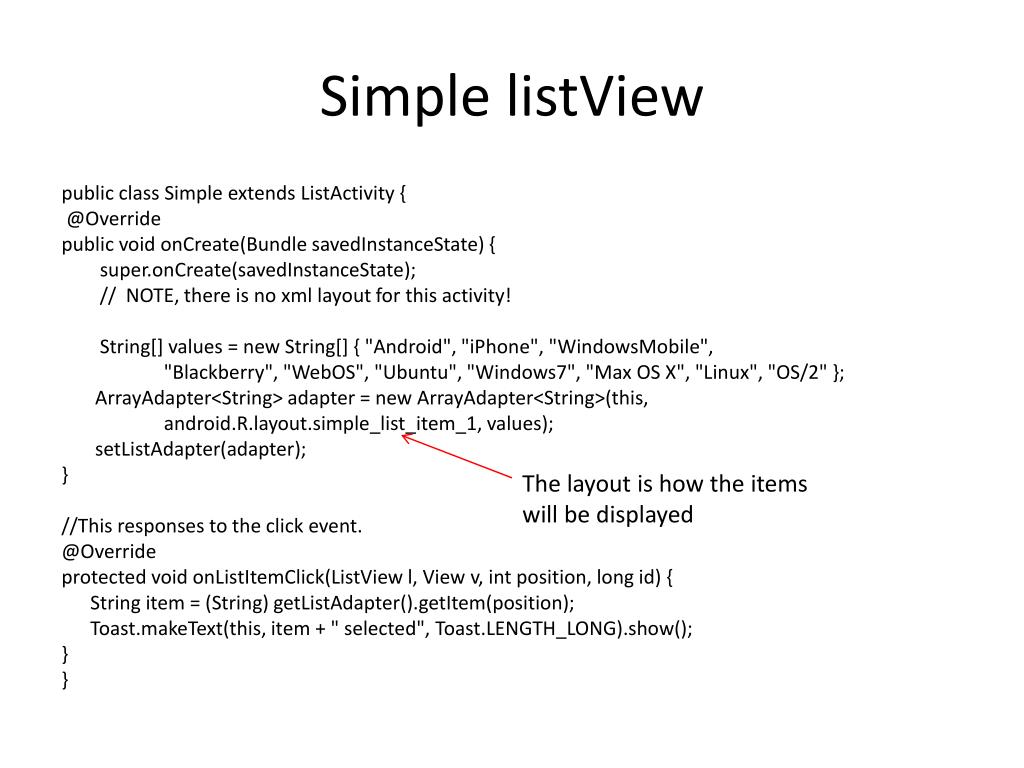

Simple listView

public class Simple extends ListActivity {


public void onCreate(Bundle savedInstanceState) {


// NOTE, there is no xml layout for this activity!

String[] values = new String[] { "Android", "iPhone", "WindowsMobile",

"Blackberry", "WebOS", "Ubuntu", "Windows7", "Max OS X", "Linux", "OS/2" };

ArrayAdapter<String> adapter = new ArrayAdapter<String>(this,

android.R.layout.simple_list_item_1, values);



//This responses to the click event.


protected void onListItemClick(ListView l, View v, int position, long id) {

String item = (String) getListAdapter().getItem(position);

Toast.makeText(this, item + " selected", Toast.LENGTH_LONG).show();



The layout is how the items

will be displayed

changing the layout

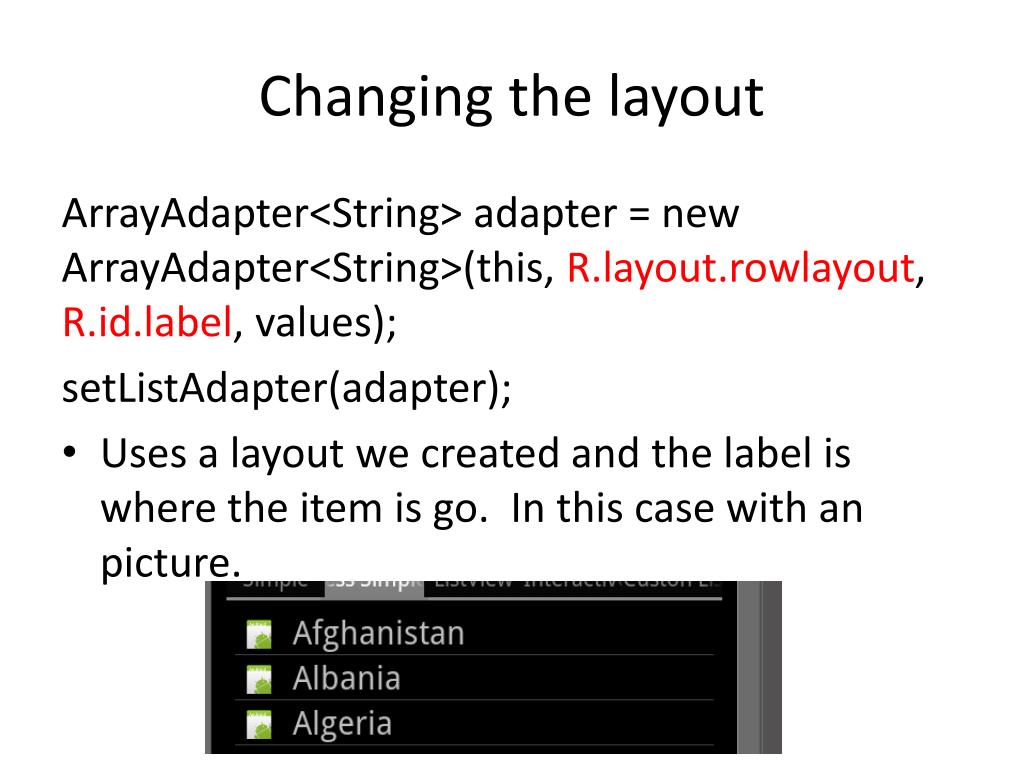

Changing the layout

ArrayAdapter<String> adapter = new ArrayAdapter<String>(this, R.layout.rowlayout,, values);


  • Uses a layout we created and the label is where the item is go. In this case with an picture.

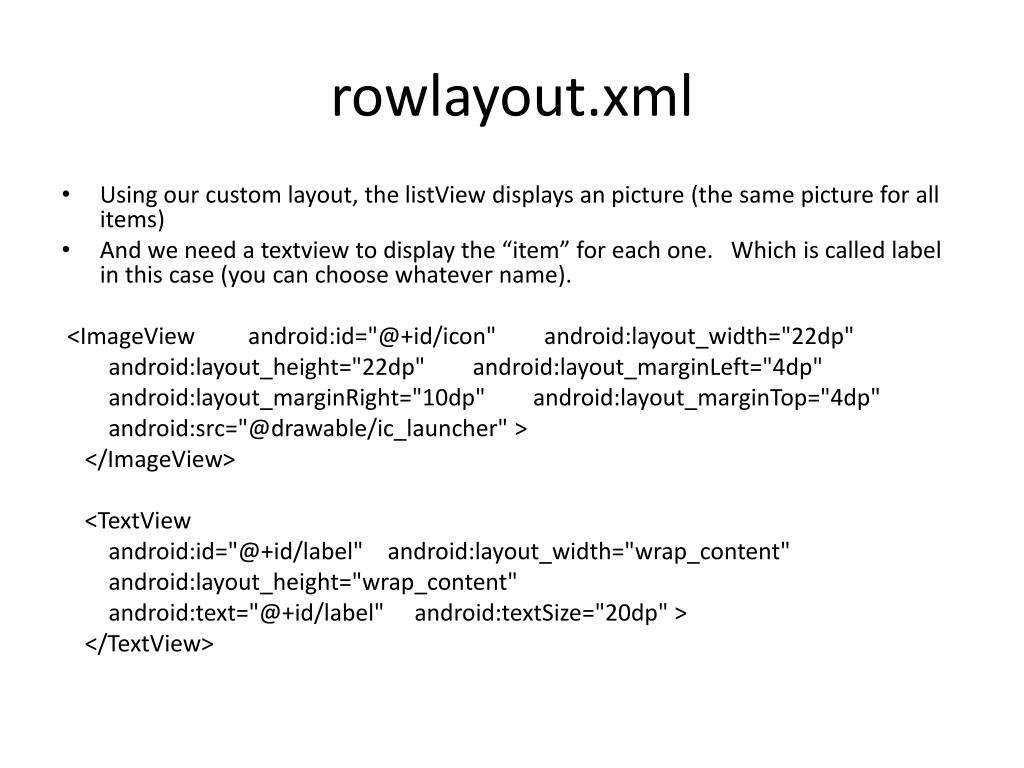

rowlayout xml
  • Using our custom layout, the listView displays an picture (the same picture for all items)
  • And we need a textview to display the “item” for each one. Which is called label in this case (you can choose whatever name).

<ImageViewandroid:id="@+id/icon" android:layout_width="22dp"

android:layout_height="22dp" android:layout_marginLeft="4dp"

android:layout_marginRight="10dp" android:layout_marginTop="4dp"

android:src="@drawable/ic_launcher" >



android:id="@+id/label" android:layout_width="wrap_content"


android:text="@+id/label" android:textSize="20dp" >


more complex listviews
More complex ListViews.
  • If you want to display more then one piece of information per item, then you can have not only change the layout, but extend the ArrayAdapter or BaseAdapter.

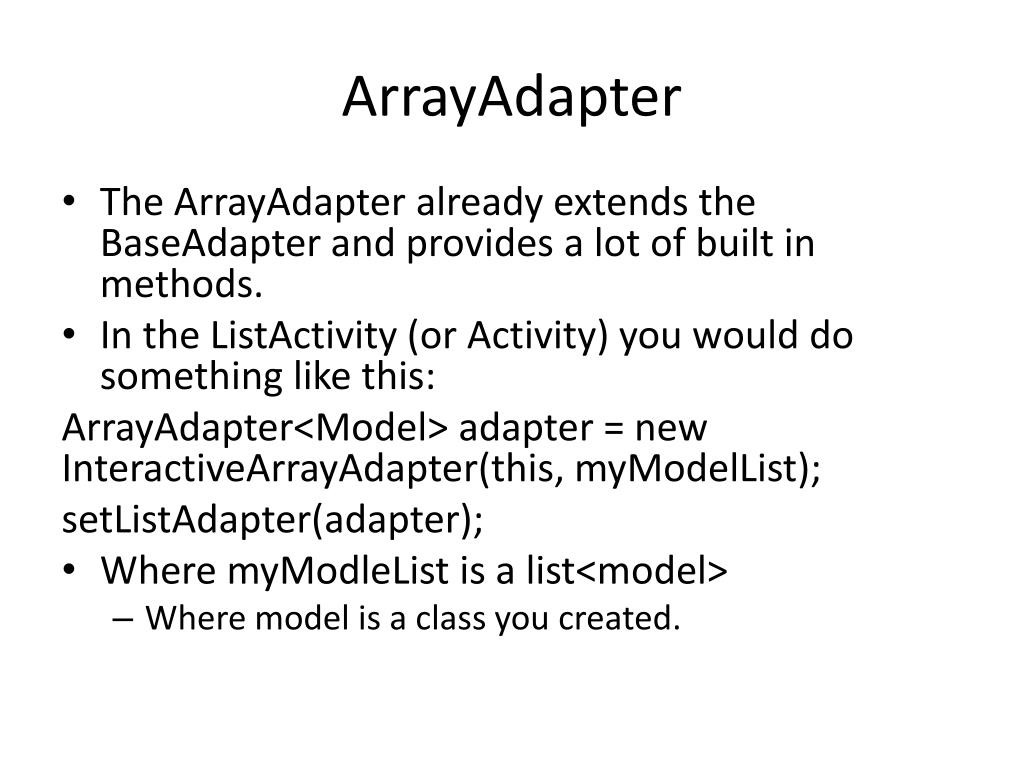

  • The ArrayAdapter already extends the BaseAdapter and provides a lot of built in methods.
  • In the ListActivity (or Activity) you would do something like this:

ArrayAdapter<Model> adapter = new InteractiveArrayAdapter(this, myModelList);


  • Where myModleList is a list<model>
    • Where model is a class you created.
arrayadapter 2

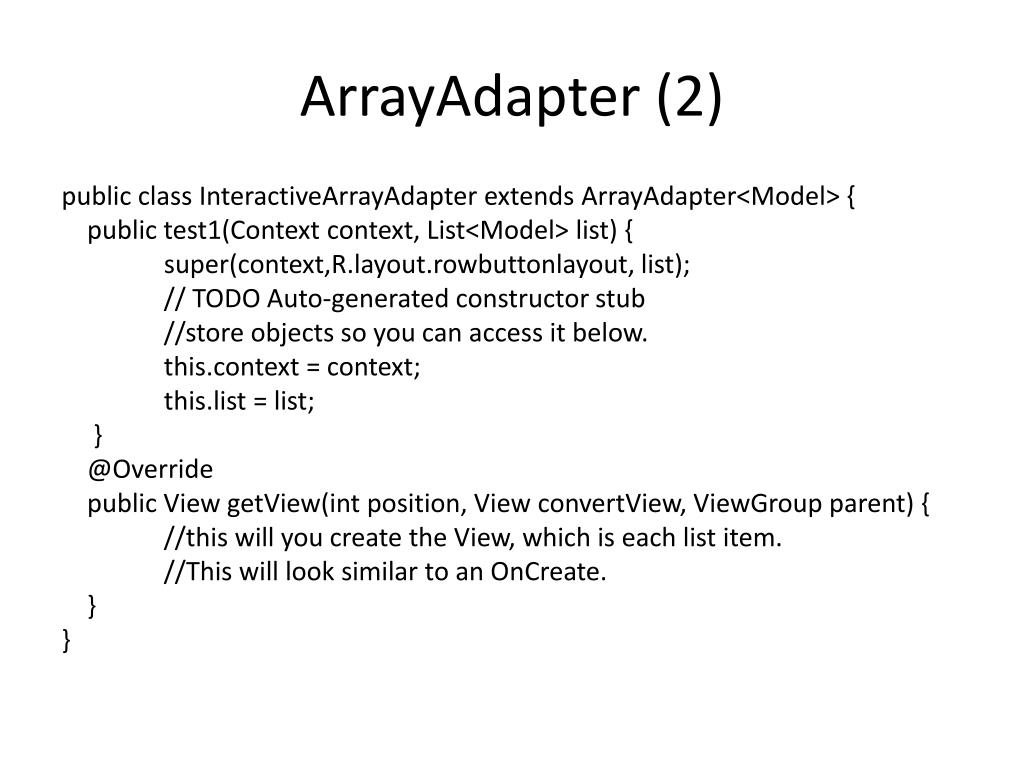

ArrayAdapter (2)

public class InteractiveArrayAdapterextends ArrayAdapter<Model> {

public test1(Context context, List<Model> list) {

super(context,R.layout.rowbuttonlayout, list);

// TODO Auto-generated constructor stub

//store objects so you can access it below.

this.context= context;

this.list= list;



public View getView(int position, View convertView, ViewGroup parent) {

//this will you create the View, which is each list item.

//This will look similar to an OnCreate.



  • So for this one, we have TextView and checkBox. The List tells us if it’s checked or not.
  • In getView, we create the View

LayoutInflaterinflator = context.getLayoutInflater();

convertView= inflator.inflate(R.layout.rowbuttonlayout, null);

text = (TextView) convertView.findViewById(;

checkbox = (CheckBox) convertView.findViewById(;

//Tag is an like a temp space, in a widget where you can set some information as an Object Class in this case, the position variable, used when we change the check mark.




return convertView;

getview 2

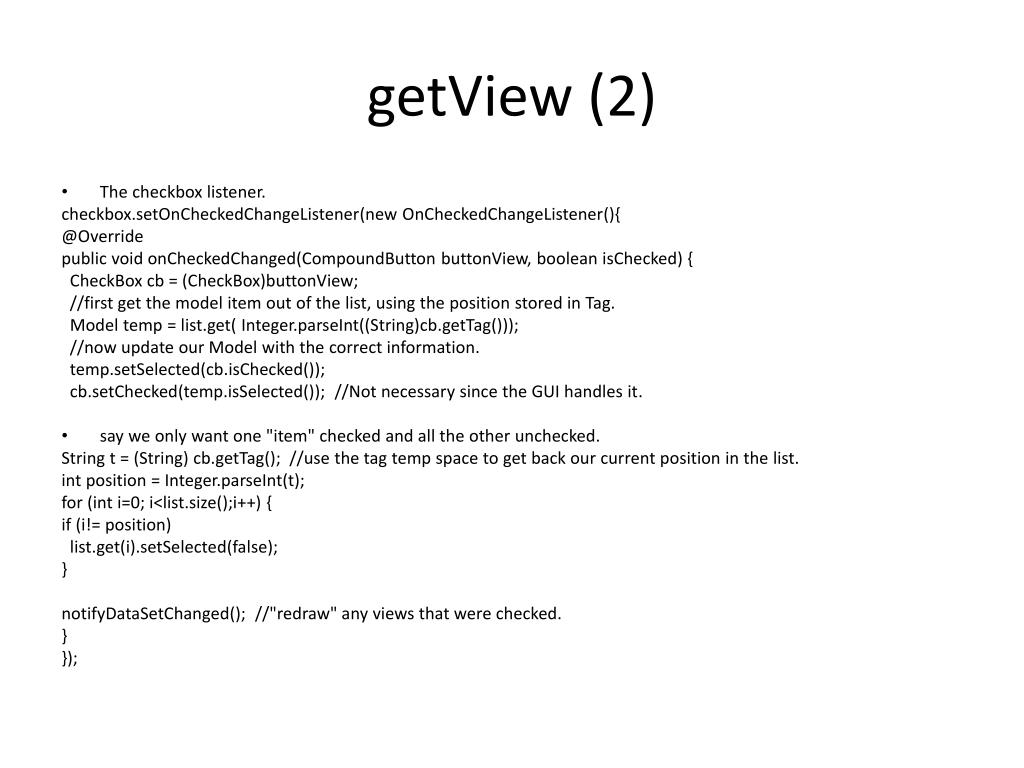

getView (2)
  • The checkbox listener.

checkbox.setOnCheckedChangeListener(new OnCheckedChangeListener(){


public void onCheckedChanged(CompoundButtonbuttonView, booleanisChecked) {

CheckBoxcb = (CheckBox)buttonView;

//first get the model item out of the list, using the position stored in Tag.

Model temp = list.get( Integer.parseInt((String)cb.getTag()));

//now update our Model with the correct information.


cb.setChecked(temp.isSelected()); //Not necessary since the GUI handles it.

  • say we only want one "item" checked and all the other unchecked.

String t = (String) cb.getTag(); //use the tag temp space to get back our current position in the list.

intposition = Integer.parseInt(t);

for (inti=0; i<list.size();i++) {

if (i!= position)



notifyDataSetChanged(); //"redraw" any views that were checked.



custom listviews

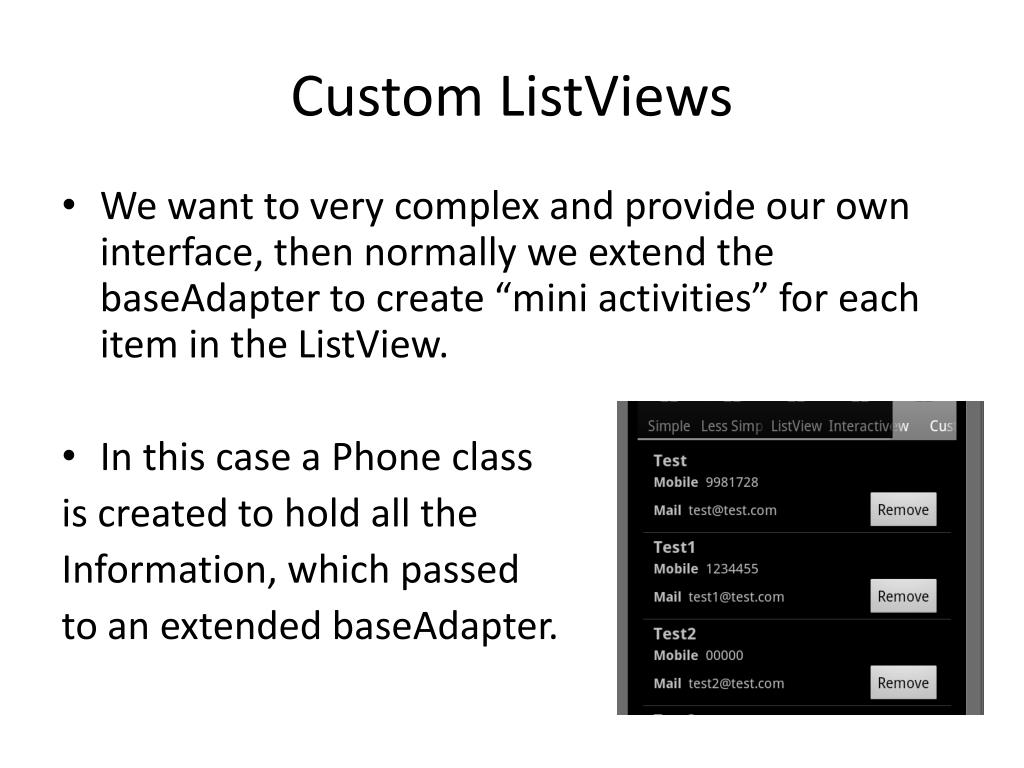

Custom ListViews
  • We want to very complex and provide our own interface, then normally we extend the baseAdapterto create “mini activities” for each item in the ListView.
  • In this case a Phone class

is created to hold all the

Information, which passed

to an extended baseAdapter.

  • In a BaseAdapter you must implement the following methods:
  • public intgetCount()
    • How many items are in the data set represented by this Adapter.
  • public Object getItem(int position)
    • Get the data item associated with the specified position in the data set.
  • public long getItemId(int position)
    • Get the row id associated with the specified position in the list.
  • public View getView(int position, View convertView, ViewGroup parent)
    • Like before, the view.
  • You will likely create a constructor, just like before, except you don’t call super, because they isn’t a super constructor.
    • Get the list and context.

public class PhonebookAdapter extends BaseAdapter implements OnClickListener {

private Context context;

private List<Phonebook> listPhonebook;

public PhonebookAdapter(Context context, List<Phonebook> listPhonebook) {

this.context = context;

this.listPhonebook = listPhonebook;



public intgetCount() {

return listPhonebook.size();



public Object getItem(int position) {

return listPhonebook.get(position);



public long getItemId(int position) {

return position;


getView will be complex like before, with

the inflater and then setting up all the widgets

In the layout with information.

See the source code.

  • See the and on the handout pages for source code.
  • There are a lot more to ListView
  • Also, you can do the same thing to a spinner as well. This allows you to create very complex “drop-down menu” to use in your app.
