exposure scenario modifier tool

Exposure Scenario Modifier Tool

Workshop on REACH Exposure Scenarios

Authority, ECHA and Industry Perspectives

October 22-23, 2008

Dorte Rasmussen, DHI

list of content
List of content
  • Background and content
  • Brief demonstration of IT-tool
  • Practical use of ’Descriptors of Use’
  • Evaluation of ES-Modifier by others
list of content1
List of content

Background and content

Brief demonstration of IT-tool

Practical use of ’Descriptors of Use’

Evaluation of ES-Modifier by others

focus group for tool formulators
Focus group for tool:Formulators

FORMULATORS

own use

uses by their

customers

key use of es modifier
Key use of ES-modifier

1. Harmonisation (OC’s and RMM’s) of ES’s received from different suppliers.

2. Scale the ES according to specific needs (eg. customer request)

ES

Substance 1

Duration: 2 hrs

Ventilllation: No

RMM: Mask

ES

Substance 2

Duration: 8 hrs

Ventillation

RMM: No

ES

Preparation

Duration: ?

Ventillation:?

RMM: ?

+

=

Duration: 8 hrs

ES

Preparation

Duration: 4 hrs

RMM: No

Customer

conditions

key output calculation of rcr
Key OUTPUT: Calculation of RCR

Risk Characterisation Ratio

< 1

≥ 1

Exposure

HUMAN

DNEL

ES

MODIFIER

Exposure

ENVIRONMENT

PNEC

Not

Safe

Safe

calculation of rcr
Calculation of RCR

Registrant data

Specific Substance

Specific use

  • Use in headlines
  • - LCS + usergroup
  • Descriptors of Use

Substance Data

- Eco- and Tox data

- Phys-Chem data

Use details(OC; RMM)

Models

DNEL

PNEC

Exposure (human)

Exposure (env.)

RCRhuman =

;

RCRenv. =

Exposure

Exposure

RCR < 1

PNEC

DNEL

SAFE USE

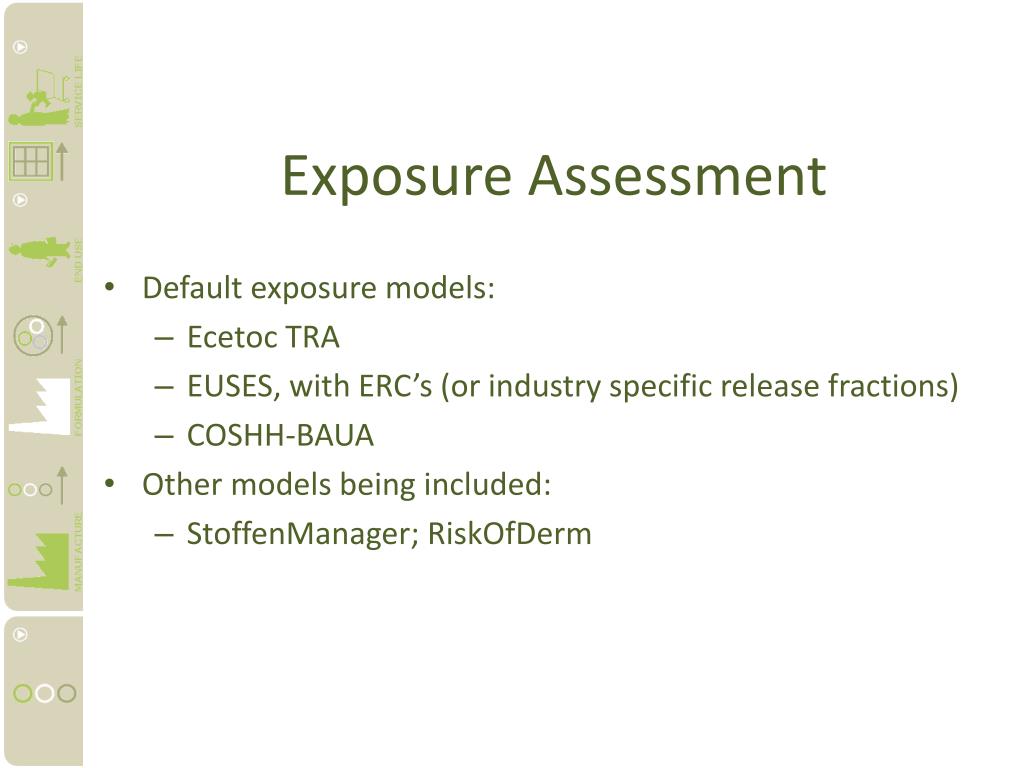

exposure assessment
ExposureAssessment
  • Default exposure models:
    • Ecetoc TRA
    • EUSES, with ERC’s (or industry specific release fractions)
    • COSHH-BAUA
  • Other models being included:
    • StoffenManager; RiskOfDerm
headlines for a use

Industry

Headlines for a USE

1. Lifecycle stage

Service Life (S)

Manufacturing (M)

Formulation (F)

End use (U)

Industry

Consumer

Professional

2. Usergroup

Industry

Professional

Consumer

3. Descriptors of use (SU, PC, PROC, AC) = DoU

focus for es modifier tool
Focus for ES-modifiertool
  • NOT
    • Company withriskassessmentexpertsorwhowillmake DU-CSR
    • Company participating in pan-europeanactivityregardingdevelopment of ES-concept under REACH
  • HOT
    • Formulating DU company/ Small tradingcompanyimporting from outside of EU
    • Basicknowledgehow to make SDS for preparations (max. 1-2 persons in HS&E department)
    • Noknowledgeaboutself-classfication
    • ES knowledgethroughnationalhelpdesks/trade organisations
list of content2
List of content

Background and content

Brief demonstration of IT-tool

Practical use of ’Descriptors of Use’

Evaluation of ES-Modifier by others

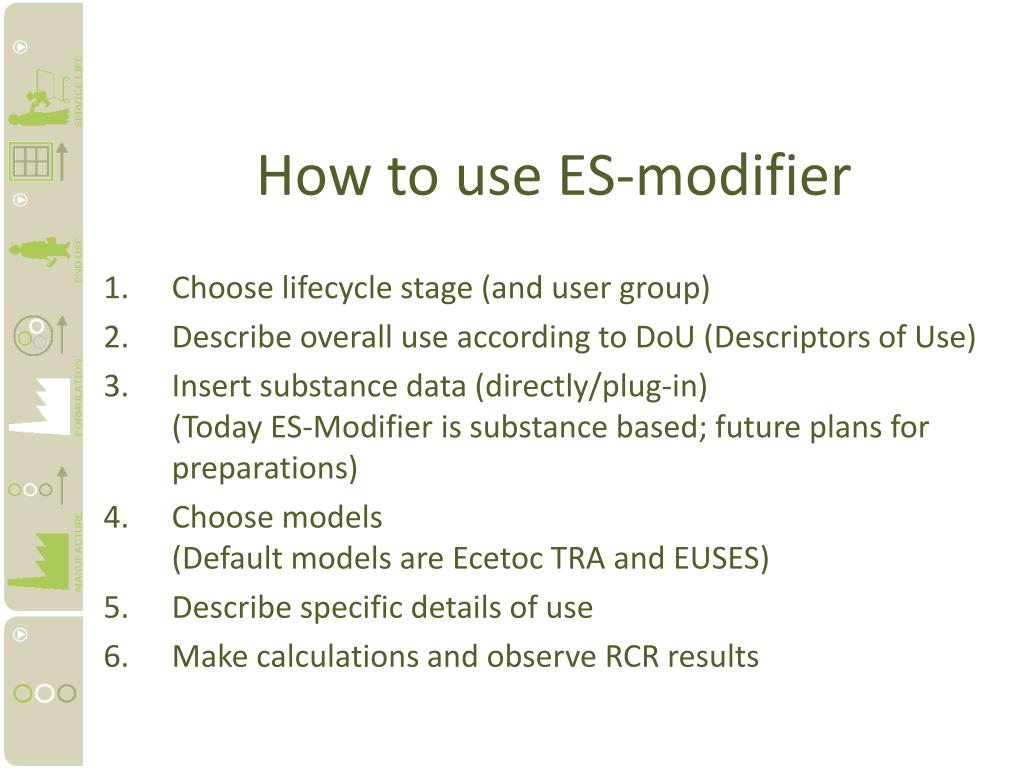

how to use es modifier
How to useES-modifier
  • Choose lifecycle stage (and user group)
  • Describe overall use according to DoU (Descriptors of Use)
  • Insert substance data (directly/plug-in)(Today ES-Modifier is substance based; future plans for preparations)
  • Choose models(Default models are Ecetoc TRA and EUSES)
  • Describe specific details of use
  • Make calculations and observe RCR results
slide14

Action buttons

Lifecycle stage + user group

Substance

Completeness indicator

Descriptors of use (SU; PC; PROC; AC)

Menu

options

Detailed input

RCR

Risk

Charac.

Ratio

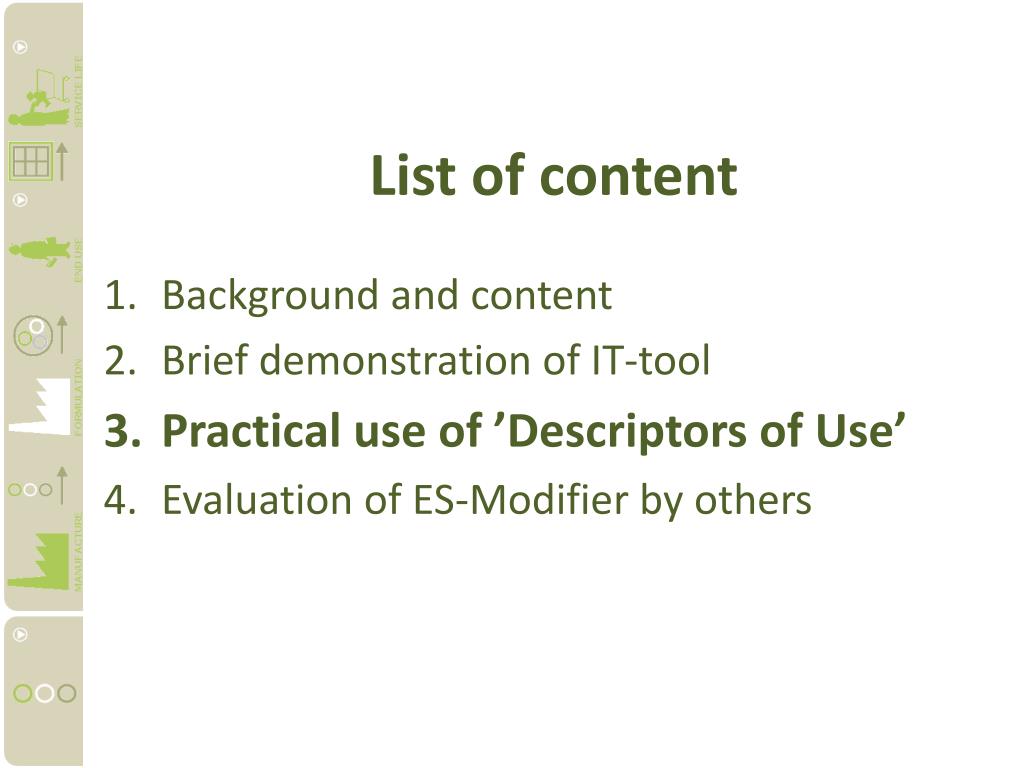

list of content3
List of content

Background and content

Brief demonstration of IT-tool

Practical use of ’Descriptors of Use’

Evaluation of ES-Modifier by others

practical use of descriptors of use dou
Practical use of ’Descriptors of use’ (DoU)
  • DoU is the main tool recommended in guidance for
    • the identification of use
    • and the headline in the ES
  • DoU is input parameter to exposure models
    • PROC => Occupational exposure calculation
    • PC/AC => Consumer exposure calculations
    • LCS+SU/PC/PROC/AC => ERC=>environmental exposure calculations
  • Conclusion from case studies in RIP 3.2 and various workshops:
    • DoU is difficult to use/not reproducible
    • More help is needed to find your way around in DoU
possibility to filter dou branch or product specific

SU (25)

PC (41)

PROC (25)

AC (40)

Possibility to filter DoUBranch or product specific

Branch or product specific filter

1,025,000 possible combinations!

possibility to filter dou branch or product specific1

SU (25)

PC (41)

PROC (25)

AC (40)

Possibility to filter DoUBranch or product specific

Branch or product specific filter

”Translation” of DoU

LCS and user group

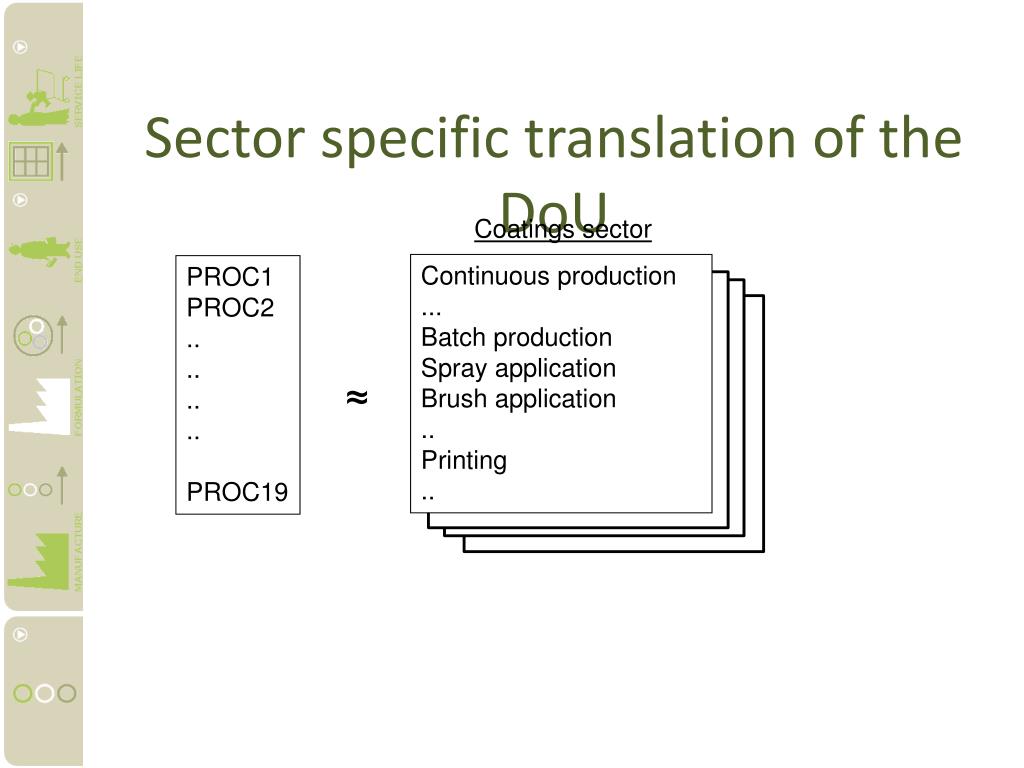

sector specific translation of the dou
Sector specific translation of the DoU

Coatings sector

Continuous production

...

Batch production

Spray application

Brush application

..

Printing

..

PROC1

PROC2

..

..

..

..

PROC19

combination of dou and erc s present activity
Combination of DoU*) and ERC’sPresent activity

SU1

SU2

..

..

..

SU23

PC1

PC2

..

..

..

..

..

..

PC41

PROC1

PROC2

..

..

PROC19

AC1

AC2

..

..

..

..

..

AC40

x

x

x

An ERC’s to be attached to every combination!

SU22+PC9+PROC9+AC18.1  ERC 8c

*) DoU = Descriptors of Use

list of content4
List of content

Background and content

Brief demonstration of IT-tool

Practical use of ’Descriptors of Use’

Evaluation of ES-Modifier by others

evaluation of es modifier
Evaluation of ES-Modifier

Functionality

  • DU Companies
  • DU sector groups (translation of e.g. PROC)

Communication in supply chain (incl. exchange of substance data)

  • M/I Companies & sector groups (CEFIC)

Discussion of responsibility

  • Authorities

Validation of calculations

  • Experts
testing of es modifier
Testing of ES-modifier
  • Three workshops have been held
    • 2 in Denmark and 1 in Holland
  • Participants
    • Industries, branch organisations - organised according to product chains

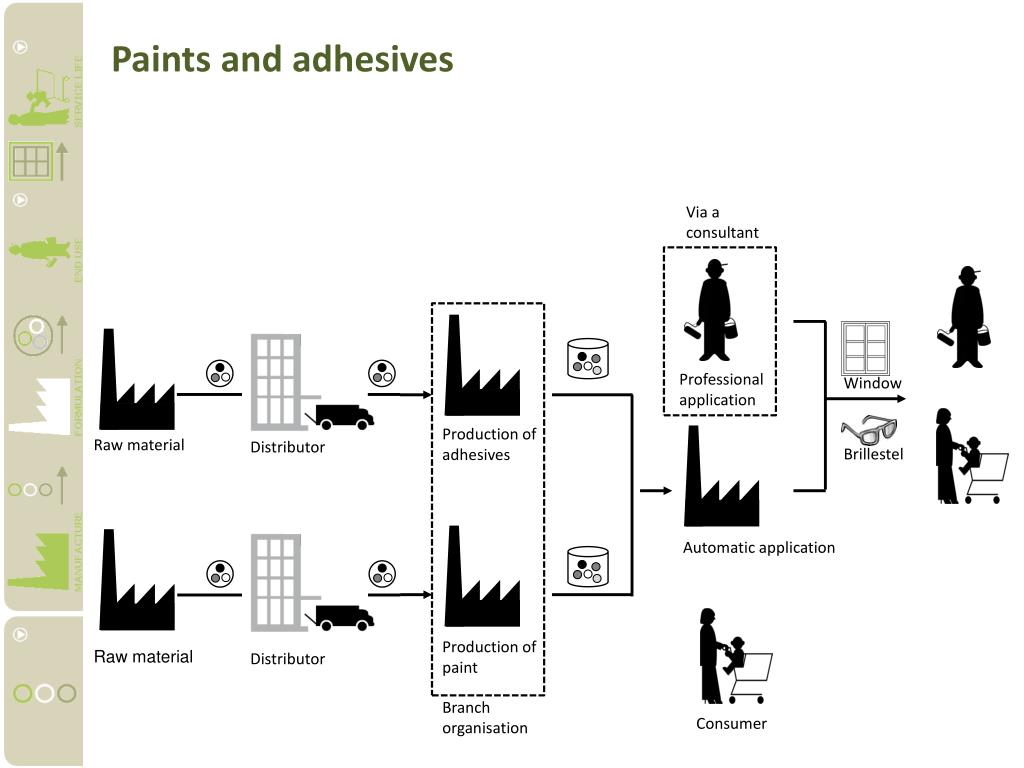

slide49

Paints and adhesives

Via a consultant

Professional

application

Window

Production of

adhesives

Raw material

Distributor

Brillestel

Automatic application

Production of

paint

Raw material

Distributor

Branch

organisation

Consumer

participants
Production of chemicals

Chemicals trade

Production of coatings, adhesives and sealants

Industrial application of coatings, adhesives and sealants

Professional application of chemicals

Production of printing inks

Industrial Printing

Production of Cleaning products

Cleaning services

Industrial washing

Production of Metal working fluids

Production of Lubricants

Production of packing materials

Hospitals

Authorities

Manufacturer

Downstream user, formulator

Downstream user, other

Importer

Distributor

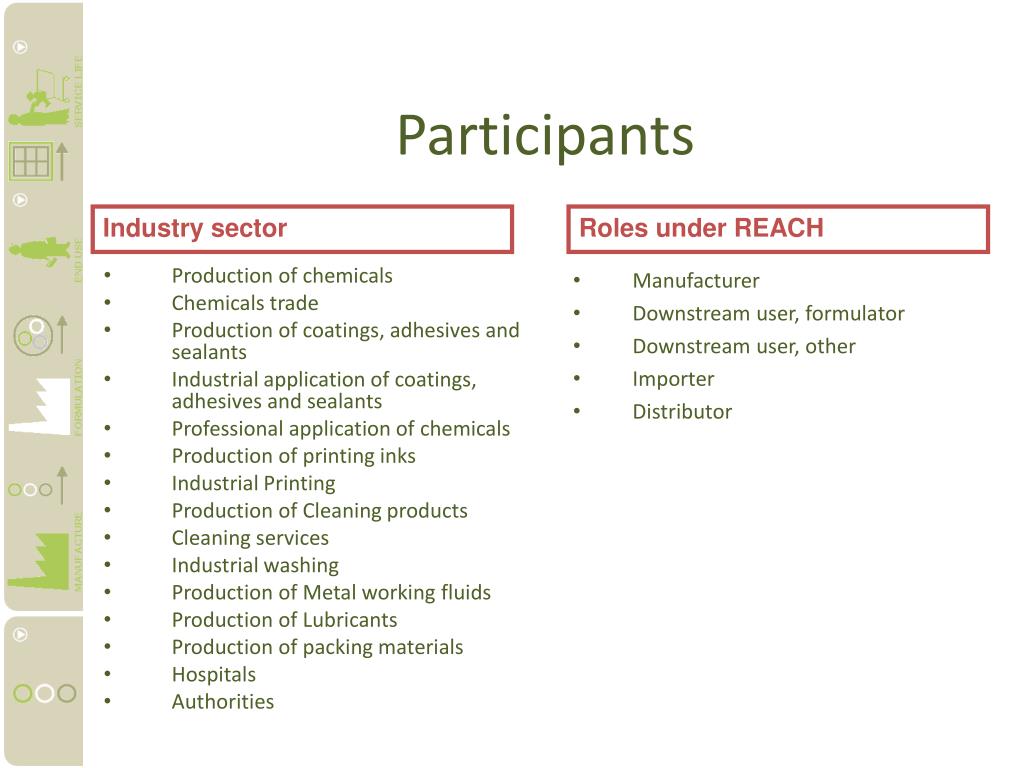

Participants

Industry sector

Roles under REACH

agenda of the workshops
Agenda of the workshops
  • Introduction to exposure scenarios
  • Introduction to DoU
    • Exercise with DoU
  • Exercise with ES-modifier
    • Hands-on exercise
    • Case work
    • Feed-back via
      • Open discussion
      • Questionnaire
questionnaire i general understanding of key basic concepts before workshop 1 very poor 4 very good
Questionnaire I: General understanding of key basic concepts before workshop(1: Very poor; 4: Very good)

ES

LCS

User Groups

DoU

PROCs

Exposure models

4

3

2

1

avg

3.3

3.2

3.2

2.7

1.8

2.1

questionnaire i has your work improved your understanding 1 no change 4 complete transformation
Questionnaire I: Has your work improved your understanding(1: No change; 4: Complete transformation)

ES

LCS

User Groups

DoU

PROCs

Exposure models

4

3

2

1

avg

2.6

2.8

2.7

2.6

2.6

2.1

future plannings
Future plannings

2008

  • Improve tool on basis of feed-back
  • Workshop for stake-holders (November)
  • Discussion of responsibility with authorities
  • Validation of calculations – experts (and project team)
  • Validation of assumptions – experts

2009

  • Preparations (2009 action)
mixtures
Mixtures
  • Project on preparing a ”handy” guidance for preparing ES for mixtures
  • Paid by the Danish EPA
  • Project team:DI (project owner), DHI (hse consult)
  • Started spring 2008 - to be finished spring 2009
  • Two approaches being tested
    • DPD-method
    • RIP 3.5 guidance
  • Examples, examples, examples
