  1. IBM BladeCenter HS20 (8832)

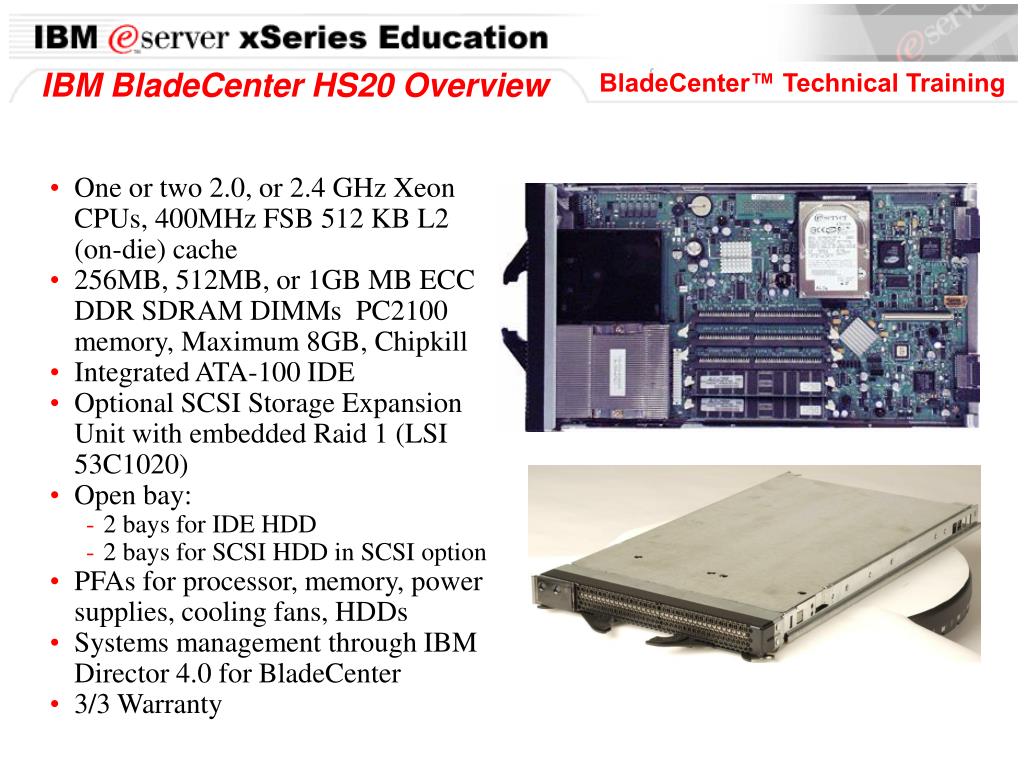

  2. One or two 2.0, or 2.4 GHz Xeon CPUs, 400MHz FSB 512 KB L2 (on-die) cache 256MB, 512MB, or 1GB MB ECC DDR SDRAM DIMMs PC2100 memory, Maximum 8GB, Chipkill Integrated ATA-100 IDE Optional SCSI Storage Expansion Unit with embedded Raid 1 (LSI 53C1020) Open bay: 2 bays for IDE HDD 2 bays for SCSI HDD in SCSI option PFAs for processor, memory, power supplies, cooling fans, HDDs Systems management through IBM Director 4.0 for BladeCenter 3/3 Warranty IBM BladeCenter HS20 Overview

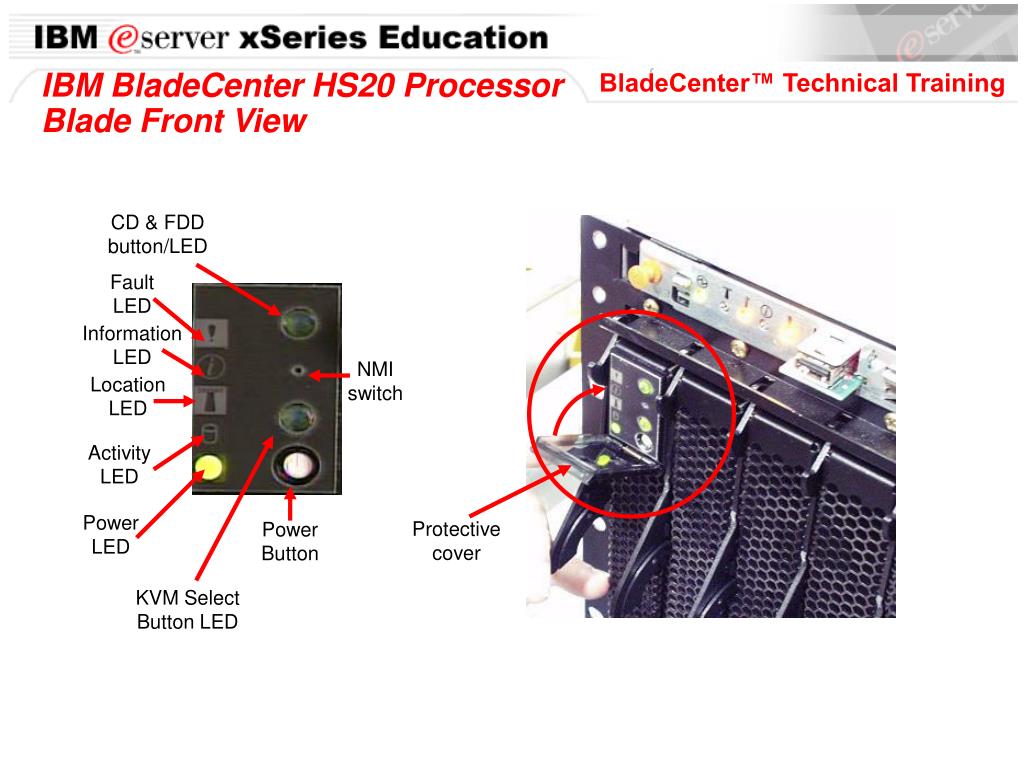

  3. IBM BladeCenter HS20 Processor Blade Front View CD & FDD button/LED Fault LED Information LED NMI switch Location LED Activity LED Power LED Protective cover Power Button KVM Select Button LED

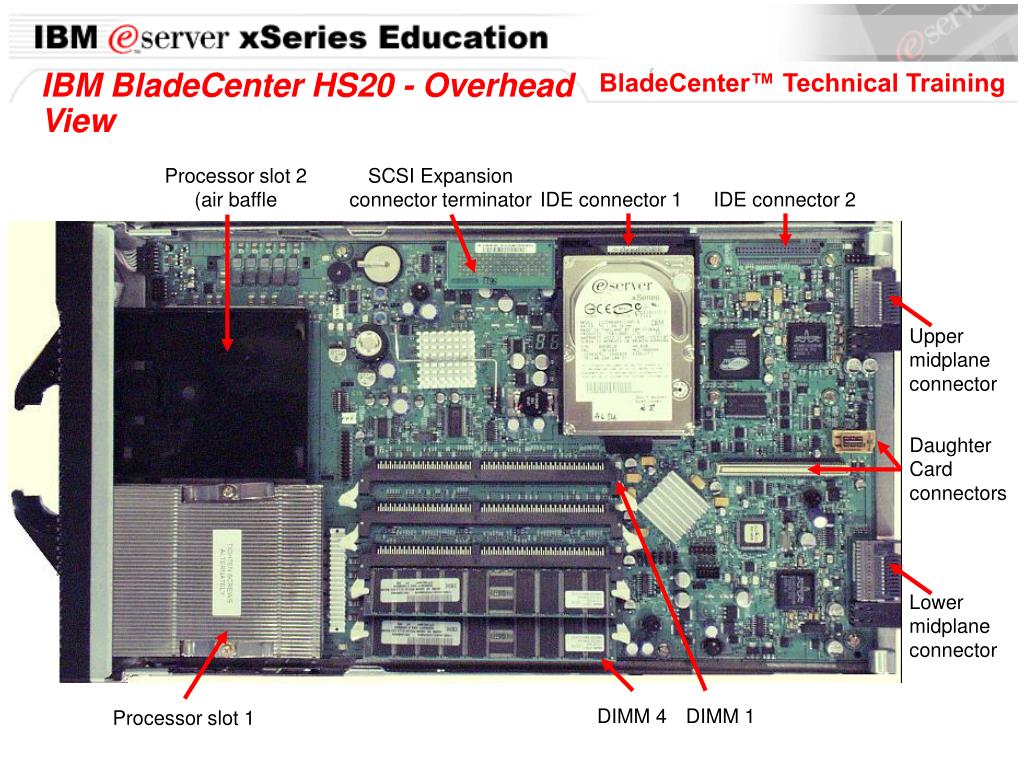

  4. IBM BladeCenter HS20 - Overhead View Processor slot 2 (air baffle SCSI Expansion connector terminator IDE connector 1 IDE connector 2 Upper midplane connector Daughter Card connectors Lower midplane connector DIMM 4 DIMM 1 Processor slot 1

  5. IBM BladeCenter HS20 Architecture and Hardware Components

  6. Xeon DP Xeon DP ServerWorks GC LE CMIC CSB5 IBM BladeCenter HS20 - Architecture IDE Conn 4MB BIOS LPC IDE Conn Thin IMB 4-bit 200 MHz simult-bidi 200 MB/sec DDR-SDRAM 2 channels SIO PC87417 LPC IMB2 IMB2 (16-bit 800 MHz, simult-bidi, 3.2 GB/sec) PCI 2.2 32-bit Optional SCSI Storage Expansion Unit CIOB-X2 ATI Rage XL 8 MB CIOB-X2 PCI-X 64-bit 100 MHz PCI-X 64-bit 100 MHz USB for MM1 (keyb/mouse) Graphics SCSI Backplane (2 hot-swap) Ultra320 SCSI LSI 53C1020 USB for FDD/CD - 1 PCI-X 64-bit 100 MHz USB for MM2 (keyb/mouse) USB for FDD/CD - 2 Optional Expansion Card (Daughter card) GB Ethernet BCM5703S GB Ethernet BCM5703S SMBus USB Switch H8S2148 Sys Mgmt RS-485 HDM Connector HDM Connector Midplane

  7. The BladeCenter HS20 supports: One or two 2.8 or 3.2 GHz XEON FC-PGA2 socketed processors, 604 pin Zero Insertion Force (ZIF) sockets 400 MHz front side bus 512 KB L2 (on-die) cache Voltage regulation integrated on the system board Minimum configuration One 2.8 GHz XEON Processor A heatsink filler must be installed in CPU 2 socket Maximum configuration Two 3.2 GHz Xeon Processors Both processor must be the same speed, cache and core frequency CPU population order is CPU 1, CPU 2 IBM BladeCenter HS20 - Processors Front CPU heatsink filler CPU 2 CPU 1

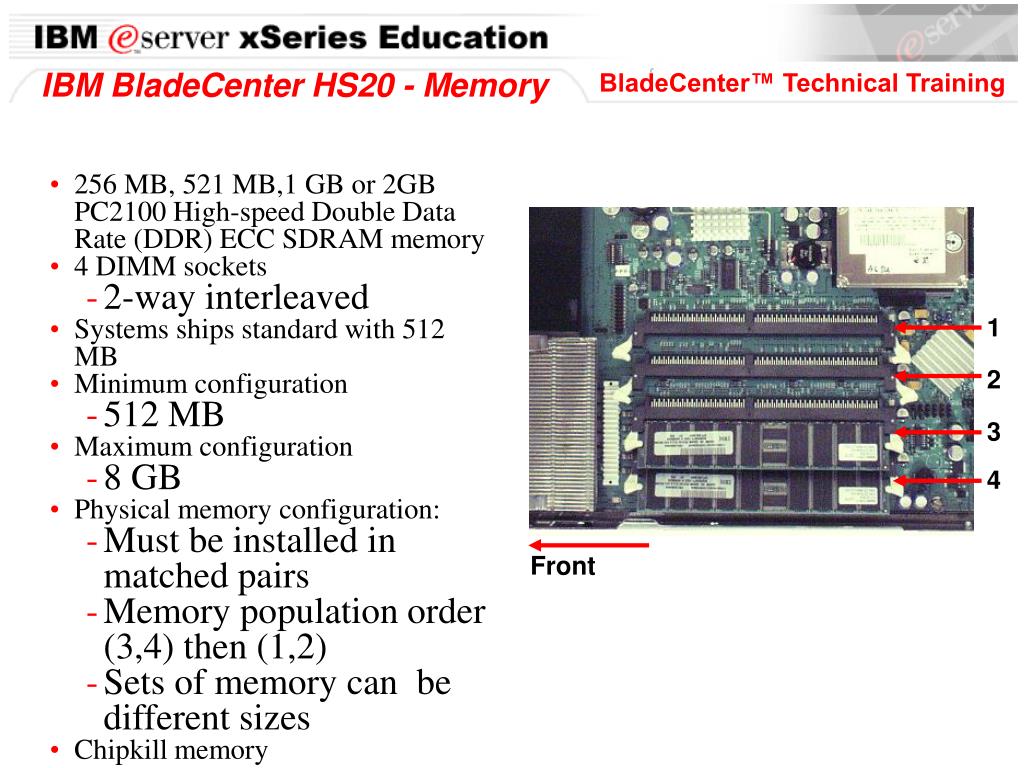

  8. 256 MB, 521 MB,1 GB or 2GB PC2100 High-speed Double Data Rate (DDR) ECC SDRAM memory 4 DIMM sockets 2-way interleaved Systems ships standard with 512 MB Minimum configuration 512 MB Maximum configuration 8 GB Physical memory configuration: Must be installed in matched pairs Memory population order (3,4) then (1,2) Sets of memory can be different sizes Chipkill memory IBM BladeCenter HS20 - Memory 1 2 3 4 Front

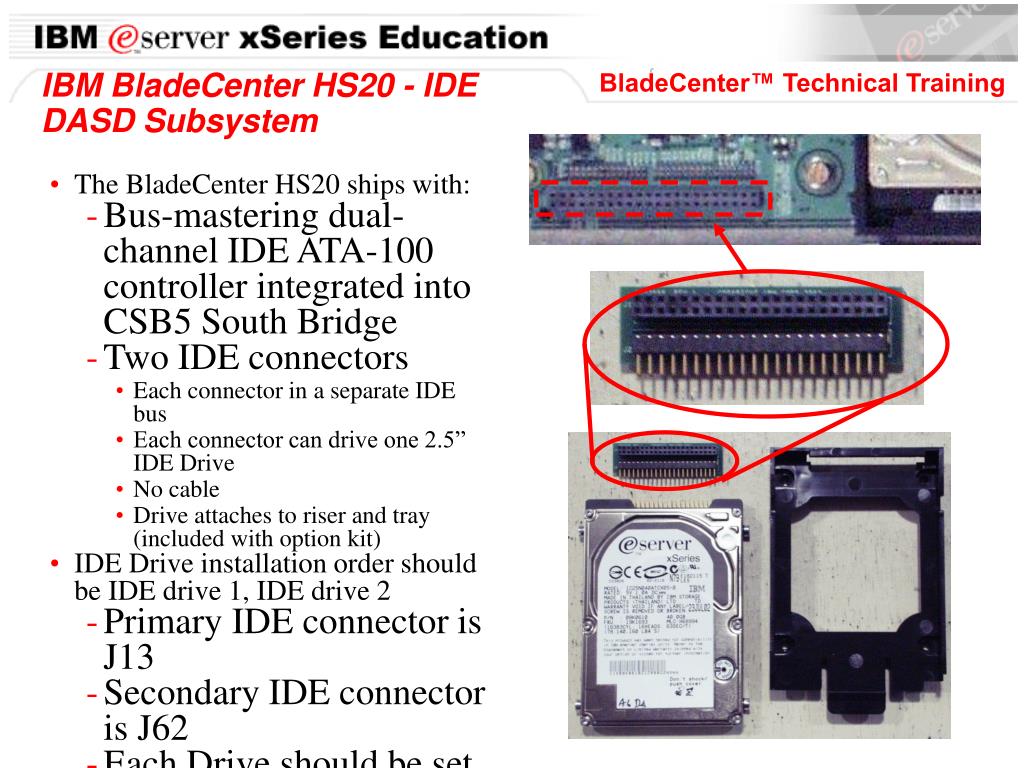

  9. The BladeCenter HS20 ships with: Bus-mastering dual-channel IDE ATA-100 controller integrated into CSB5 South Bridge Two IDE connectors Each connector in a separate IDE bus Each connector can drive one 2.5” IDE Drive No cable Drive attaches to riser and tray (included with option kit) IDE Drive installation order should be IDE drive 1, IDE drive 2 Primary IDE connector is J13 Secondary IDE connector is J62 Each Drive should be set to master IBM BladeCenter HS20 - IDE DASD Subsystem

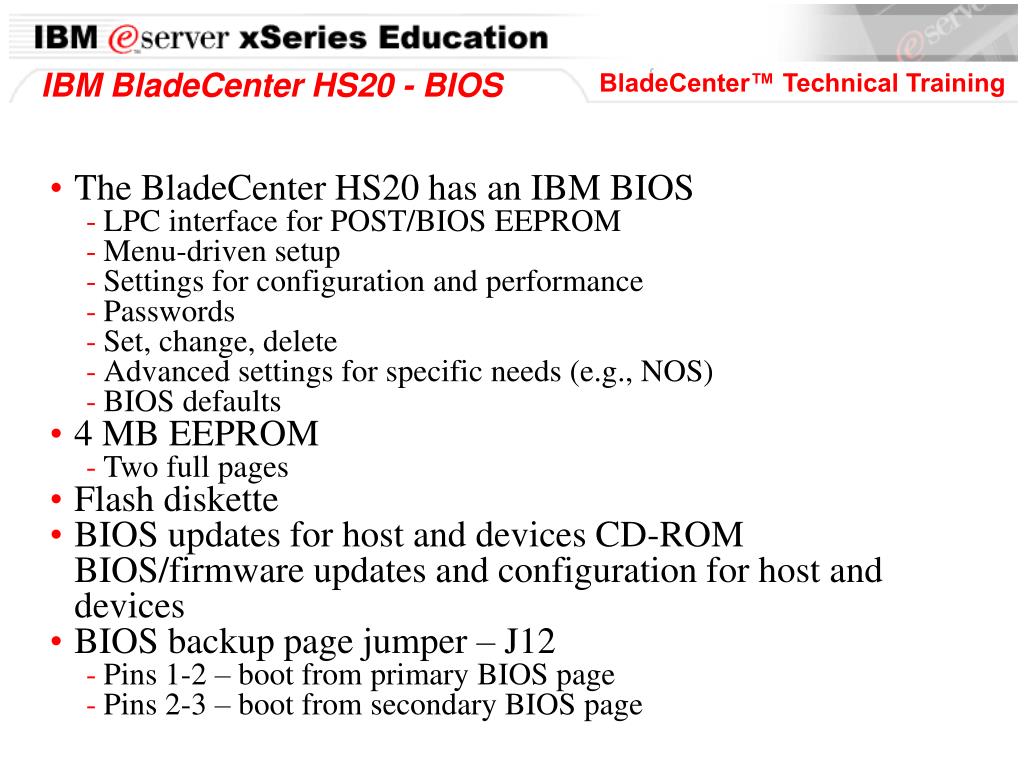

  10. IBM BladeCenter HS20 - BIOS • The BladeCenter HS20 has an IBM BIOS • LPC interface for POST/BIOS EEPROM • Menu-driven setup • Settings for configuration and performance • Passwords • Set, change, delete • Advanced settings for specific needs (e.g., NOS) • BIOS defaults • 4 MB EEPROM • Two full pages • Flash diskette • BIOS updates for host and devices CD-ROM BIOS/firmware updates and configuration for host and devices • BIOS backup page jumper – J12 • Pins 1-2 – boot from primary BIOS page • Pins 2-3 – boot from secondary BIOS page

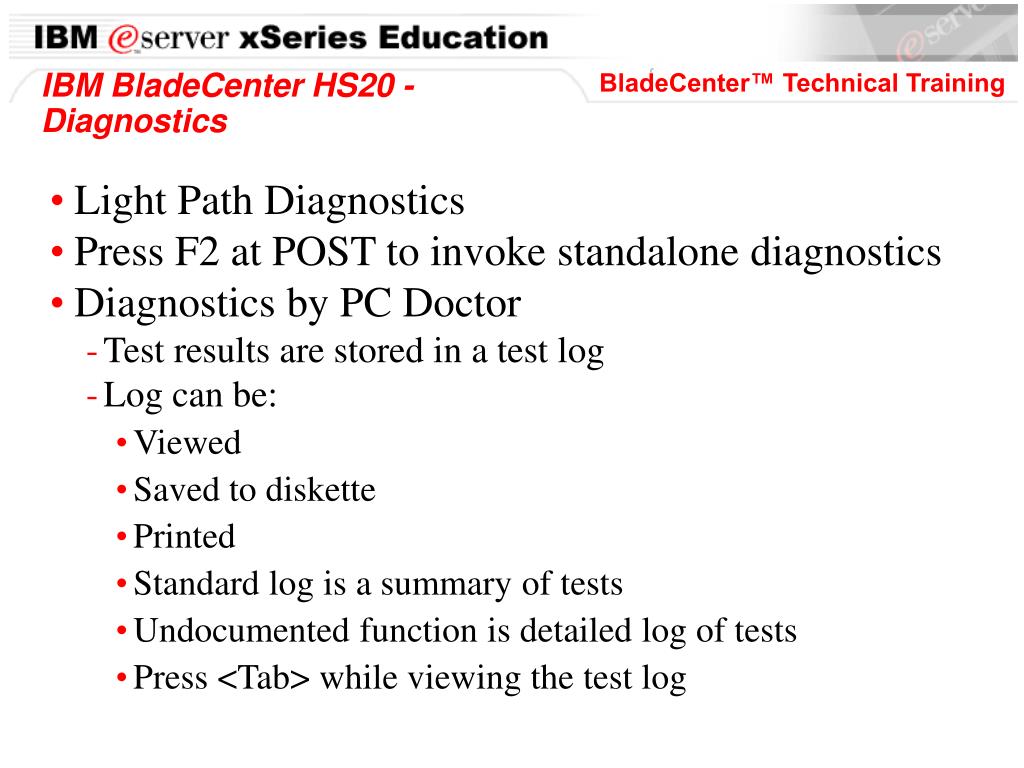

  11. IBM BladeCenter HS20 - Diagnostics • Light Path Diagnostics • Press F2 at POST to invoke standalone diagnostics • Diagnostics by PC Doctor • Test results are stored in a test log • Log can be: • Viewed • Saved to diskette • Printed • Standard log is a summary of tests • Undocumented function is detailed log of tests • Press <Tab> while viewing the test log

  12. An H8 2148 service processor provides the following: Loader and OS Watch Timer Remote soft shutdown POST Watchdog Timer Light Path support VPD support PFA for VRM/CPU/Memory/HD Numeric based Error log ASM interconnect support (RS485) Environmental querying and Alerts (TEMP/Voltages) Automatic Server Restart Remote Power On/Off In-band support for UMS/Director I2C interface to core logic (CSB5 chip) Local Environmental Monitoring Local LED control RS-485 interface to the Management Modules IBM BladeCenter HS20 - Service Processor

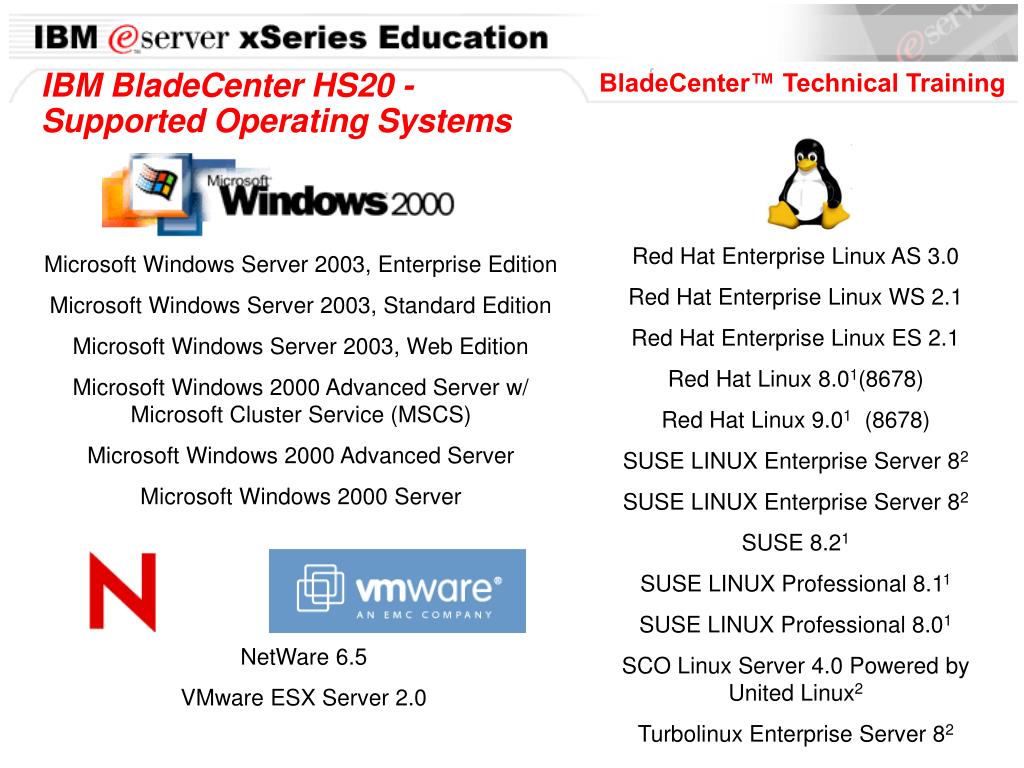

  13. IBM BladeCenter HS20 - Supported Operating Systems Red Hat Enterprise Linux AS 3.0 Red Hat Enterprise Linux WS 2.1 Red Hat Enterprise Linux ES 2.1 Red Hat Linux 8.01(8678) Red Hat Linux 9.01 (8678) SUSE LINUX Enterprise Server 82 SUSE LINUX Enterprise Server 82 SUSE 8.21 SUSE LINUX Professional 8.11 SUSE LINUX Professional 8.01 SCO Linux Server 4.0 Powered by United Linux2 Turbolinux Enterprise Server 82 Microsoft Windows Server 2003, Enterprise Edition Microsoft Windows Server 2003, Standard Edition Microsoft Windows Server 2003, Web Edition Microsoft Windows 2000 Advanced Server w/ Microsoft Cluster Service (MSCS) Microsoft Windows 2000 Advanced Server Microsoft Windows 2000 Server NetWare 6.5 VMware ESX Server 2.0

  14. IBM BladeCenter HS20 - Warranty • Limited warranty • 3 year parts and labor • International Warranty Service • On site, 8 am – 5 pm, Monday – Friday coverage excluding holidays • Next business day response time • 24x7 toll-free support for warranty issues during the warranty period

  15. IBM BladeCenter HS40 (8839)

  16. One, two or four 2.8 GHz Xeon CPUs, 400MHz FSB 512 KB L2 (on-die) cache 256MB, 512MB, or 1GB MB ECC DDR SDRAM DIMMs PC2100 memory, Maximum 8GB, Chipkill Integrated ATA-100 IDE Optional SCSI Storage Expansion Unit with embedded Raid 1 (LSI 53C1020) Open bay: 2 bays for IDE HDD 2 bays for SCSI HDD in SCSI option PFAs for processor, memory, power supplies, cooling fans, HDDs Systems management through IBM Director 4.0 for BladeCenter 3/3 Warranty IBM BladeCenter HS40 Overview

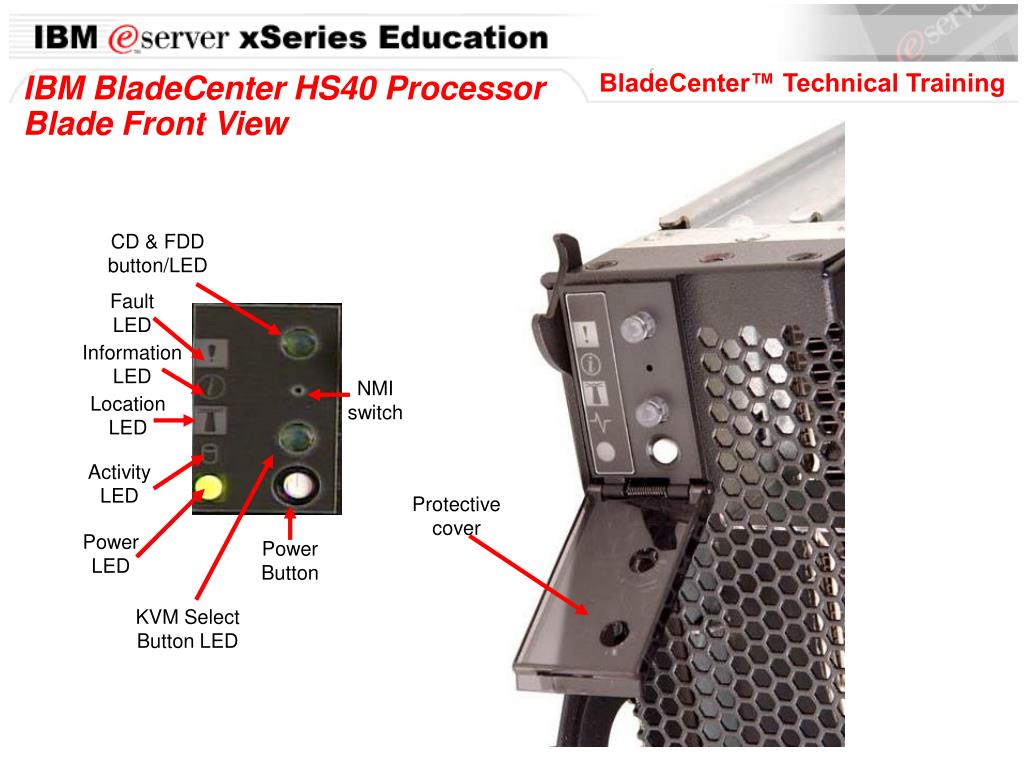

  17. IBM BladeCenter HS40 Processor Blade Front View CD & FDD button/LED Fault LED Information LED NMI switch Location LED Activity LED Protective cover Power LED Power Button KVM Select Button LED

  18. IBM BladeCenter HS40 - Overhead View Processor 2 SCSI Expansion connector terminator Daughter Card connectors IDE connector 1 IDE connector 2 Processor 1

  19. IBM BladeCenter HS40 Architecture and Hardware Components

  20. IBM BladeCenter HS40 Architecture

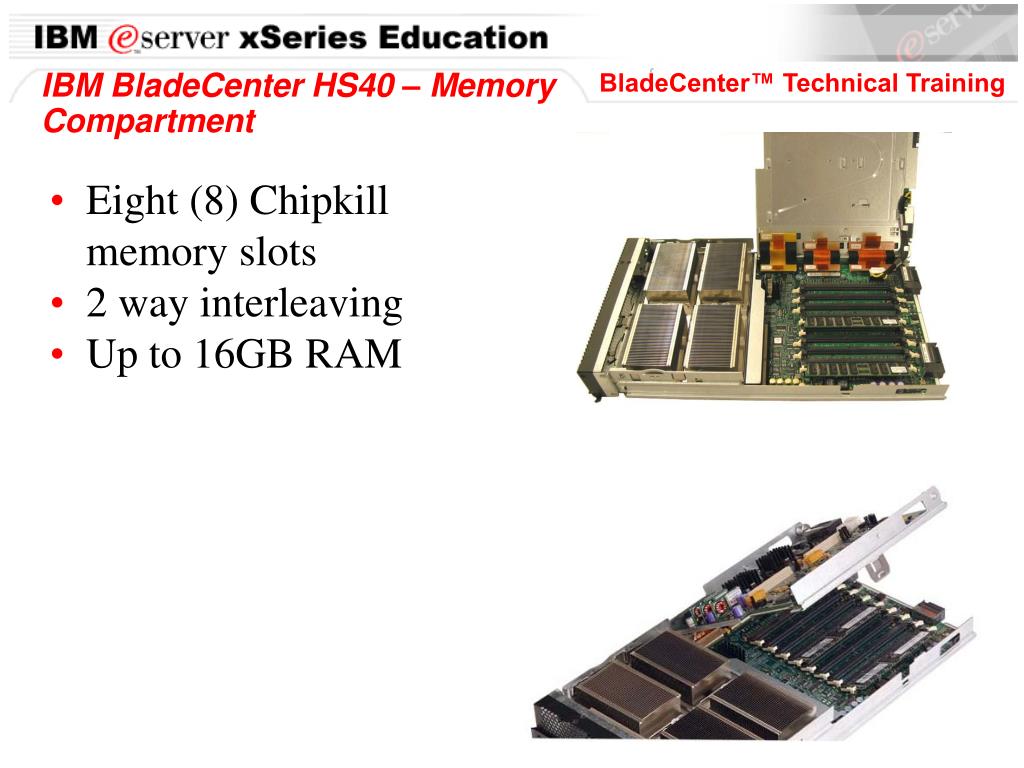

  21. IBM BladeCenter HS40 – Memory Compartment • Eight (8) Chipkill memory slots • 2 way interleaving • Up to 16GB RAM

  22. The BladeCenter HS40 ships with: Bus-mastering dual-channel IDE ATA-100 controller integrated into CSB5 South Bridge Two IDE connectors Each connector in a separate IDE bus Each connector can drive one 2.5” IDE Drive No cable Drive attaches to riser and tray (included with option kit) IDE Drive installation order should be IDE drive 1, IDE drive 2 Primary IDE connector is J13 Secondary IDE connector is J62 IBM BladeCenter HS40 - IDE DASD Subsystem

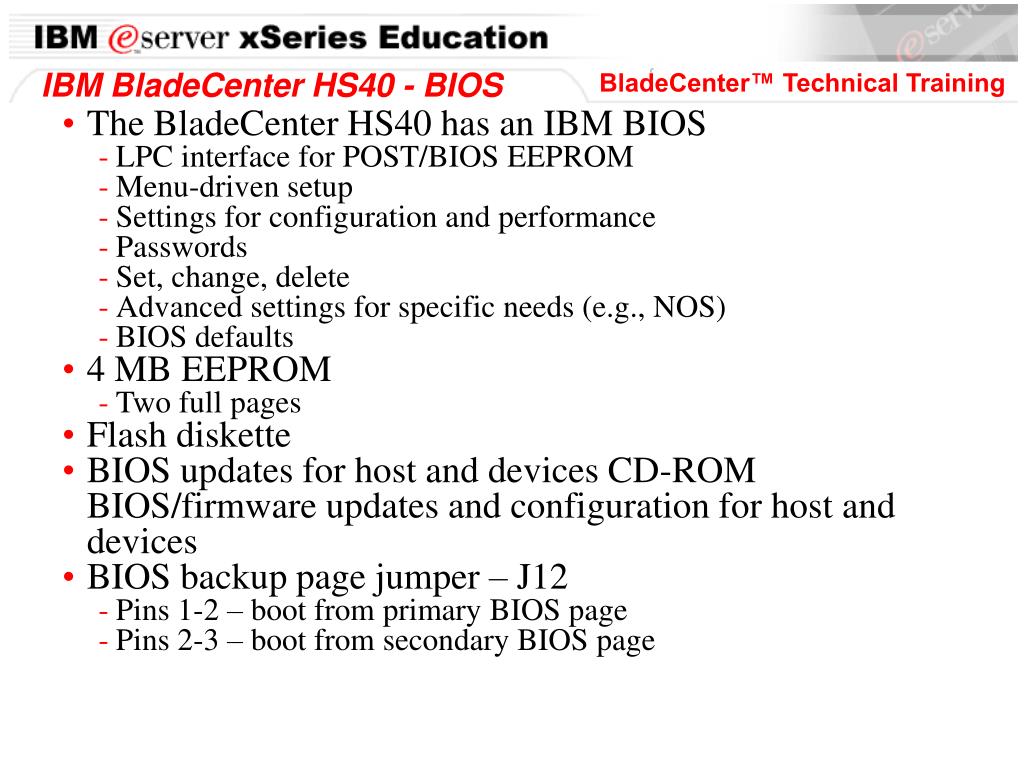

  23. IBM BladeCenter HS40 - BIOS • The BladeCenter HS40 has an IBM BIOS • LPC interface for POST/BIOS EEPROM • Menu-driven setup • Settings for configuration and performance • Passwords • Set, change, delete • Advanced settings for specific needs (e.g., NOS) • BIOS defaults • 4 MB EEPROM • Two full pages • Flash diskette • BIOS updates for host and devices CD-ROM BIOS/firmware updates and configuration for host and devices • BIOS backup page jumper – J12 • Pins 1-2 – boot from primary BIOS page • Pins 2-3 – boot from secondary BIOS page

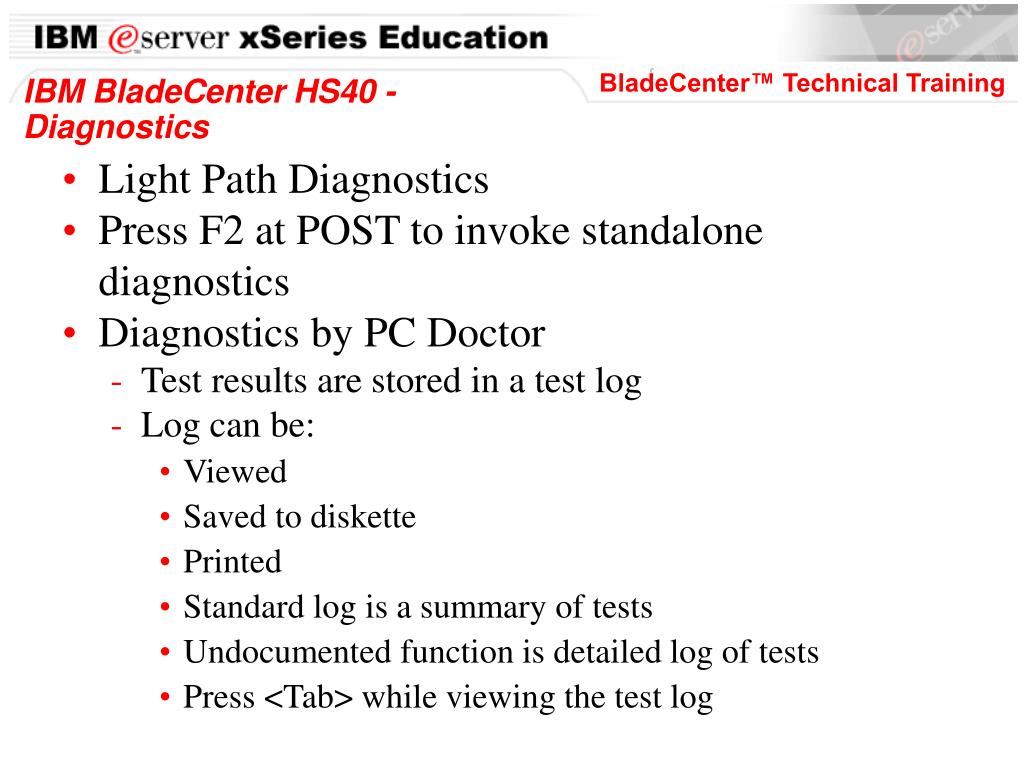

  24. IBM BladeCenter HS40 - Diagnostics • Light Path Diagnostics • Press F2 at POST to invoke standalone diagnostics • Diagnostics by PC Doctor • Test results are stored in a test log • Log can be: • Viewed • Saved to diskette • Printed • Standard log is a summary of tests • Undocumented function is detailed log of tests • Press <Tab> while viewing the test log

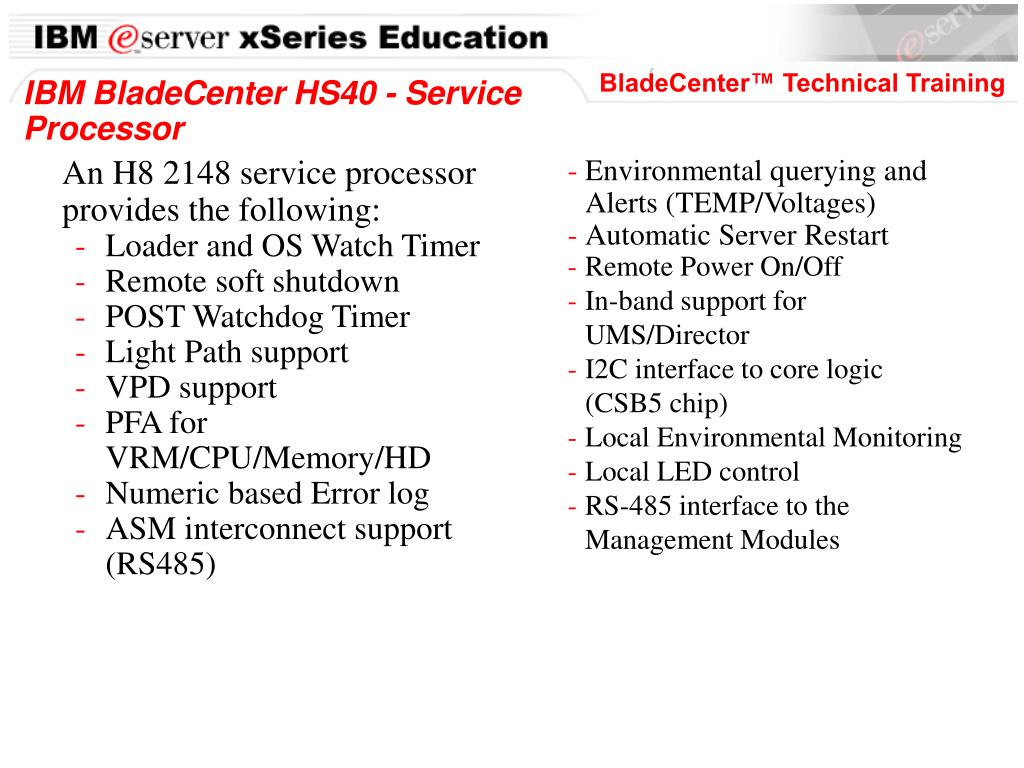

  25. An H8 2148 service processor provides the following: Loader and OS Watch Timer Remote soft shutdown POST Watchdog Timer Light Path support VPD support PFA for VRM/CPU/Memory/HD Numeric based Error log ASM interconnect support (RS485) Environmental querying and Alerts (TEMP/Voltages) Automatic Server Restart Remote Power On/Off In-band support for UMS/Director I2C interface to core logic (CSB5 chip) Local Environmental Monitoring Local LED control RS-485 interface to the Management Modules IBM BladeCenter HS40 - Service Processor

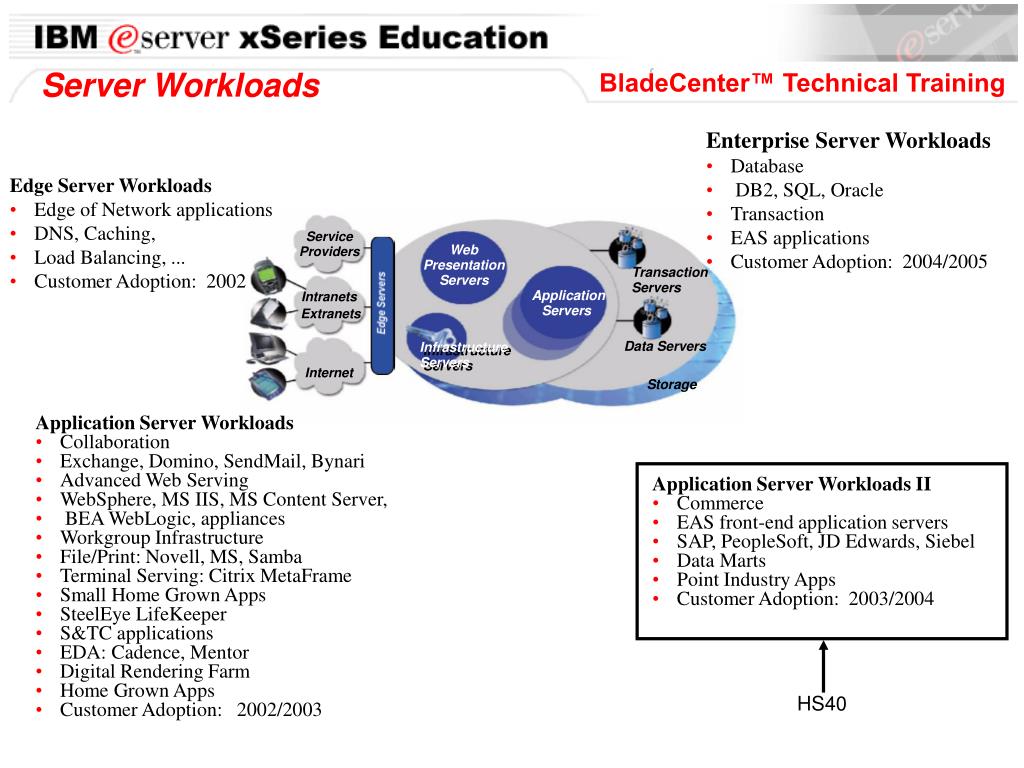

  26. Edge Server Workloads Edge of Network applications DNS, Caching, Load Balancing, ... Customer Adoption: 2002 Enterprise Server Workloads Database DB2, SQL, Oracle Transaction EAS applications Customer Adoption: 2004/2005 Application Server Workloads II • Commerce • EAS front-end application servers • SAP, PeopleSoft, JD Edwards, Siebel • Data Marts • Point Industry Apps • Customer Adoption: 2003/2004 Server Workloads Application Server Workloads • Collaboration • Exchange, Domino, SendMail, Bynari • Advanced Web Serving • WebSphere, MS IIS, MS Content Server, • BEA WebLogic, appliances • Workgroup Infrastructure • File/Print: Novell, MS, Samba • Terminal Serving: Citrix MetaFrame • Small Home Grown Apps • SteelEye LifeKeeper • S&TC applications • EDA: Cadence, Mentor • Digital Rendering Farm • Home Grown Apps • Customer Adoption: 2002/2003 HS40

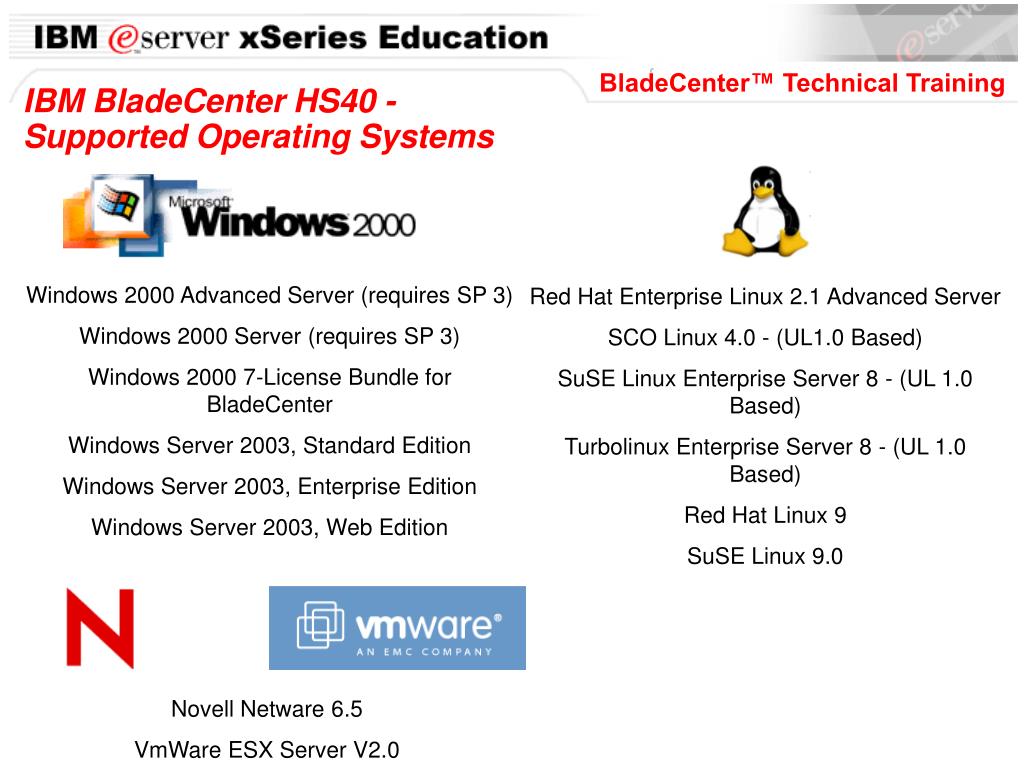

  27. IBM BladeCenter HS40 - Supported Operating Systems Windows 2000 Advanced Server (requires SP 3) Windows 2000 Server (requires SP 3) Windows 2000 7-License Bundle for BladeCenter Windows Server 2003, Standard Edition Windows Server 2003, Enterprise Edition Windows Server 2003, Web Edition Red Hat Enterprise Linux 2.1 Advanced Server SCO Linux 4.0 - (UL1.0 Based) SuSE Linux Enterprise Server 8 - (UL 1.0 Based) Turbolinux Enterprise Server 8 - (UL 1.0 Based) Red Hat Linux 9 SuSE Linux 9.0 Novell Netware 6.5 VmWare ESX Server V2.0

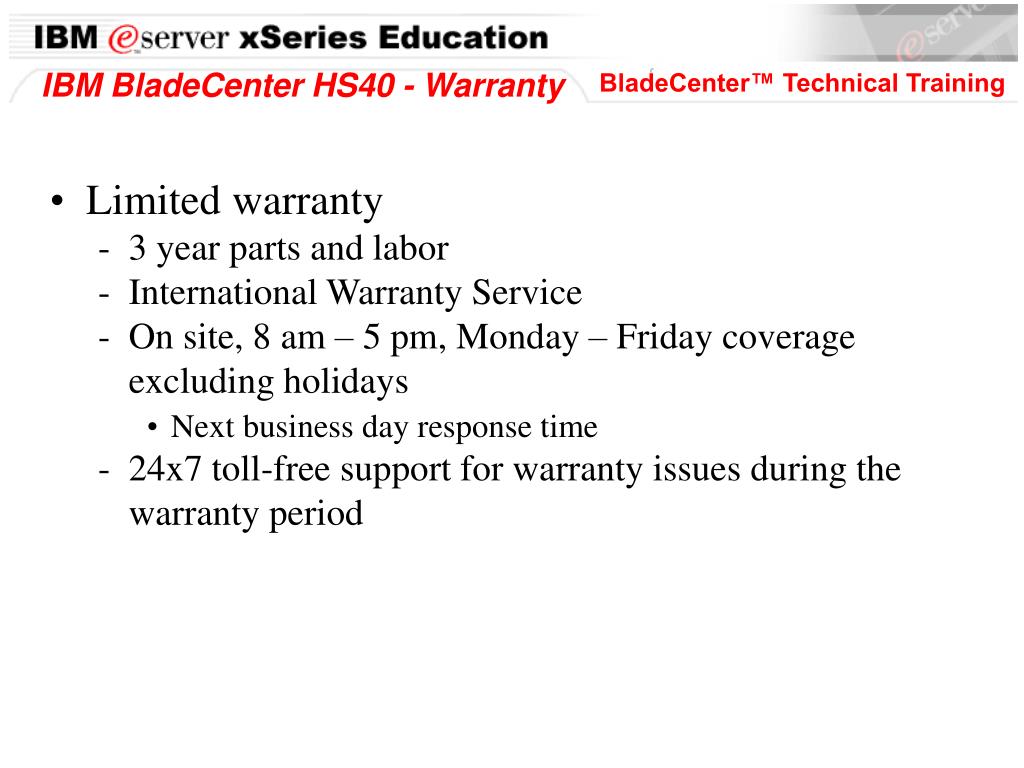

  28. IBM BladeCenter HS40 - Warranty • Limited warranty • 3 year parts and labor • International Warranty Service • On site, 8 am – 5 pm, Monday – Friday coverage excluding holidays • Next business day response time • 24x7 toll-free support for warranty issues during the warranty period

  29. IBM BladeCenter JS20 (8842)

  30. Attributes/Features Single wide blade form factor BladeCenter Enterprise Chassis 7EAI x 17.5”w x 28” d Core Electronics Power4 based, 2way SMP architecture PPC 970 with VMX GA1 1.6GHz Apple North Bridge ASIC (“U3”)+ECC 4 DIMM slots, DDR, ECC populated in pairs 512 MB base; 4 GB Max System Management Processor Integrated Features Dual 1Gb Ethernet 1 serial/console port (via serial over LAN) IDE controller Daughter Card options (1 Slot Available) Dual 1Gb Ethernet Dual 2GB Qlogic Fibre channel Myrinet Clustering Storage 0 – 2 IDE drive 2nd drive precludes daughtercard Control Panel and Indicators Similar to Intel based blades Lightpath diagnositics with single FRU isolation and CRU enablement Chassis Shared Features USB CD-ROM Floppy Disk Drive Management Module Optional Ethernet Switch Modules Optional Fibre Channel Switch Modules Redundant / Hot Plug power and cooling Systems Management Integrated into BladeCenter OS Support SuSE Linux SLES8 VMX Support (Linux Only) Port existing Altive/VMX kernel enablement from PPC32 kernel to PPC64 kernel – SLES8 32-bit application preview – SLES8 32 and 64-bit glibc & tool chain Gcc 64-bit VMX ABI support AIX 5.2 (07/04) Application Development & Enablement GCC 3.2 C/C++ compiler, 64-bit VMX (6/04) VisualAge C/C++ & Fortran compilers C/C++: PPC 970/VMX optimization for Linux (7/04) Cluster Software Mixed Power/Intel blades & mixed OSs in a chassis IBM Director (2/04) CSM, HPC (ESSL/PESSL, GPFS, Myrinet) RAS BladeCenter redundant / hot plug power & cooling Blade hot plug Dual AC power supply Internal and ambient temperature monitors PCI bus parity and ECC memory First failure data capture System mgmt alerts (Fault, Environmental, PFA) Auto reboot on power loss Customer setup and expansion Warranty 3 year, on site NBD BladeCenter JS20 Blade Server

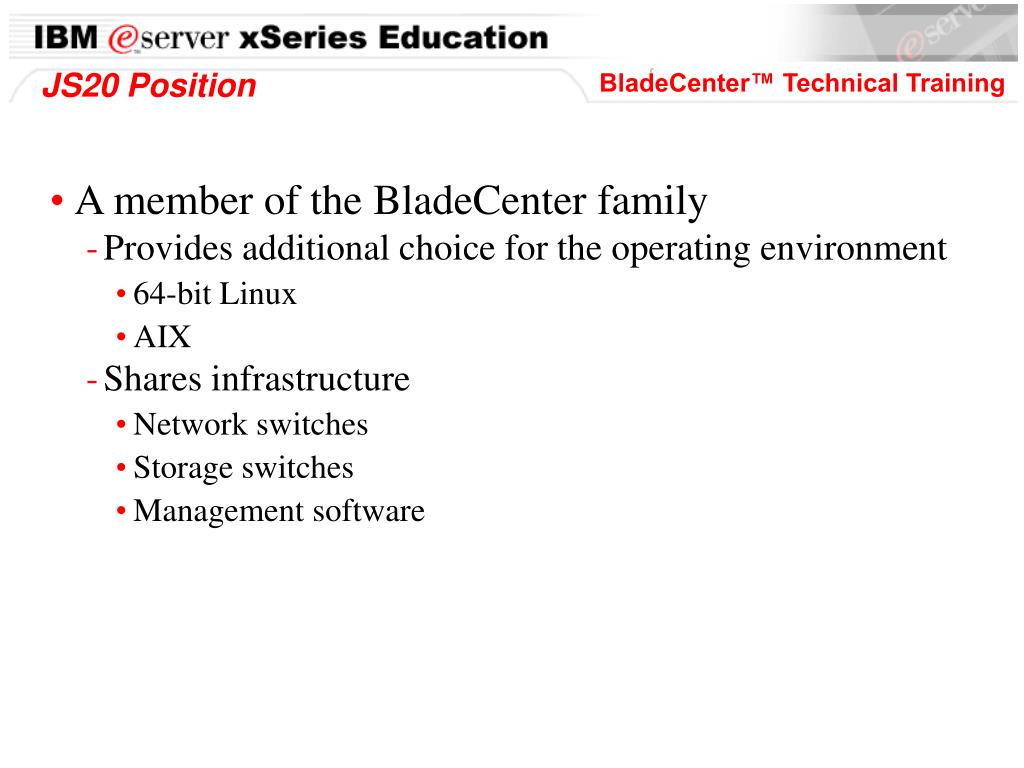

  31. JS20 Position • A member of the BladeCenter family • Provides additional choice for the operating environment • 64-bit Linux • AIX • Shares infrastructure • Network switches • Storage switches • Management software

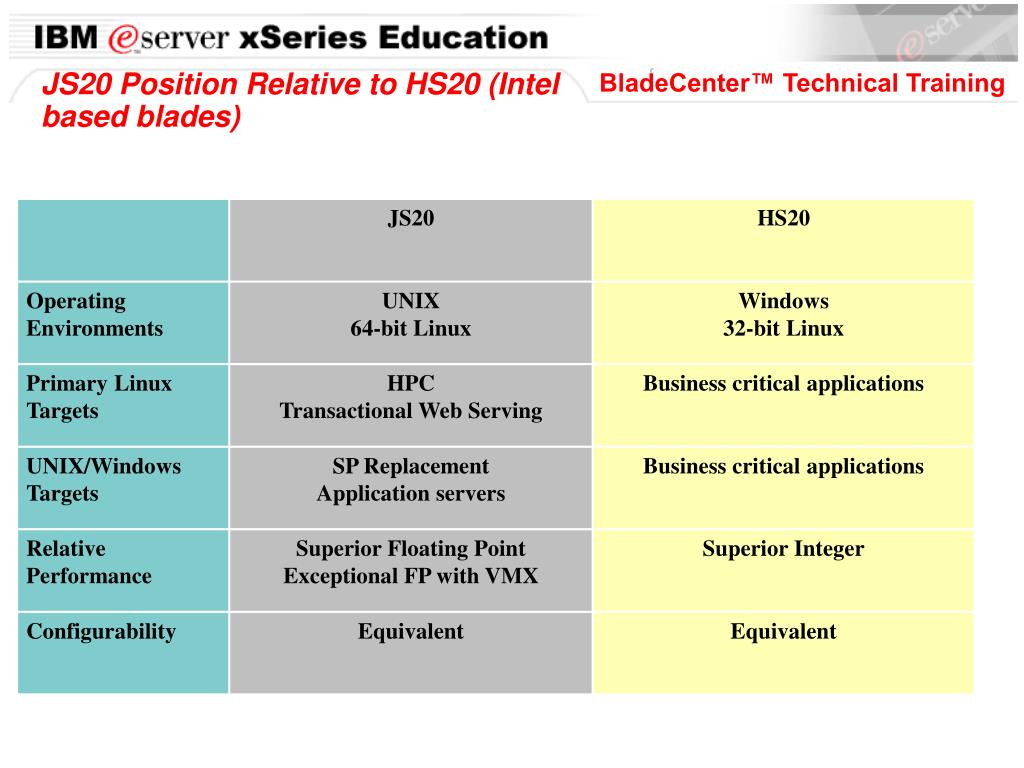

  32. JS20 Position Relative to HS20 (Intel based blades)

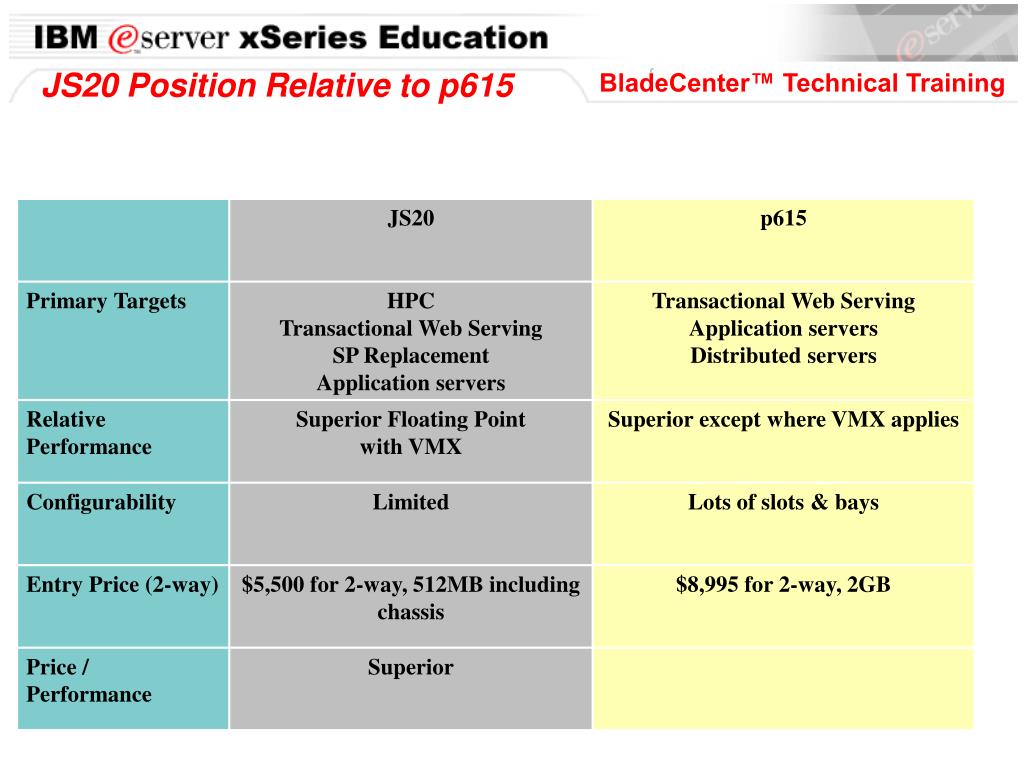

  33. JS20 Position Relative to p615

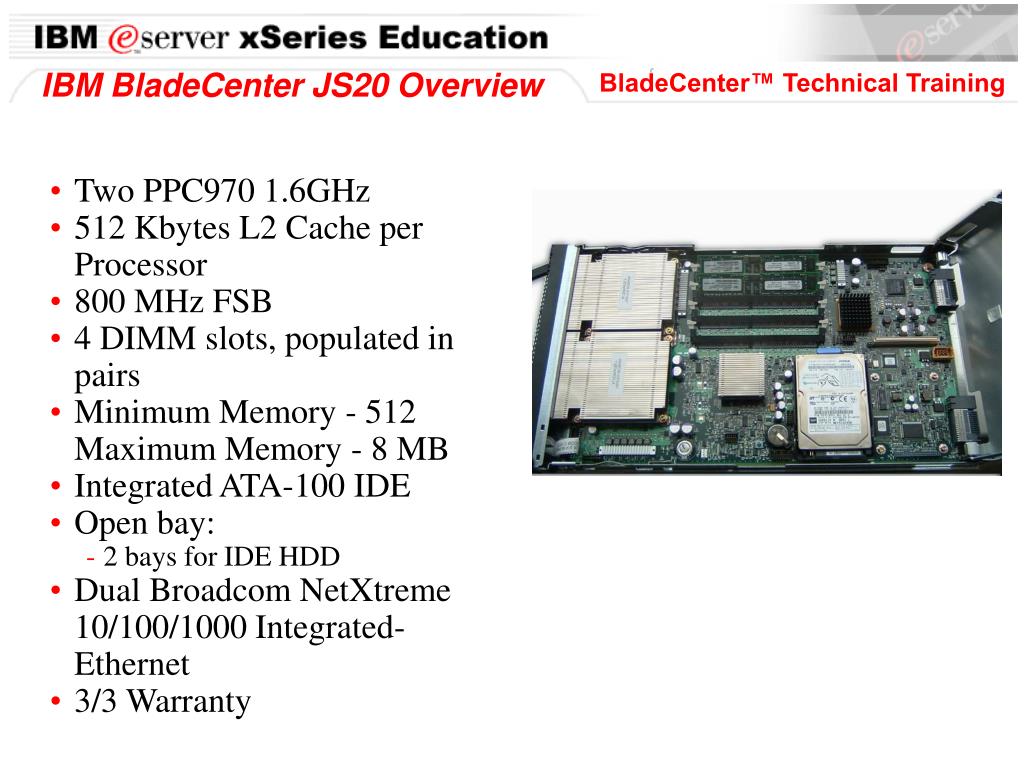

  34. IBM BladeCenter JS20 Overview • Two PPC970 1.6GHz • 512 Kbytes L2 Cache per Processor • 800 MHz FSB • 4 DIMM slots, populated in pairs • Minimum Memory - 512 Maximum Memory - 8 MB • Integrated ATA-100 IDE • Open bay: • 2 bays for IDE HDD • Dual Broadcom NetXtreme 10/100/1000 Integrated-Ethernet • 3/3 Warranty

  35. IBM BladeCenter JS20 Processor Blade Front View CD & FDD button/LED Fault LED Information LED NMI switch Location LED Activity LED Power LED Protective cover Power Button KVM Select Button LED

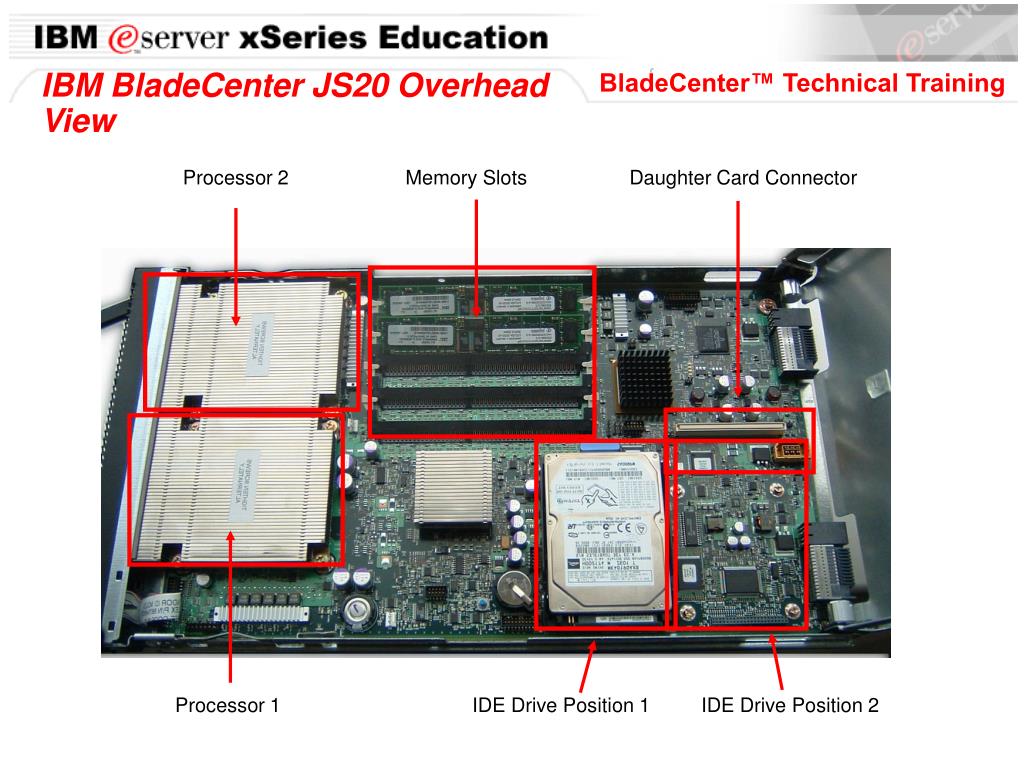

  36. IBM BladeCenter JS20 Overhead View Processor 2 Memory Slots Daughter Card Connector Processor 1 IDE Drive Position 1 IDE Drive Position 2

  37. The BladeCenter JS20 ships with: Bus-mastering dual-channel IDE ATA-100 controller integrated into CSB5 South Bridge Two IDE connectors Each connector in a separate IDE bus Each connector can drive one 2.5” IDE Drive No cable Drive attaches to riser and tray (included with option kit) IDE Drive installation order should be IDE drive 1, IDE drive 2 IBM BladeCenter JS20 - IDE DASD Subsystem

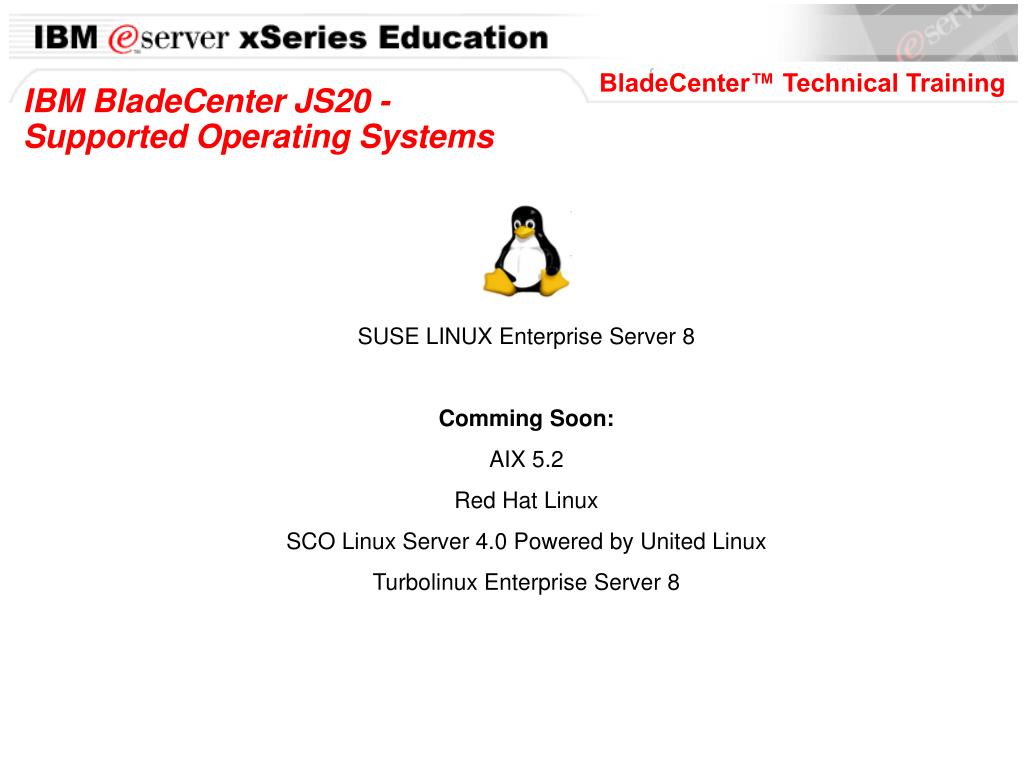

  38. IBM BladeCenter JS20 - Supported Operating Systems SUSE LINUX Enterprise Server 8 Comming Soon: AIX 5.2 Red Hat Linux SCO Linux Server 4.0 Powered by United Linux Turbolinux Enterprise Server 8

  39. IBM BladeCenter JS20 - Warranty • Limited warranty • 3 year parts and labor • International Warranty Service • On site, 8 am – 5 pm, Monday – Friday coverage excluding holidays • Next business day response time • 24x7 toll-free support for warranty issues during the warranty period

  40. Blades for Sun Migration • Many customers are considering moving from Sun to Linux • Linux on the JS20 is an ideal solution • They are used to 64-bit • They are used to the (perceived) robustness of RISC • They can mix and match HS20’s if some of their applications are better suited to 32-bit • They can go back to UNIX (AIX) if they don’t like Linux

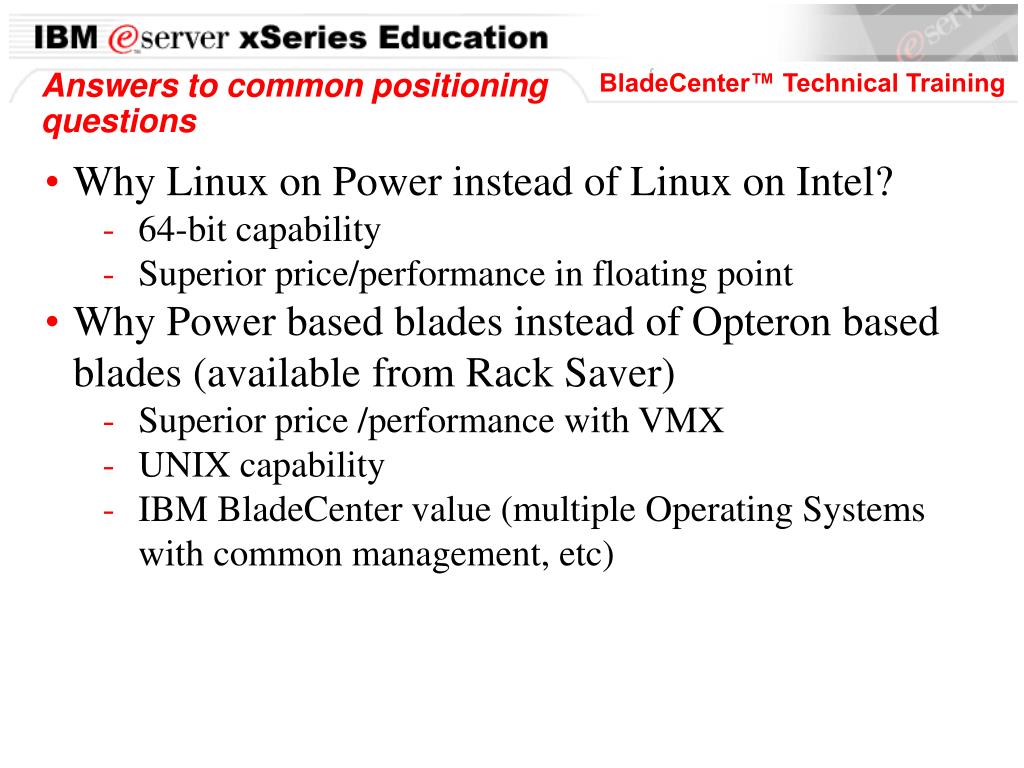

  41. Answers to common positioning questions • Why Linux on Power instead of Linux on Intel? • 64-bit capability • Superior price/performance in floating point • Why Power based blades instead of Opteron based blades (available from Rack Saver) • Superior price /performance with VMX • UNIX capability • IBM BladeCenter value (multiple Operating Systems with common management, etc)

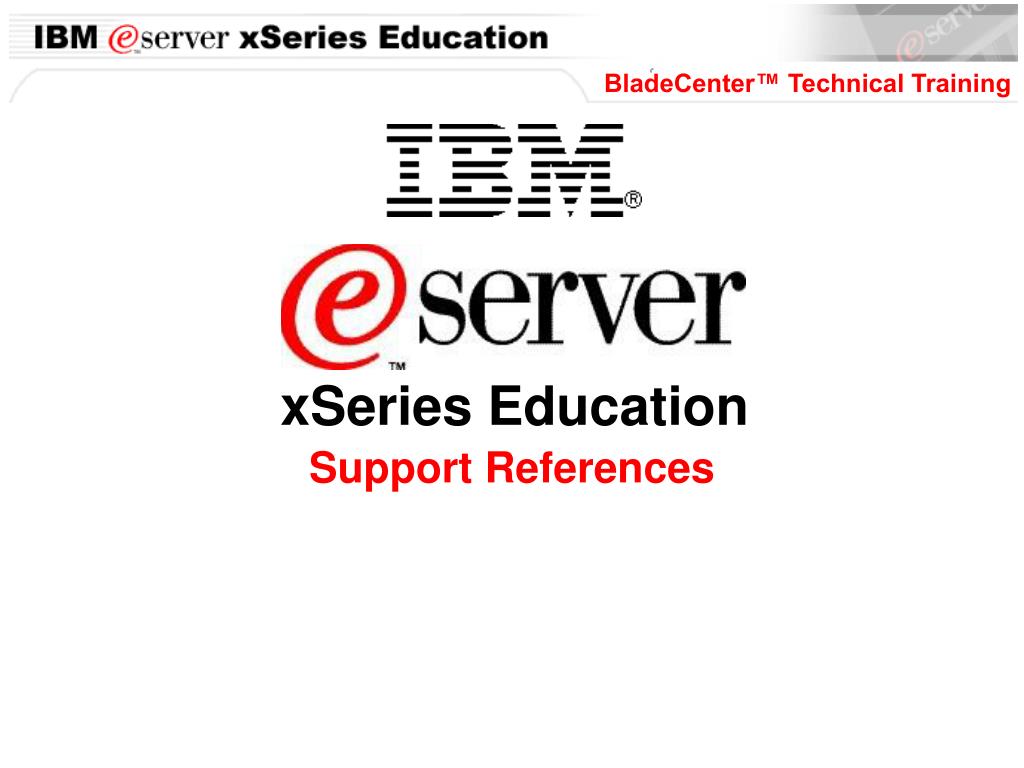

  42. Support References

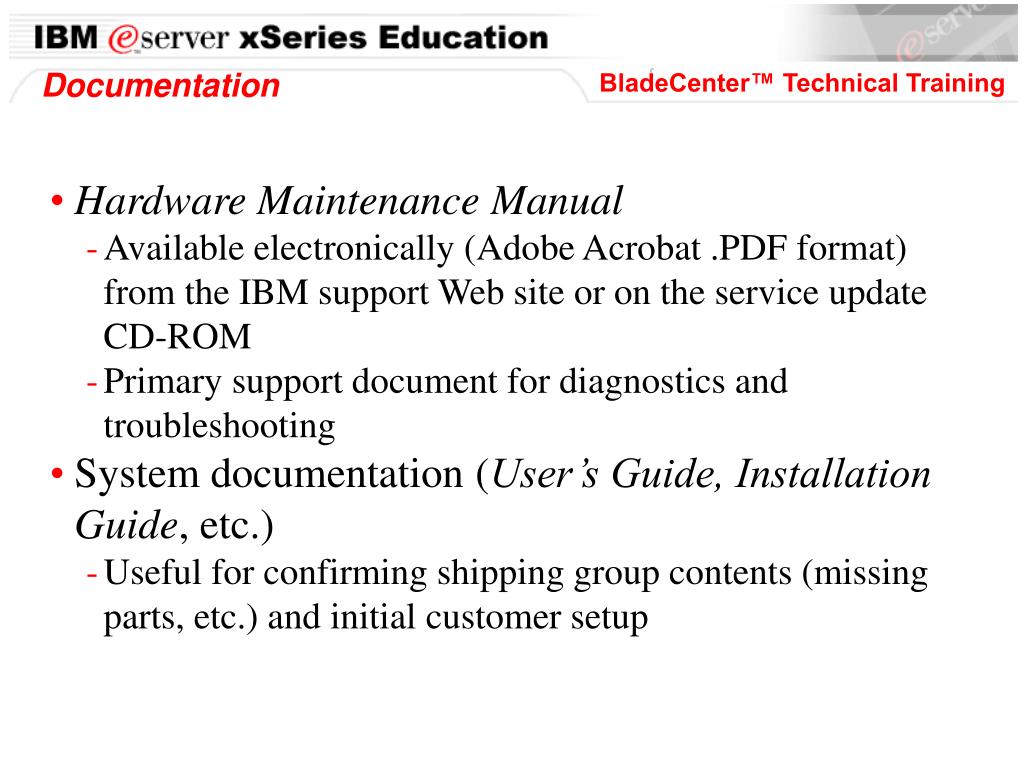

  43. Documentation • Hardware Maintenance Manual • Available electronically (Adobe Acrobat .PDF format) from the IBM support Web site or on the service update CD-ROM • Primary support document for diagnostics and troubleshooting • System documentation (User’s Guide, Installation Guide, etc.) • Useful for confirming shipping group contents (missing parts, etc.) and initial customer setup

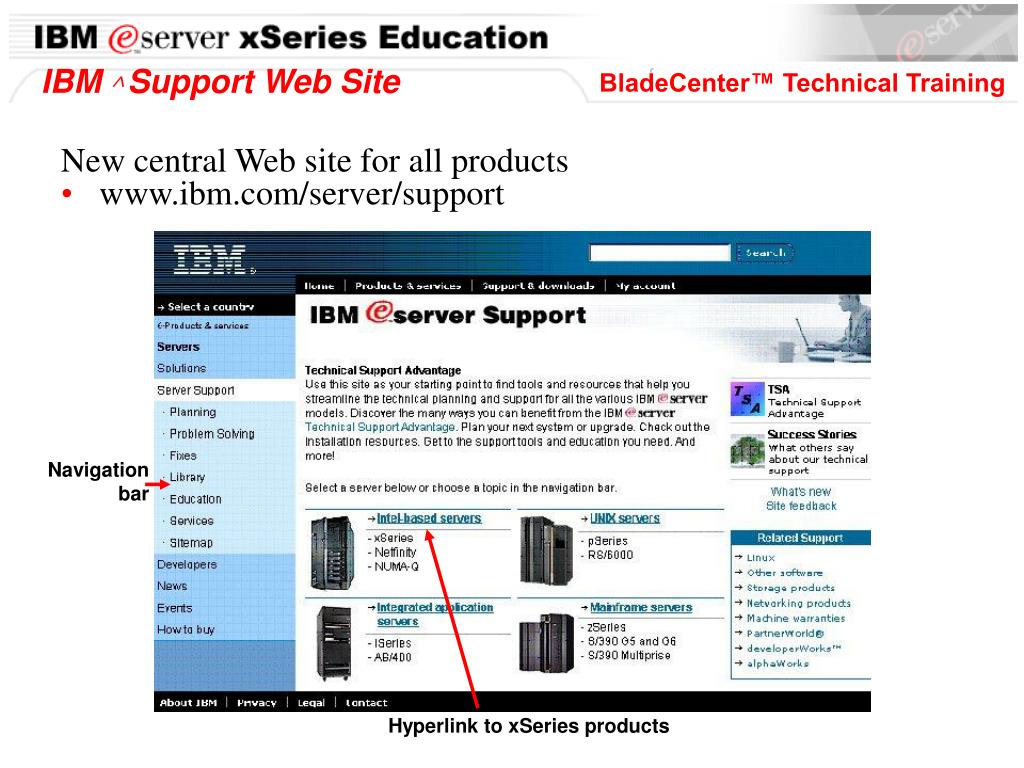

  44. IBM ^ Support Web Site New central Web site for all products • www.ibm.com/server/support Navigation bar Hyperlink to xSeries products

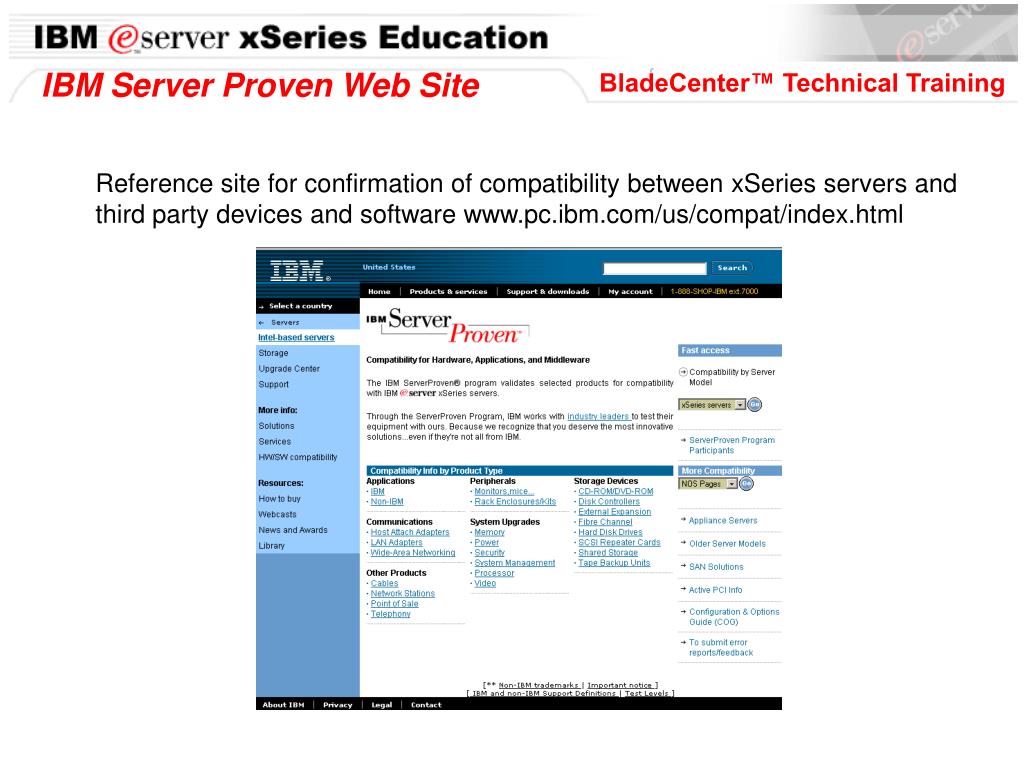

  45. IBM Server Proven Web Site Reference site for confirmation of compatibility between xSeries servers and third party devices and software www.pc.ibm.com/us/compat/index.html

  46. Topic Summary This topic was designed to illustrate the BladeCenter™ HS20 and JS20 blade servers and their mechanical and architecture characteristics.
