blind spots study

Blind Spots Study

Large Mining Equipment

slide3

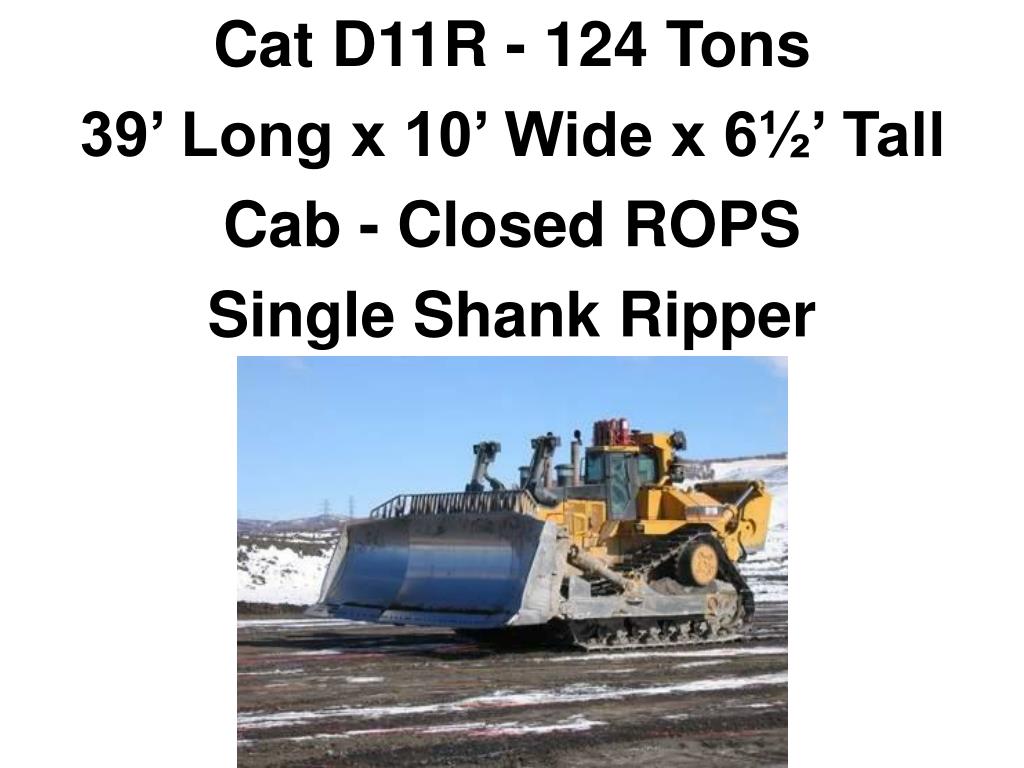

Cat D11R - 124 Tons

39’ Long x 10’ Wide x 6½’ Tall

Cab - Closed ROPS

Single Shank Ripper

slide4
Dozer Blind Spots

At Ground Level

slide5
Dozer Blind Spots

5’ Above Ground Level

slide7

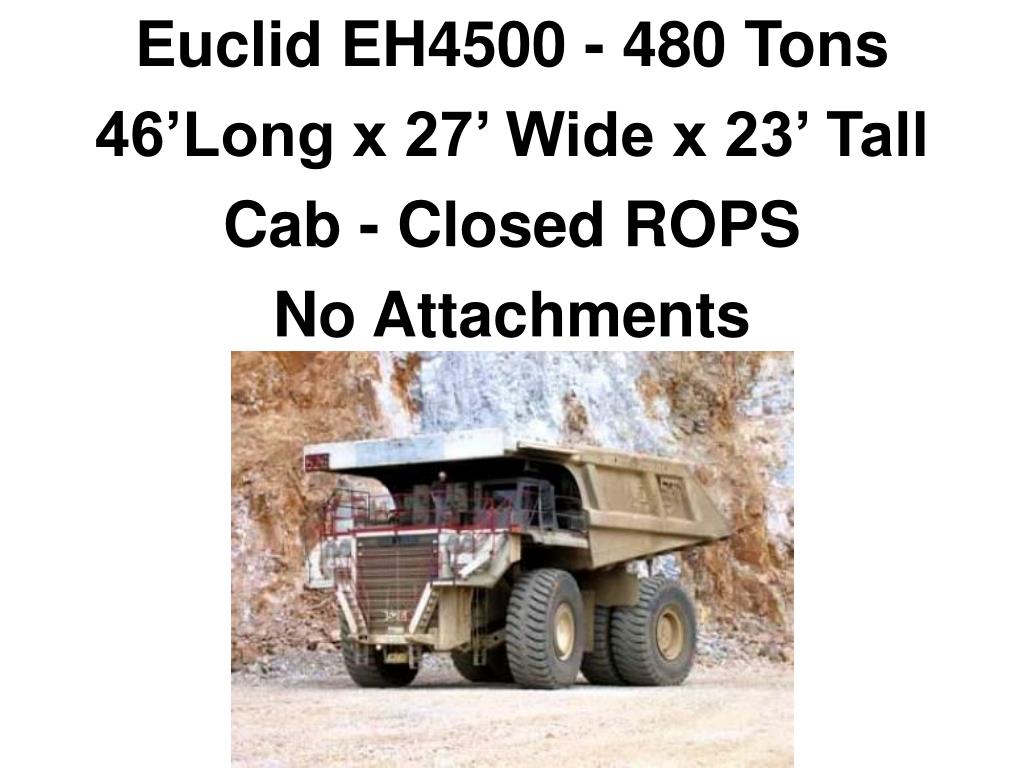

Euclid EH4500 - 480 Tons

46’Long x 27’ Wide x 23’ Tall

Cab - Closed ROPS

No Attachments

slide8

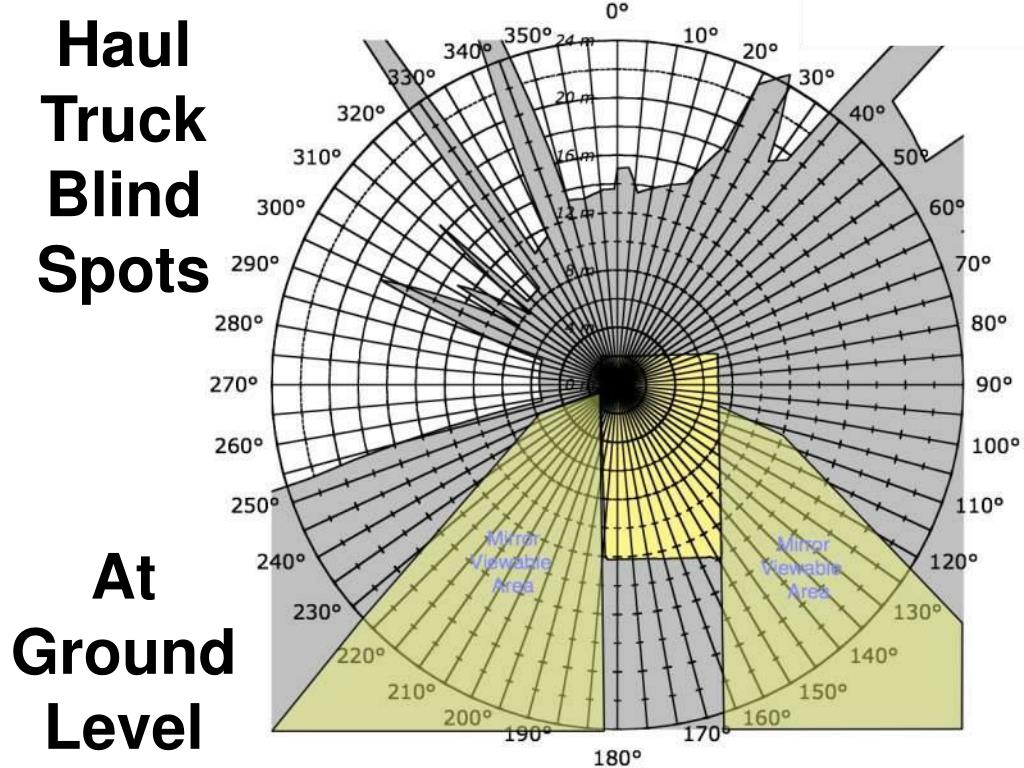

Haul Truck Blind Spots

At Ground Level

slide9
Haul Truck Blind Spots

5’ Above Ground Level

slide11

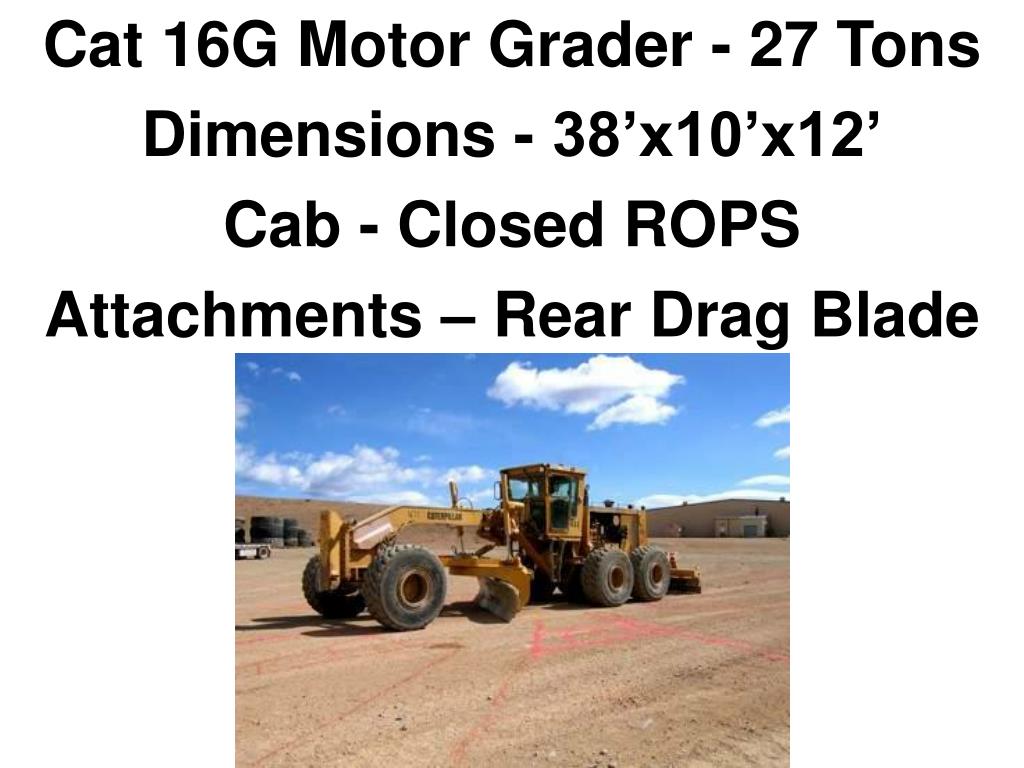

Cat 16G Motor Grader - 27 Tons

Dimensions - 38’x10’x12’

Cab - Closed ROPS

Attachments – Rear Drag Blade

slide12

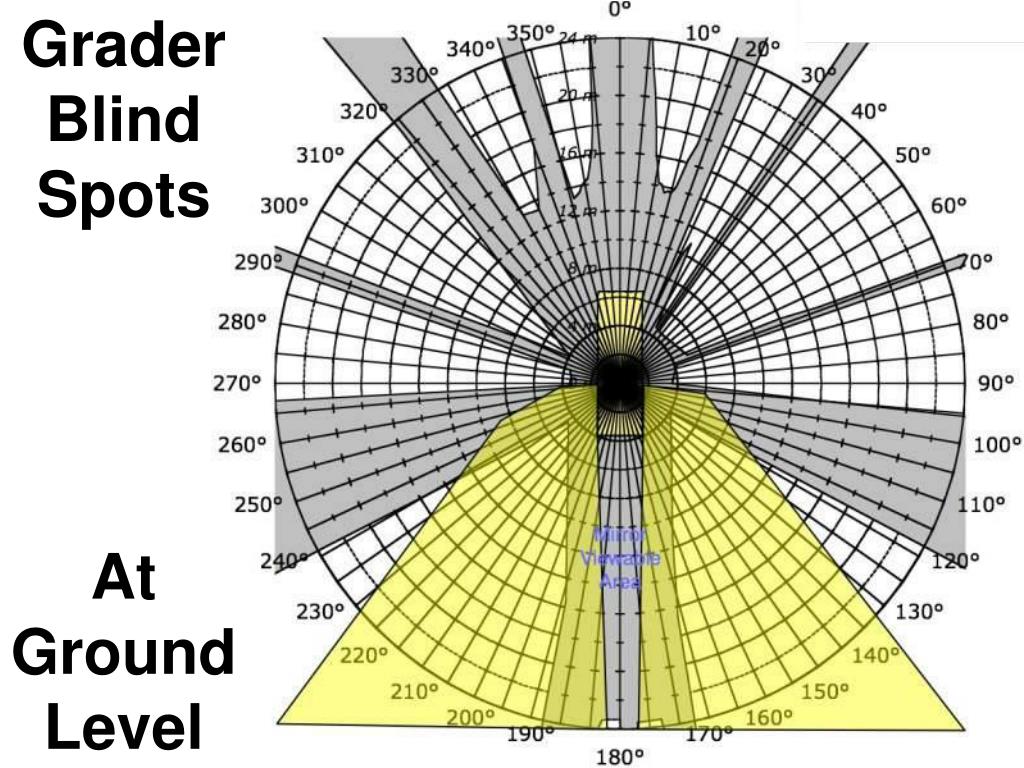

Grader Blind Spots

At Ground Level

slide13

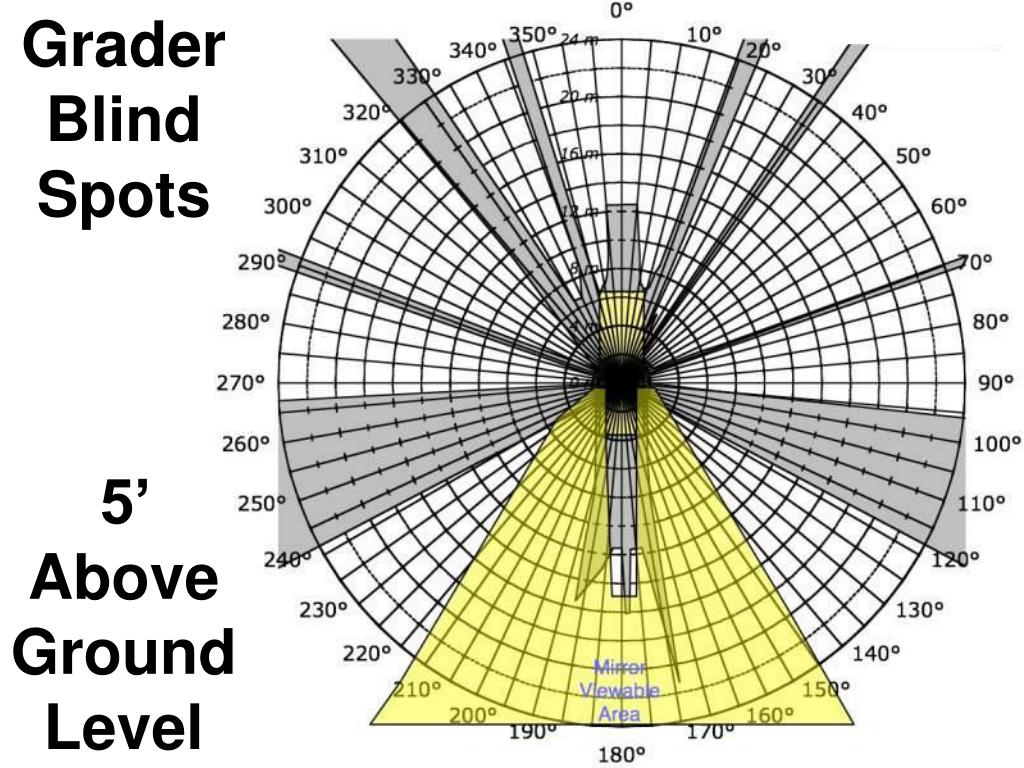

Grader Blind Spots

5’ Above Ground Level

slide15
Hitachi EX5500 - 571 Tons

76’ Long x 32’ Wide x 28’ Tall

Cab - Closed ROPS

No Attachments

slide16

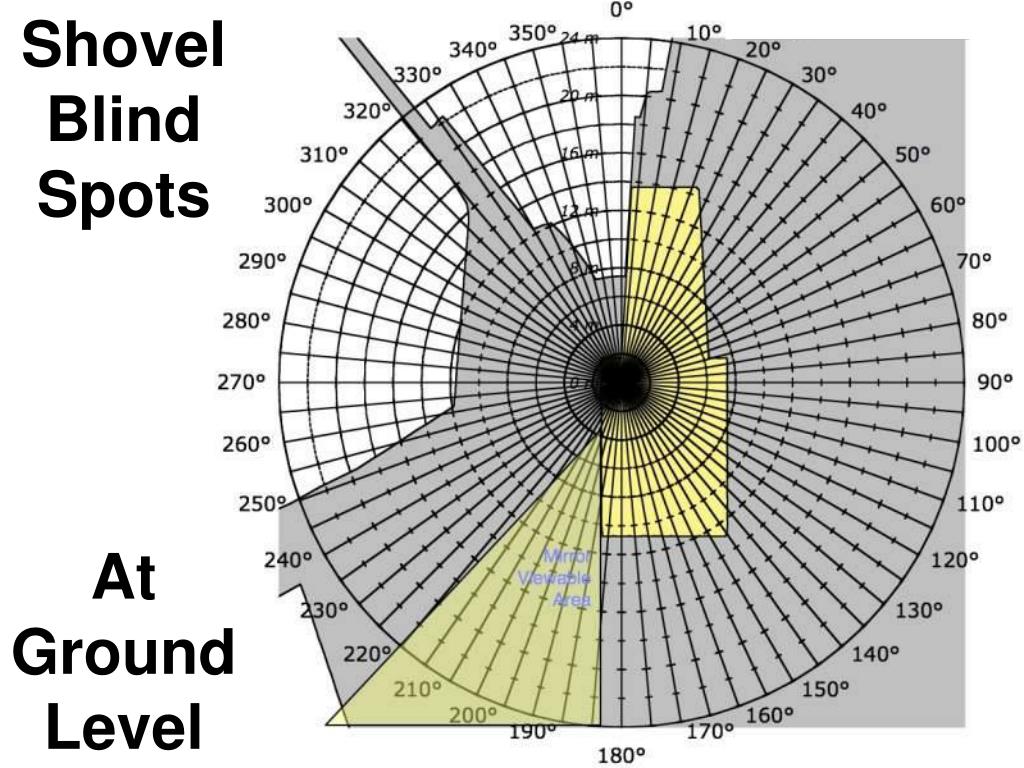

Shovel Blind Spots

At Ground Level

slide17
Shovel Blind Spots

5’ Above Ground Level

slide19

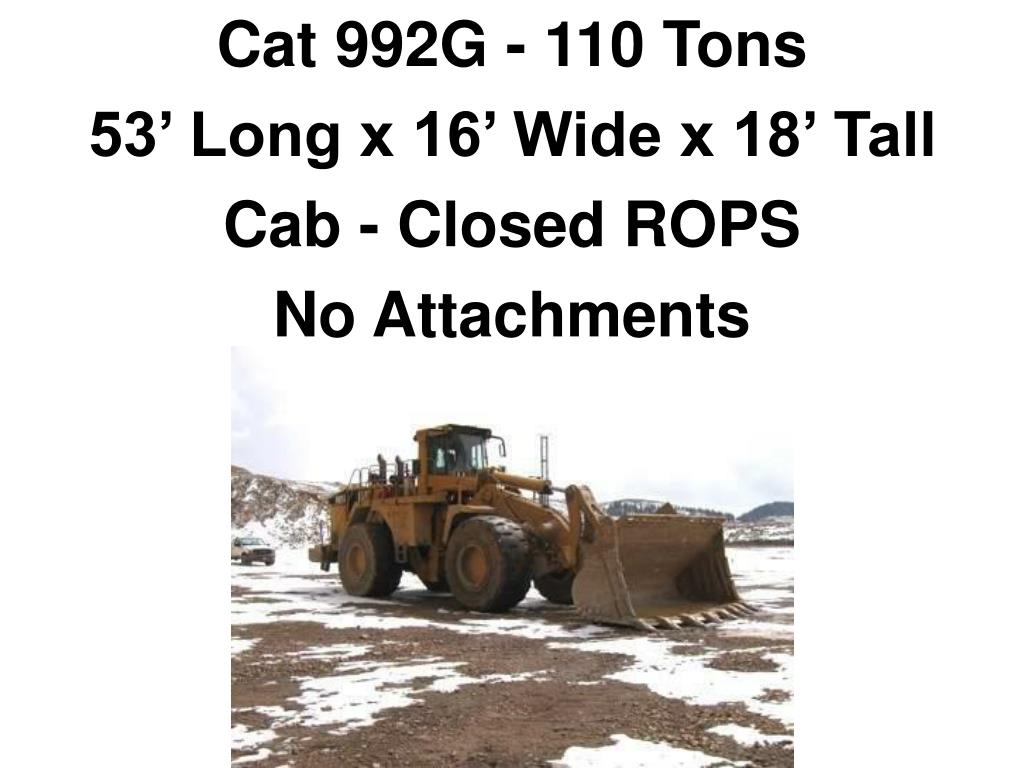

Cat 992G - 110 Tons

53’ Long x 16’ Wide x 18’ Tall

Cab - Closed ROPS

No Attachments

slide20

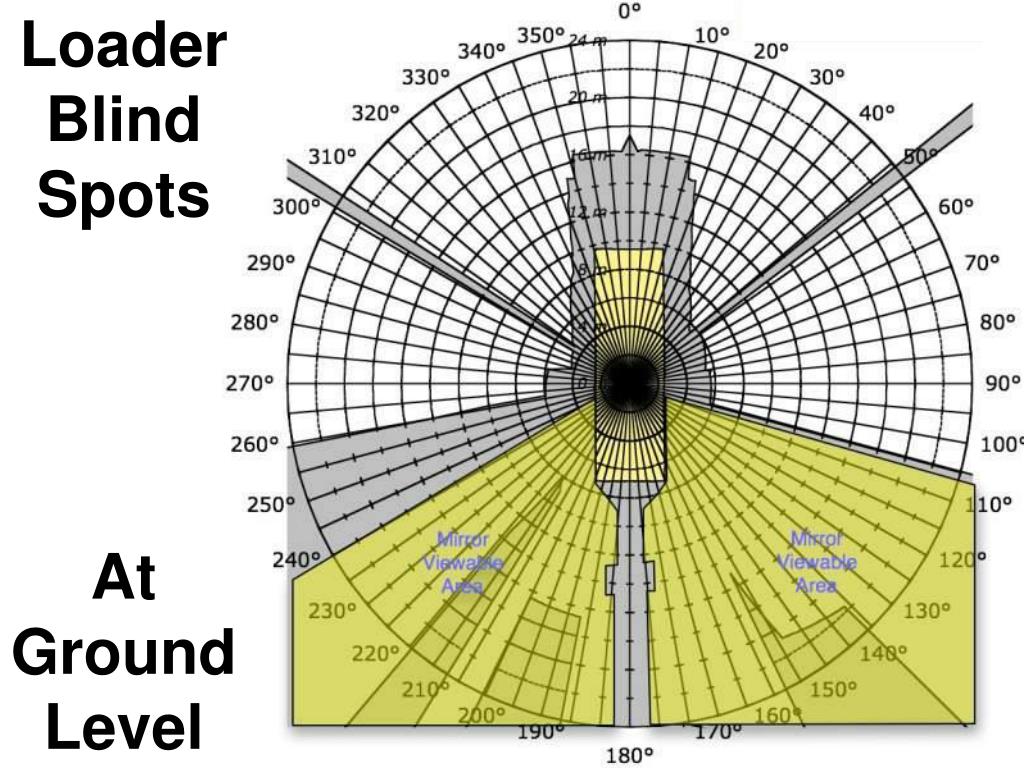

Loader Blind Spots

At Ground Level

slide21

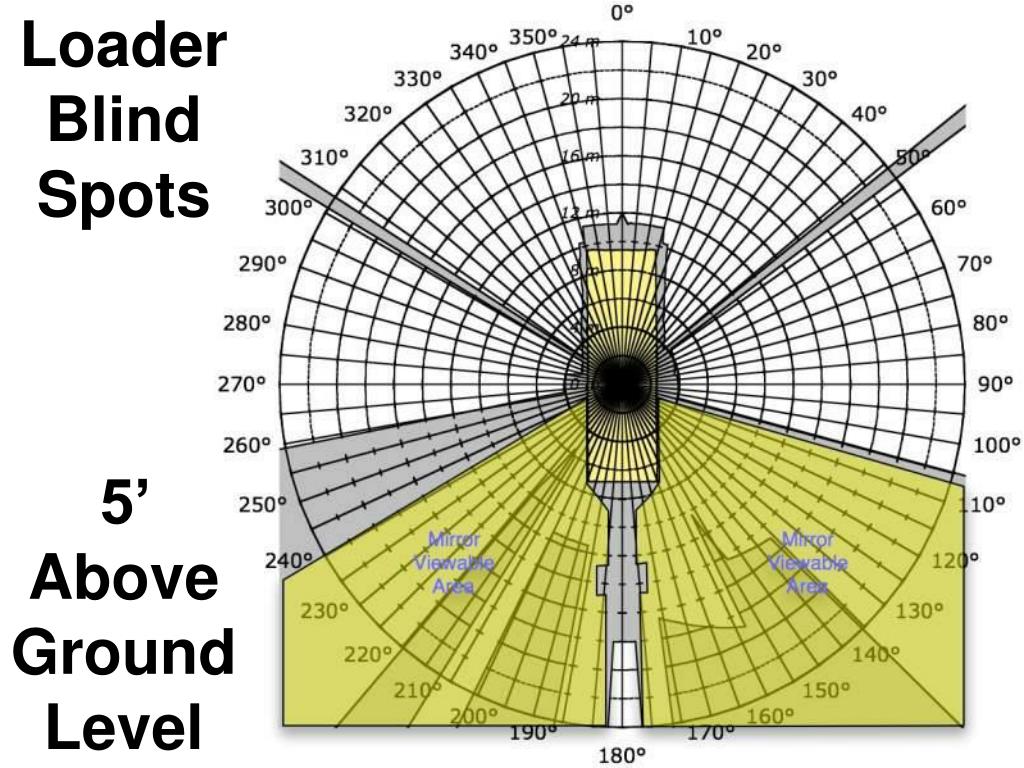

Loader Blind Spots

5’ Above Ground Level
