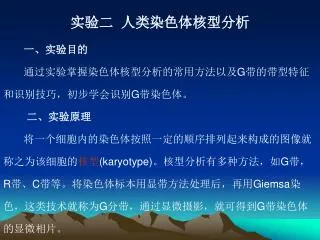

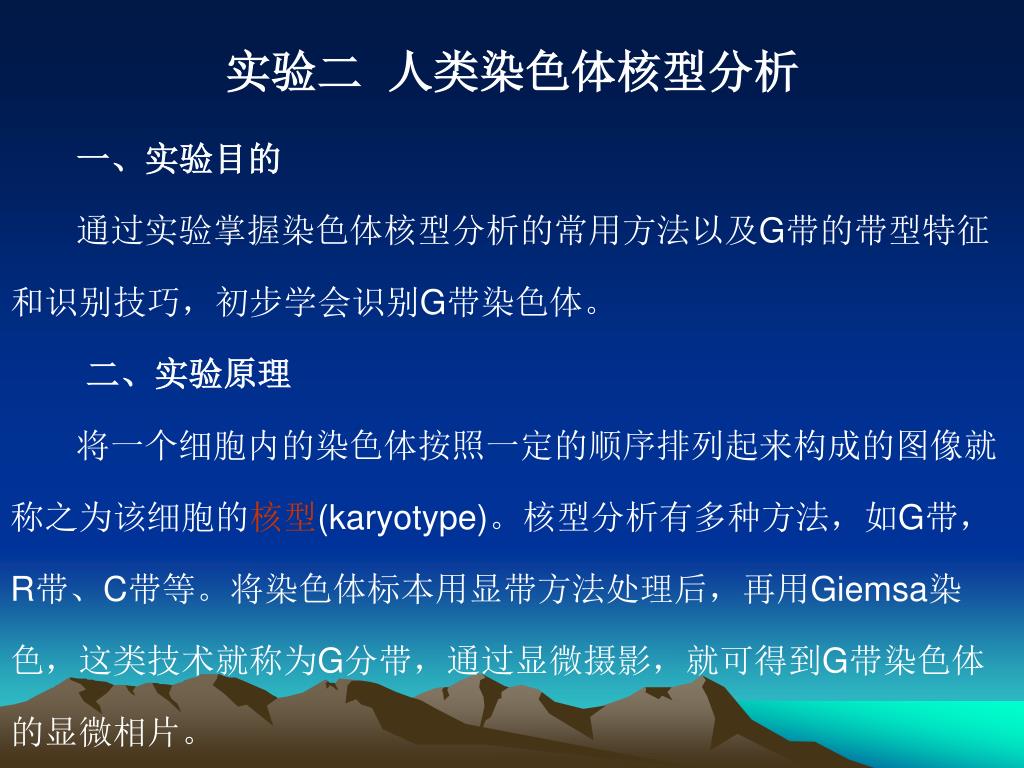

  1. 实验二 人类染色体核型分析 一、实验目的 通过实验掌握染色体核型分析的常用方法以及G带的带型特征 和识别技巧,初步学会识别G带染色体。 二、实验原理 将一个细胞内的染色体按照一定的顺序排列起来构成的图像就 称之为该细胞的核型(karyotype)。核型分析有多种方法,如G带, R带、C带等。将染色体标本用显带方法处理后,再用Giemsa染 色,这类技术就称为G分带,通过显微摄影,就可得到G带染色体 的显微相片。

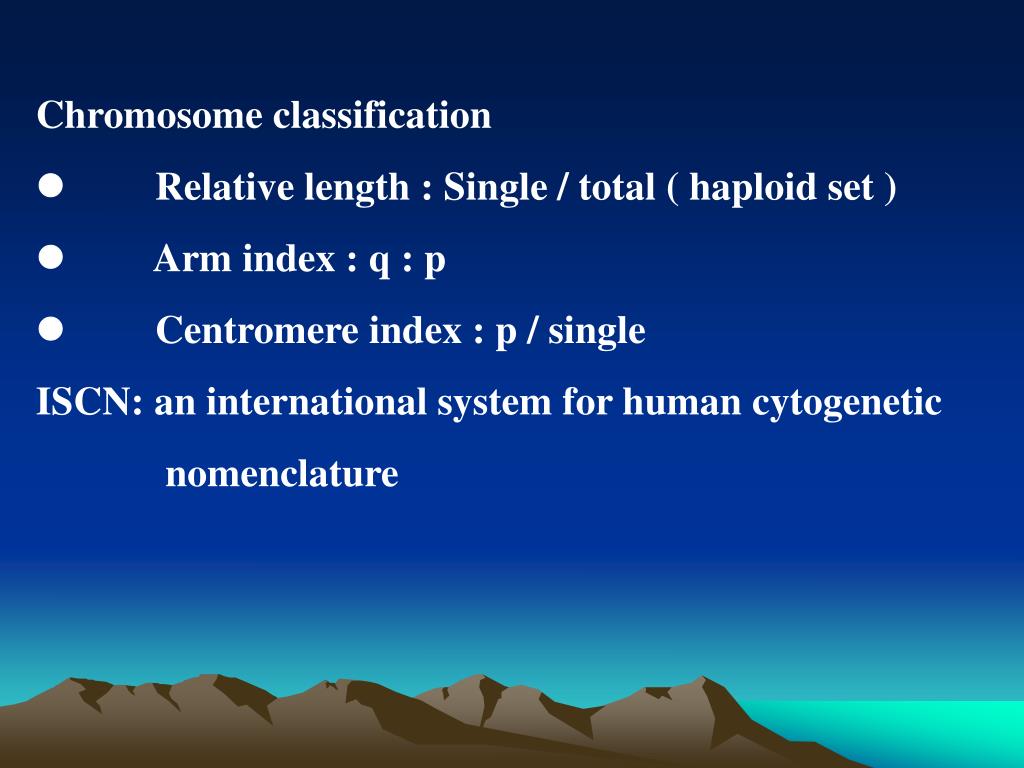

  2. Chromosome classification lRelative length : Single / total ( haploid set ) lArm index : q : p lCentromere index : p / single ISCN: an international system for human cytogenetic nomenclature

  3. Group A Chromosome 1, 2 and 3 Group B Chromosome 4 and 5 Group C Chromosome 6 to 12 and the X Chromosome Group D Chromosome 13 to 15 ( the “large acrocentrics” satallited short arms ) Group E Chromosome 16 to 18 Group F Chromosome 19 to 20 Group G Chromosome 21 and 22 ( the “small acrocentrics” satallited short arms ) and the Y Chromosome

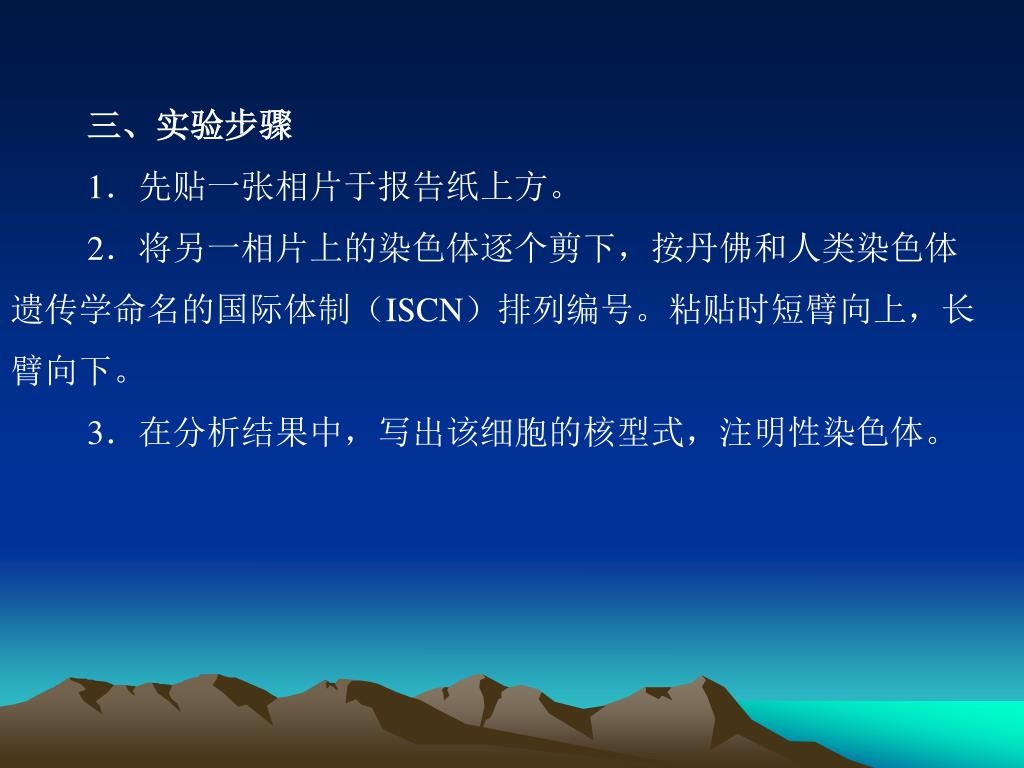

  4. 三、实验步骤 1.先贴一张相片于报告纸上方。 2.将另一相片上的染色体逐个剪下,按丹佛和人类染色体遗传学命名的国际体制(ISCN)排列编号。粘贴时短臂向上,长臂向下。 3.在分析结果中,写出该细胞的核型式,注明性染色体。
