  1. Accelerated Stereoscopic Renderingusing GPU WSCG'2008 François de Sorbier - Université Paris-Est France February 2008

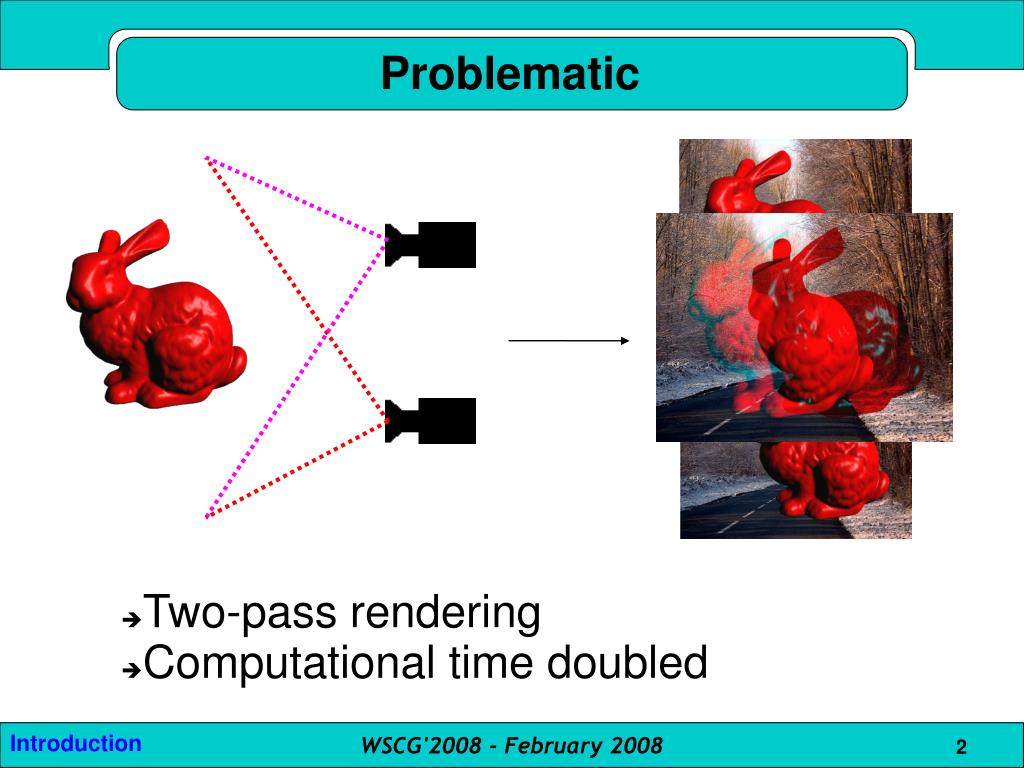

  2. WSCG'2008 - February 2008 Problematic • Two-pass rendering • Computational time doubled Introduction 2

  3. WSCG'2008 - February 2008 Hypothesis • Shared attributes on vertices • Colour • Geometry • etc • Use graphical processor • Duplicate the geometry • Transformations according to the viewpoint • Geometry Shaders Introduction 3

  4. WSCG'2008 - February 2008 Outline • Geometry shaders • Our algorithm • Results • Conclusions 4

  5. WSCG'2008 - February 2008 Geometry Shader VERTEX SHADER GEOMETRY SHADER RASTERIZATION FRAGMENT SHADER FRAMEBUFFER Geometry shaders 5

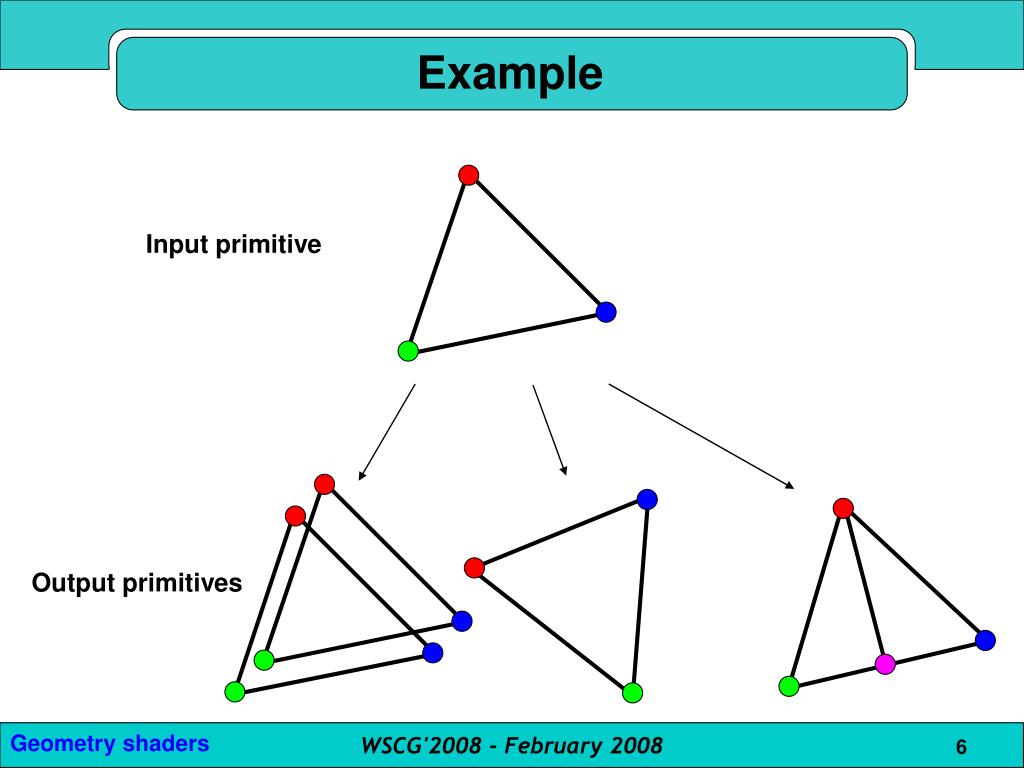

  6. WSCG'2008 - February 2008 Example Input primitive Output primitives Geometry shaders 6

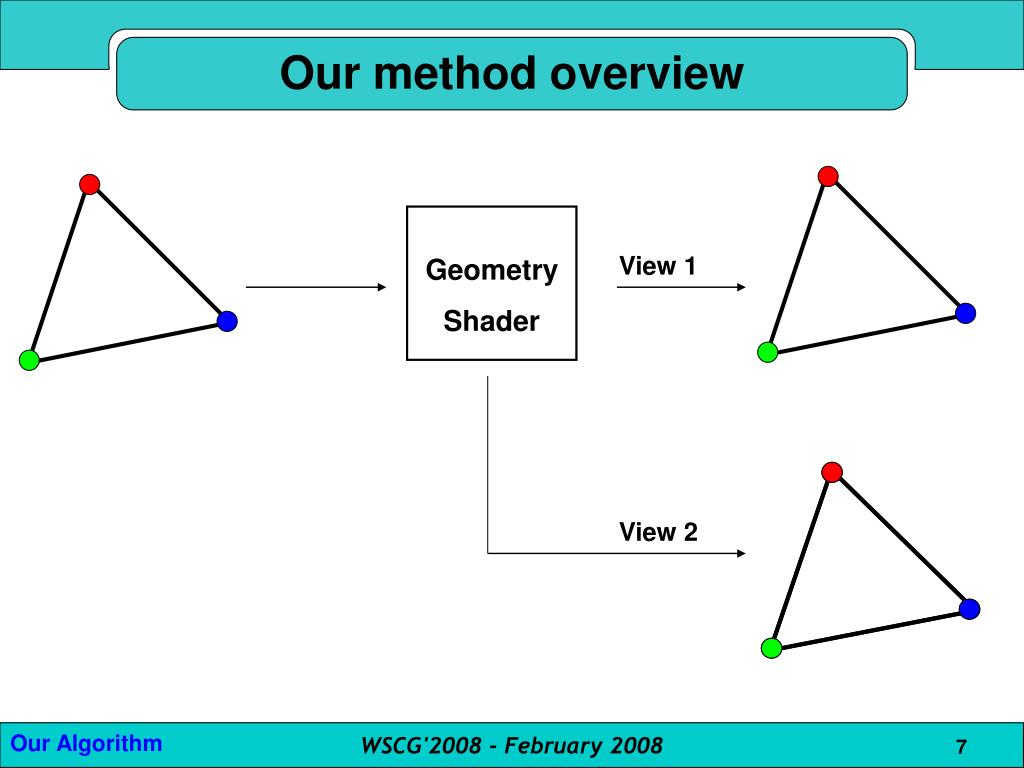

  7. WSCG'2008 - February 2008 Geometry Shader Our method overview View 1 View 2 Our Algorithm 7

  8. WSCG'2008 - February 2008 Images generation • Fragment shaders processing • Fragment's origin • Rendering buffer selection (Multiple Render Targets)‏ • Standard operations • Rendering into two textures • Using FrameBuffer Object • MRT + FBO involve constraints Our Algorithm 8

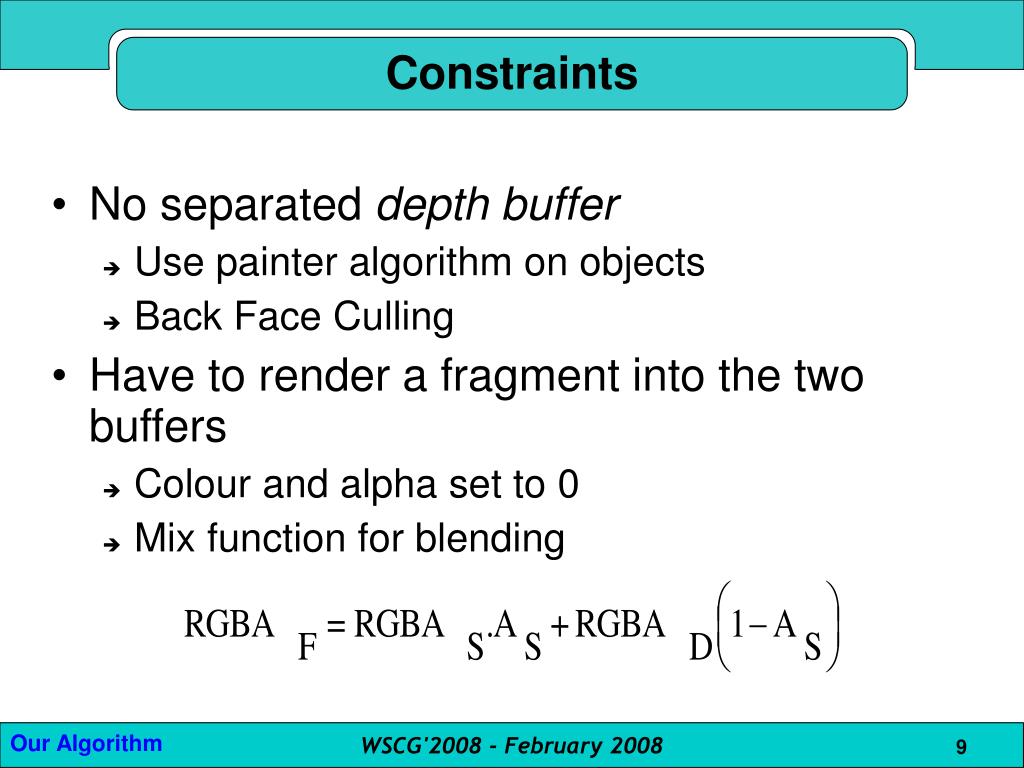

  9. WSCG'2008 - February 2008 Constraints • No separated depth buffer • Use painter algorithm on objects • Back Face Culling • Have to render a fragment into the two buffers • Colour and alpha set to 0 • Mix function for blending Our Algorithm 9

  10. WSCG'2008 - February 2008 Our Algorithm 10

  11. WSCG'2008 - February 2008 Improvement hypothesis ? Our Algorithm 11

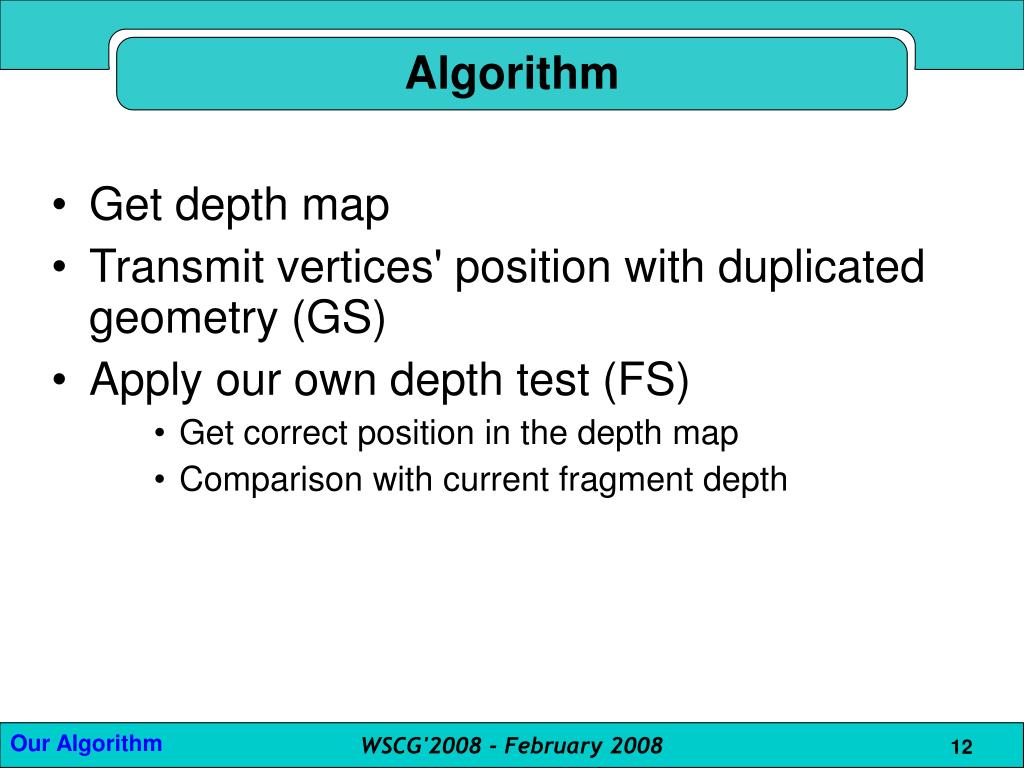

  12. WSCG'2008 - February 2008 Algorithm • Get depth map • Transmit vertices' position with duplicated geometry (GS)‏ • Apply our own depth test (FS)‏ • Get correct position in the depth map • Comparison with current fragment depth Our Algorithm 12

  13. WSCG'2008 - February 2008 Our Algorithm 13

  14. WSCG'2008 - February 2008 Results • nVidia GeForce 8800 GTX • 80.000 triangles Results 14

  15. WSCG'2008 - February 2008 Conclusions • Limitations • “home made” depth test • Advantages • Only one rendering pass • Reduces computational time • First release of geometry shader Conclusion 15

  16. WSCG'2008 - February 2008 Extensions • Depth test enhancement • Separated depth buffers? • Algorithm? • Autostereoscopic screens • Up to 8 views (first results) Conclusion 16

  17. Thank you! francois.desorbier@univ-paris-est.fr WSCG'2008 - February 2008 17
