the ca mdb


Revised May 16 2006

ca mdb summary
CA MDB: Summary
  • Primary version based on Ingres 3.0
  • Other versions based on MS SQL Server, Oracle
  • Includes thousands of tables, views, indexes
  • Built by combining database models from many CA products
how do you build an mdb

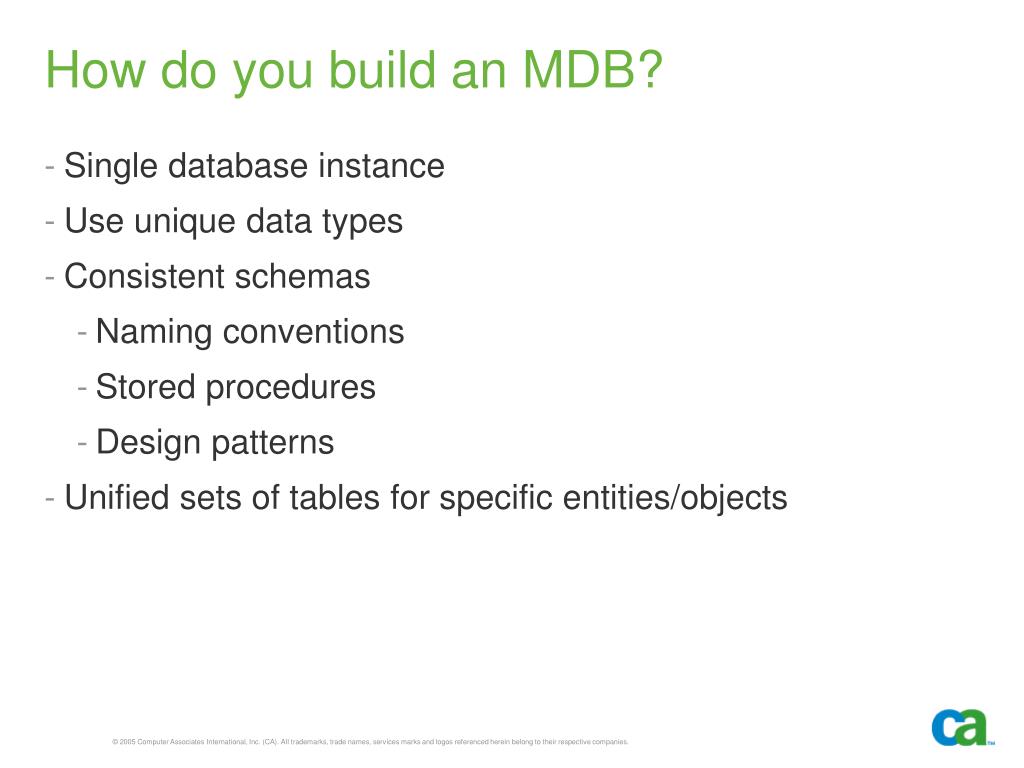

How do you build an MDB?
  • Single database instance
  • Use unique data types
  • Consistent schemas
    • Naming conventions
    • Stored procedures
    • Design patterns
  • Unified sets of tables for specific entities/objects
where is the mdb today
Where is the MDB today?
  • Single database instance
  • Multiple definitions for some data elements
today continued
Today (continued)
  • Mostly consistent schemas
    • Naming conventions
    • Stored procedures
  • One unified set of tables: for assets
  • eIAM stores applications’ authentication, authorization, access control information
  • May adopt industry standards (e.g. CIM) when possible
  • Single set of data owners, permissions
unified model for assets
Unified model for assets
  • Set of tables defined by developers for:
    • ServiceDesk
    • Unicenter NSM
    • Argis
    • Unicenter Asset Management
  • Entries made by one application visible to all
  • DB triggers used to update other tables, perform additional operations when assets are added.
revolutionary change
Revolutionary Change
  • Applications can access other app’s data directly
  • Simplifies reporting, analysis across apps
  • Multiple products can share database server
what the current mdb offers
What the current MDB offers
  • Central Management
  • Standard Configurations
  • Standard Patch and Upgrade
  • A set of best practices for:
    • Scalability
    • Fault Tolerance
    • Securability (firewall and NAT)
    • MDB Federation
what the current mdb offers1
What the current MDB offers
  • Product Specific Federation
    • Core Bridge
    • Service Desk multiple MDBs, contact replication, and request broker
    • Desktop and Server Management hierarchical selective replication (2-tier but n-tier designed)
what the current mdb offers2
What the current MDB offers
  • An ERwin physical model-based collection of all tables & columns used by the CA products
  • A physical model that was assembled by combining DDL from various product teams
  • A breakdown of tables & columns into Subject Areas that map to the respective CA products
  • A partial definition of the relationships between the tables that comprise MDB
what the current mdb offers3
What the current MDB offers
  • A model that supports basic IP-address based asset reconciliation capabilities
  • A model that recognizes the central importance of asset and provides some modeling of the complexity of asset
    • Asset Logical model is documented
    • Tools used in conjunction with ADT allow asset import using the common object registration API (CORA)
  • MDB is used in r11 products and value is huge
  • Most applications co-exist, with selective sharing
  • Several “best in class” products coordinate use of, and share data – especially for assets and users
  • Application-specific interfaces, communications are still used
  • Deployment options generally rich
common misunderstandings
Common Misunderstandings…
  • MDB’s availability on a specific DB does not mean all applications support that DB
  • No common method/API for modifying all data in MDB
  • Not used consistently by all CA products
  • MDB is not a CMDB
asset information scenarios
Asset Information Scenarios
  • ServiceDesk and Argis:
    • As Service Desk is about to enter data about an asset, the user can search through existing assets in the MDB, including those created by Argis.
    • Users can pick an existing asset and avoid data entry, or the addition of a duplicate entry.
  • NSM and UAM:
    • When Discovery runs, every object is registered as an asset.  UAM is triggered by asset registration and can push out an agent to do a full hardware and software inventory.
    • Trigger provides the “glue” between "continuous discovery" and UAM.
  • Result: When an incident is recorded in ServiceDesk, SD will check registered assets, even those discovered by NSM, and the inventory info will be available as well.
  • No public (client) API for asset definition through the MDB
    • Definitions may change, or may rely upon undocumented behavior or business logic
    • Exception: UAPM packages a copy of ADT with CORA integration to add assets
  • Existing application-specific APIs should be used (for now)
deployment choices

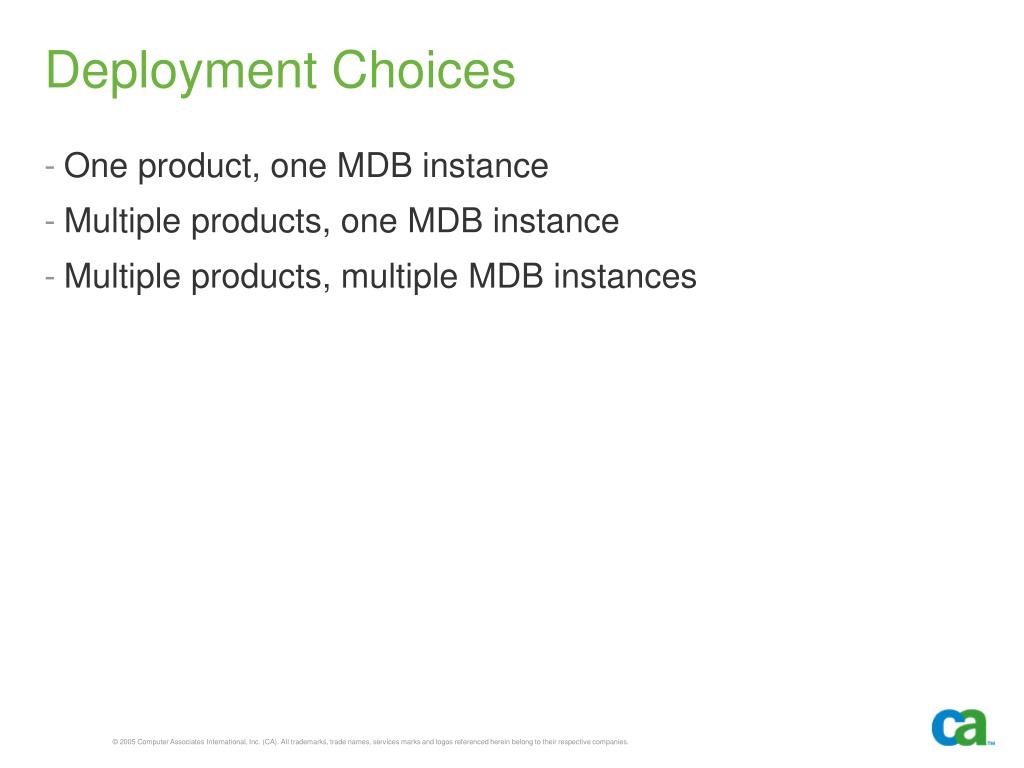

Deployment Choices
  • One product, one MDB instance
  • Multiple products, one MDB instance
  • Multiple products, multiple MDB instances

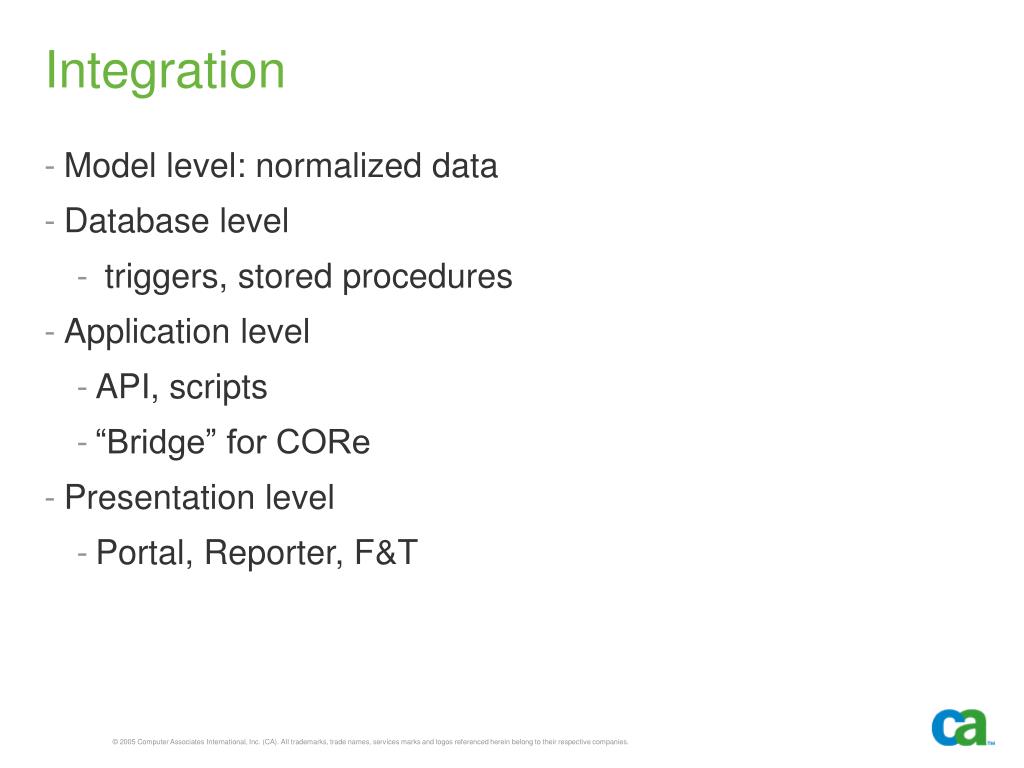

  • Model level: normalized data
  • Database level
    • triggers, stored procedures
  • Application level
    • API, scripts
    • “Bridge” for CORe
  • Presentation level
    • Portal, Reporter, F&T
deployment issues

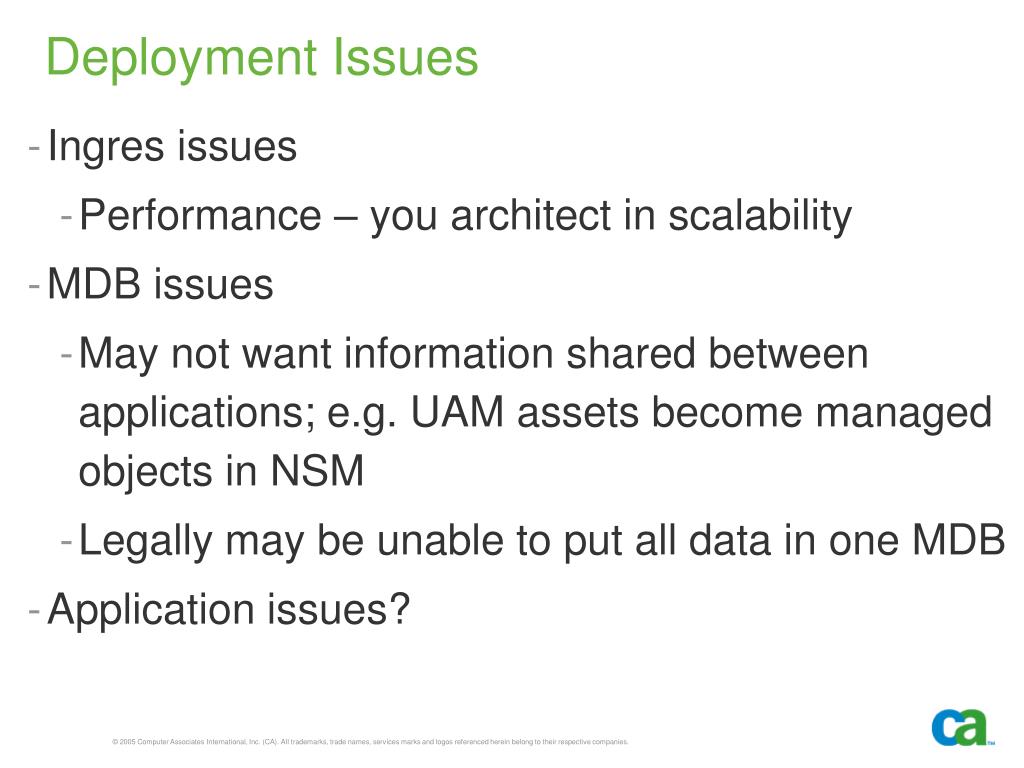

Deployment Issues
  • Ingres issues
    • Performance – you architect in scalability
  • MDB issues
    • May not want information shared between applications; e.g. UAM assets become managed objects in NSM
    • Legally may be unable to put all data in one MDB
  • Application issues?
moving forward mdb
Moving Forward – MDB
  • Distributed installation and access services
  • Federation services
  • Abstraction Layers
  • Connectors
  • Platform and additional RDBMS Support
  • “ Hot” upgrade services
  • Granular DDL definition/extension
moving forward mdb1
Moving Forward – MDB
  • Some Techie Details Under Study:
  • Reduce data type duplication
  • Normalize data model
  • Add common methods across applications for:
    • Extension of models
    • Entity addition, updates
  • Address MDB-specific issues:
    • Filtering of shared data
    • Replication vs. application distribution
moving forward mdb2
Moving Forward – MDB
  • More Techie Details Under Study :
  • A model that supports a central Asset registry to which all physical instances can register Assets
  • A model that supports a technical solution without a single point of failure
  • A model that can scale in a predictable manner
  • A model that supports a central authentication and consistent data authorization facility
  • A model documented at the entity and attribute level
moving forward mdb3
Moving Forward – MDB
  • Even More Details Under Study :
  • A model in which non IP-address based assets are accommodated
  • A model that recognizes and registers assets with satisfactory performance
  • A model in which critical taxonomies (Owned versus Discovered Asset, Logical versus Physical Asset, Locations, Organizations, Contacts/Users, Services, and Configuration) are normalized
