  1. Software Engineering 3156 17-Sep-01 Class #4: Tools and Networking Phil Gross

  2. Administrivia • Recitations • M: 5:30-6:30 CEPSR 415 • T: 2:30-3:30 CEPSR 415 • Except next Monday, 24 September • 6:15-7:15 IAB 410 • Looking at early Friday afternoon 2

  3. More Admin Stuff • Groups • You all submitted, right? • More on projects • Each group doing complete component • AI fun 3

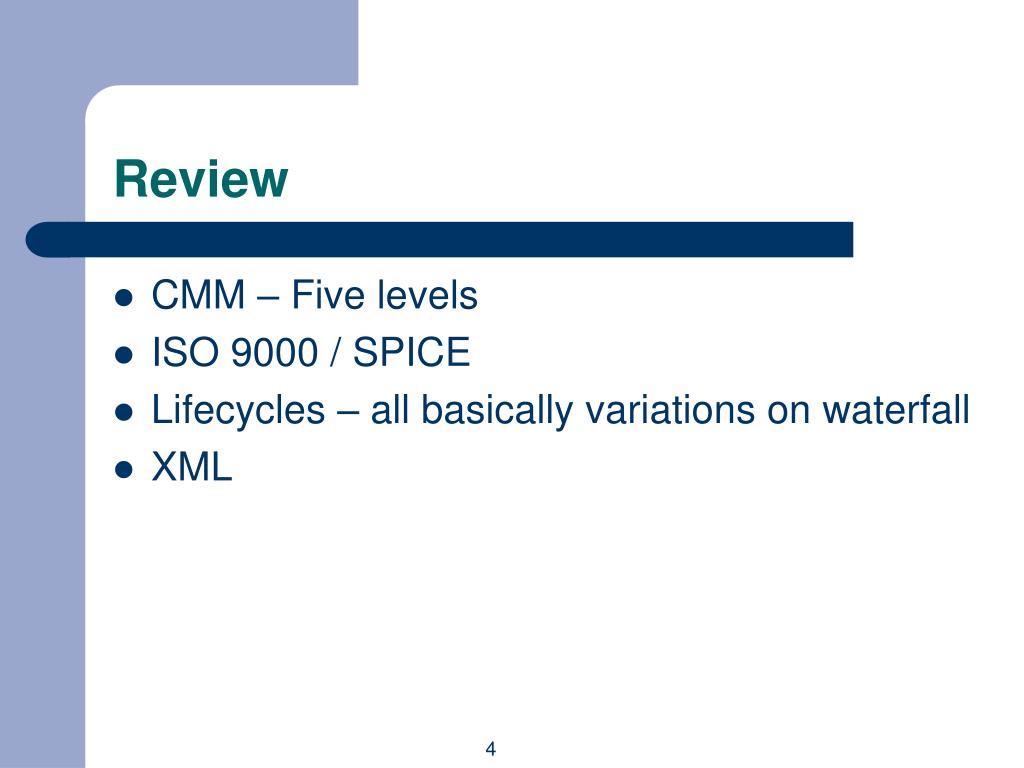

  4. Review • CMM – Five levels • ISO 9000 / SPICE • Lifecycles – all basically variations on waterfall • XML 4

  5. XML • Structured form of communication • How components will communicate • Freeform HTML • Grammar and validation • DOM and SAX 5

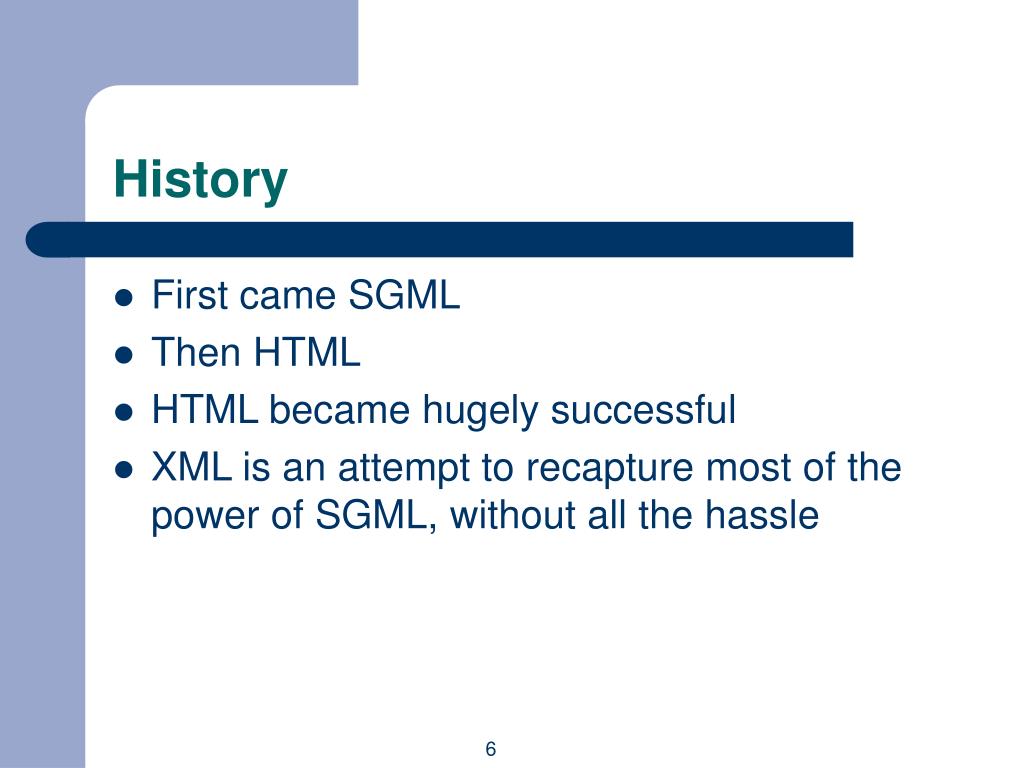

  6. History • First came SGML • Then HTML • HTML became hugely successful • XML is an attempt to recapture most of the power of SGML, without all the hassle 6

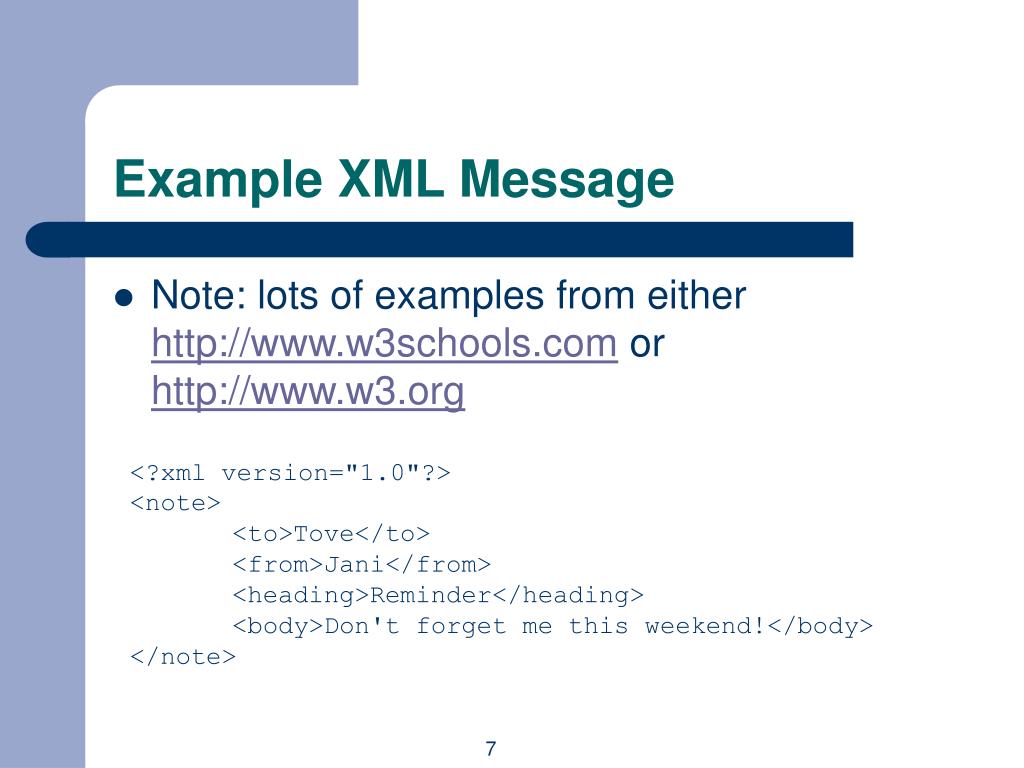

  7. Example XML Message • Note: lots of examples from either http://www.w3schools.com or http://www.w3.org <?xml version="1.0"?> <note> <to>Tove</to> <from>Jani</from> <heading>Reminder</heading> <body>Don't forget me this weekend!</body> </note> 7

  8. Differences From HTML • Stricter • All tags closed • Tags are case sensitive • All attributes must be quoted • Avoid attributes, except for • IDs • True tag modifiers 8

  9. Grammar Specification • DTD • Schema • We’re using schemas • Much nicer • Consistent: XML themselves • Grammars explain structure to developers • Can also be used for automated validation • Sloooooow 9

  10. XML Tools • Many • Apache tools among the most popular • Open source • C++ and Java versions available • Xerces • DOM: suck into memory, give back tree structure • SAX: parse sequentially, return events 10

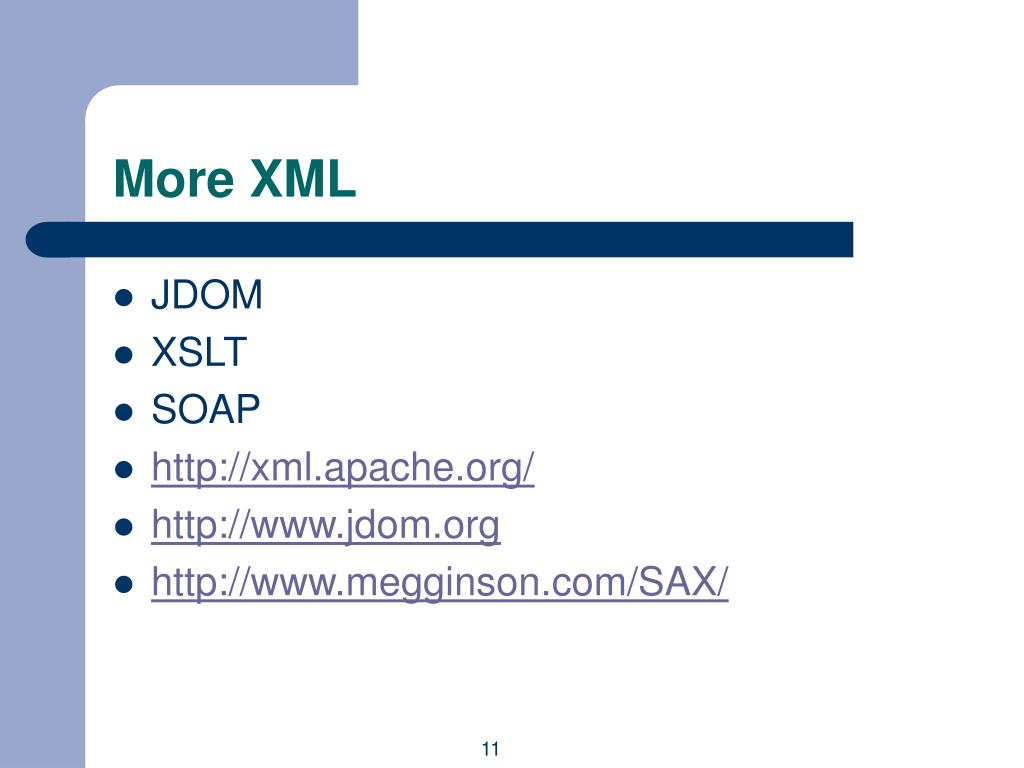

  11. More XML • JDOM • XSLT • SOAP • http://xml.apache.org/ • http://www.jdom.org • http://www.megginson.com/SAX/ 11

  12. Tool time! • Two kinds of tools: • Analytical tools/techniques • CASE tools, e.g., real products • We’ll be discussing these throughout the course, and we’ll be adding our own 12

  13. Analytical tools • Three in particular discussed here • Stepwise refinement: identify basic tasks, and refine the steps involved iteratively • Good general concept useful in many different engineering phases • Cost-benefit analysis • Metrics (next slide) • We’ll go into these more next class 13

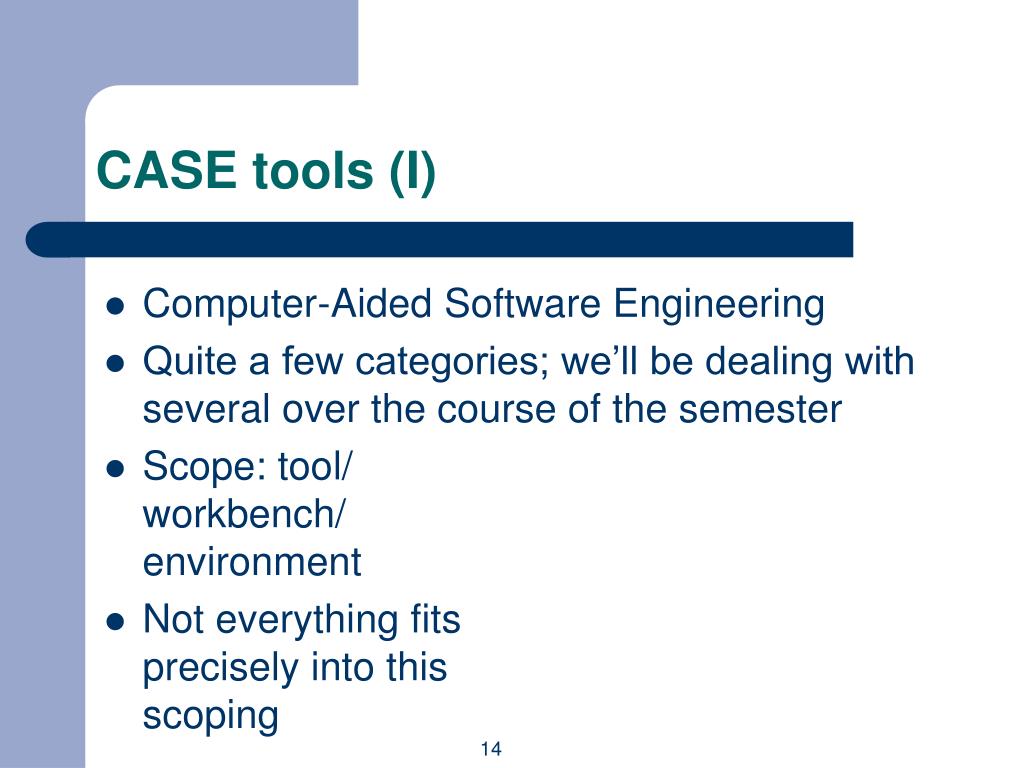

  14. CASE tools (I) • Computer-Aided Software Engineering • Quite a few categories; we’ll be dealing with several over the course of the semester • Scope: tool/workbench/environment • Not everything fitsprecisely into thisscoping 14

  15. CASE tools (II): Schachisms • upperCASE: front-end; lowerCASE: back-end • Workbenches • Data dictionary: keep track of data in product; consistency checker • Report and screen generators • Environments • Full software process • Generally used mostly in large companies/projects 15

  16. CASE scope • Programming-in-the-small is what you’ve done: code-compile-run-repeat • Better way? • Programming-in-the-large: module-level • Programming-in-the-many: team-oriented (both large and small) • Source editors that can do syntax checking: structure editor • Automation tools to build: make • Source-level debugging, tracing: gdb, jdb • Versioning and configuration control… 16

  17. Versioning control • Versioning: deal with many people and many versions of code • People work on their local computers, yet code needs to be shared amongst all • Versioning software allows for code to coexist without overwriting people’s work • Automated: cp, tar, zip doesn’t quite cut it • cvs: we’re getting to this shortly 17

  18. Configuration control • Even when versioning is done, a product may be run in many configurations • Schach defines this as a “set of versions” on files • Set up a “stable” baseline against which variations are tested • Freeze code to be altered • Also actual software configuration 18

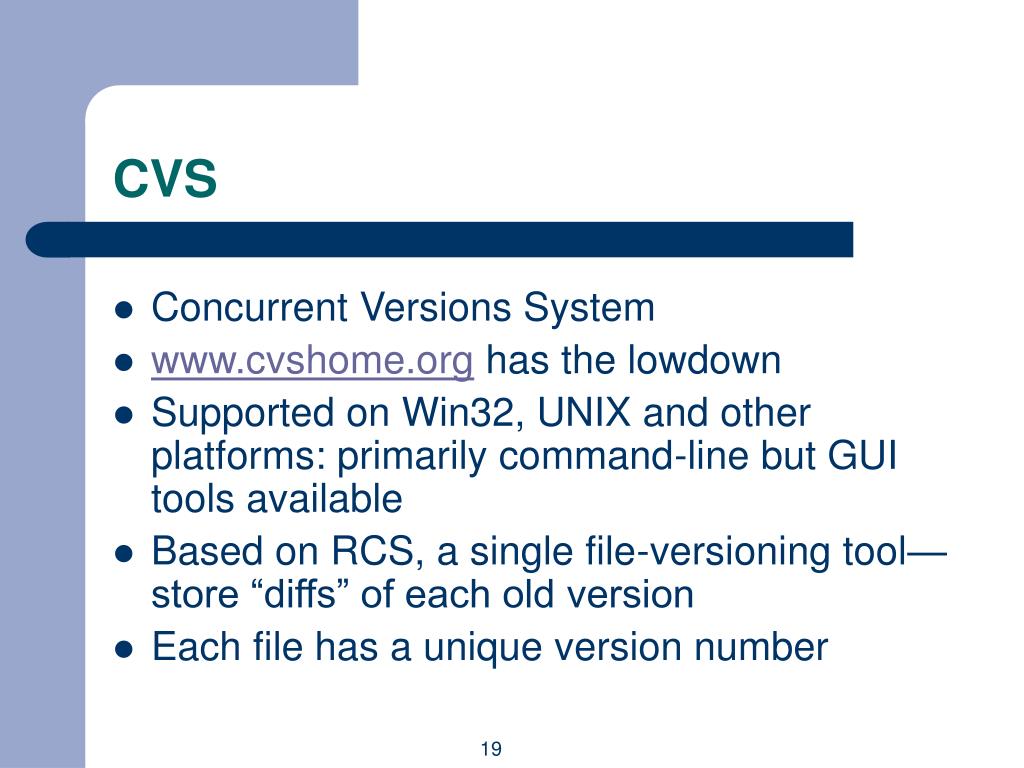

  19. CVS • Concurrent Versions System • www.cvshome.org has the lowdown • Supported on Win32, UNIX and other platforms: primarily command-line but GUI tools available • Based on RCS, a single file-versioning tool—store “diffs” of each old version • Each file has a unique version number 19

  20. Before you use CVS • Need to understand basic UNIX skills (mkdir, ls, chmod, chgrp) • Set up a repository • Set up a group under UNIX and set permissions on a directory • “set CVSROOT” or “export CVSROOT” to that dir • “cvs init” • Set up personal workspaces • “set CVSROOT” or “export CVSROOT” • cvs checkout 20

  21. CVS (II) • Versioned files are organized into “modules” (top-level directories) • Centralized “repository” of files • Work in local workspace, checkout and commit files from/to repository • Does not lock files when you checkout: worry about conflicts when you commit 21

  22. CVS example Janak’s workspace Phil’s workspace CVSROOT 22

  23. CVS • First, a word on race conditions • Two threads within one program • Both want to increment a variable • Both read • One writes • The other writes • Result: one increment, value clobbered 23

  24. More On CVS • The same can happen with your coding process • Two people working on same piece of code • RCS: simple system for versioning and locking • CVS: fancier, networkable system for checking out entire dev snapshots • And then selectively committing changes 24

  25. CVS, Continued • No locking • Conflicts are marked inside the code • You’ll also be notified if checking in a wrong version 25

  26. Networking • Communication among systems • Continues to explode • Through wires or wireless 26

  27. TCP/IP History • ARPA project • Packet-based network • Resulted in ARPANet in the 70s and 80s • Eventually made public • Widespread adoption of TCP/IP caused internet to explode 27

  28. Layers • Levels of abstraction • Physical: electrical impulses • Transport: moving data • Protocol: reliability • Application: specific use 28

  29. Ethernet • Most common physical layer for short ranges • Truly trivial model • Shout • If someone else is shouting, wait a random amount of time • Try again • 10, 100, or 1000 million bits / sec • Others: V.90, X.25, SONET 29

  30. IP • The Internet Protocol • Very simple mechanism • Break data into packets • Every packet has a header with • Source IP • Dest IP • Checksum • Length • Other stuff 30

  31. IP Addressing • IP version 4 address is 4 bytes • Often written as four numbers in the 0-255 range • First “part” is network ID, second “part” is specific system ID • IP just cares about getting it to the right network 31

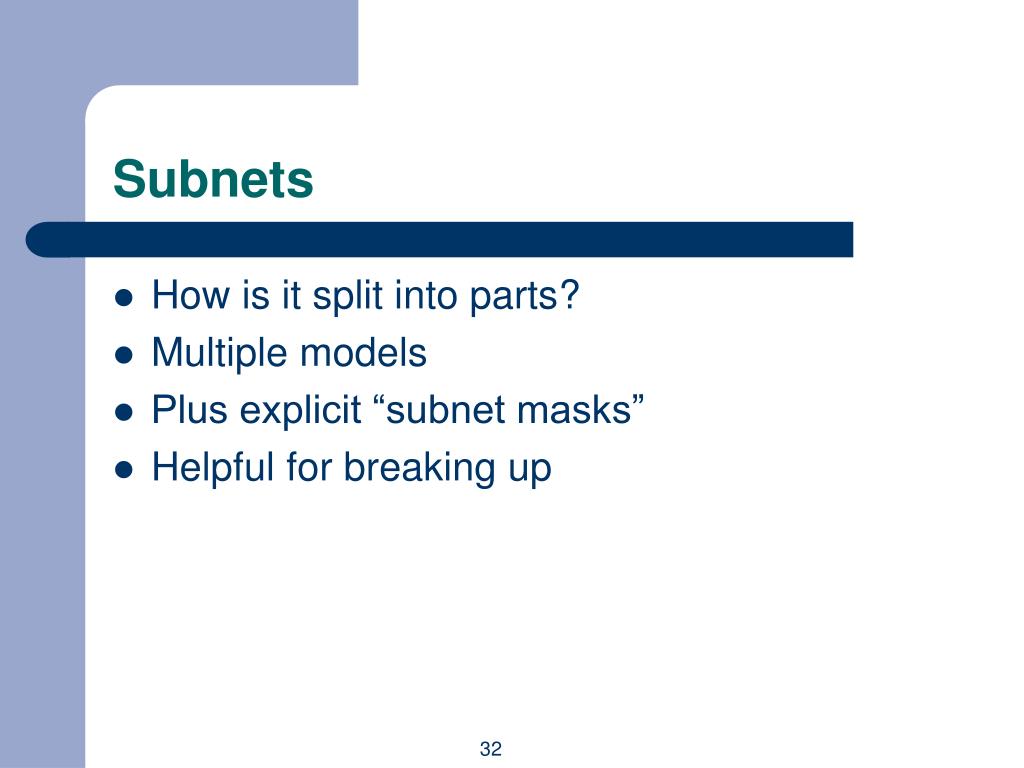

  32. Subnets • How is it split into parts? • Multiple models • Plus explicit “subnet masks” • Helpful for breaking up 32

  33. IP Routing and BGP • What happens when a packet comes in? • If it’s for me, deal with it • If it’s not for me and I can forward, • Look for host match • Look for network match • Send it onward if match found, otherwise drop 33

  34. traceroute / tracert • Watch your packets fly • Packets have a time-to-live field • Fire off packet with ttl 1, then with ttl 2, etc. 34

  35. TCP • One of the protocols on top of IP • Quite popular, but not popular enough to call the whole shebang TCP/IP • Packets will be delivered reliably, once, in order • Will request retransmissions if packets are dropped • Supports multiple recipients per machine with idea of “port” 35

  36. UDP • Alias datagrams • Adds ports to IP, but nothing else • I.e. totally unreliable, packets may be delivered out of order, not at all, multiply, etc. • Used for real-time data 36

  37. Services Listening On Ports • Servers have programs running in the background, waiting for connections on a particluar port • Telnet on 23 • FTP on 21 • Mail (SMTP) on 25 • HTTP on 80 • Many more 37

  38. RFCs • Define entire structure of Internet • Collection of publicly available documents • www.faqs.org/rfcs 38

  39. DNS / nslookup • IP only understands 4-byte address • Has no understanding of www.columbia.edu • DNS (Domain Name System) is an amazing distributed database • Translates names to numbers, globally 39

  40. Socket Programming • Basic client • http://java.sun.com/docs/books/tutorial/networking/sockets/readingWriting.html 40

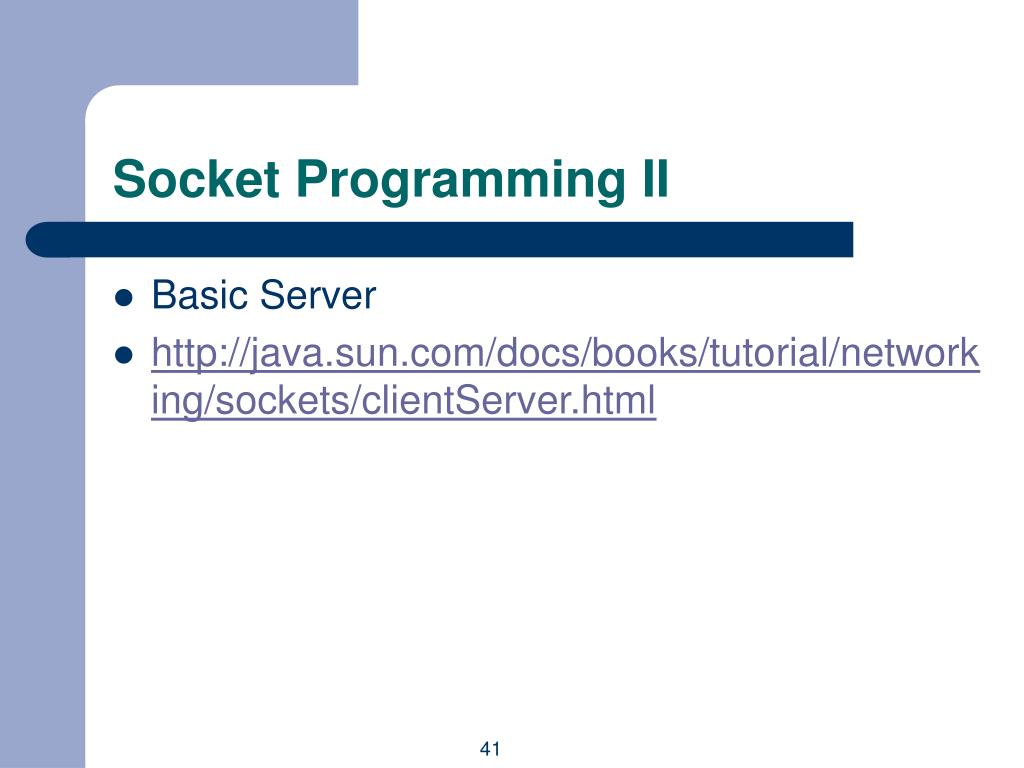

  41. Socket Programming II • Basic Server • http://java.sun.com/docs/books/tutorial/networking/sockets/clientServer.html 41
