e discovery and digital forensics in the cloud

E-Discovery and Digital Forensics in the Cloud

By Amelia Phillips

Chair, Pure & Applied Science Division

CIS and Computer Science Departments

Highline Community College

objectives
Objectives
  • Define the Cloud
  • Digital Forensics vs. E-Discovery
  • How does e-discovery differ from digital forensics?
  • Can forensics software be used to teach e-discovery?
  • What happens when the “cloud” enters the picture?
  • What laws, policies, etc affect how you approach e-discovery and digital forensics in the cloud?
  • AWS – an inexpensive approach
  • An E-Discovery / Digital Forensics Curriculum
  • Summary
basic framework
Basic Framework

Cloud computing is a model for enabling convenient, on-demand network access to a shared pool of configurable computing resources (e.g., networks, servers, storage, applications, and services) that can be rapidly provisioned and released with minimal management effort or service provider interaction.

definition
Definition
  • Five Essential Services
  • Three Service Models
  • Four Deployment Models
five essential characteristics
Five Essential Characteristics
  • On-demand self service
  • Broad network access
  • Resource pooling
  • Rapid elasticity
  • Measured Service
the cloud as defined by nist

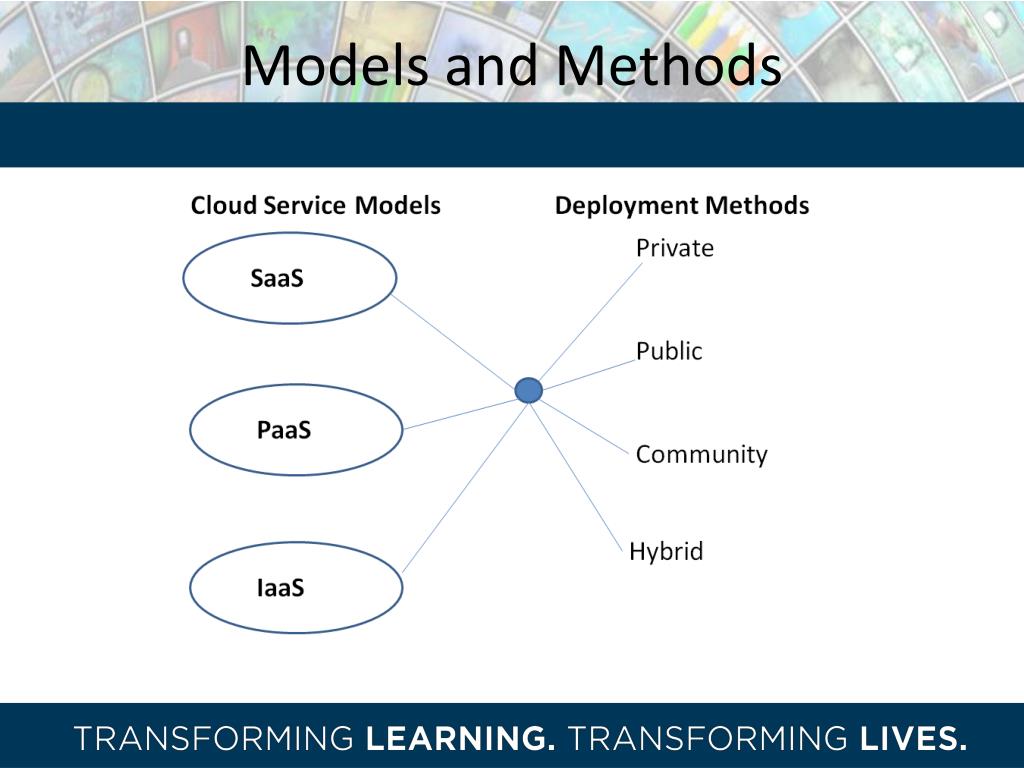

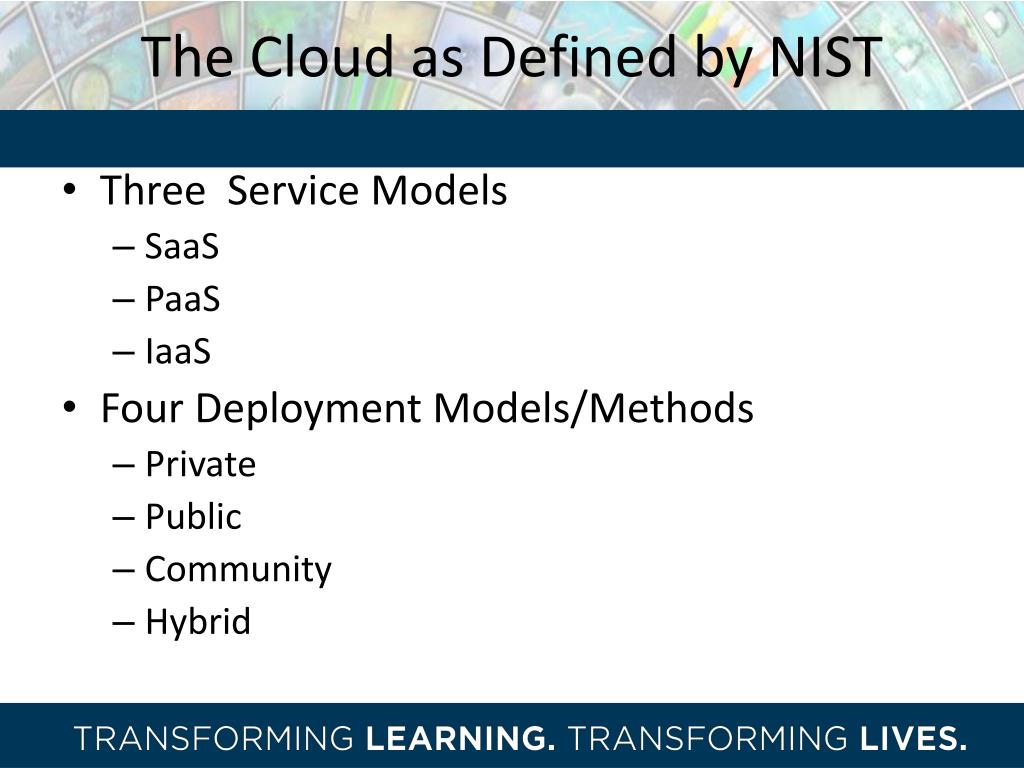

The Cloud as Defined by NIST
  • Three Service Models
    • SaaS
    • PaaS
    • IaaS
  • Four Deployment Models/Methods
    • Private
    • Public
    • Community
    • Hybrid
define digital forensics
Define Digital Forensics
  • The application of forensics techniques to collect and analyze digital information
  • May be used for civil, criminal, or administrative investigations
  • May be inculpatory or exculputory
define e discovery
Define E-Discovery
  • The process of applying the traditional legal discovery process to electronic evidence
  • Discovery is the compulsary disclosure of data, facts and documents in civil and criminal cases.
  • Electronic evidence encompasses any electronically stored information (ESI)
  • Civil, criminal, bankruptcy cases
four general perspectives
Four General Perspectives
  • The legal expert, an attorney or a paralegal who understands the law but may or may not have been exposed to e-discovery or digital forensics
  • The e-discovery expert who comes from a corporate perspective.
  • The digital forensics expert who understands forensic standards and software and the procedures involved.
  • The IT expert who knows where things are stored on the OS and NOS but may have no (or very limited) legal knowledge
digital forensics tools

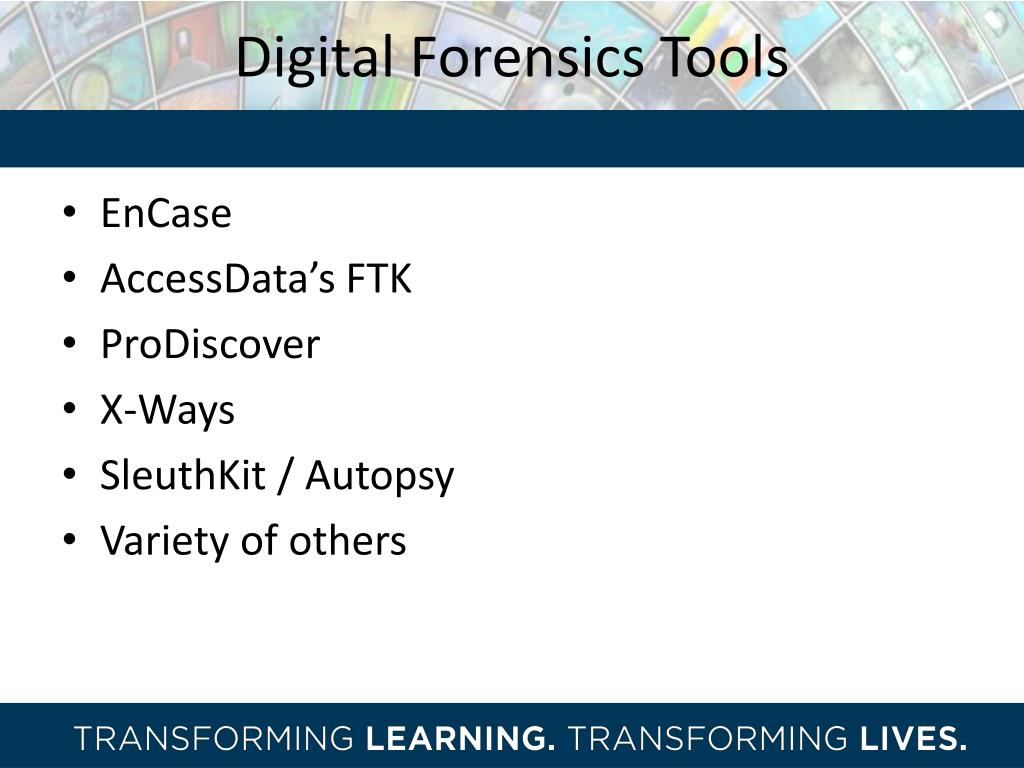

Digital Forensics Tools
  • EnCase
  • AccessData’s FTK
  • ProDiscover
  • X-Ways
  • SleuthKit / Autopsy
  • Variety of others
an effective digital forensics tool

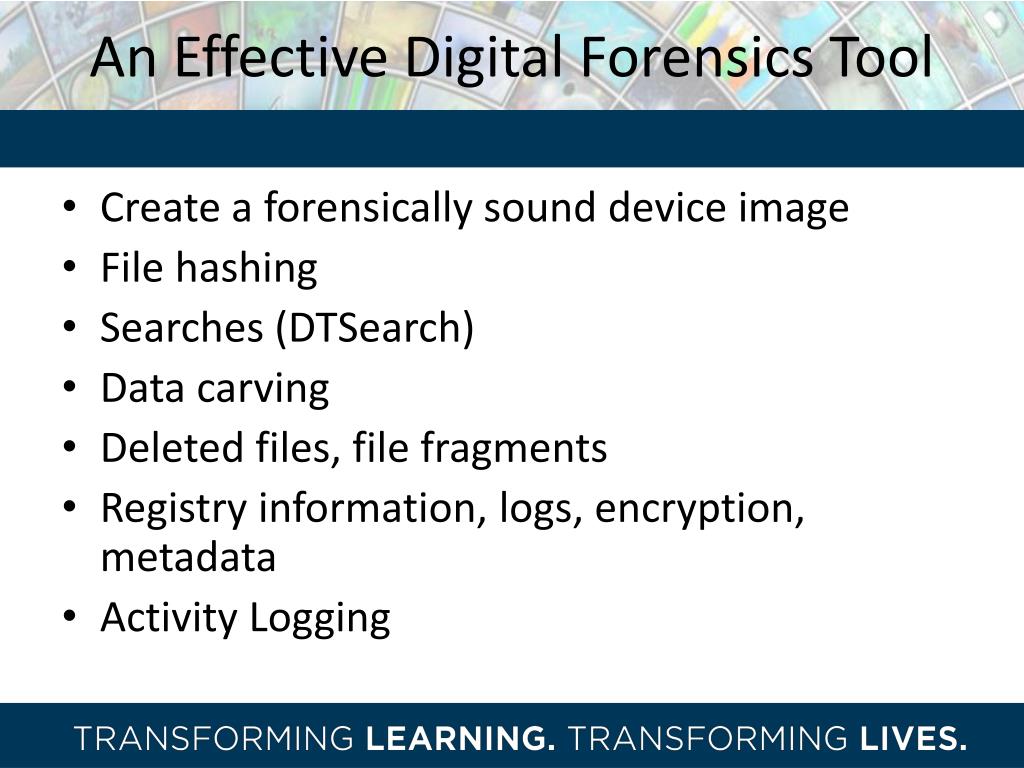

An Effective Digital Forensics Tool
  • Create a forensically sound device image
  • File hashing
  • Searches (DTSearch)
  • Data carving
  • Deleted files, file fragments
  • Registry information, logs, encryption, metadata
  • Activity Logging
e discovery tools
E-Discovery Tools
  • Concordance
  • Discovery Assistant by IMAGEMaker
  • @LegalDiscovery
  • Catalyst CR
  • AD Summation iBlaze
  • Nextpoint Discovery Cloud
  • Sherpa Software Discovery Attender
  • And more
an effective e discovery tool
An Effective E-Discovery Tool
  • Searches (DTSearch)
  • De-duping
  • Convert data/documents to TIFF or PDF
  • OCR for indexing
  • Bates Numbering for tracking
  • Exporting
  • Activity Logging
dealing with multinational corporations

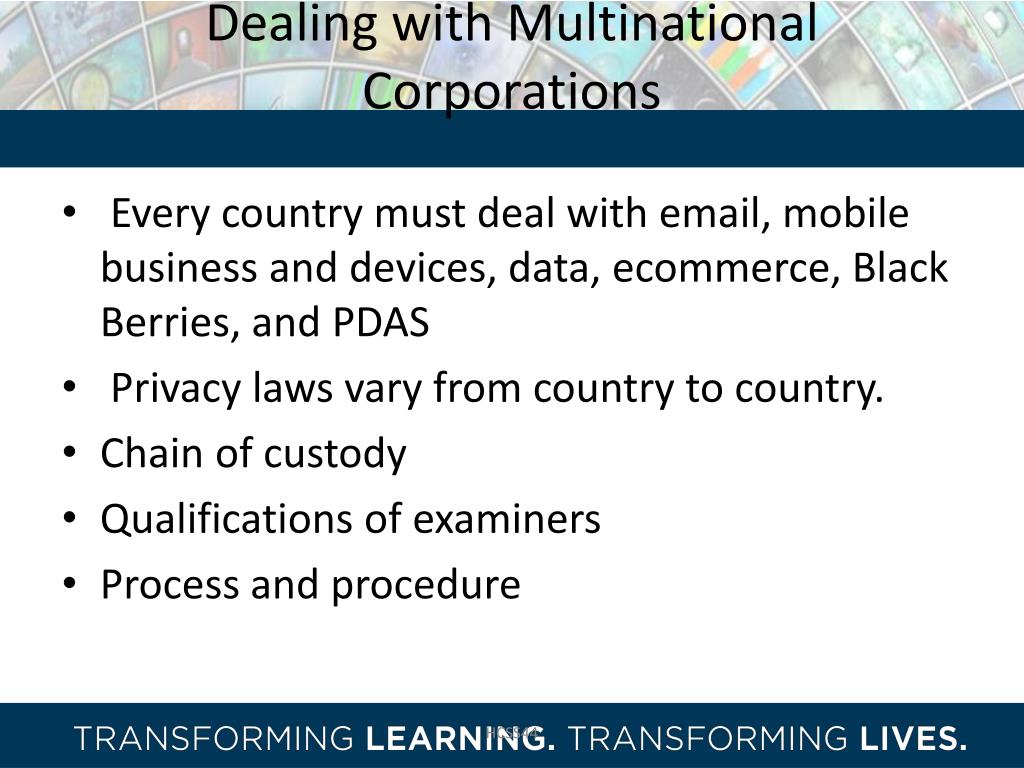

Dealing with Multinational Corporations
  • Every country must deal with email, mobile business and devices, data, ecommerce, Black Berries, and PDAS
  • Privacy laws vary from country to country.
  • Chain of custody
  • Qualifications of examiners
  • Process and procedure

HCSS44

slide26
EDRM
  • Electronic Discovery Reference Model
    • Created by George Socha and Tom Gelbmann(an attorney and a former CIO of two law firms)
    • Based on the Sedona Principles
    • Participating companies include AccessData, Guidance Software, Deloitte, Avantstar, Chesapeake Energy, IBM, LexisNexis
sedona principles
Sedona Principles
  • Guidelines for handling electronic documents
    • Native format
    • Converted to TIFF or PDF
  • 14 guidelines
  • 1. Electronically stored information is potentially discoverable under Fed. R. Civ. P. 34 or its state equivalents. Organizations must properly preserve electronically stored information that can reasonably be anticipated to be relevant to litigation.
sedona principles1
Sedona Principles
  • 2. When balancing the cost, burden, and need for electronically stored information, courts and parties should apply the proportionality standard embodied in Fed. R. Civ. P. 26(b)(2)(C) and its state equivalents, which require consideration of the technological feasibility and realistic costs of preserving, retrieving, reviewing, and producing electronically stored information, as well as the nature of the litigation and the amount in controversy.
sedona principles2
Sedona Principles
  • 3. Parties should confer early in discovery regarding the preservation and production of electronically stored information when these matters are at issue in the litigation and seek to agree on the scope of each party’s rights and responsibilities.
  • 4. Discovery requests for electronically stored information should be as clear as possible, while responses and objections to discovery should disclose the scope and limits of the production.
growth of e discovery
Growth of E-Discovery
  • A 2009 study by McKinsey & Company
    • electronic discovery requests were growing by 50% annually.
    • Growth in e-discovery spending from $2.7 billion in 2007 to $4.6 billion in 2010, according to a Socha Consulting LLC survey.
      • Taken from George Lawson http://searchcloudcomputing.techtarget.com/feature/Cloud-computing-crime-poses-unique-forensics-challenges
laws in the cloud
Laws in the Cloud
  • Laws cannot keep pace with technology
  • Common law countries such as the US, UK, South Africa, Namibia use Case Law
  • Civil Law countries use statutory law
  • Objectives – Digital Forensics
    • Evidence obtained hold up in court
    • The examiner holds up under scrutiny
  • Multinational Companies
privacy laws
Privacy Laws
  • USA citizens take the expectation of privacy for granted
  • Privilege “according to UK common law … allows a person to refuse to testify on a matter or to withhold information”
    • Includes self incrimination
    • Legal counsel privilege
    • Statements made without prejudice
  • China and Japan (and other non-English speaking nations) have laws that are significantly different

Presented at HICSS 44

HICSS44

privacy in the cloud
Privacy in the Cloud
  • State vs. Bellar, Oregon Court of Appeals Judge Timothy Sercombe wrote, "Nor are a person's privacy rights in electronically stored personal information lost because that data is retained in a medium owned by another. Again, in a practical sense, our social norms are evolving away from the storage of personal data on computer hard drives to retention of that information in the 'cloud,' on servers owned by Internet service providers. That information can then be generated and accessed by hand-carried personal computing devices. I suspect that most citizens would regard that data as no less confidential or private because it was stored on a server owned by someone else."

http://searchcloudcomputing.techtarget.com/feature/Cloud-computing-crime-poses-unique-forensics-challenges

whose laws jurisdiction
Whose Laws / Jurisdiction?
  • Very little case law exists
  • How is jurisdiction determined?
    • Country of accused or responding party
    • Country of accuser or requesting party
    • Where the servers are located?
multi tenants in the cloud
Multi-tenants in the Cloud
  • Unless you specify and pay for no neighbors, you / your company share the hardware with others
  • Do you know who they are?
  • Implies shared logs, metadata, registry, etc
  • Cloud Service Providers (CSPs) may have to create an infrastructure to address how to efficiently respond to requests
slide37
Taken from http://searchcloudcomputing.techtarget.com/feature/Cloud-computing-crime-poses-unique-forensics-challenges
  • The U.S. government has also attempted to expand the scope of data that can be lawfully requested without a warrant through a National Security Letter (NSL).
  • In August, the Obama administration requested to add "electronic communication transaction records" to the data included in an NSL,
    • Require providers to include the addresses a user has emailed, the times and dates of transactions, and possibly a user's browser history.
    • Have to ensure that the provider's infrastructure can deliver on these requests in a timely manner.
e discovery digital forensics curriculum
E-Discovery / Digital Forensics Curriculum
  • Bridging the gap between legal and IT students
  • Study of terminology
  • Differences in process
  • Add a legal class to the curriculum
using forensics software for e discovery

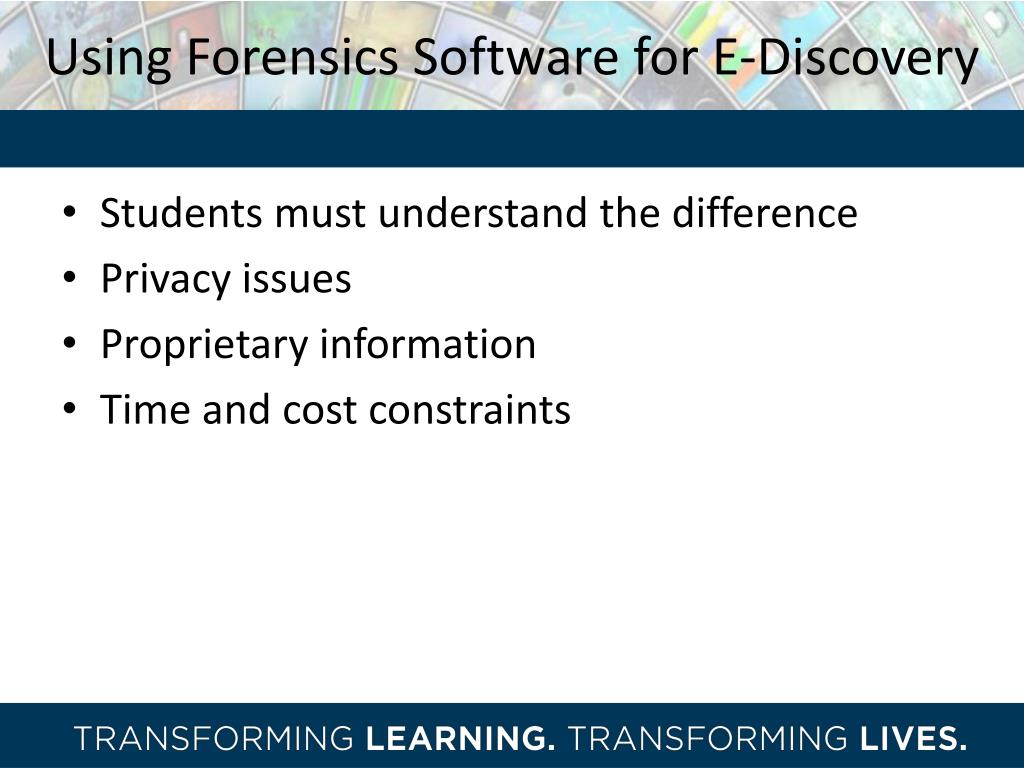

Using Forensics Software for E-Discovery
  • Students must understand the difference
  • Privacy issues
  • Proprietary information
  • Time and cost constraints
students in the cloud
Students in the Cloud
  • Cloud University
    • Free certification (may change)
    • http://www.rackspace.com/knowledge_center/cloudu/
  • Amazon Web Services
    • http://aws.amazon.com/education/
    • Offers a grant of $100 of free time per student registered
case study a
Case Study A
  • A multi-national company with 70% of their data in the cloud is being sued
  • The CSP by happenstance moves the data to their servers in Brazil
  • Have the students find the applicable laws for a civil and a criminal case for retrieval of the data
case study b
Case Study B
  • Create three servers in the academic cloud
    • Assign them names to track
  • Plant data on each
    • Using standard load balancing techniques have the data move each day
  • Assign either a criminal forensics case or civil e-discovery case to the students and have them apply the correct procedure or law based on the country
summary
Summary
  • E-discovery is here to stay
  • Not a hard transition for curriculum
  • Some cost factors
  • New frontier
