  1. Collagen

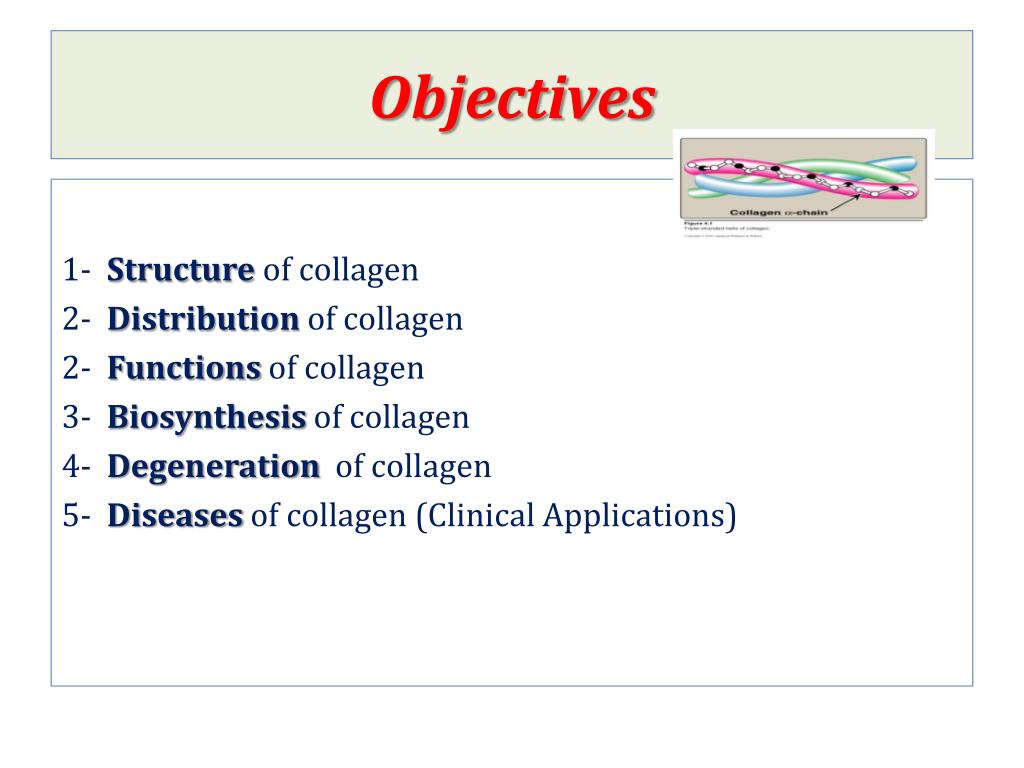

  2. Objectives 1- Structure of collagen 2- Distribution of collagen 2- Functions of collagen 3- Biosynthesis of collagen 4- Degeneration of collagen 5- Diseases of collagen (Clinical Applications)

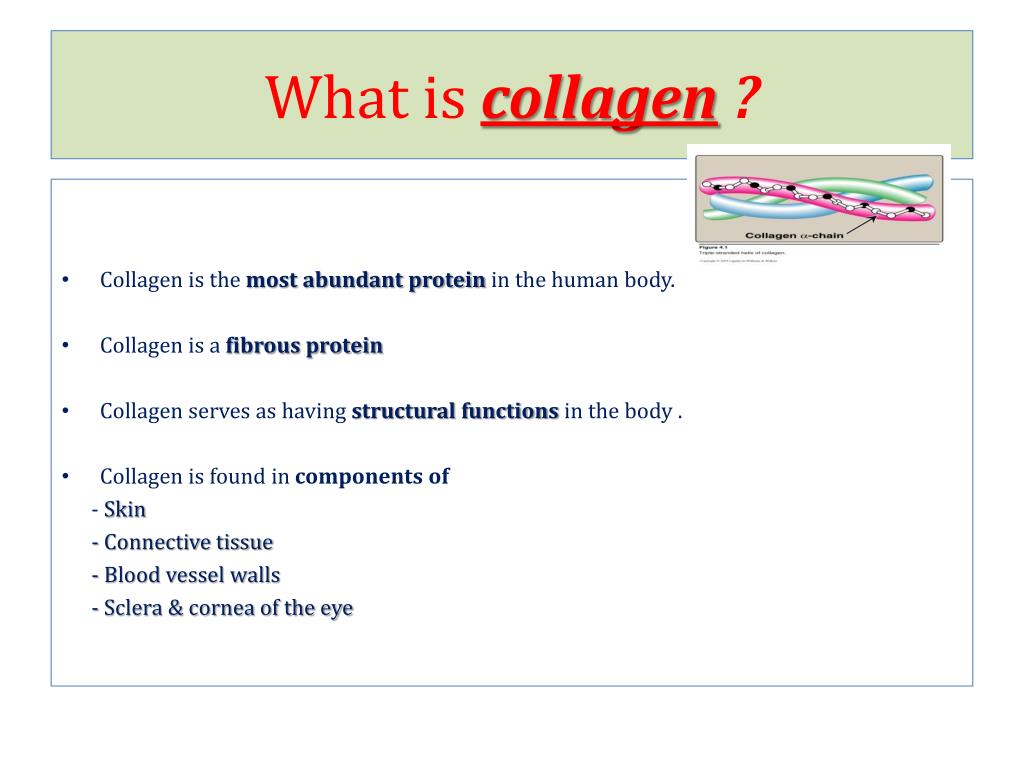

  3. What is collagen ? • Collagen is the most abundant protein in the human body. • Collagen is a fibrous protein • Collagen serves as having structural functions in the body . • Collagen is found in components of - Skin - Connective tissue - Blood vessel walls - Sclera & cornea of the eye

  4. General structure of collagen Collagen protein has primary & secondary levels of structure. A typical collagen molecule is a long, rigid structure in which three polypeptides (a chains) are wound around one another in a rope-like triple helix. Types and organization of collagen molecules are governed by the structural role collagen plays in a particular organ. • in some tissues, collagen is dispersed as a gel as in the vitreous humor of the eye. • in other tissues, collagen may be arranged in parallel fibres that provide great strength as in tendons • in cornea of eye, collagen is stackedso as to transmit light.

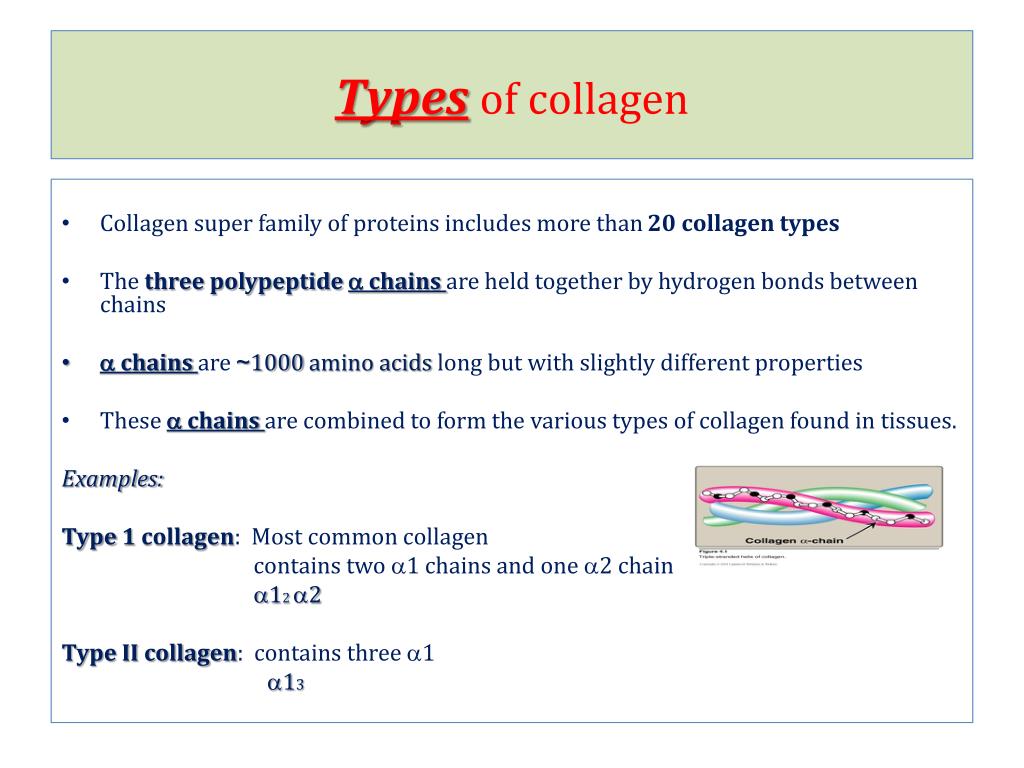

  5. Typesof collagen • Collagen super family of proteins includes more than 20 collagen types • The three polypeptide a chains are held together by hydrogen bonds between chains • a chains are ~1000 amino acids long but with slightly different properties • These a chains are combined to form the various types of collagen found in tissues. Examples: Type 1 collagen: Most common collagen contains two a1 chains and one a2 chain a12 a2 Type II collagen: contains three a1 a13

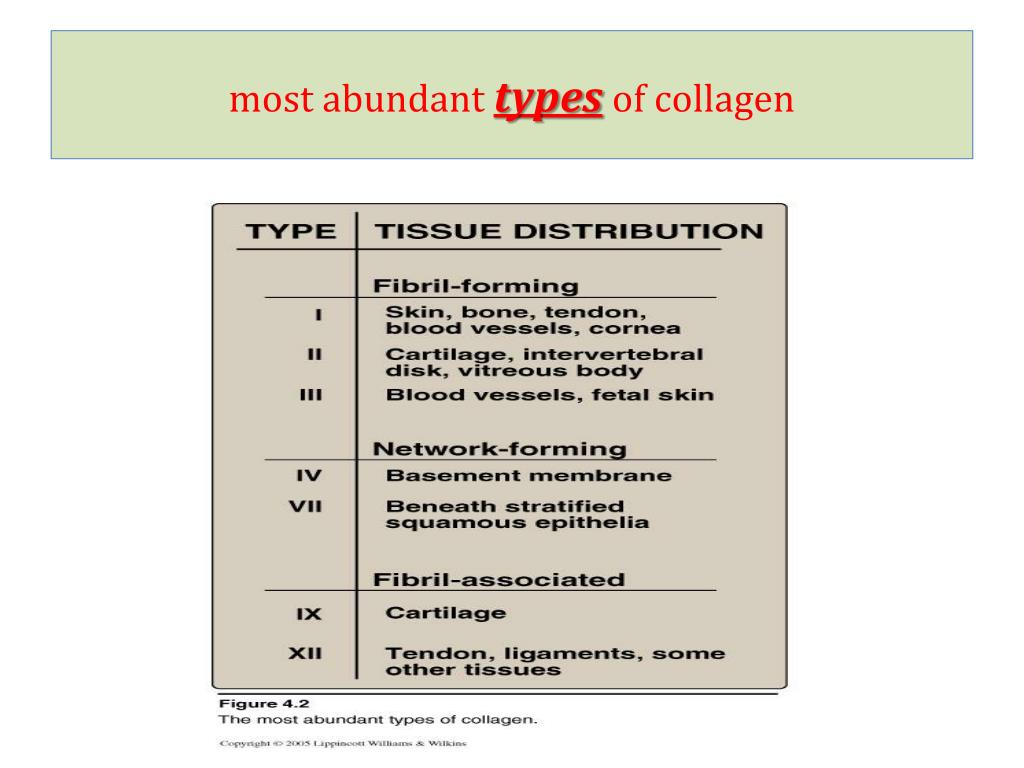

  6. most abundant typesof collagen

  7. Detailed structure of collagen 1-Amino acid sequence Collagen is rich in proline& glycine Proline : by its ring structure facilitates the formation of the helical conformation of each a chain. Glycine(smallest amino acid): present in every third position of the chain. It fits into the spaces where the three chains of the helix come together. Glycines are parts of a repeated sequence [-Gly- X – Y – ] where: Xis frequently ProlinePro & Yis often HydroxyprolineHyp (can be HydroxylsineHyl) So, most of the a chain can be POLYTIPEPTIDE with sequence of: (- Gly- Pro – Hyp -) 333

  8. Detailed structure of collagen (cont.) 2-Triple-helical structure Collagen as a fibrous protein has an elongated , triple-shaped helical structure in which side chains (R- groups) of its amino acid are on the surface of the triple-helical molecule. This allows bond formation between the exposed R-groups of neighbouring collagen monomers resulting in their aggregation into long fibres.

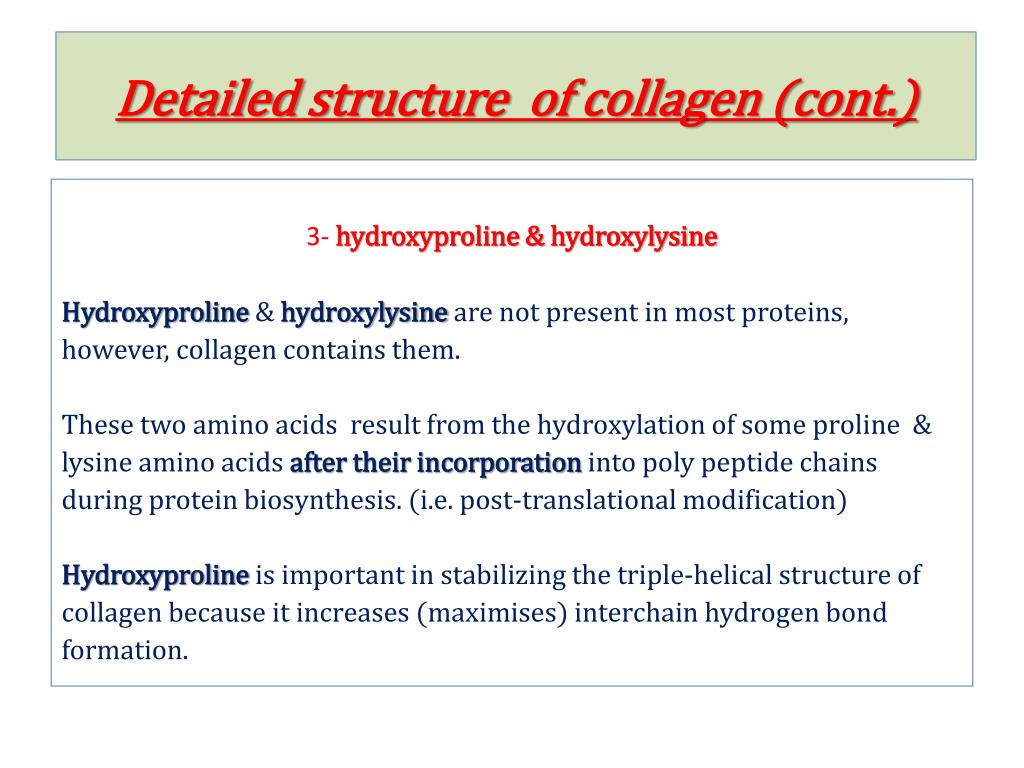

  9. Detailed structure of collagen (cont.) 3- hydroxyproline & hydroxylysine Hydroxyproline& hydroxylysineare not present in most proteins, however, collagen contains them. These two amino acids result from the hydroxylation of some proline & lysine amino acids after their incorporation into poly peptide chains during protein biosynthesis. (i.e. post-translational modification) Hydroxyprolineis important in stabilizing the triple-helical structure of collagen because it increases (maximises) interchain hydrogen bond formation.

  10. Detailed structure of collagen (cont.) Proline is hydroxylated by prolylhydroxylase enzyme which requires ascorbic acid (vitamin C) as a coenzyme

  11. Detailed structure of collagen(cont.) 4-glycosylation The hydoxyl group of hydroxlysine amino acids of collagen may be glycosylated by enzymatic reaction. Glucose & galactose molecules are attached to the polypeptide chain prior to triple helix formation.

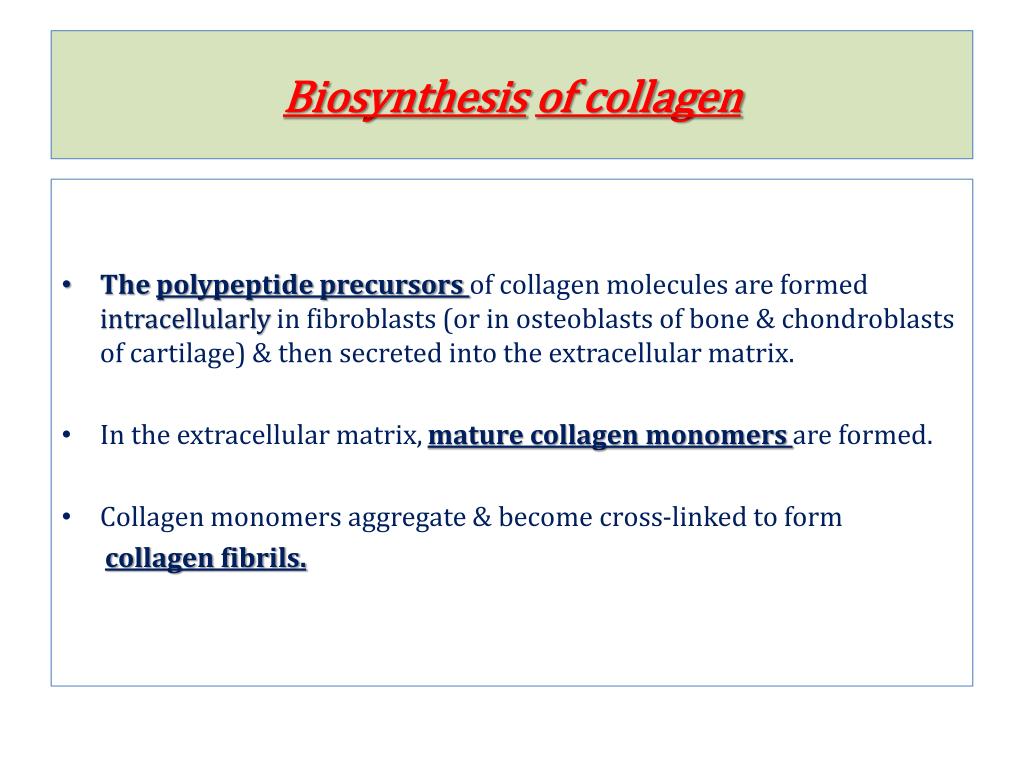

  12. Biosynthesisof collagen • The polypeptide precursors of collagen molecules are formed intracellularlyin fibroblasts (or in osteoblasts of bone & chondroblasts of cartilage) & then secreted into the extracellular matrix. • In the extracellular matrix, mature collagen monomers are formed. • Collagen monomers aggregate & become cross-linked to form collagen fibrils.

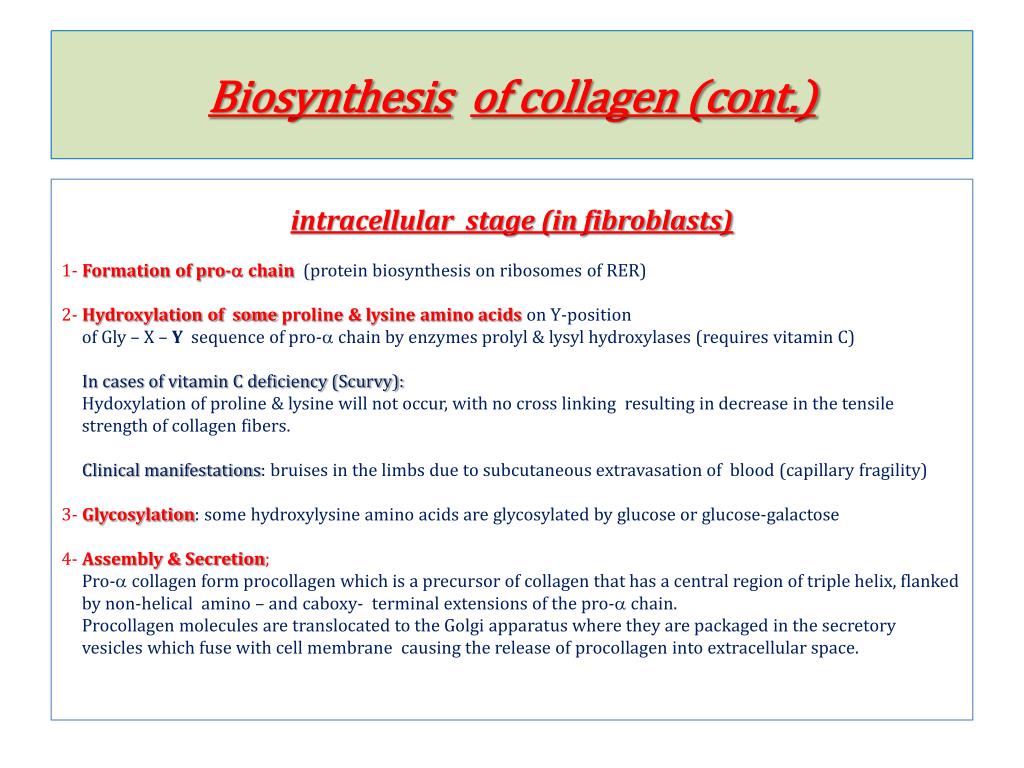

  13. Biosynthesisof collagen (cont.) intracellular stage (in fibroblasts) 1- Formation of pro-a chain (protein biosynthesis on ribosomes of RER) 2- Hydroxylation of some proline & lysine amino acids on Y-position of Gly – X – Y sequence of pro-a chain by enzymes prolyl & lysylhydroxylases (requires vitamin C) In cases of vitamin C deficiency (Scurvy): Hydoxylation of proline & lysine will not occur, with no cross linking resulting in decrease in the tensile strength of collagen fibers. Clinical manifestations: bruises in the limbs due to subcutaneous extravasation of blood (capillary fragility) 3- Glycosylation: some hydroxylysine amino acids are glycosylated by glucose or glucose-galactose 4- Assembly & Secretion; Pro-a collagen form procollagen which is a precursor of collagen that has a central region of triple helix, flanked by non-helical amino – and caboxy- terminal extensions of the pro-a chain. Procollagen molecules are translocated to the Golgi apparatus where they are packaged in the secretory vesicles which fuse with cell membrane causing the release of procollagen into extracellular space.

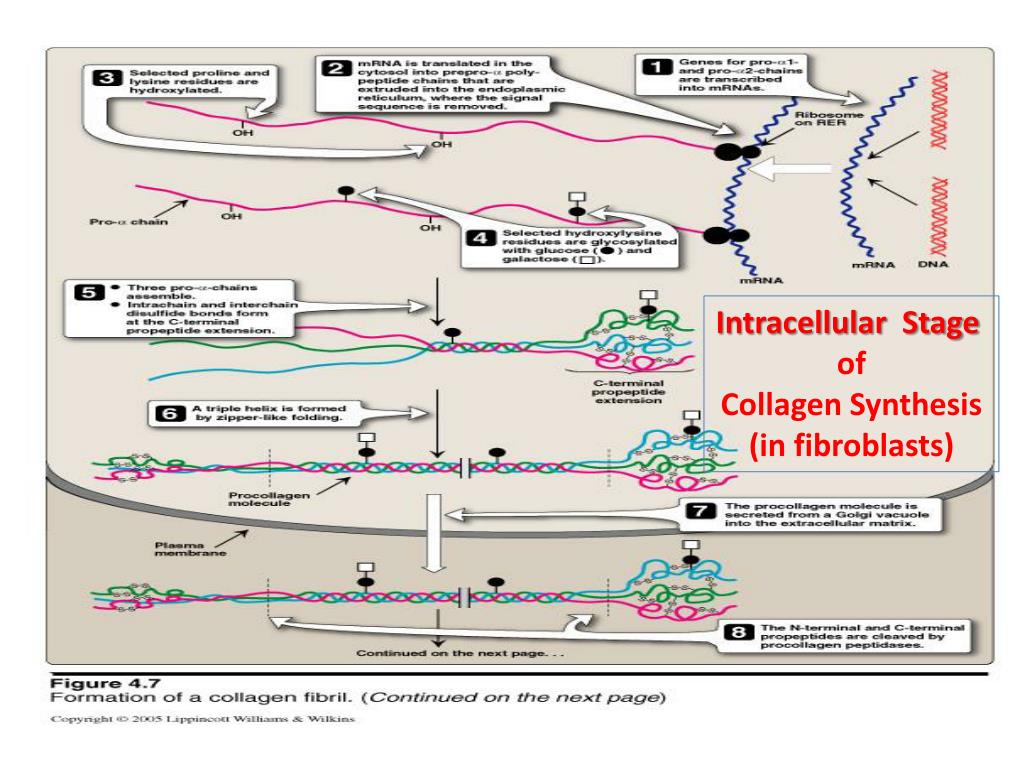

  14. Intracellular Stage of Collagen Synthesis (in fibroblasts)

  15. Bruises in lower limb in a case of scurvy

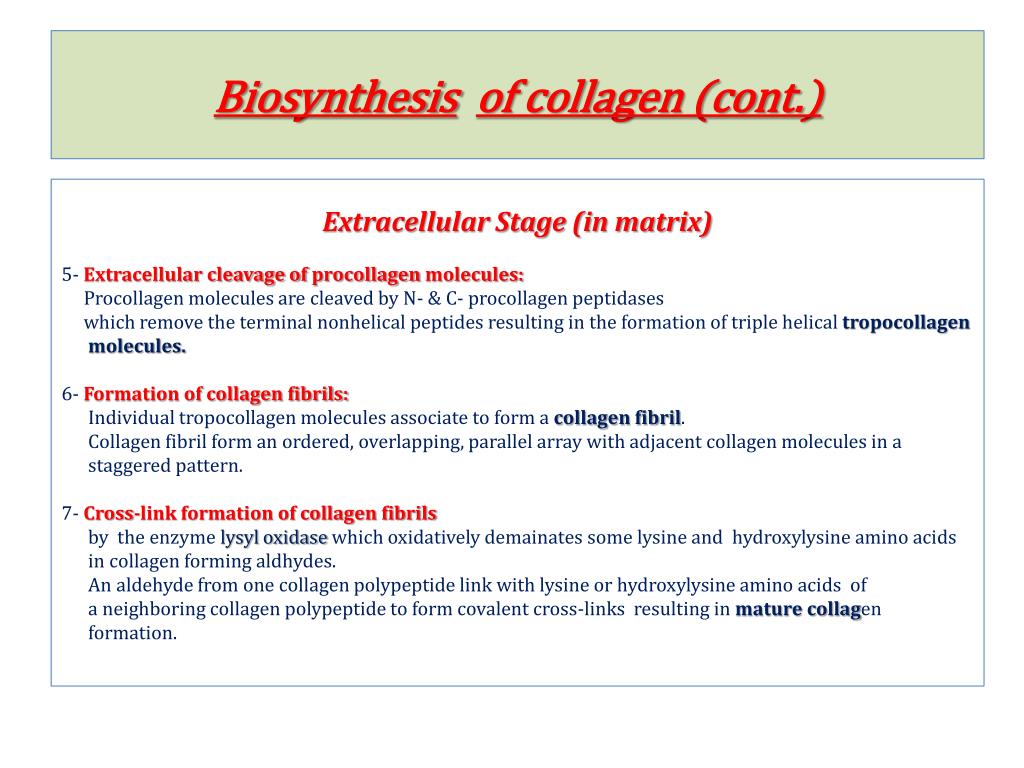

  16. Biosynthesisof collagen (cont.) Extracellular Stage (in matrix) 5- Extracellular cleavage of procollagen molecules: Procollagen molecules are cleaved by N- & C- procollagen peptidases which remove the terminal nonhelical peptides resulting in the formation of triple helical tropocollagen molecules. 6- Formation of collagen fibrils: Individual tropocollagen molecules associate to form a collagen fibril. Collagen fibril form an ordered, overlapping, parallel array with adjacent collagen molecules in a staggered pattern. 7- Cross-link formation of collagen fibrils by the enzyme lysyloxidasewhich oxidatively demainates some lysine and hydroxylysine amino acids in collagen forming aldhydes. An aldehyde from one collagen polypeptide link with lysine or hydroxylysine amino acids of a neighboring collagen polypeptide to form covalent cross-links resulting in mature collagen formation.

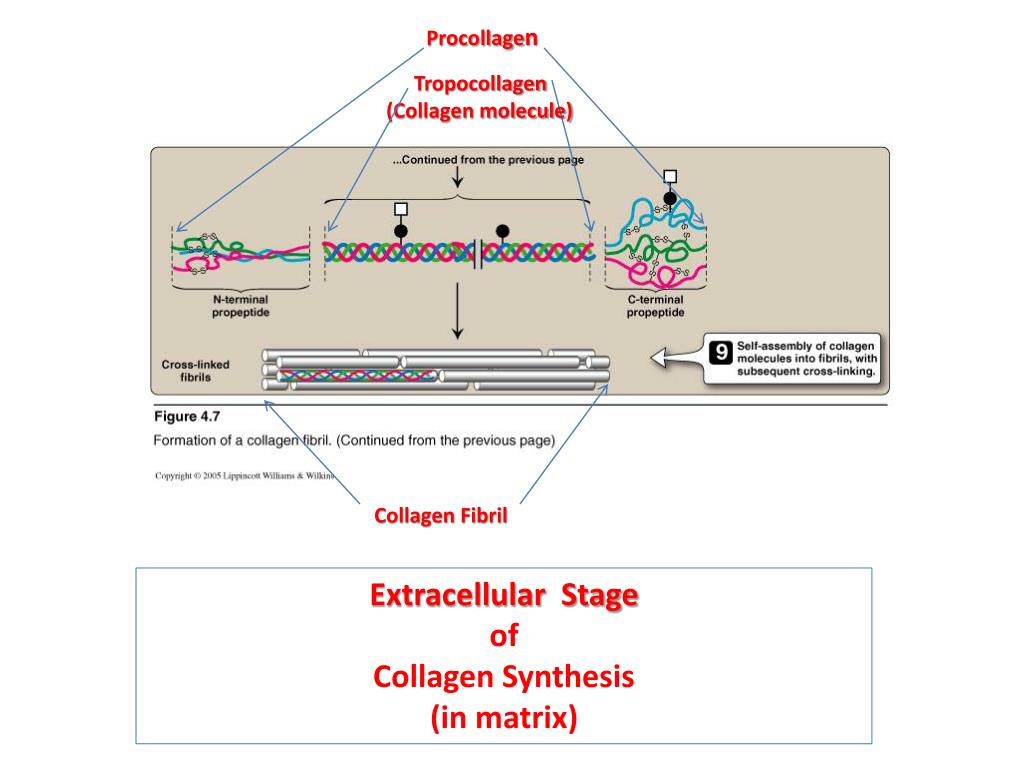

  17. Procollagen Tropocollagen (Collagen molecule) Collagen Fibril Extracellular Stage of Collagen Synthesis (in matrix)

  18. Collagen Molecule Collagen Fibril

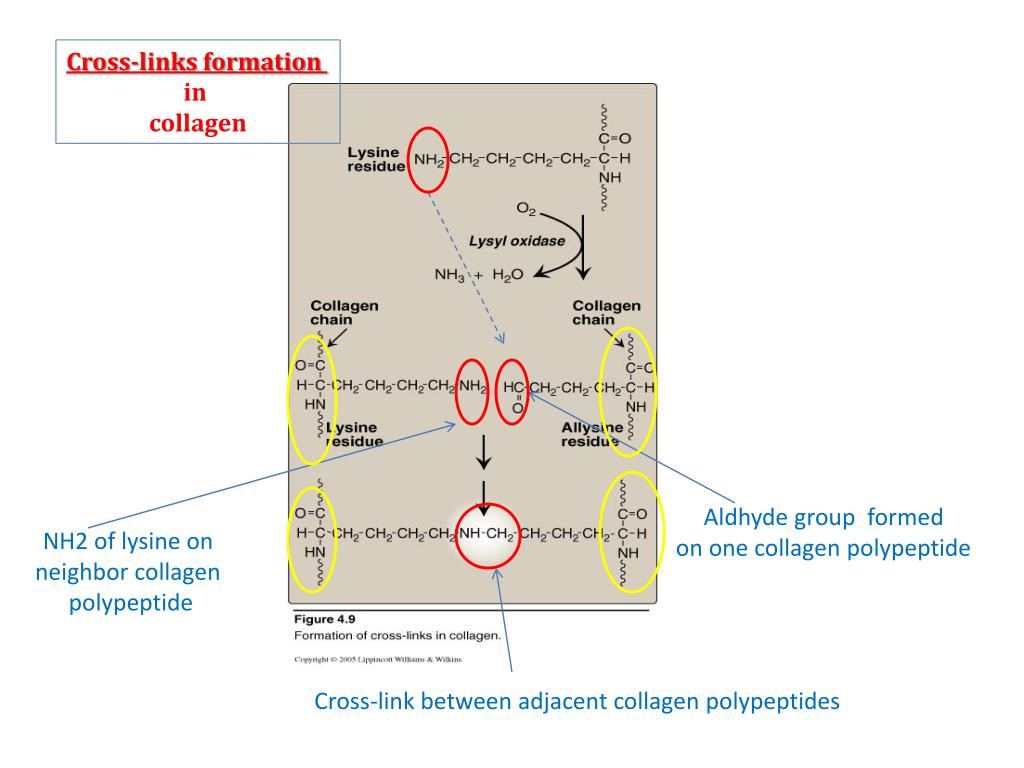

  19. Cross-links formation in collagen Aldhyde group formed on one collagen polypeptide NH2 of lysine on neighbor collagen polypeptide Cross-link between adjacent collagen polypeptides

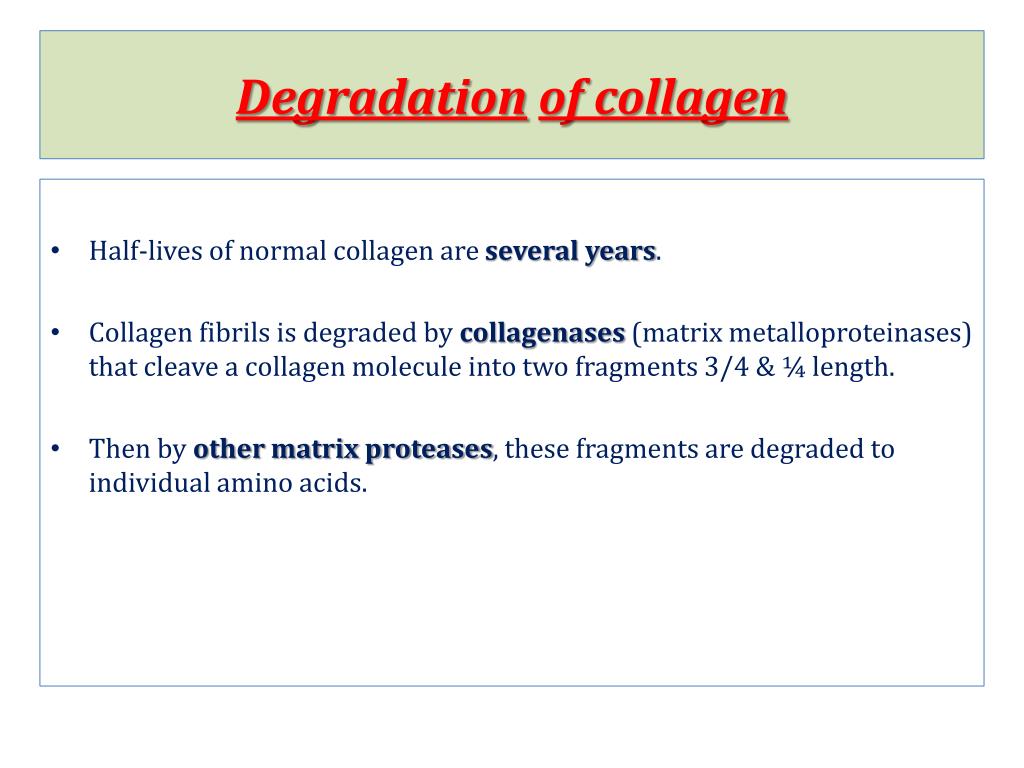

  20. Degradationof collagen • Half-lives of normal collagen are several years. • Collagen fibrils is degraded by collagenases (matrix metalloproteinases) that cleave a collagen molecule into two fragments 3/4 & ¼ length. • Then by other matrix proteases, these fragments are degraded to individual amino acids.

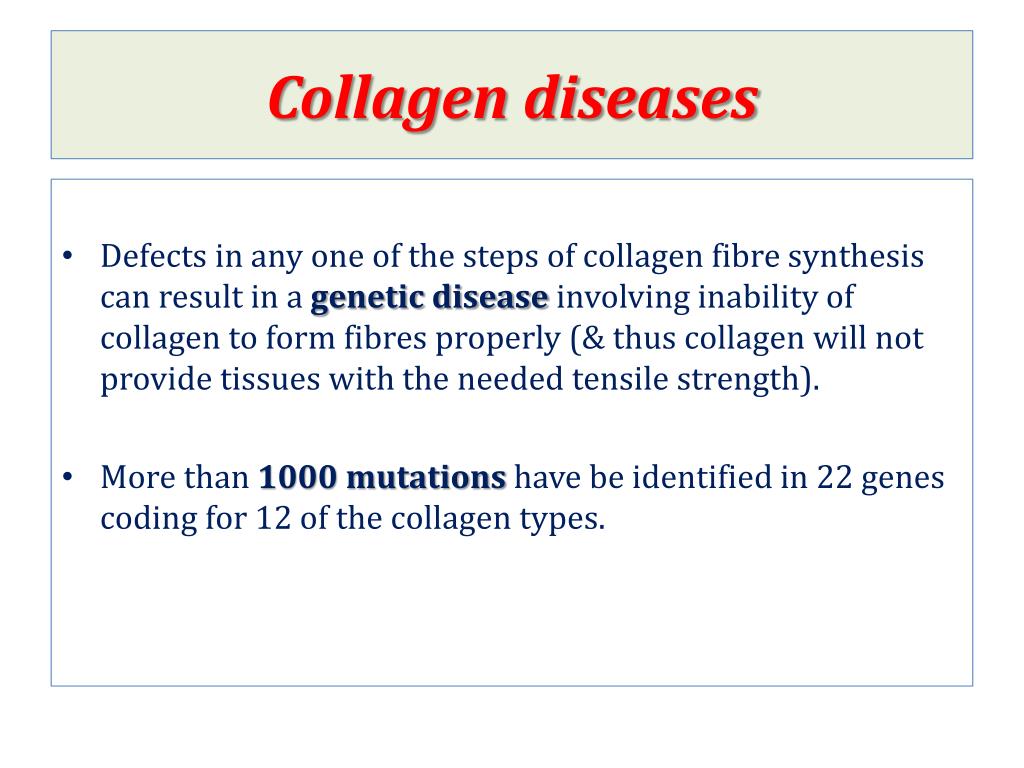

  21. Collagen diseases • Defects in any one of the steps of collagen fibre synthesis can result in a genetic disease involving inability of collagen to form fibres properly (& thus collagen will not provide tissues with the needed tensile strength). • More than 1000 mutations have be identified in 22 genes coding for 12 of the collagen types.

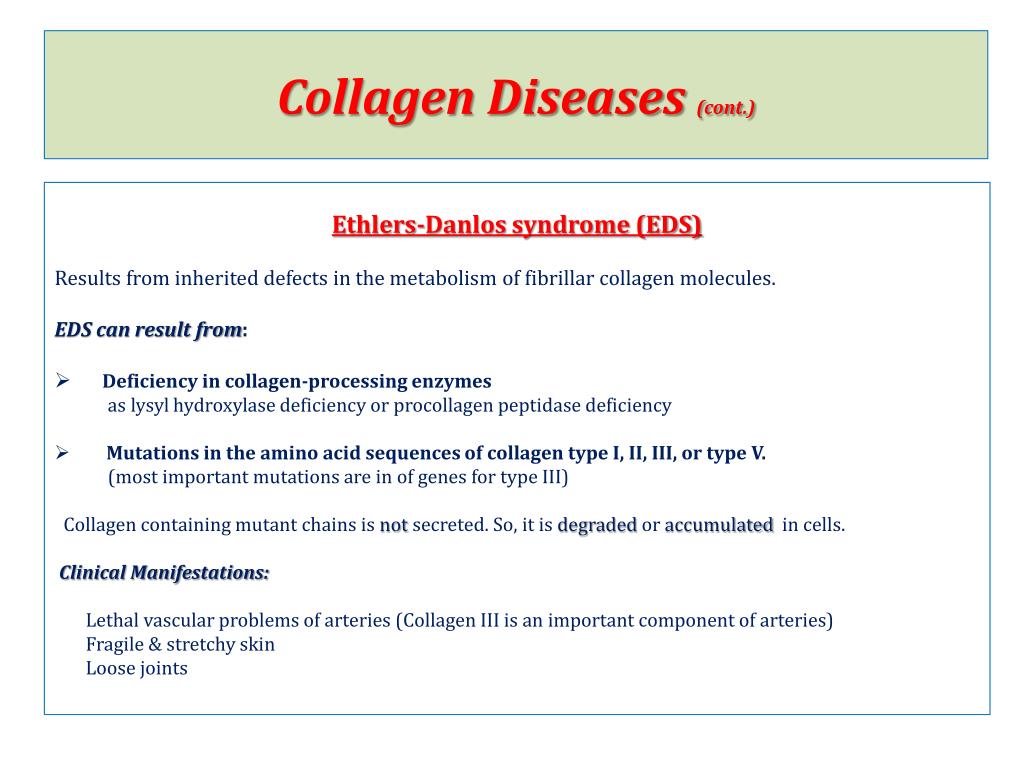

  22. Collagen Diseases (cont.) Ethlers-Danlos syndrome (EDS) Results from inherited defects in the metabolism of fibrillar collagen molecules. EDS can result from: • Deficiency in collagen-processing enzymes as lysylhydroxylase deficiency or procollagen peptidase deficiency • Mutations in the amino acid sequences of collagen type I, II, III, or type V. (most important mutations are in of genes for type III) Collagen containing mutant chains is not secreted. So, it is degraded or accumulated in cells. Clinical Manifestations: Lethal vascular problems of arteries (Collagen III is an important component of arteries) Fragile & stretchy skin Loose joints

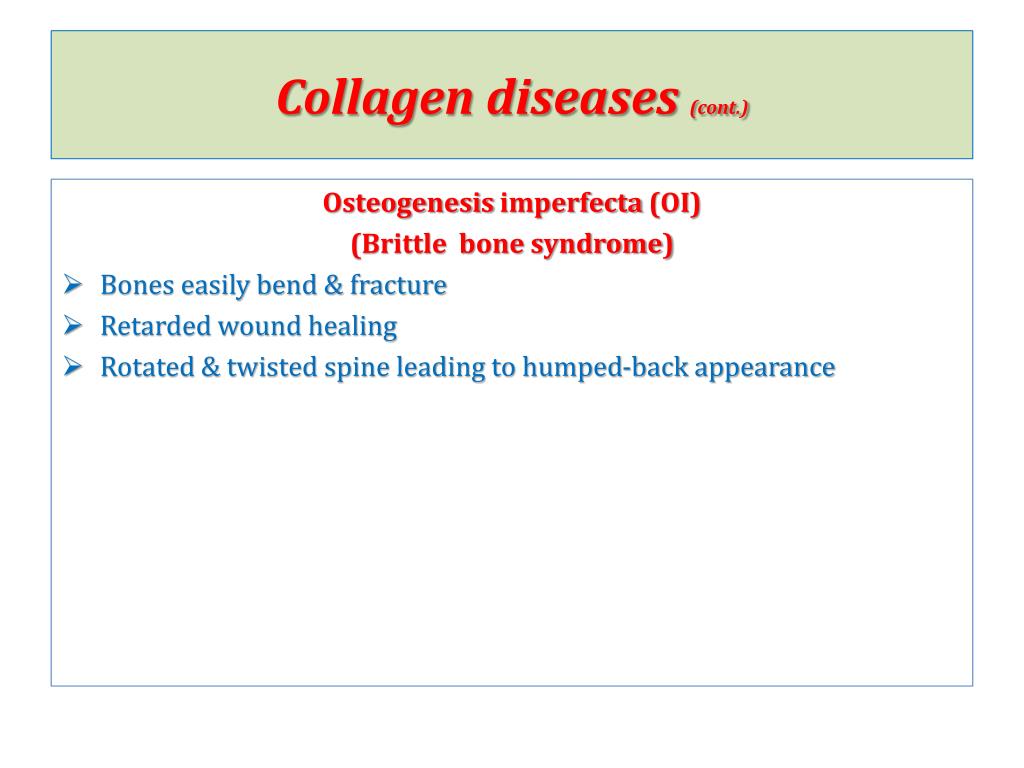

  23. Collagen diseases (cont.) Osteogenesisimperfecta (OI) (Brittle bone syndrome) • Bones easily bend & fracture • Retarded wound healing • Rotated & twisted spine leading to humped-back appearance
