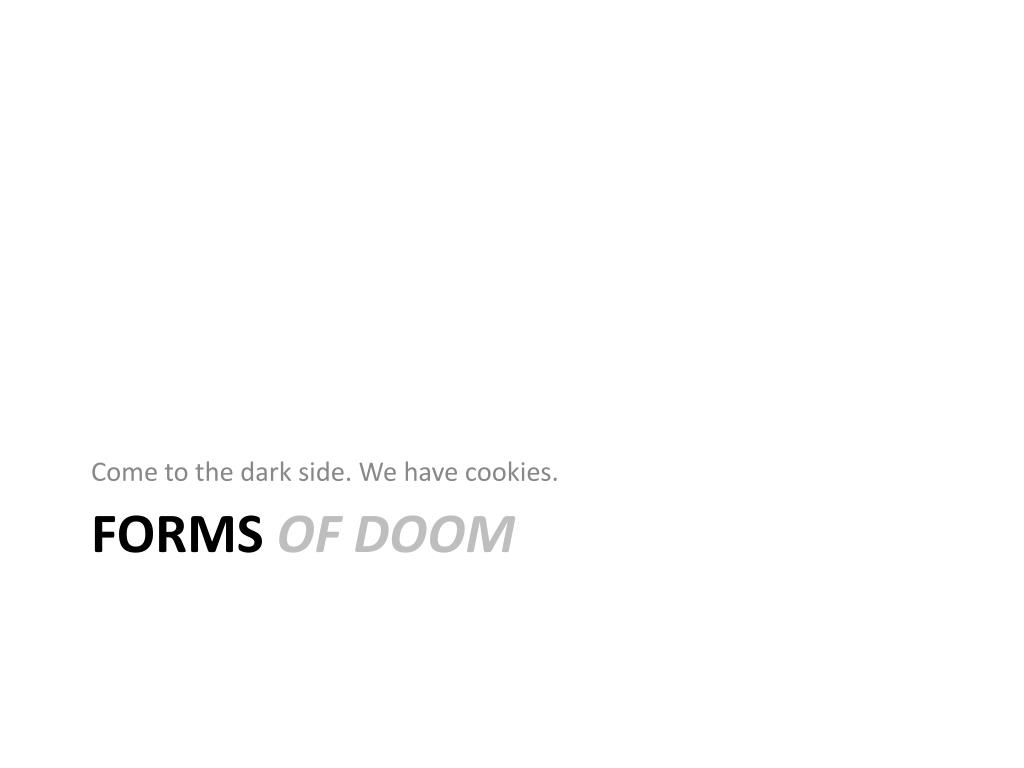

  1. Come to the dark side. We have cookies. Forms of doom

  2. Attributes Input Types JavaScript API Styling Behold The Powers of HTML5

  3. Placeholder Required Autofocus Autocomplete Spellcheck Pattern Attributes TO RULE THEM ALL

  4. Disappears as the user types. NOT a replacement for a proper label. I will hunt you down. <input placeholder=“Full Name”>

  5. Validated by supporting browsers. <input required>

  6. Gives the first field in the source order with autofocus focus on page load. Will scroll the page to give it focus. Not supported by mobile browsers. <input autofocus>

  7. Suggests to browsers that they not auto fill that form field. Suggested for use on form fields the browser will probably auto fill wrong. For example: Name when you want a pet’s name. <input autocomplete=“off”>

  8. Also accepts “true”. Tells the browser explicitly whether or not to spell check the field. Good for fields where the input is expected to be interpreted as a misspelling. <input spellcheck=“false”>

  9. Matches a regular expression. Only validates if something has been entered. Error message is non-specific. Some browsers will use title attribute to explain. Use the title attribute to add additional help text. Please. This works with all the input types. <input pattern="[a-zA-Z0-9]+" title=“Letters and numbers only please.”>

  10. Download the sample form: stephaniehobson.ca/html5forms Add: Placeholder Required Autofocus Autocomplete (to the nemesis name field – wouldn’t want to submit your own name as your nemesis, that’d be awkward) Spellcheck (to the nemesis name field) Pattern CODING Impressive.

  11. Email URL Tel Search Number Range Date Datalist Input types And your little dog too

  12. For email addresses. Gives email keyboard. Is validated as an email address. Special attribute: multiple (enables acceptance of a comma separated list of addresses) <input type=“email”>

  13. For urls. Gives url keyboard. Is validated as a url – very loosely. URL validation is actually really complicated. Use in combination with pattern if you want something specific. <input type=“url”>

  14. For phone numbers. Gives number pad. Very loosely validated. Handy since the nice big number pad is handy for inputting any number so you can use it for anything else you like. thisisourstop.com uses it for bus stop number. Use with pattern if you have something specific in mind. <input type=“tel”>

  15. No standard functionality. Remembered search terms on some. Rounded corners on some. Over ride with -webkit-appearance:none; Little grey clear field “x” on some. <input type=“search”>

  16. For numbers. Also called a “spinbox”. Gives number keypad. Validated as a number (one day). Special attributes: min max step Special pseudo classes: :in-range { } :out-of-range { } <input type=“number”>

  17. For numbers. Also called a “slider”. Exact number not displayed to user. Special attributes: min max step Special pseudo classes: :in-range { } :out-of-range { } <input type=“range”>

  18. On focus displays a date picker. Configurable formats: type=“date” type=“datetime” type=“datetime-local” type=“month” type=“week” type=“time” Support for everything except type=“date” is spotty. <input type=“date”>

  19. Text box with filtered list of suggestions. Replaces a select box with an “other please specify” option. Entire list isn’t usually visible, appears as user types, filtered by what they’ve entered. Backwards compatible: http://goo.gl/GhfEl <input type=“text” list=“sources"><datalist id=“sources"> <option>Professor</option> <option>Master</option></datalist>

  20. Using the same form change: Birth/death date to date Army size to range Nemesis to datalist (Use Jeremy Keiths’ backwards compatible version http://goo.gl/GhfEl) CODING Most Impressive.

  21. Compatibility Tables http://wufoo.com/html5/ In depth and up to date. Fallbacks All new inputs fall back to text automatically. Isn’t that awesome! That means if you have a form with no validation today, you have have validation for modern browsers with small changes! So cool! You should run home and do this. Backwards compatible datalist: http://adactio.com/journal/4272/ Shims https://github.com/ryanseddon/H5F In early 2012 not all played nice with jQuery form validation plug-ins. Not sure if this has changed. Support Do you know how I got these scars?

  22. FormData Constraint Validation A Few More Elements JavaScript API with frickin Laser beams

  23. Create and send a virtual form. No need to create DOM elements. varformData = new FormData(); formData.append(“weapon”, “Death Ray”); formData.append(“cybernetics”, “eye, left arm”) varxhr = new XMLHttpRequest(); xhr.open("POST", "http://goci.com/submission.php"); xhr.send(formData); formData

  24. Can also be used to append data to an existing form before sending. varformElement = document.getElementById(”myForm"); varformData = new FormData(formElement); formData.append(”Sidekick", "Harley Quinn,"); varxhr = new XMLHttpRequest(); xhr.open("POST", "http://goci.com/submission.php"); xhr.send(formData); formData

  25. Form elements have an object you can access with several attributes that will tell you if and how a form field is failing validation. el.validity.valid el.validity.valueMissing el.validity.typeMismatch el.validity.patternMismatch el.validity.tooLong el.validity.rangeUnderflow and rangeOverflow el.validity.stepMismatch el.validity.customError Yes, custom errors! You can create your own errors using their API. Constraint Validation

  26. Create a custom error message. Like, checking two email addresses match. <input type="email" id="email_addr" name="email_addr"> <input type="email" id="email_addr_repeat" name="email_addr_repeat" oninput="check(this)"> <script> function check(input) { if (input.value != document.getElementById('email_addr').value) { input.setCustomValidity('The two email addresses must match.'); } else { // input is valid -- reset the error message input.setCustomValidity(''); } } </script> Constraint Validation

  27. Add the code to check the email address (I hate these but it *is* an evil application form after all). You can copy and paste the code from here: http://www.html5rocks.com/en/tutorials/forms/html5forms/ CODING

  28. :required :optional :valid :invalid :default [attribute] Styling Custom Baby Seal Leather Boots Anyone?

  29. Basic Introductions http://diveintohtml5.info/forms.html http://24ways.org/2009/have-a-field-day-with-html5-forms/ http://www.html5rocks.com/en/tutorials/forms/html5forms/ http://www.alistapart.com/articles/forward-thinking-form-validation/ CSS http://html5doctor.com/css3-pseudo-classes-and-html5-forms/ Compatibility Specifics http://wufoo.com/html5/ http://miketaylr.com/code/input-type-attr.html Resources I see you brought a friend.
