    1. Agilent 7500 ICP-MS Date: 28JUL2005

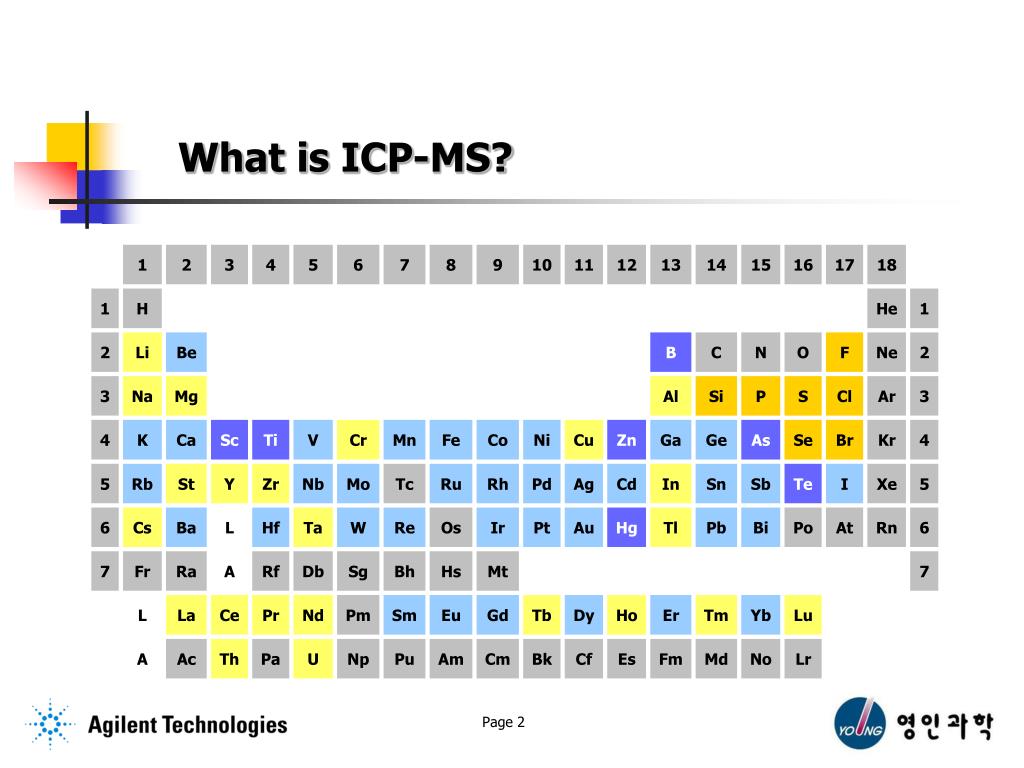

    2. What is ICP-MS?

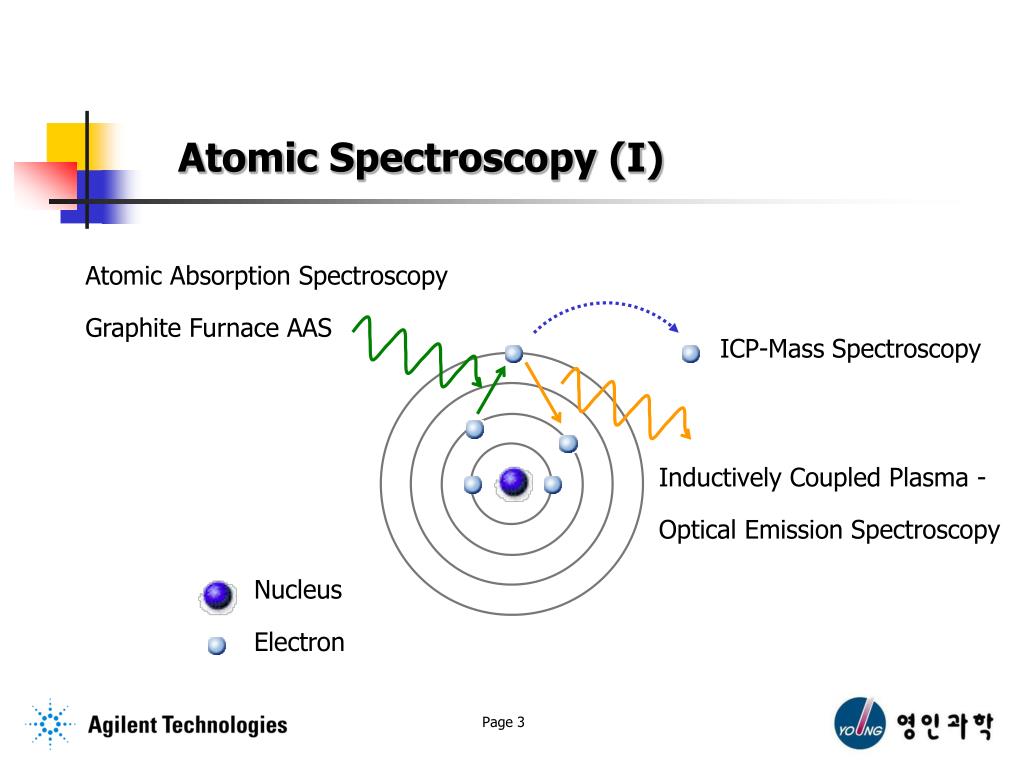

    3. Atomic Absorption Spectroscopy Graphite Furnace AAS ICP-Mass Spectroscopy Inductively Coupled Plasma - Optical Emission Spectroscopy Atomic Spectroscopy (I) Nucleus Electron

    4. FAAS ICP-MS High Precision Quantitation High Sensitivity Low Detection Limits Sensitivity GFAAS ICP-OES Multi-element Simultaneous Analysis Atomic Spectroscopy (II) Spectral Interferences

    5. ICP-MS Schematic Diagram 5. Isolation Valve 8. Detector 3. Plasma 2. Spray Chamber 7. Mass Filter 4. Off-axis Lens 6. ORS 1. Nebulizer

    6. Sample Introduction Device Ar blend gas To ICP Babington Al insulation Nebulizer Sample solution cover Ar carrier gas Peltier cooling device Cooling water

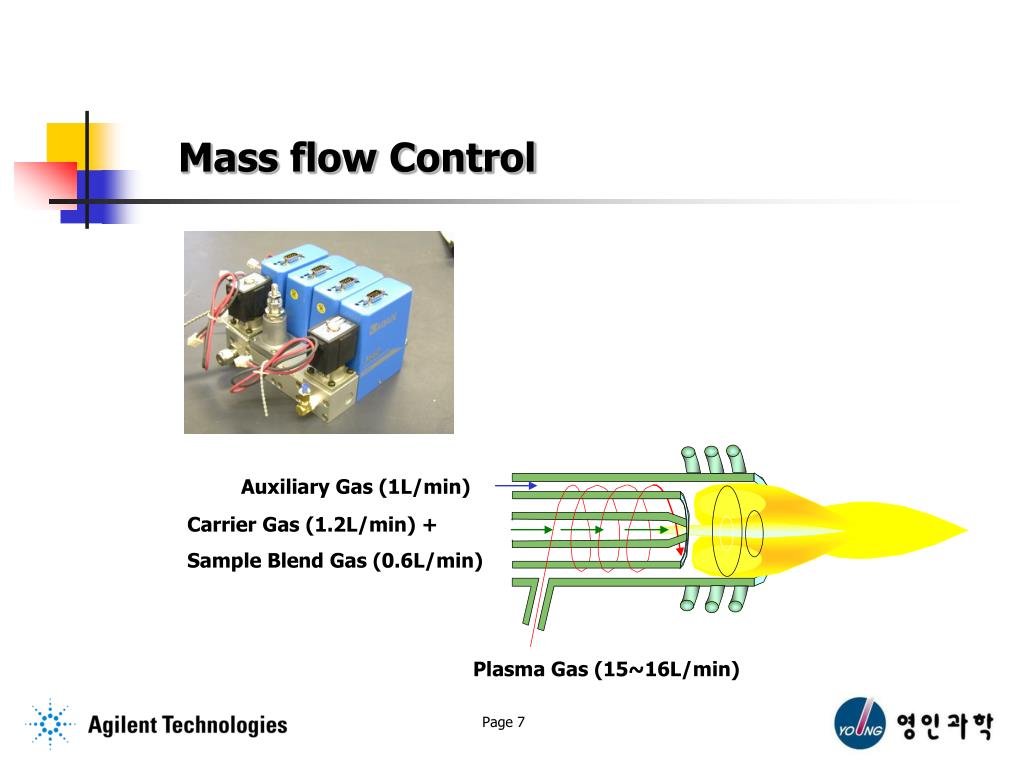

    7. Mass flow Control 6. Ion Lenses 2. Spray Chamber 4. Interface Auxiliary Gas (1L/min) Carrier Gas (1.2L/min) + Sample Blend Gas (0.6L/min) Plasma Gas (15~16L/min)

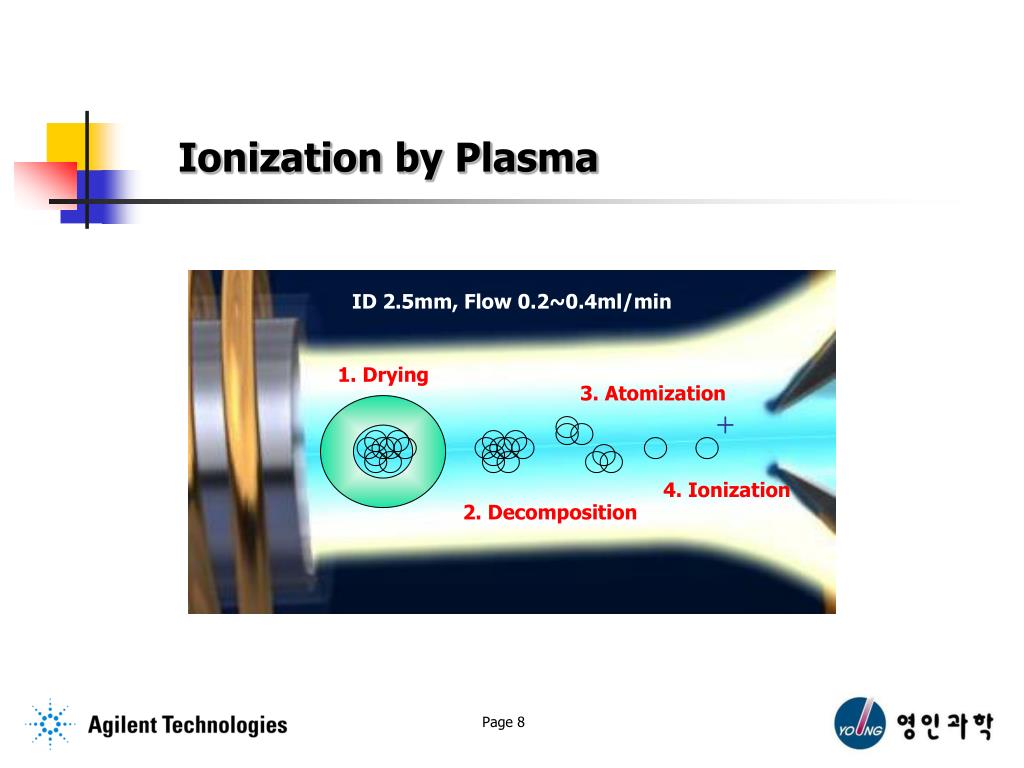

    8. + Ionization by Plasma ID 2.5mm, Flow 0.2~0.4ml/min 2. Spray Chamber 1. Drying 3. Atomization 4. Ionization 2. Decomposition

    9. Distribution of Plasma 27.12MHz S Sample 40MHz 27.12MHz S 40MHz

    10. Cool Plasma Work coil Torch Shield plate

    11. Cool Plasma Normal Plasma Cool Plasma Shield plate • Forward Power: 1300W • Sampling Depth: 7mm • Carrier Gas Flow: 1.2ml/min • Forward Power: 900W • Sampling Depth: 13mm • Carrier Gas Flow: 1.7ml/min

    12. Ionization Efficiency Mg Mg, Fe, As Fe Cl As Ar Cl Ar

    13. Optimum gas flow Co Sensitivity ArH ArO Carrier gas flow

    14. Extraction Lens Twin Extraction Lenses Sampling cone Skimmer cone

    15. Why need ORS? • There are some applications where coolplasma does not meet current and future required performance levels for certain analytes: • several interfered analytes in high(100-1000ppm) Si matrices • interfered analytes (Ti, Zn) in high matrix acids H2SO4 and H3PO4 Agilent’s Octopole Reaction Cell can remove these interferences…

    16. Off-axis Lens

    17. Ar 40amu Ar Ar Cl Cl Cl 75amu 35amu Dissociation He As 75amu 75amu

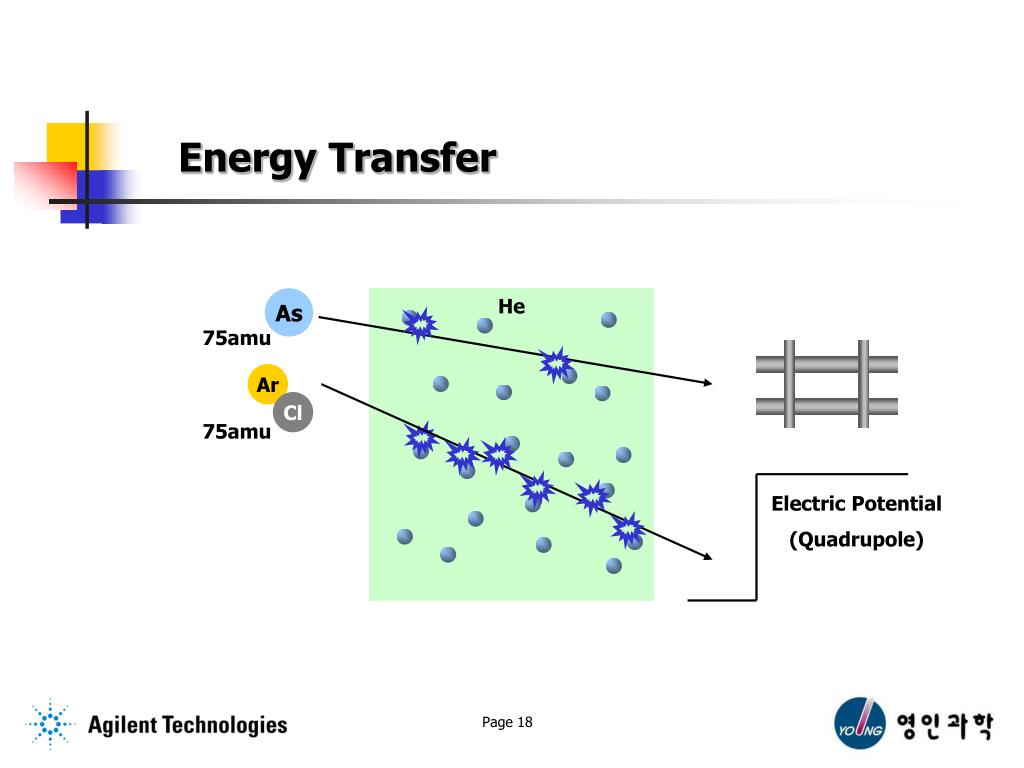

    18. As 75amu Ar Cl 75amu Energy Transfer He Electric Potential (Quadrupole)

    19. Reaction mode • Charge Transfer • Ar+ + H2 H2+ + Ar • (neutral) • Proton Transfer • Ar2+ + H2 Ar2H+ + H • (80amu) (81amu)

    20. Mass Filter • True Hyperbolic Quadrupole • 3MHz RF Generator • Peak Shape • Abundance Sensitivity 3MHz

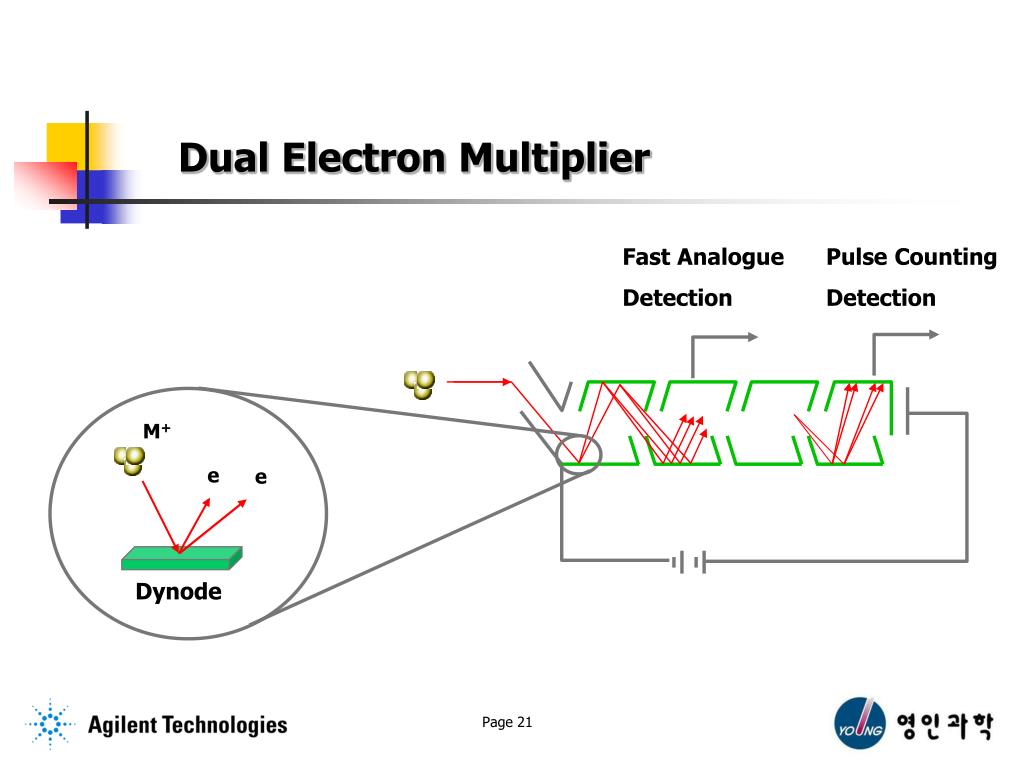

    21. Dual Electron Multiplier Fast Analogue Detection Pulse Counting Detection M+ e e Dynode

    22. Wide Dynamic Range 1000ppm • Dynamic Range: 9 orders • Analog Mode • Pulse Counting Mode • Solid type Multiplier 1ppt

    23. ICP-MS Schematic Diagram 5. Isolation Valve 8. Detector 3. Plasma 2. Spray Chamber 7. Mass Filter 4. Off-axis Lens 6. ORS 1. Nebulizer

    24. Flexibility [I-Autosampler] [HPLC-ICP-MS] [ORS Technology] [GC-ICP-MS] [Organic Kit]

    25. Sample Type • Waters • Chemicals • Semiconductor • Food • Geological • Clinical • Forensic • Petrochemical • Nuclear
