Presentation Transcript
airplane general
Airplane General
  • If the seat belt sign switch were selected to the AUTO position, when would the seat belt sign extinguish on departure?
  • When the gear and the flaps are retracted.
airplane general3
Airplane General
  • Under what conditions does the seat belt sign illuminate automatically?
  • Deployment of the O2 system, or if AUTO is selected with flaps/landing gear extension.
airplane general4
Airplane General

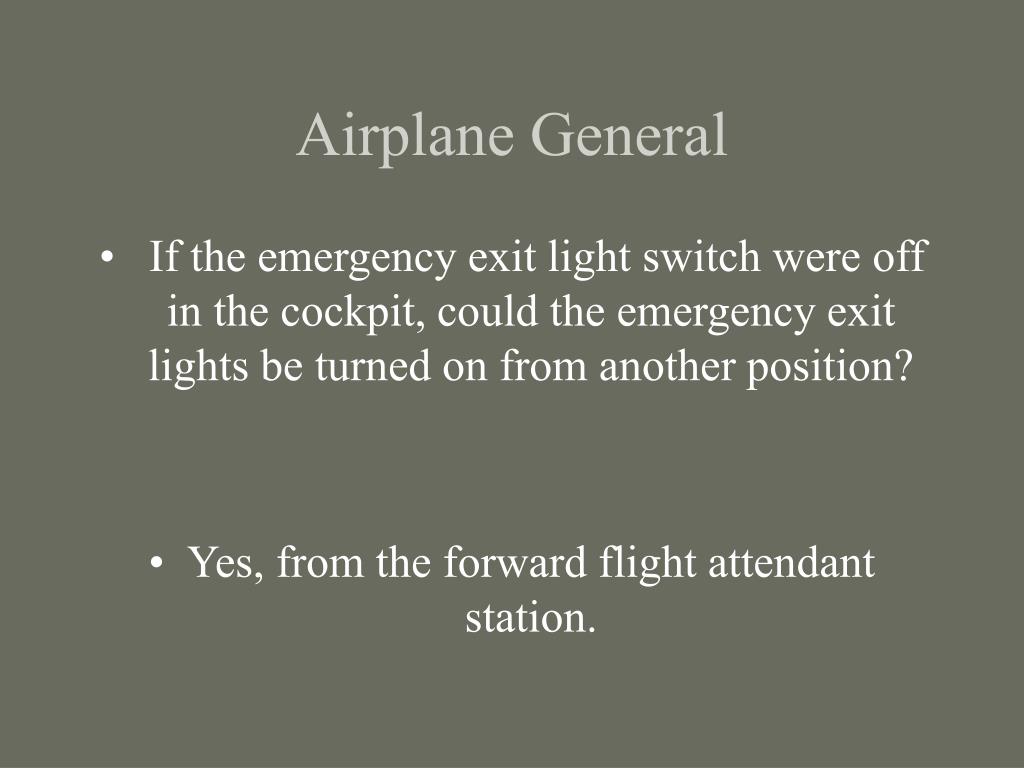

  • If the emergency exit light switch were off in the cockpit, could the emergency exit lights be turned on from another position?
  • Yes, from the forward flight attendant station.
airplane general5
Airplane General

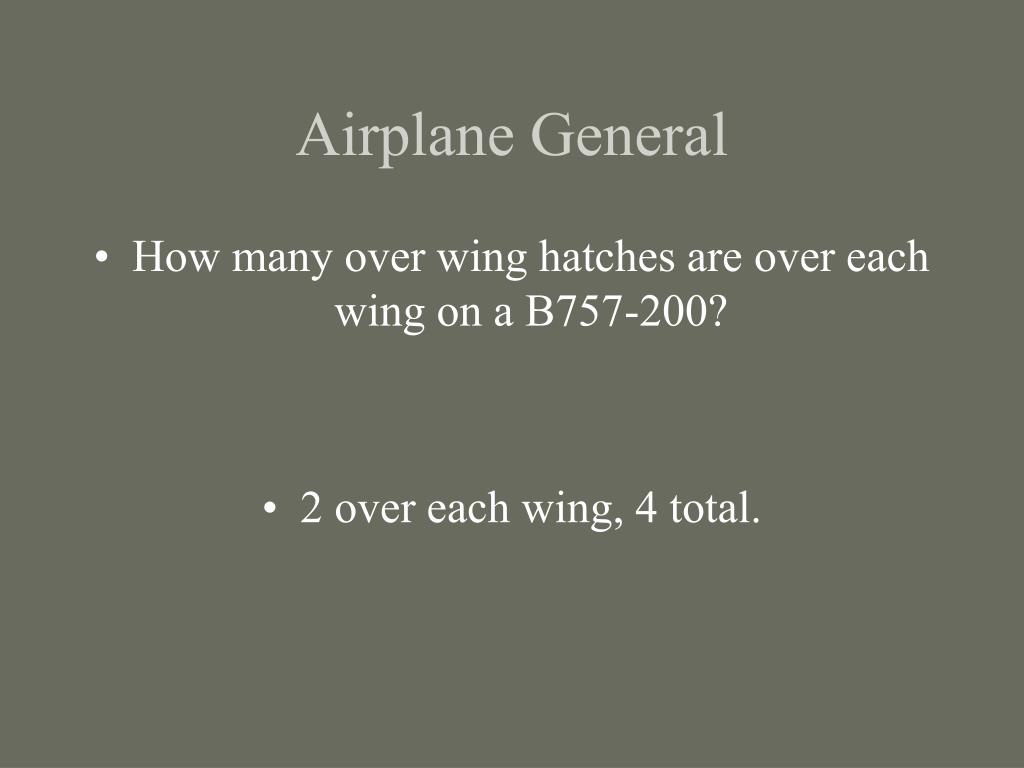

  • How many over wing hatches are over each wing on a B757-200?
  • 2 over each wing, 4 total.
airplane general6
Airplane General
  • With the EMER lights armed, what activates the interior emergency lights?
  • If power is lost to 28 volt DC bus, or if the AC power is turned off.
airplane general7
Airplane General
  • What is the power source for the EMER lights?
  • Individual NiCad batteries
airplane general8
Airplane General
  • How many POB’s are required?
  • One for each F/A
airplane general9
Airplane General
  • What is the minimum width needed to make a 180 degree turn?
  • 120 feet
airplane general10
Airplane General

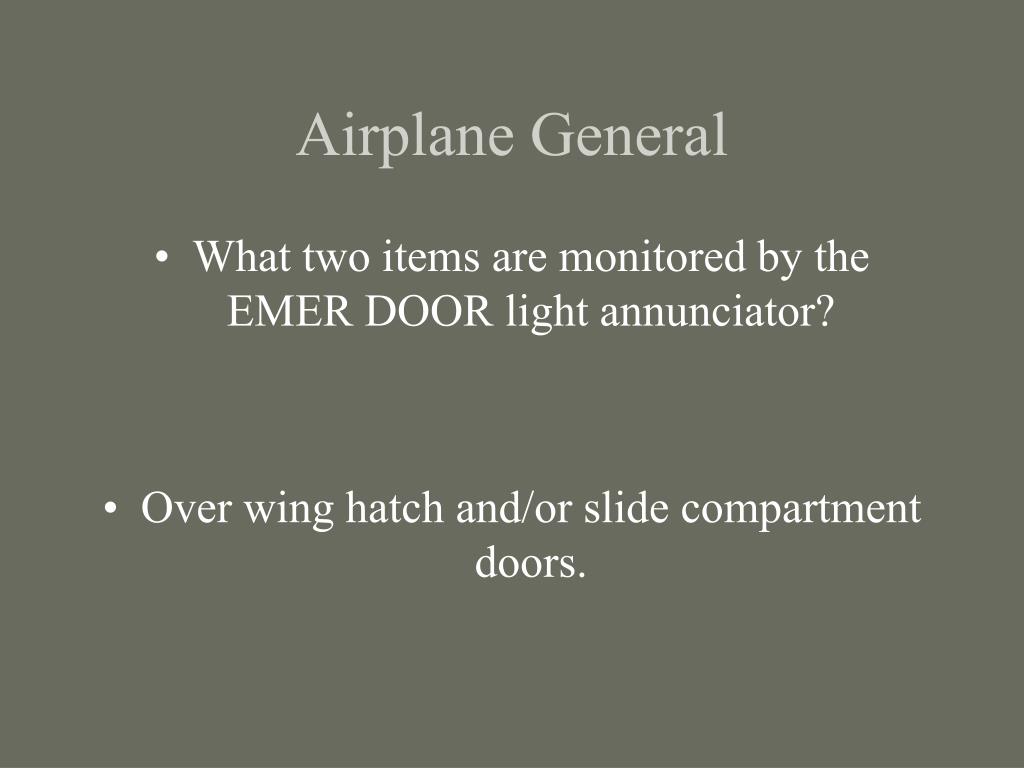

  • What two items are monitored by the EMER DOOR light annunciator?
  • Over wing hatch and/or slide compartment doors.
airplane general11
Airplane General
  • What two items are monitored by the ACCESS DOOR LIGHT?
  • Forward equipment and E/E compartment doors.
airplane general12
Airplane General
  • If normal power is lost what lights are automatically switched to AC Standby Bus?
  • Magnetic Compass, Flood lights, essential Captains instruments, center and overhead panels.
airplane general13
Airplane General

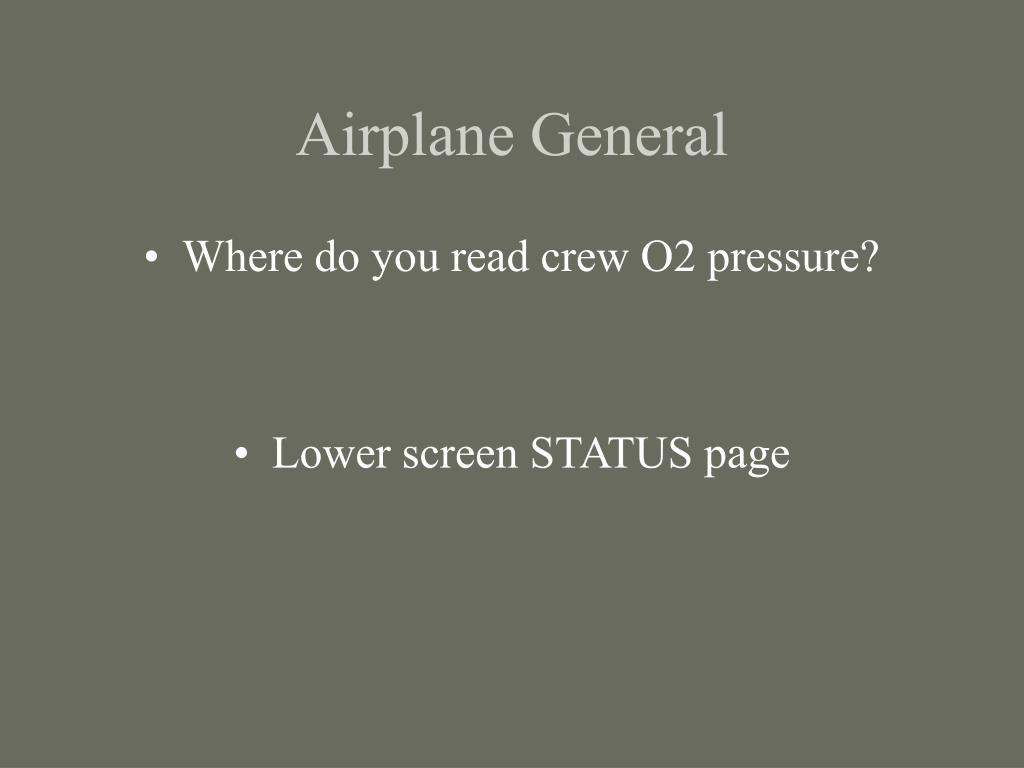

  • Where do you read crew O2 pressure?
  • Lower screen STATUS page
airplane general14
Airplane General
  • How long are passenger O2 generators going to make O2?
  • 12 minutes
airplane general15
Airplane General
  • What is the function of the cockpit lighting OVRD switch?
  • Turns flood lights and forward and aft dome lights on to the maximum.
airplane general16
Airplane General
  • Will you be able to open the flight deck door if you lose electrical power?
  • Yes, the door unlocks automatically.
airplane general17
Airplane General

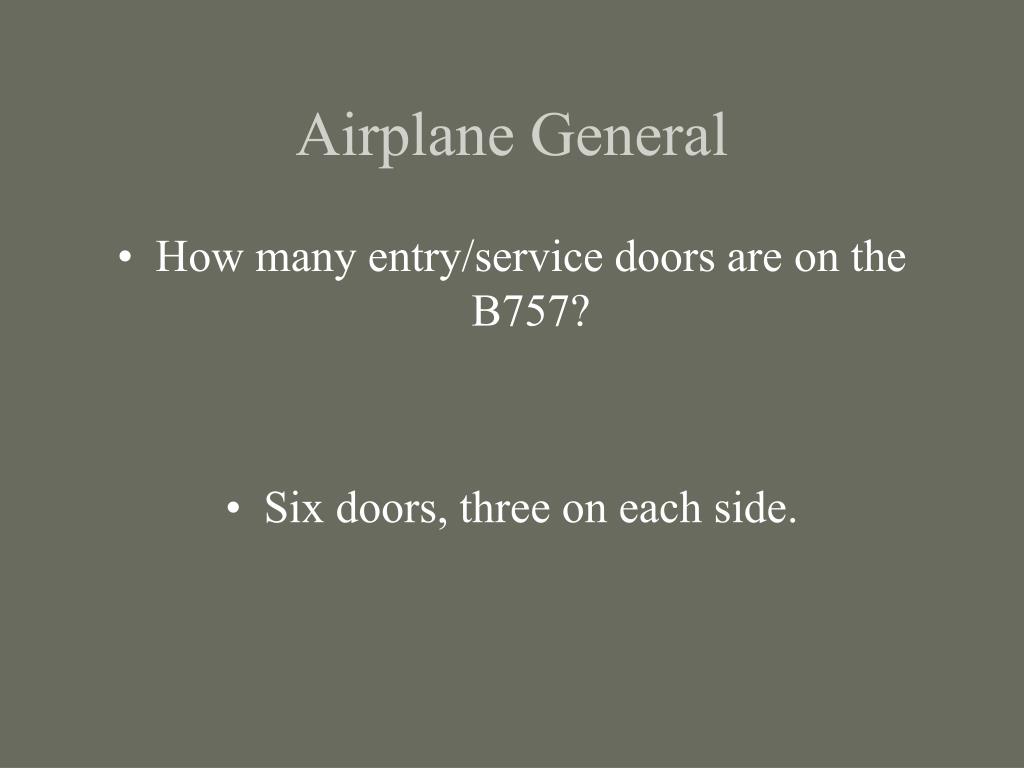

  • How many entry/service doors are on the B757?
  • Six doors, three on each side.
airplane general18
Airplane General
  • Without either APU or external power plugged in, can the cargo doors be operated electrically?
  • No, but then can be opened manually.
airplane general19
Airplane General

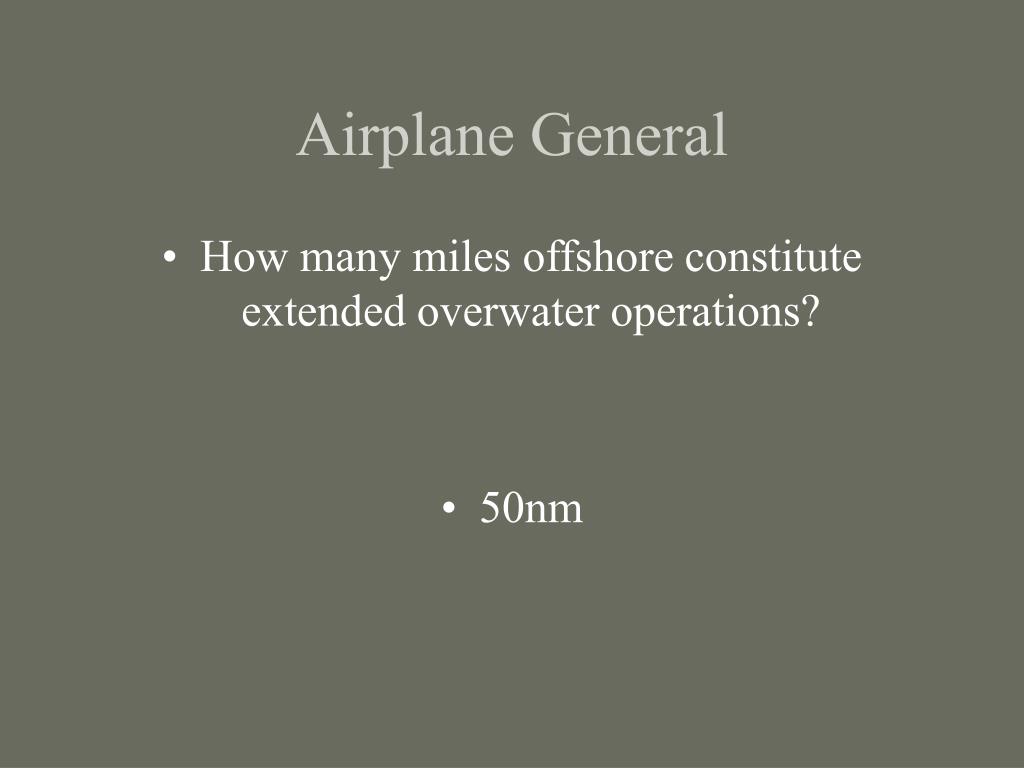

  • How many miles offshore constitute extended overwater operations?
  • 50nm
airplane general20

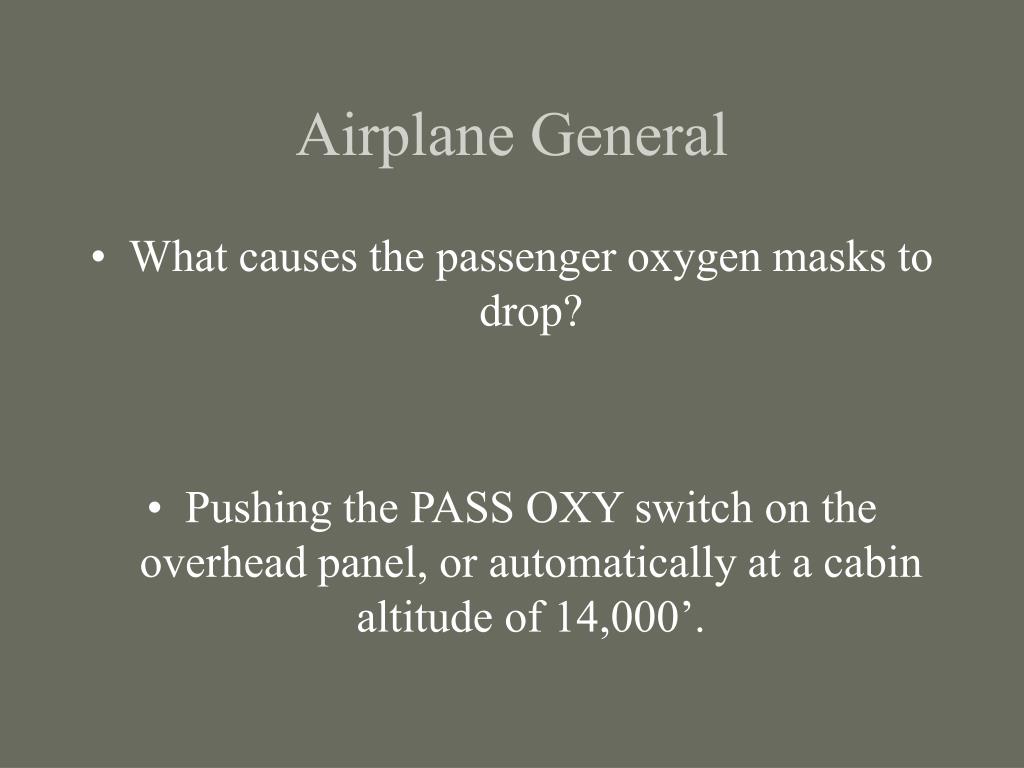

Airplane General
  • What causes the passenger oxygen masks to drop?
  • Pushing the PASS OXY switch on the overhead panel, or automatically at a cabin altitude of 14,000’.
airplane general21
Airplane General
  • What is the maximum takeoff gross weight on the 757-200?
  • 255,500 lbs at field elevations below 1,500' MSL
airplane general22
Airplane General
  • What is the height of the tail of the 757-200?
  • 44'6"
airplane general23
Airplane General

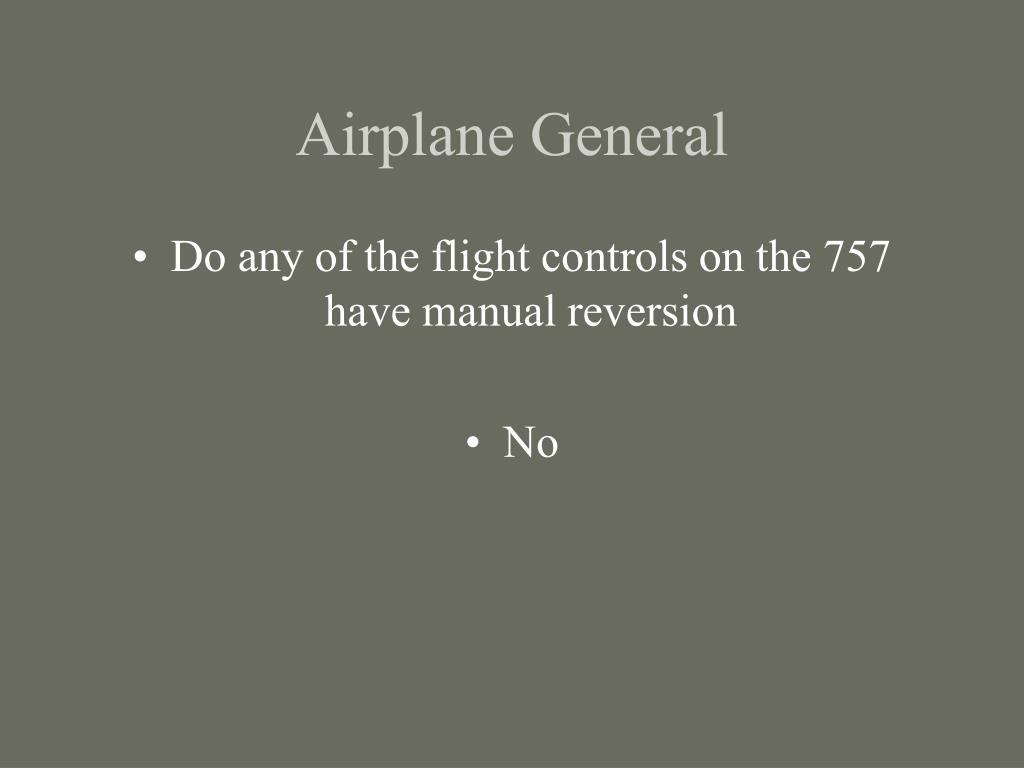

  • Do any of the flight controls on the 757 have manual reversion
  • No
airplane general24
Airplane General
  • Which of the following EICAS messages will cause the beeper to sound?
  • Caution message
airplane general25
Airplane General
  • How are the Cargo doors normally operated?
  • Electrically.
airplane general26
Airplane General
  • Which EICAS message will not cause a Master Caution or Master Warning light to sound?
  • Advisory message
airplane general27

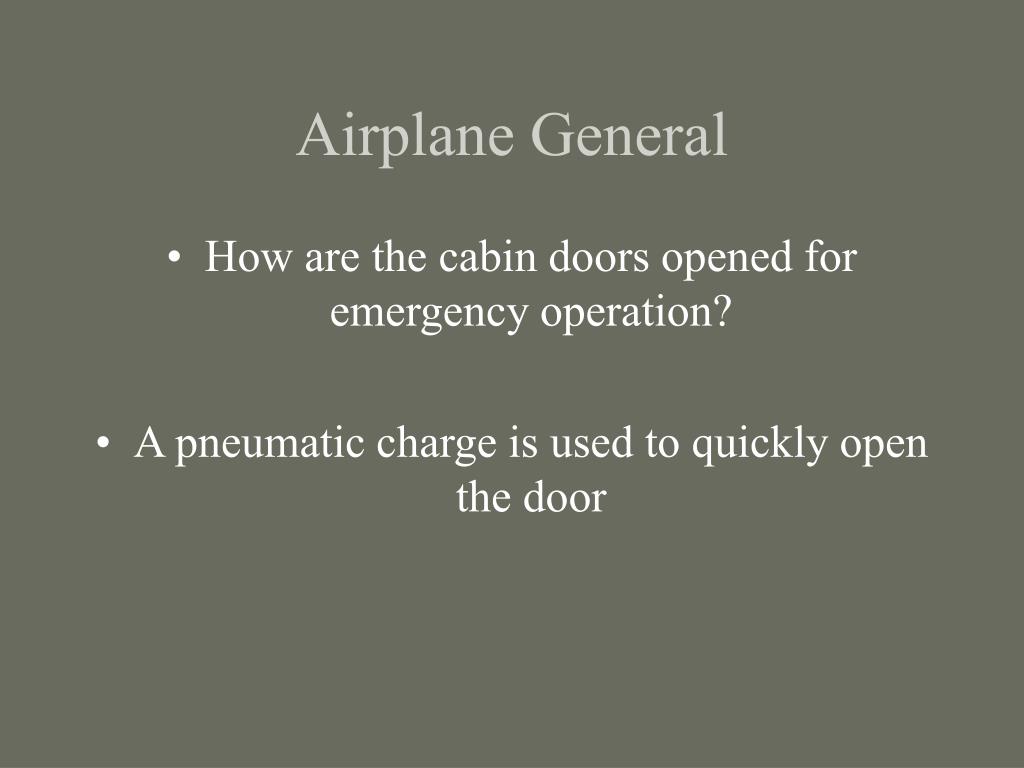

Airplane General
  • How are the cabin doors opened for emergency operation?
  • A pneumatic charge is used to quickly open the door
airplane general28
Airplane General
  • What is the difference between the Nose Gear Landing lights and the Nose Gear Taxi light?
  • The landing lights are angled down and the taxi light is not angled down.
airplane general29

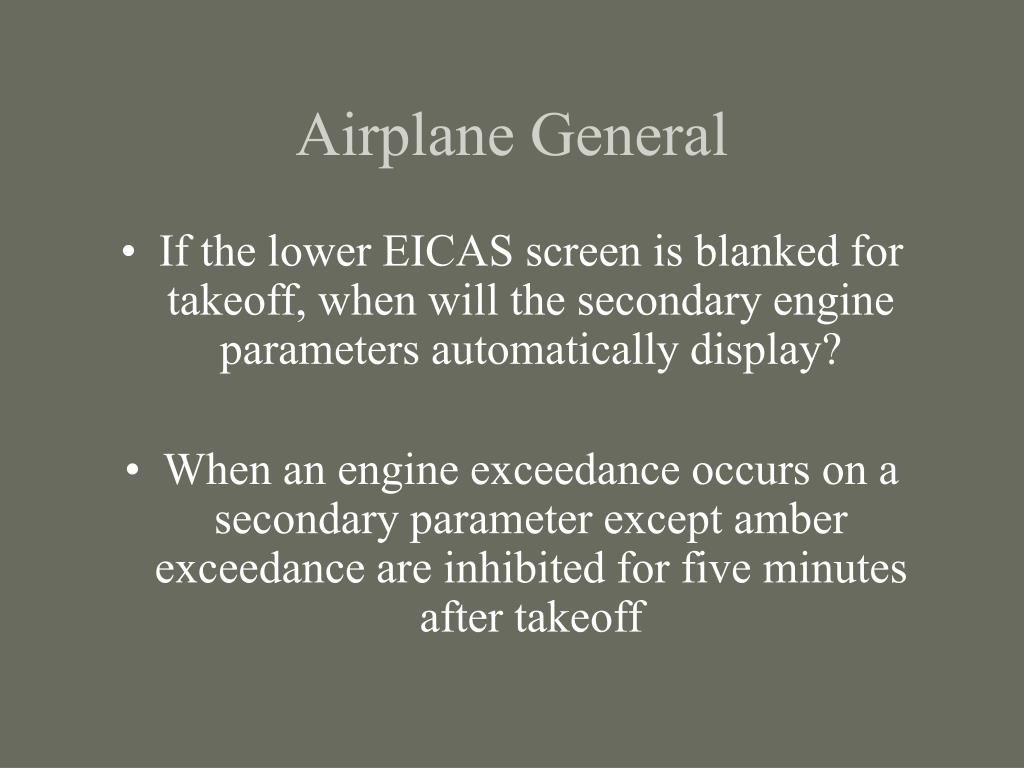

Airplane General
  • If the lower EICAS screen is blanked for takeoff, when will the secondary engine parameters automatically display?
  • When an engine exceedance occurs on a secondary parameter except amber exceedance are inhibited for five minutes after takeoff
airplane general30

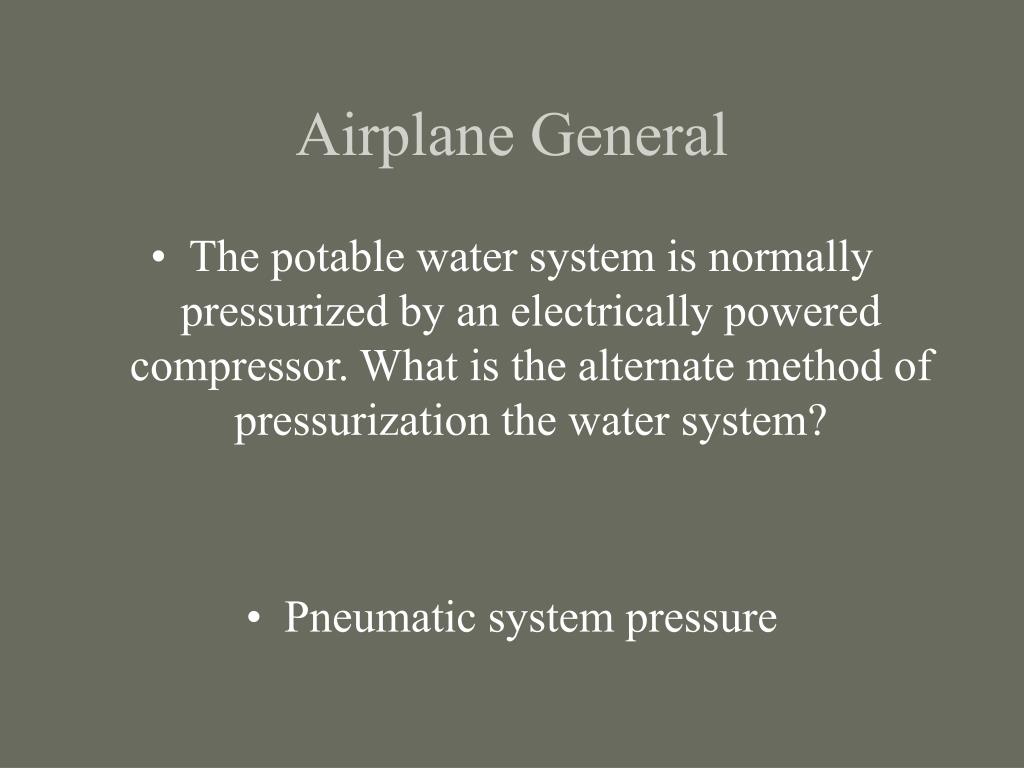

Airplane General
  • The potable water system is normally pressurized by an electrically powered compressor. What is the alternate method of pressurization the water system?
  • Pneumatic system pressure
airplane general31

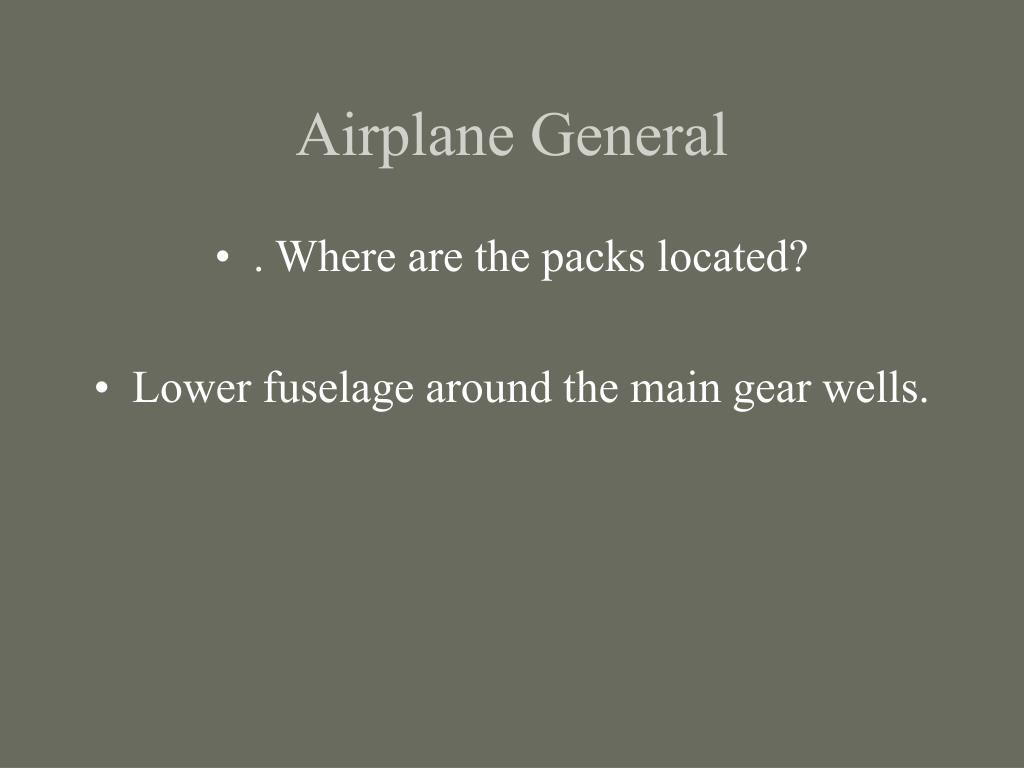

Airplane General
  • . Where are the packs located?
  • Lower fuselage around the main gear wells.
airplane general32
Airplane General
  • What is indicated by the PAX OXY ON light?
  • Power has been sent to all PSU door opening solenoids
airplane general33
Airplane General
  • How many mask outlets are available on a cabin portable oxygen bottle
  • Two
airplane general34
Airplane General
  • Where is the pressure indication display for the crew oxygen bottle?
  • Lower EICAS
airplane general35
Airplane General
  • Where is the crew oxygen bottle green blow out disc?
  • Right side of the fuselage
airplane general36
Airplane General
  • When the cabin altitude reaches _____feet, a pressure switch automatically activates the PSU door opening solenoids
  • 14,000’
airplane general37

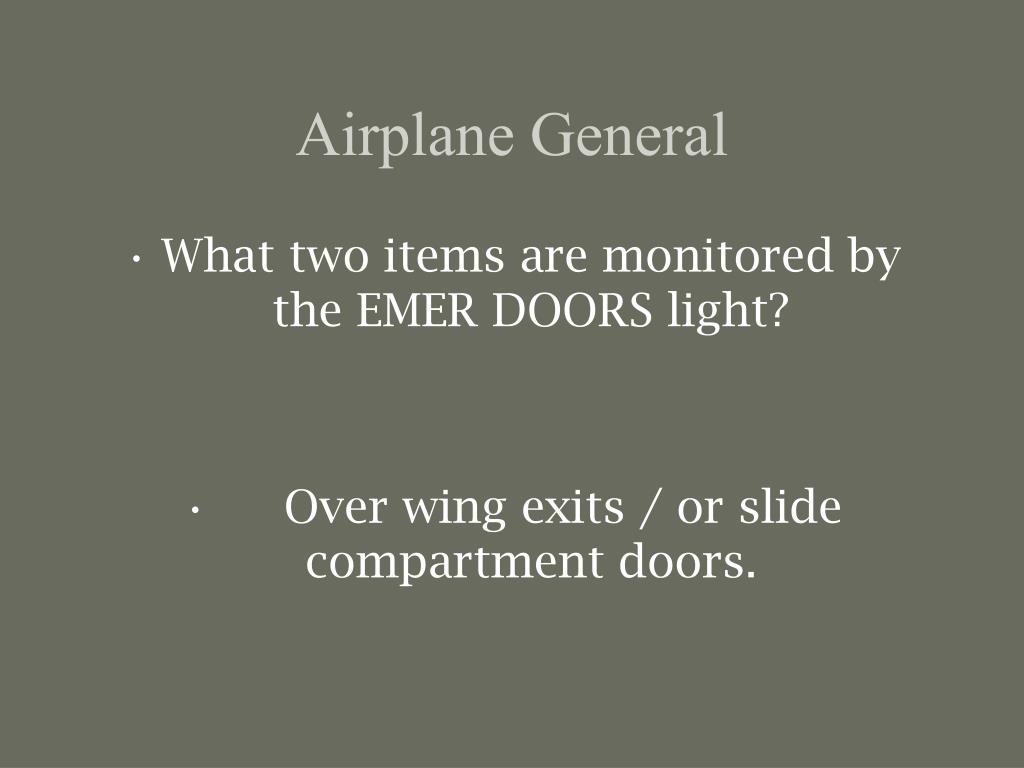

Airplane General
  • What two items are monitored by the EMER DOORS light?
  • Over wing exits / or slide compartment doors.
