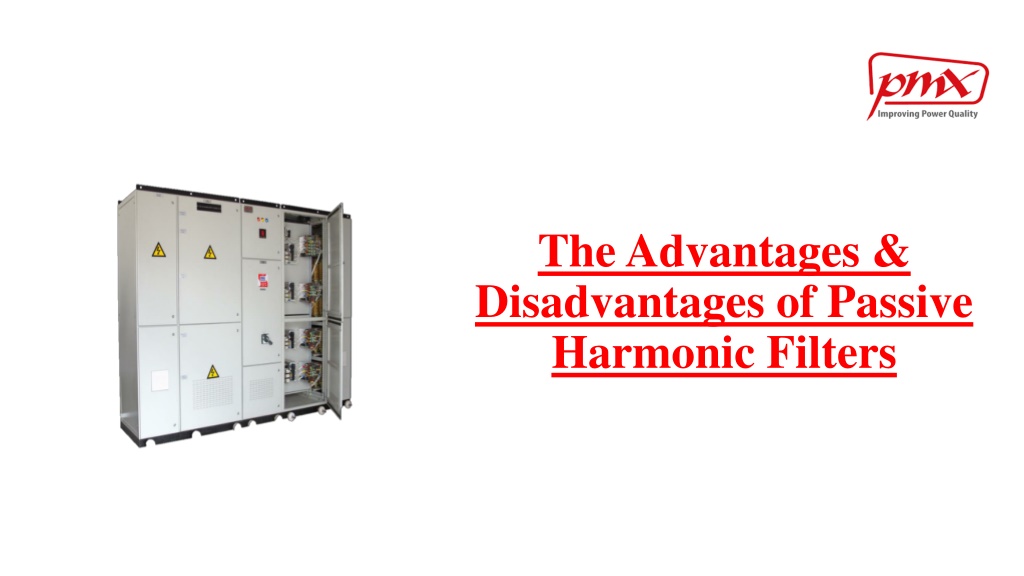

The Advantages and Disadvantages of Passive Harmonic Filters
E N D
Power Matrix Solutions Pvt. Ltd https://www.powermatrix.in/

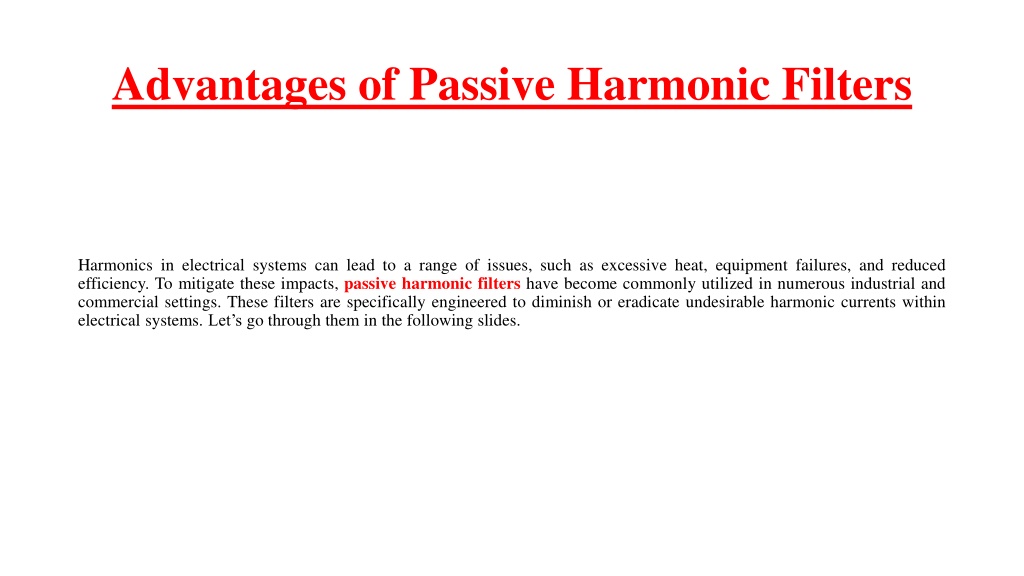

Advantages of Passive Harmonic Filters Harmonics in electrical systems can lead to a range of issues, such as excessive heat, equipment failures, and reduced efficiency. To mitigate these impacts, passive harmonic filters have become commonly utilized in numerous industrial and commercial settings. These filters are specifically engineered to diminish or eradicate undesirable harmonic currents within electrical systems. Let’s go through them in the following slides.

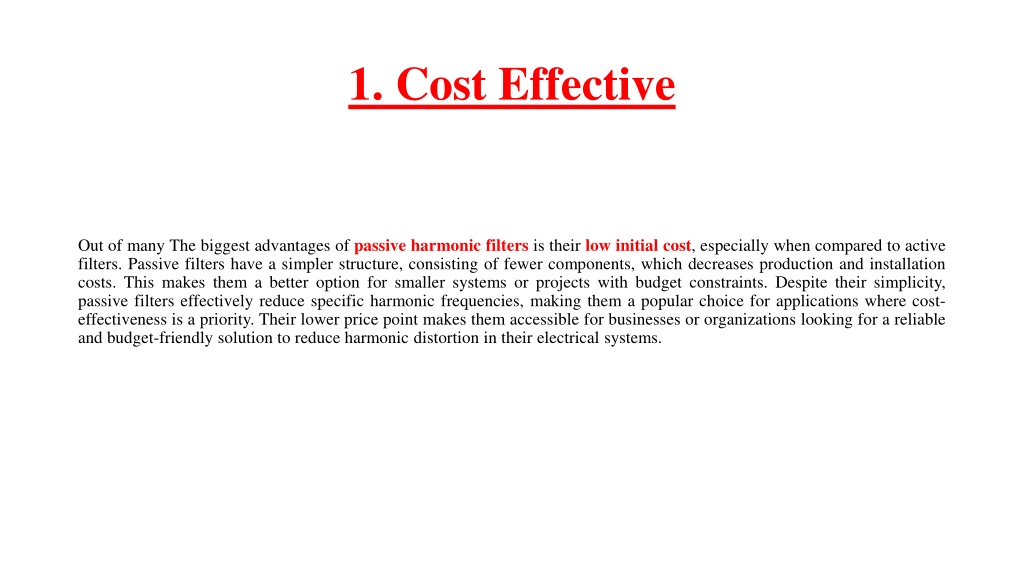

1. Cost Effective Out of many The biggest advantages of passive harmonic filters is their low initial cost, especially when compared to active filters. Passive filters have a simpler structure, consisting of fewer components, which decreases production and installation costs. This makes them a better option for smaller systems or projects with budget constraints. Despite their simplicity, passive filters effectively reduce specific harmonic frequencies, making them a popular choice for applications where cost-effectiveness is a priority. Their lower price point makes them accessible for businesses or organizations looking for a reliable and budget-friendly solution to reduce harmonic distortion in their electrical systems.

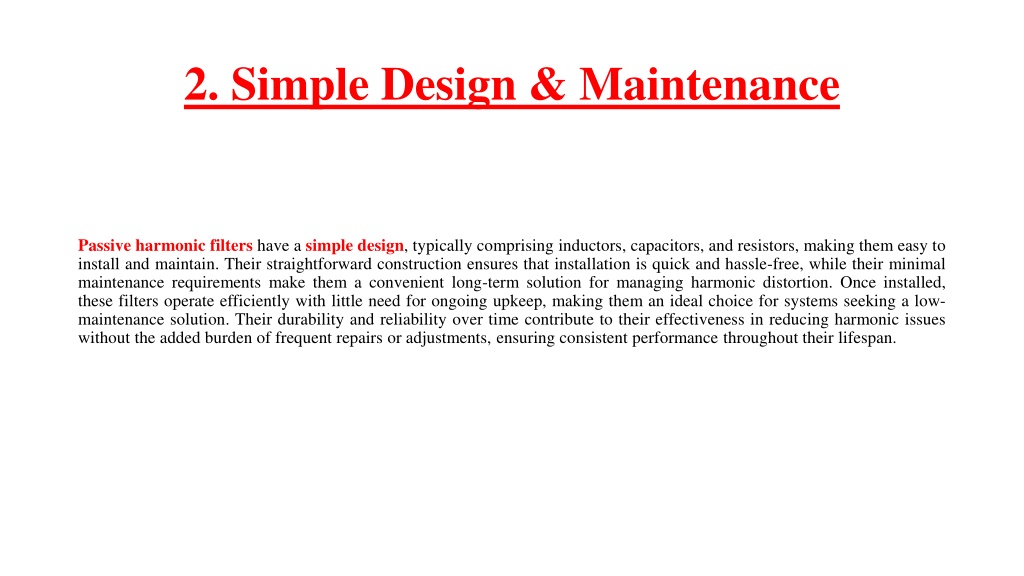

2. Simple Design & Maintenance Passive harmonic filters have a simple design, typically comprising inductors, capacitors, and resistors, making them easy to install and maintain. Their straightforward construction ensures that installation is quick and hassle-free, while their minimal maintenance requirements make them a convenient long-term solution for managing harmonic distortion. Once installed, these filters operate efficiently with little need for ongoing upkeep, making them an ideal choice for systems seeking a low-maintenance solution. Their durability and reliability over time contribute to their effectiveness in reducing harmonic issues without the added burden of frequent repairs or adjustments, ensuring consistent performance throughout their lifespan.

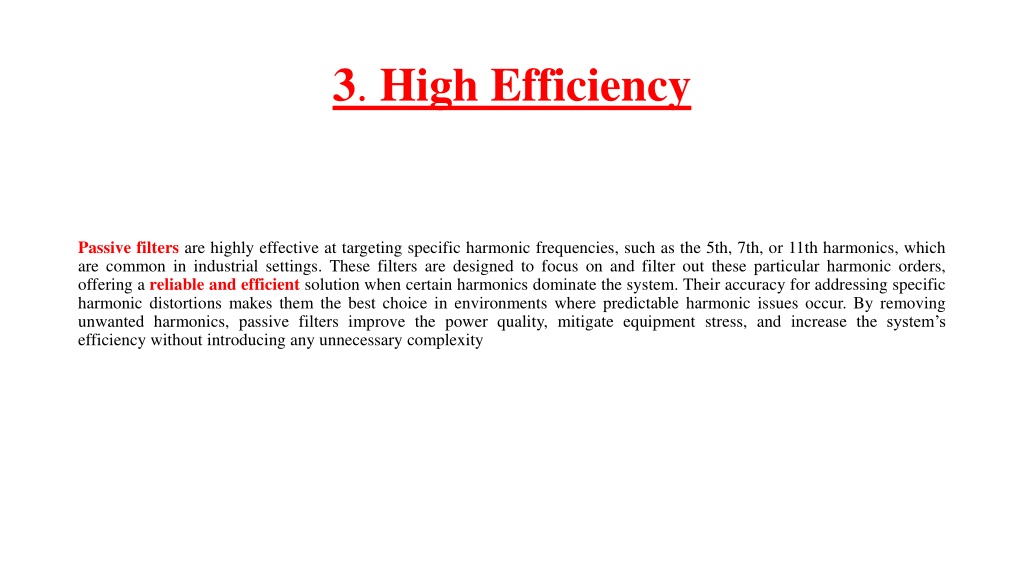

3. High Efficiency Passive filters are highly effective at targeting specific harmonic frequencies, such as the 5th, 7th, or 11th harmonics, which are common in industrial settings. These filters are designed to focus on and filter out these particular harmonic orders, offering a reliable and efficient solution when certain harmonics dominate the system. Their accuracy for addressing specific harmonic distortions makes them the best choice in environments where predictable harmonic issues occur. By removing unwanted harmonics, passive filters improve the power quality, mitigate equipment stress, and increase the system’s efficiency without introducing any unnecessary complexity

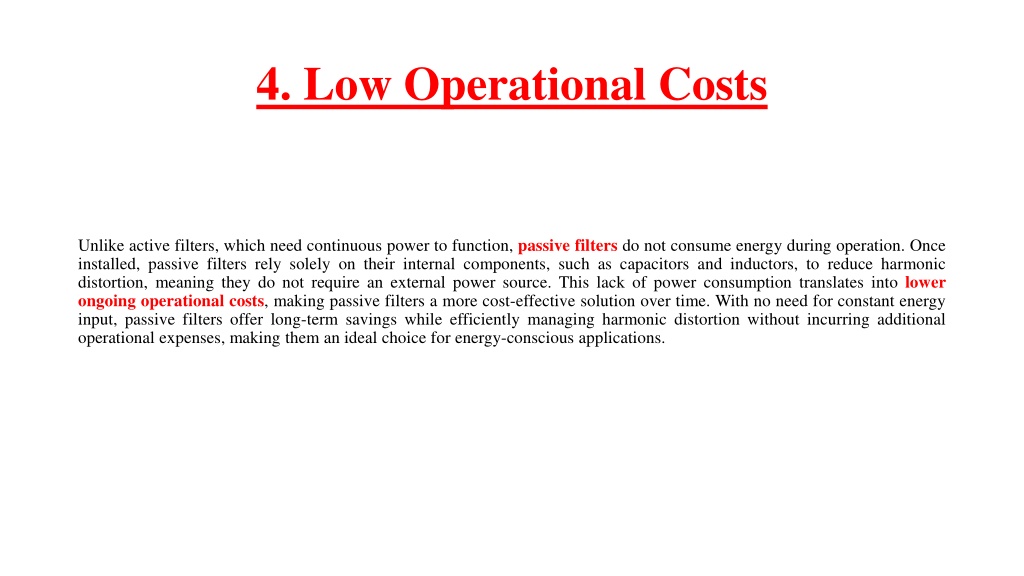

4. Low Operational Costs Unlike active filters, which need continuous power to function, passive filters do not consume energy during operation. Once installed, passive filters rely solely on their internal components, such as capacitors and inductors, to reduce harmonic distortion, meaning they do not require an external power source. This lack of power consumption translates into lower ongoing operational costs, making passive filters a more cost-effective solution over time. With no need for constant energy input, passive filters offer long-term savings while efficiently managing harmonic distortion without incurring additional operational expenses, making them an ideal choice for energy-conscious applications.

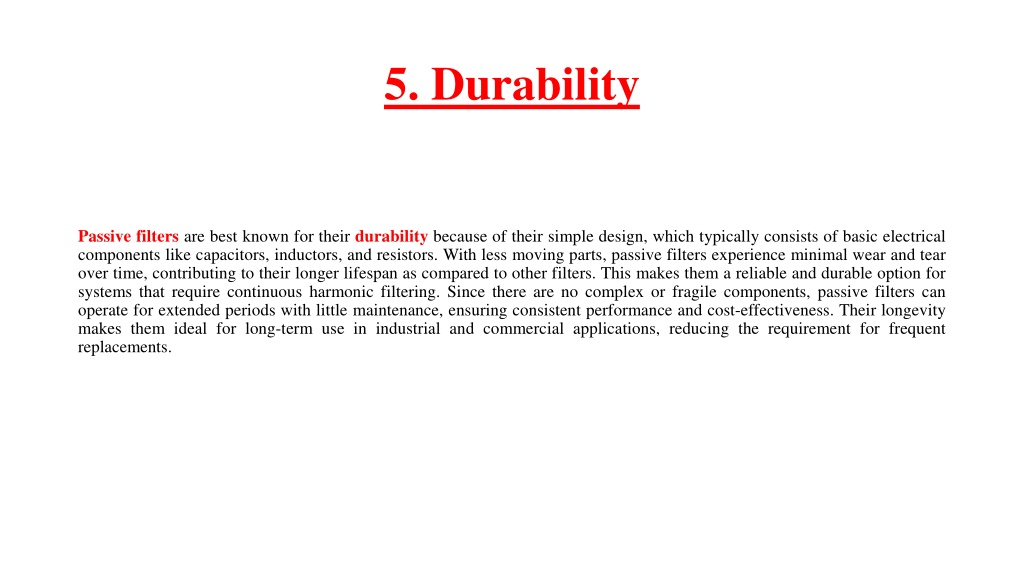

5. Durability Passive filters are best known for their durabilitybecause of their simple design, which typically consists of basic electrical components like capacitors, inductors, and resistors. With less moving parts, passive filters experience minimal wear and tear over time, contributing to their longer lifespan as compared to other filters. This makes them a reliable and durable option for systems that require continuous harmonic filtering. Since there are no complex or fragile components, passive filters can operate for extended periods with little maintenance, ensuring consistent performance and cost-effectiveness. Their longevity makes them ideal for long-term use in industrial and commercial applications, reducing the requirement for frequent replacements.

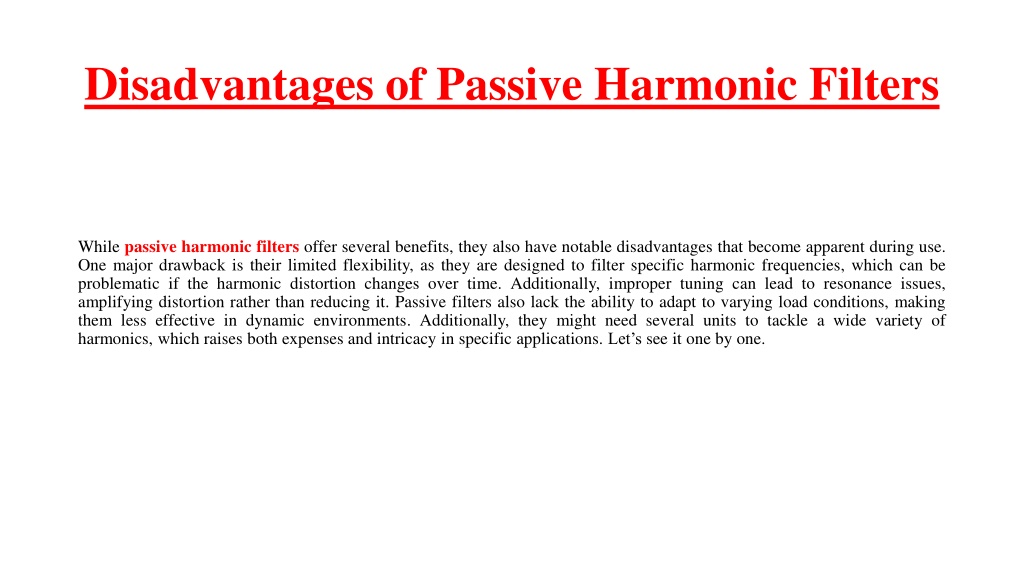

Disadvantages of Passive Harmonic Filters While passive harmonic filters offer several benefits, they also have notable disadvantages that become apparent during use. One major drawback is their limited flexibility, as they are designed to filter specific harmonic frequencies, which can be problematic if the harmonic distortion changes over time. Additionally, improper tuning can lead to resonance issues, amplifying distortion rather than reducing it. Passive filters also lack the ability to adapt to varying load conditions, making them less effective in dynamic environments. Additionally, they might need several units to tackle a wide variety of harmonics, which raises both expenses and intricacy in specific applications. Let’s see it one by one.

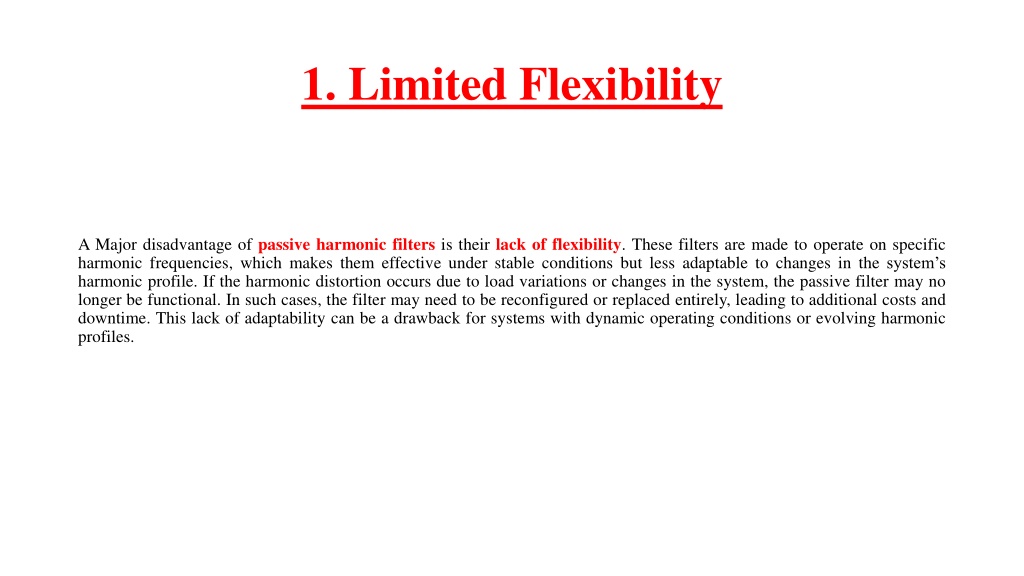

1. Limited Flexibility A Major disadvantage of passive harmonic filters is their lack of flexibility. These filters are made to operate on specific harmonic frequencies, which makes them effective under stable conditions but less adaptable to changes in the system’s harmonic profile. If the harmonic distortion occurs due to load variations or changes in the system, the passive filter may no longer be functional. In such cases, the filter may need to be reconfigured or replaced entirely, leading to additional costs and downtime. This lack of adaptability can be a drawback for systems with dynamic operating conditions or evolving harmonic profiles.

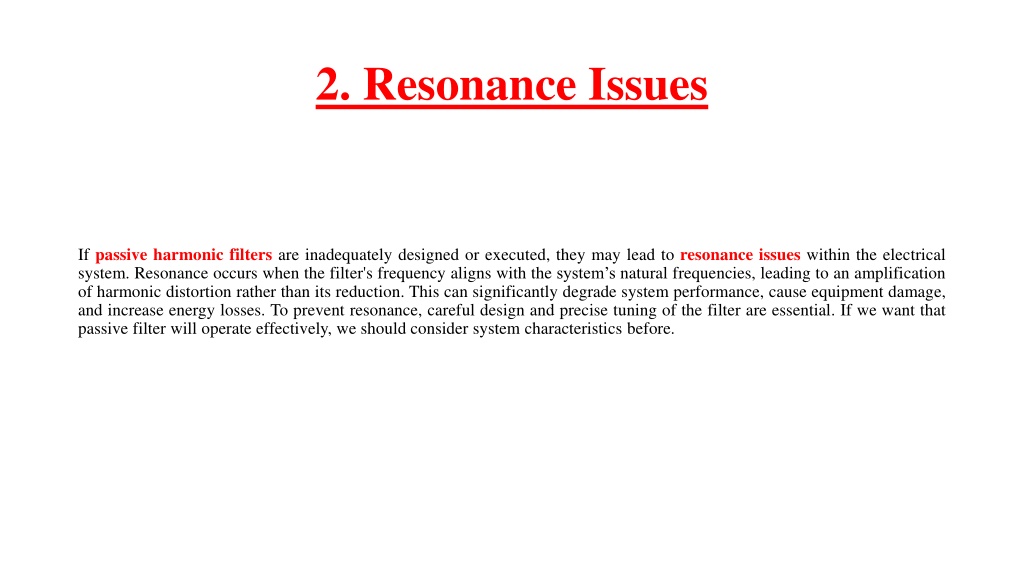

2. Resonance Issues If passive harmonic filters are inadequately designed or executed, they may lead to resonance issues within the electrical system. Resonance occurs when the filter's frequency aligns with the system’s natural frequencies, leading to an amplification of harmonic distortion rather than its reduction. This can significantly degrade system performance, cause equipment damage, and increase energy losses. To prevent resonance, careful design and precise tuning of the filter are essential. If we want that passive filter will operate effectively, we should consider system characteristics before.
3. Limited Harmonic Coverage Passive harmonic filters are typically designed to target specific harmonic frequencies, such as the 5th or 7th harmonics. In complex systems with a broad spectrum of harmonic distortions, this limited focus means that multiple filters may be necessary to address different harmonic orders. As a result, the overall cost and complexity of the solution can increase significantly. Installing many filters to cover a wide variety of frequencies may necessitate more room, greater upfront expenses, and increased maintenance. This makes passive filters less suitable for systems with various and variable harmonic profiles, when more adaptable solutions, like active filters, may be more successful.

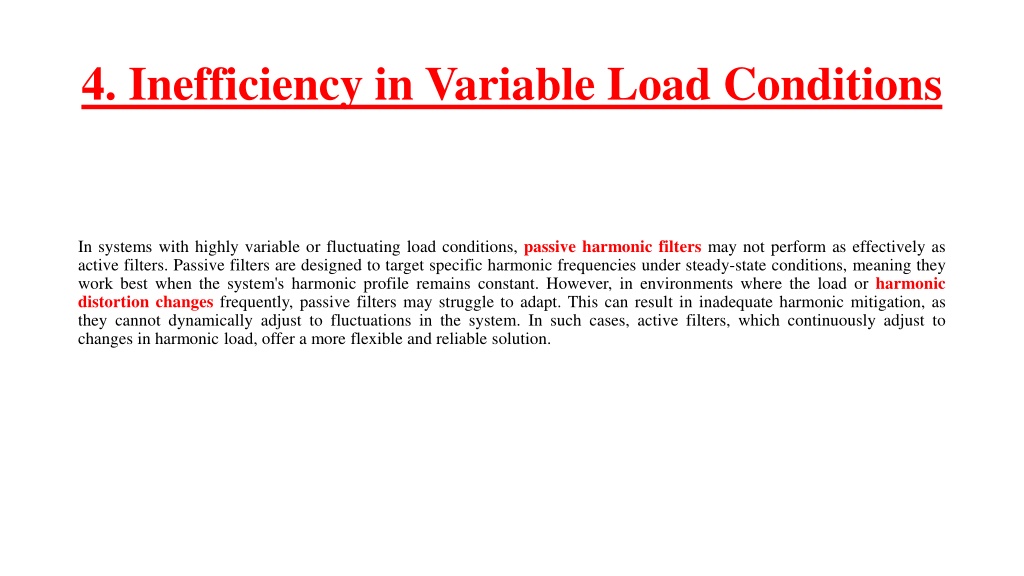

4. Inefficiency in Variable Load Conditions In systems with highly variable or fluctuating load conditions, passive harmonic filters may not perform as effectively as active filters. Passive filters are designed to target specific harmonic frequencies under steady-state conditions, meaning they work best when the system's harmonic profile remains constant. However, in environments where the load or harmonic distortion changes frequently, passive filters may struggle to adapt. This can result in inadequate harmonic mitigation, as they cannot dynamically adjust to fluctuations in the system. In such cases, active filters, which continuously adjust to changes in harmonic load, offer a more flexible and reliable solution.

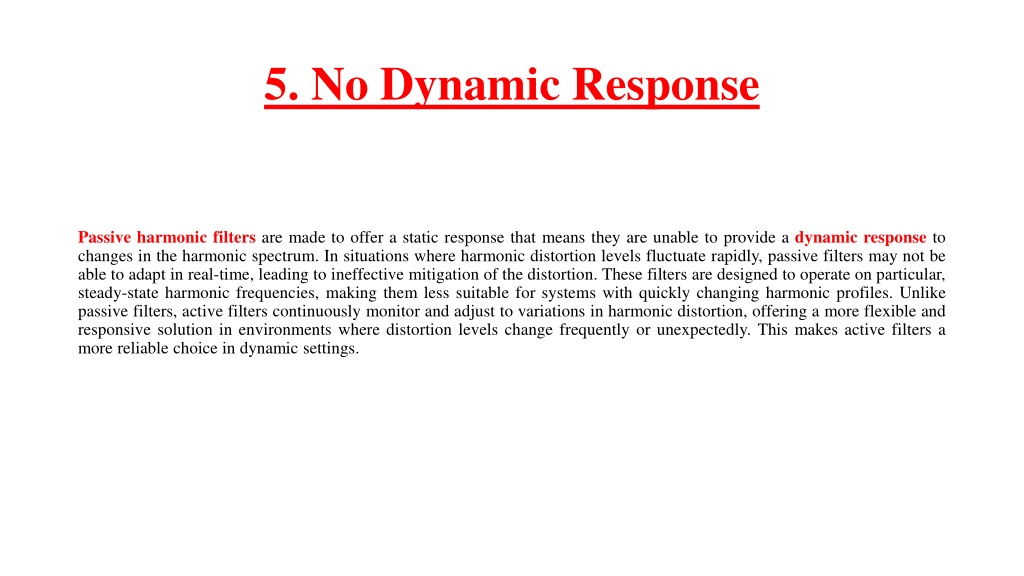

5. No Dynamic Response Passive harmonic filters are made to offer a static response that means they are unable to provide a dynamic response to changes in the harmonic spectrum. In situations where harmonic distortion levels fluctuate rapidly, passive filters may not be able to adapt in real-time, leading to ineffective mitigation of the distortion. These filters are designed to operate on particular, steady-state harmonic frequencies, making them less suitable for systems with quickly changing harmonic profiles. Unlike passive filters, active filters continuously monitor and adjust to variations in harmonic distortion, offering a more flexible and responsive solution in environments where distortion levels change frequently or unexpectedly. This makes active filters a more reliable choice in dynamic settings.

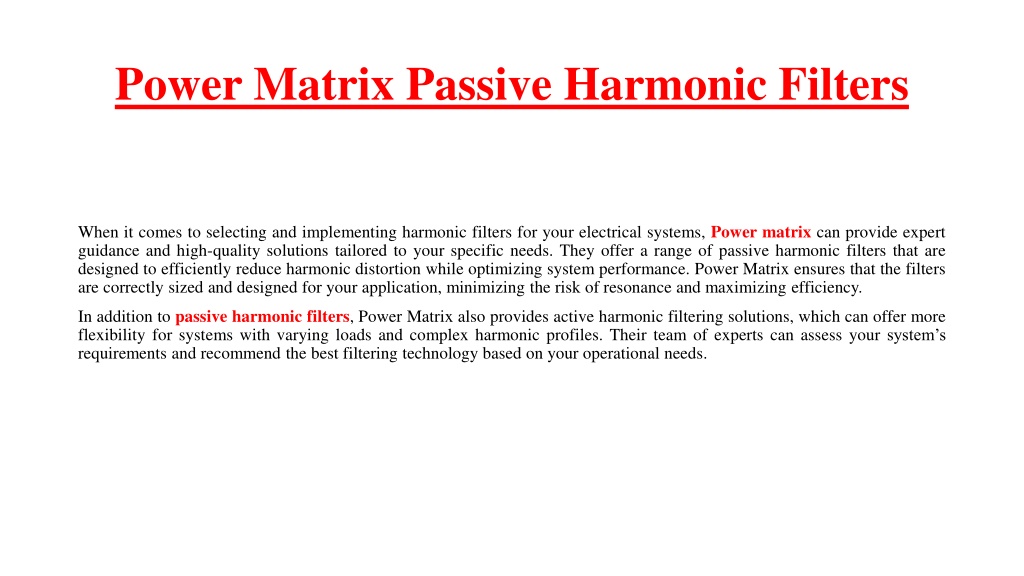

Power Matrix Passive Harmonic Filters When it comes to selecting and implementing harmonic filters for your electrical systems, Power matrixcan provide expert guidance and high-quality solutions tailored to your specific needs. They offer a range of passive harmonic filters that are designed to efficiently reduce harmonic distortion while optimizing system performance. Power Matrix ensures that the filters are correctly sized and designed for your application, minimizing the risk of resonance and maximizing efficiency. In addition to passive harmonic filters, Power Matrix also provides active harmonic filtering solutions, which can offer more flexibility for systems with varying loads and complex harmonic profiles. Their team of experts can assess your system’s requirements and recommend the best filtering technology based on your operational needs.

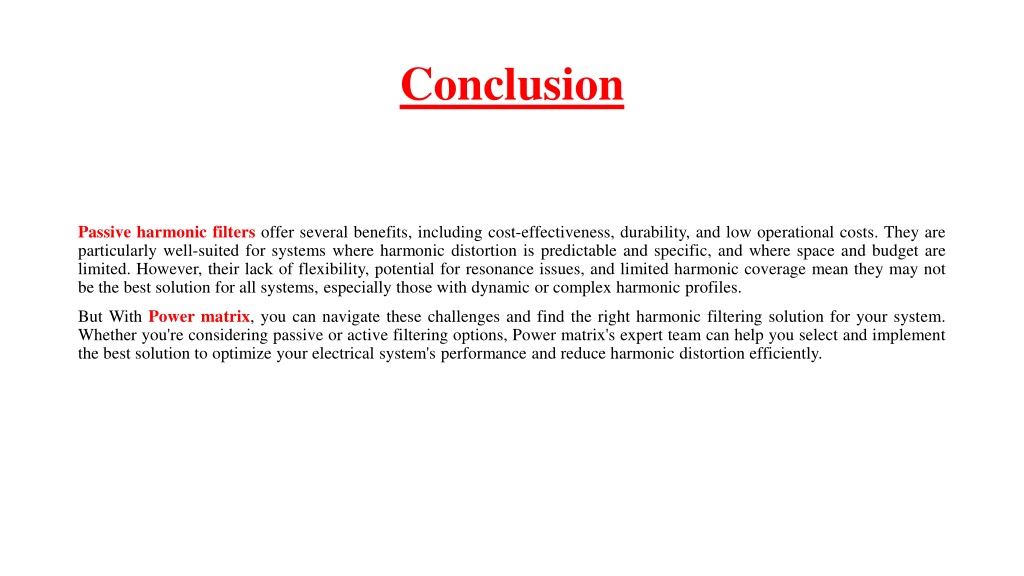

Conclusion Passive harmonic filters offer several benefits, including cost-effectiveness, durability, and low operational costs. They are particularly well-suited for systems where harmonic distortion is predictable and specific, and where space and budget are limited. However, their lack of flexibility, potential for resonance issues, and limited harmonic coverage mean they may not be the best solution for all systems, especially those with dynamic or complex harmonic profiles. But With Power matrix, you can navigate these challenges and find the right harmonic filtering solution for your system. Whether you're considering passive or active filtering options, Power matrix's expert team can help you select and implement the best solution to optimize your electrical system's performance and reduce harmonic distortion efficiently.
