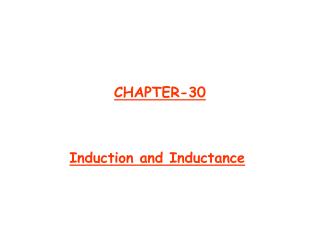

  1. CHAPTER-30 Induction and Inductance

  2. Ch 30-2 Two Experiments • First Experiment: An ammeter register a current in the wire loop when magnet is moving with respect to loop. • Faster motion causes more current • By changing the polarity of magnet facing the coil plane, changes the current direction • Second Experiment: An ammeter register a current in the left-hand wire loop just as switch s is opened or closed. No motion of coil is involved • Emf induced in the loop when something is changing in the loop

  3. Ch 30-3 Faraday’s Law of Induction • Faraday’s Law: •  = -N dB /dt= - d(B.A)/dt • N is number of coils • Three cases: • B changing with time •  = -N A cos (dB /dt) • Coil Area A changing with time •  = -N B cos (dA /dt) • Angle between B-direction and coil-plane is changing with time •  = -N AB (d (cos) /dt) • Faraday’s Law :An emf is induced in the loop in the previous experiments when the number of magnetic field lines that passes through the loop is changing. • Magnetic Flux through a loop: B= B.dA= B dA cos B =BA(BA, B uniform) • Unit of B : Weber (Wb) 1 Wb= 1T.m2 • Faraday’s Law:  = - dB /dt = - d(B.A)/dt The magnitude of the emf  induced in a conducting loop is equal to rate at which the magnetic flux is changing through that loop with time

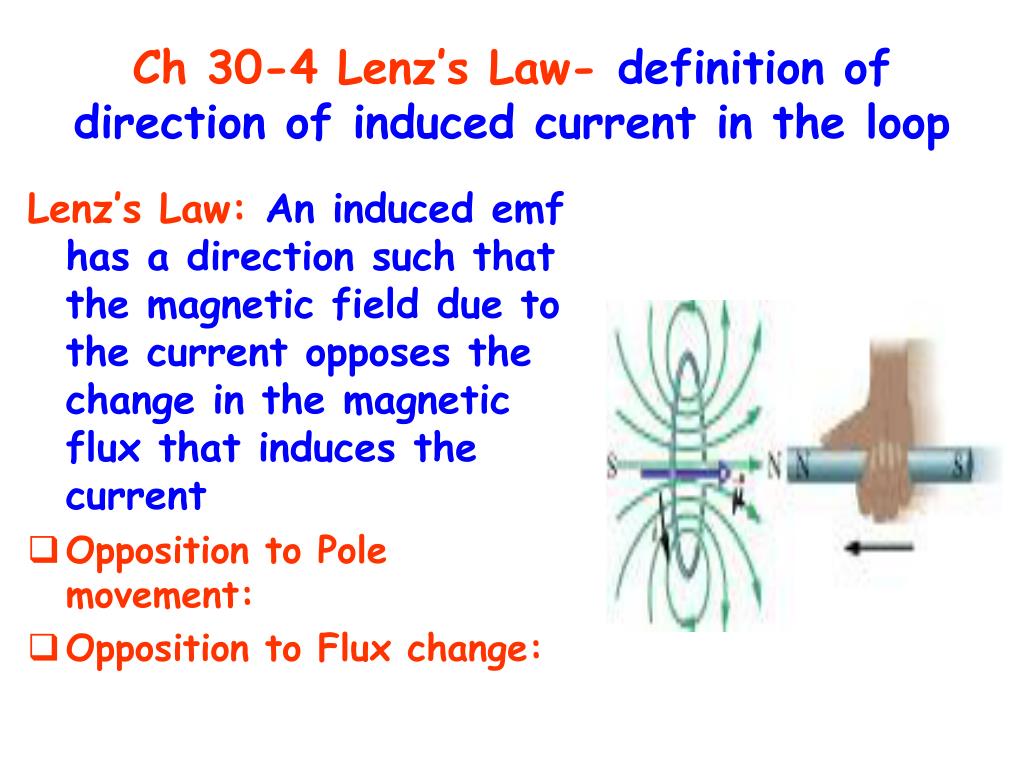

  4. Ch 30-4 Lenz’s Law- definition of direction of induced current in the loop Lenz’s Law: An induced emf has a direction such that the magnetic field due to the current opposes the change in the magnetic flux that induces the current • Opposition to Pole movement: • Opposition to Flux change:

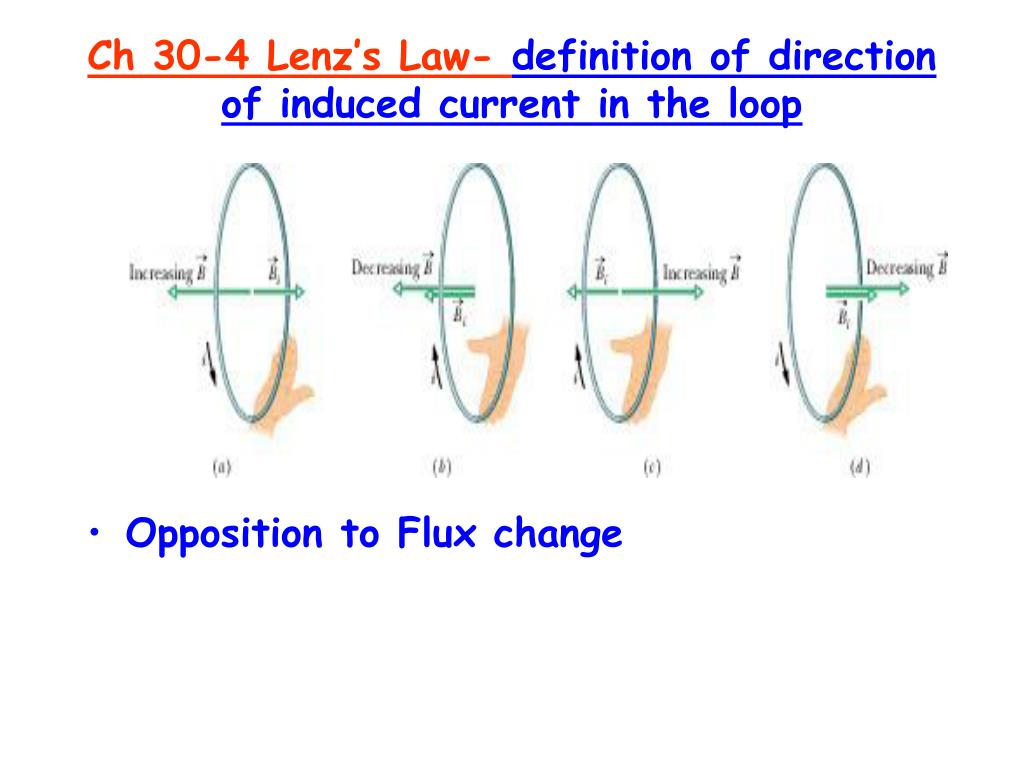

  5. Ch 30-4 Lenz’s Law- definition of direction of induced current in the loop • Opposition to Flux change

  6. Ch 30-5 Induction and Energy Transfer • A closed conducting loop is pulled out of a magnetic field at constant velocity v. While loop is moving a current I is induced in the loop and the loop segments still within magnetic field experiences forces F1, F2 and F3. • As the loop moves towards right, flux through the coil decreases, induced current will be clockwise •  = B d(A)/dt= B d(Lx)/dt =BLdx/dt=BLv i=  /R=BLv/R; Power Disipated Pdis=i2R=B2L2v2/R • Rate of doing work P=|F3|v F3=iLB=B2L2v/R; P=|F3|v= (B2L2v/R) x v =B2L2v2/R
