  1. 術科檢定題目(第五題)(丙) A=90.0 B=50.0 C=15.0 倒角為1x45°

  2. 【第五題程式設計】 • O9005 • G00G28U0W0 • G50S2500 • T0101【外粗車刀】 • G96S180M03 • M08 • G00X65.0Z5.0 • G94X28.0Z3.0F0.2 • X2.0 • Z1.0 • Z0F0.1

  3. G00G28U0W0 • G50S2500 • T0606【內粗搪孔刀】 • G96S180M03 • G00X30.0Z5.0 • G71U1.5R1.0 • G71P10Q20U-0.3W0.1F0.2 • N10G00G41X56.63 • G01X46.03Z-0.3F0.1 • Z-12.91 • X40.0

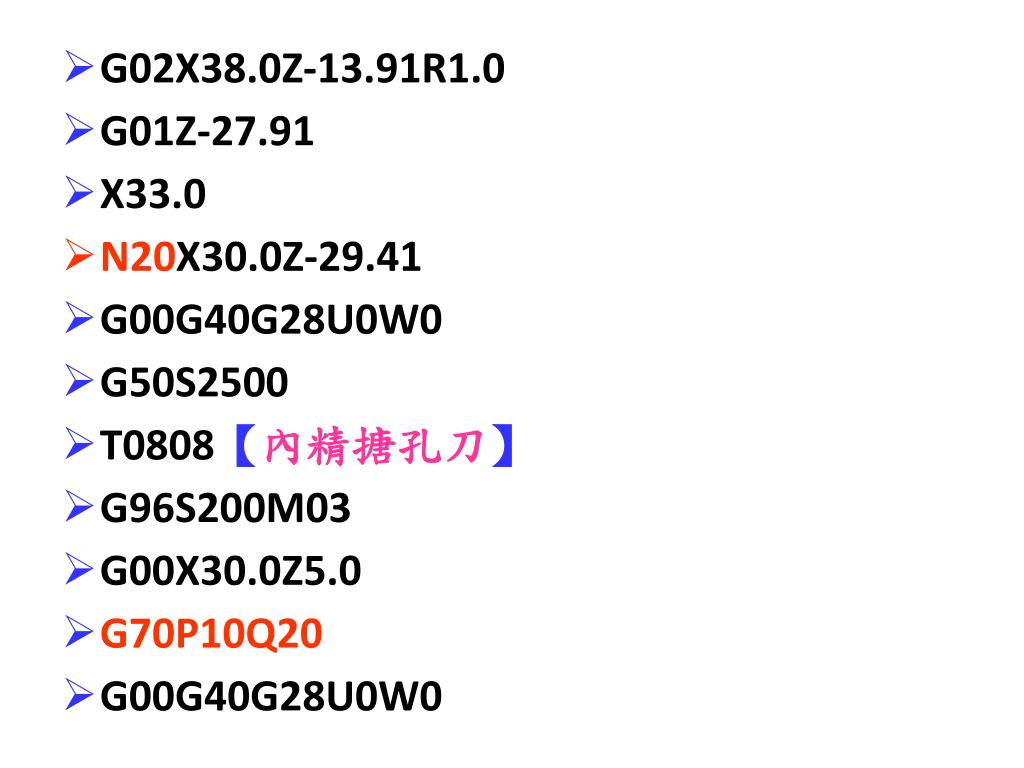

  4. G02X38.0Z-13.91R1.0 • G01Z-27.91 • X33.0 • N20X30.0Z-29.41 • G00G40G28U0W0 • G50S2500 • T0808【內精搪孔刀】 • G96S200M03 • G00X30.0Z5.0 • G70P10Q20 • G00G40G28U0W0

  5. G50S2500 • T0101【外粗車刀】 • G96S160M03 • G00X66.0Z5.0 • G71U2.0R1.0 • G71P30Q40U0.3W0.1F0.2 • N30G00G42X53.5 • G01X56.975Z-30.0F0.1 • Z-43.0 • X60.0 • X62.0Z-44.0

  6. Z-64.0 • N40G00X66.0 • G00G40G28U0W0 • G50S2500 • T0303【外精車刀】 • G96S200M03 • G00X66.0Z5.0 • G70P30Q40 • G00G40G28U0W0 • G50S2500 • T1010【外切槽車刀：W=3mm】

  7. G97S600M03 • G00X66.0Z5.0 • X60.0Z-38.0 • G75R1.0 • G75X50.0Z-43.0P2000Q2000F0.05 • G00G28U0W0M09 • M05 • M30
