Vertical Autoclave LMVT-A101

Labmate Vertical Autoclave is a high-efficiency, vibration-free sterilizer with a durable 50L stainless steel chamber, 134u00b0C range, 0.22 MPA pressure, and a 0-60 min timer. Auto-diagnostics enable safe air and steam discharge.

hannacurry
Download Presentation

Vertical Autoclave LMVT-A101

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

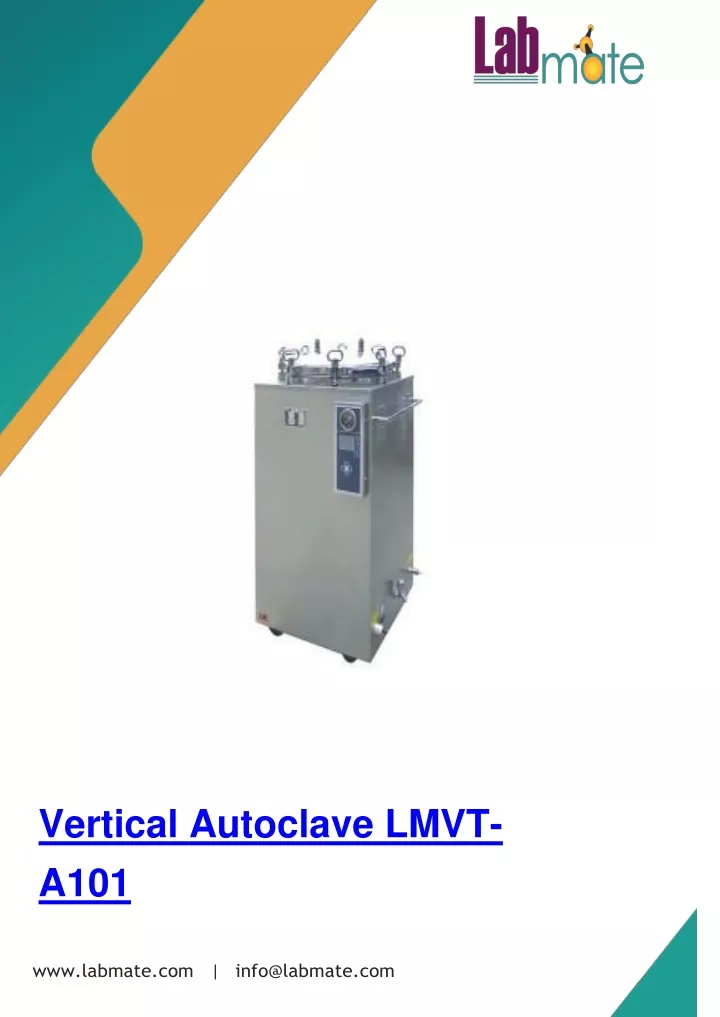

  1. Vertical Autoclave LMVT- A101 www.labmate.com | info@labmate.com

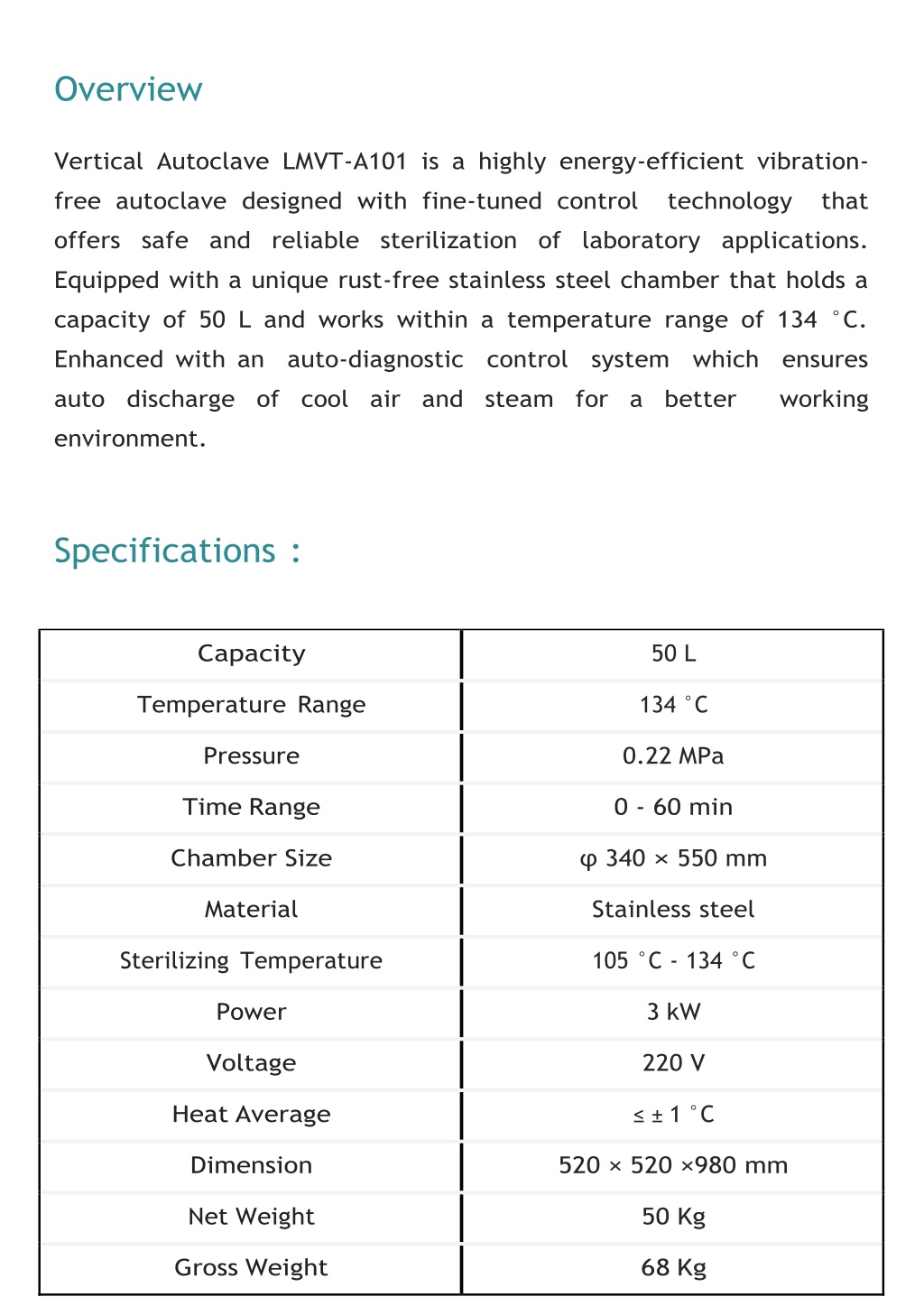

  2. Overview Vertical Autoclave LMVT-A101 is a highly energy-efficient vibration- free autoclave designed with fine-tuned control technology that offers safe and reliable sterilization of laboratory applications. Equipped with a unique rust-free stainless steel chamber that holds a capacity of 50 L and works within a temperature range of 134 °C. Enhanced with an auto-diagnostic control system which ensures auto discharge of cool air and steam for a better working environment. Specifications : Capacity 50 L Temperature Range 134 °C Pressure 0.22 MPa Time Range 0 - 60 min Chamber Size φ 340 × 550 mm Material Stainless steel Sterilizing Temperature 105 °C - 134 °C Power 3 kW Voltage 220 V Heat Average ≤ ± 1 °C Dimension 520 × 520 ×980 mm Net Weight 50 Kg Gross Weight 68 Kg

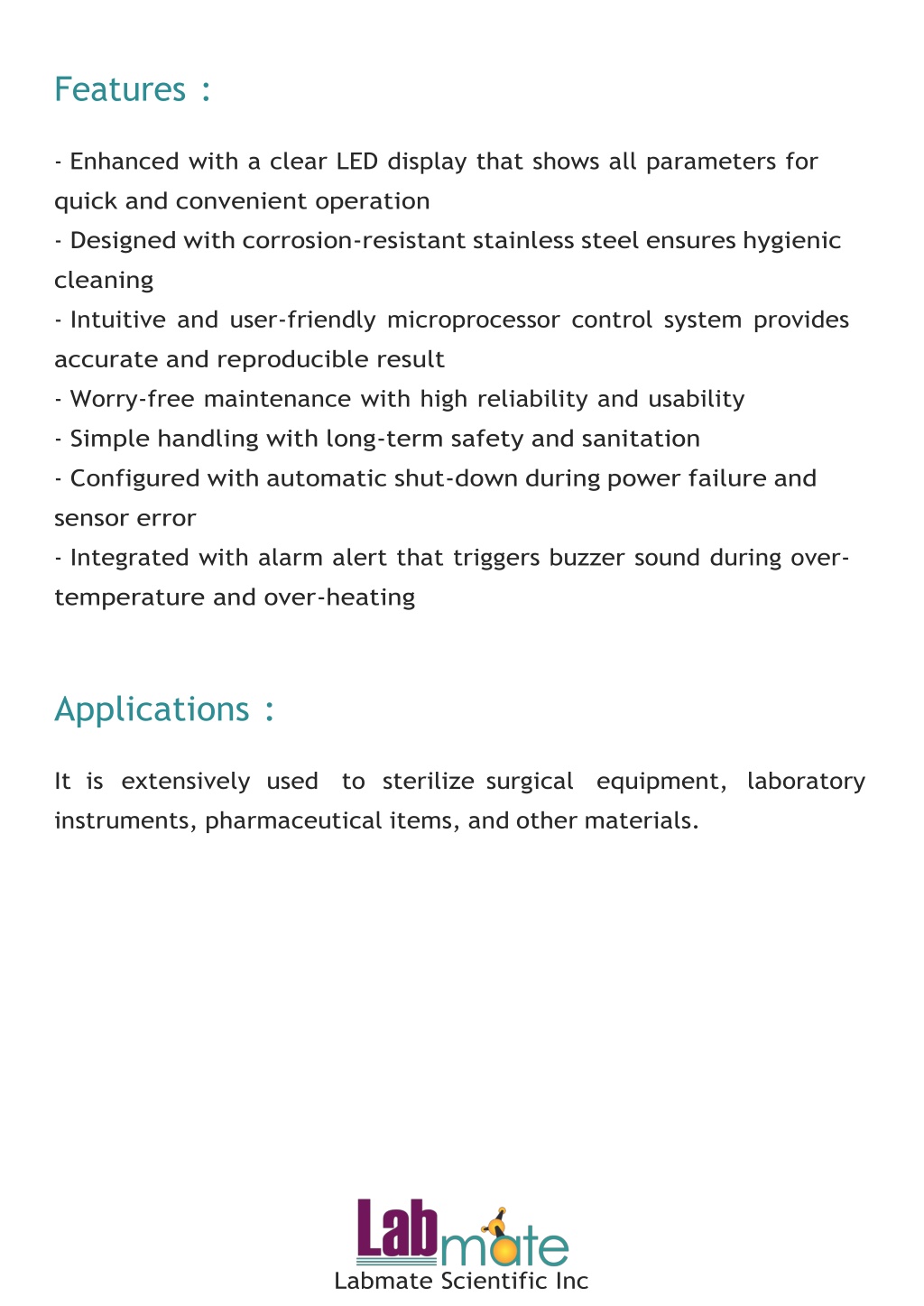

  3. Features : -Enhanced with a clear LED display that shows all parameters for quick and convenient operation -Designed with corrosion-resistant stainless steel ensures hygienic cleaning -Intuitive and user-friendly microprocessor control system provides accurate and reproducible result -Worry-free maintenance with high reliability and usability -Simple handling with long-term safety and sanitation -Configured with automatic shut-down during power failure and sensor error -Integrated with alarm alert that triggers buzzer sound during over- temperature and over-heating Applications : It is extensively used to sterilize surgical equipment, laboratory instruments, pharmaceutical items, and other materials. Labmate Scientific Inc
