Portable Airborne Particle Counter 9kgs

Labmate Portable Airborne Particle Counter is perfect for cleanroom service, measuring particles across eight sizes (0.3u00b5m to 10.0u00b5m) for superior air quality detection. It features user-defined limits, Wi-Fi data export, a 50L/min flow rate, and durable stainless steel construction for long-lasting use.<br>

hannacurry
Download Presentation

Portable Airborne Particle Counter 9kgs

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

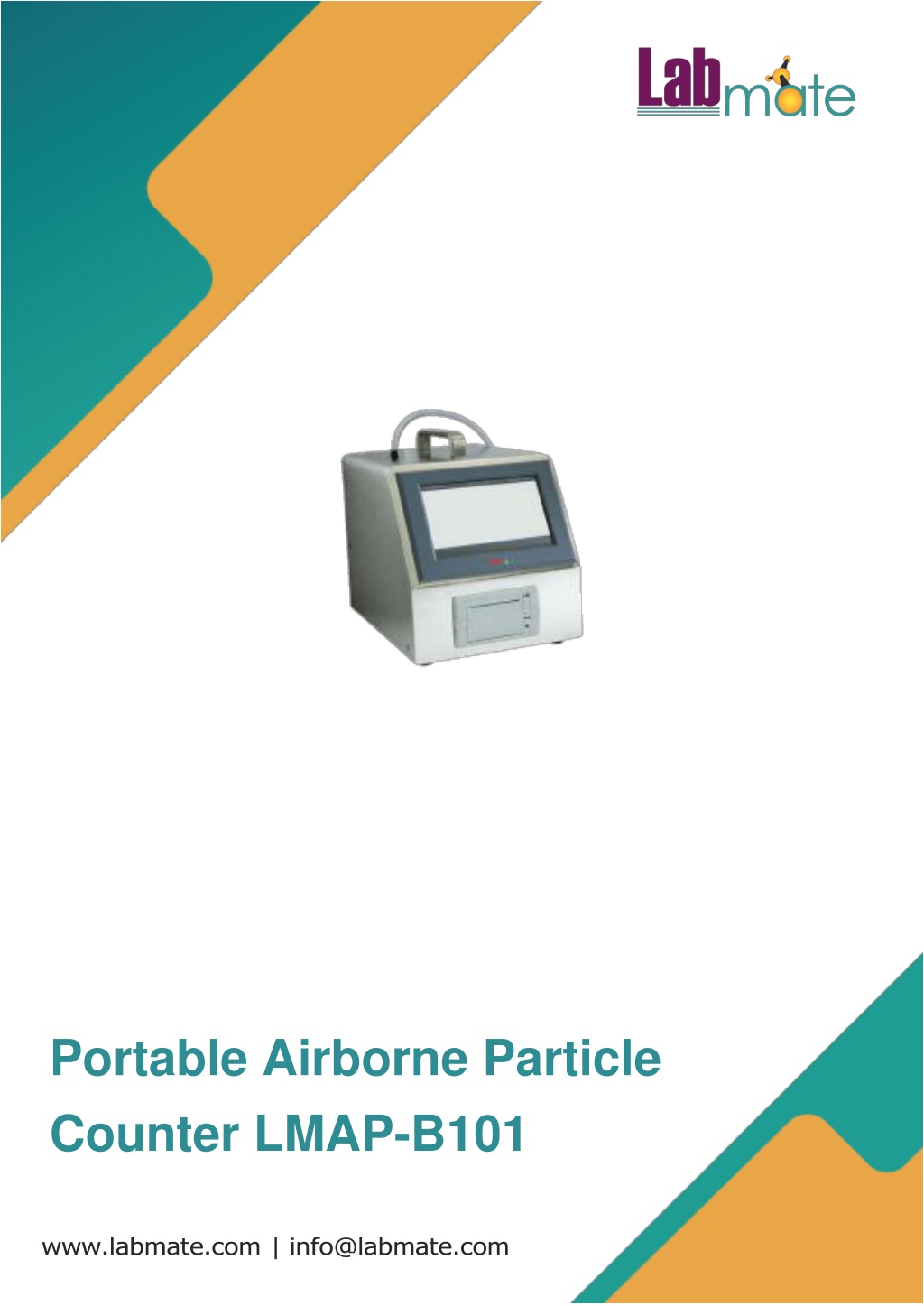

  1. Portable Airborne Particle Counter LMAP-B101 www.labmate.com | info@labmate.com

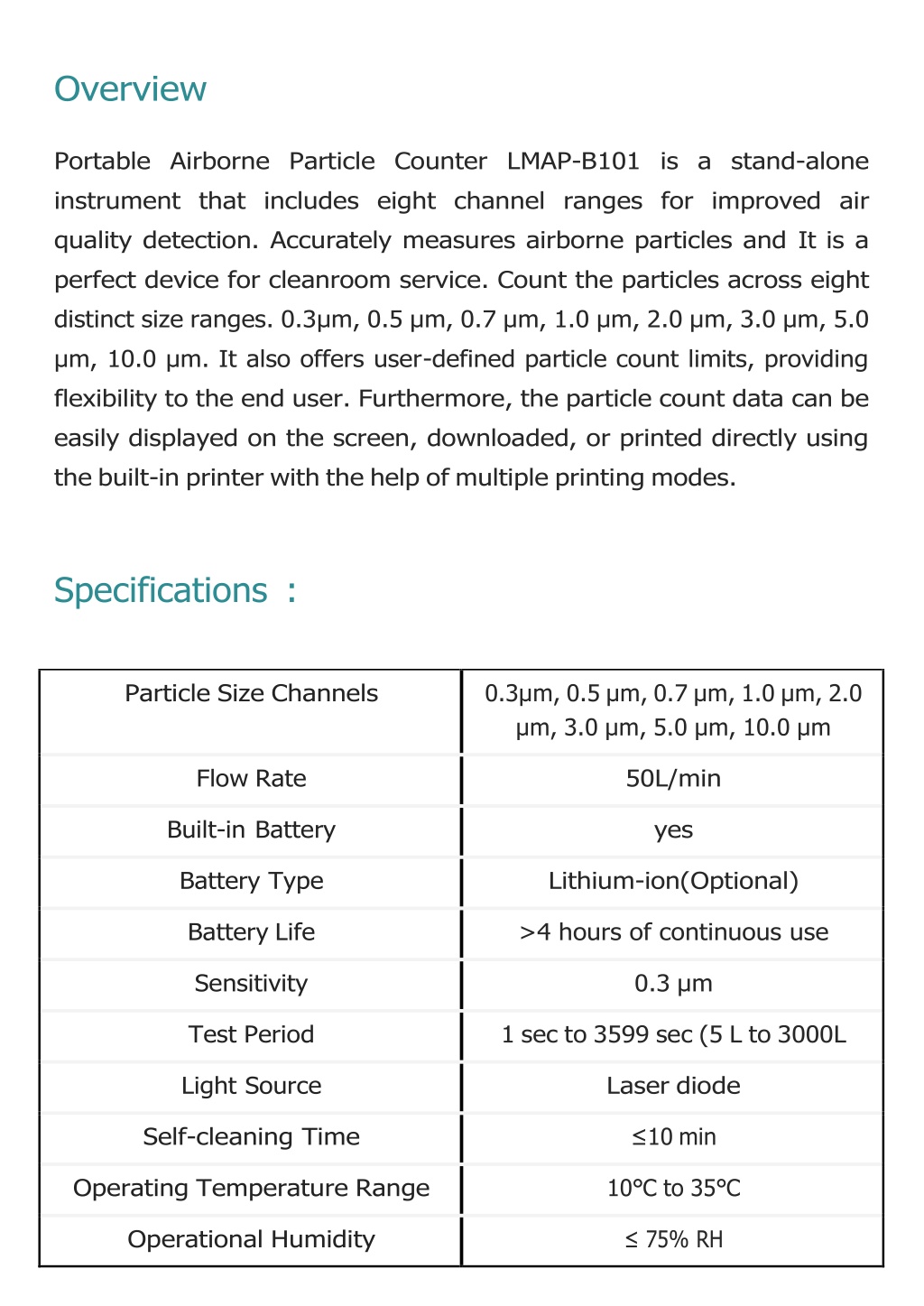

  2. Overview Portable Airborne Particle Counter LMAP-B101 is a stand-alone instrument that includes eight channel ranges for improved air quality detection. Accurately measures airborne particles and It is a perfect device for cleanroom service. Count the particles across eight distinct size ranges. 0.3µm, 0.5 µm, 0.7 µm, 1.0 µm, 2.0 µm, 3.0 µm, 5.0 µm, 10.0 µm. It also offers user-defined particle count limits, providing flexibility to the end user. Furthermore, the particle count data can be easily displayed on the screen, downloaded, or printed directly using the built-in printer with the help of multiple printing modes. Specifications : Particle Size Channels 0.3µm, 0.5 µm, 0.7 µm, 1.0 µm, 2.0 µm, 3.0 µm, 5.0 µm, 10.0 µm Flow Rate 50L/min Built-in Battery yes Battery Type Lithium-ion(Optional) Battery Life >4 hours of continuous use Sensitivity 0.3 µm Test Period 1 sec to 3599 sec (5 L to 3000L Light Source Laser diode Self-cleaning Time ≤10 min Operating Temperature Range 10℃ to 35℃ Operational Humidity ≤ 75% RH

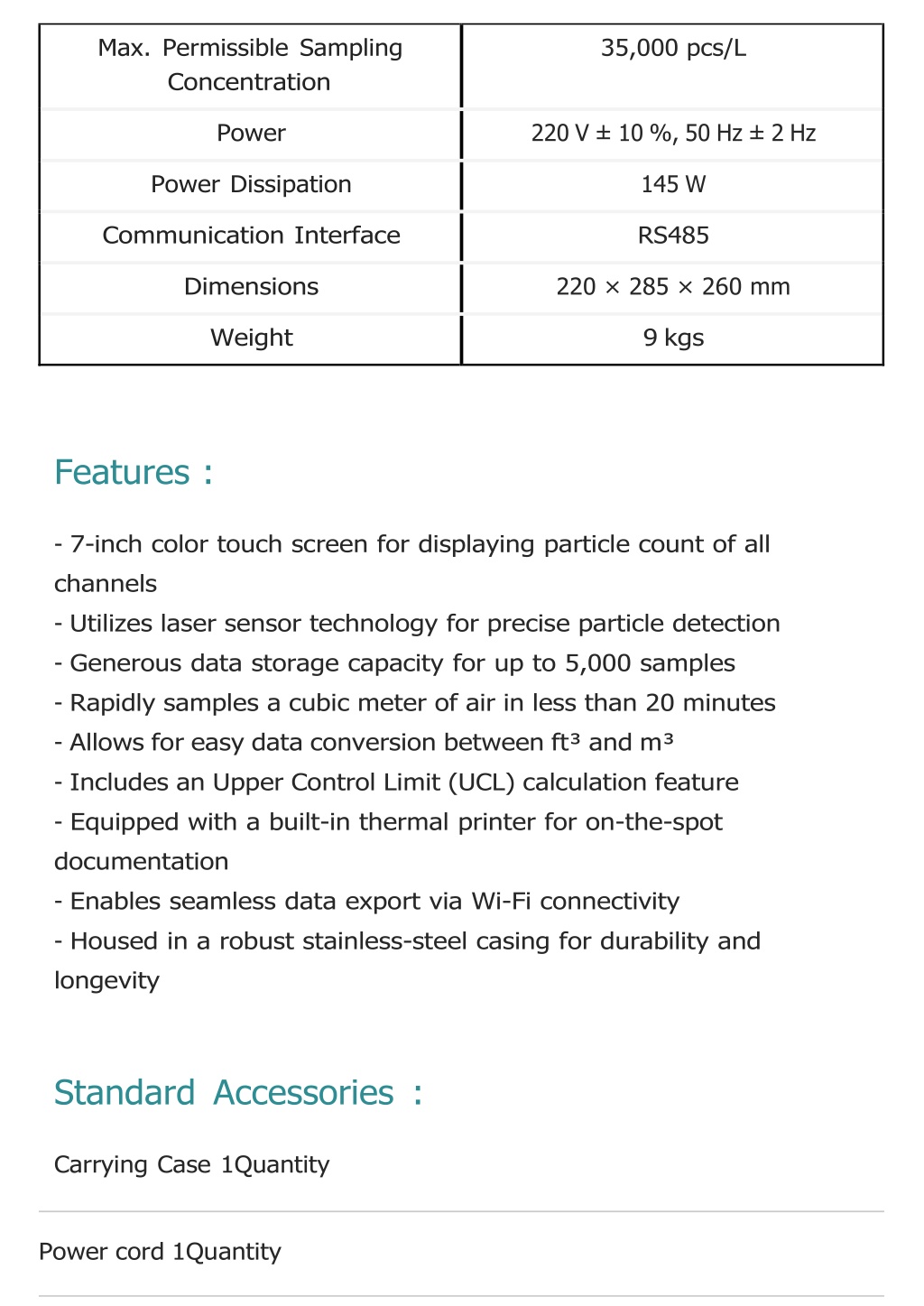

  3. Max. Permissible Sampling Concentration 35,000 pcs/L Power 220 V ± 10 %, 50 Hz ± 2 Hz Power Dissipation 145 W Communication Interface RS485 Dimensions 220 × 285 × 260 mm Weight 9 kgs Features : -7-inch color touch screen for displaying particle count of all channels -Utilizes laser sensor technology for precise particle detection -Generous data storage capacity for up to 5,000 samples -Rapidly samples a cubic meter of air in less than 20 minutes -Allows for easy data conversion between ft³ and m³ -Includes an Upper Control Limit (UCL) calculation feature -Equipped with a built-in thermal printer for on-the-spot documentation -Enables seamless data export via Wi-Fi connectivity -Housed in a robust stainless-steel casing for durability and longevity Standard Accessories : Carrying Case 1Quantity Power cord 1Quantity

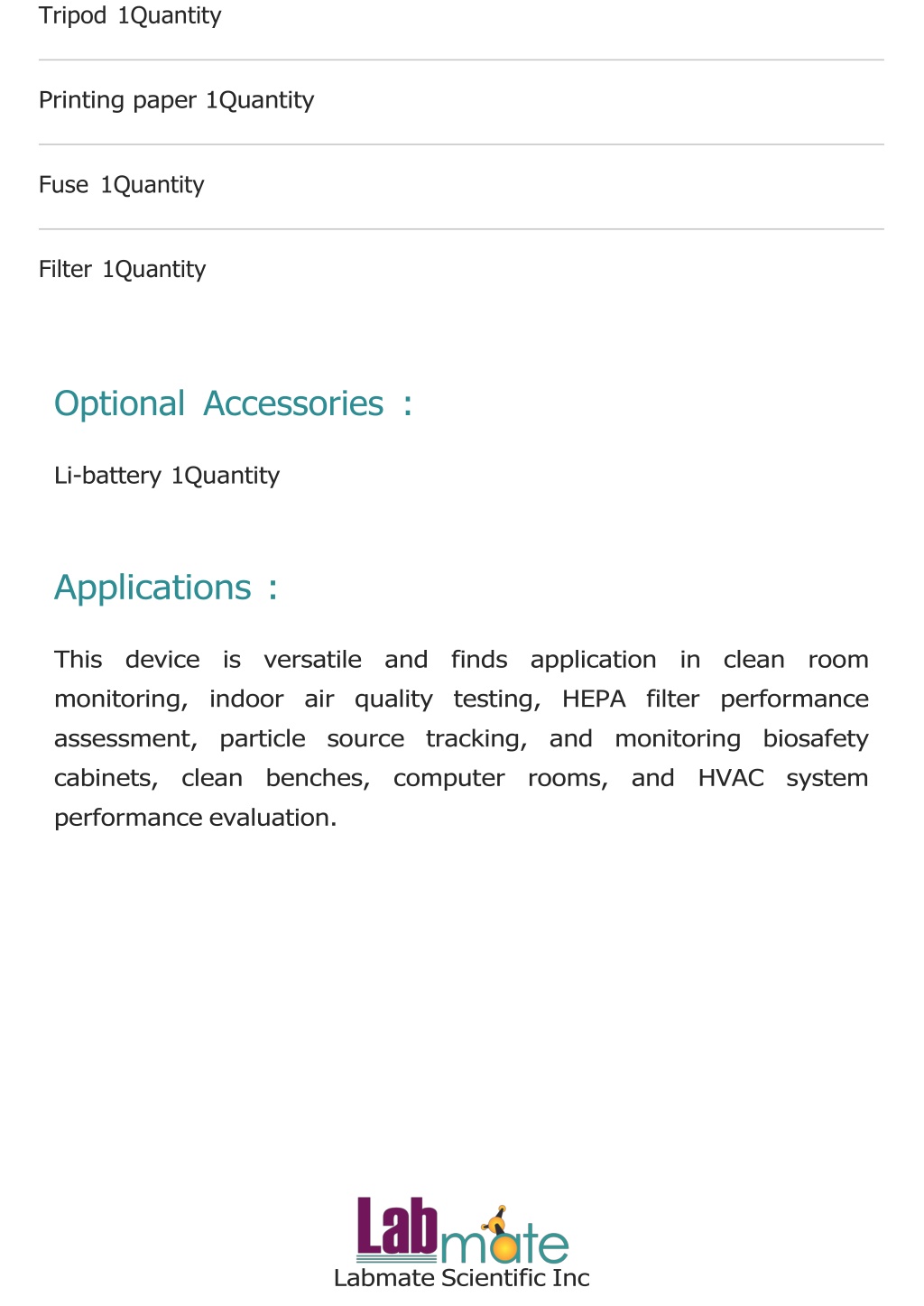

  4. Tripod 1Quantity Printing paper 1Quantity Fuse 1Quantity Filter 1Quantity Optional Accessories : Li-battery 1Quantity Applications : This device is versatile and finds application in clean room monitoring, indoor air quality testing, HEPA filter performance assessment, particle source tracking, and monitoring biosafety cabinets, clean benches, computer rooms, and HVAC system performance evaluation. Labmate Scientific Inc
