Portable Airborne Particle Counter 8.5kgs

Labmate Portable Airborne Particle Counter is an eight-channel device with enhanced flow rates for cleanroom certification. It counts particles in real-time across eight sizes (0.3u00b5m to 10.0u00b5m). With customizable limits, on-screen display, quick downloads, and a built-in printer.<br>

hannacurry
Download Presentation

Portable Airborne Particle Counter 8.5kgs

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

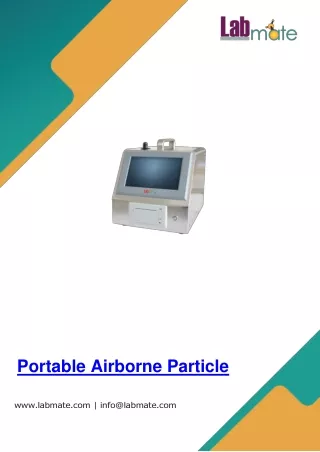

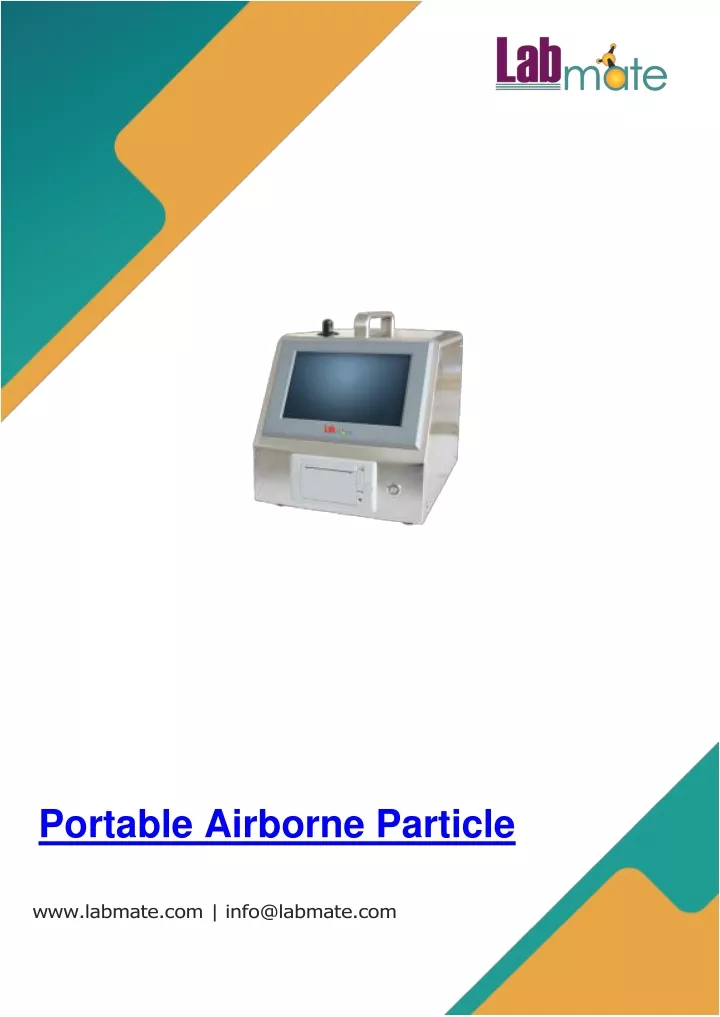

  1. Portable Airborne Particle www.labmate.com | info@labmate.com

  2. Overview Portable Airborne Particle Counter LMAP-B100 is an eight-channel powerhouse with enhanced flow classifications. It simultaneously counts particles across eight size ranges of 0.3µm, 0.5 µm, 0.7 µm, 1.0 µm, 2.0 µm, 3.0 µm, 5.0 µm, 10.0 µm in real-time, providing crucial insights. With customizable particle count limits, it offers unmatched flexibility to end-users. Effortlessly access particle counts data through on-screen display, quick downloads, or direct printing via the built-in printer. rates to certify cleanroom Specifications : Particle Size Channels 0.3µm, 0.5 µm, 0.7 µm, 1.0 µm, 2.0 µm, 3.0 µm, 5.0 µm, 10.0 µm Flow Rate 1.0 CFM (28.3 L/min) Built-in Battery yes Battery Type Lithium-ion(Optional) Battery Life >4 hours of continuous use Sensitivity 0.3 µm Test Period 1 sec to 5999 sec (5 L to 3000L Light source and Life Semiconductor laser >30,000 hours Self-cleaning Time ≤10 min Operating Temperature Range 10℃ to 35℃ Operational Humidity ≤ 75% RH

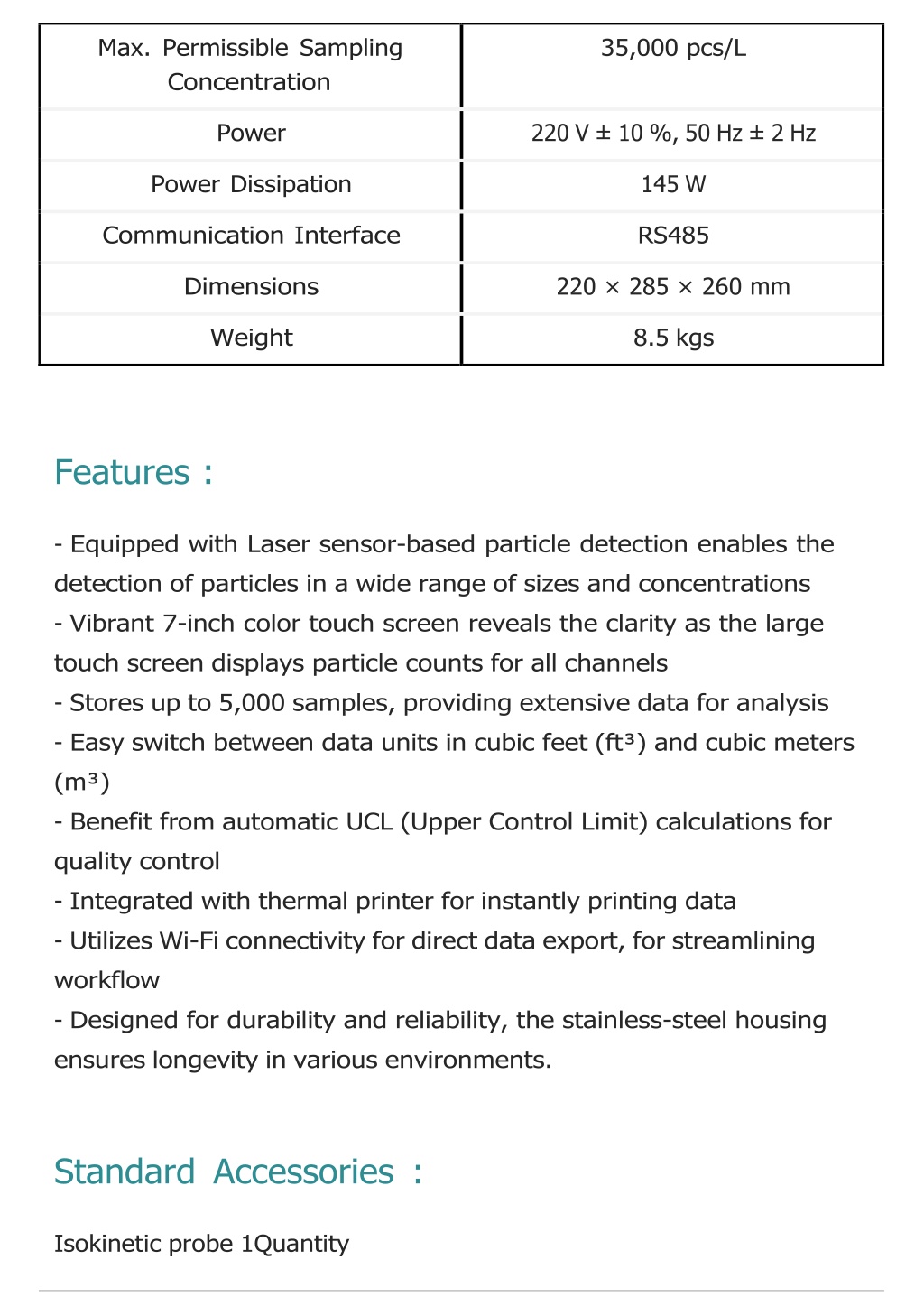

  3. Max. Permissible Sampling Concentration 35,000 pcs/L Power 220 V ± 10 %, 50 Hz ± 2 Hz Power Dissipation 145 W Communication Interface RS485 Dimensions 220 × 285 × 260 mm Weight 8.5 kgs Features : -Equipped with Laser sensor-based particle detection enables the detection of particles in a wide range of sizes and concentrations -Vibrant 7-inch color touch screen reveals the clarity as the large touch screen displays particle counts for all channels -Stores up to 5,000 samples, providing extensive data for analysis -Easy switch between data units in cubic feet (ft³) and cubic meters (m³) -Benefit from automatic UCL (Upper Control Limit) calculations for quality control -Integrated with thermal printer for instantly printing data -Utilizes Wi-Fi connectivity for direct data export, for streamlining workflow -Designed for durability and reliability, the stainless-steel housing ensures longevity in various environments. Standard Accessories : Isokinetic probe 1Quantity

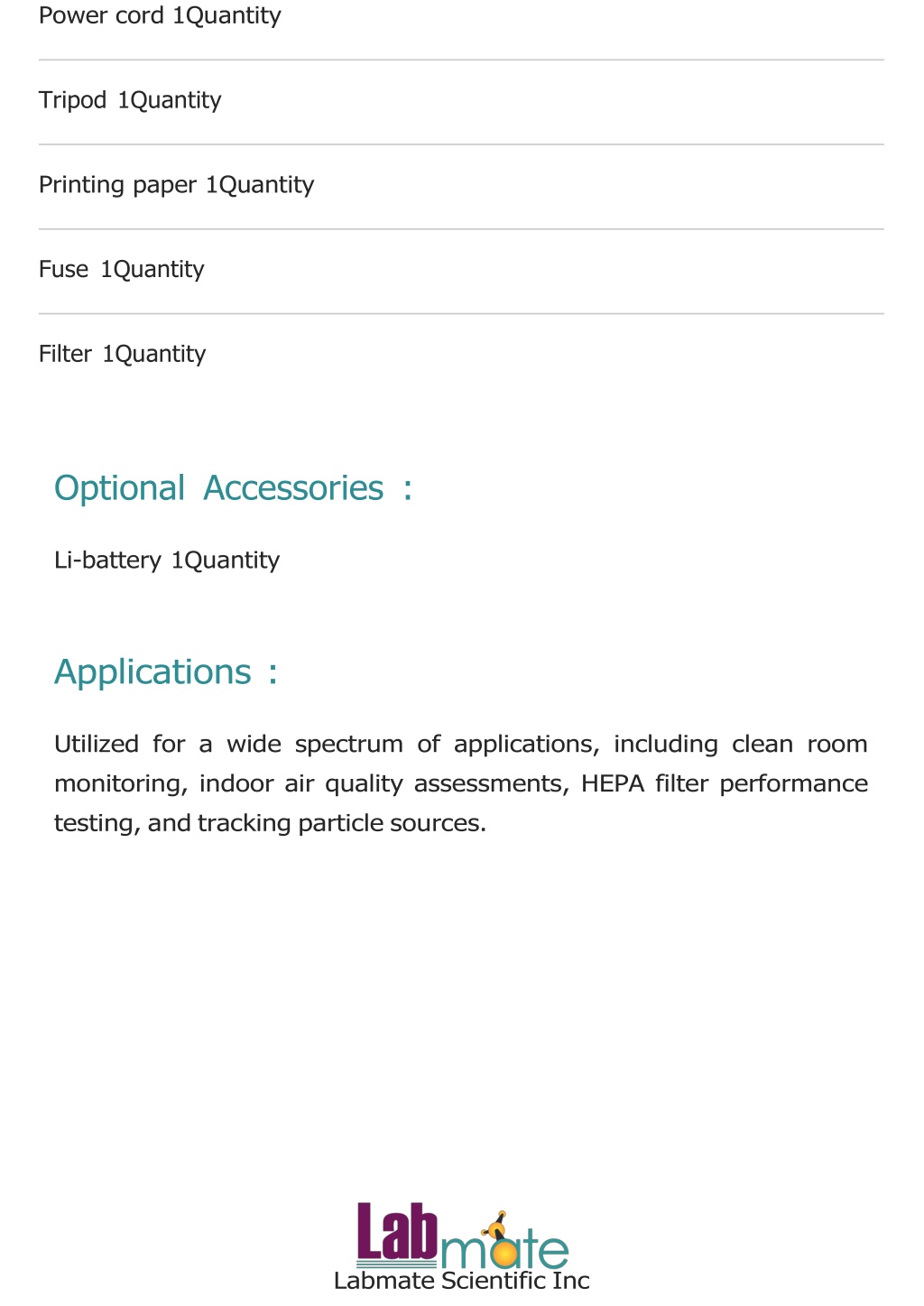

  4. Power cord 1Quantity Tripod 1Quantity Printing paper 1Quantity Fuse 1Quantity Filter 1Quantity Optional Accessories : Li-battery 1Quantity Applications : Utilized for a wide spectrum of applications, including clean room monitoring, indoor air quality assessments, HEPA filter performance testing, and tracking particle sources. Labmate Scientific Inc
