Portable Airborne Particle Counter 3.3kgs

Labmate Portable Airborne Particle Counter features six-channel monitoring for particles (0.3 u00b5m to 10.0 u00b5m) with a 1 CFM flow rate. It includes a laser sensor, thermal printer for instant data, and supports viewing, downloading, and an optional rechargeable battery for flexibility.

hannacurry
Download Presentation

Portable Airborne Particle Counter 3.3kgs

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

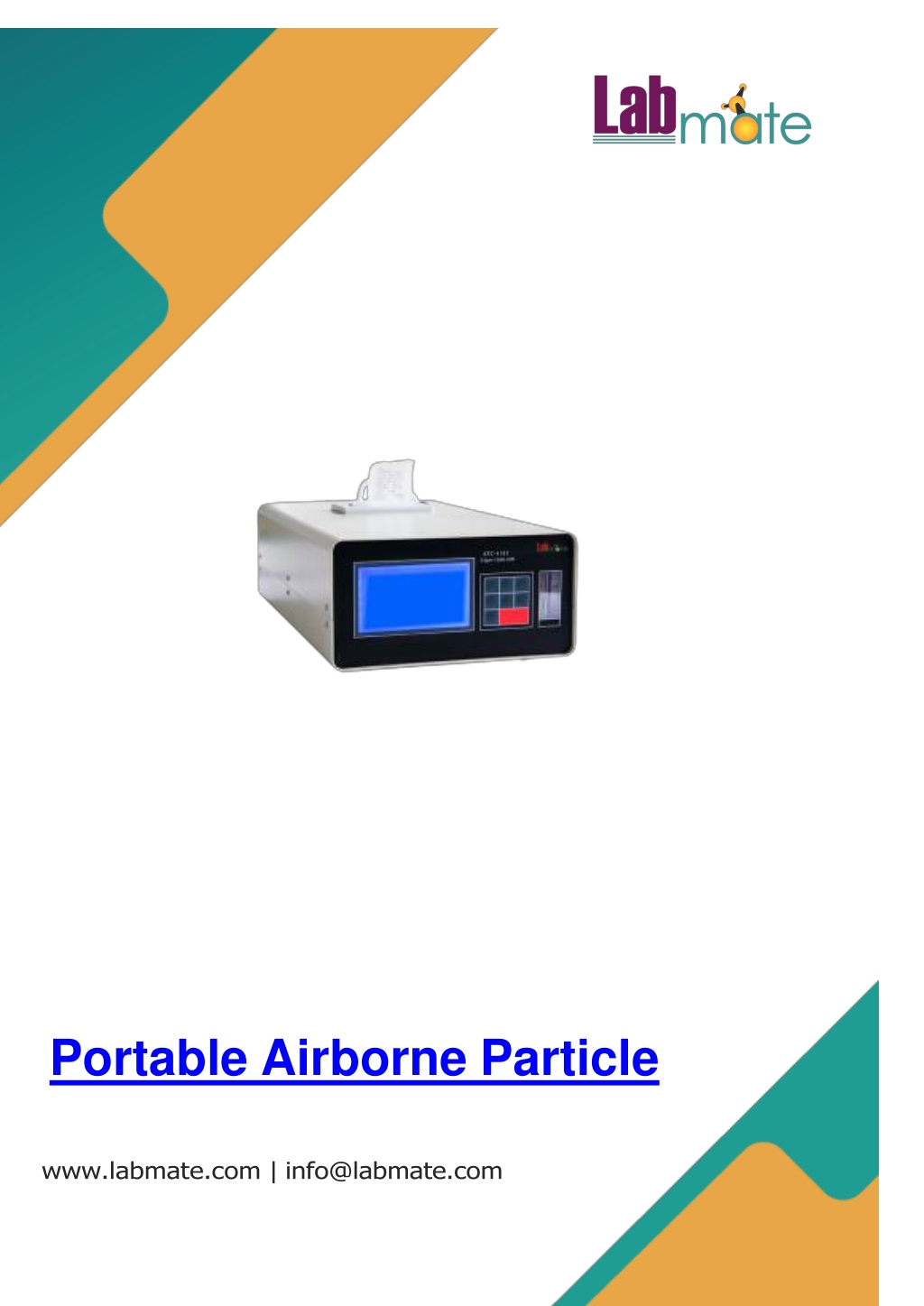

  1. Portable Airborne Particle www.labmate.com | info@labmate.com

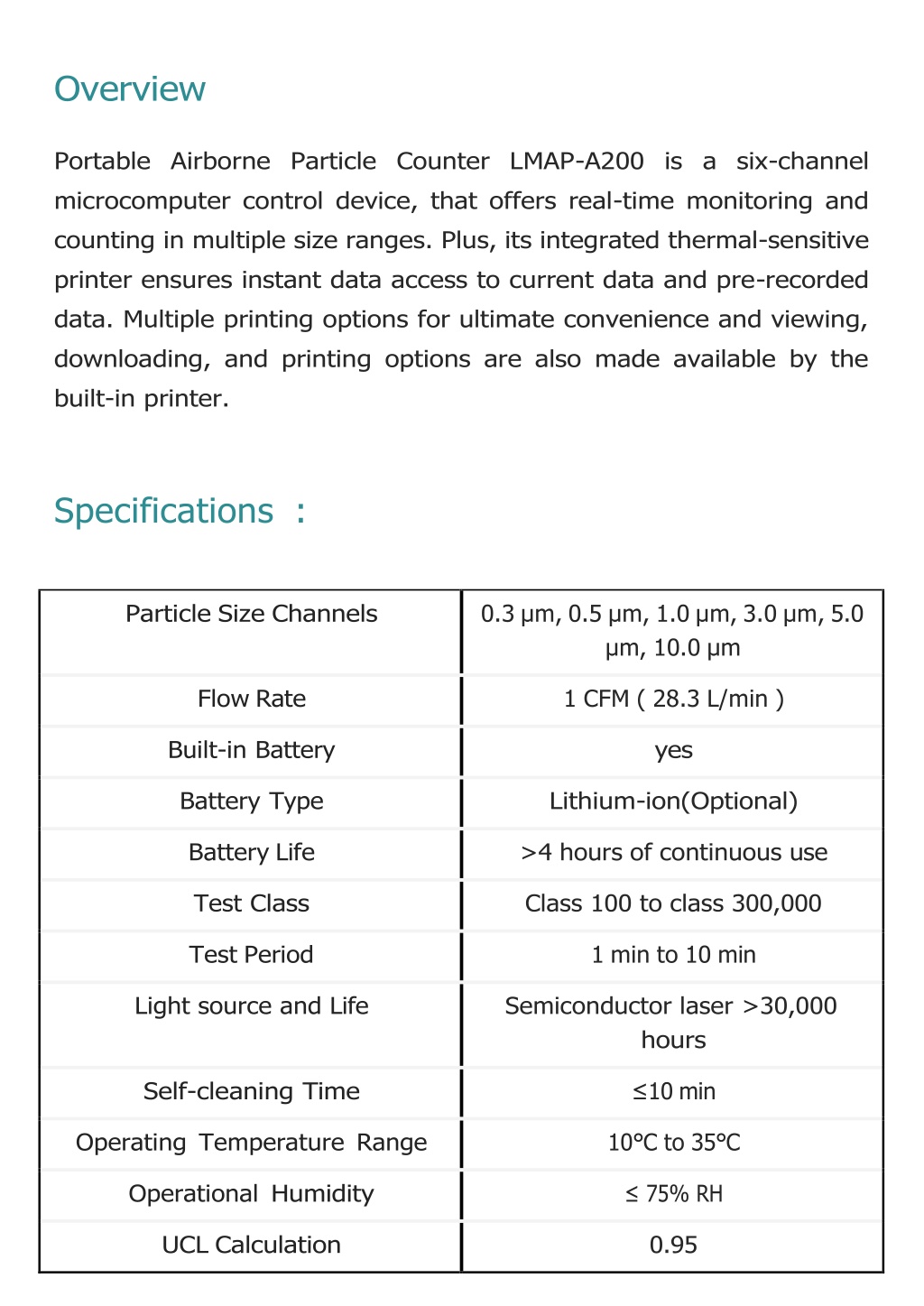

  2. Overview Portable Airborne Particle Counter LMAP-A200 is a six-channel microcomputer control device, that offers real-time monitoring and counting in multiple size ranges. Plus, its integrated thermal-sensitive printer ensures instant data access to current data and pre-recorded data. Multiple printing options for ultimate convenience and viewing, downloading, and printing options are also made available by the built-in printer. Specifications: Particle Size Channels 0.3 µm, 0.5 µm, 1.0 µm, 3.0 µm, 5.0 µm, 10.0 µm Flow Rate 1 CFM ( 28.3 L/min ) Built-in Battery yes Battery Type Lithium-ion(Optional) Battery Life >4 hours of continuous use Test Class Class 100 to class 300,000 Test Period 1 min to 10 min Light source and Life Semiconductor laser >30,000 hours Self-cleaning Time ≤10 min Operating Temperature Range 10℃ to 35℃ Operational Humidity ≤75%RH UCL Calculation 0.95

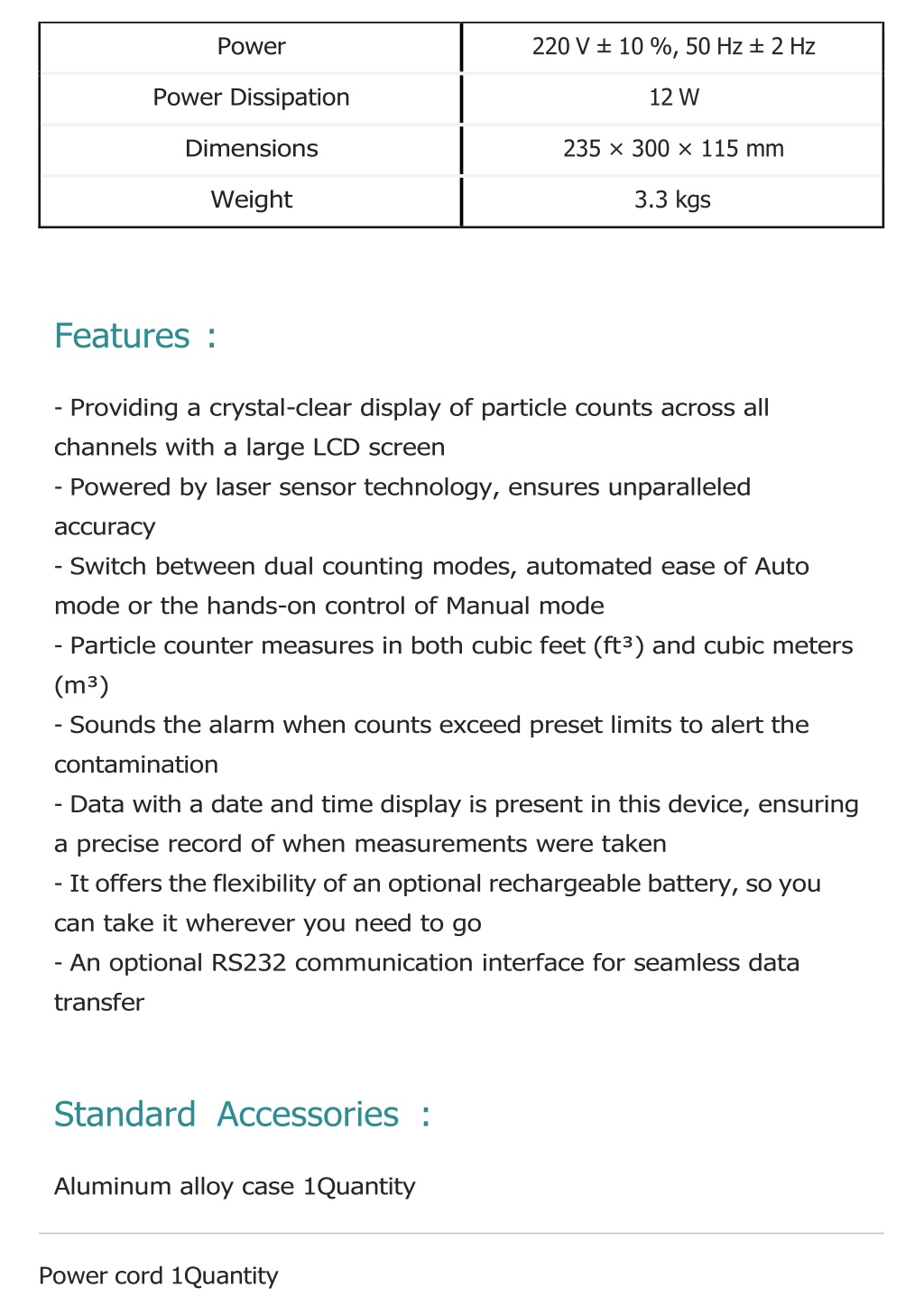

  3. Power 220 V ± 10 %, 50 Hz ± 2 Hz Power Dissipation 12 W Dimensions 235 × 300 × 115 mm Weight 3.3 kgs Features : -Providing a crystal-clear display of particle counts across all channels with a large LCD screen -Powered by laser sensor technology, ensures unparalleled accuracy -Switch between dual counting modes, automated ease of Auto mode or the hands-on control of Manual mode -Particle counter measures in both cubic feet (ft³) and cubic meters (m³) -Sounds the alarm when counts exceed preset limits to alert the contamination -Data with a date and time display is present in this device, ensuring a precise record of when measurements were taken -It offers the flexibility of an optional rechargeable battery, so you can take it wherever you need to go -An optional RS232 communication interface for seamless data transfer StandardAccessories: Aluminum alloy case 1Quantity Power cord 1Quantity

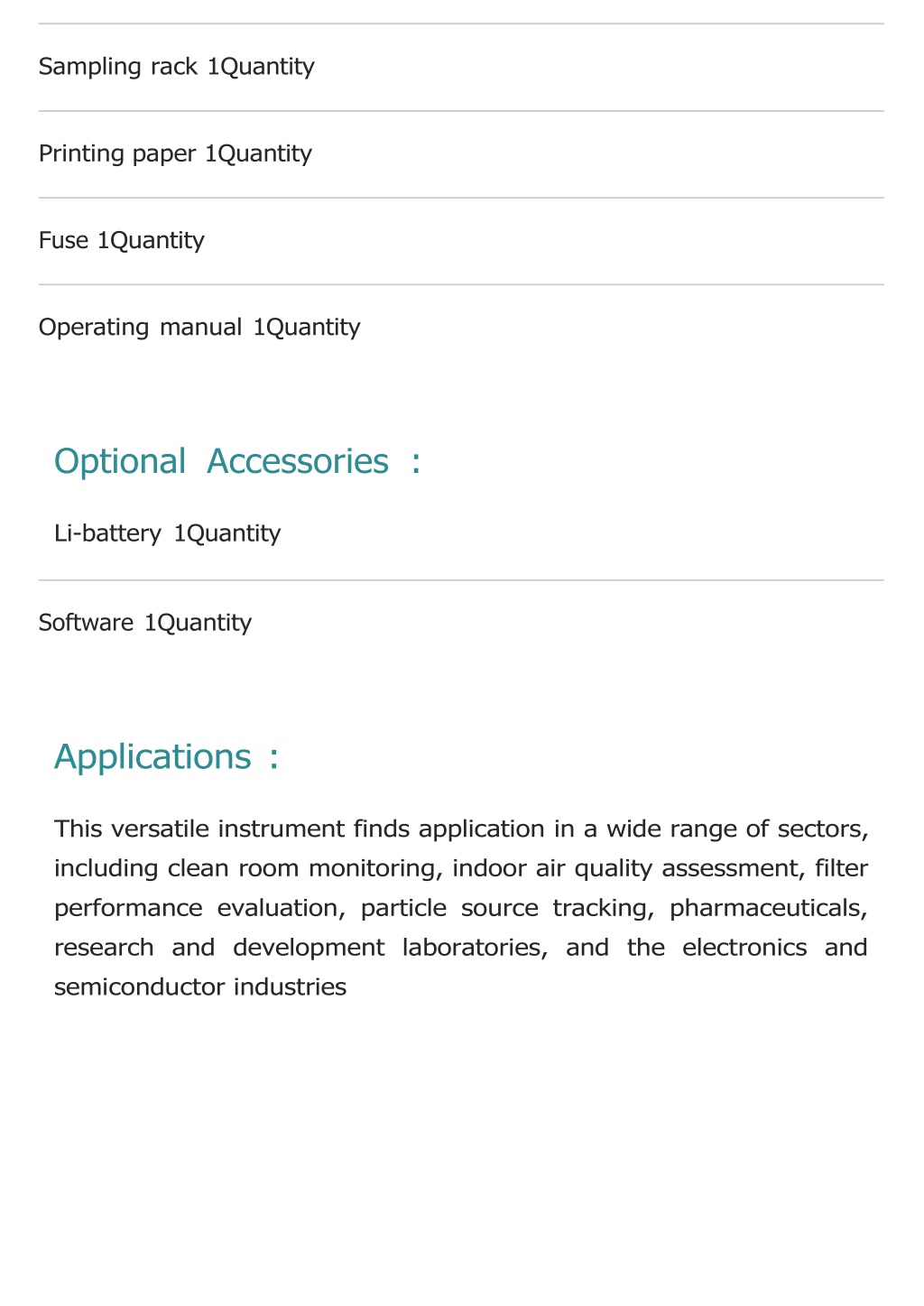

  4. Sampling rack 1Quantity Printing paper 1Quantity Fuse 1Quantity Operating manual 1Quantity OptionalAccessories: Li-battery 1Quantity Software 1Quantity Applications : This versatile instrument finds application in a wide range of sectors, including clean room monitoring, indoor air quality assessment, filter performance evaluation, particle source tracking, pharmaceuticals, research and development laboratories, and the electronics and semiconductor industries

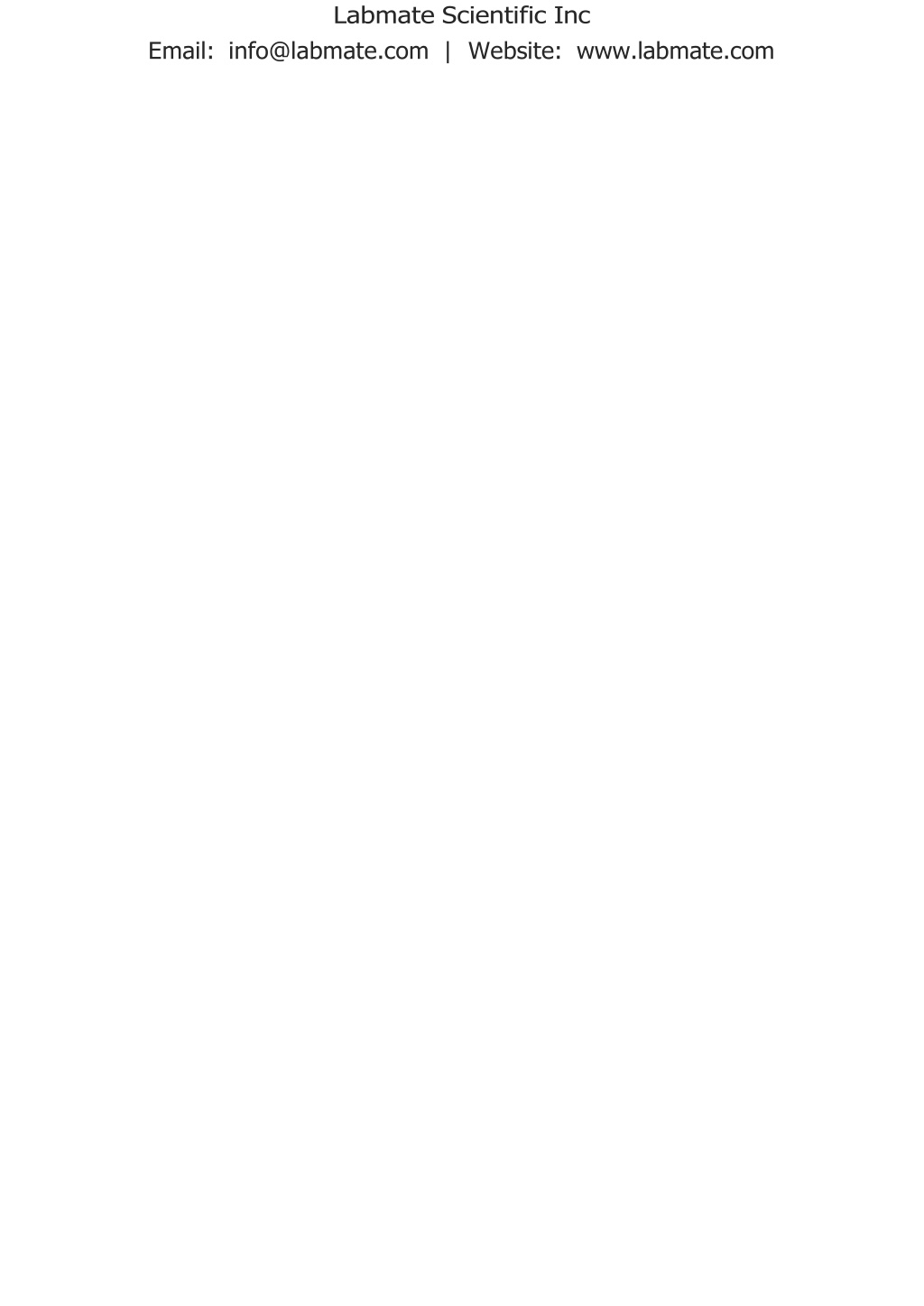

  5. Labmate Scientific Inc Email: info@labmate.com |Website: www.labmate.com
