Portable Airborne Particle Counter 1 CFM

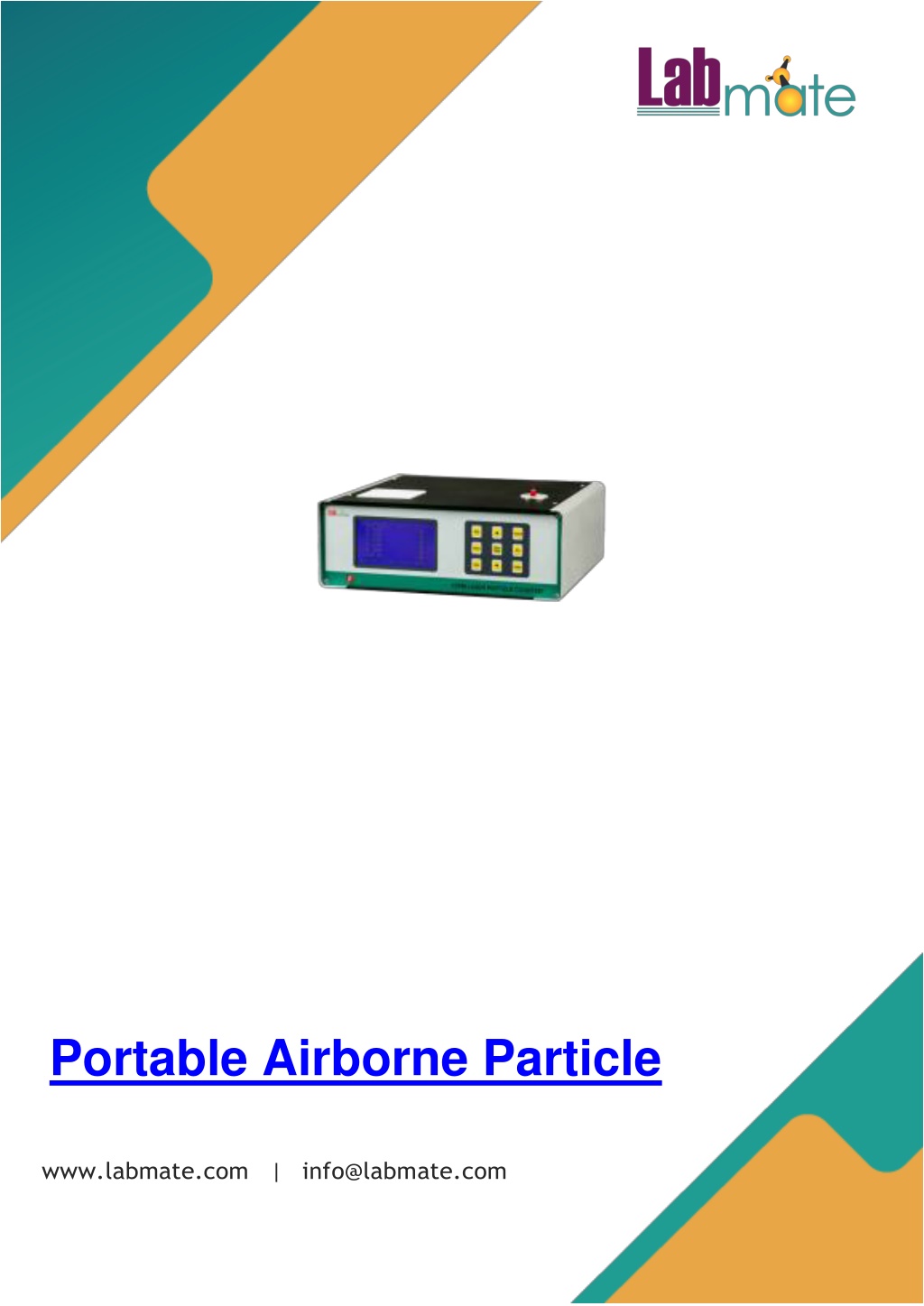

1. Portable Airborne Particle www.labmate.com | info@labmate.com

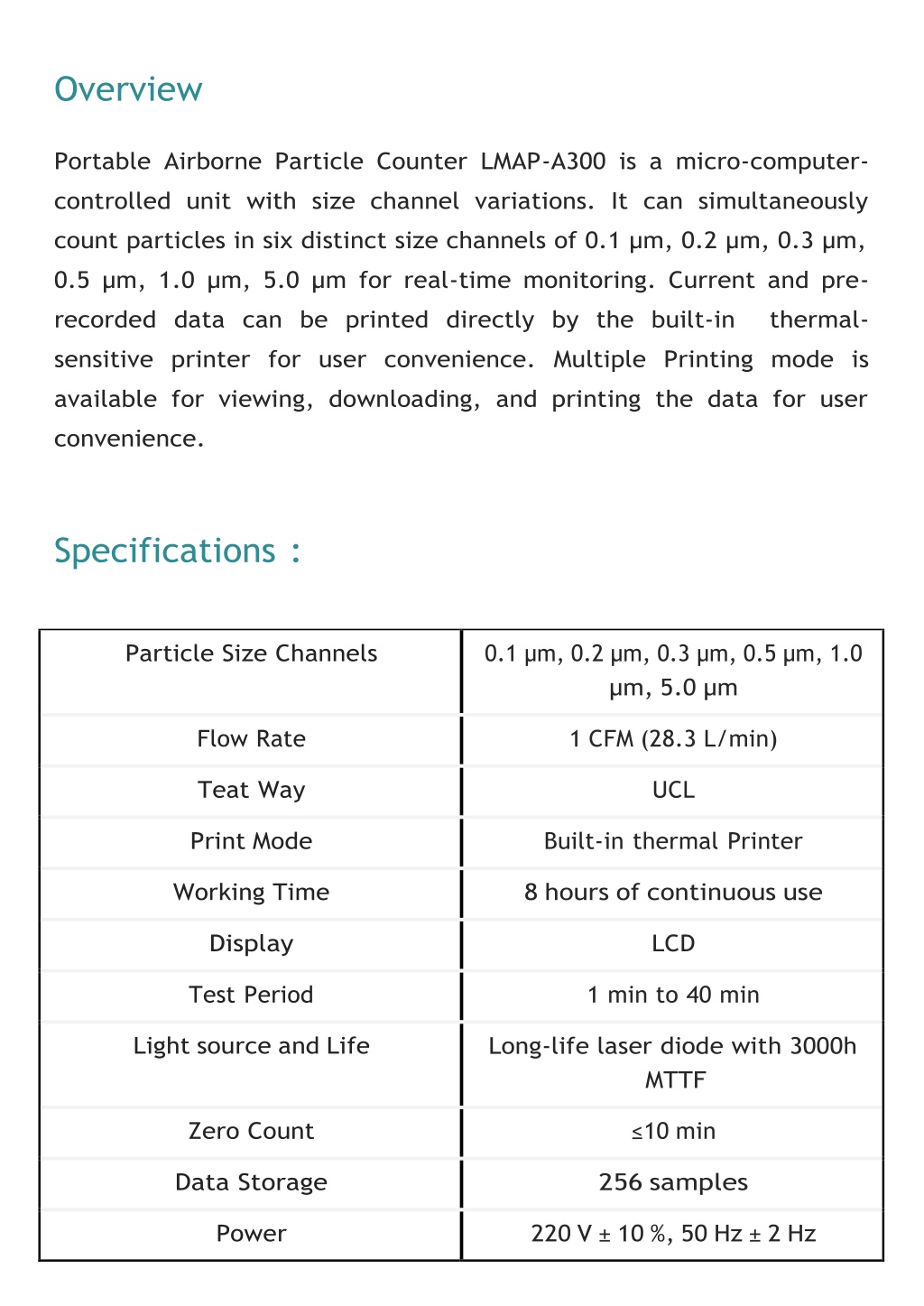

2. Overview Portable Airborne Particle Counter LMAP-A300 is a micro-computer- controlled unit with size channel variations. It can simultaneously count particles in six distinct size channels of 0.1 µm, 0.2 µm, 0.3 µm, 0.5 µm, 1.0 µm, 5.0 µm for real-time monitoring. Current and pre- recorded data can be printed directly by the built-in thermal- sensitive printer for user convenience. Multiple Printing mode is available for viewing, downloading, and printing the data for user convenience. Specifications : Particle Size Channels 0.1 µm, 0.2 µm, 0.3 µm, 0.5 µm, 1.0 µm, 5.0 µm Flow Rate 1 CFM (28.3 L/min) Teat Way UCL Print Mode Built-in thermal Printer Working Time 8 hours of continuous use Display LCD Test Period 1 min to 40 min Light source and Life Long-life laser diode with 3000h MTTF Zero Count ≤10 min Data Storage 256 samples Power 220 V ± 10 %, 50 Hz ± 2 Hz

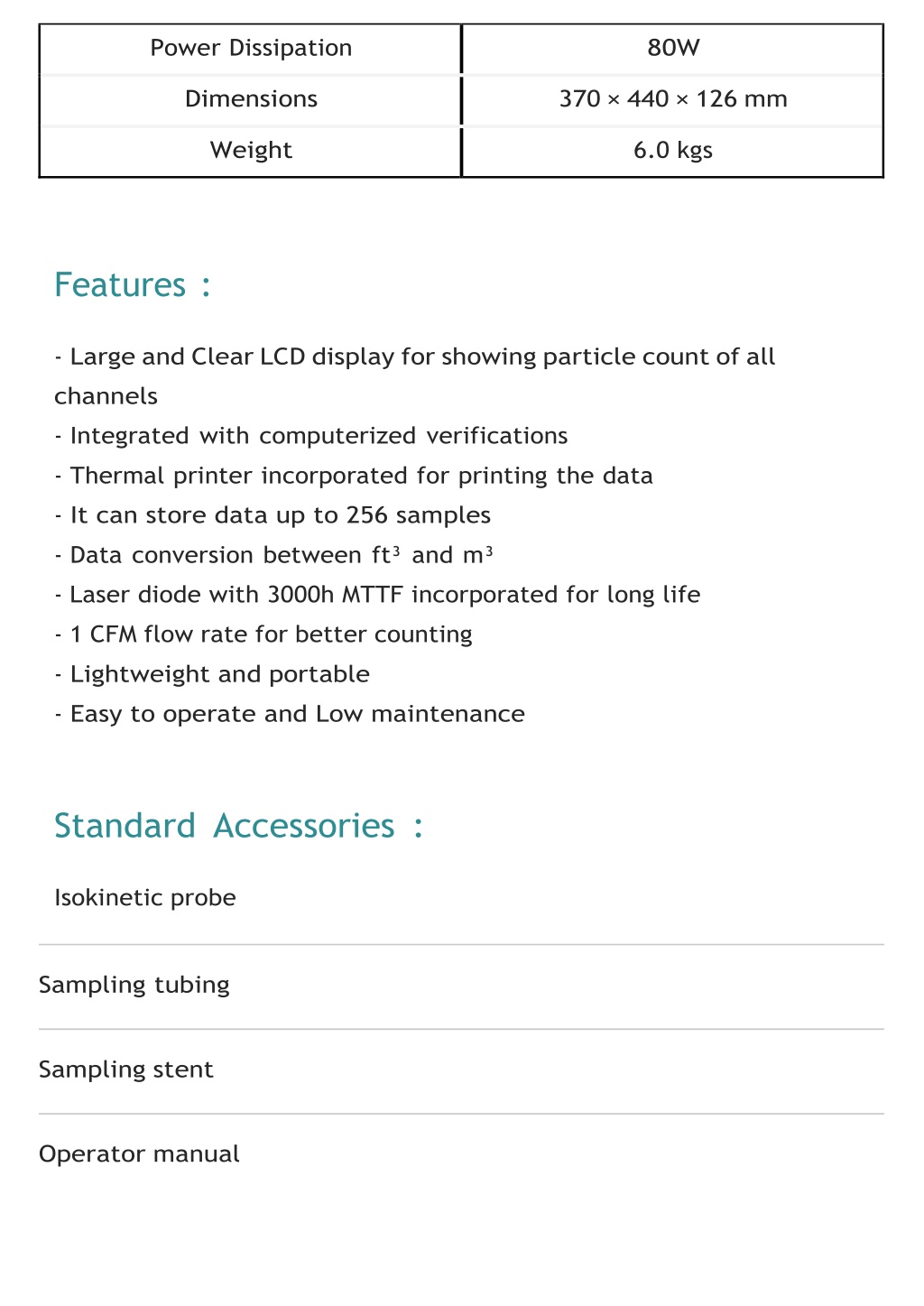

3. Power Dissipation 80W Dimensions 370 × 440 × 126 mm Weight 6.0 kgs Features : -Large and Clear LCD display for showing particle count of all channels -Integrated with computerized verifications -Thermal printer incorporated for printing the data -It can store data up to 256 samples -Data conversion between ft³ and m³ -Laser diode with 3000h MTTF incorporated for long life -1 CFM flow rate for better counting -Lightweight and portable -Easy to operate and Low maintenance Standard Accessories : Isokinetic probe Sampling tubing Sampling stent Operator manual

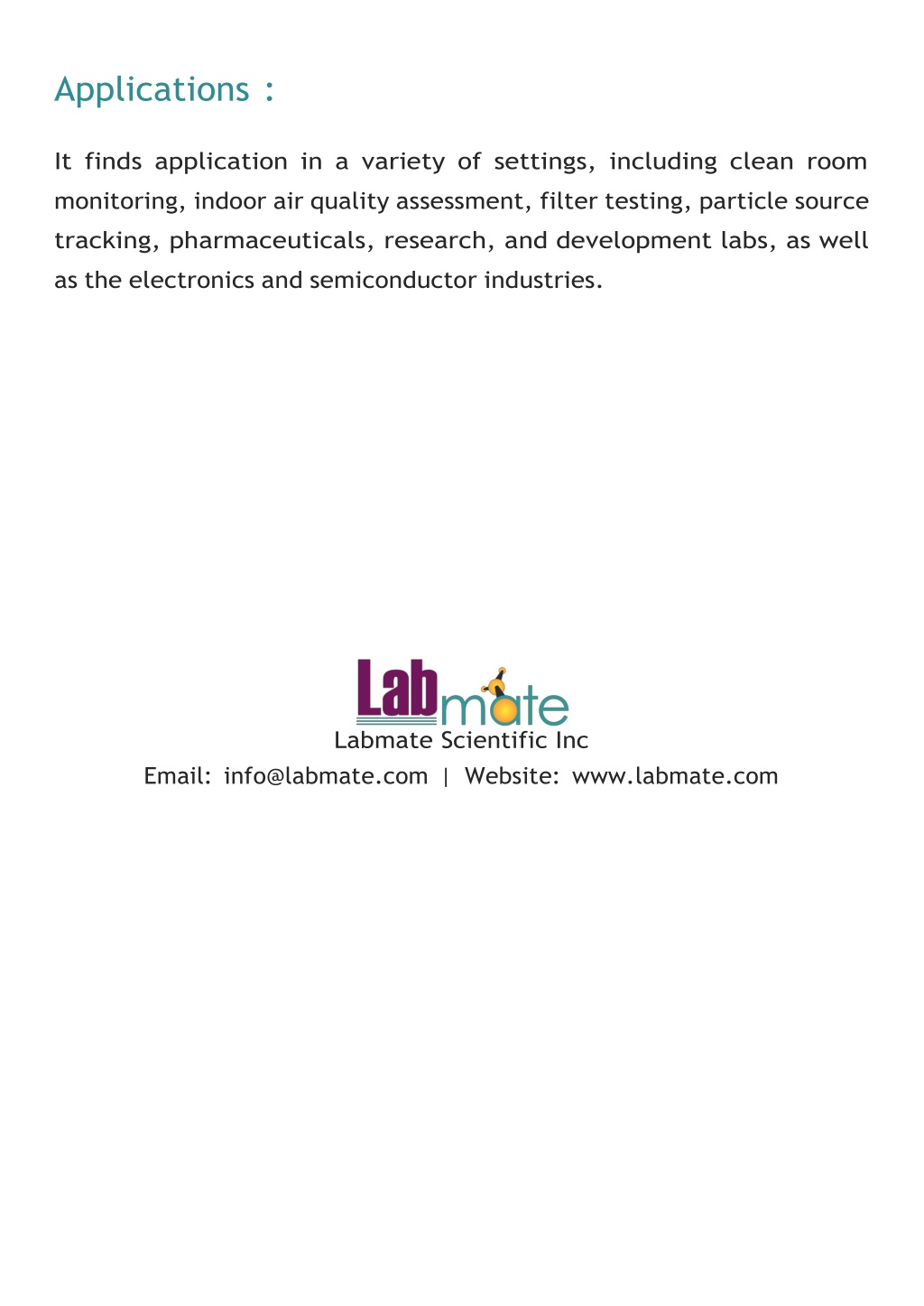

4. Applications : It finds application in a variety of settings, including clean room monitoring, indoor air quality assessment, filter testing, particle source tracking, pharmaceuticals, research, and development labs, as well as the electronics and semiconductor industries. Labmate Scientific Inc Email: info@labmate.com | Website: www.labmate.com
