Portable Airborne Particle Counter

Labmate Portable Airborne Particle Counter is a handheld device with 6 particle size channels (0.3 u00b5mu201310.0 u00b5m) and a 0.1 CFM flow rate. Features a built-in thermal printer, date/time display, and supports data in ftu00b3 and mu00b3. It can test Class 100 to 300,000, with test periods from 1 to 10 minutes.

hannacurry
Download Presentation

Portable Airborne Particle Counter

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

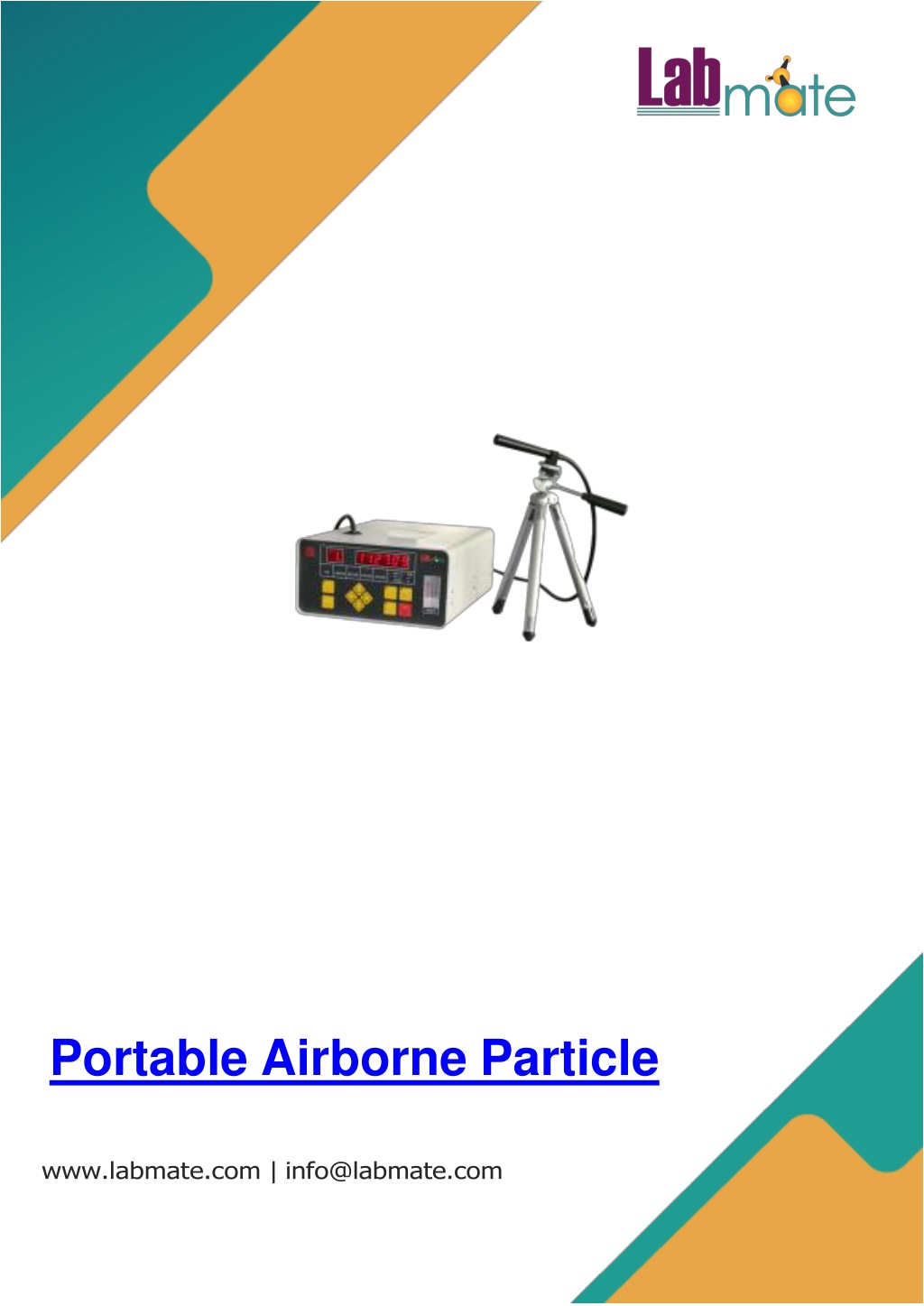

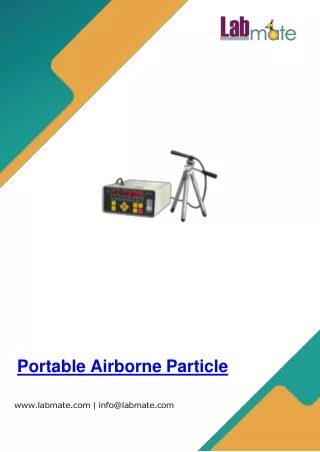

  1. Portable Airborne Particle www.labmate.com | info@labmate.com

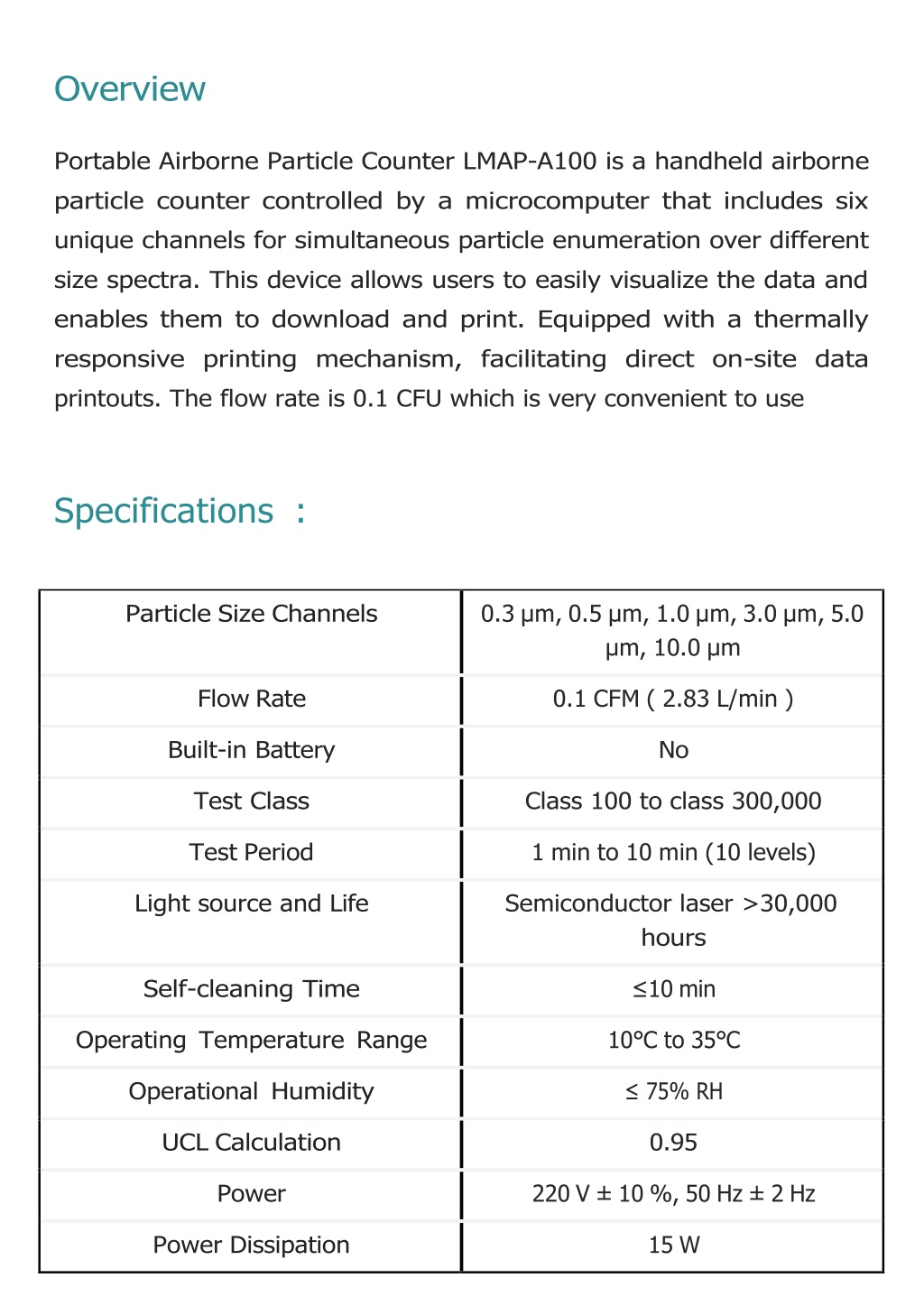

  2. Overview Portable Airborne Particle Counter LMAP-A100 is a handheld airborne particle counter controlled by a microcomputer that includes six unique channels for simultaneous particle enumeration over different size spectra. This device allows users to easily visualize the data and enables them to download and print. Equipped with a thermally responsive printing mechanism, facilitating direct on-site data printouts. The flow rate is 0.1 CFU which is very convenient to use Specifications: Particle Size Channels 0.3 µm, 0.5 µm, 1.0 µm, 3.0 µm, 5.0 µm, 10.0 µm Flow Rate 0.1 CFM ( 2.83 L/min ) Built-in Battery No Test Class Class 100 to class 300,000 Test Period 1 min to 10 min (10 levels) Light source and Life Semiconductor laser >30,000 hours Self-cleaning Time ≤10 min Operating Temperature Range 10℃ to 35℃ Operational Humidity ≤75%RH UCL Calculation 0.95 Power 220 V ± 10 %, 50 Hz ± 2 Hz Power Dissipation 15 W

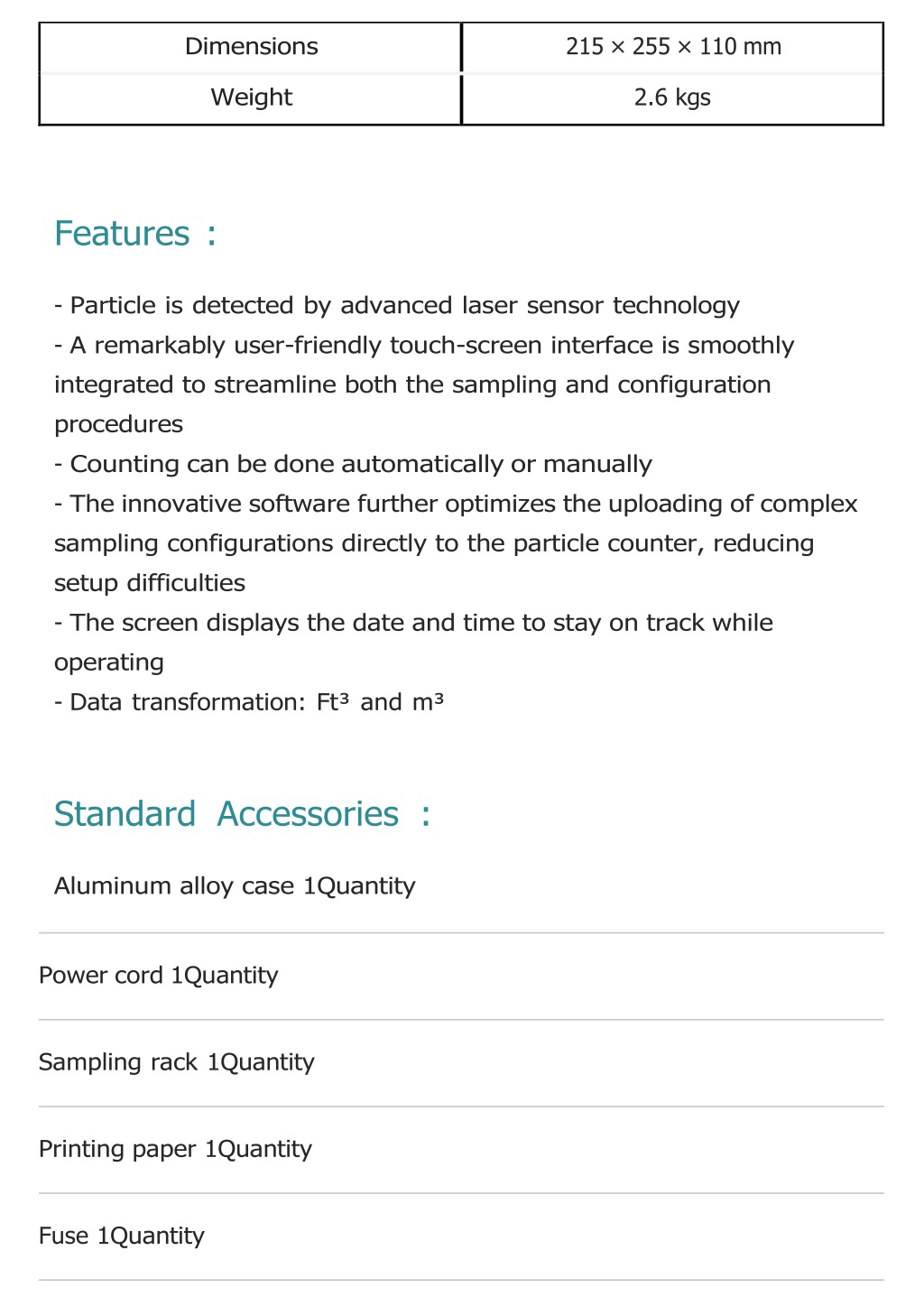

  3. Dimensions 215 × 255 × 110 mm Weight 2.6 kgs Features : -Particle is detected by advanced laser sensor technology -A remarkably user-friendly touch-screen interface is smoothly integrated to streamline both the sampling and configuration procedures -Counting can be done automatically or manually -The innovative software further optimizes the uploading of complex sampling configurations directly to the particle counter, reducing setup difficulties -The screen displays the date and time to stay on track while operating -Data transformation: Ft³ and m³ StandardAccessories: Aluminum alloy case 1Quantity Power cord 1Quantity Sampling rack 1Quantity Printing paper 1Quantity Fuse 1Quantity

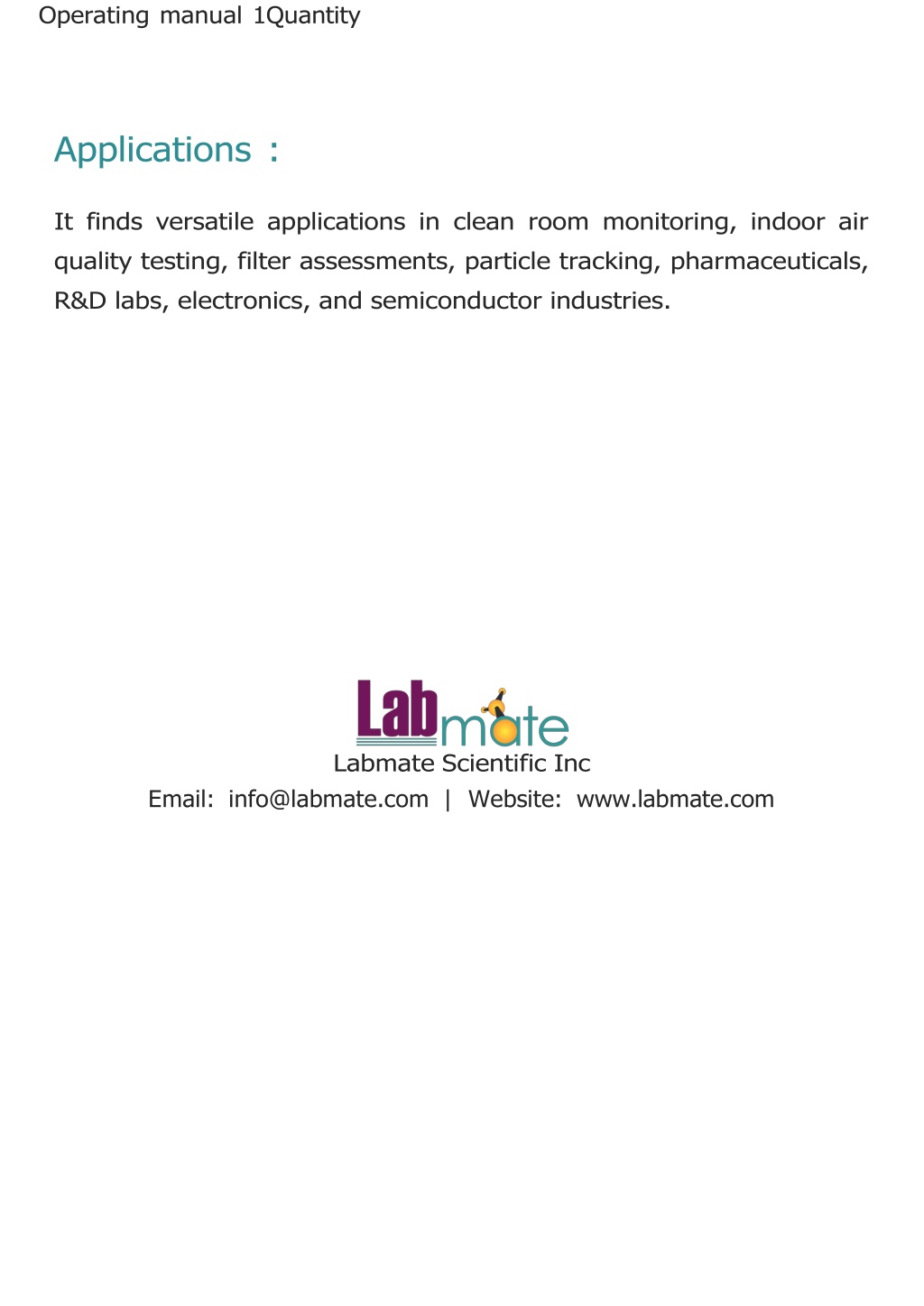

  4. Operating manual 1Quantity Applications : It finds versatile applications in clean room monitoring, indoor air quality testing, filter assessments, particle tracking, pharmaceuticals, R&D labs, electronics, and semiconductor industries. Labmate Scientific Inc Email: info@labmate.com |Website: www.labmate.com
