Horizontal Autoclave LMHA-A601

Labmate Horizontal Autoclave features a spacious 146 L chamber with a front-loading design for larger loads. Equipped with a PLC for precise temperature control, a color touch screen for easy adjustments, and six status lamps. Includes a vacuum noise reduction system and emergency shut-off buttons.<br>

hannacurry
Download Presentation

Horizontal Autoclave LMHA-A601

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

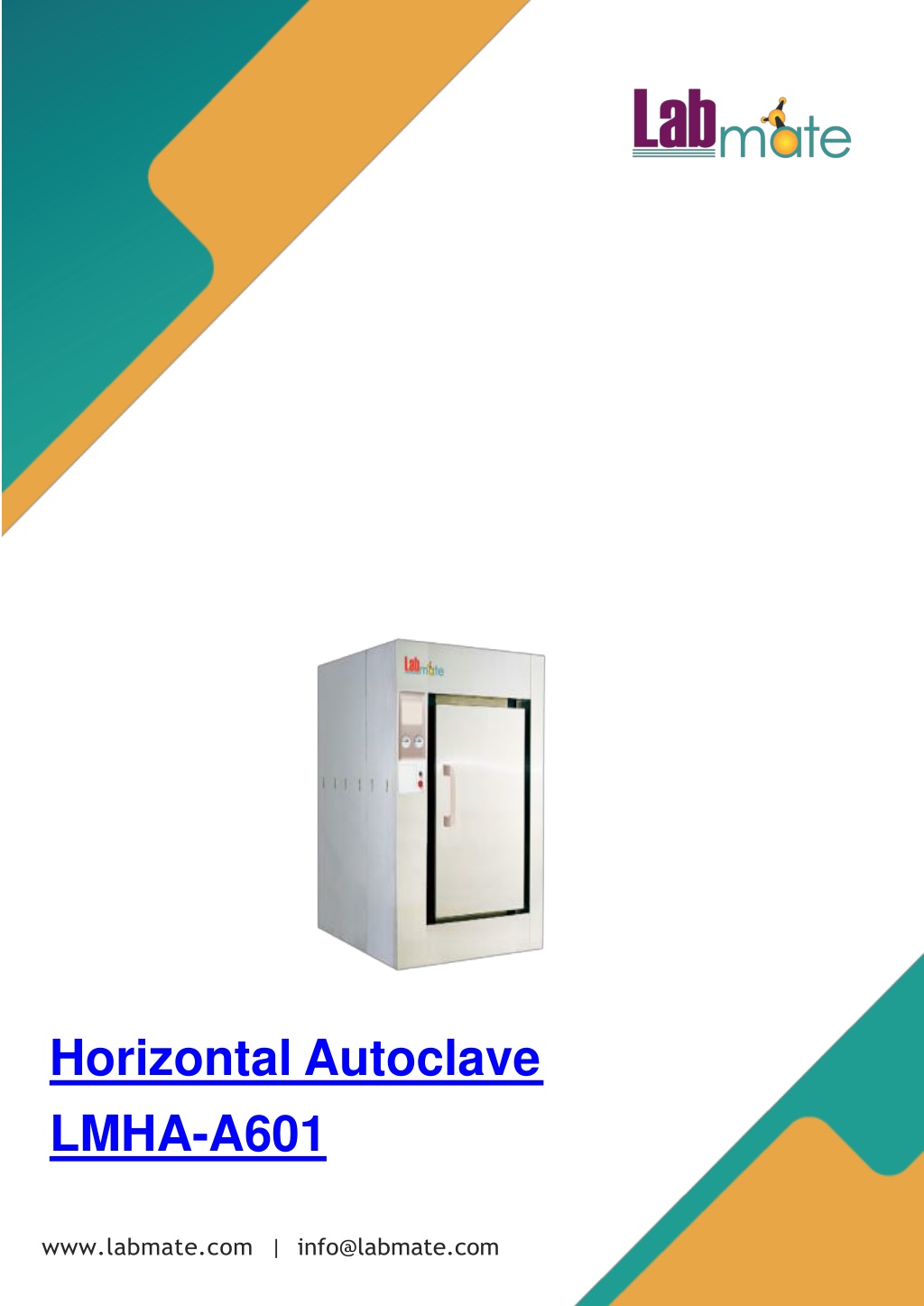

  1. Horizontal Autoclave LMHA-A601 www.labmate.com|info@labmate.com

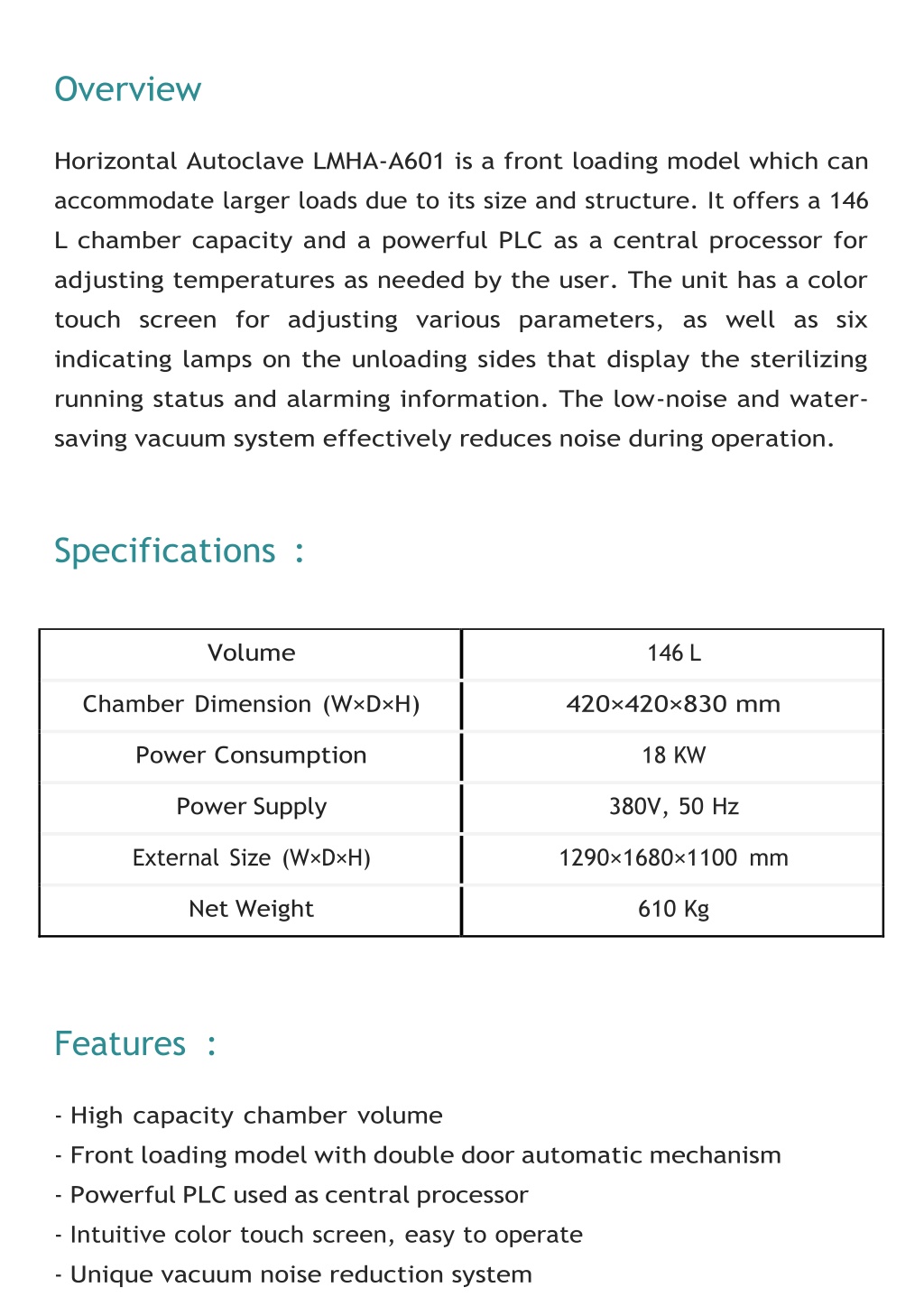

  2. Overview Horizontal Autoclave LMHA-A601 is a front loading model which can accommodate larger loads due to its size and structure. It offers a 146 L chamber capacity and a powerful PLC as a central processor for adjusting temperatures as needed by the user. The unit has a color touch screen for adjusting various parameters, as well as six indicating lamps on the unloading sides that display the sterilizing running status and alarming information. The low-noise and water- saving vacuum system effectively reduces noise during operation. Specifications : Volume 146 L Chamber Dimension (W×D×H) 420×420×830 mm Power Consumption 18 KW Power Supply 380V, 50 Hz External Size (W×D×H) 1290×1680×1100 mm Net Weight 610 Kg Features: -High capacity chamber volume -Front loading model with double door automatic mechanism -Powerful PLC used as central processor -Intuitive color touch screen, easy to operate -Unique vacuum noise reduction system

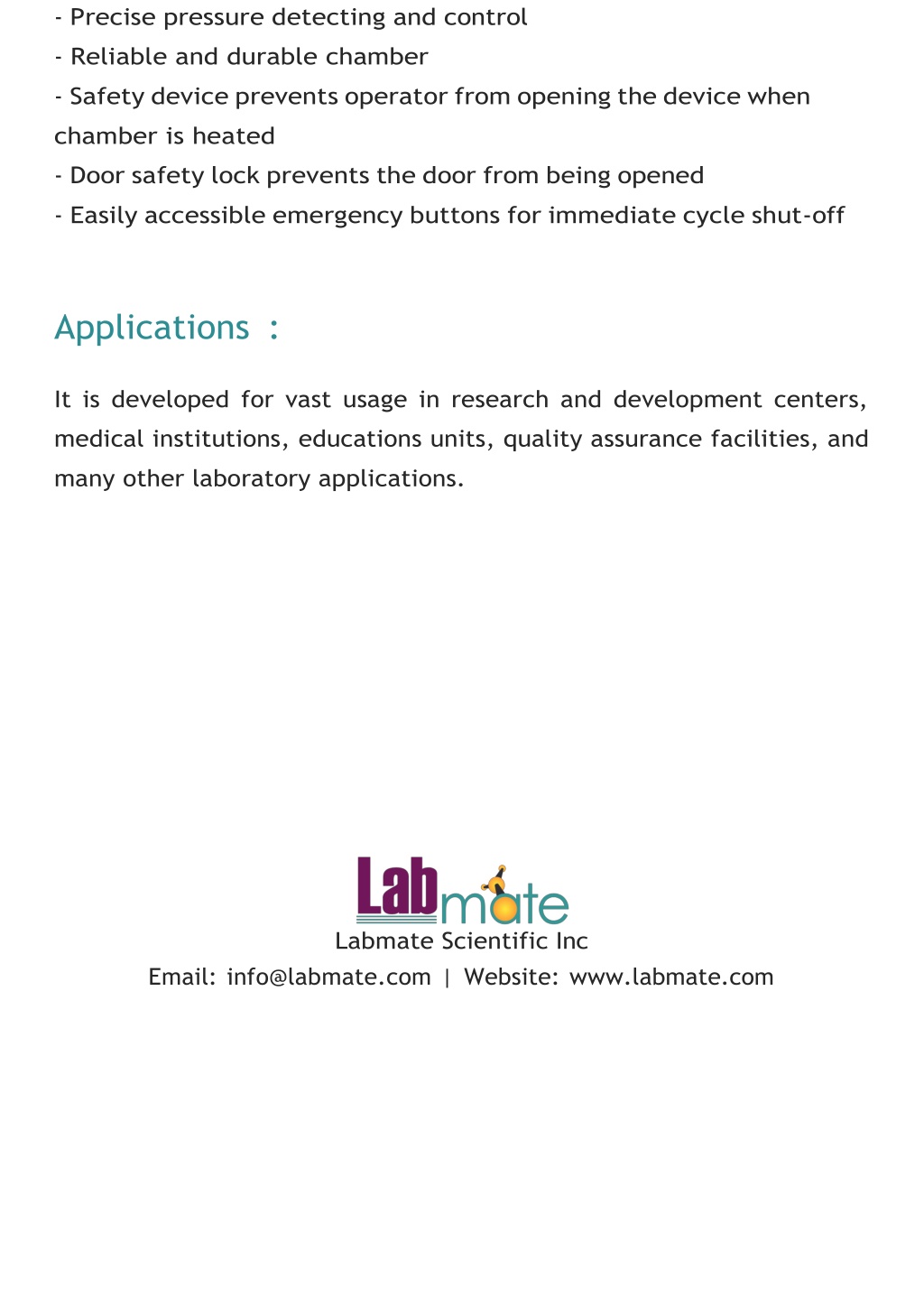

  3. -Precise pressure detecting and control -Reliable and durable chamber -Safety device prevents operator from opening the device when chamber is heated -Door safety lock prevents the door from being opened -Easily accessible emergency buttons for immediate cycle shut-off Applications: It is developed for vast usage in research and development centers, medical institutions, educations units, quality assurance facilities, and many other laboratory applications. Labmate Scientific Inc Email: info@labmate.com | Website: www.labmate.com
