Horizontal Autoclave LMHA-A400

Labmate Horizontal Autoclave is a top-loading, With a 150L capacity and a temperature range of 40u00b0C to 134u00b0C, it operates at 0.22 MPA pressure. It features an LED panel for easy control and monitoring, and offers a time range of 0-60 minutes for both sterilization and drying.

hannacurry
Download Presentation

Horizontal Autoclave LMHA-A400

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

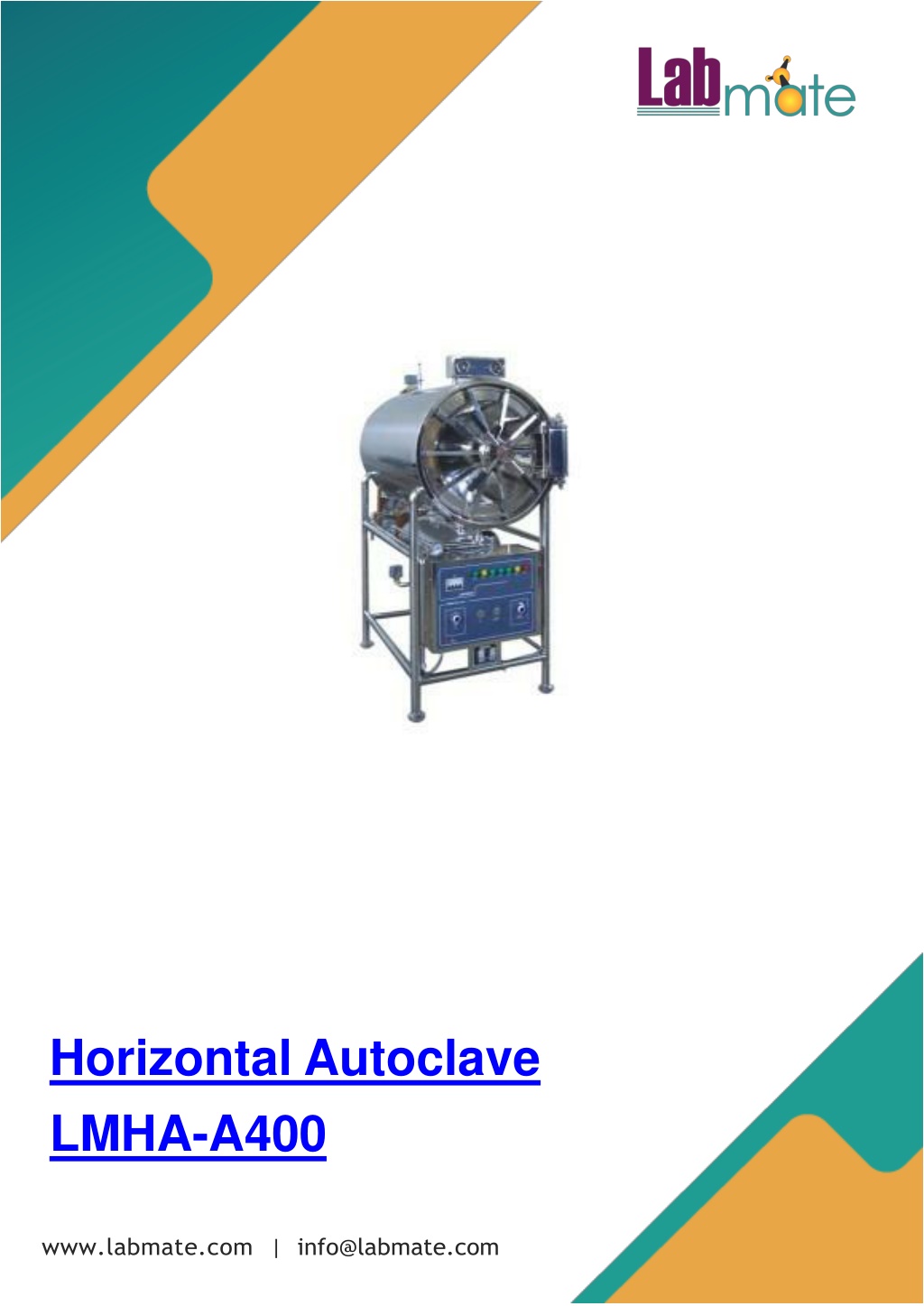

  1. Horizontal Autoclave LMHA-A400 www.labmate.com|info@labmate.com

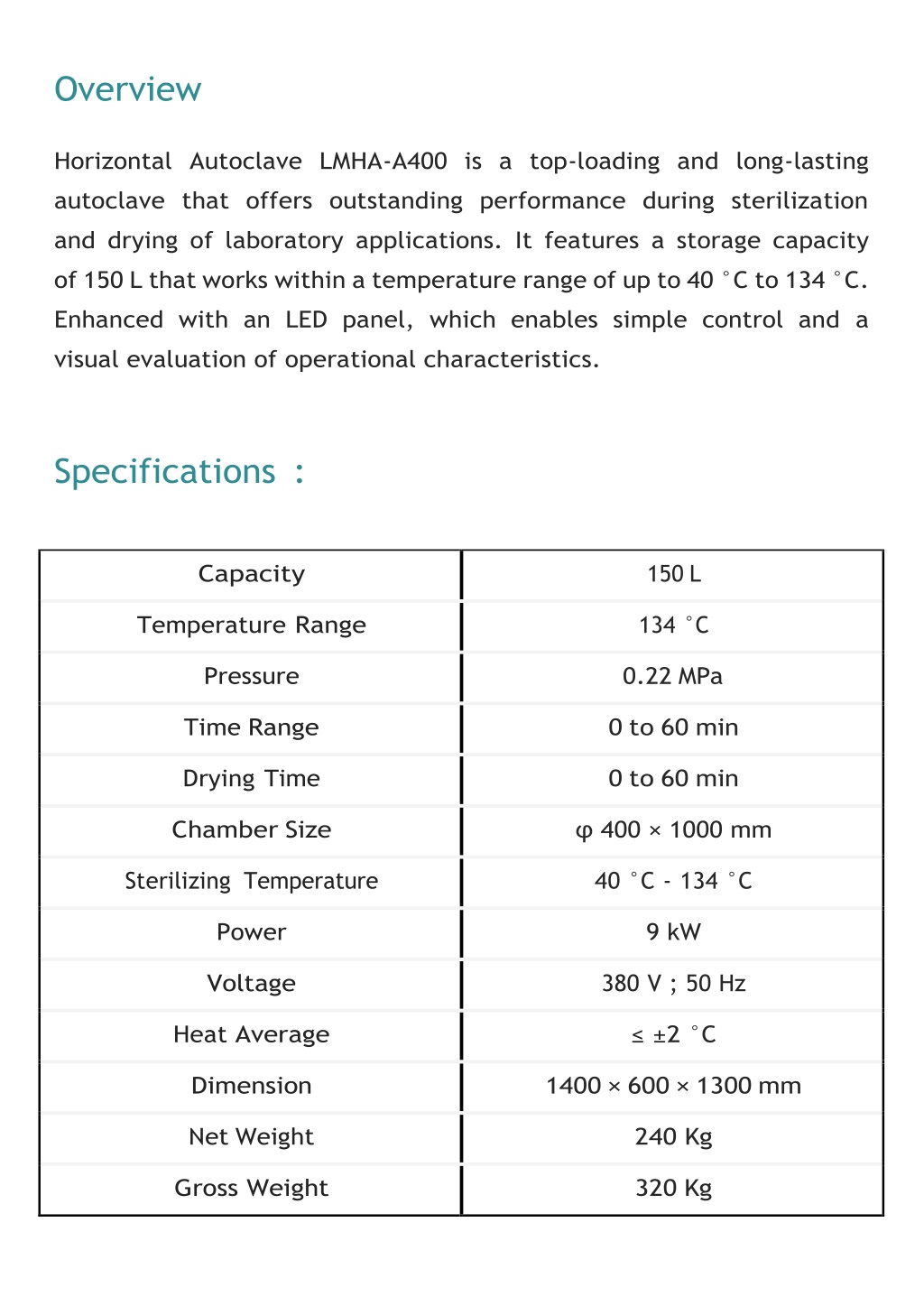

  2. Overview Horizontal Autoclave LMHA-A400 is a top-loading and long-lasting autoclave that offers outstanding performance during sterilization and drying of laboratory applications. It features a storage capacity of 150 L that works within a temperature range of up to 40 °C to 134 °C. Enhanced with an LED panel, which enables simple control and a visual evaluation of operational characteristics. Specifications : Capacity 150 L Temperature Range 134 °C Pressure 0.22 MPa Time Range 0 to 60 min Drying Time 0 to 60 min Chamber Size φ 400 × 1000 mm Sterilizing Temperature 40 °C - 134 °C Power 9 kW Voltage 380 V ; 50 Hz Heat Average ≤ ±2 °C Dimension 1400 × 600 × 1300 mm Net Weight 240 Kg Gross Weight 320 Kg

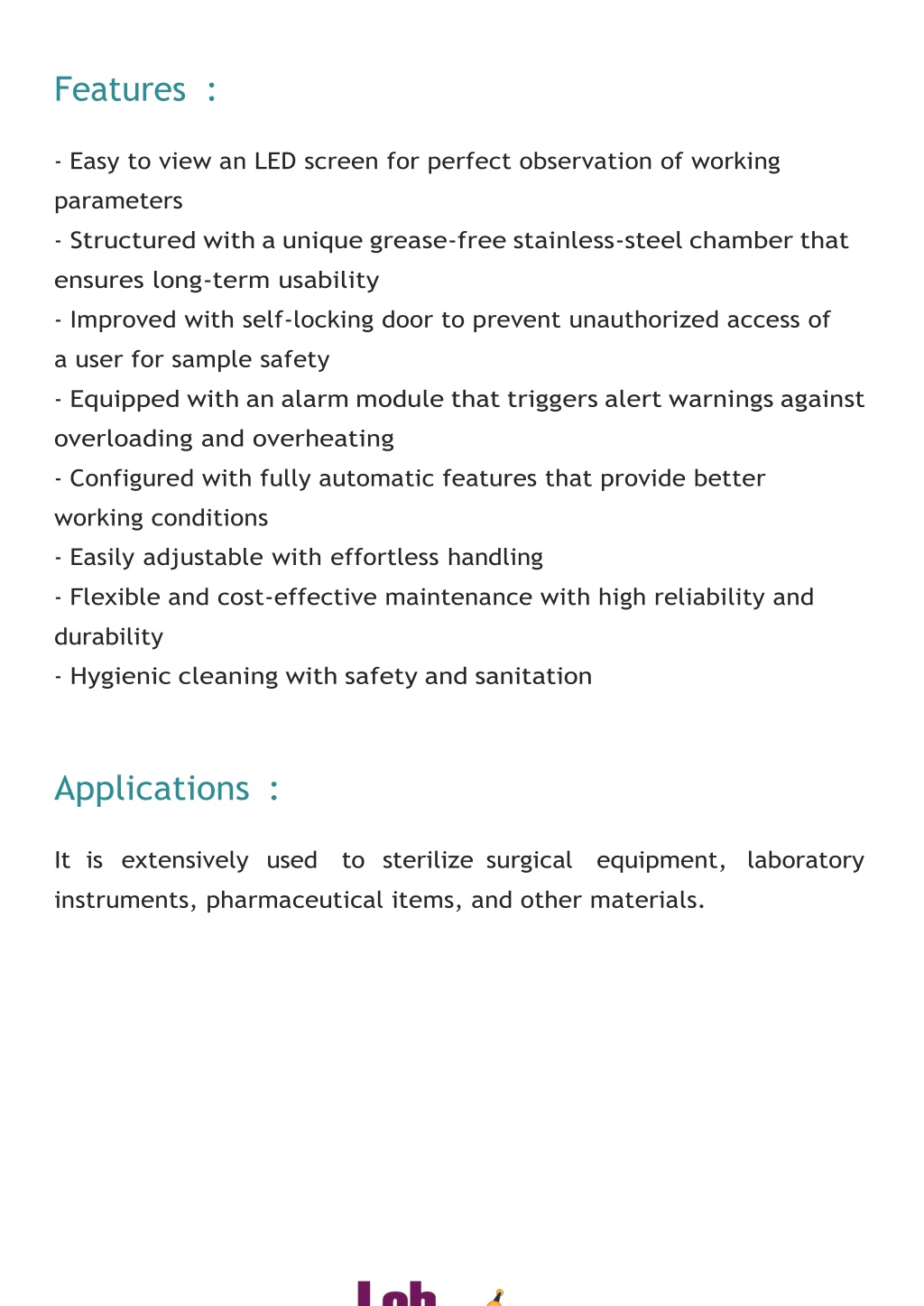

  3. Features: -Easy to view an LED screen for perfect observation of working parameters -Structured with a unique grease-free stainless-steel chamber that ensures long-term usability -Improved with self-locking door to prevent unauthorized access of a user for sample safety -Equipped with an alarm module that triggers alert warnings against overloading and overheating -Configured with fully automatic features that provide better working conditions -Easily adjustable with effortless handling -Flexible and cost-effective maintenance with high reliability and durability -Hygienic cleaning with safety and sanitation Applications: Itisextensivelyusedtosterilizesurgicalequipment,laboratory instruments, pharmaceutical items, and other materials.

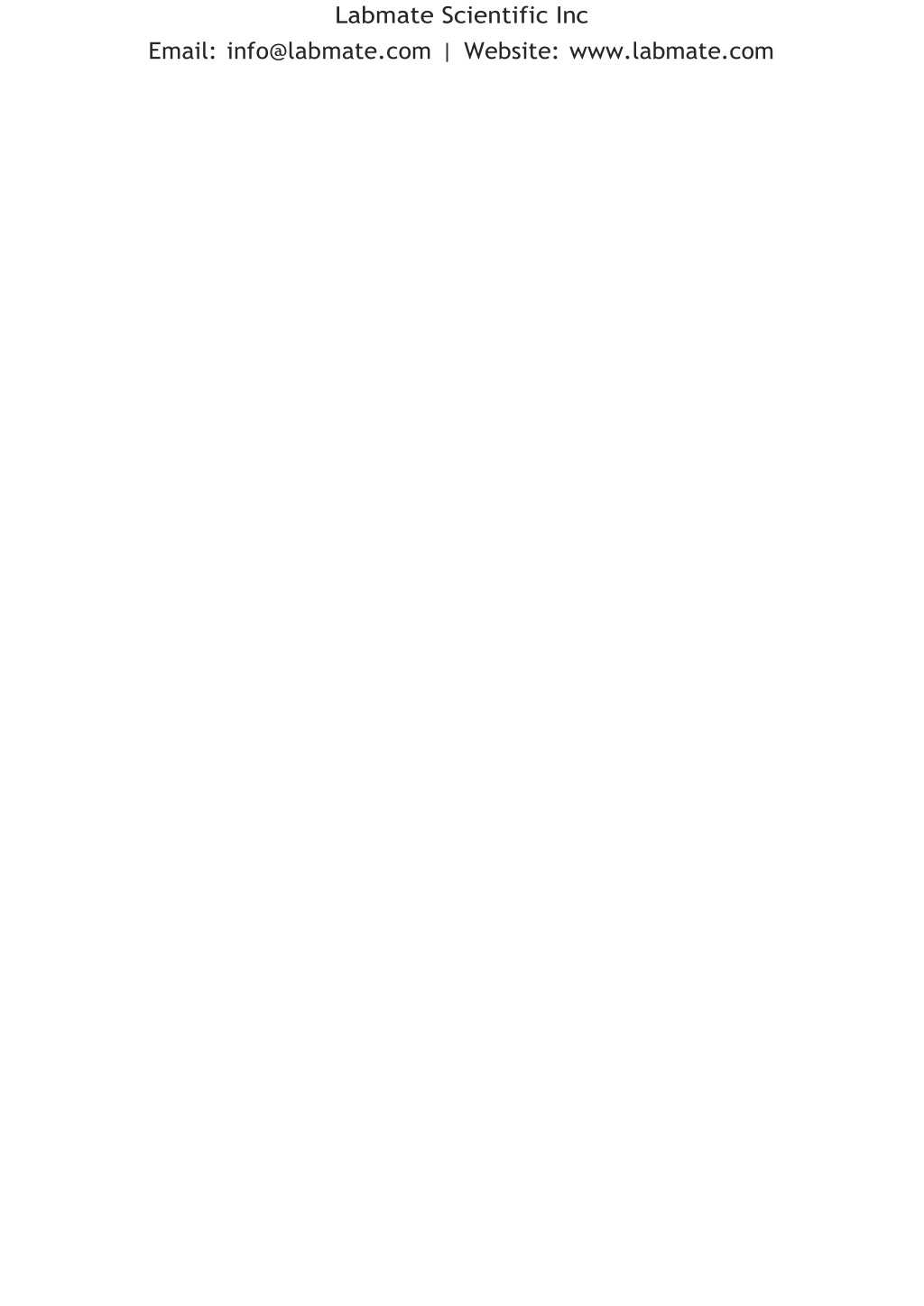

  4. Labmate Scientific Inc Email: info@labmate.com | Website: www.labmate.com
