Horizontal Autoclave LMHA-A200

Labmate Horizontal Autoclave offers top performance with smart technology, robust construction, and a 150 L capacity. Featuring a microprocessor control system with LED display, it ensures accurate temperature control with 40-134u00b0C, 0.22 MPA pressure, and 0-60 min sterilization/drying time.

hannacurry
Download Presentation

Horizontal Autoclave LMHA-A200

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

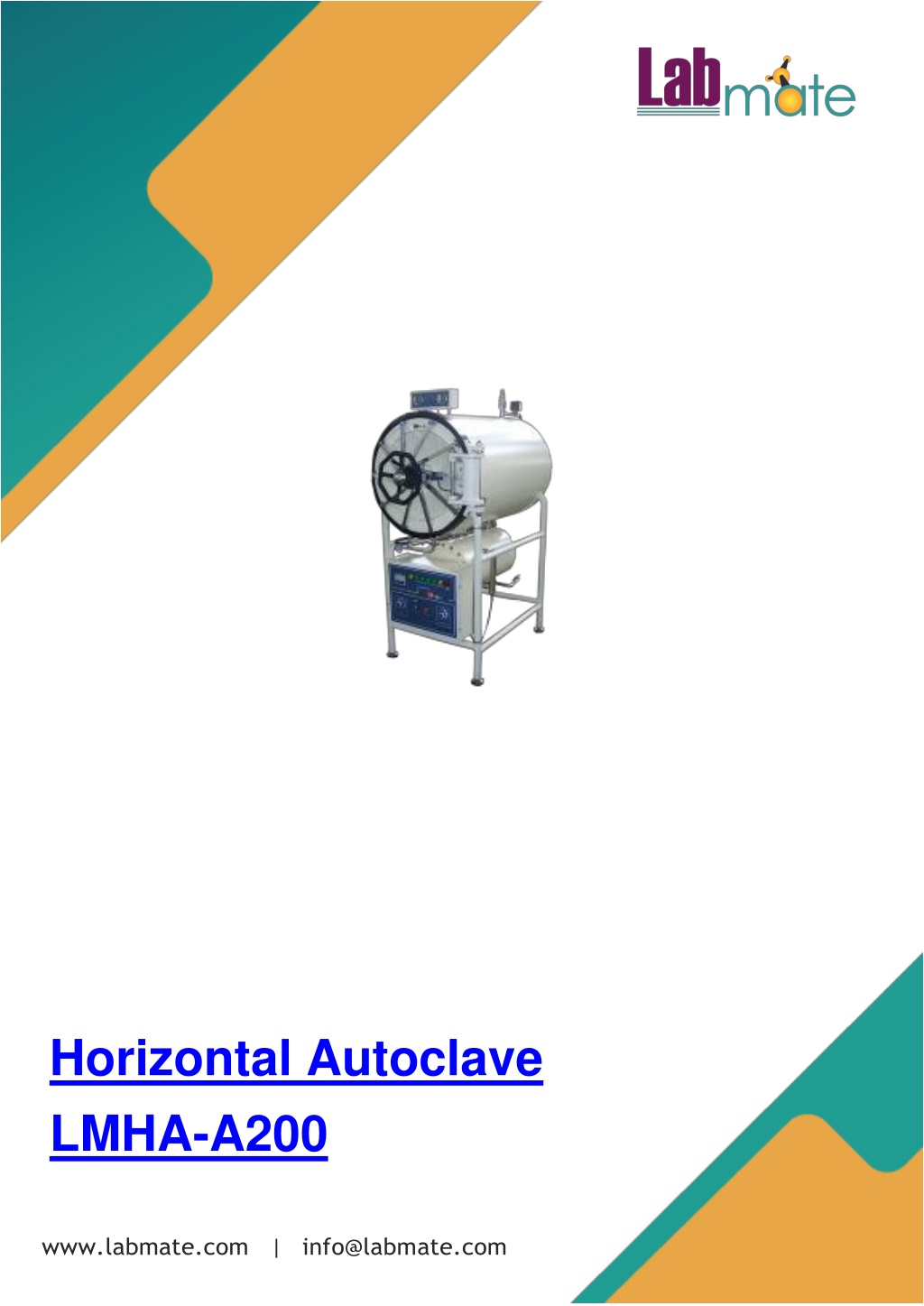

  1. Horizontal Autoclave LMHA-A200 www.labmate.com | info@labmate.com

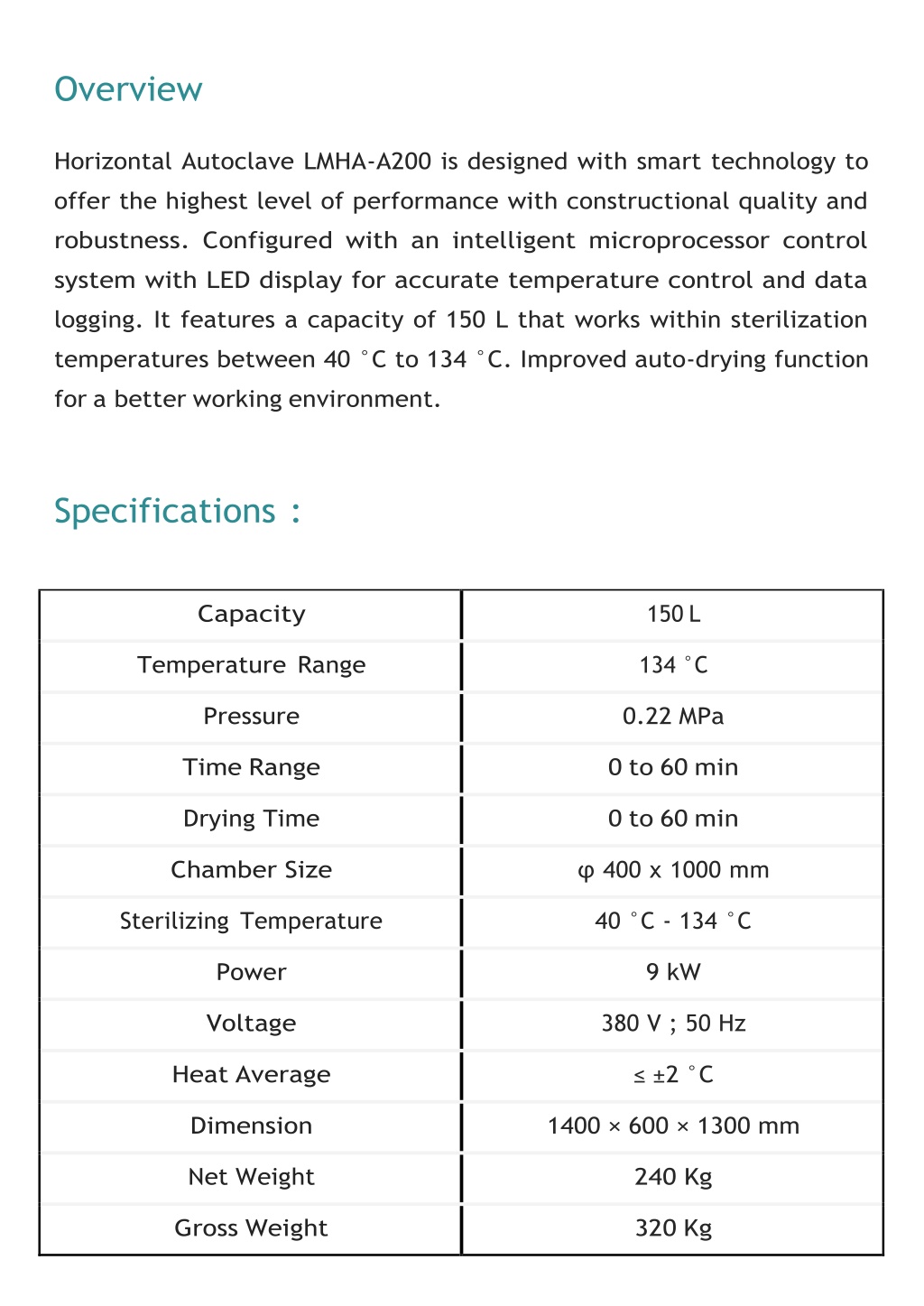

  2. Overview Horizontal Autoclave LMHA-A200 is designed with smart technology to offer the highest level of performance with constructional quality and robustness. Configured with an intelligent microprocessor control system with LED display for accurate temperature control and data logging. It features a capacity of 150 L that works within sterilization temperatures between 40 °C to 134 °C. Improved auto-drying function for a better working environment. Specifications : Capacity 150 L Temperature Range 134 °C Pressure 0.22 MPa Time Range 0 to 60 min Drying Time 0 to 60 min Chamber Size φ 400 x 1000 mm Sterilizing Temperature 40 °C - 134 °C Power 9 kW Voltage 380 V ; 50 Hz Heat Average ≤ ±2 °C Dimension 1400 × 600 × 1300 mm Net Weight 240 Kg Gross Weight 320 Kg

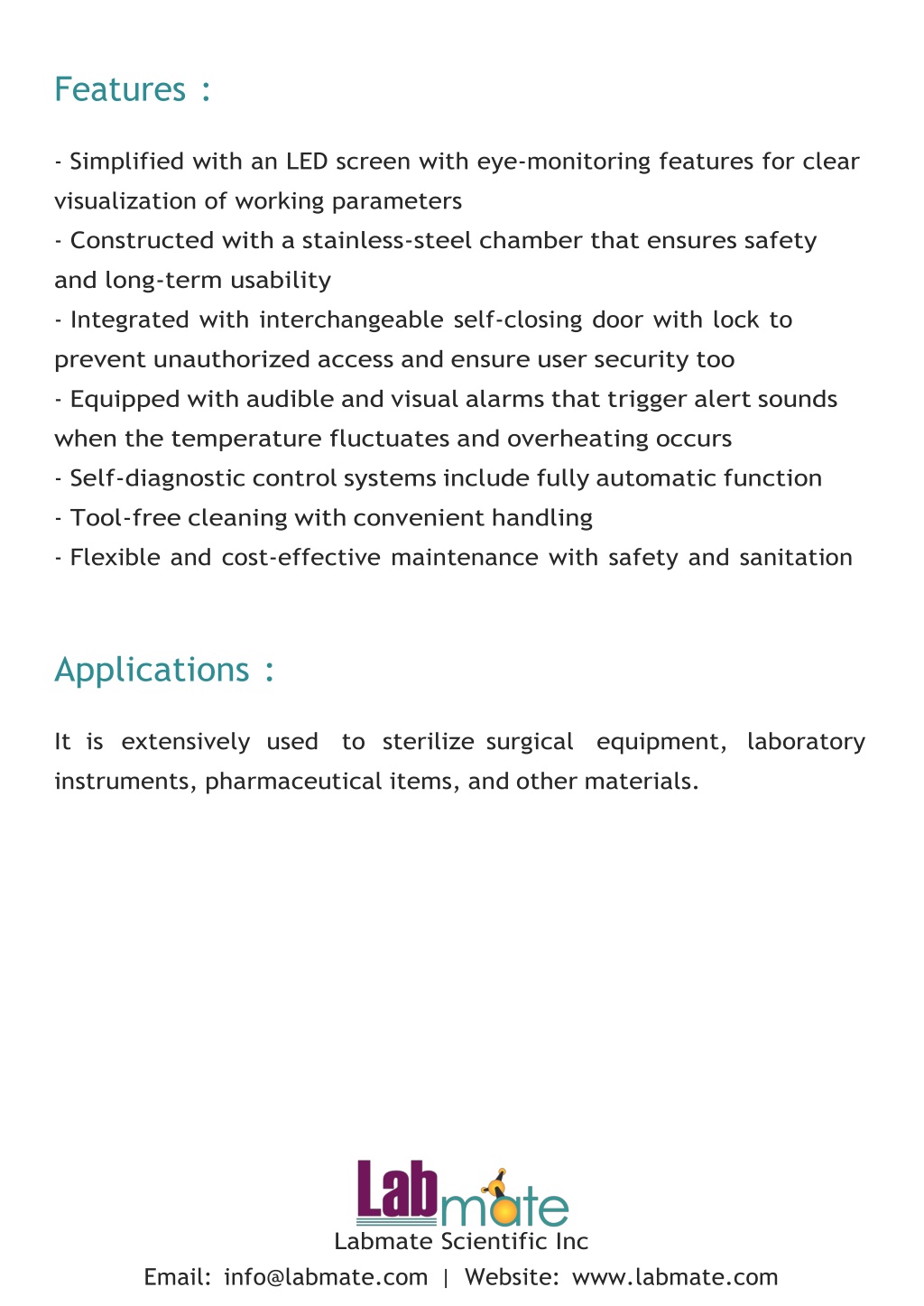

  3. Features : -Simplified with an LED screen with eye-monitoring features for clear visualization of working parameters -Constructed with a stainless-steel chamber that ensures safety and long-term usability -Integrated with interchangeable self-closing door with lock to prevent unauthorized access and ensure user security too -Equipped with audible and visual alarms that trigger alert sounds when the temperature fluctuates and overheating occurs -Self-diagnostic control systems include fully automatic function -Tool-free cleaning with convenient handling -Flexible and cost-effective maintenance with safety and sanitation Applications : It is extensively used to sterilize surgical equipment, laboratory instruments, pharmaceutical items, and other materials. Labmate Scientific Inc Email: info@labmate.com | Website: www.labmate.com
