Horizontal Autoclave LMHA-A103

Labmate Horizontal Autoclave is a 100L floor-standing unit with a 144u00b0C design temperature. It features a user-friendly microprocessor control and touch-screen display. It consumes up to 10 kg of steam and 30 kg of water, with a design pressure range.

hannacurry
Download Presentation

Horizontal Autoclave LMHA-A103

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

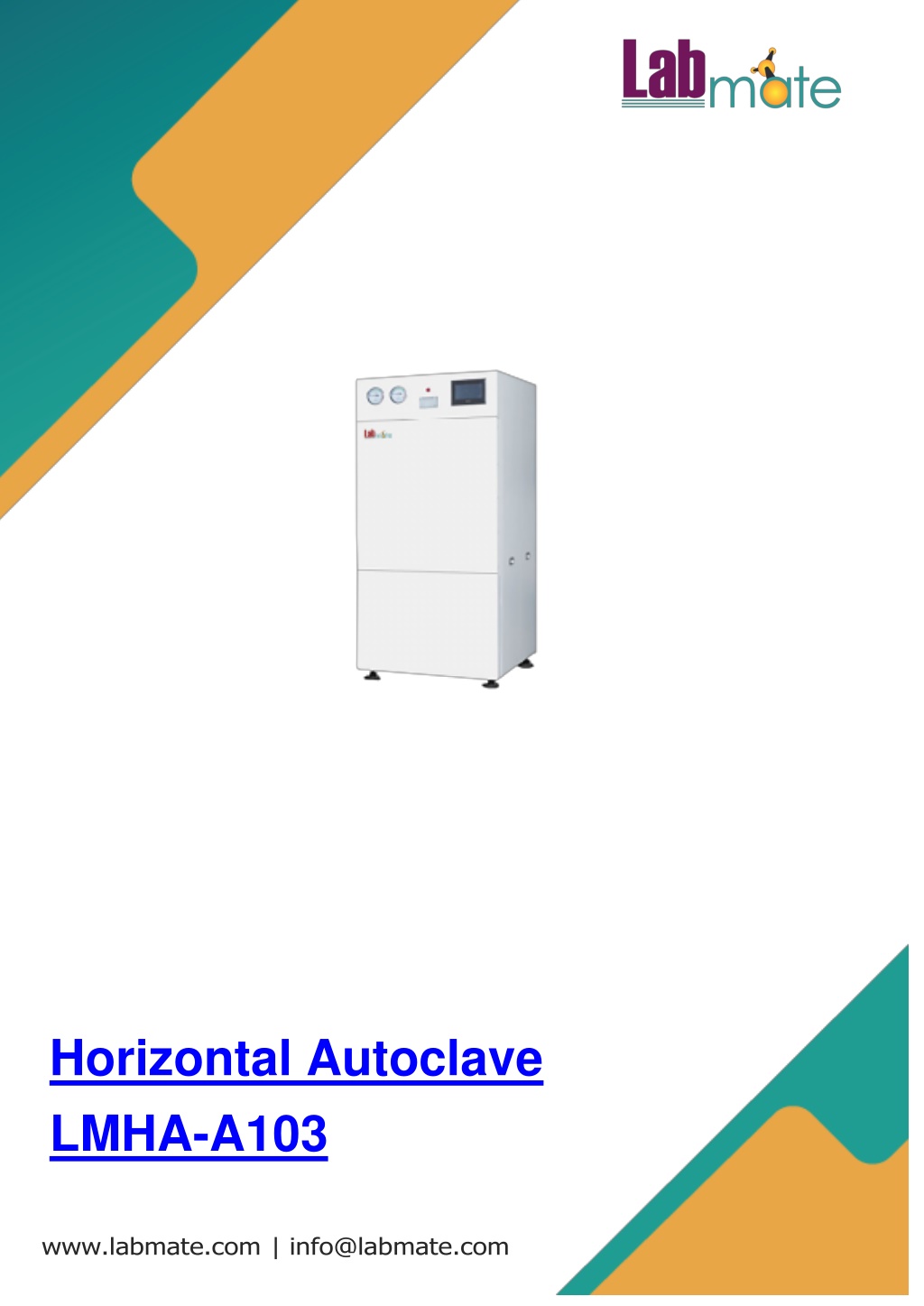

  1. Horizontal Autoclave LMHA-A103 www.labmate.com | info@labmate.com

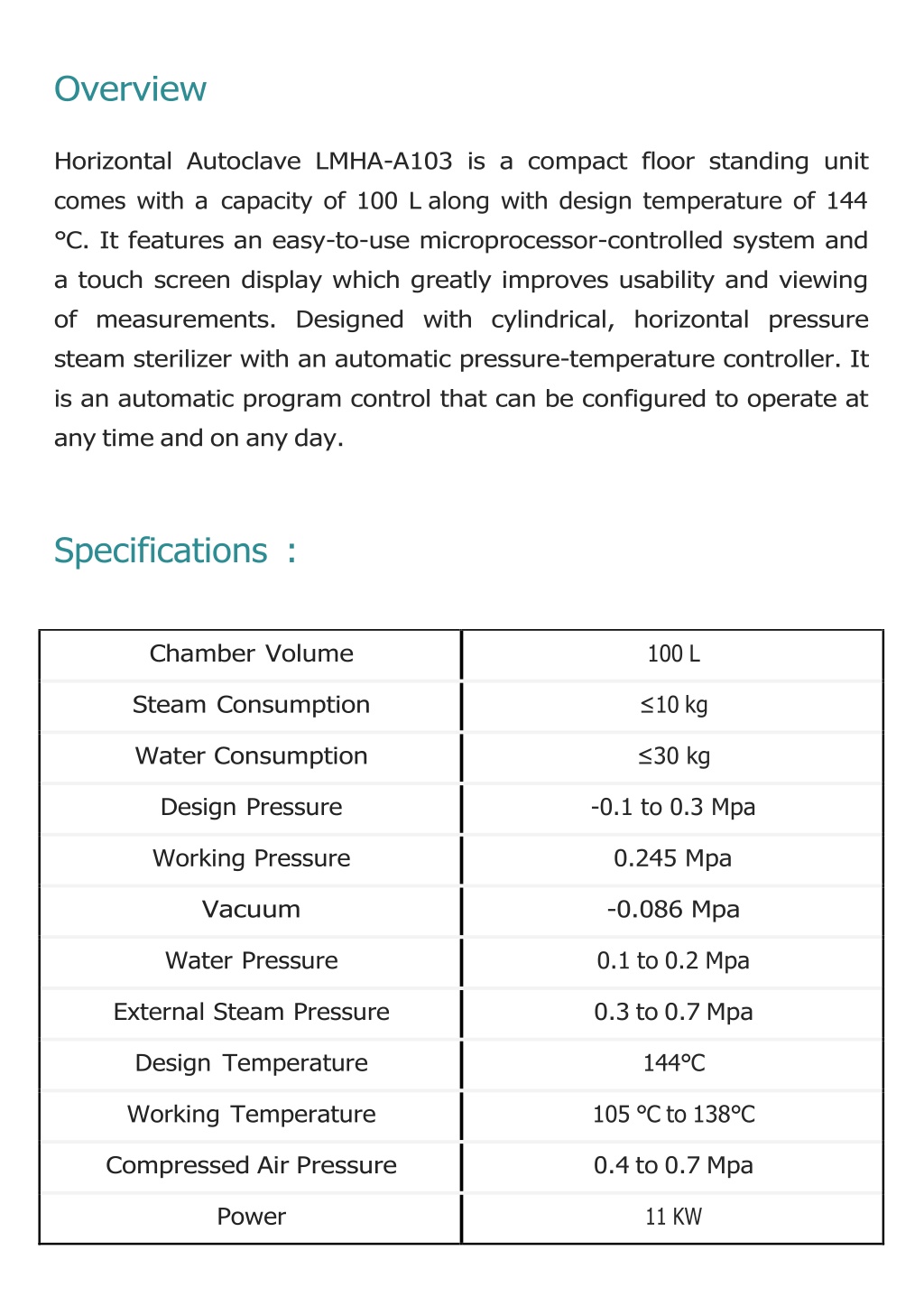

  2. Overview Horizontal Autoclave LMHA-A103 is a compact floor standing unit comes with a capacity of 100 L along with design temperature of 144 ℃. It features an easy-to-use microprocessor-controlled system and a touch screen display which greatly improves usability and viewing of measurements. Designed with cylindrical, horizontal pressure steam sterilizer with an automatic pressure-temperature controller. It is an automatic program control that can be configured to operate at any time and on any day. Specifications : Chamber Volume 100 L Steam Consumption ≤10 kg Water Consumption ≤30 kg Design Pressure -0.1 to 0.3 Mpa Working Pressure 0.245 Mpa Vacuum -0.086 Mpa Water Pressure 0.1 to 0.2 Mpa External Steam Pressure 0.3 to 0.7 Mpa Design Temperature 144℃ Working Temperature 105 ℃ to 138℃ Compressed Air Pressure 0.4 to 0.7 Mpa Power 11 KW

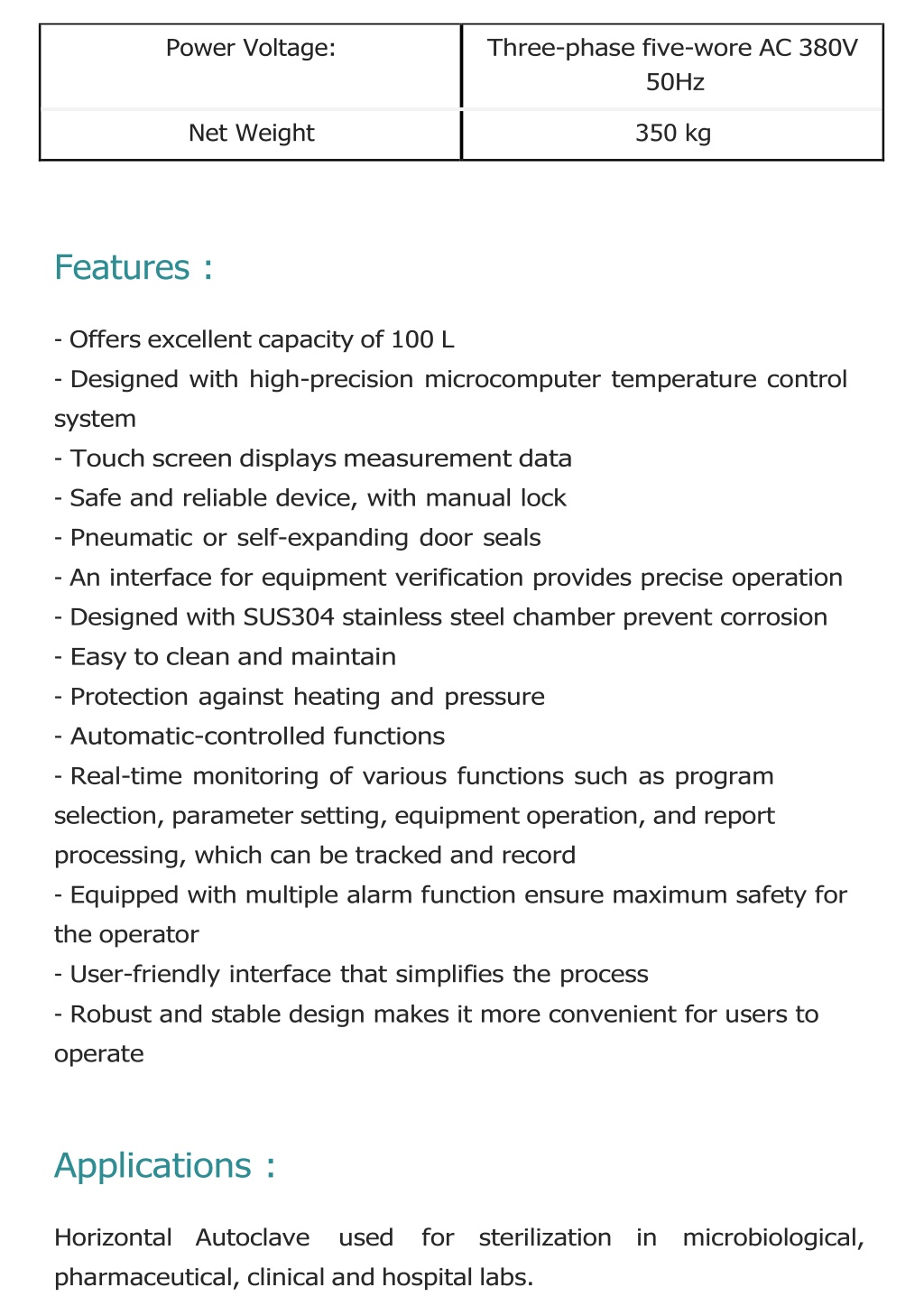

  3. Power Voltage: Three-phase five-wore AC 380V 50Hz Net Weight 350 kg Features : -Offers excellent capacity of 100 L -Designed with high-precision microcomputer temperature control system -Touch screen displays measurement data -Safe and reliable device, with manual lock -Pneumatic or self-expanding door seals -An interface for equipment verification provides precise operation -Designed with SUS304 stainless steel chamber prevent corrosion -Easy to clean and maintain -Protection against heating and pressure -Automatic-controlled functions -Real-time monitoring of various functions such as program selection, parameter setting, equipment operation, and report processing, which can be tracked and record -Equipped with multiple alarm function ensure maximum safety for the operator -User-friendly interface that simplifies the process -Robust and stable design makes it more convenient for users to operate Applications : Horizontal Autoclave used for sterilization in microbiological, pharmaceutical, clinical and hospital labs.

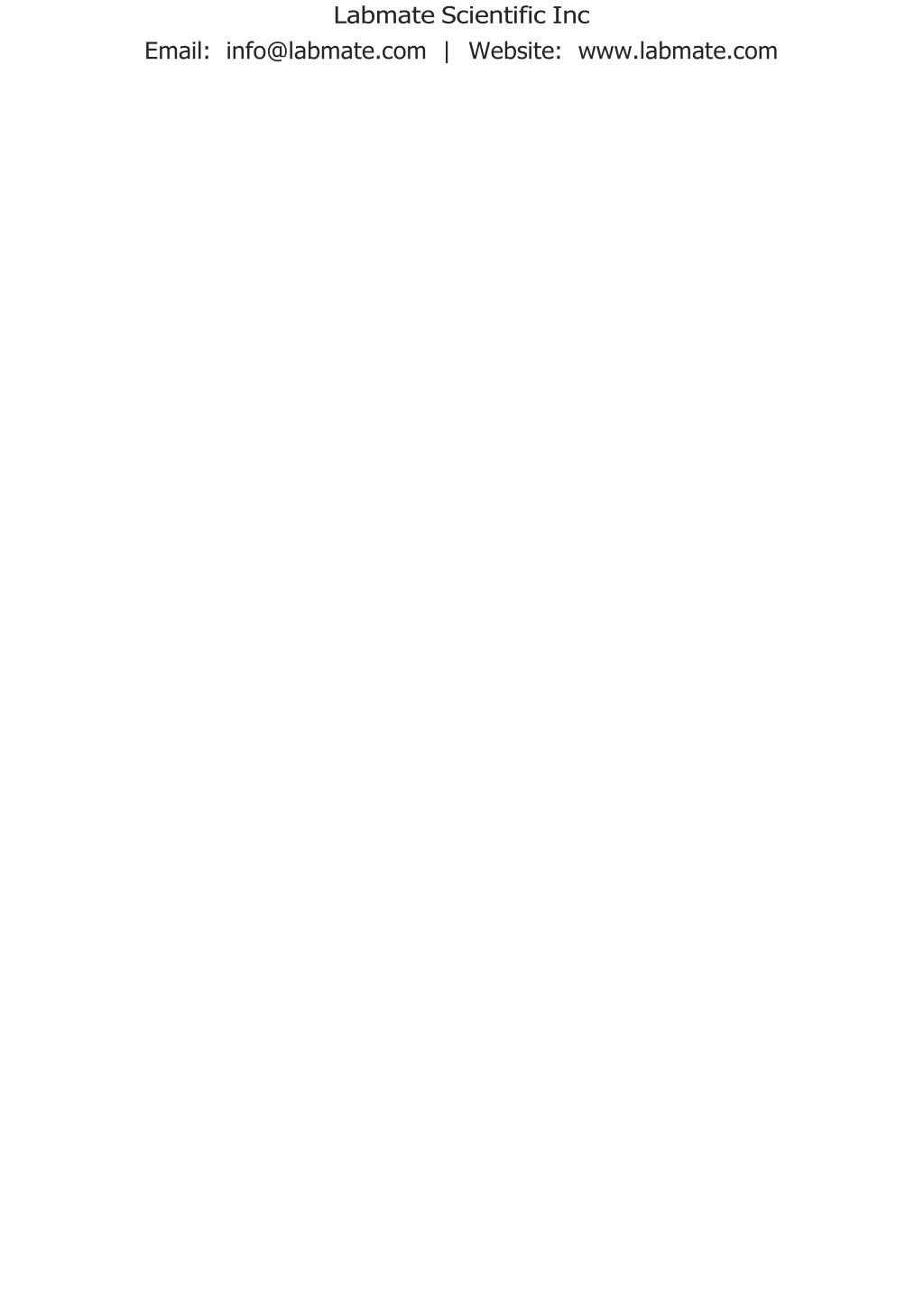

  4. Labmate Scientific Inc Email: info@labmate.com | Website: www.labmate.com
