Horizontal Autoclave LMHA-A100

Labmate Horizontal Autoclave is a 120L, free-standing sterilize featuring a rust-free stainless steel chamber. It ensures reliable sterilization between 50u00b0C and 134u00b0C with 0.217 Mpa pressure. The LED display allows easy operation and clear monitoring with a time range of 0 to 99 hr.

hannacurry
Download Presentation

Horizontal Autoclave LMHA-A100

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

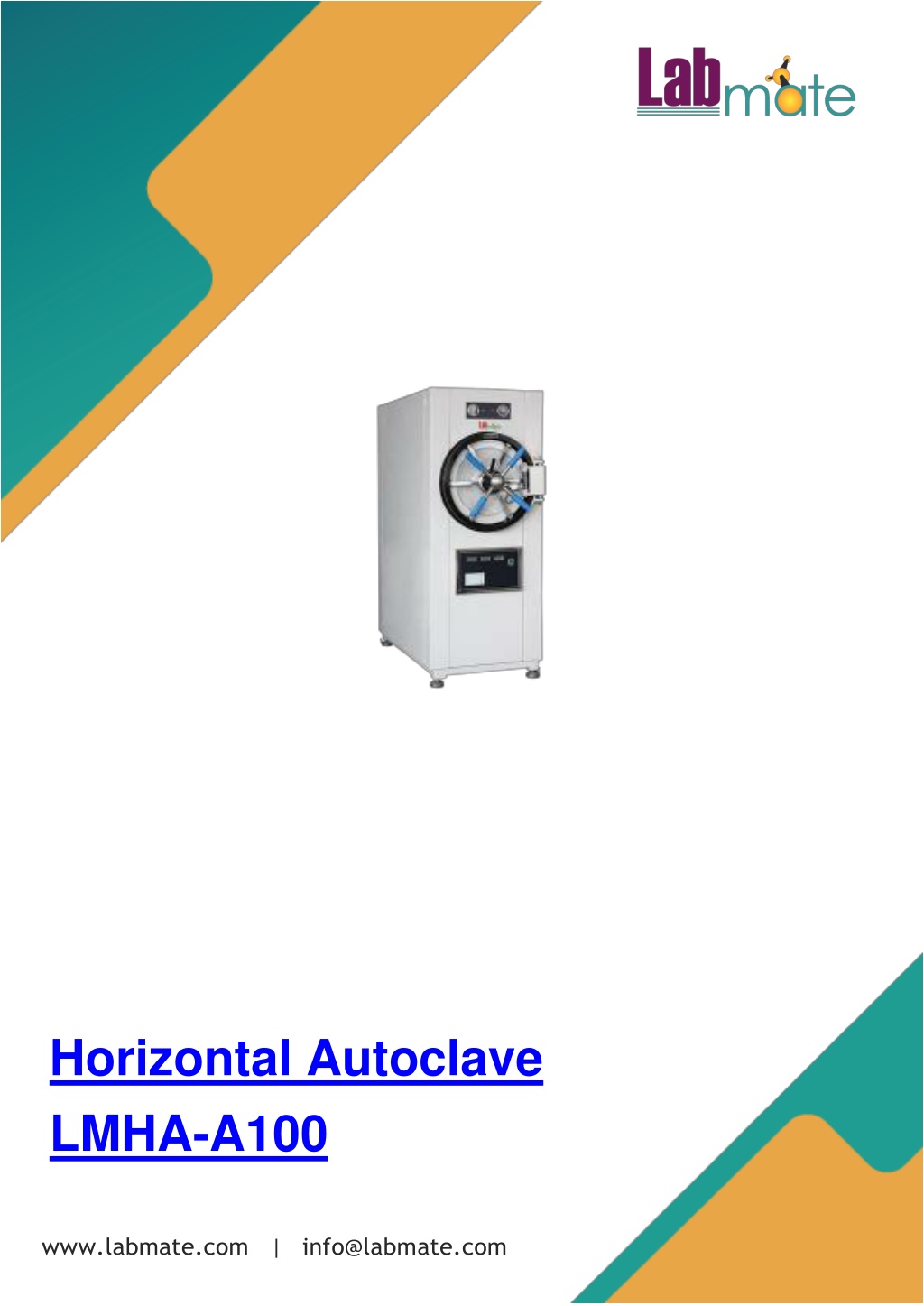

  1. Horizontal Autoclave LMHA-A100 www.labmate.com | info@labmate.com

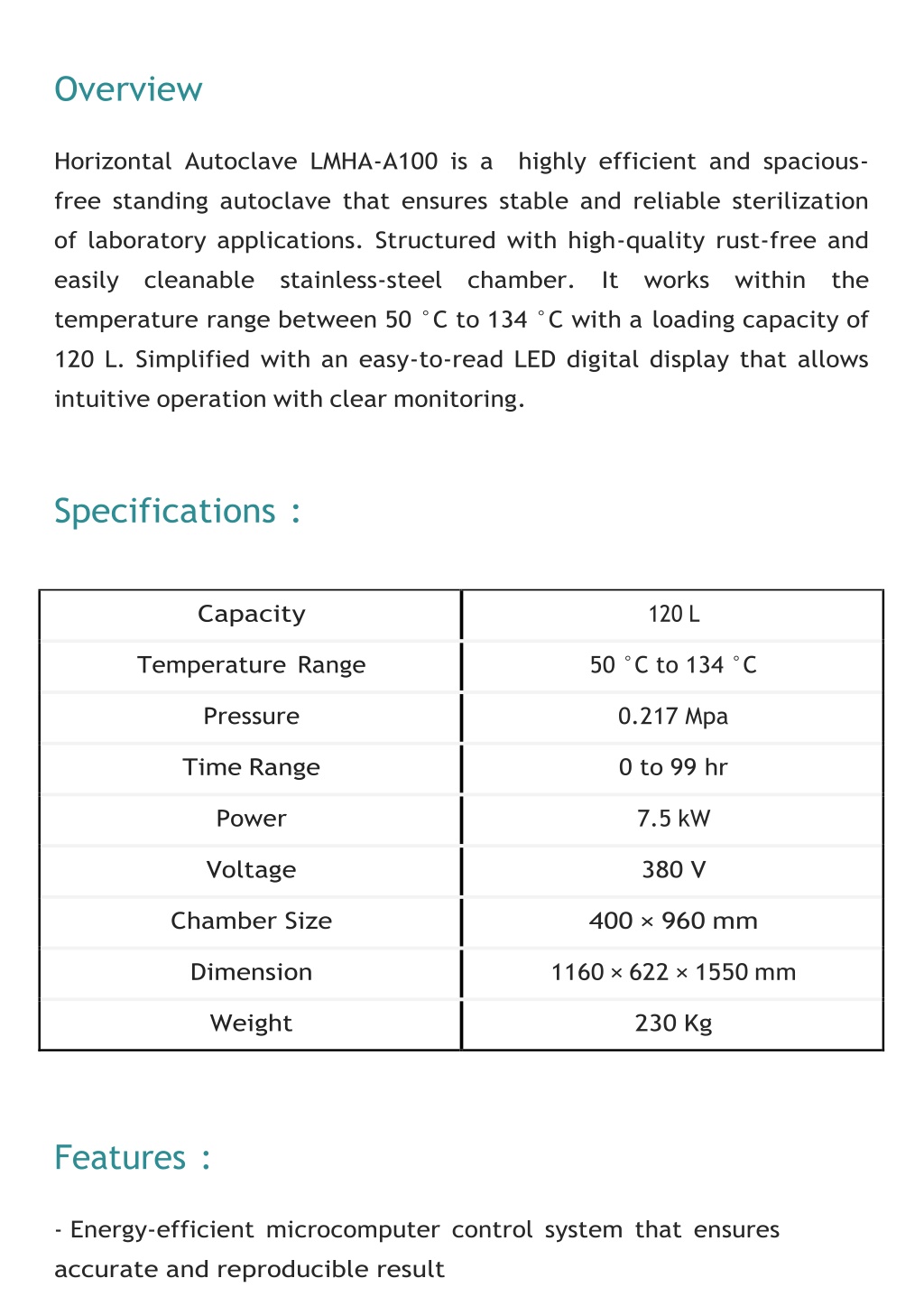

  2. Overview Horizontal Autoclave LMHA-A100 is a highly efficient and spacious- free standing autoclave that ensures stable and reliable sterilization of laboratory applications. Structured with high-quality rust-free and easily cleanable stainless-steel chamber. It works within the temperature range between 50 °C to 134 °C with a loading capacity of 120 L. Simplified with an easy-to-read LED digital display that allows intuitive operation with clear monitoring. Specifications : Capacity 120 L Temperature Range 50 °C to 134 °C Pressure 0.217 Mpa Time Range 0 to 99 hr Power 7.5 kW Voltage 380 V Chamber Size 400 × 960 mm Dimension 1160 × 622 × 1550 mm Weight 230 Kg Features : -Energy-efficient microcomputer control system that ensures accurate and reproducible result

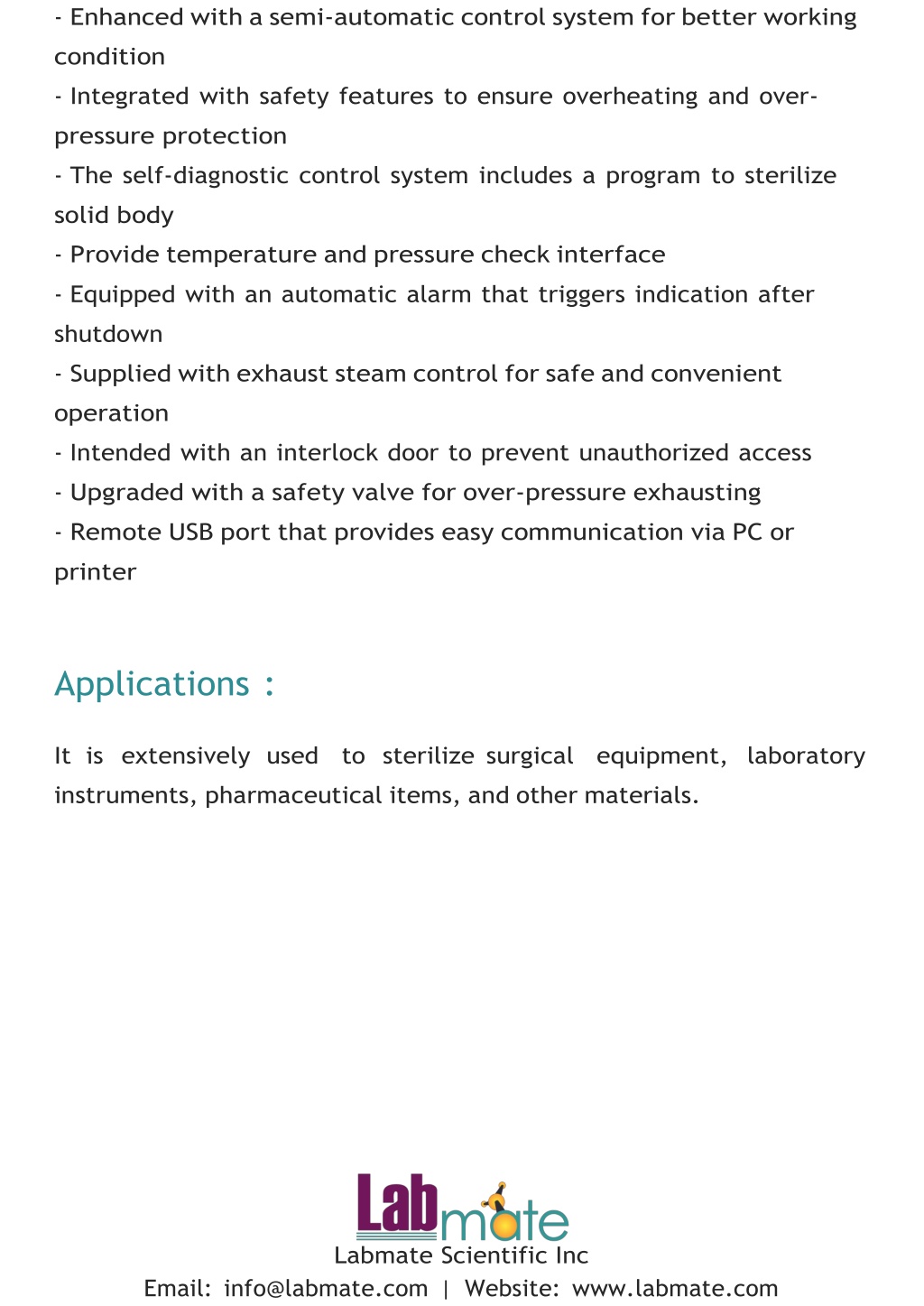

  3. -Enhanced with a semi-automatic control system for better working condition -Integrated with safety features to ensure overheating and over- pressure protection -The self-diagnostic control system includes a program to sterilize solid body -Provide temperature and pressure check interface -Equipped with an automatic alarm that triggers indication after shutdown -Supplied with exhaust steam control for safe and convenient operation -Intended with an interlock door to prevent unauthorized access -Upgraded with a safety valve for over-pressure exhausting -Remote USB port that provides easy communication via PC or printer Applications : It is extensively used to sterilize surgical equipment, laboratory instruments, pharmaceutical items, and other materials. Labmate Scientific Inc Email: info@labmate.com | Website: www.labmate.com
