Handheld Airborne Particle Counter 10℃ to 35℃

Labmate Handheld Airborne Particle Counter is a reliable, portable instrument for clean room applications, offering multi-channel counting (0.3 to 5.0 u00b5m). With a 0.1 CFM flow rate, audible alarms, user-selectable limits, and easy data export to Excel, it suits classes 100 to 300,000 environments.

hannacurry
Download Presentation

Handheld Airborne Particle Counter 10℃ to 35℃

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

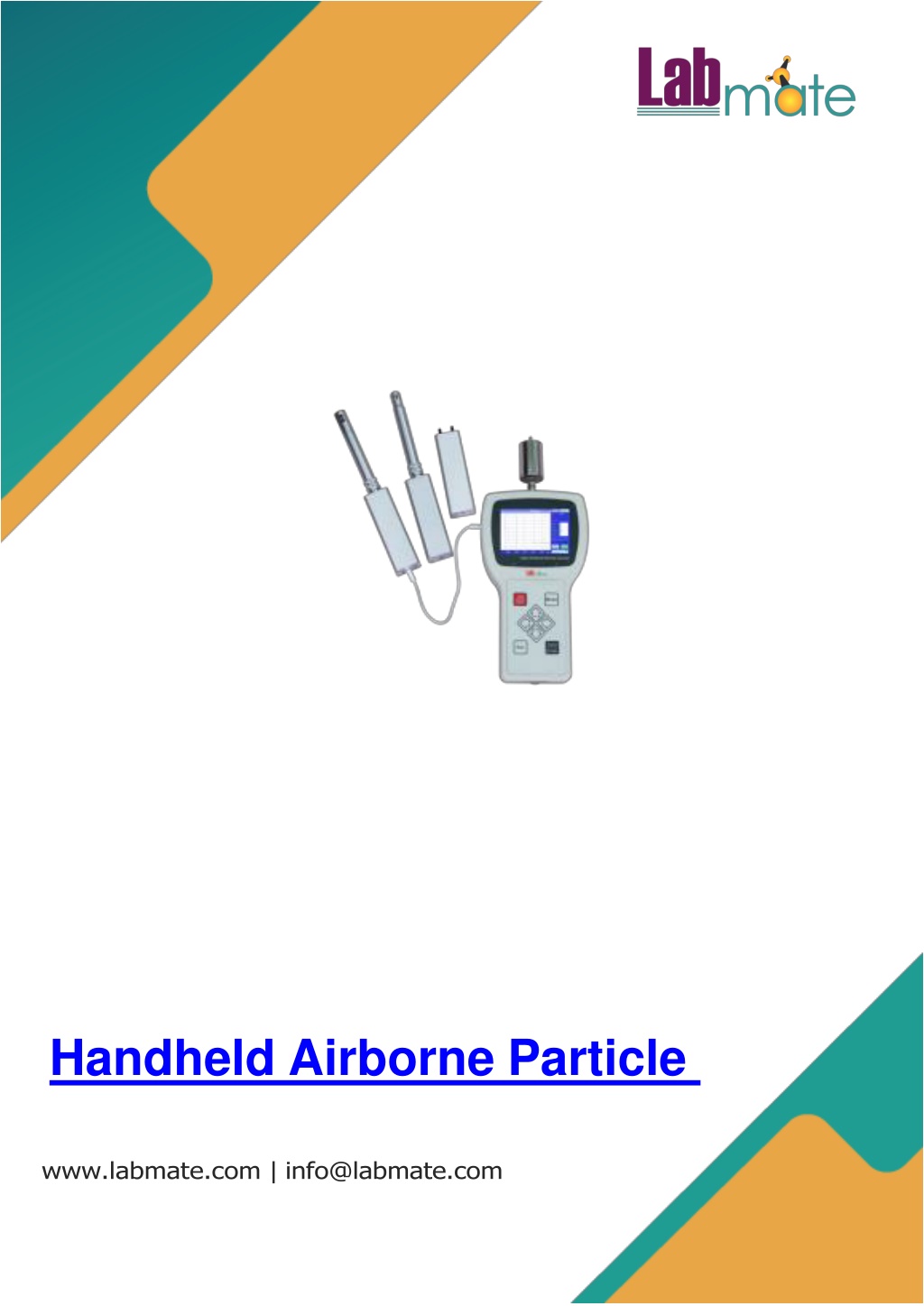

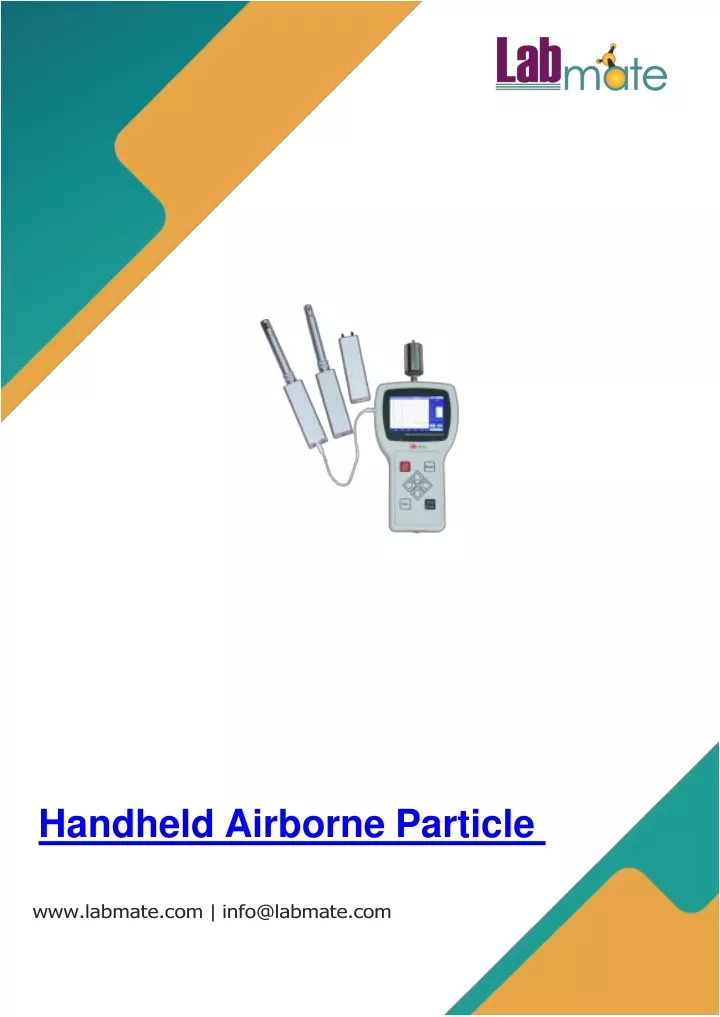

  1. Handheld Airborne Particle www.labmate.com | info@labmate.com

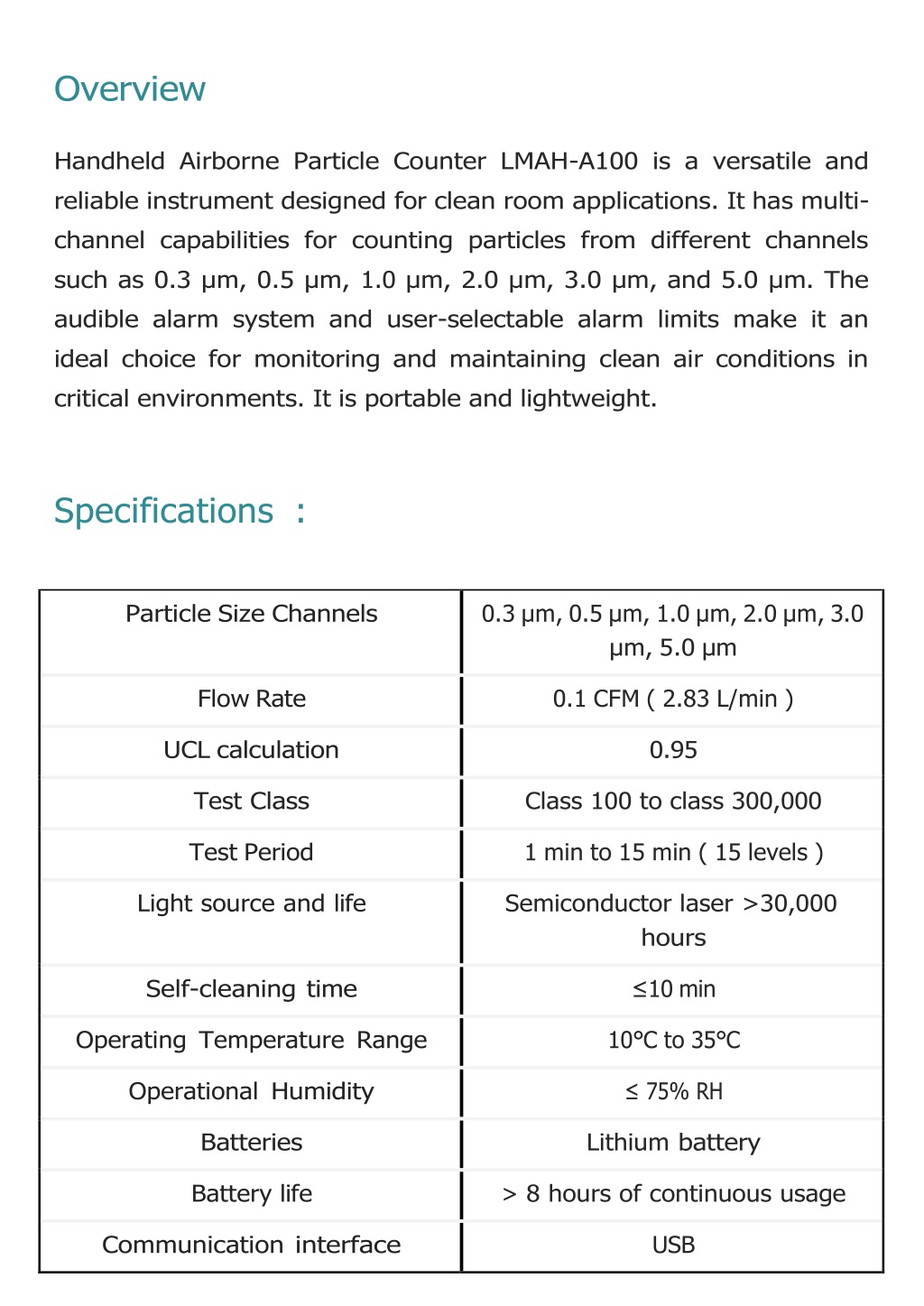

  2. Overview Handheld Airborne Particle Counter LMAH-A100 is a versatile and reliable instrument designed for clean room applications. It has multi- channel capabilities for counting particles from different channels such as 0.3 µm, 0.5 µm, 1.0 µm, 2.0 µm, 3.0 µm, and 5.0 µm. The audible alarm system and user-selectable alarm limits make it an ideal choice for monitoring and maintaining clean air conditions in critical environments. It is portable and lightweight. Specifications: Particle Size Channels 0.3 µm, 0.5 µm, 1.0 µm, 2.0 µm, 3.0 µm, 5.0 µm Flow Rate 0.1 CFM ( 2.83 L/min ) UCL calculation 0.95 Test Class Class 100 to class 300,000 Test Period 1 min to 15 min ( 15 levels ) Light source and life Semiconductor laser >30,000 hours Self-cleaning time ≤10 min Operating Temperature Range 10℃ to 35℃ Operational Humidity ≤75%RH Batteries Lithium battery Battery life ˃ 8 hours of continuous usage Communication interface USB

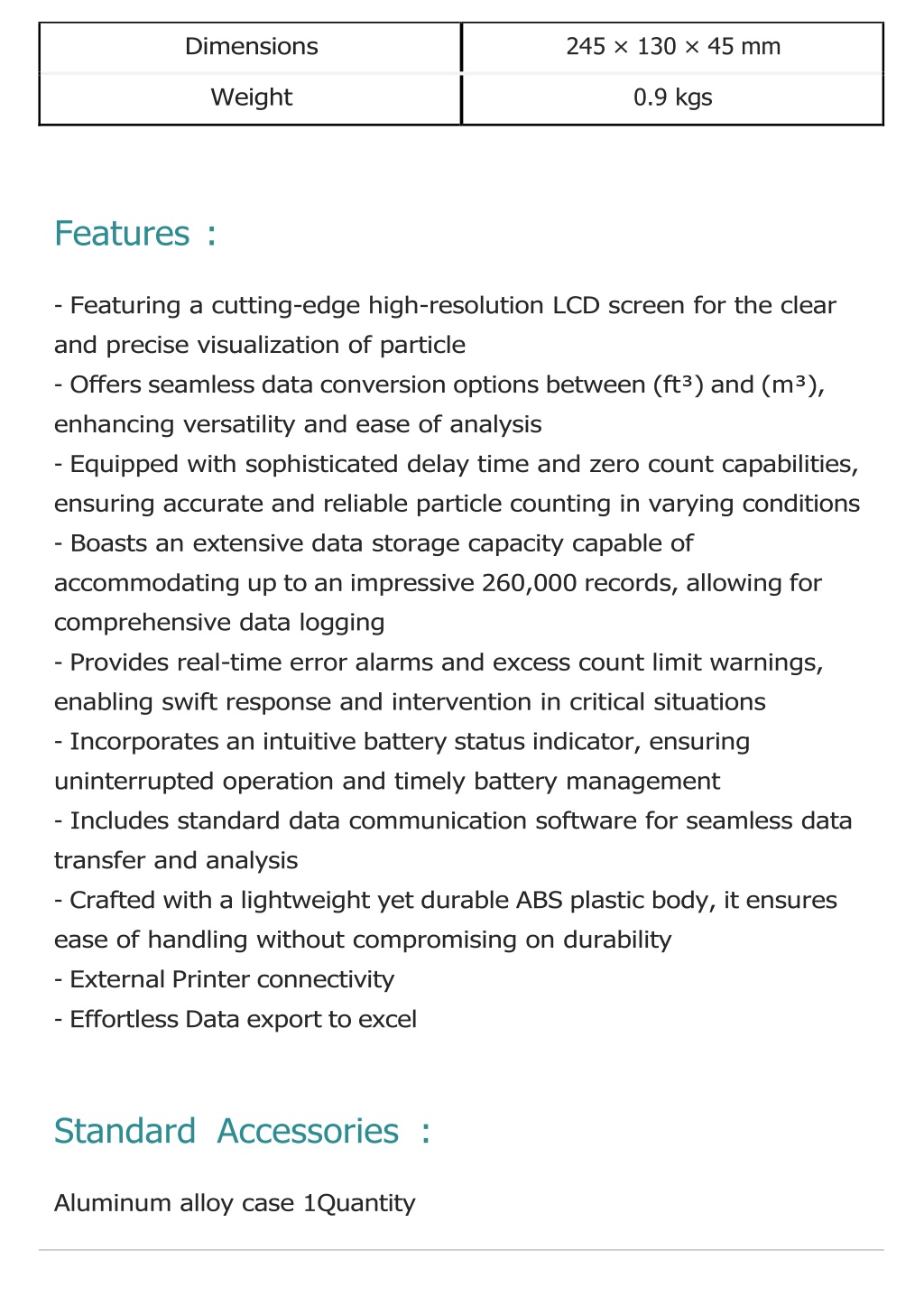

  3. Dimensions 245 × 130 × 45 mm Weight 0.9 kgs Features : -Featuring a cutting-edge high-resolution LCD screen for the clear and precise visualization of particle -Offers seamless data conversion options between (ft³) and (m³), enhancing versatility and ease of analysis -Equipped with sophisticated delay time and zero count capabilities, ensuring accurate and reliable particle counting in varying conditions -Boasts an extensive data storage capacity capable of accommodating up to an impressive 260,000 records, allowing for comprehensive data logging -Provides real-time error alarms and excess count limit warnings, enabling swift response and intervention in critical situations -Incorporates an intuitive battery status indicator, ensuring uninterrupted operation and timely battery management -Includes standard data communication software for seamless data transfer and analysis -Crafted with a lightweight yet durable ABS plastic body, it ensures ease of handling without compromising on durability -External Printer connectivity -Effortless Data export to excel StandardAccessories: Aluminum alloy case 1Quantity

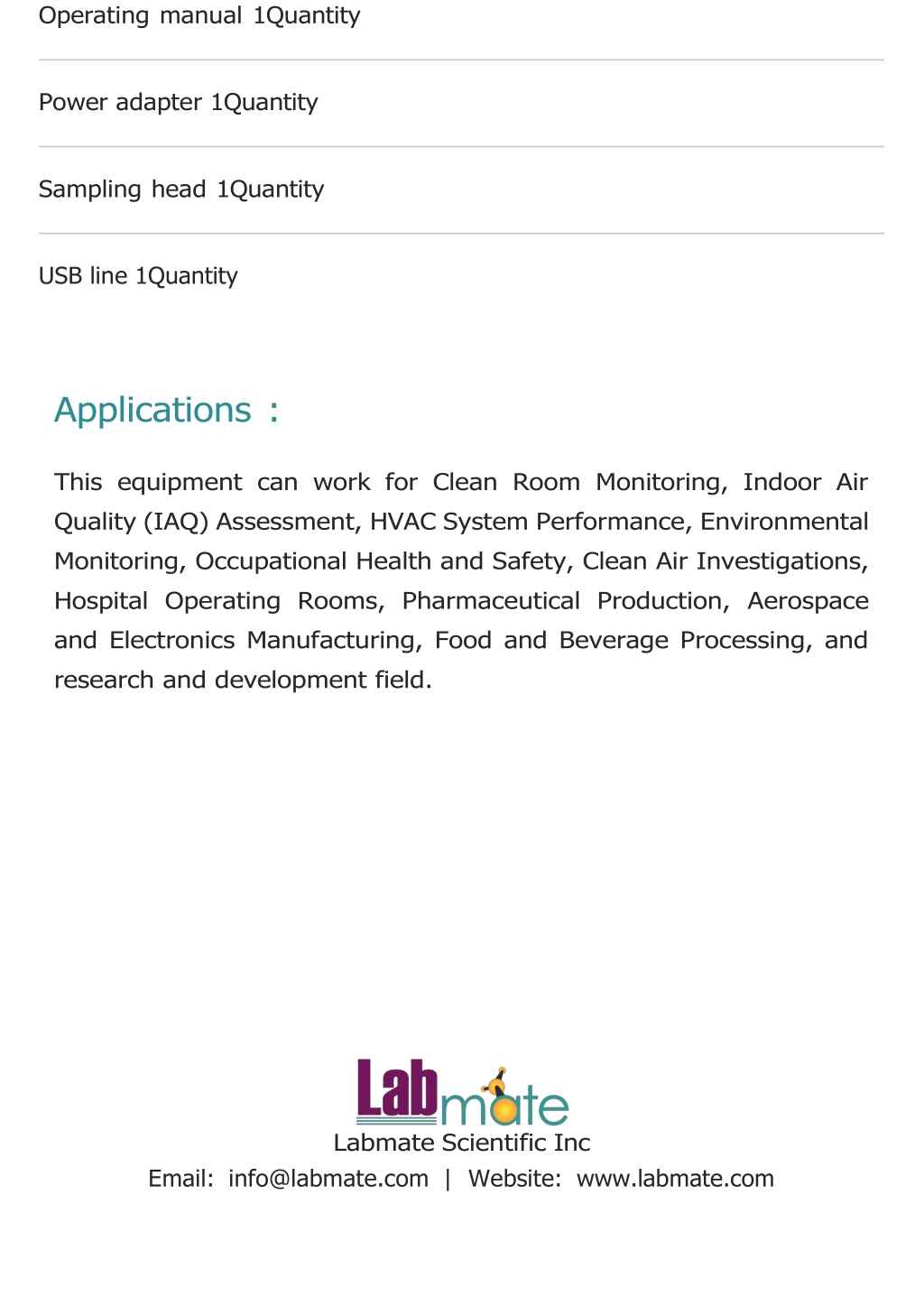

  4. Operating manual 1Quantity Power adapter 1Quantity Sampling head 1Quantity USB line 1Quantity Applications : This equipment can work for Clean Room Monitoring, Indoor Air Quality (IAQ) Assessment, HVAC System Performance, Environmental Monitoring, Occupational Health and Safety, Clean Air Investigations, Hospital Operating Rooms, Pharmaceutical Production, Aerospace and Electronics Manufacturing, Food and Beverage Processing, and research and development field. Labmate Scientific Inc Email: info@labmate.com |Website: www.labmate.com
