Digital Autoclave LMDA A200

Labmate Digital Autoclave is a vertical pulse vacuum steam sterilizer with a 1500L stainless steel chamber and Siemens PLC control. It features an angle valve, water ring vacuum pump, and 0.22u00b5m medical-grade filters. With motorized double doors, it operates at 139u2103 and 0.25 Mpa.<br>

hannacurry
Download Presentation

Digital Autoclave LMDA A200

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

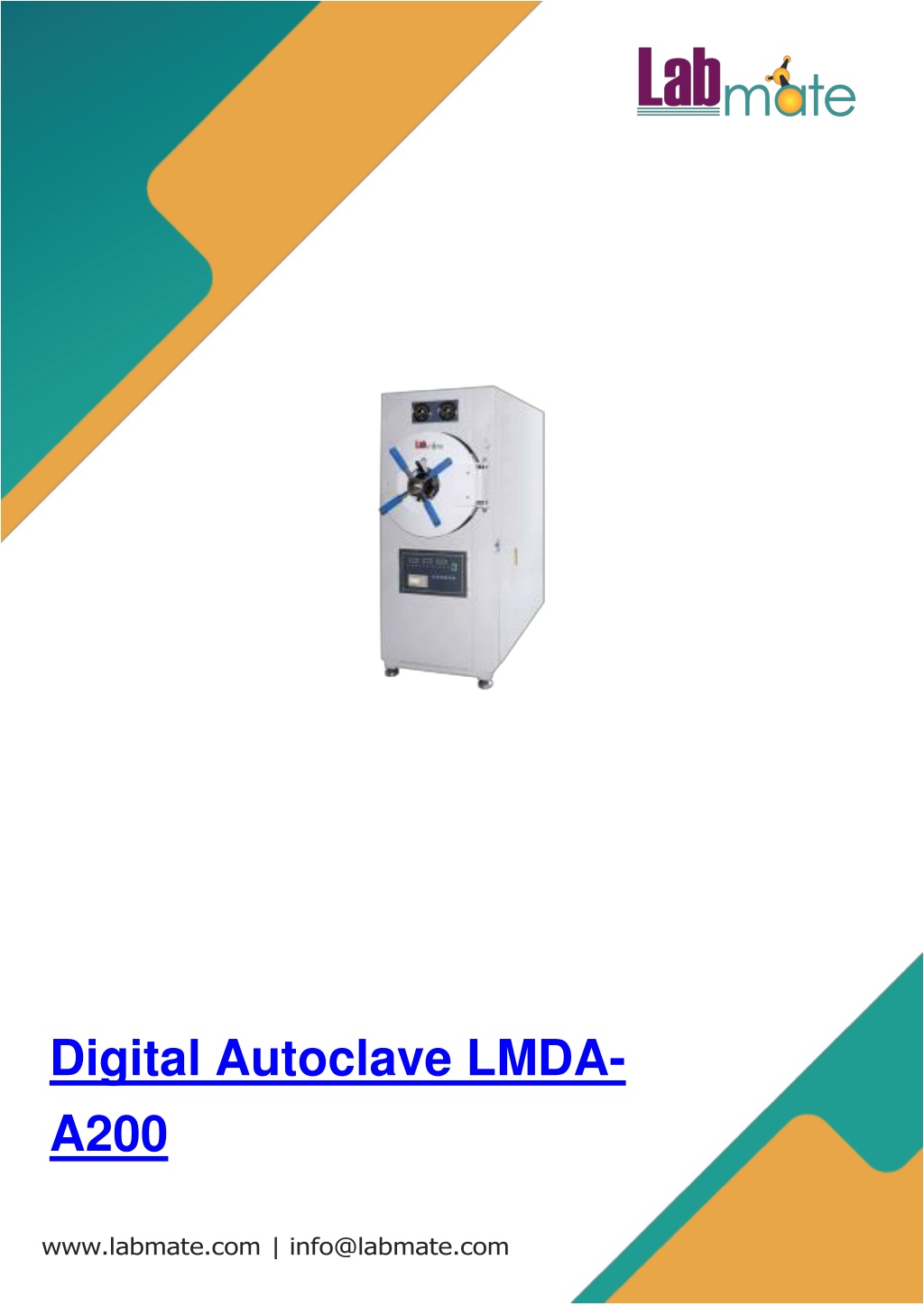

  1. Digital Autoclave LMDA- A200 www.labmate.com | info@labmate.com

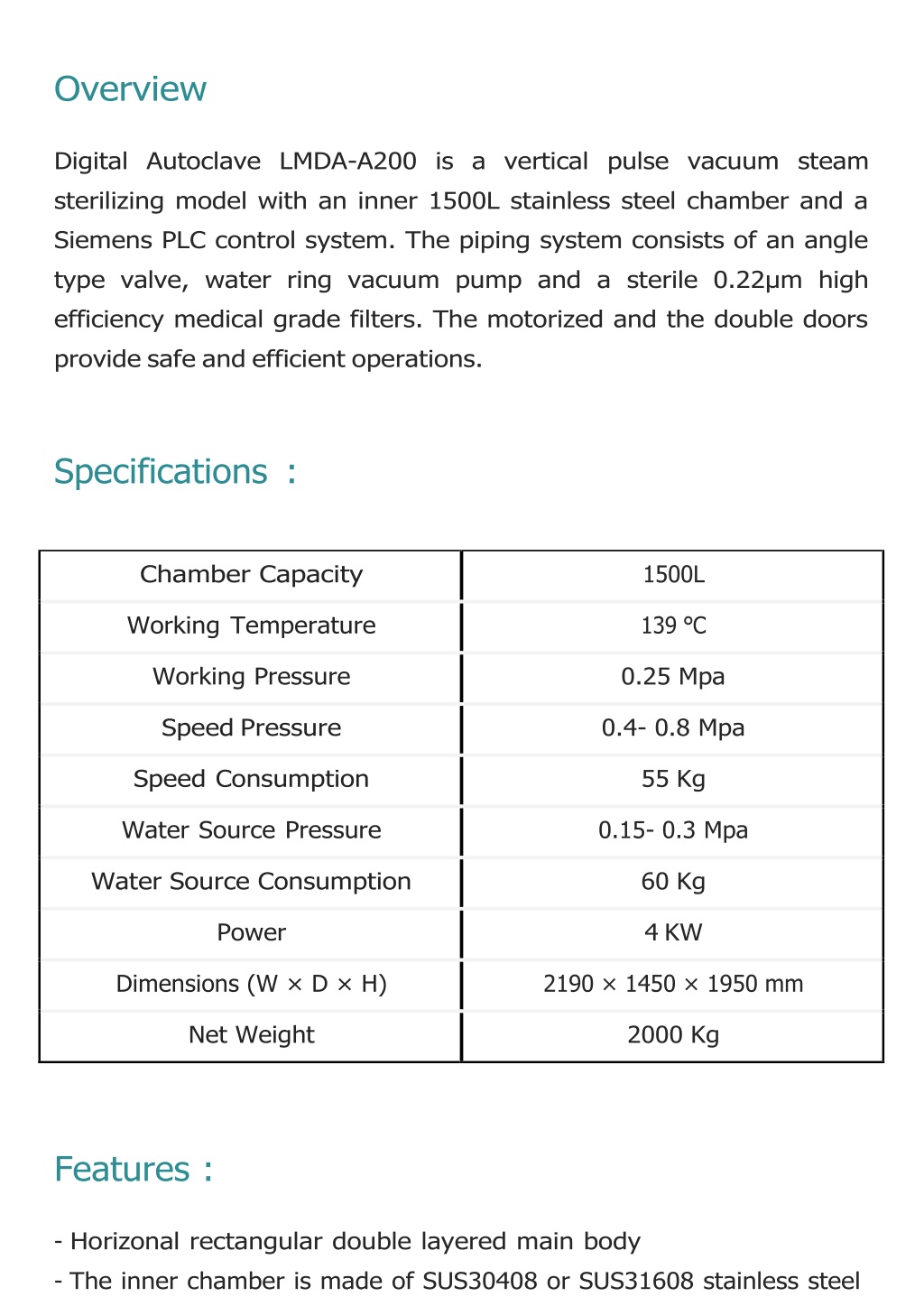

  2. Overview Digital Autoclave LMDA-A200 is a vertical pulse vacuum steam sterilizing model with an inner 1500L stainless steel chamber and a Siemens PLC control system. The piping system consists of an angle type valve, water ring vacuum pump and a sterile 0.22µm high efficiency medical grade filters. The motorized and the double doors provide safe and efficient operations. Specifications : Chamber Capacity 1500L Working Temperature 139 ℃ Working Pressure 0.25 Mpa Speed Pressure 0.4- 0.8 Mpa Speed Consumption 55 Kg Water Source Pressure 0.15- 0.3 Mpa Water Source Consumption 60 Kg Power 4 KW Dimensions (W × D × H) 2190 × 1450 × 1950 mm Net Weight 2000 Kg Features : -Horizonal rectangular double layered main body -The inner chamber is made of SUS30408 or SUS31608 stainless steel

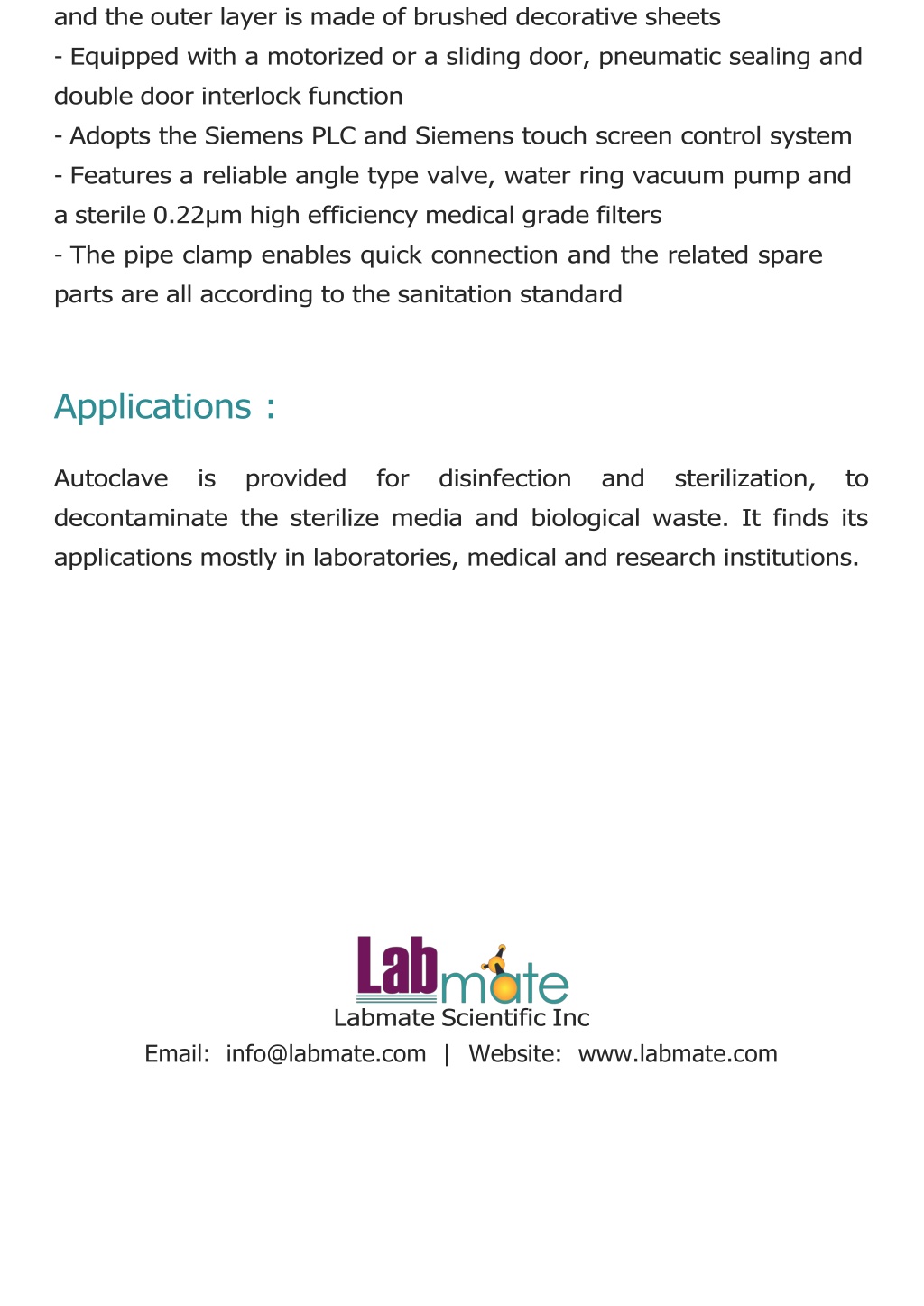

  3. and the outer layer is made of brushed decorative sheets -Equipped with a motorized or a sliding door, pneumatic sealing and double door interlock function -Adopts the Siemens PLC and Siemens touch screen control system -Features a reliable angle type valve, water ring vacuum pump and a sterile 0.22µm high efficiency medical grade filters -The pipe clamp enables quick connection and the related spare parts are all according to the sanitation standard Applications : Autoclave is provided for disinfection and sterilization, to decontaminate the sterilize media and biological waste. It finds its applications mostly in laboratories, medical and research institutions. Labmate Scientific Inc Email: info@labmate.com | Website: www.labmate.com
