Auto Chemistry Analyzer 200

Labmate Auto Chemistry Analyzer is a compact, automated device for testing blood, serum, urine, and plasma. It processes 200 tests/hr with 2-70u00b5l samples, featuring 49 sample positions, 56 reagent positions, and a 20-350u00b5l reagent volume for precise analysis.

hannacurry
Download Presentation

Auto Chemistry Analyzer 200

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

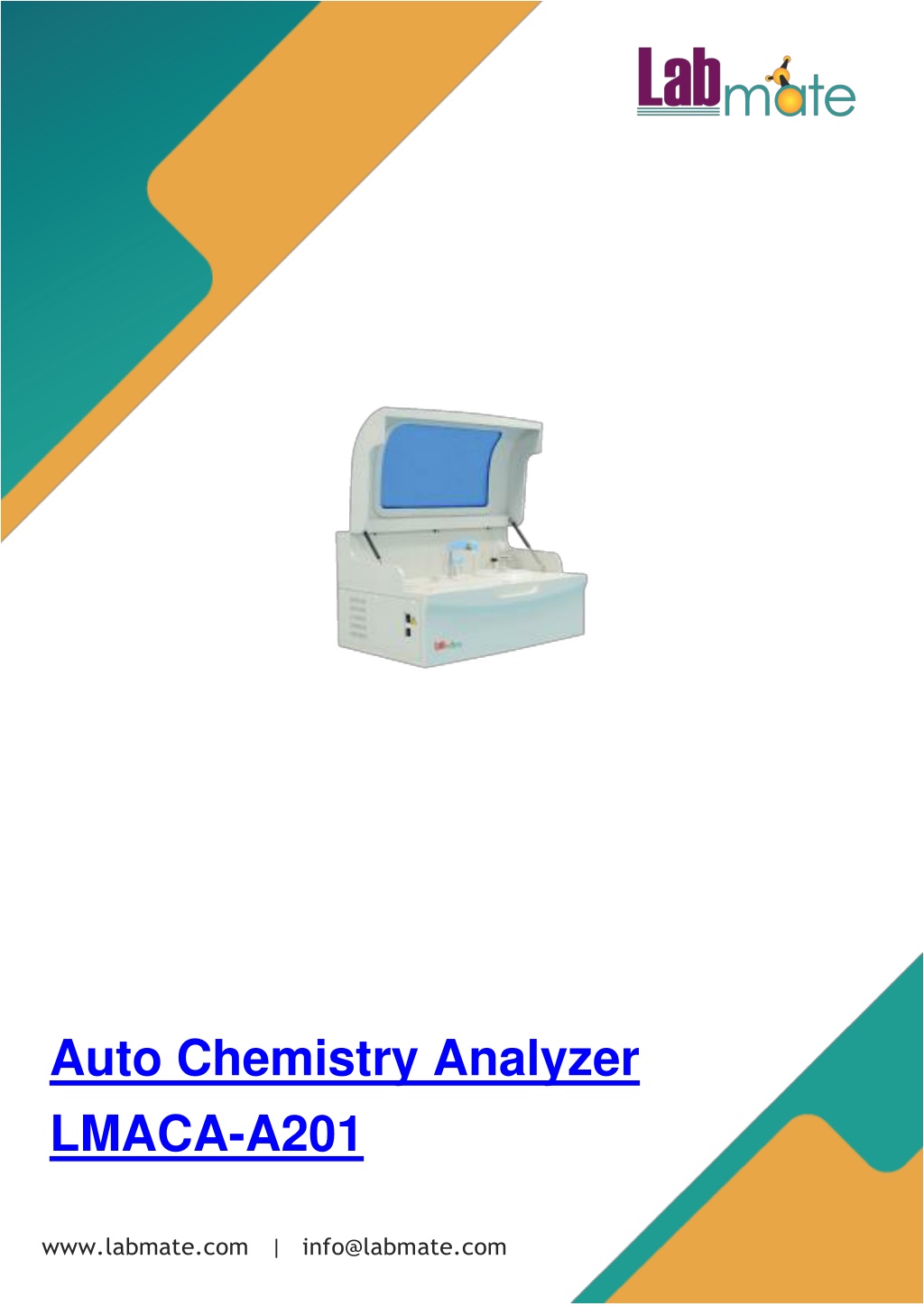

  1. Auto Chemistry Analyzer LMACA-A201 www.labmate.com | info@labmate.com

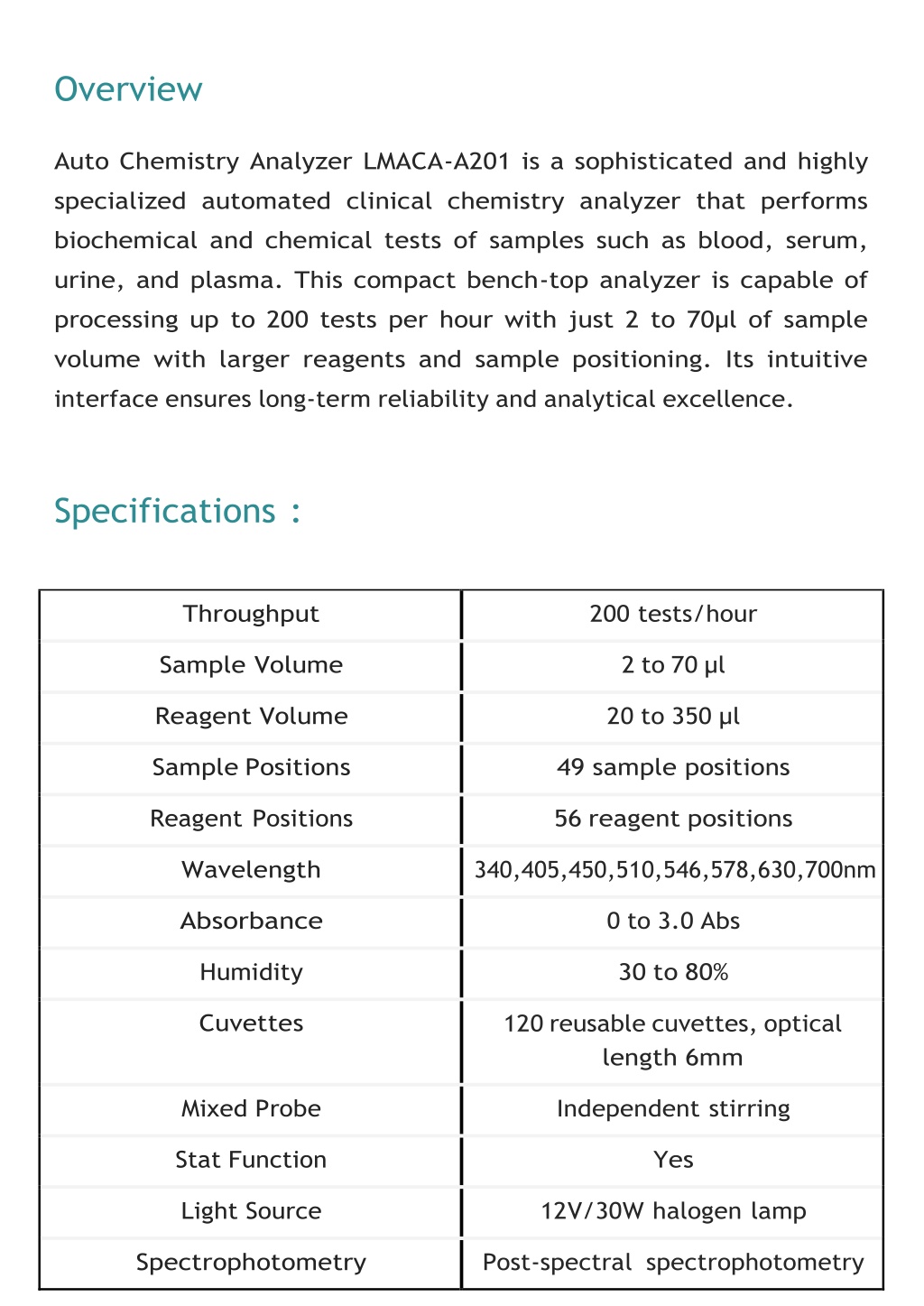

  2. Overview Auto Chemistry Analyzer LMACA-A201 is a sophisticated and highly specialized automated clinical chemistry analyzer that performs biochemical and chemical tests of samples such as blood, serum, urine, and plasma. This compact bench-top analyzer is capable of processing up to 200 tests per hour with just 2 to 70µl of sample volume with larger reagents and sample positioning. Its intuitive interface ensures long-term reliability and analytical excellence. Specifications : Throughput 200 tests/hour Sample Volume 2 to 70 µl Reagent Volume 20 to 350 µl Sample Positions 49 sample positions Reagent Positions 56 reagent positions Wavelength 340,405,450,510,546,578,630,700nm Absorbance 0 to 3.0 Abs Humidity 30 to 80% Cuvettes 120 reusable cuvettes, optical length 6mm Mixed Probe Independent stirring Stat Function Yes Light Source 12V/30W halogen lamp Spectrophotometry Post-spectral spectrophotometry

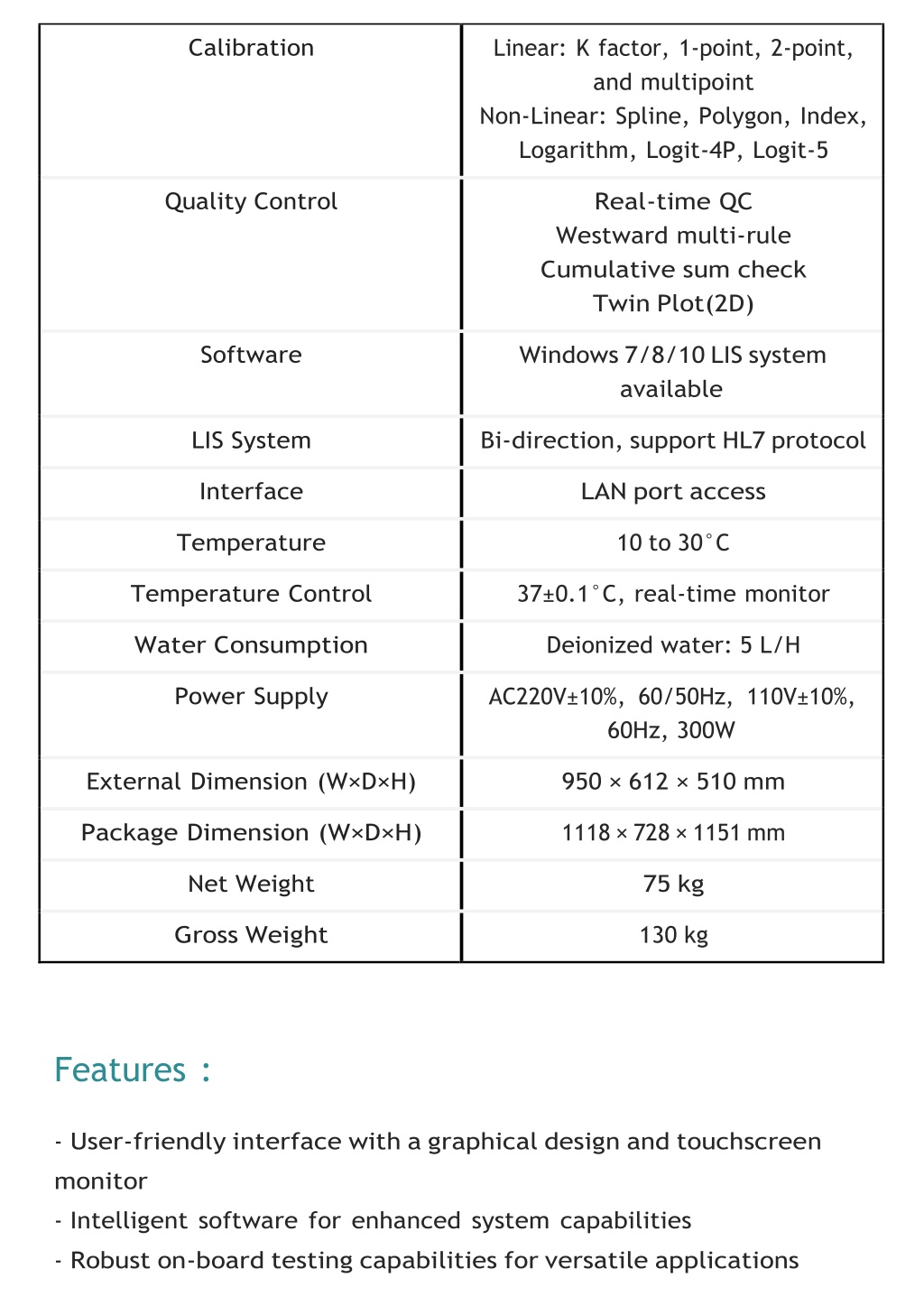

  3. Calibration Linear: K factor, 1-point, 2-point, and multipoint Non-Linear: Spline, Polygon, Index, Logarithm, Logit-4P, Logit-5 Quality Control Real-time QC Westward multi-rule Cumulative sum check Twin Plot(2D) Software Windows 7/8/10 LIS system available LIS System Bi-direction, support HL7 protocol Interface LAN port access Temperature 10 to 30°C Temperature Control 37±0.1°C, real-time monitor Water Consumption Deionized water: 5 L/H Power Supply AC220V±10%, 60/50Hz, 110V±10%, 60Hz, 300W External Dimension (W×D×H) 950 × 612 × 510 mm Package Dimension (W×D×H) 1118 × 728 × 1151 mm Net Weight 75 kg Gross Weight 130 kg Features : -User-friendly interface with a graphical design and touchscreen monitor -Intelligent software for enhanced system capabilities -Robust on-board testing capabilities for versatile applications

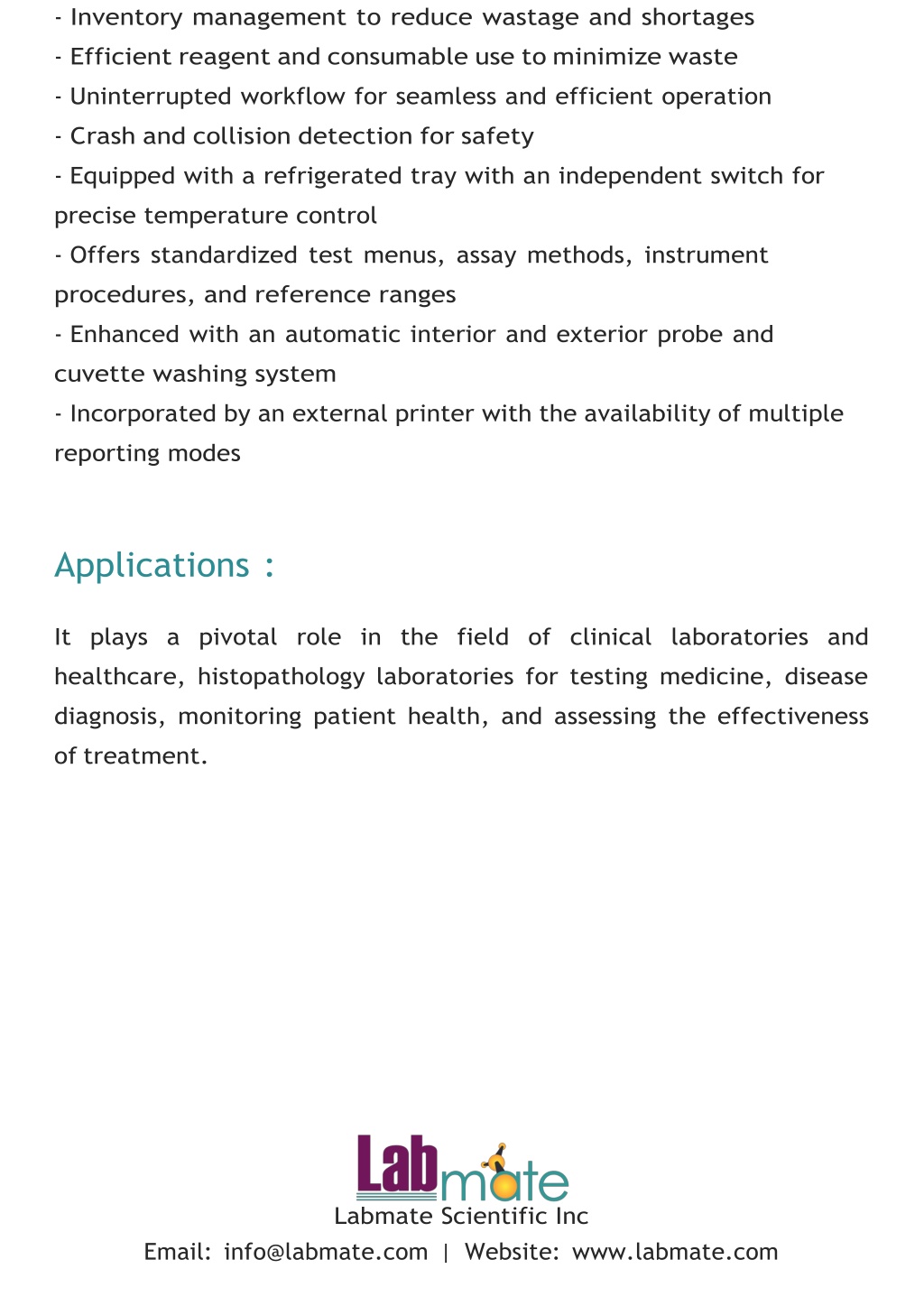

  4. -Inventory management to reduce wastage and shortages -Efficient reagent and consumable use to minimize waste -Uninterrupted workflow for seamless and efficient operation -Crash and collision detection for safety -Equipped with a refrigerated tray with an independent switch for precise temperature control -Offers standardized test menus, assay methods, instrument procedures, and reference ranges -Enhanced with an automatic interior and exterior probe and cuvette washing system -Incorporated by an external printer with the availability of multiple reporting modes Applications : It plays a pivotal role in the field of clinical laboratories and healthcare, histopathology laboratories for testing medicine, disease diagnosis, monitoring patient health, and assessing the effectiveness of treatment. Labmate Scientific Inc Email: info@labmate.com | Website: www.labmate.com
